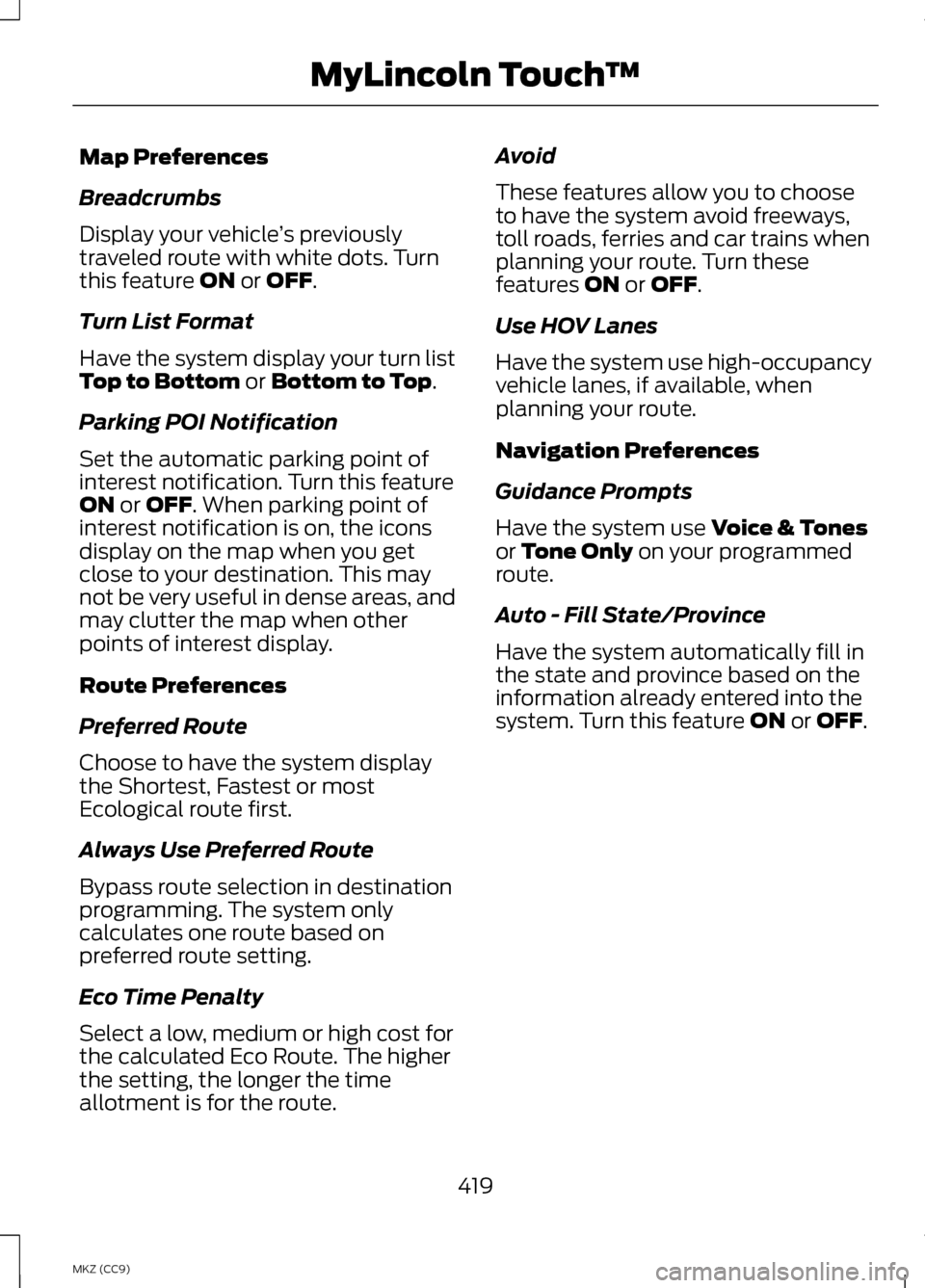

Map Preferences
Breadcrumbs
Display your vehicle
’s previously
traveled route with white dots. Turn
this feature ON or OFF.
Turn List Format
Have the system display your turn list
Top to Bottom
or Bottom to Top.
Parking POI Notification
Set the automatic parking point of
interest notification. Turn this feature
ON
or OFF. When parking point of
interest notification is on, the icons
display on the map when you get
close to your destination. This may
not be very useful in dense areas, and
may clutter the map when other
points of interest display.
Route Preferences
Preferred Route
Choose to have the system display
the Shortest, Fastest or most
Ecological route first.
Always Use Preferred Route
Bypass route selection in destination
programming. The system only
calculates one route based on
preferred route setting.
Eco Time Penalty
Select a low, medium or high cost for
the calculated Eco Route. The higher
the setting, the longer the time
allotment is for the route. Avoid
These features allow you to choose
to have the system avoid freeways,
toll roads, ferries and car trains when
planning your route. Turn these
features
ON or OFF.
Use HOV Lanes
Have the system use high-occupancy
vehicle lanes, if available, when
planning your route.
Navigation Preferences
Guidance Prompts
Have the system use
Voice & Tones
or Tone Only on your programmed
route.
Auto - Fill State/Province
Have the system automatically fill in
the state and province based on the
information already entered into the
system. Turn this feature
ON or OFF.
419
MKZ (CC9) MyLincoln Touch
™

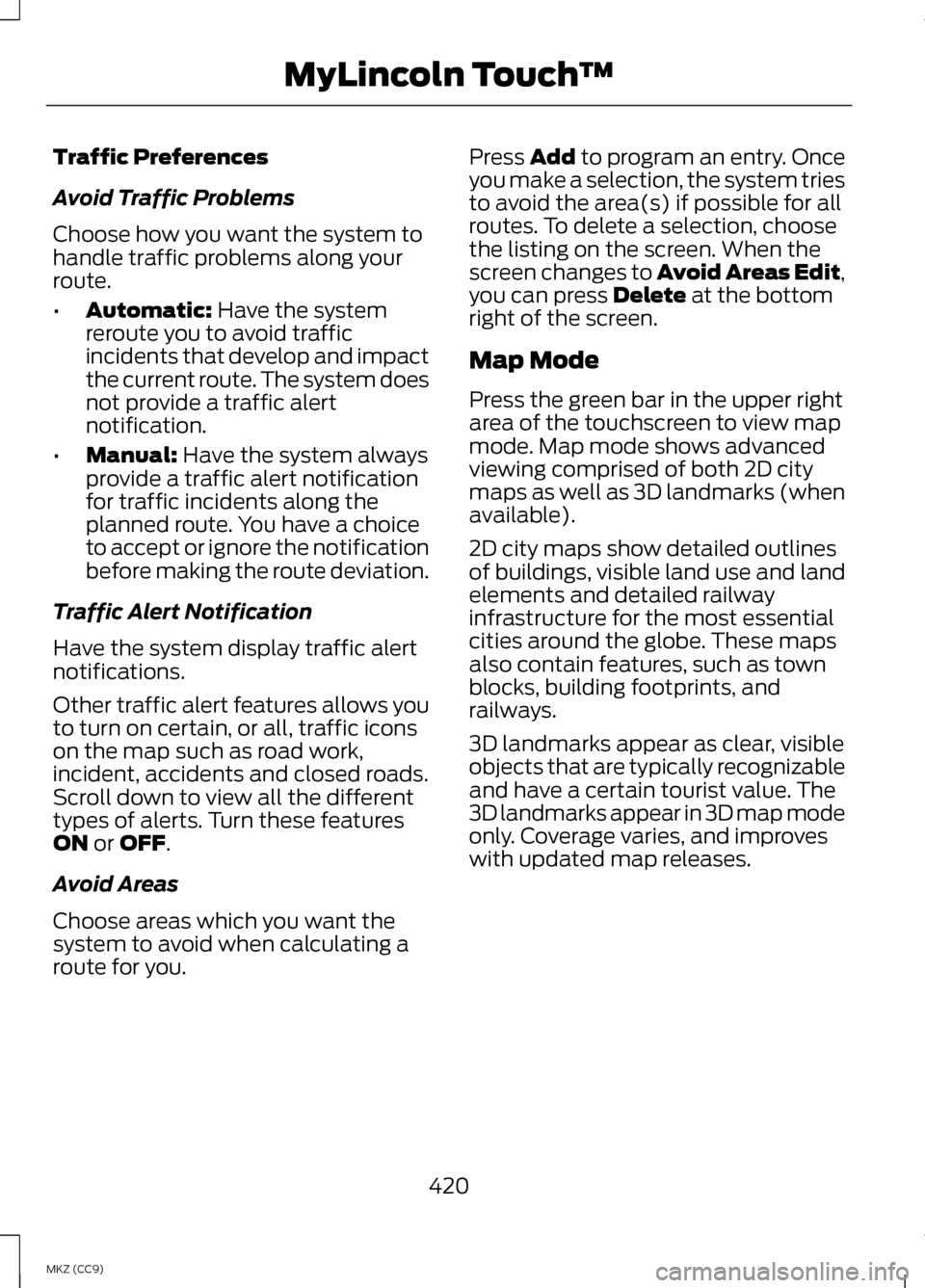

Traffic Preferences
Avoid Traffic Problems
Choose how you want the system to
handle traffic problems along your
route.
•
Automatic: Have the system
reroute you to avoid traffic
incidents that develop and impact
the current route. The system does
not provide a traffic alert
notification.
• Manual:
Have the system always
provide a traffic alert notification
for traffic incidents along the
planned route. You have a choice
to accept or ignore the notification
before making the route deviation.
Traffic Alert Notification
Have the system display traffic alert
notifications.
Other traffic alert features allows you
to turn on certain, or all, traffic icons
on the map such as road work,
incident, accidents and closed roads.
Scroll down to view all the different
types of alerts. Turn these features
ON
or OFF.
Avoid Areas
Choose areas which you want the
system to avoid when calculating a
route for you. Press
Add to program an entry. Once
you make a selection, the system tries
to avoid the area(s) if possible for all
routes. To delete a selection, choose
the listing on the screen. When the
screen changes to Avoid Areas Edit,
you can press
Delete at the bottom
right of the screen.
Map Mode
Press the green bar in the upper right
area of the touchscreen to view map
mode. Map mode shows advanced
viewing comprised of both 2D city
maps as well as 3D landmarks (when
available).
2D city maps show detailed outlines
of buildings, visible land use and land
elements and detailed railway
infrastructure for the most essential
cities around the globe. These maps
also contain features, such as town
blocks, building footprints, and
railways.
3D landmarks appear as clear, visible
objects that are typically recognizable
and have a certain tourist value. The
3D landmarks appear in 3D map mode
only. Coverage varies, and improves
with updated map releases.
420
MKZ (CC9) MyLincoln Touch
™

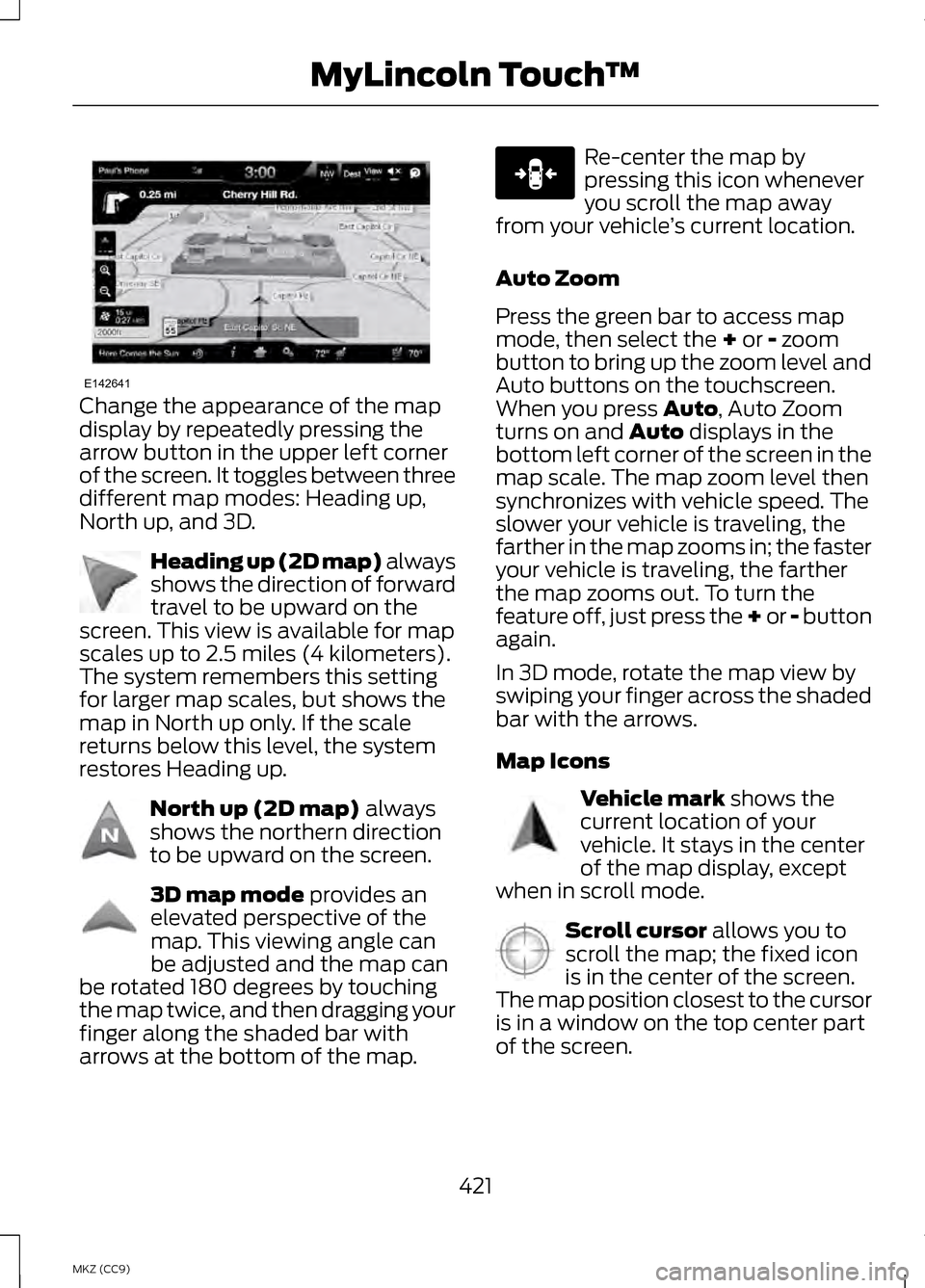

Change the appearance of the map
display by repeatedly pressing the
arrow button in the upper left corner
of the screen. It toggles between three
different map modes: Heading up,
North up, and 3D.
Heading up (2D map) always
shows the direction of forward
travel to be upward on the
screen. This view is available for map
scales up to 2.5 miles (4 kilometers).
The system remembers this setting
for larger map scales, but shows the
map in North up only. If the scale
returns below this level, the system
restores Heading up. North up (2D map) always
shows the northern direction
to be upward on the screen. 3D map mode
provides an
elevated perspective of the
map. This viewing angle can
be adjusted and the map can
be rotated 180 degrees by touching
the map twice, and then dragging your
finger along the shaded bar with
arrows at the bottom of the map. Re-center the map by
pressing this icon whenever
you scroll the map away
from your vehicle ’s current location.
Auto Zoom
Press the green bar to access map
mode, then select the
+ or - zoom
button to bring up the zoom level and
Auto buttons on the touchscreen.
When you press
Auto, Auto Zoom
turns on and Auto displays in the
bottom left corner of the screen in the
map scale. The map zoom level then
synchronizes with vehicle speed. The
slower your vehicle is traveling, the
farther in the map zooms in; the faster
your vehicle is traveling, the farther
the map zooms out. To turn the
feature off, just press the + or - button
again.
In 3D mode, rotate the map view by
swiping your finger across the shaded
bar with the arrows.
Map Icons Vehicle mark
shows the
current location of your
vehicle. It stays in the center
of the map display, except
when in scroll mode. Scroll cursor
allows you to
scroll the map; the fixed icon
is in the center of the screen.
The map position closest to the cursor
is in a window on the top center part
of the screen.
421
MKZ (CC9) MyLincoln Touch
™E142641 E142642 E142643 E142644 E146188 E142646 E142647

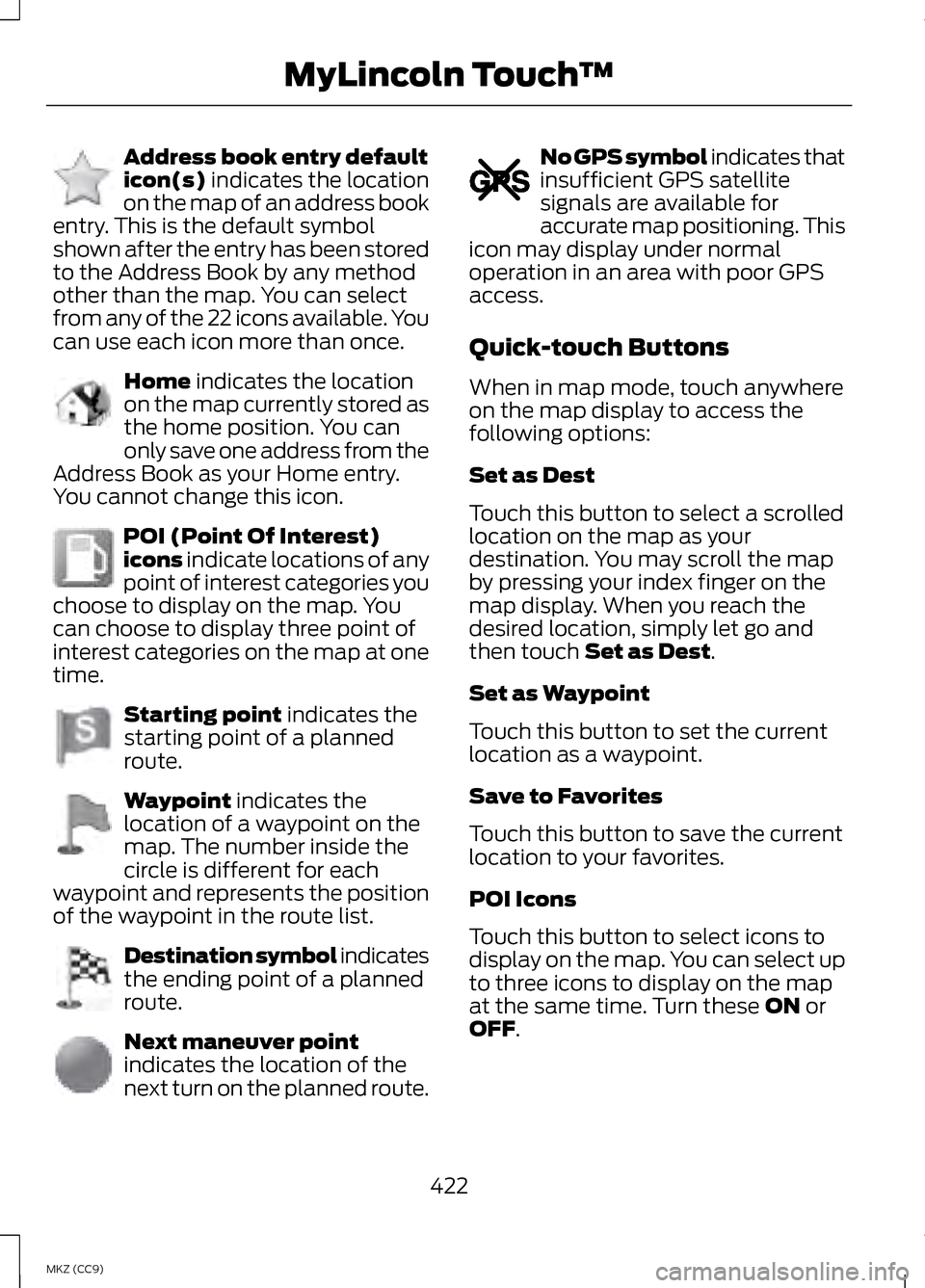

Address book entry default
icon(s) indicates the location
on the map of an address book
entry. This is the default symbol
shown after the entry has been stored
to the Address Book by any method
other than the map. You can select
from any of the 22 icons available. You
can use each icon more than once. Home
indicates the location
on the map currently stored as
the home position. You can
only save one address from the
Address Book as your Home entry.
You cannot change this icon. POI (Point Of Interest)
icons
indicate locations of any
point of interest categories you
choose to display on the map. You
can choose to display three point of
interest categories on the map at one
time. Starting point
indicates the
starting point of a planned
route. Waypoint
indicates the
location of a waypoint on the
map. The number inside the
circle is different for each
waypoint and represents the position
of the waypoint in the route list. Destination symbol indicates
the ending point of a planned
route.
Next maneuver point
indicates the location of the
next turn on the planned route. No GPS symbol indicates that
insufficient GPS satellite
signals are available for
accurate map positioning. This
icon may display under normal
operation in an area with poor GPS
access.
Quick-touch Buttons
When in map mode, touch anywhere
on the map display to access the
following options:
Set as Dest
Touch this button to select a scrolled
location on the map as your
destination. You may scroll the map
by pressing your index finger on the
map display. When you reach the
desired location, simply let go and
then touch
Set as Dest.
Set as Waypoint
Touch this button to set the current
location as a waypoint.
Save to Favorites
Touch this button to save the current
location to your favorites.
POI Icons
Touch this button to select icons to
display on the map. You can select up
to three icons to display on the map
at the same time. Turn these
ON or
OFF.
422
MKZ (CC9) MyLincoln Touch
™E142648 E142649 E142650 E142651 E142652 E142653 E142654 E142655

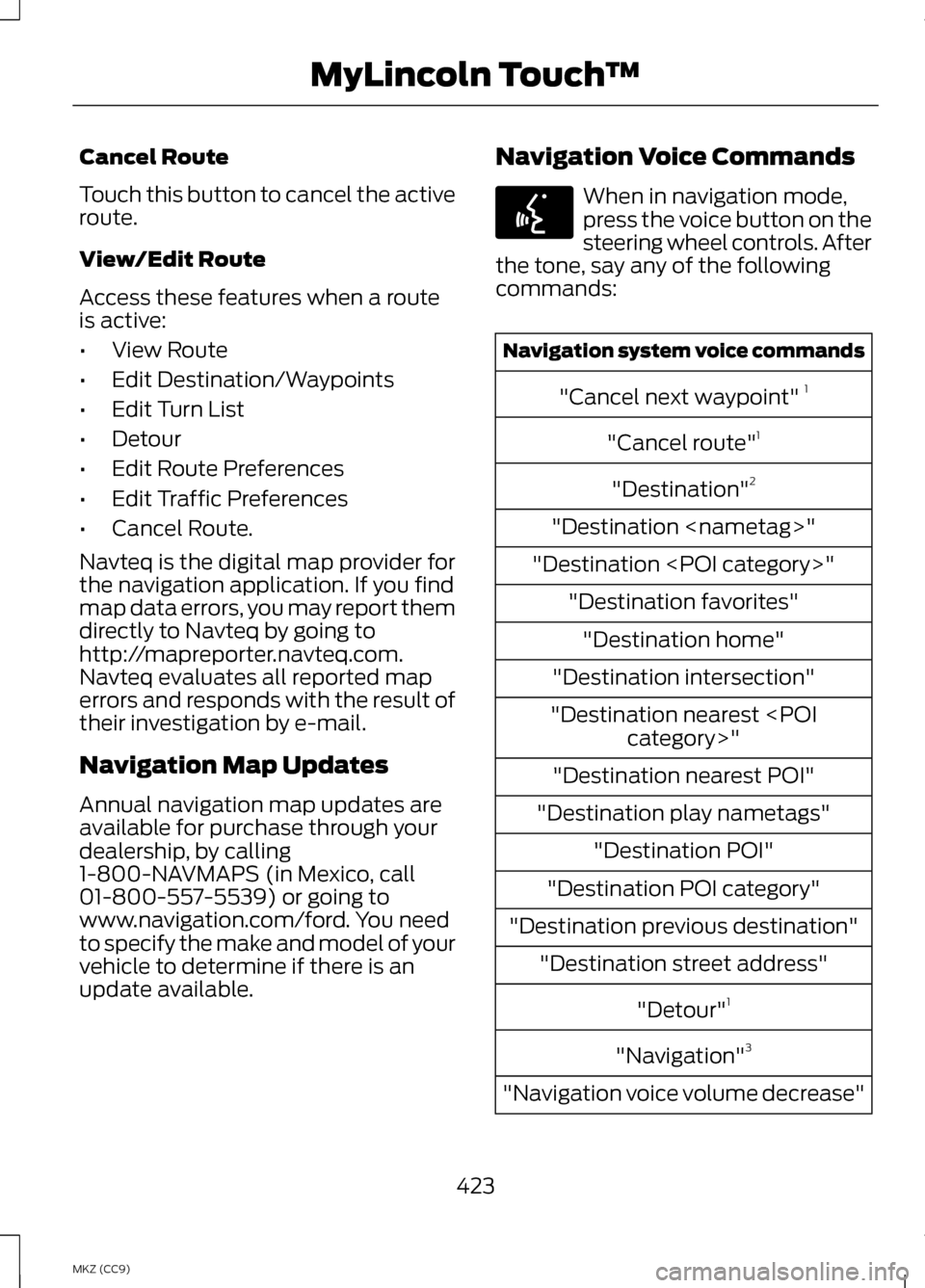

Cancel Route
Touch this button to cancel the active
route.
View/Edit Route
Access these features when a route
is active:
•
View Route
• Edit Destination/Waypoints
• Edit Turn List
• Detour
• Edit Route Preferences
• Edit Traffic Preferences
• Cancel Route.
Navteq is the digital map provider for
the navigation application. If you find
map data errors, you may report them
directly to Navteq by going to
http://mapreporter.navteq.com.
Navteq evaluates all reported map
errors and responds with the result of
their investigation by e-mail.
Navigation Map Updates
Annual navigation map updates are
available for purchase through your
dealership, by calling
1-800-NAVMAPS (in Mexico, call
01-800-557-5539) or going to
www.navigation.com/ford. You need
to specify the make and model of your
vehicle to determine if there is an
update available. Navigation Voice Commands When in navigation mode,
press the voice button on the
steering wheel controls. After
the tone, say any of the following
commands: Navigation system voice commands
"Cancel next waypoint" 1
"Cancel route" 1
"Destination" 2
"Destination "
"Destination " "Destination favorites""Destination home"
"Destination intersection"
"Destination nearest "
"Destination nearest POI"
"Destination play nametags" "Destination POI"
"Destination POI category"
"Destination previous destination" "Destination street address"
"Detour"1
"Navigation" 3
"Navigation voice volume decrease"
423
MKZ (CC9) MyLincoln Touch
™E142599

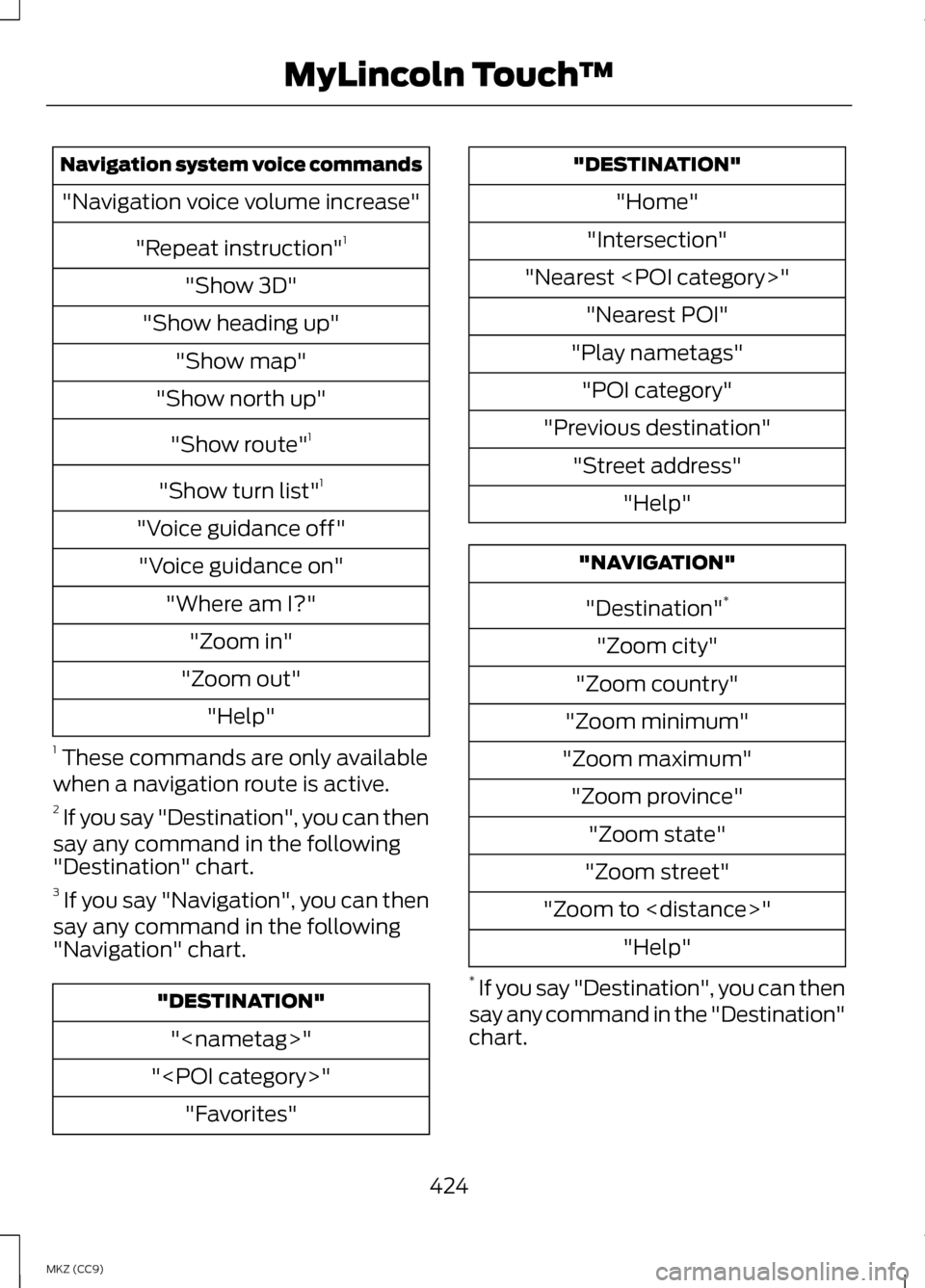

Navigation system voice commands
"Navigation voice volume increase"
"Repeat instruction" 1
"Show 3D"
"Show heading up" "Show map"
"Show north up"
"Show route" 1
"Show turn list" 1
"Voice guidance off" "Voice guidance on" "Where am I?""Zoom in"
"Zoom out" "Help"
1 These commands are only available
when a navigation route is active.
2 If you say "Destination", you can then
say any command in the following
"Destination" chart.
3 If you say "Navigation", you can then
say any command in the following
"Navigation" chart. "DESTINATION"
""
"" "Favorites" "DESTINATION"
"Home"
"Intersection"
"Nearest " "Nearest POI"
"Play nametags" "POI category"
"Previous destination" "Street address" "Help" "NAVIGATION"
"Destination" *
"Zoom city"
"Zoom country"
"Zoom minimum"
"Zoom maximum" "Zoom province" "Zoom state"
"Zoom street"
"Zoom to " "Help"
* If you say "Destination", you can then
say any command in the "Destination"
chart.
424
MKZ (CC9) MyLincoln Touch
™

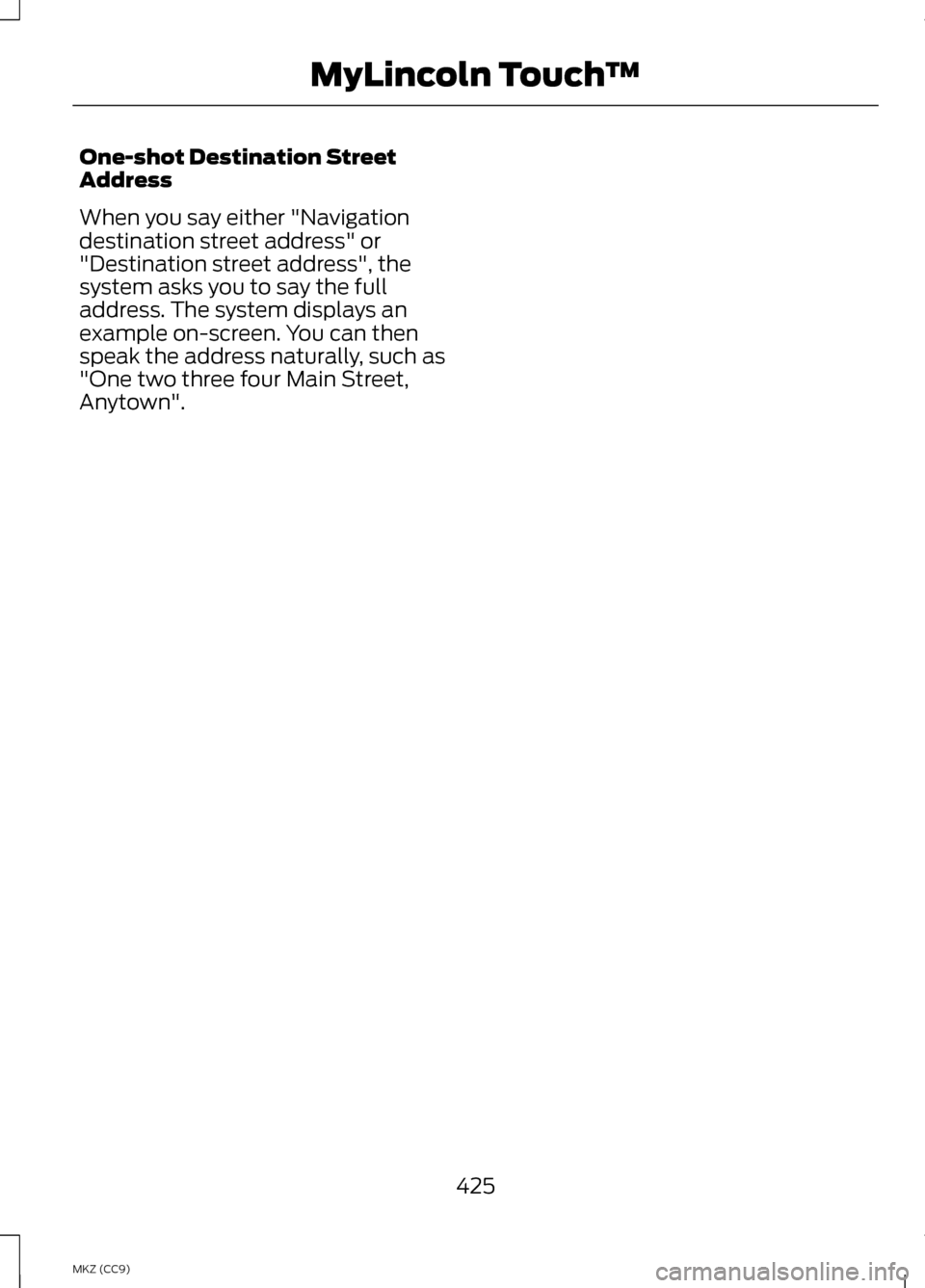

One-shot Destination Street
Address
When you say either "Navigation
destination street address" or
"Destination street address", the
system asks you to say the full
address. The system displays an
example on-screen. You can then
speak the address naturally, such as
"One two three four Main Street,
Anytown".
425
MKZ (CC9) MyLincoln Touch
™

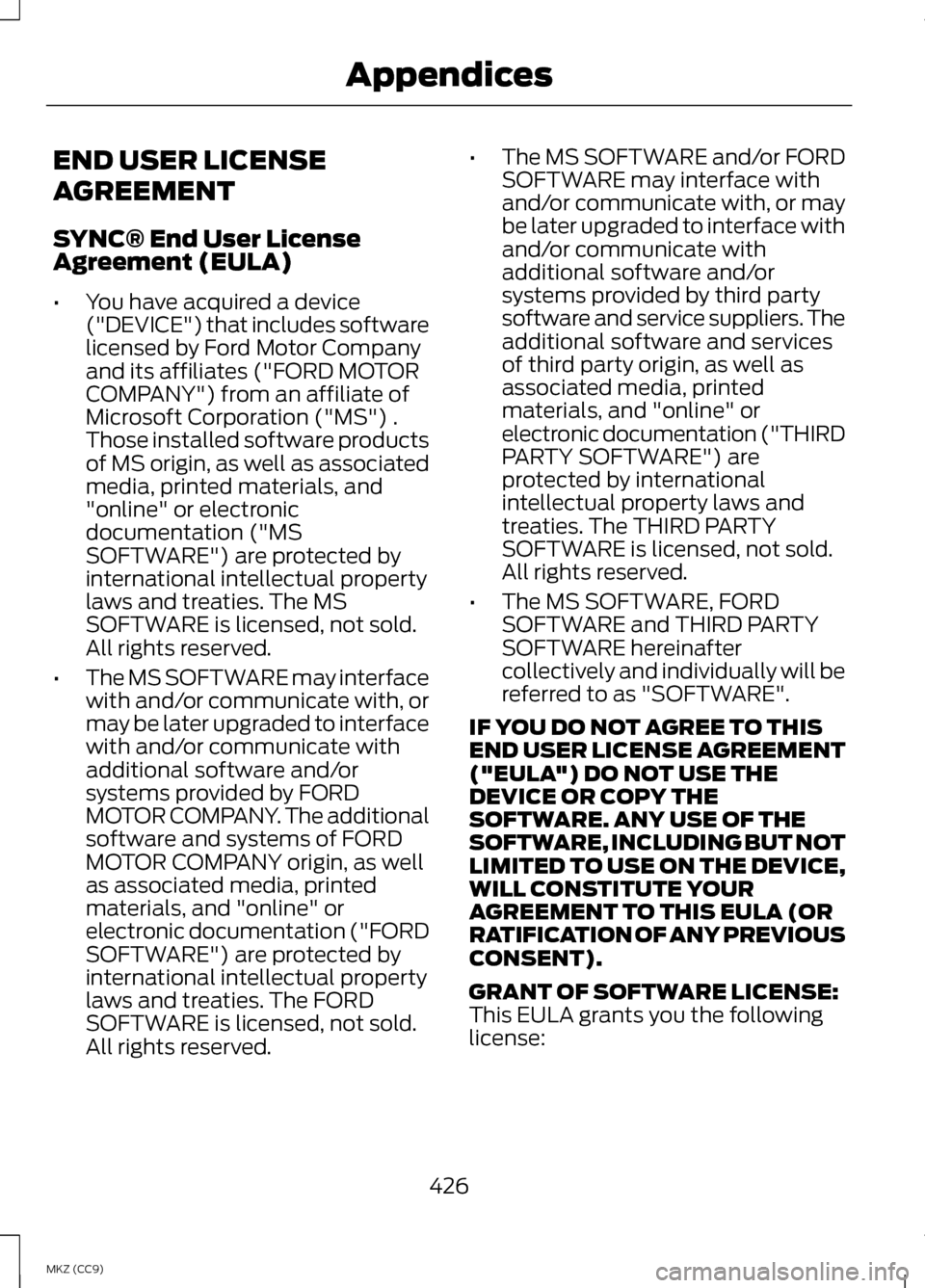

END USER LICENSE
AGREEMENT
SYNC® End User License
Agreement (EULA)
•
You have acquired a device
("DEVICE") that includes software
licensed by Ford Motor Company
and its affiliates ("FORD MOTOR
COMPANY") from an affiliate of
Microsoft Corporation ("MS") .
Those installed software products
of MS origin, as well as associated
media, printed materials, and
"online" or electronic
documentation ("MS
SOFTWARE") are protected by
international intellectual property
laws and treaties. The MS
SOFTWARE is licensed, not sold.
All rights reserved.
• The MS SOFTWARE may interface
with and/or communicate with, or
may be later upgraded to interface
with and/or communicate with
additional software and/or
systems provided by FORD
MOTOR COMPANY. The additional
software and systems of FORD
MOTOR COMPANY origin, as well
as associated media, printed
materials, and "online" or
electronic documentation ("FORD
SOFTWARE") are protected by
international intellectual property
laws and treaties. The FORD
SOFTWARE is licensed, not sold.
All rights reserved. •
The MS SOFTWARE and/or FORD
SOFTWARE may interface with
and/or communicate with, or may
be later upgraded to interface with
and/or communicate with
additional software and/or
systems provided by third party
software and service suppliers. The
additional software and services
of third party origin, as well as
associated media, printed
materials, and "online" or
electronic documentation ("THIRD
PARTY SOFTWARE") are
protected by international
intellectual property laws and
treaties. The THIRD PARTY
SOFTWARE is licensed, not sold.
All rights reserved.
• The MS SOFTWARE, FORD
SOFTWARE and THIRD PARTY
SOFTWARE hereinafter
collectively and individually will be
referred to as "SOFTWARE".
IF YOU DO NOT AGREE TO THIS
END USER LICENSE AGREEMENT
("EULA") DO NOT USE THE
DEVICE OR COPY THE
SOFTWARE. ANY USE OF THE
SOFTWARE, INCLUDING BUT NOT
LIMITED TO USE ON THE DEVICE,
WILL CONSTITUTE YOUR
AGREEMENT TO THIS EULA (OR
RATIFICATION OF ANY PREVIOUS
CONSENT).
GRANT OF SOFTWARE LICENSE:
This EULA grants you the following
license:
426
MKZ (CC9) Appendices

•

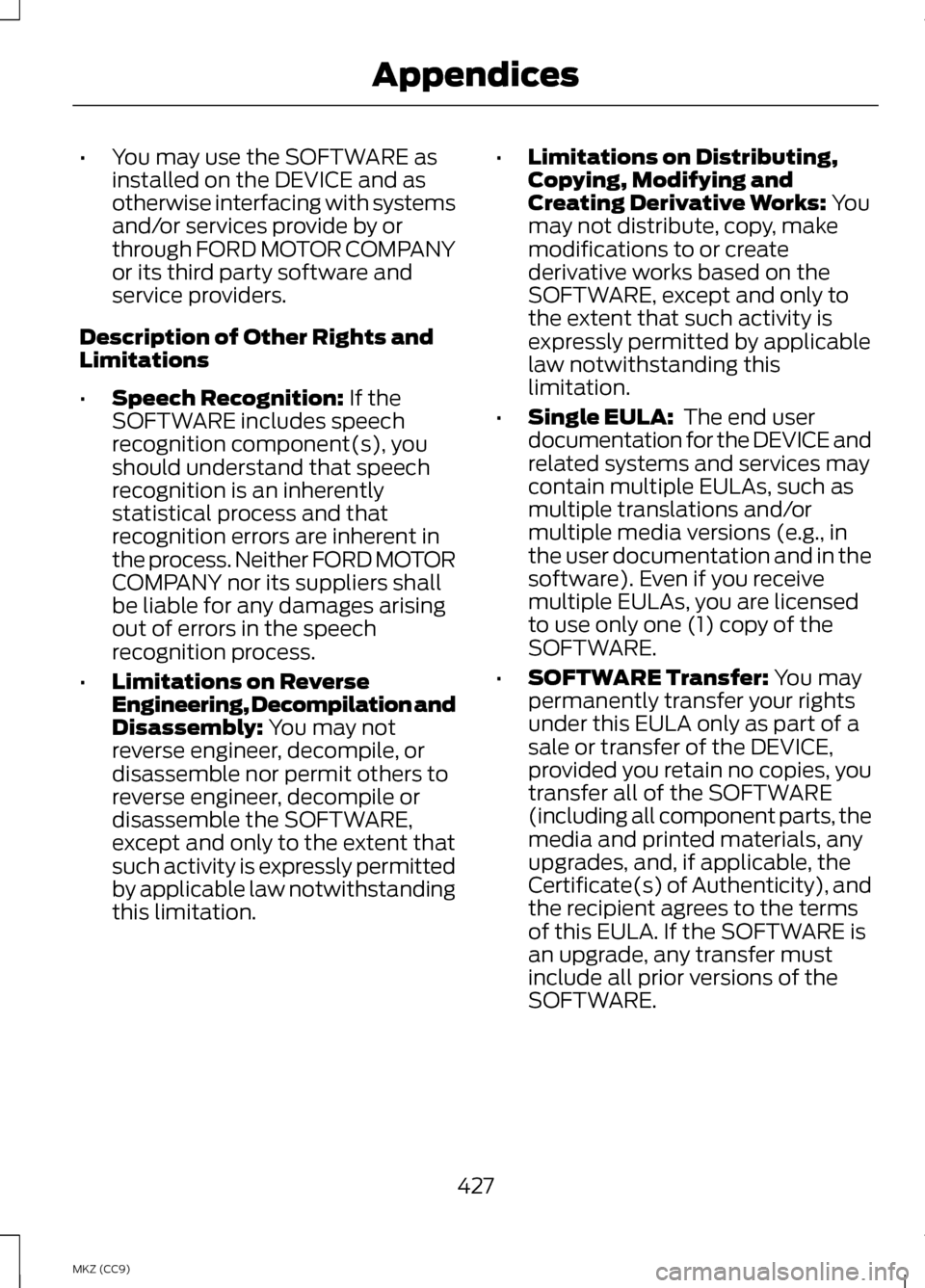

You may use the SOFTWARE as
installed on the DEVICE and as
otherwise interfacing with systems
and/or services provide by or
through FORD MOTOR COMPANY
or its third party software and
service providers.
Description of Other Rights and
Limitations
• Speech Recognition: If the
SOFTWARE includes speech
recognition component(s), you
should understand that speech
recognition is an inherently
statistical process and that
recognition errors are inherent in
the process. Neither FORD MOTOR
COMPANY nor its suppliers shall
be liable for any damages arising
out of errors in the speech
recognition process.
• Limitations on Reverse
Engineering, Decompilation and
Disassembly:
You may not
reverse engineer, decompile, or
disassemble nor permit others to
reverse engineer, decompile or
disassemble the SOFTWARE,
except and only to the extent that
such activity is expressly permitted
by applicable law notwithstanding
this limitation. •
Limitations on Distributing,
Copying, Modifying and
Creating Derivative Works:
You
may not distribute, copy, make
modifications to or create
derivative works based on the
SOFTWARE, except and only to
the extent that such activity is
expressly permitted by applicable
law notwithstanding this
limitation.
• Single EULA:
The end user
documentation for the DEVICE and
related systems and services may
contain multiple EULAs, such as
multiple translations and/or
multiple media versions (e.g., in
the user documentation and in the
software). Even if you receive
multiple EULAs, you are licensed
to use only one (1) copy of the
SOFTWARE.
• SOFTWARE Transfer:
You may
permanently transfer your rights
under this EULA only as part of a
sale or transfer of the DEVICE,
provided you retain no copies, you
transfer all of the SOFTWARE
(including all component parts, the
media and printed materials, any
upgrades, and, if applicable, the
Certificate(s) of Authenticity), and
the recipient agrees to the terms
of this EULA. If the SOFTWARE is
an upgrade, any transfer must
include all prior versions of the
SOFTWARE.
427
MKZ (CC9) Appendices

•
Termination: Without prejudice
to any other rights, FORD MOTOR
COMPANY or MS may terminate
this EULA if you fail to comply with
the terms and conditions of this
EULA.
• Security Updates/Digital
Rights Management:
Content
owners use the WMDRM
technology included in your
DEVICE to protect their intellectual
property, included copyrighted
content. Portions of the
SOFTWARE on your DEVICE use
WMDRM software to access
WMDRM-protected content. If the
WMDRM software fails to protect
the content, content owners may
ask Microsoft to revoke the
SOFTWARE's ability to use
WMDRM to play or copy protected
content. This action does not
affect unprotected content. When
your DEVICE downloads licenses
for protected content, you agree
that Microsoft may include a
revocation list with the licenses.
Content owners may require you
to upgrade the SOFTWARE on
your DEVICE to access their
content. If you decline an upgrade,
you will not be able to access
content that requires the upgrade.
• Consent to Use of Data:
You
agree that MS, Microsoft
Corporation, FORD MOTOR
COMPANY, third party software
and systems suppliers, their
affiliates and/or their designated
agent may collect and use
technical information gathered in
any manner as part of product support services related to the
SOFTWARE or related services.
MS, Microsoft Corporation, FORD
MOTOR COMPANY, third party
software and services suppliers,
their affiliates and/or their
designated agent may use this
information solely to improve their
products or to provide customized
services or technologies to you.
MS, Microsoft Corporation, FORD
MOTOR COMPANY, third party
software and systems suppliers,
their affiliates and/or their
designated agent may disclose this
information to others, but not in a
form that personally identifies you.
• Internet-Based Services
Components:
The SOFTWARE
may contain components that
enable and facilitate the use of
certain Internet-based services.
You acknowledge and agree that
MS, Microsoft Corporation, FORD
MOTOR COMPANY, third party
software and service suppliers,
their affiliates and/or their
designated agent may
automatically check the version of
the SOFTWARE and/or its
components that you are utilizing
and may provide upgrades or
supplements to the SOFTWARE
that may be automatically
downloaded to your DEVICE.
• Additional Software/Services:
The SOFTWARE may permit FORD
MOTOR COMPANY, third party
software and service suppliers, MS,
Microsoft Corporation, their
affiliates and/or their designated
agent to provide or make available
428
MKZ (CC9) Appendices
