LINCOLN MKZ HYBRID 2013 Owners Manual

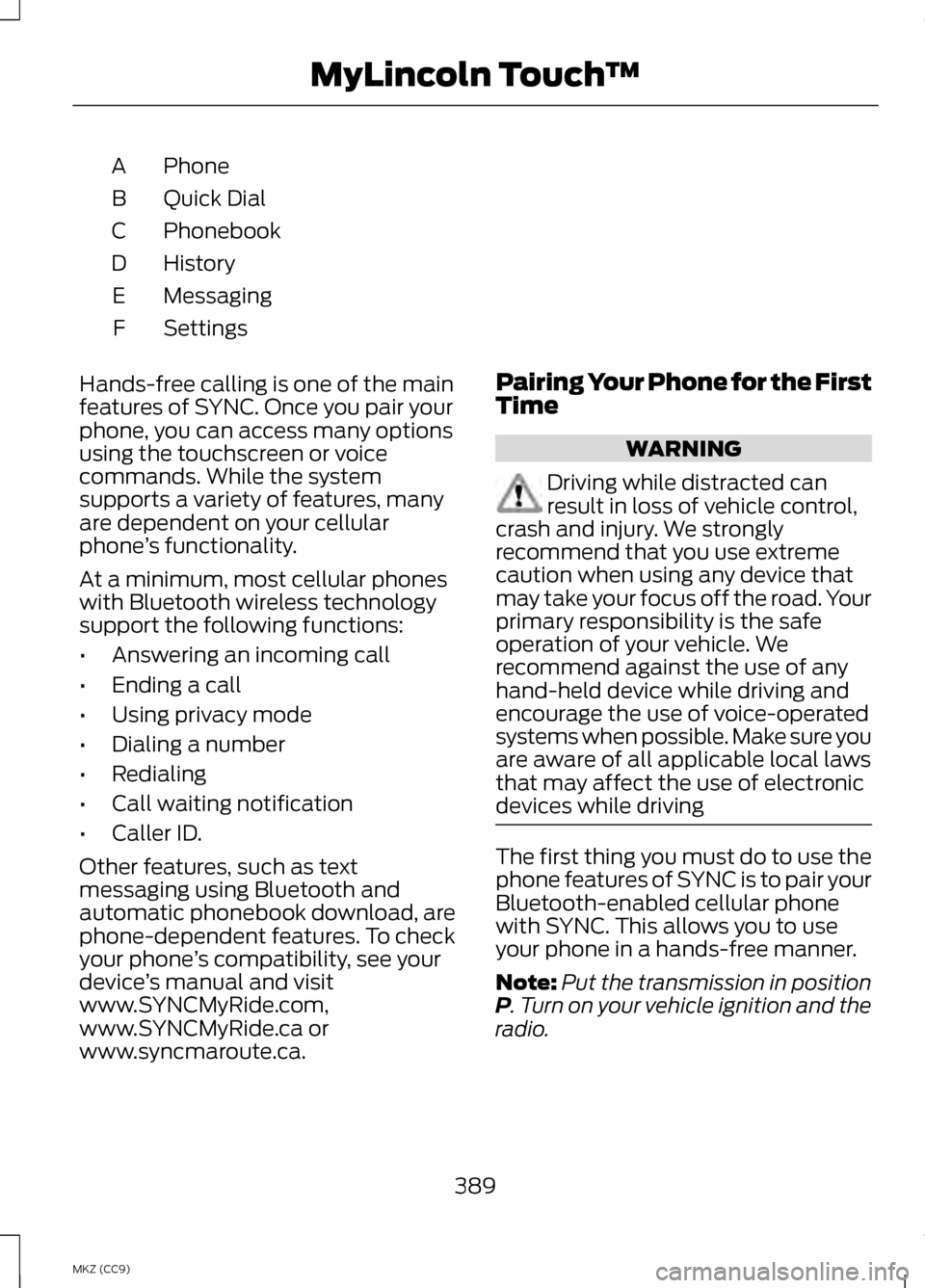

Phone
A
Quick Dial
B
Phonebook
C
History
D
Messaging
E
Settings
F
Hands-free calling is one of the main
features of SYNC. Once you pair your
phone, you can access many options
using the touchscreen or voice
commands. While the system
supports a variety of features, many
are dependent on your cellular
phone ’s functionality.
At a minimum, most cellular phones
with Bluetooth wireless technology
support the following functions:
• Answering an incoming call
• Ending a call
• Using privacy mode
• Dialing a number
• Redialing
• Call waiting notification
• Caller ID.
Other features, such as text
messaging using Bluetooth and
automatic phonebook download, are
phone-dependent features. To check
your phone ’s compatibility, see your
device ’s manual and visit
www.SYNCMyRide.com,
www.SYNCMyRide.ca or
www.syncmaroute.ca. Pairing Your Phone for the First
Time WARNING
Driving while distracted can
result in loss of vehicle control,
crash and injury. We strongly
recommend that you use extreme
caution when using any device that
may take your focus off the road. Your
primary responsibility is the safe
operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving The first thing you must do to use the
phone features of SYNC is to pair your
Bluetooth-enabled cellular phone
with SYNC. This allows you to use
your phone in a hands-free manner.
Note:
Put the transmission in position
P. Turn on your vehicle ignition and the
radio.
389
MKZ (CC9) MyLincoln Touch
™

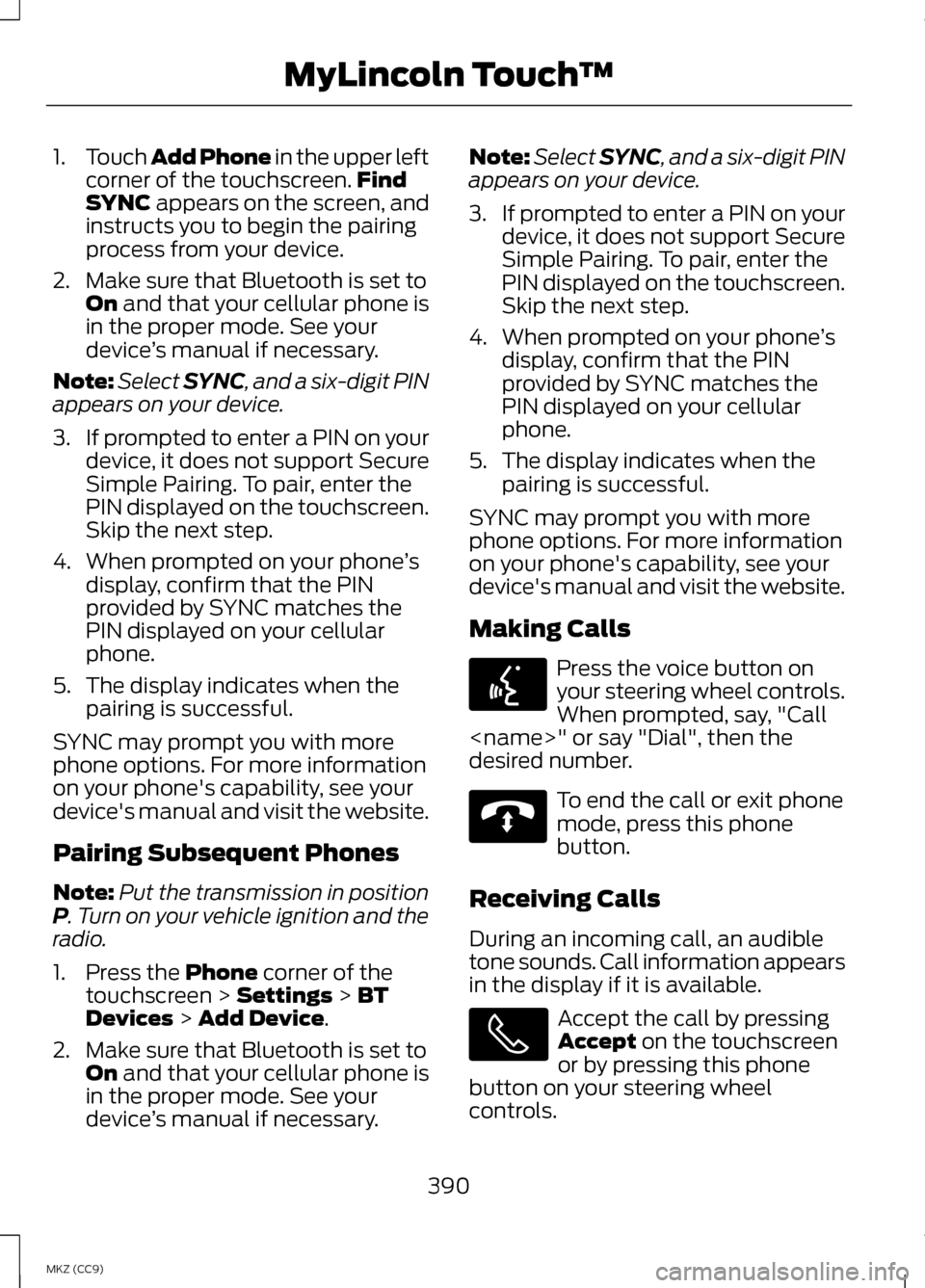

1.
Touch Add Phone in the upper left
corner of the touchscreen. Find
SYNC appears on the screen, and
instructs you to begin the pairing
process from your device.
2. Make sure that Bluetooth is set to On
and that your cellular phone is
in the proper mode. See your
device ’s manual if necessary.
Note: Select SYNC, and a six-digit PIN
appears on your device.
3. If prompted to enter a PIN on your
device, it does not support Secure
Simple Pairing. To pair, enter the
PIN displayed on the touchscreen.
Skip the next step.
4. When prompted on your phone ’s
display, confirm that the PIN
provided by SYNC matches the
PIN displayed on your cellular
phone.
5. The display indicates when the pairing is successful.
SYNC may prompt you with more
phone options. For more information
on your phone's capability, see your
device's manual and visit the website.
Pairing Subsequent Phones
Note: Put the transmission in position
P
. Turn on your vehicle ignition and the
radio.
1. Press the
Phone corner of the
touchscreen > Settings > BT
Devices > Add Device.
2. Make sure that Bluetooth is set to On
and that your cellular phone is
in the proper mode. See your
device ’s manual if necessary. Note:
Select SYNC, and a six-digit PIN
appears on your device.
3. If prompted to enter a PIN on your
device, it does not support Secure
Simple Pairing. To pair, enter the
PIN displayed on the touchscreen.
Skip the next step.
4. When prompted on your phone ’s
display, confirm that the PIN
provided by SYNC matches the
PIN displayed on your cellular
phone.
5. The display indicates when the pairing is successful.
SYNC may prompt you with more
phone options. For more information
on your phone's capability, see your
device's manual and visit the website.
Making Calls Press the voice button on
your steering wheel controls.
When prompted, say, "Call
" or say "Dial", then the
desired number. To end the call or exit phone
mode, press this phone
button.
Receiving Calls
During an incoming call, an audible
tone sounds. Call information appears
in the display if it is available. Accept the call by pressing
Accept
on the touchscreen
or by pressing this phone
button on your steering wheel
controls.
390
MKZ (CC9) MyLincoln Touch
™E142599 E142632

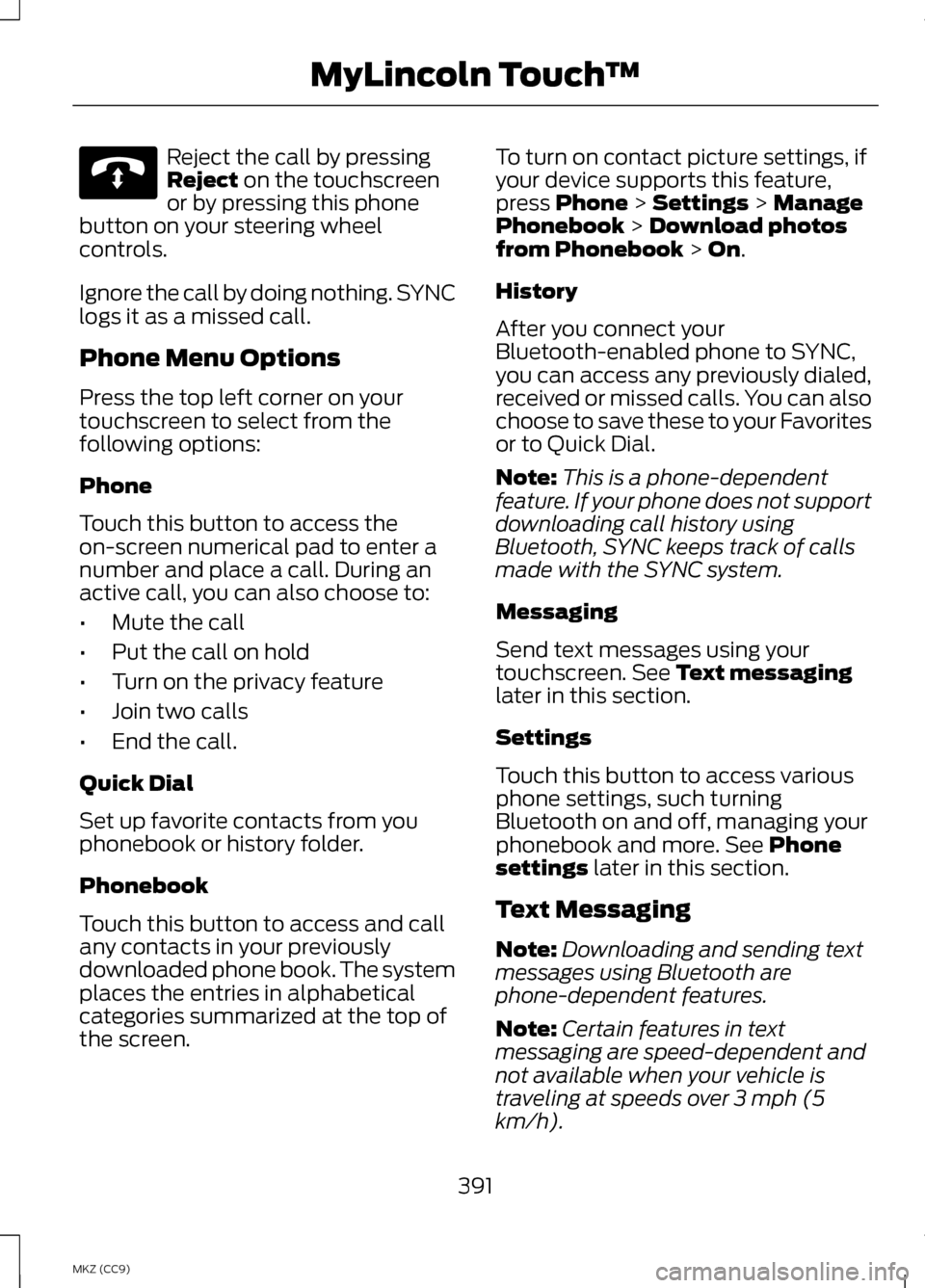

Reject the call by pressing
Reject on the touchscreen
or by pressing this phone
button on your steering wheel
controls.
Ignore the call by doing nothing. SYNC
logs it as a missed call.
Phone Menu Options
Press the top left corner on your
touchscreen to select from the
following options:
Phone
Touch this button to access the
on-screen numerical pad to enter a
number and place a call. During an
active call, you can also choose to:
• Mute the call
• Put the call on hold
• Turn on the privacy feature
• Join two calls
• End the call.
Quick Dial
Set up favorite contacts from you
phonebook or history folder.
Phonebook
Touch this button to access and call
any contacts in your previously
downloaded phone book. The system
places the entries in alphabetical
categories summarized at the top of
the screen. To turn on contact picture settings, if
your device supports this feature,
press Phone > Settings > Manage
Phonebook > Download photos
from Phonebook > On.
History
After you connect your
Bluetooth-enabled phone to SYNC,
you can access any previously dialed,
received or missed calls. You can also
choose to save these to your Favorites
or to Quick Dial.
Note: This is a phone-dependent
feature. If your phone does not support
downloading call history using
Bluetooth, SYNC keeps track of calls
made with the SYNC system.
Messaging
Send text messages using your
touchscreen. See
Text messaging
later in this section.
Settings
Touch this button to access various
phone settings, such turning
Bluetooth on and off, managing your
phonebook and more. See
Phone
settings later in this section.
Text Messaging
Note: Downloading and sending text
messages using Bluetooth are
phone-dependent features.
Note: Certain features in text
messaging are speed-dependent and
not available when your vehicle is
traveling at speeds over 3 mph (5
km/h).
391
MKZ (CC9) MyLincoln Touch
™E142632

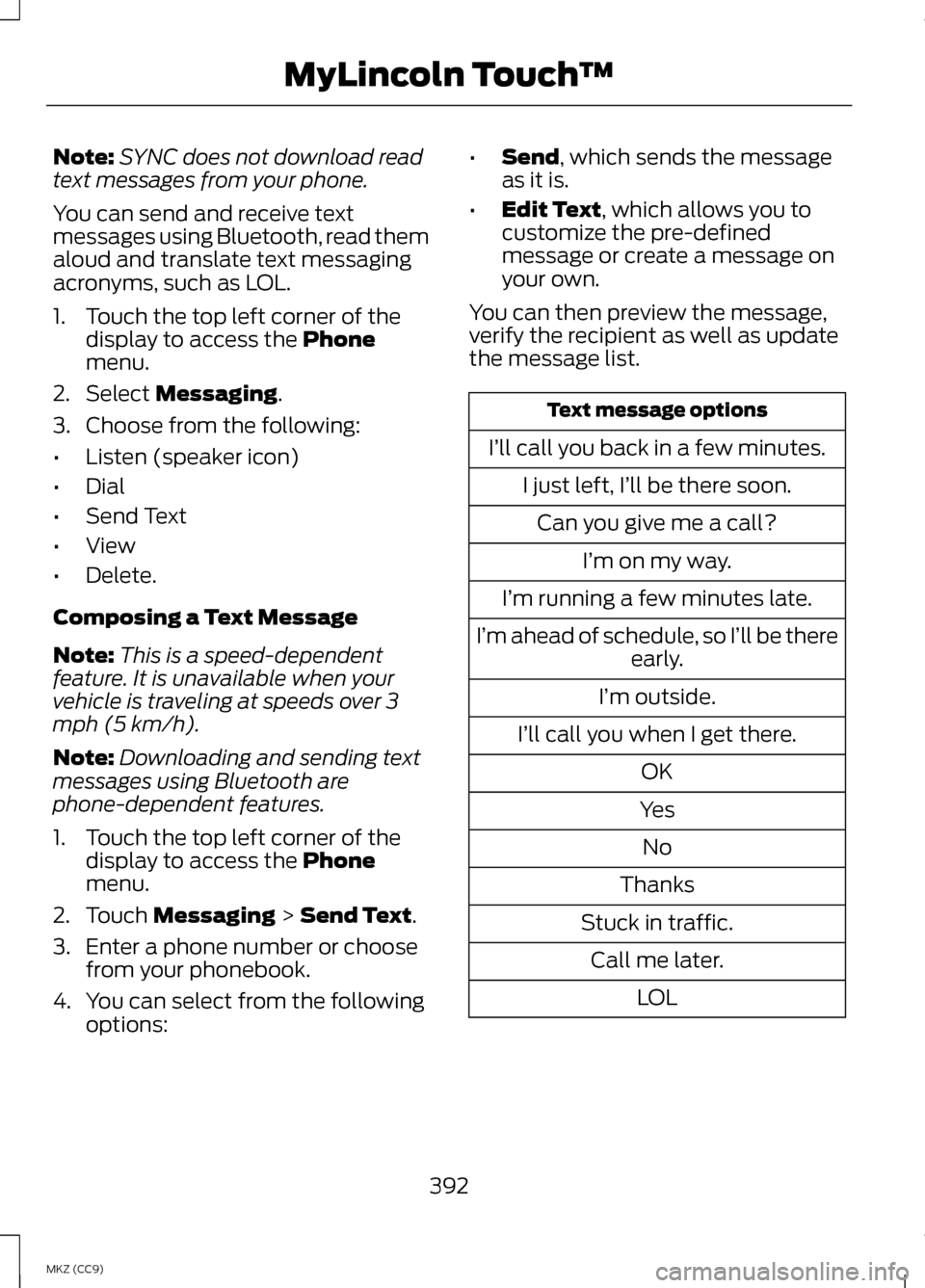

Note:
SYNC does not download read
text messages from your phone.
You can send and receive text
messages using Bluetooth, read them
aloud and translate text messaging
acronyms, such as LOL.
1. Touch the top left corner of the display to access the Phone
menu.
2. Select
Messaging.
3. Choose from the following:
• Listen (speaker icon)
• Dial
• Send Text
• View
• Delete.
Composing a Text Message
Note: This is a speed-dependent
feature. It is unavailable when your
vehicle is traveling at speeds over 3
mph (5 km/h).
Note: Downloading and sending text
messages using Bluetooth are
phone-dependent features.
1. Touch the top left corner of the display to access the
Phone
menu.
2. Touch
Messaging > Send Text.
3. Enter a phone number or choose from your phonebook.
4. You can select from the following options: •
Send
, which sends the message
as it is.
• Edit Text
, which allows you to
customize the pre-defined
message or create a message on
your own.
You can then preview the message,
verify the recipient as well as update
the message list. Text message options
I’ll call you back in a few minutes. I just left, I’ll be there soon.Can you give me a call? I’m on my way.
I’m running a few minutes late.
I’m ahead of schedule, so I’ll be there early.
I’m outside.
I’ll call you when I get there. OK
Yes No
Thanks
Stuck in traffic. Call me later. LOL
392
MKZ (CC9) MyLincoln Touch
™

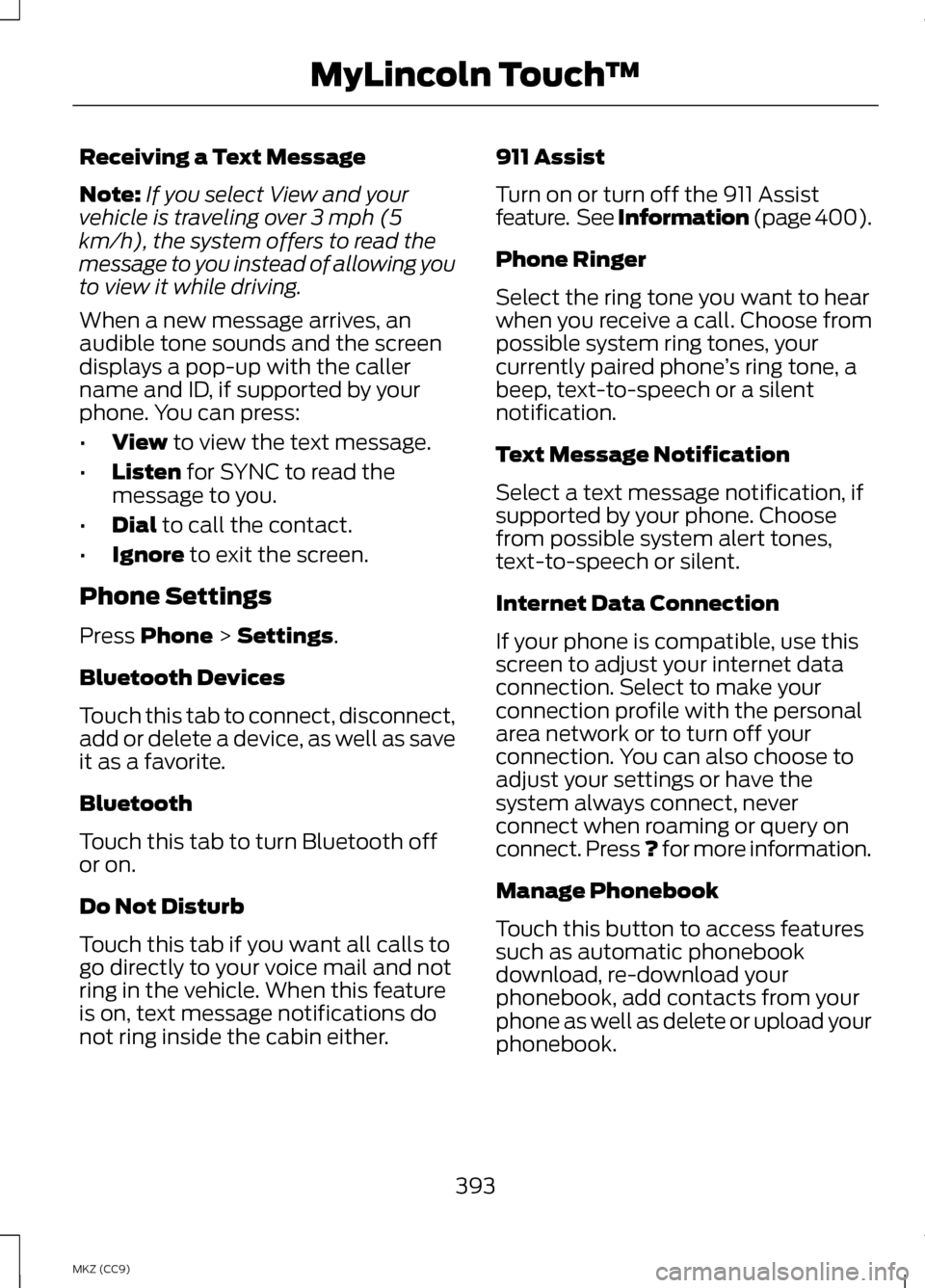

Receiving a Text Message
Note:
If you select View and your
vehicle is traveling over 3 mph (5
km/h), the system offers to read the
message to you instead of allowing you
to view it while driving.
When a new message arrives, an
audible tone sounds and the screen
displays a pop-up with the caller
name and ID, if supported by your
phone. You can press:
• View to view the text message.
• Listen
for SYNC to read the
message to you.
• Dial
to call the contact.
• Ignore
to exit the screen.
Phone Settings
Press
Phone > Settings.
Bluetooth Devices
Touch this tab to connect, disconnect,
add or delete a device, as well as save
it as a favorite.
Bluetooth
Touch this tab to turn Bluetooth off
or on.
Do Not Disturb
Touch this tab if you want all calls to
go directly to your voice mail and not
ring in the vehicle. When this feature
is on, text message notifications do
not ring inside the cabin either. 911 Assist
Turn on or turn off the 911 Assist
feature. See Information (page 400).
Phone Ringer
Select the ring tone you want to hear
when you receive a call. Choose from
possible system ring tones, your
currently paired phone
’s ring tone, a
beep, text-to-speech or a silent
notification.
Text Message Notification
Select a text message notification, if
supported by your phone. Choose
from possible system alert tones,
text-to-speech or silent.
Internet Data Connection
If your phone is compatible, use this
screen to adjust your internet data
connection. Select to make your
connection profile with the personal
area network or to turn off your
connection. You can also choose to
adjust your settings or have the
system always connect, never
connect when roaming or query on
connect. Press ? for more information.
Manage Phonebook
Touch this button to access features
such as automatic phonebook
download, re-download your
phonebook, add contacts from your
phone as well as delete or upload your
phonebook.
393
MKZ (CC9) MyLincoln Touch
™

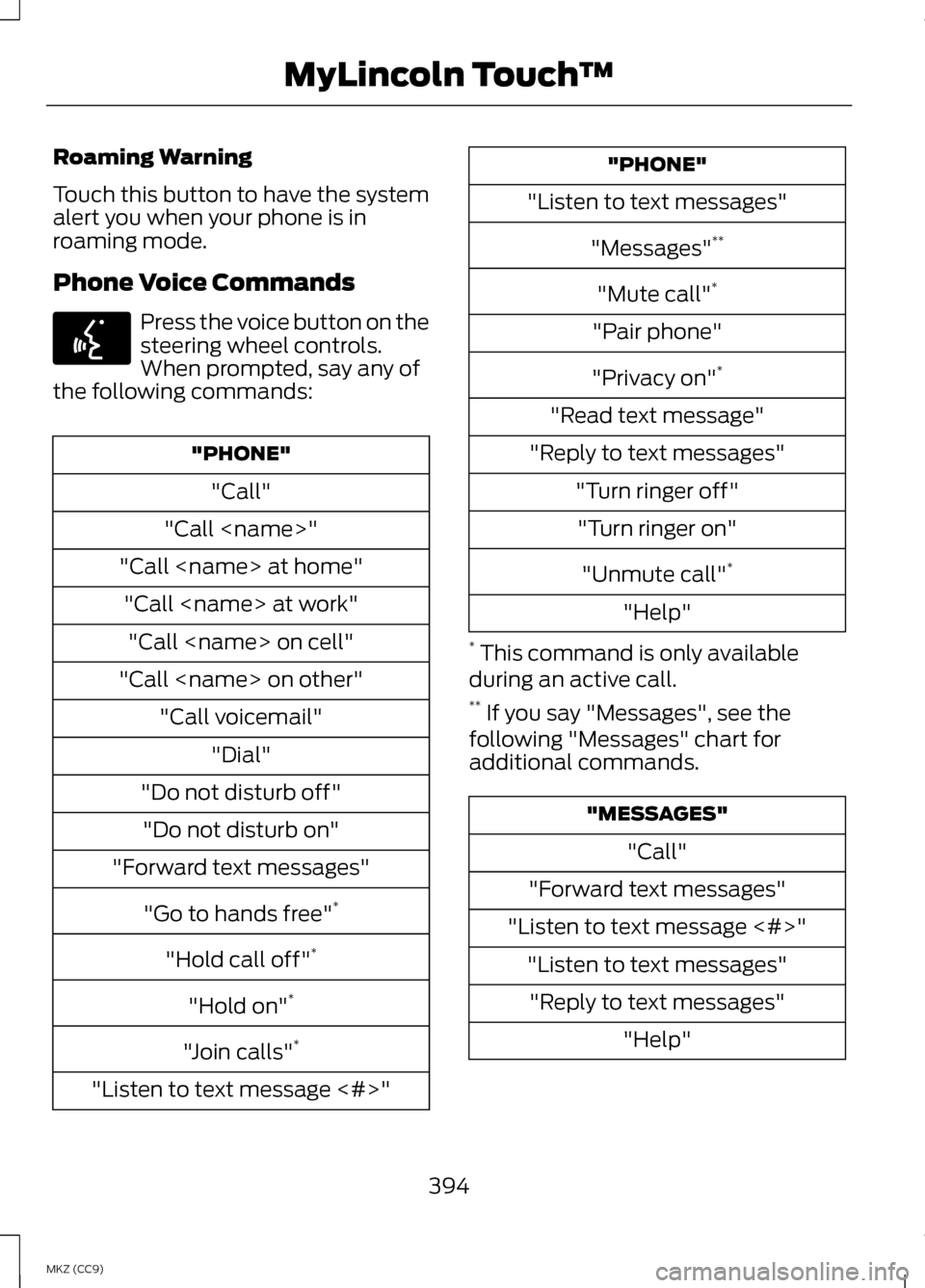

Roaming Warning
Touch this button to have the system
alert you when your phone is in
roaming mode.
Phone Voice Commands
Press the voice button on the
steering wheel controls.
When prompted, say any of
the following commands: "PHONE"
"Call"
"Call "
"Call at home" "Call at work""Call on cell"
"Call on other" "Call voicemail" "Dial"
"Do not disturb off" "Do not disturb on"
"Forward text messages"
"Go to hands free" *
"Hold call off" *
"Hold on" *
"Join calls" *
"Listen to text message <#>" "PHONE"
"Listen to text messages"
"Messages" **
"Mute call" *
"Pair phone"
"Privacy on" *
"Read text message"
"Reply to text messages" "Turn ringer off""Turn ringer on"
"Unmute call" *
"Help"
* This command is only available
during an active call.
** If you say "Messages", see the
following "Messages" chart for
additional commands. "MESSAGES"
"Call"
"Forward text messages"
"Listen to text message <#>" "Listen to text messages""Reply to text messages" "Help"
394
MKZ (CC9) MyLincoln Touch
™E142599

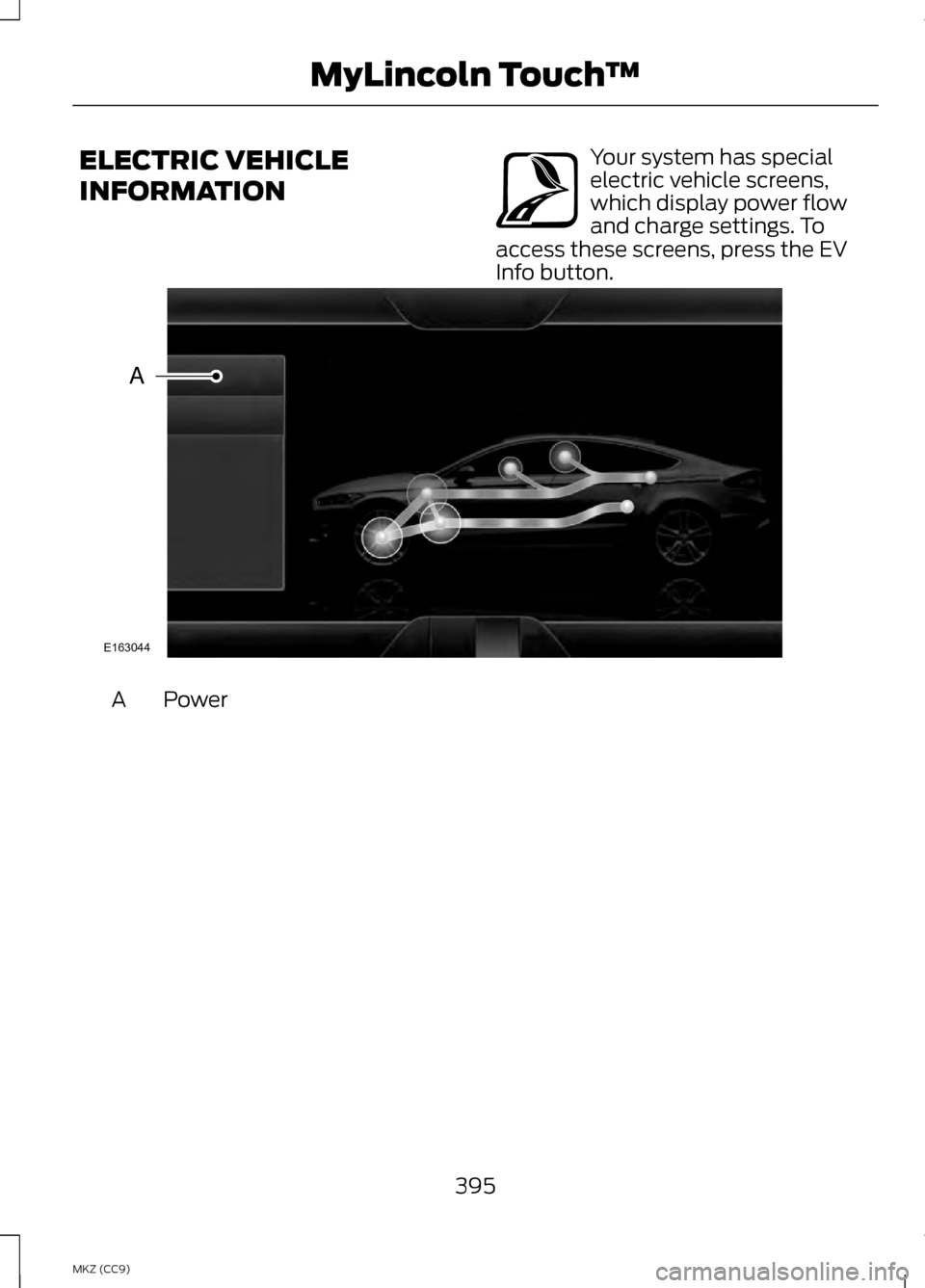

ELECTRIC VEHICLE
INFORMATION Your system has special
electric vehicle screens,
which display power flow
and charge settings. To
access these screens, press the EV
Info button. Power
A
395
MKZ (CC9) MyLincoln Touch
™E161716 E163044
A

Power
Motor-to-wheel flow shows the direction of power flow between
the wheels and the electric motor.
A
Electric Motor
represents the hybrid electric motor. The higher the
motor power is, the larger the circle around this node. Any time the
vehicle is ready to be driven, the motor node illuminates.
B
Battery-to-motor flow 1
shows the direction of power flow between
the high-voltage battery and the electric motor. Flow toward the motor
indicates the battery is providing power to accelerate the vehicle
(discharging the battery). Flow toward the battery indicates the electric
motor is providing power to the battery (charging the battery).
C
Other 2
includes all power usage from the low voltage accessories such
as the climate control fan, headlights and heated seats. The higher
the power usage is from these accessories, the larger the circle around
the node. This node illuminates anytime the vehicle is on since there
is always some low level power in use.
D
Climate 2,3
includes the power usage from the high-voltage climate
control components such as the electric A/C compressor. The higher
the power usage is from these components, the larger the circle around
this node.
E
396
MKZ (CC9) MyLincoln Touch
™A
G
FDE
BC
HJLKI
E163015
M

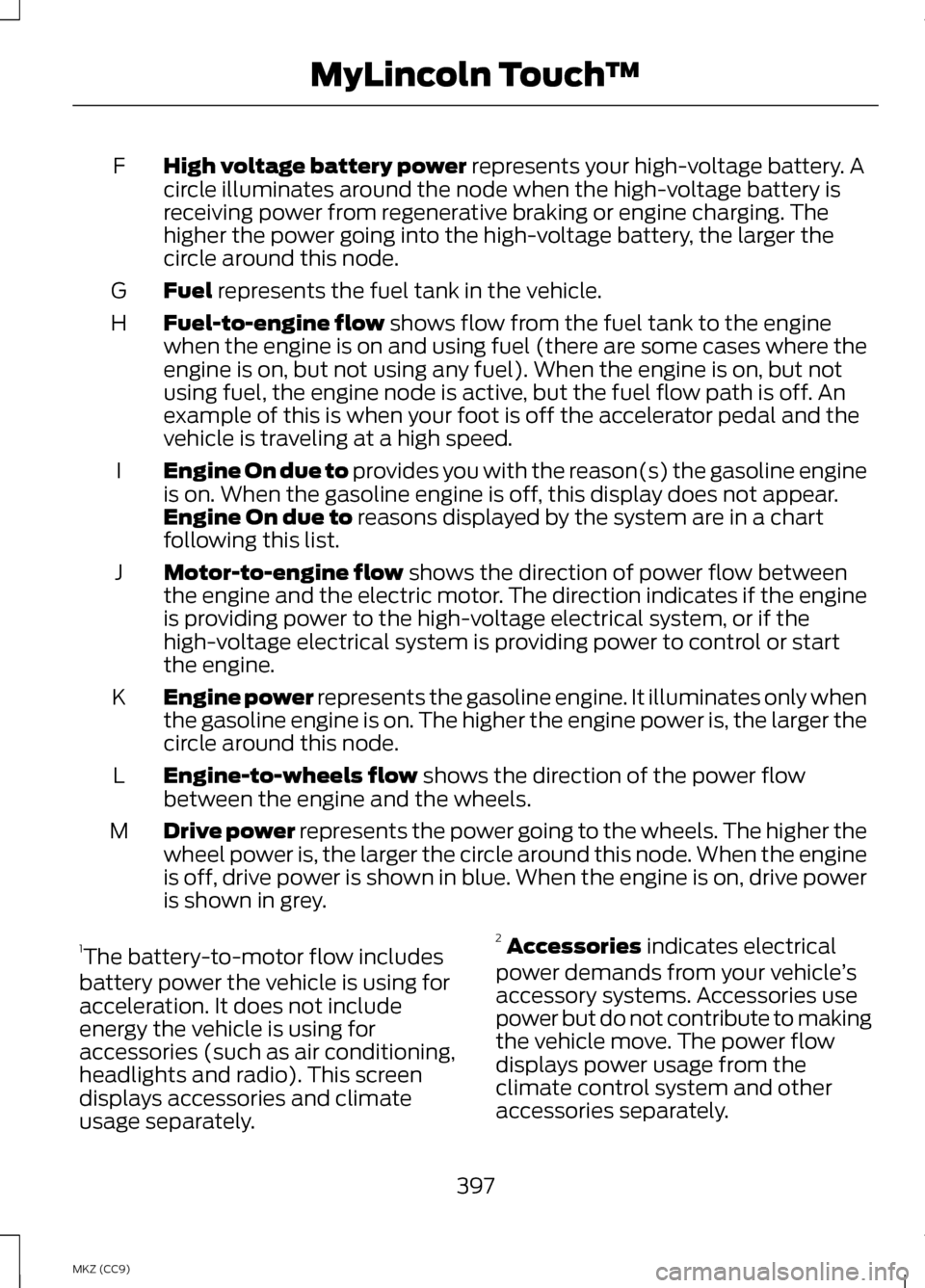

High voltage battery power represents your high-voltage battery. A
circle illuminates around the node when the high-voltage battery is
receiving power from regenerative braking or engine charging. The
higher the power going into the high-voltage battery, the larger the
circle around this node.
F
Fuel
represents the fuel tank in the vehicle.
G
Fuel-to-engine flow
shows flow from the fuel tank to the engine
when the engine is on and using fuel (there are some cases where the
engine is on, but not using any fuel). When the engine is on, but not
using fuel, the engine node is active, but the fuel flow path is off. An
example of this is when your foot is off the accelerator pedal and the
vehicle is traveling at a high speed.
H
Engine On due to
provides you with the reason(s) the gasoline engine
is on. When the gasoline engine is off, this display does not appear.
Engine On due to
reasons displayed by the system are in a chart
following this list.
I
Motor-to-engine flow
shows the direction of power flow between
the engine and the electric motor. The direction indicates if the engine
is providing power to the high-voltage electrical system, or if the
high-voltage electrical system is providing power to control or start
the engine.
J
Engine power represents the gasoline engine. It illuminates only when
the gasoline engine is on. The higher the engine power is, the larger the
circle around this node.
K
Engine-to-wheels flow
shows the direction of the power flow
between the engine and the wheels.
L
Drive power
represents the power going to the wheels. The higher the
wheel power is, the larger the circle around this node. When the engine
is off, drive power is shown in blue. When the engine is on, drive power
is shown in grey.
M
1 The battery-to-motor flow includes
battery power the vehicle is using for
acceleration. It does not include
energy the vehicle is using for
accessories (such as air conditioning,
headlights and radio). This screen
displays accessories and climate
usage separately. 2
Accessories
indicates electrical
power demands from your vehicle ’s
accessory systems. Accessories use
power but do not contribute to making
the vehicle move. The power flow
displays power usage from the
climate control system and other
accessories separately.
397
MKZ (CC9) MyLincoln Touch
™

3
The climate control system may
determine A/C is necessary even when you turn it off. In this case, you
may see some climate power when
the A/C is off.Engine On due to
The engine is on to warm-up. The
vehicle returns to electric mode when
the engine is warm. This reason may
reappear during a drive or after shut-
ting the vehicle down for a short
period. This is normal operation.
Engine Cold
The engine is on because of the heater
setting. Reduce or turn off the heater
setting to return to electric mode.
Heater Setting
The engine is on because the vehicle
speed exceeds the level for electric
mode operation. Reduce the speed to
return to electric mode.
High Speed
The engine is on when you apply pres-
sure to the accelerator pedal or when
you turn the speed control on. Reduce
pressure on the accelerator pedal or
turn off the speed control to return to
full electric mode.
Acceleration
The engine is on because the vehicle
is in neutral gear. Shift out of neutral
gear to return to electric mode.
Neutral Gear
The engine is on because the vehicle
is in low gear. Shift out of low gear to
return to electric mode.
Low Gear
398
MKZ (CC9) MyLincoln Touch
™
