LINCOLN MKZ HYBRID 2013 Owners Manual

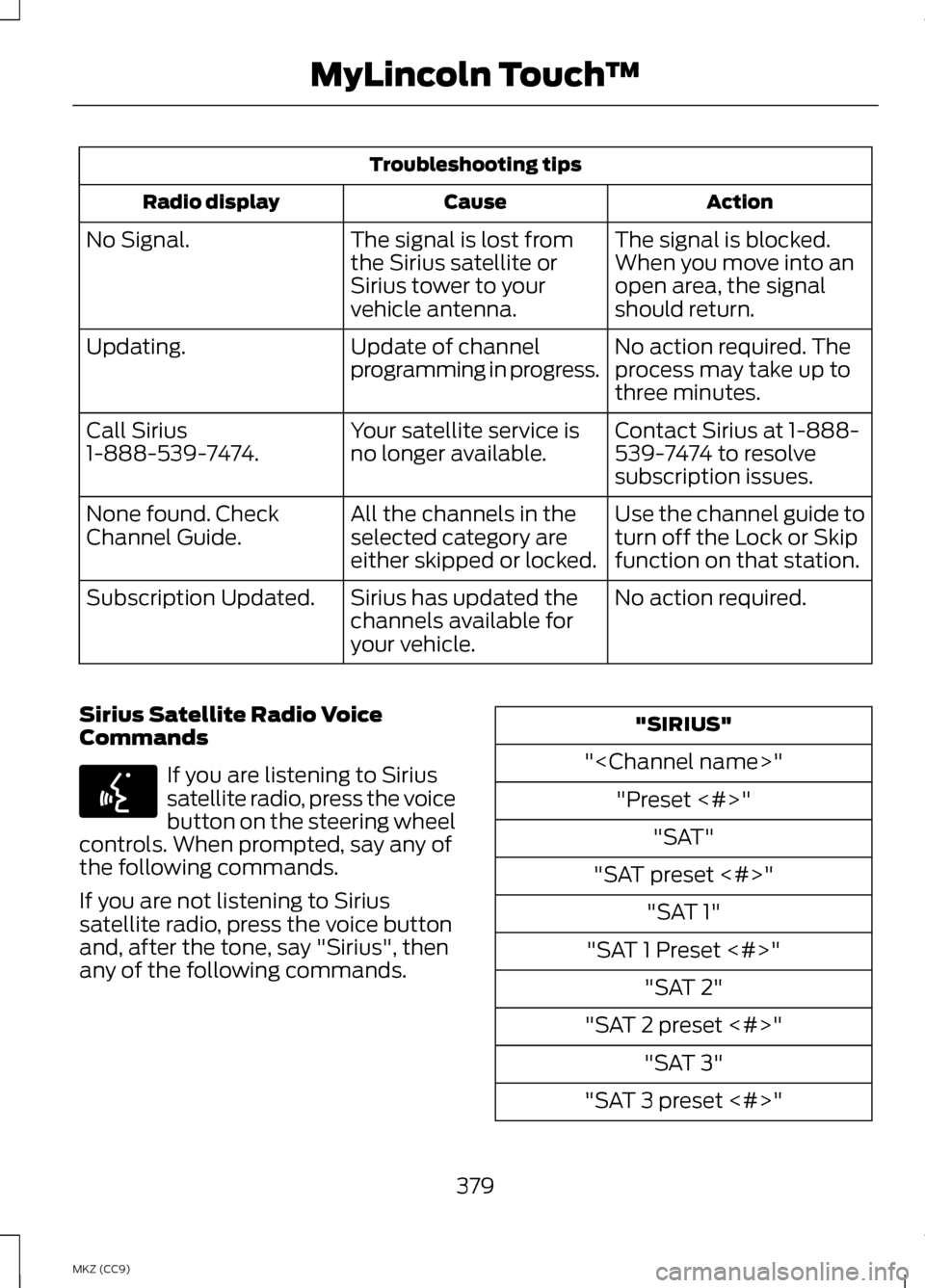

Troubleshooting tips
Action
Cause
Radio display
The signal is blocked.
When you move into an
open area, the signal
should return.
The signal is lost from
the Sirius satellite or
Sirius tower to your
vehicle antenna.
No Signal.
No action required. The
process may take up to
three minutes.
Update of channel
programming in progress.
Updating.
Contact Sirius at 1-888-
539-7474 to resolve
subscription issues.
Your satellite service is
no longer available.
Call Sirius
1-888-539-7474.
Use the channel guide to
turn off the Lock or Skip
function on that station.
All the channels in the
selected category are
either skipped or locked.
None found. Check
Channel Guide.
No action required.
Sirius has updated the
channels available for
your vehicle.
Subscription Updated.
Sirius Satellite Radio Voice
Commands If you are listening to Sirius
satellite radio, press the voice
button on the steering wheel
controls. When prompted, say any of
the following commands.
If you are not listening to Sirius
satellite radio, press the voice button
and, after the tone, say "Sirius", then
any of the following commands. "SIRIUS"
"" "Preset <#>" "SAT"
"SAT preset <#>" "SAT 1"
"SAT 1 Preset <#>" "SAT 2"
"SAT 2 preset <#>" "SAT 3"
"SAT 3 preset <#>"
379
MKZ (CC9) MyLincoln Touch
™E142599

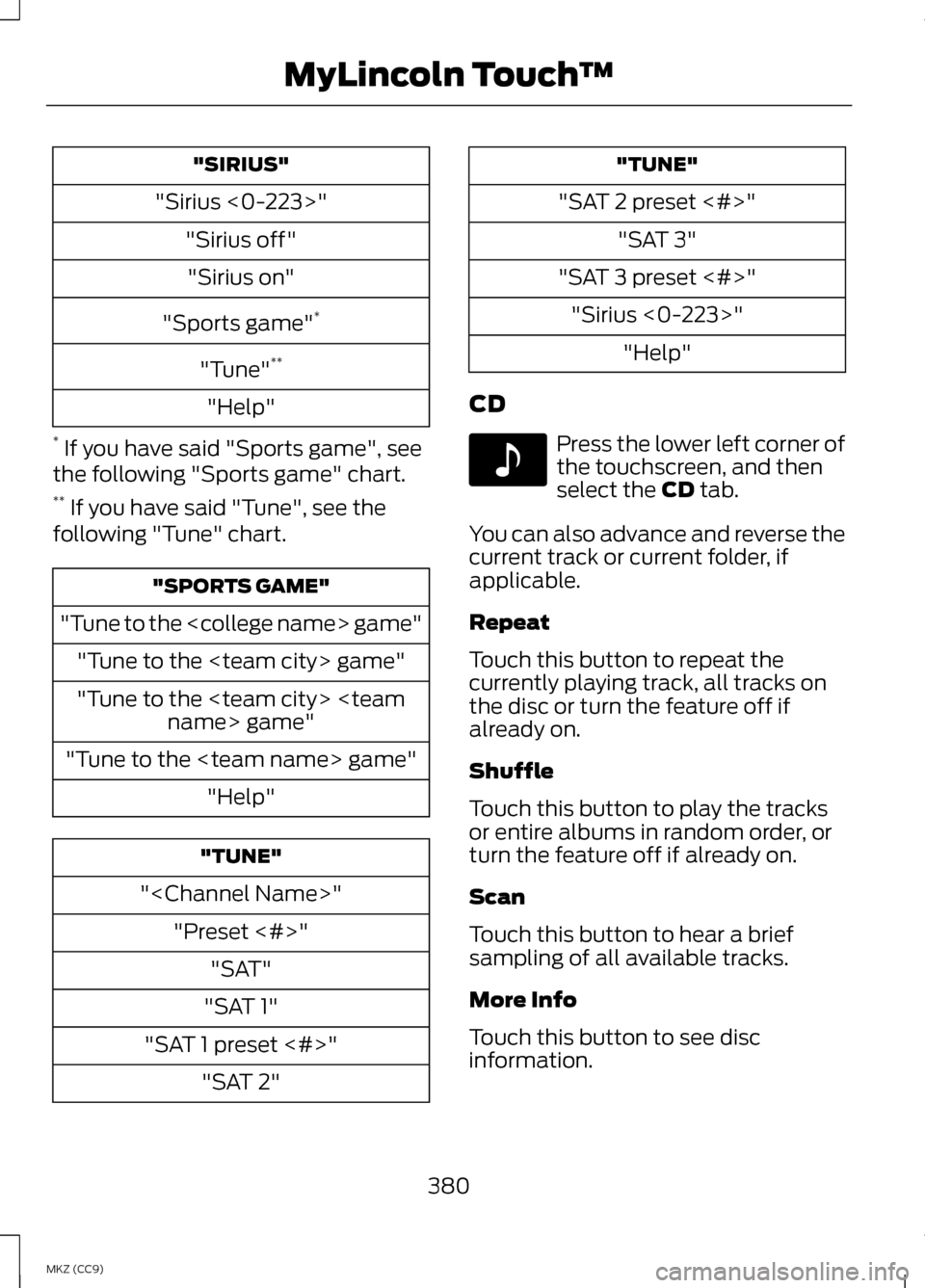

"SIRIUS"
"Sirius <0-223>" "Sirius off""Sirius on"
"Sports game" *
"Tune" **
"Help"
* If you have said "Sports game", see
the following "Sports game" chart.
** If you have said "Tune", see the
following "Tune" chart. "SPORTS GAME"
"Tune to the game" "Tune to the game"
"Tune to the game"
"Tune to the game" "Help" "TUNE"
"" "Preset <#>" "SAT"
"SAT 1"
"SAT 1 preset <#>" "SAT 2" "TUNE"
"SAT 2 preset <#>" "SAT 3"
"SAT 3 preset <#>" "Sirius <0-223>" "Help"
CD Press the lower left corner of
the touchscreen, and then
select the CD tab.
You can also advance and reverse the
current track or current folder, if
applicable.
Repeat
Touch this button to repeat the
currently playing track, all tracks on
the disc or turn the feature off if
already on.
Shuffle
Touch this button to play the tracks
or entire albums in random order, or
turn the feature off if already on.
Scan
Touch this button to hear a brief
sampling of all available tracks.
More Info
Touch this button to see disc
information.
380
MKZ (CC9) MyLincoln Touch
™E142611

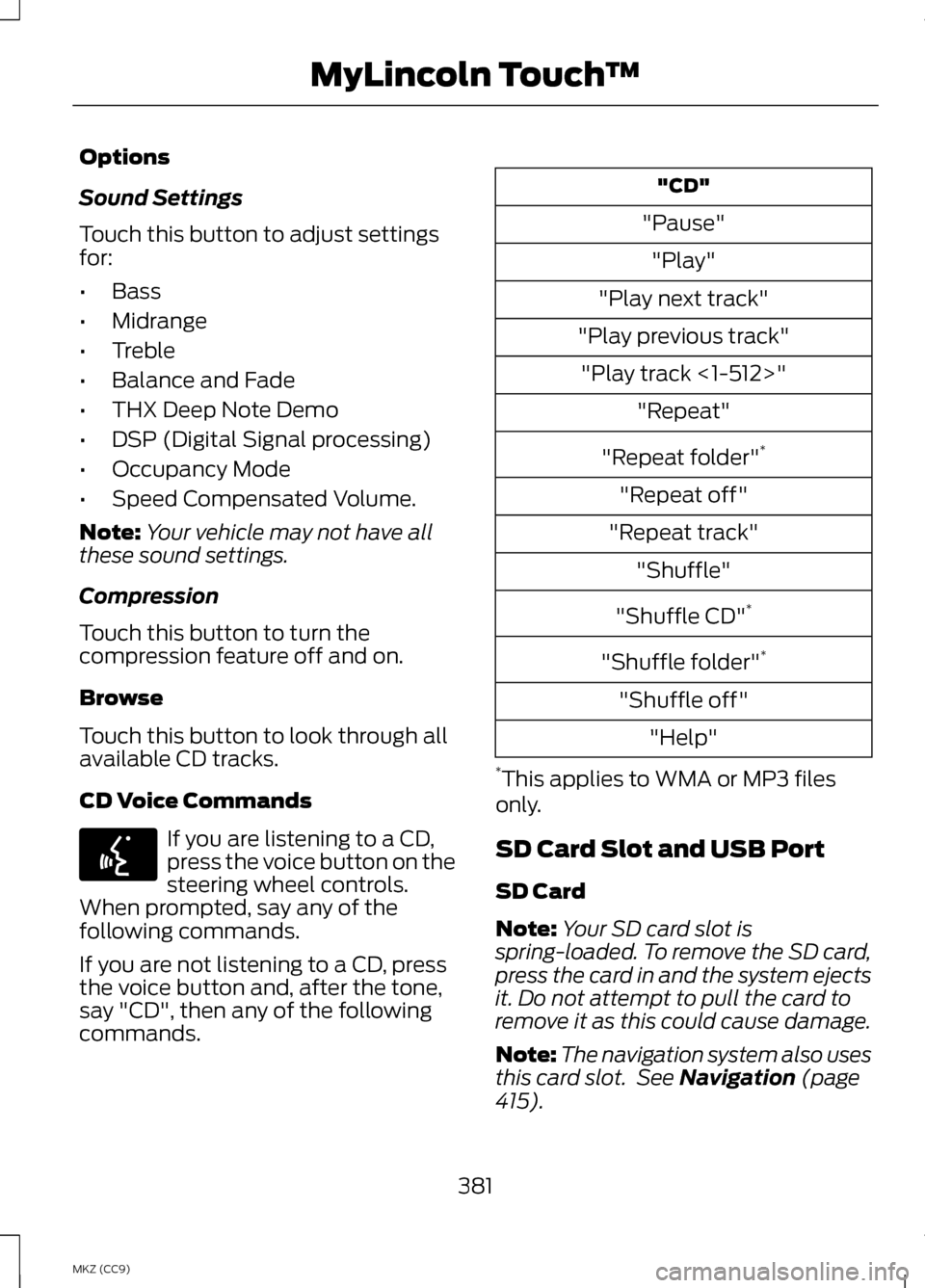

Options
Sound Settings
Touch this button to adjust settings
for:
•
Bass
• Midrange
• Treble
• Balance and Fade
• THX Deep Note Demo
• DSP (Digital Signal processing)
• Occupancy Mode
• Speed Compensated Volume.
Note: Your vehicle may not have all
these sound settings.
Compression
Touch this button to turn the
compression feature off and on.
Browse
Touch this button to look through all
available CD tracks.
CD Voice Commands If you are listening to a CD,
press the voice button on the
steering wheel controls.
When prompted, say any of the
following commands.
If you are not listening to a CD, press
the voice button and, after the tone,
say "CD", then any of the following
commands. "CD"
"Pause" "Play"
"Play next track"
"Play previous track" "Play track <1-512>" "Repeat"
"Repeat folder" *
"Repeat off"
"Repeat track" "Shuffle"
"Shuffle CD" *
"Shuffle folder" *
"Shuffle off" "Help"
* This applies to WMA or MP3 files
only.
SD Card Slot and USB Port
SD Card
Note: Your SD card slot is
spring-loaded. To remove the SD card,
press the card in and the system ejects
it. Do not attempt to pull the card to
remove it as this could cause damage.
Note: The navigation system also uses
this card slot. See Navigation (page
415).
381
MKZ (CC9) MyLincoln Touch
™E142599

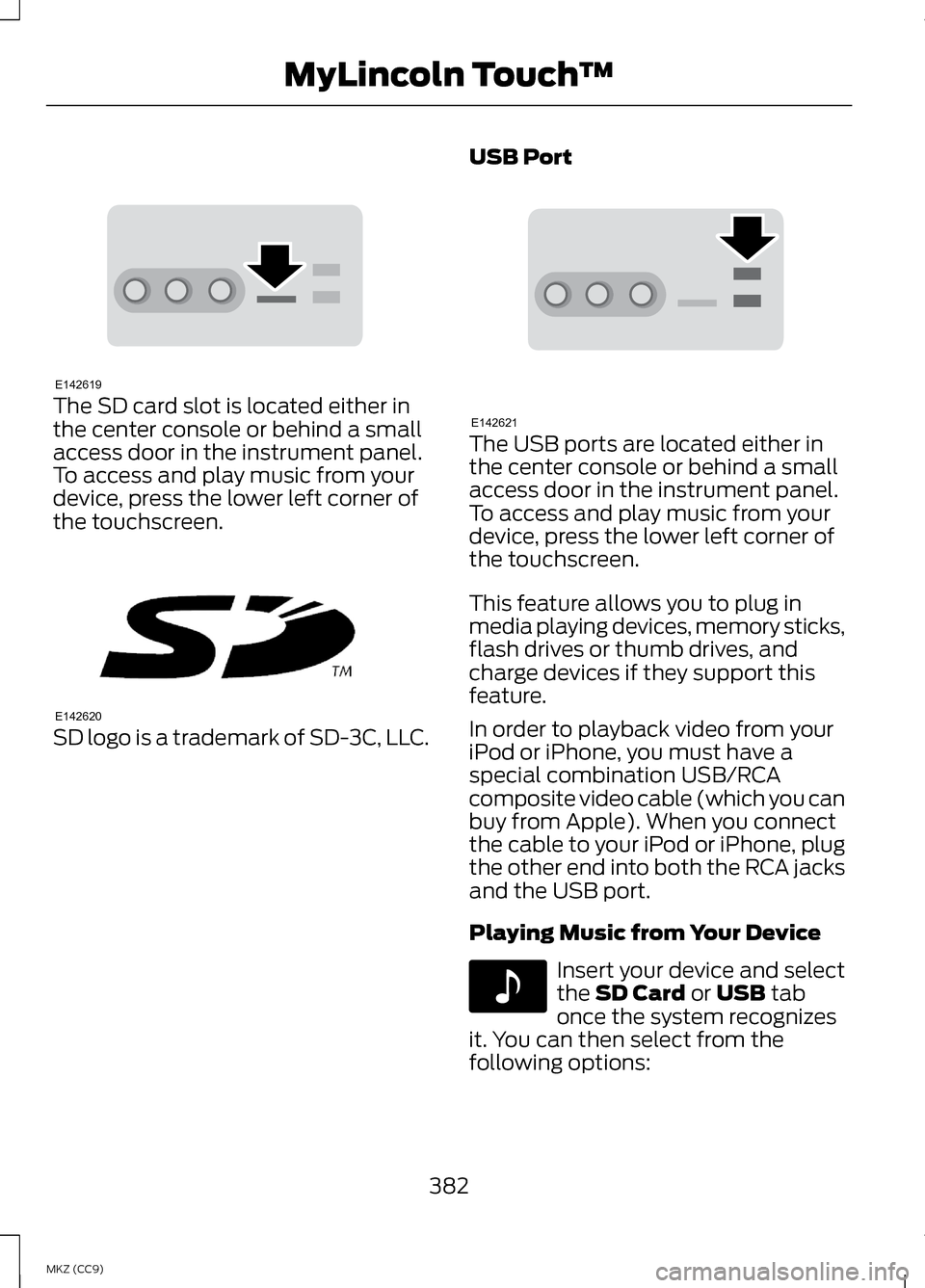

The SD card slot is located either in
the center console or behind a small
access door in the instrument panel.
To access and play music from your
device, press the lower left corner of
the touchscreen.
SD logo is a trademark of SD-3C, LLC. USB Port The USB ports are located either in
the center console or behind a small
access door in the instrument panel.
To access and play music from your
device, press the lower left corner of
the touchscreen.
This feature allows you to plug in
media playing devices, memory sticks,
flash drives or thumb drives, and
charge devices if they support this
feature.
In order to playback video from your
iPod or iPhone, you must have a
special combination USB/RCA
composite video cable (which you can
buy from Apple). When you connect
the cable to your iPod or iPhone, plug
the other end into both the RCA jacks
and the USB port.
Playing Music from Your Device
Insert your device and select
the SD Card or USB tab
once the system recognizes
it. You can then select from the
following options:
382
MKZ (CC9) MyLincoln Touch
™E142619 E142620 E142621 E142611

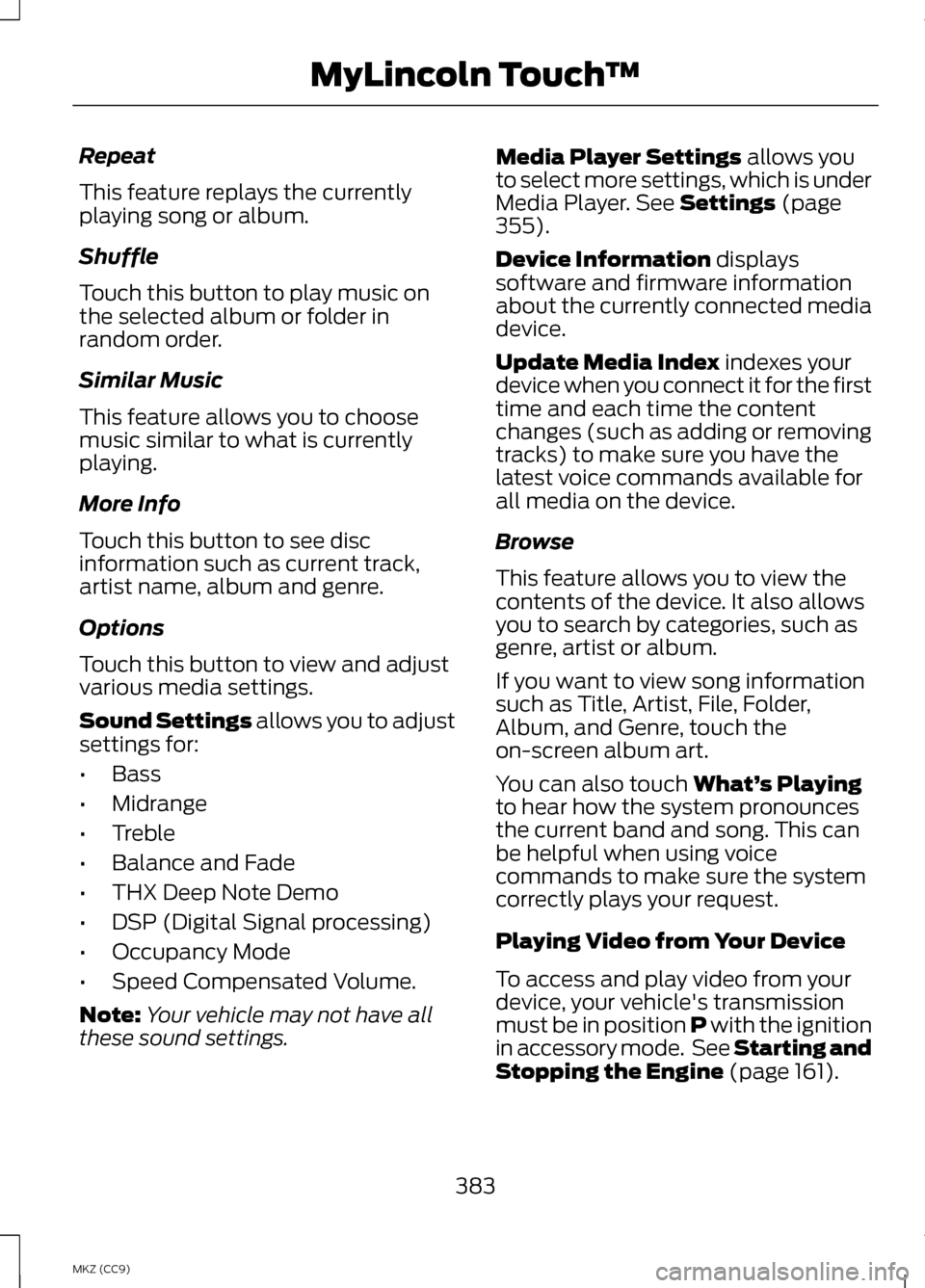

Repeat
This feature replays the currently
playing song or album.
Shuffle
Touch this button to play music on
the selected album or folder in
random order.
Similar Music
This feature allows you to choose
music similar to what is currently
playing.
More Info
Touch this button to see disc
information such as current track,
artist name, album and genre.
Options
Touch this button to view and adjust
various media settings.
Sound Settings allows you to adjust
settings for:
•
Bass
• Midrange
• Treble
• Balance and Fade
• THX Deep Note Demo
• DSP (Digital Signal processing)
• Occupancy Mode
• Speed Compensated Volume.
Note: Your vehicle may not have all
these sound settings. Media Player Settings allows you
to select more settings, which is under
Media Player.
See Settings (page
355).
Device Information
displays
software and firmware information
about the currently connected media
device.
Update Media Index
indexes your
device when you connect it for the first
time and each time the content
changes (such as adding or removing
tracks) to make sure you have the
latest voice commands available for
all media on the device.
Browse
This feature allows you to view the
contents of the device. It also allows
you to search by categories, such as
genre, artist or album.
If you want to view song information
such as Title, Artist, File, Folder,
Album, and Genre, touch the
on-screen album art.
You can also touch
What’ s Playing
to hear how the system pronounces
the current band and song. This can
be helpful when using voice
commands to make sure the system
correctly plays your request.
Playing Video from Your Device
To access and play video from your
device, your vehicle's transmission
must be in position P with the ignition
in accessory mode. See Starting and
Stopping the Engine
(page 161).
383
MKZ (CC9) MyLincoln Touch
™

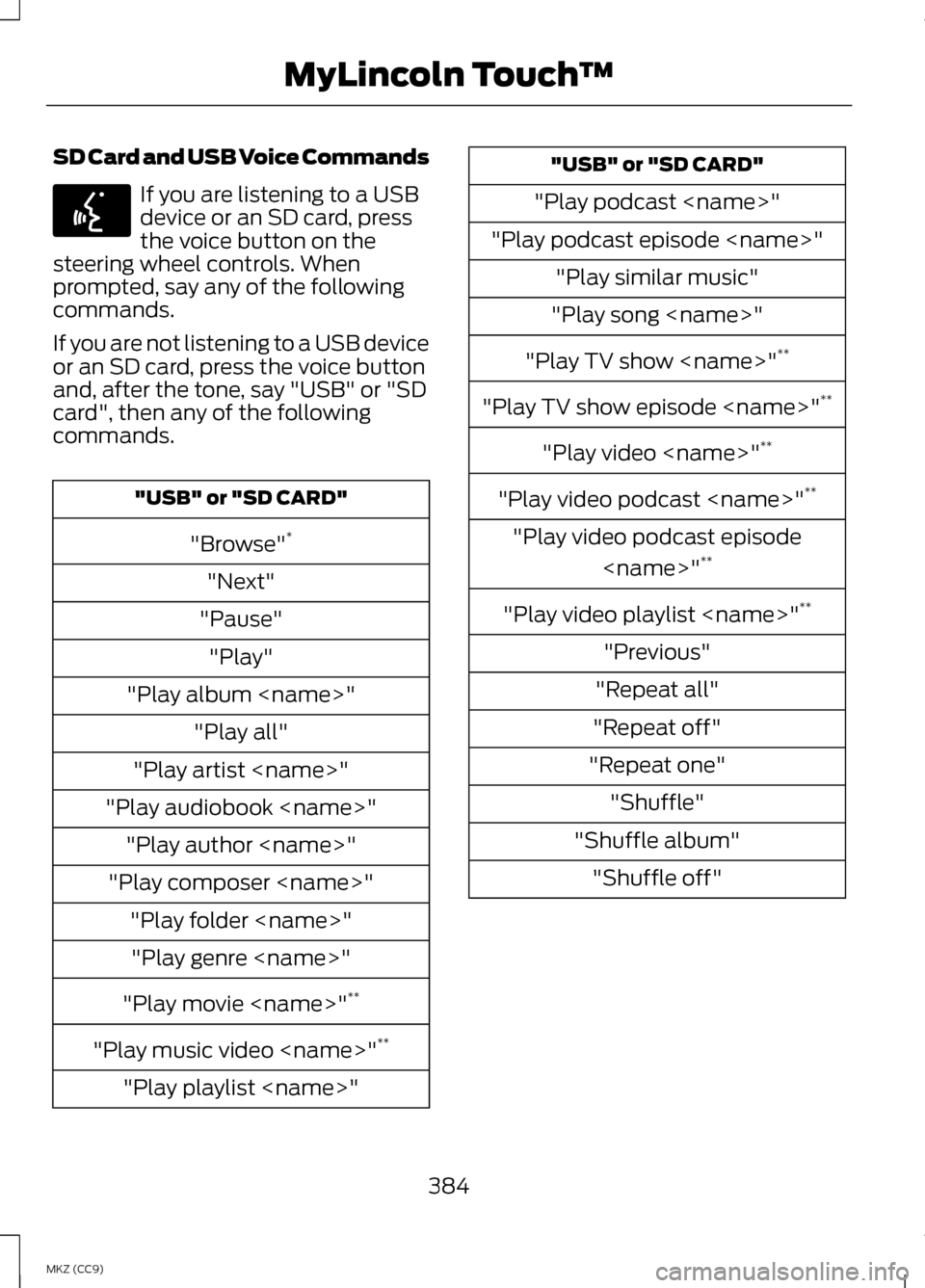

SD Card and USB Voice Commands
If you are listening to a USB
device or an SD card, press
the voice button on the
steering wheel controls. When
prompted, say any of the following
commands.
If you are not listening to a USB device
or an SD card, press the voice button
and, after the tone, say "USB" or "SD
card", then any of the following
commands. "USB" or "SD CARD"
"Browse" *
"Next"
"Pause" "Play"
"Play album " "Play all"
"Play artist "
"Play audiobook " "Play author "
"Play composer " "Play folder ""Play genre "
"Play movie " **
"Play music video " **
"Play playlist " "USB" or "SD CARD"
"Play podcast "
"Play podcast episode " "Play similar music"
"Play song "
"Play TV show " **
"Play TV show episode " **
"Play video " **
"Play video podcast " **
"Play video podcast episode " **
"Play video playlist " **
"Previous"
"Repeat all"
"Repeat off"
"Repeat one" "Shuffle"
"Shuffle album" "Shuffle off"
384
MKZ (CC9) MyLincoln Touch
™E142599

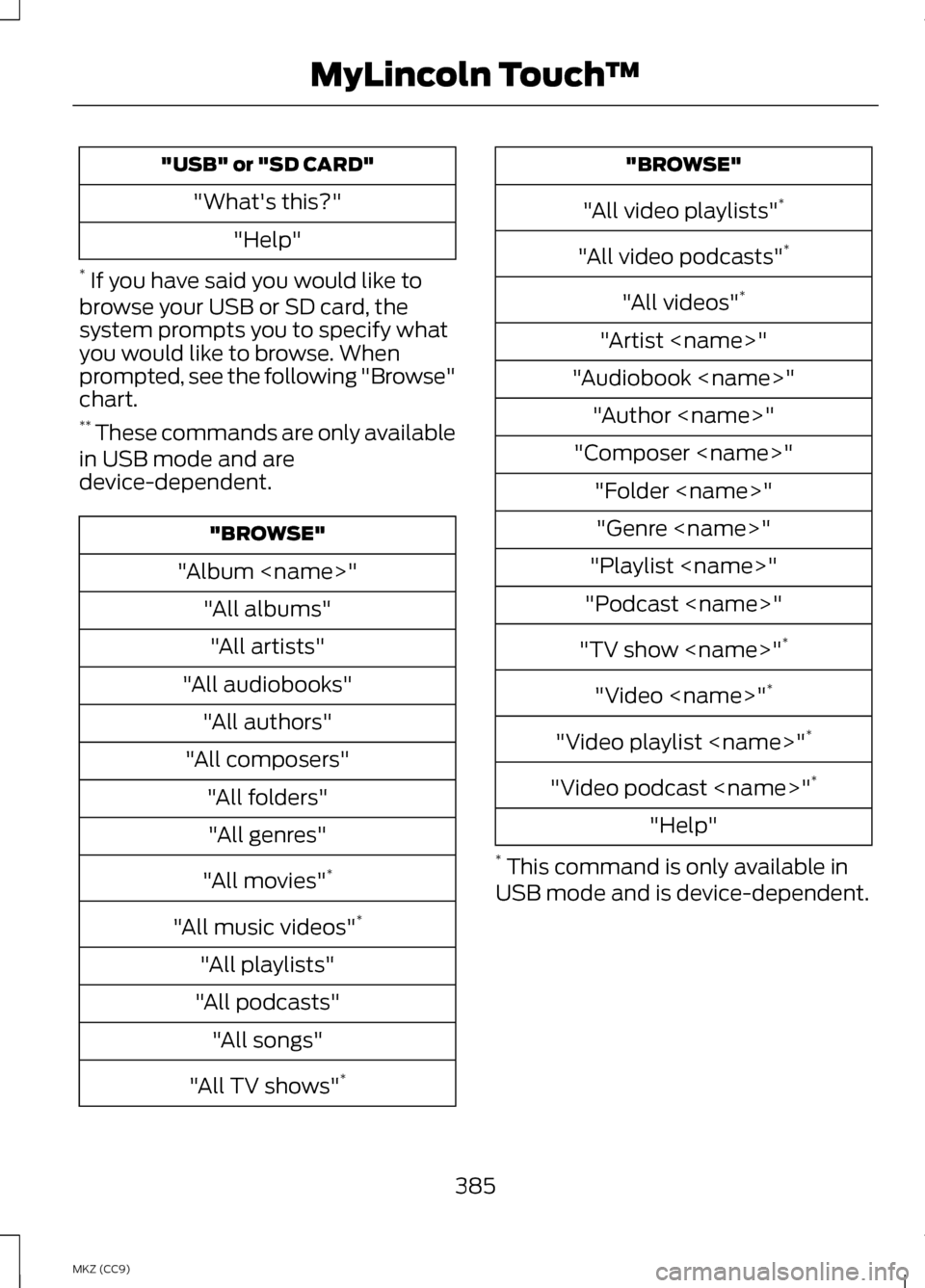

"USB" or "SD CARD"
"What's this?" "Help"
* If you have said you would like to
browse your USB or SD card, the
system prompts you to specify what
you would like to browse. When
prompted, see the following "Browse"
chart.
** These commands are only available
in USB mode and are
device-dependent. "BROWSE"
"Album " "All albums""All artists"
"All audiobooks" "All authors"
"All composers" "All folders""All genres"
"All movies" *
"All music videos" *
"All playlists"
"All podcasts" "All songs"
"All TV shows" * "BROWSE"
"All video playlists" *
"All video podcasts" *
"All videos" *
"Artist "
"Audiobook " "Author "
"Composer " "Folder ""Genre "
"Playlist "
"Podcast "
"TV show " *
"Video " *
"Video playlist " *
"Video podcast " *
"Help"
* This command is only available in
USB mode and is device-dependent.
385
MKZ (CC9) MyLincoln Touch
™

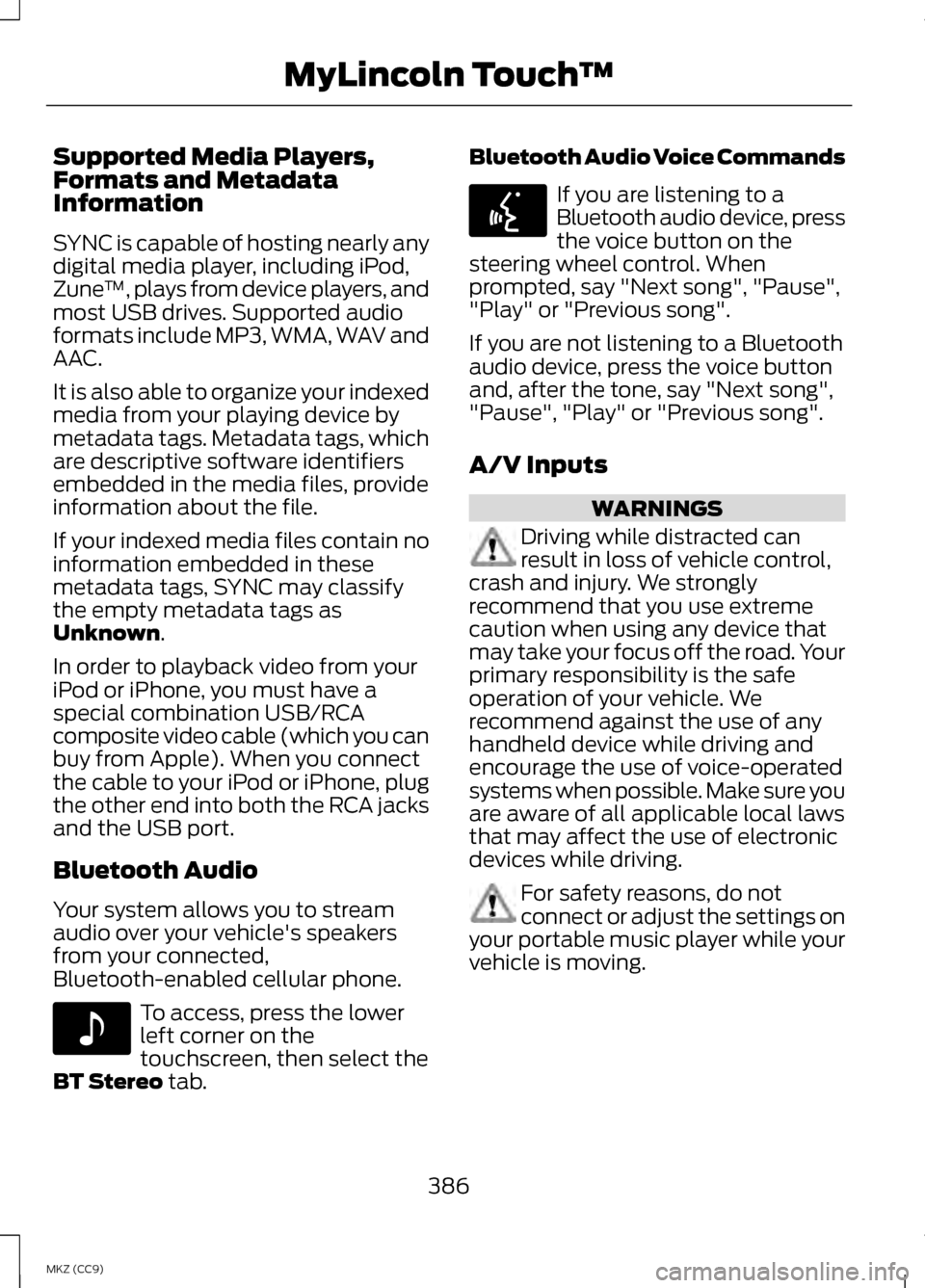

Supported Media Players,
Formats and Metadata
Information
SYNC is capable of hosting nearly any
digital media player, including iPod,
Zune
™, plays from device players, and
most USB drives. Supported audio
formats include MP3, WMA, WAV and
AAC.
It is also able to organize your indexed
media from your playing device by
metadata tags. Metadata tags, which
are descriptive software identifiers
embedded in the media files, provide
information about the file.
If your indexed media files contain no
information embedded in these
metadata tags, SYNC may classify
the empty metadata tags as
Unknown.
In order to playback video from your
iPod or iPhone, you must have a
special combination USB/RCA
composite video cable (which you can
buy from Apple). When you connect
the cable to your iPod or iPhone, plug
the other end into both the RCA jacks
and the USB port.
Bluetooth Audio
Your system allows you to stream
audio over your vehicle's speakers
from your connected,
Bluetooth-enabled cellular phone. To access, press the lower
left corner on the
touchscreen, then select the
BT Stereo
tab. Bluetooth Audio Voice Commands If you are listening to a
Bluetooth audio device, press
the voice button on the
steering wheel control. When
prompted, say "Next song", "Pause",
"Play" or "Previous song".
If you are not listening to a Bluetooth
audio device, press the voice button
and, after the tone, say "Next song",
"Pause", "Play" or "Previous song".
A/V Inputs WARNINGS
Driving while distracted can
result in loss of vehicle control,
crash and injury. We strongly
recommend that you use extreme
caution when using any device that
may take your focus off the road. Your
primary responsibility is the safe
operation of your vehicle. We
recommend against the use of any
handheld device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving. For safety reasons, do not
connect or adjust the settings on
your portable music player while your
vehicle is moving.
386
MKZ (CC9) MyLincoln Touch
™E142611 E142599

WARNINGS
Store the portable music player
in a secure location, such as the
center console or the glove box, when
your vehicle is moving. Hard objects
may become projectiles in a crash or
sudden stop, which may increase the
risk of serious injury. The audio
extension cable must be long enough
to allow the portable music player to
be safely stored while your vehicle is
moving. Your A/V inputs allow you to connect
an auxiliary audio/video source (such
as a gaming systems or a personal
camcorder) by connecting RCA cords
(not included) to these input jacks.
The jacks are yellow, red and white
and are located either behind a small
access door on the instrument panel
or in your center console.
You can also use the A/V inputs as an
auxiliary input jack to play music from
your portable music player over your
vehicle's speakers. Plug in your 1/8
inch (3.5 millimeter) RCA adapter into
the two left A/V input jacks (red and
white). Press the lower left corner of the
touchscreen, and then select A/V In.
To use the auxiliary input jack feature,
make sure that your portable music
player is designed for use with
headphones and that it is fully
charged. You also need an audio
extension cable with stereo male
1/8-inch (3.5 millimeter) connectors
at one end and a RCA jack at the
other.
1. Switch off the engine, radio and
portable music player. Set the
parking brake and put the
transmission in position P.
2. Attach one end of the audio extension cable to the headphone
output of your player and the other
end into the adapter in one of the
two left A/V input jacks (white or
red) inside the center console.
3. Press the lower left corner on the touchscreen. Select either a tuned
FM station or a CD (if there is a CD
already loaded into the system).
4. Adjust the volume as desired.
5. Turn the portable music player on and adjust the volume to ½ the
maximum.
6. Press the lower left corner on the
touchscreen. Select the
A/V In
tab. (You should hear audio from
your portable music player
although it may be low.)
7. Adjust the sound on your portable
music player until it reaches the
level of the FM station or CD by
switching back and forth between
the controls.
387
MKZ (CC9) MyLincoln Touch
™E142622

In order to playback video from your
iPod or iPhone, you must have a
special combination USB/RCA
composite video cable (which you can
buy from Apple). When you connect
the cable to your iPod or iPhone, plug
the other end into both the RCA jacks
and the USB port.
Troubleshooting
•
Do not connect the audio input
jack to a line level output. The jack
only works correctly with devices
that have a headphone output
with a volume control.
• Do not set the portable music
player's volume level higher than
is necessary to match the volume
of the CD or FM radio as this
causes distortion and reduces
sound quality. •
If the music sounds distorted at
lower listening levels, turn the
portable music player volume
down. If the problem persists,
replace or recharge the batteries
in the portable media player.
• Control the portable media player
in the same manner when used
with headphones, as the auxiliary
input jack does not provide control
(such as Play or Pause) over the
attached portable media player.
PHONE 388
MKZ (CC9) MyLincoln Touch
™A
B
C
D
E
F
E161968
