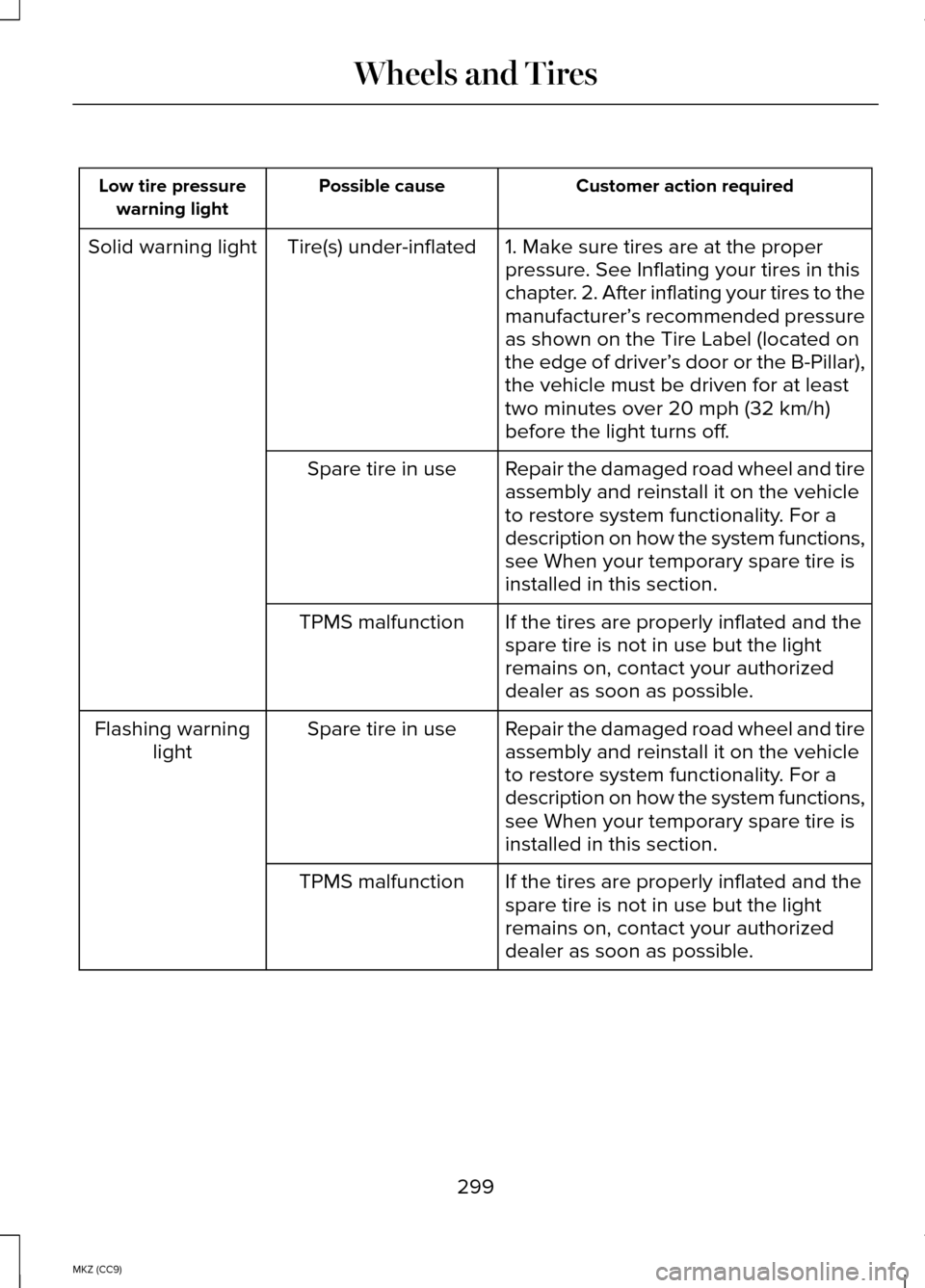

Page 301 of 445

Customer action required
Possible cause
Low tire pressure
warning light
1. Make sure tires are at the proper
pressure. See Inflating your tires in this
chapter. 2. After inflating your tires to the
manufacturer’s recommended pressure
as shown on the Tire Label (located on
the edge of driver’ s door or the B-Pillar),
the vehicle must be driven for at least
two minutes over 20 mph (32 km/h)
before the light turns off.
Tire(s) under-inflated
Solid warning light
Repair the damaged road wheel and tire
assembly and reinstall it on the vehicle
to restore system functionality. For a
description on how the system functions,
see When your temporary spare tire is
installed in this section.
Spare tire in use
If the tires are properly inflated and the
spare tire is not in use but the light
remains on, contact your authorized
dealer as soon as possible.
TPMS malfunction
Repair the damaged road wheel and tire
assembly and reinstall it on the vehicle
to restore system functionality. For a
description on how the system functions,
see When your temporary spare tire is
installed in this section.
Spare tire in use
Flashing warning
light
If the tires are properly inflated and the
spare tire is not in use but the light
remains on, contact your authorized
dealer as soon as possible.
TPMS malfunction
299
MKZ (CC9) Wheels and Tires
Page 302 of 445

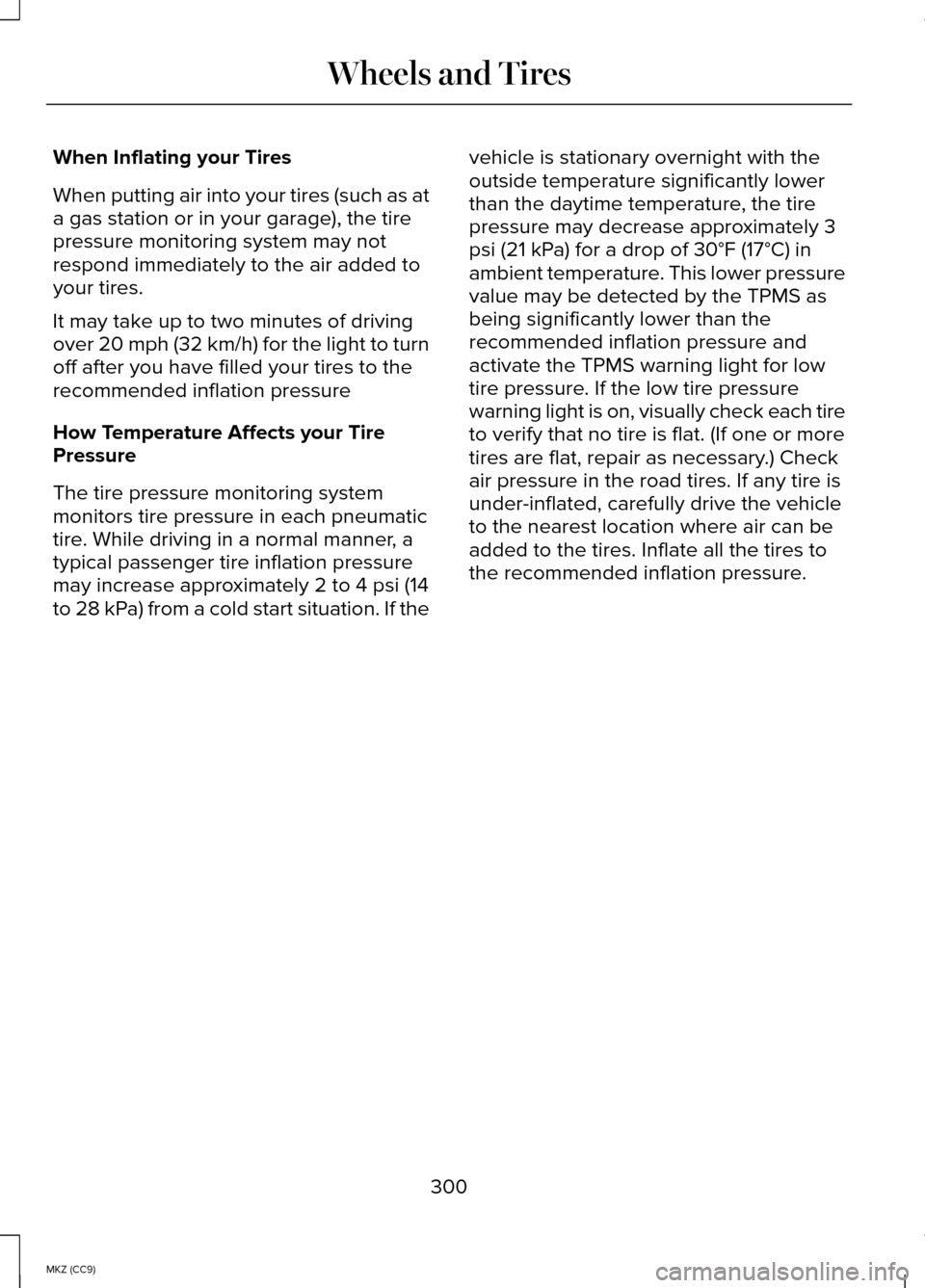

When Inflating your Tires
When putting air into your tires (such as at
a gas station or in your garage), the tire
pressure monitoring system may not
respond immediately to the air added to
your tires.
It may take up to two minutes of driving
over 20 mph (32 km/h) for the light to turn
off after you have filled your tires to the
recommended inflation pressure
How Temperature Affects your Tire
Pressure
The tire pressure monitoring system
monitors tire pressure in each pneumatic
tire. While driving in a normal manner, a
typical passenger tire inflation pressure
may increase approximately 2 to 4 psi (14
to 28 kPa) from a cold start situation. If the
vehicle is stationary overnight with the
outside temperature significantly lower
than the daytime temperature, the tire
pressure may decrease approximately 3
psi (21 kPa) for a drop of 30°F (17°C) in
ambient temperature. This lower pressure
value may be detected by the TPMS as
being significantly lower than the
recommended inflation pressure and
activate the TPMS warning light for low
tire pressure. If the low tire pressure
warning light is on, visually check each tire
to verify that no tire is flat. (If one or more
tires are flat, repair as necessary.) Check
air pressure in the road tires. If any tire is
under-inflated, carefully drive the vehicle
to the nearest location where air can be
added to the tires. Inflate all the tires to
the recommended inflation pressure.
300
MKZ (CC9) Wheels and Tires
Page 303 of 445

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING
When a wheel is installed, always remove any corrosion, dirt or foreign \
materials
present on the mounting surfaces of the wheel or the surface of the whee\
l hub,
brake drum or brake disc that contacts the wheel. Make sure that any fasteners that
attach the rotor to the hub are secured so they do not interfere with th\
e mounting surfaces
of the wheel. Installing wheels without correct metal-to-metal contact a\
t the wheel
mounting surfaces can cause the wheel nuts to loosen and the wheel to co\
me off while
your vehicle is in motion, resulting in loss of control. Ib-ft (Nm)
*
Bolt size
100 (135)
M12 x 1.5
* Torque specifications are for nut and bolt threads free of dirt and rust.\
Use only Ford
recommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 miles (160 kil\
ometers) after any
wheel disturbance (such as tire rotation, changing a flat tire, wheel removal). Wheel pilot bore
A
Inspect the wheel pilot bore and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.
301
MKZ (CC9) Wheels and TiresE145950
Page 304 of 445

ENGINE SPECIFICATIONS
2.0L ATK iVCT Engine
Engine
122
Cubic inches
Minimum 87 octane
Required fuel
1-3-4-2
Firing order
Coil on plug (COP)
Ignition system
12.3:1
Compression
ratio
0.051 in. ± 0.002 in. (1.3 mm ± 0.05 mm)
Spark plug gap
302
MKZ (CC9) Capacities and Specifications
Page 305 of 445

MOTORCRAFT PARTS
2.0L ATK iVCT Engine
Component
FA-1911
Air filter element 1
FL-910-S
Oil filter 2
BXT-96R-500
Battery
BXT-96R-590
SP-531
Spark plugs 3
FP-71
Cabin air filter
FS-104
Seat filter
WW-2200 (driver side)
Windshield wiper blade
WW-1900 (passenger side)
1 Failure to use the correct air filter element may result in severe engi\
ne damage. The
customer warranty may be void for any damage to the engine if the correc\
t air filter
element is not used.
2 Only use the specified replacement oil filter. The use of a non-specified oil filter can
result in engine damage.
3 For spark plug replacement, see your authorized dealer. Replace the spark plugs at
the appropriate intervals. See Scheduled Maintenance (page 412).
Note:
Replace the spark plugs with ones that meet Ford material and design spec\
ifications
for your vehicle, such as Motorcraft or equivalent replacement parts. The customer
warranty may be void for any damage to the engine if such spark plugs ar\
e not used.
303
MKZ (CC9) Capacities and Specifications
Page 306 of 445

VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number is
located on the left-hand side of the
instrument panel.
Please note that in the graphic, XXXX is
representative of your vehicle
identification number.
The Vehicle Identification Number contains
the following information: World manufacturer identifier
A
Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations
B
Make, vehicle line, series, body
type
C
Engine type
D
Check digit
E
Model year
F
Assembly plant
G
Production sequence number
H
304
MKZ (CC9) Capacities and SpecificationsE142476 E142477
Page 307 of 445

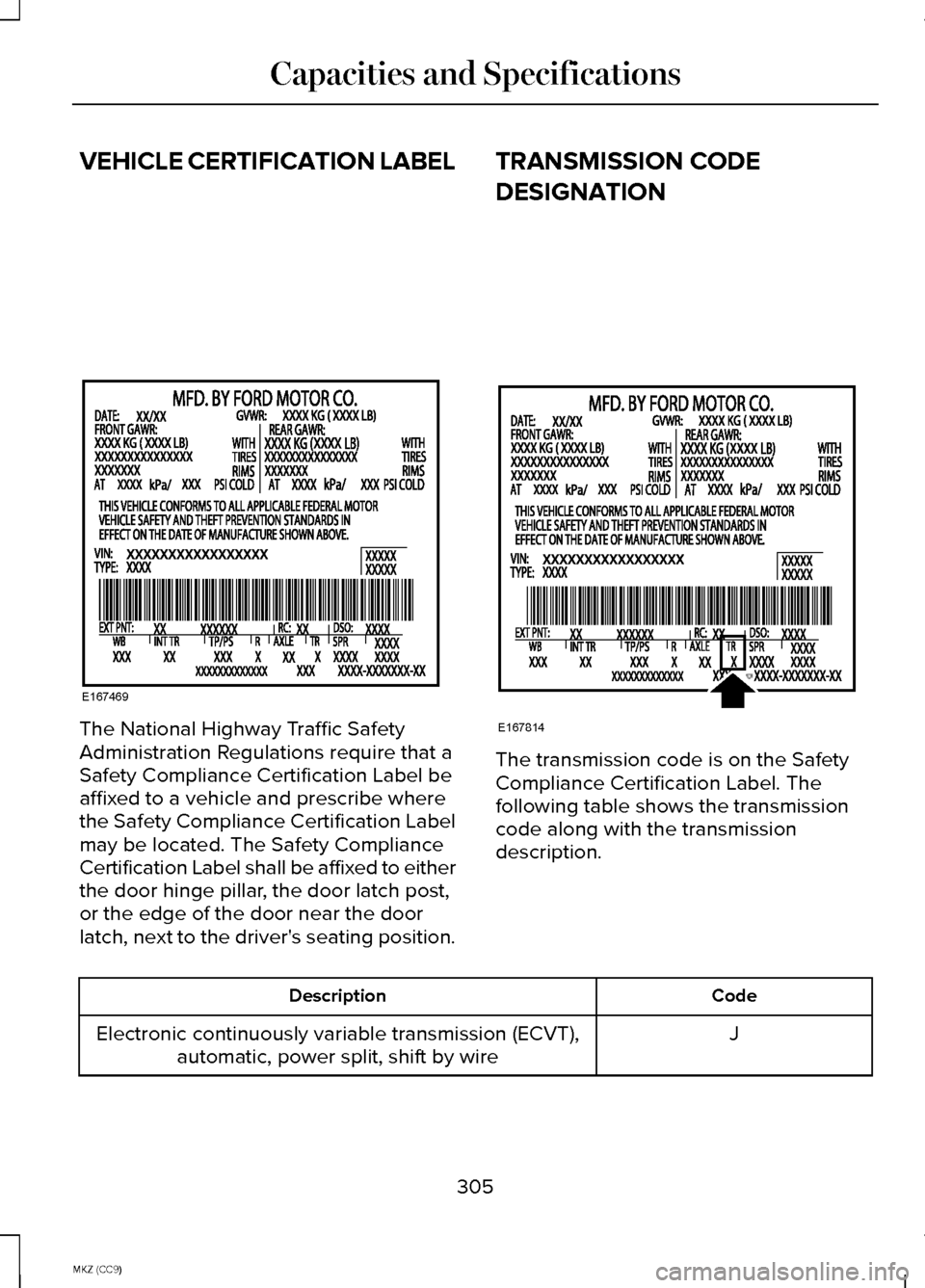

VEHICLE CERTIFICATION LABEL
The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where
the Safety Compliance Certification Label
may be located. The Safety Compliance
Certification Label shall be affixed to either
the door hinge pillar, the door latch post,
or the edge of the door near the door
latch, next to the driver's seating position. TRANSMISSION CODE
DESIGNATION
The transmission code is on the Safety
Compliance Certification Label. The
following table shows the transmission
code along with the transmission
description.
Code
Description
J
Electronic continuously variable transmission (ECVT),
automatic, power split, shift by wire
305
MKZ (CC9) Capacities and SpecificationsE167469 E167814
Page 308 of 445

TECHNICAL SPECIFICATIONS
Ford part number / Ford
specification
Ford part name or
equivalent
Capacity
Item
PM-20/
Motorcraft DOT 4
LV High Perform-ance Brake Fluid
Between MIN and
MAX on reservoir
Brake fluid 1
WSS-M6C65-A2
Motorcraft XL-5 (aerosol) /
CRCSL3151ESB/
Multi-Purpose
Grease (lithium grease)
Not applicable
Hinges, latches,
striker plates and
rotors, seat tracks, fuel filler door
hinge and spring ESB-M1C93-B
XL-1 / None
Motorcraft Penet-
rating and Lock Lubricant
Not applicable
Lock cylinder
XT-10-QLV MERCONLV
Motorcraft
MERCON LV ATF
5.7 qt (5.4L)
Automatic transmis-
sion fluid 2, 3
WSS-M2C947-A
Motorcraft SAE 0W-
20 motor oil or equivalent
4.5 qt (4.3L)
Hybrid engine oil 4,
5, 6, 7
VC-3DIL-B (U.S.);
Motorcraft Orange
Antifreeze/Coolant Prediluted
8.2 qt (7.8L)
Hybrid engine
coolant 8
CVC-3DIL-B (Canada)
/ WSS-M97B44-D2
1 qt (1.0L)
Inverter system
controller coolant 8
ZC-32-A (U.S.);
Motorcraft Premium
Windshield Washer
Concentrate with Bitterant(U.S.);
Fill as required
Windshield washer
fluid CXC-37-(A, B, D, and
F) (Canada)
/ WSB-M8B16-A2
Premium Quality
Windshield Washer Fluid (Canada)
Not applicable
Not applicable
13.5 gal (51.1L)
Hybrid fuel tank
306
MKZ (CC9) Capacities and Specifications

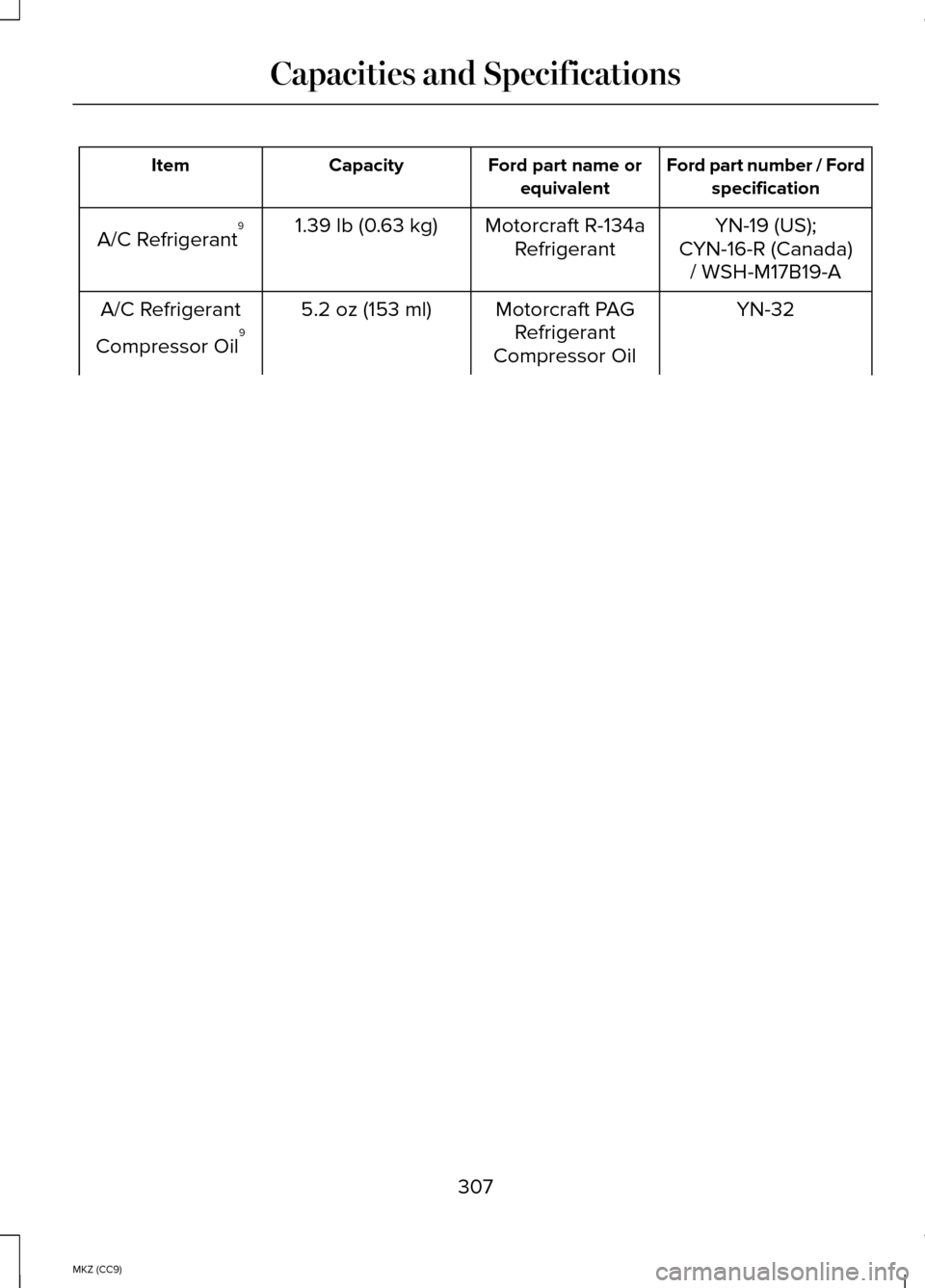

Page 309 of 445

Ford part number / Ford
specification
Ford part name or
equivalent
Capacity
Item
YN-19 (US);
Motorcraft R-134a
Refrigerant
1.39 lb (0.63 kg)
A/C Refrigerant 9
CYN-16-R (Canada)/ WSH-M17B19-A
YN-32
Motorcraft PAG
Refrigerant
Compressor Oil
5.2 oz (153 ml)
A/C Refrigerant
Compressor Oil 9
307
MKZ (CC9) Capacities and Specifications
Page 310 of 445

Ford part number / Ford
specification
Ford part name or
equivalent
Capacity
Item
/WSS-M2C31-B2
1 Ford recommends using Motorcraft (Ford) DOT 4 LV High Performance Motor Vehicle
Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than \
the
recommended fluid may cause degraded brake performance and not meet the Ford
performance standards. Keep brake fluid clean and dry. Contamination with dirt, water,
petroleum products or other materials may result in brake system damage and possible
failure.
2 Approximate dry fill capacity. Actual amount may vary during fluid changes.
3 Automatic transmissions that require Motorcraft MERCON LV transmission fluid should
only use Motorcraft MERCON LV transmission fluid.
Use of any fluid other than the recommended fluid may cause transmission\
damage.
Change the automatic transmission fluid and filter at the correct servic\
e interval. See
Scheduled Maintenance (page 412).
4 The design of your engine allows for the use of Motorcraft engine oils o\
r equivalent oils
that meet Ford specifications. It is also acceptable to use an engine oi\
l of recommended
viscosity grade that meets API SN requirements and displays the API cert\
ification mark
for gasoline engines.
5 Do not use supplemental engine oil additives, cleaners or other engine t\
reatments. They
are unnecessary and could lead to engine damage not covered by Ford warr\
anty.
6 Do not use API S category oils labeled as SN, SM, SL or lower category u\
nless the label
also displays the API certification mark. These oils do not meet the req\
uirements of the
engine and emission system.
7 You can use 5W-20 oil if 0W-20 oil is not available.
8 Add the coolant type originally equipped in your vehicle.
9 See the warning below: WARNING
The air conditioning refrigerant system contains refrigerant R-134a unde\
r high
pressure. Opening the air conditioning refrigerant system can cause personal inj\
ury.
Have the air conditioning refrigerant system serviced only by qualified \
personnel. 308
