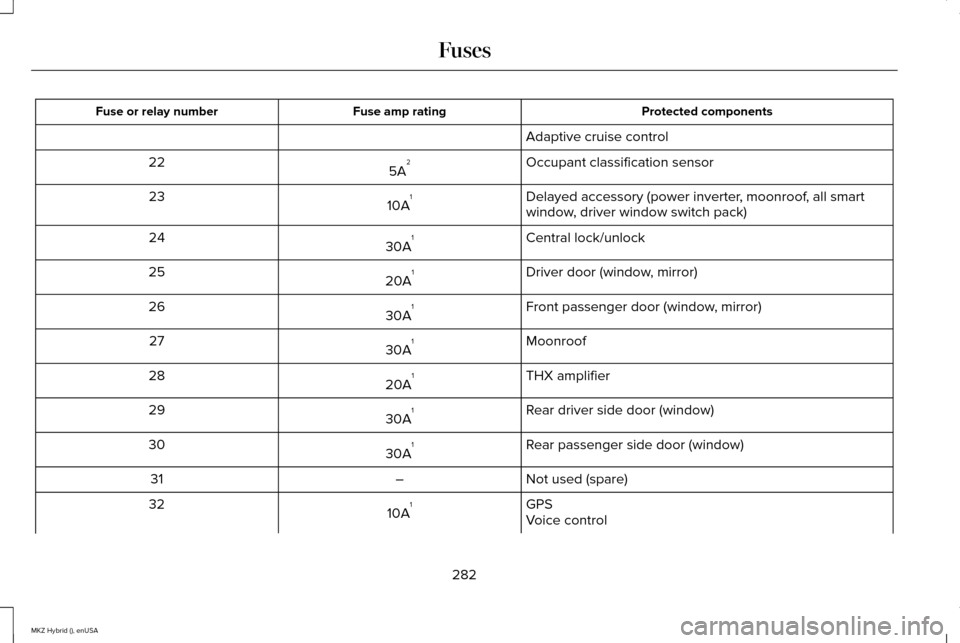

Protected components
Fuse amp rating
Fuse or relay number
Adaptive cruise control
Occupant classification sensor
5A 2
22
Delayed accessory (power inverter, moonroof, all smart
window, driver window switch pack)
10A 1
23
Central lock/unlock
30A 1
24
Driver door (window, mirror)
20A 1
25
Front passenger door (window, mirror)
30A 1
26
Moonroof
30A 1
27
THX amplifier
20A 1
28
Rear driver side door (window)
30A 1
29
Rear passenger side door (window)
30A 1
30
Not used (spare)
–
31
GPS
10A 1
32
Voice control
282
MKZ Hybrid (), enUSA Fuses

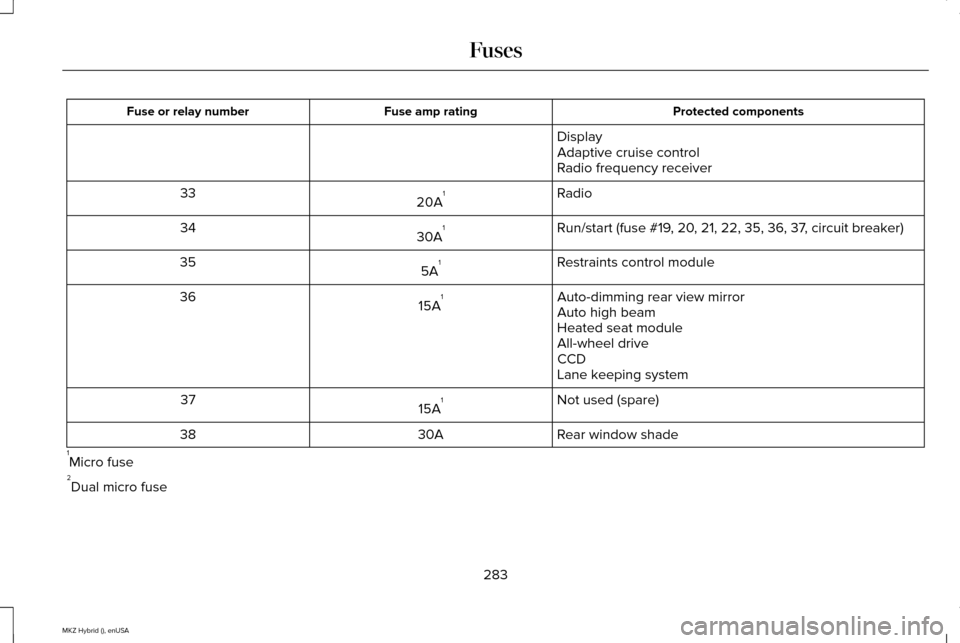

Protected components
Fuse amp rating
Fuse or relay number
Display
Adaptive cruise control
Radio frequency receiver
Radio
20A 1
33
Run/start (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker)
30A 1
34
Restraints control module
5A 1
35
Auto-dimming rear view mirror
15A 1
36
Auto high beam
Heated seat module
All-wheel drive
CCD
Lane keeping system
Not used (spare)
15A 1
37
Rear window shade
30A
38
1 Micro fuse
2 Dual micro fuse
