relay LINCOLN MKZ HYBRID 2015 Owners Manual

Protected components
Fuse amp rating
Fuse or relay number

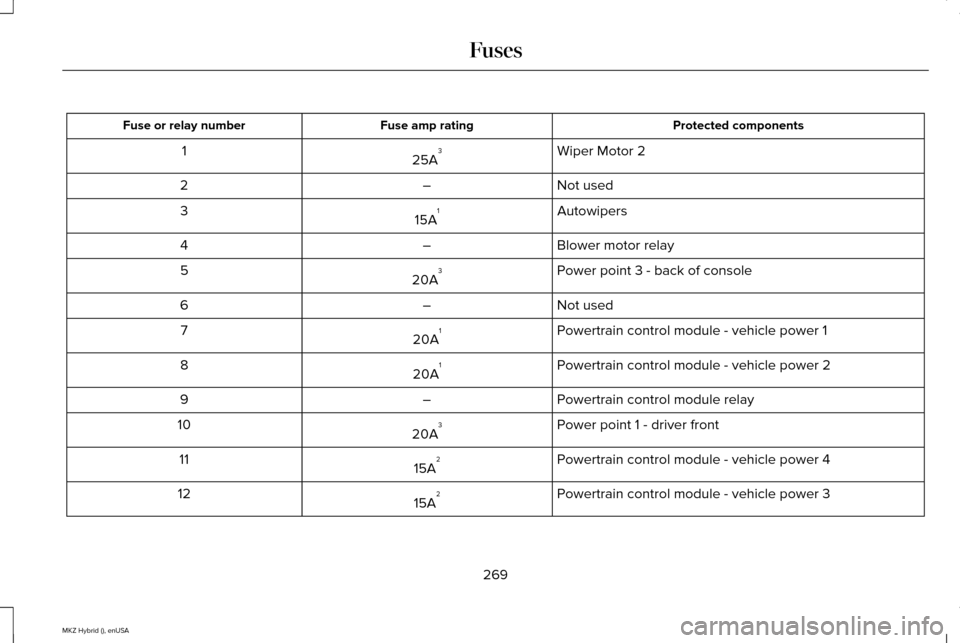

Wiper Motor 2
25A 3
1
Not used
–
2
Autowipers
15A 1
3
Blower motor relay
–
4
Power point 3 - back of console
20A 3
5
Not used
–
6
Powertrain control module - vehicle power 1
20A 1
7
Powertrain control module - vehicle power 2
20A 1
8
Powertrain control module relay
–
9
Power point 1 - driver front
20A 3
10
Powertrain control module - vehicle power 4
15A 2
11
Powertrain control module - vehicle power 3
15A 2
12
269
MKZ Hybrid (), enUSA Fuses

Protected components
Fuse amp rating
Fuse or relay number

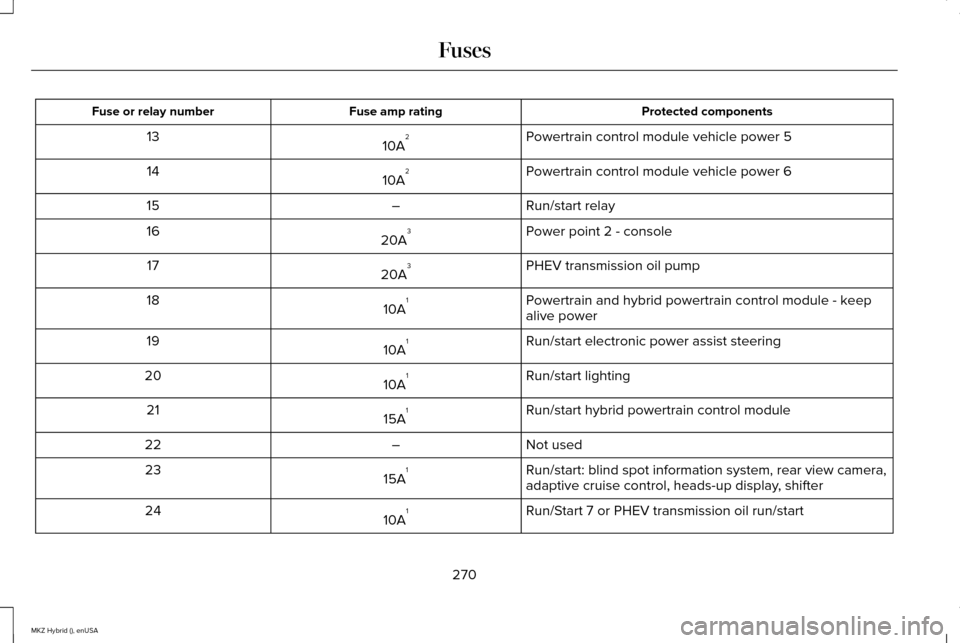

Powertrain control module vehicle power 5
10A 2
13
Powertrain control module vehicle power 6
10A 2
14
Run/start relay
–
15
Power point 2 - console
20A 3
16
PHEV transmission oil pump
20A 3
17
Powertrain and hybrid powertrain control module - keep
alive power
10A 1
18
Run/start electronic power assist steering
10A 1
19
Run/start lighting
10A 1
20
Run/start hybrid powertrain control module
15A 1
21
Not used
–
22
Run/start: blind spot information system, rear view camera,
adaptive cruise control, heads-up display, shifter
15A 1
23
Run/Start 7 or PHEV transmission oil run/start
10A 1
24
270
MKZ Hybrid (), enUSA Fuses

Protected components
Fuse amp rating
Fuse or relay number

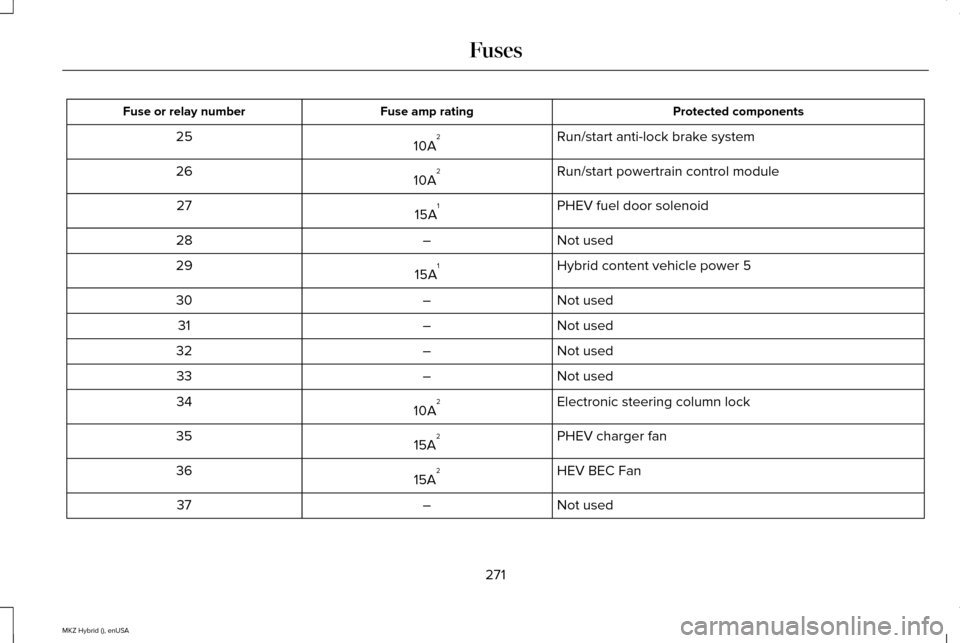

Run/start anti-lock brake system
10A 2
25
Run/start powertrain control module
10A 2
26
PHEV fuel door solenoid
15A 1
27
Not used
–
28
Hybrid content vehicle power 5
15A 1
29
Not used
–
30
Not used
–
31
Not used
–
32
Not used
–
33
Electronic steering column lock
10A 2
34
PHEV charger fan
15A 2
35
HEV BEC Fan
15A 2
36
Not used
–
37
271
MKZ Hybrid (), enUSA Fuses

Protected components
Fuse amp rating
Fuse or relay number

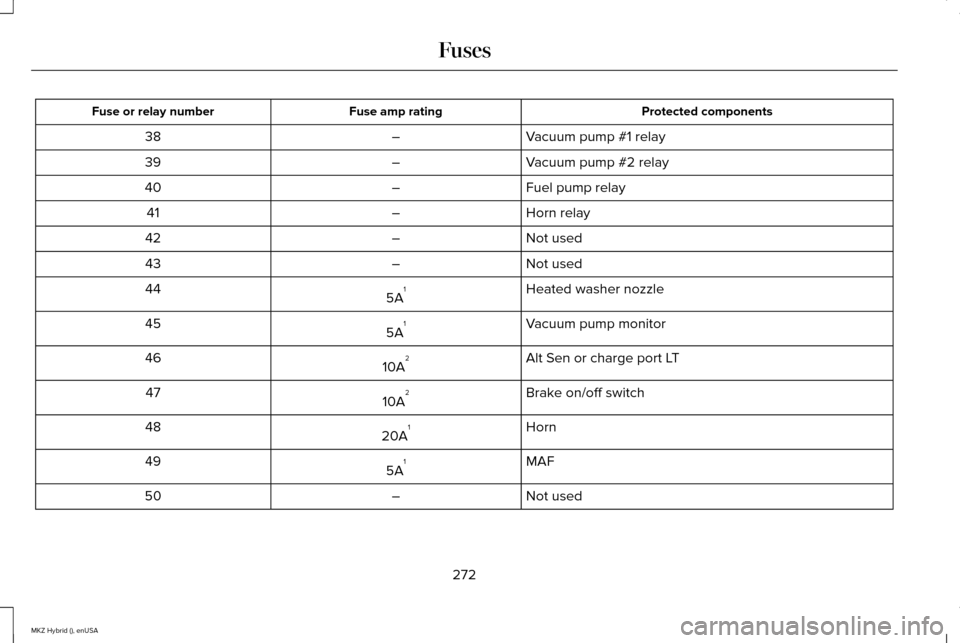

Vacuum pump #1 relay
–
38
Vacuum pump #2 relay
–
39
Fuel pump relay
–
40
Horn relay
–
41
Not used
–
42
Not used
–
43
Heated washer nozzle
5A 1
44
Vacuum pump monitor
5A 1
45
Alt Sen or charge port LT
10A 2
46
Brake on/off switch
10A 2
47
Horn
20A 1
48
MAF
5A 1
49
Not used
–
50
272
MKZ Hybrid (), enUSA Fuses

Protected components
Fuse amp rating
Fuse or relay number

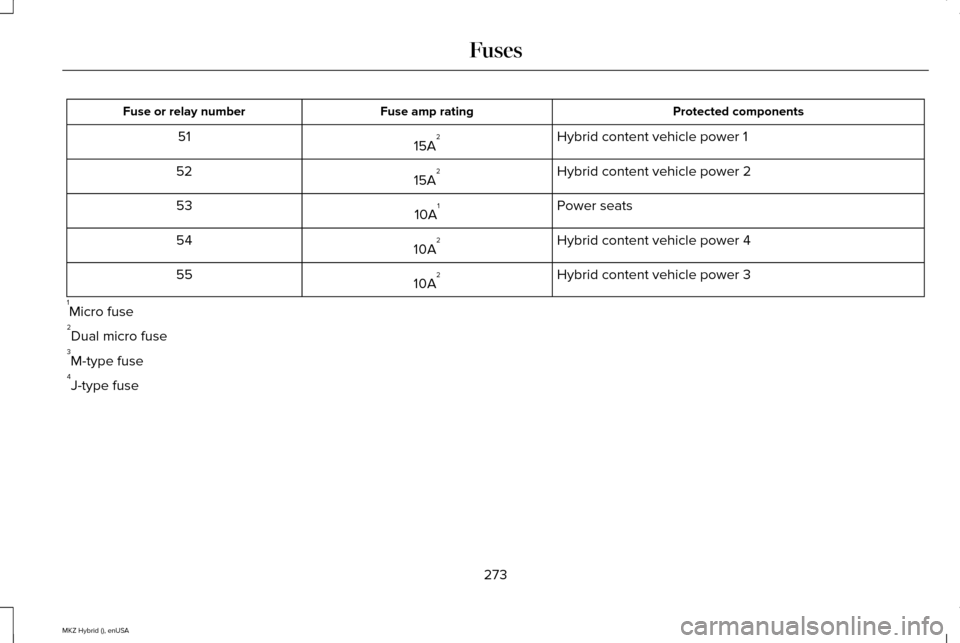

Hybrid content vehicle power 1
15A 2
51
Hybrid content vehicle power 2
15A 2
52
Power seats
10A 1
53
Hybrid content vehicle power 4
10A 2
54
Hybrid content vehicle power 3
10A 2
55
1 Micro fuse
2 Dual micro fuse
3 M-type fuse
4 J-type fuse
273
MKZ Hybrid (), enUSA Fuses

Protected components
Fuse amp rating
Fuse or relay number

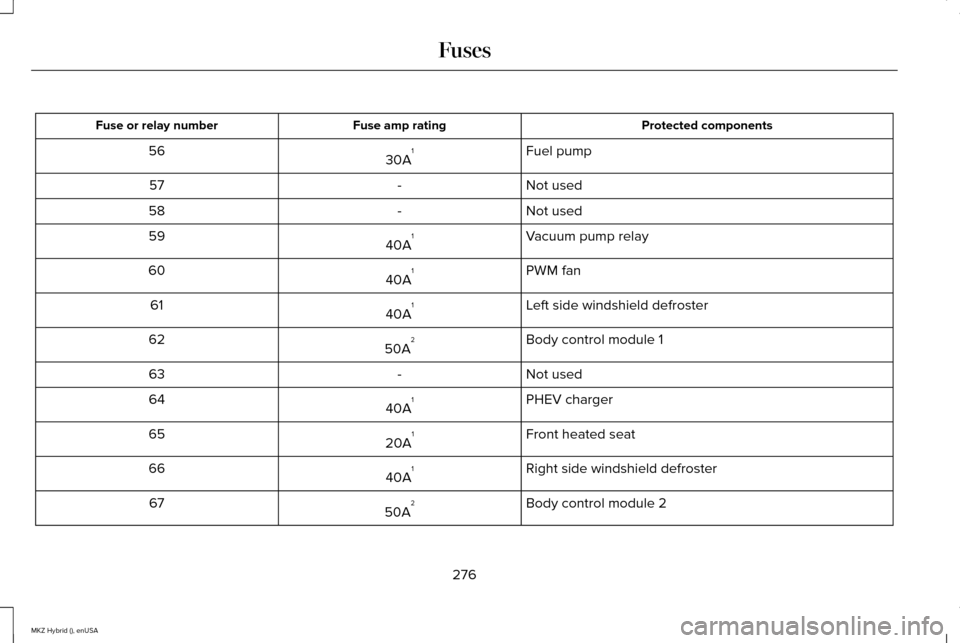

Fuel pump
30A 1
56
Not used
-
57
Not used
-
58
Vacuum pump relay
40A 1
59
PWM fan
40A 1
60
Left side windshield defroster
40A 1
61
Body control module 1
50A 2
62
Not used
-
63
PHEV charger
40A 1
64
Front heated seat
20A 1
65
Right side windshield defroster
40A 1
66
Body control module 2
50A 2
67
276
MKZ Hybrid (), enUSA Fuses

Protected components
Fuse amp rating
Fuse or relay number

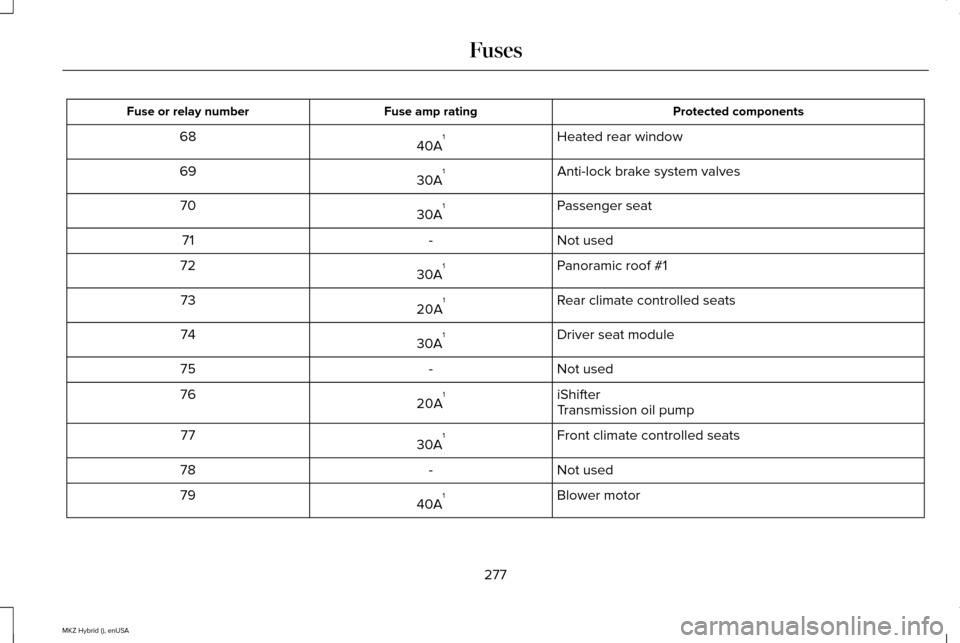

Heated rear window
40A 1
68
Anti-lock brake system valves
30A 1
69
Passenger seat
30A 1
70
Not used
-
71
Panoramic roof #1
30A 1
72
Rear climate controlled seats
20A 1
73
Driver seat module
30A 1
74
Not used
-
75
iShifter
20A 1
76
Transmission oil pump
Front climate controlled seats
30A 1
77
Not used
-
78
Blower motor
40A 1
79
277
MKZ Hybrid (), enUSA Fuses

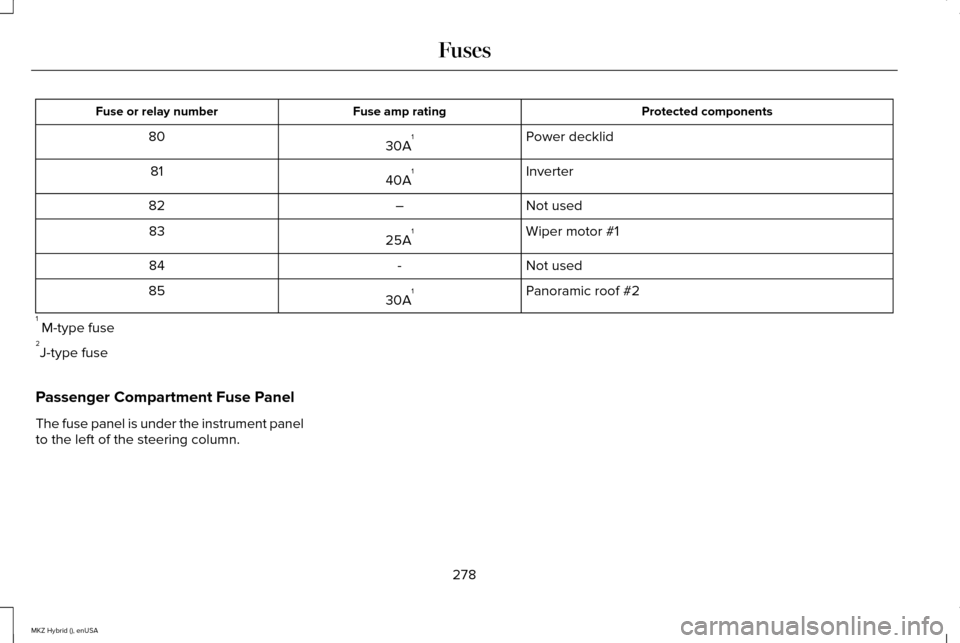

Protected components
Fuse amp rating
Fuse or relay number
Power decklid
30A 1
80
Inverter
40A 1
81
Not used
–
82
Wiper motor #1
25A 1
83
Not used
-
84
Panoramic roof #2
30A 1
85
1 M-type fuse
2 J-type fuse
Passenger Compartment Fuse Panel
The fuse panel is under the instrument panel
to the left of the steering column.
278
MKZ Hybrid (), enUSA Fuses

Protected components
Fuse amp rating
Fuse or relay number

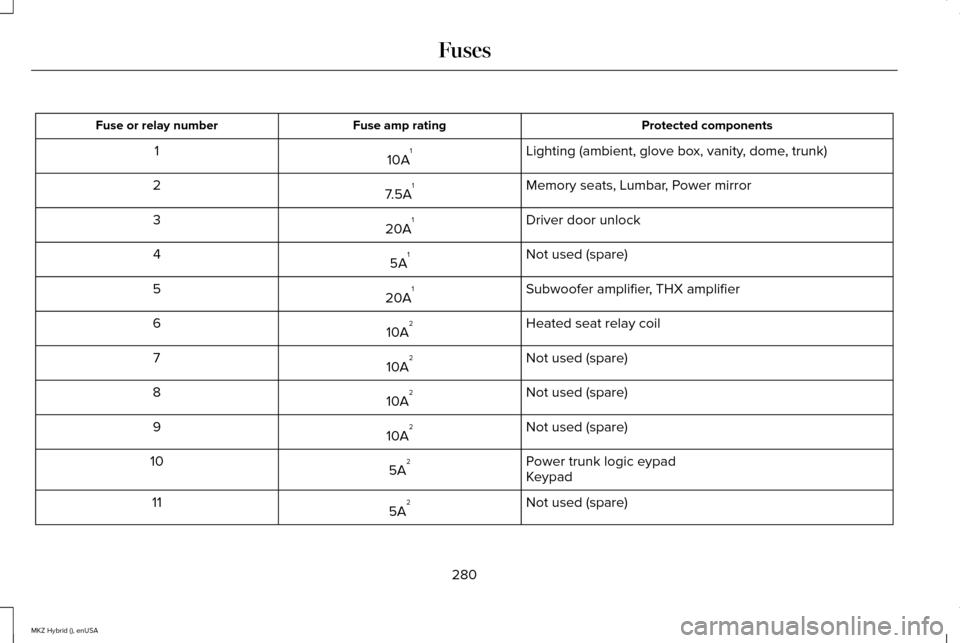

Lighting (ambient, glove box, vanity, dome, trunk)
10A 1
1
Memory seats, Lumbar, Power mirror
7.5A 1
2
Driver door unlock
20A 1
3
Not used (spare)
5A 1
4
Subwoofer amplifier, THX amplifier
20A 1
5
Heated seat relay coil
10A 2
6
Not used (spare)
10A 2
7
Not used (spare)
10A 2
8
Not used (spare)
10A 2
9
Power trunk logic eypad
5A 2
10
Keypad
Not used (spare)
5A 2
11
280
MKZ Hybrid (), enUSA Fuses

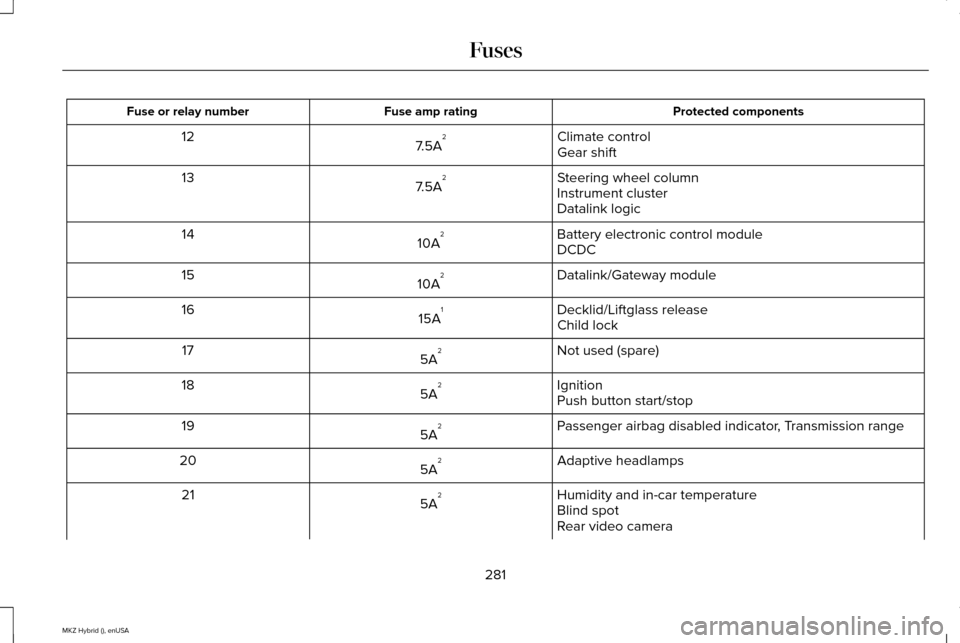

Protected components
Fuse amp rating
Fuse or relay number
Climate control
7.5A 2
12
Gear shift
Steering wheel column
7.5A 2
13
Instrument cluster
Datalink logic
Battery electronic control module
10A 2
14
DCDC
Datalink/Gateway module
10A 2
15
Decklid/Liftglass release
15A 1
16
Child lock
Not used (spare)
5A 2
17
Ignition
5A 2
18
Push button start/stop
Passenger airbag disabled indicator, Transmission range
5A 2
19
Adaptive headlamps
5A 2
20
Humidity and in-car temperature
5A 2
21
Blind spot
Rear video camera
281
MKZ Hybrid (), enUSA Fuses
