LINCOLN MKZ HYBRID 2019 Owners Manual

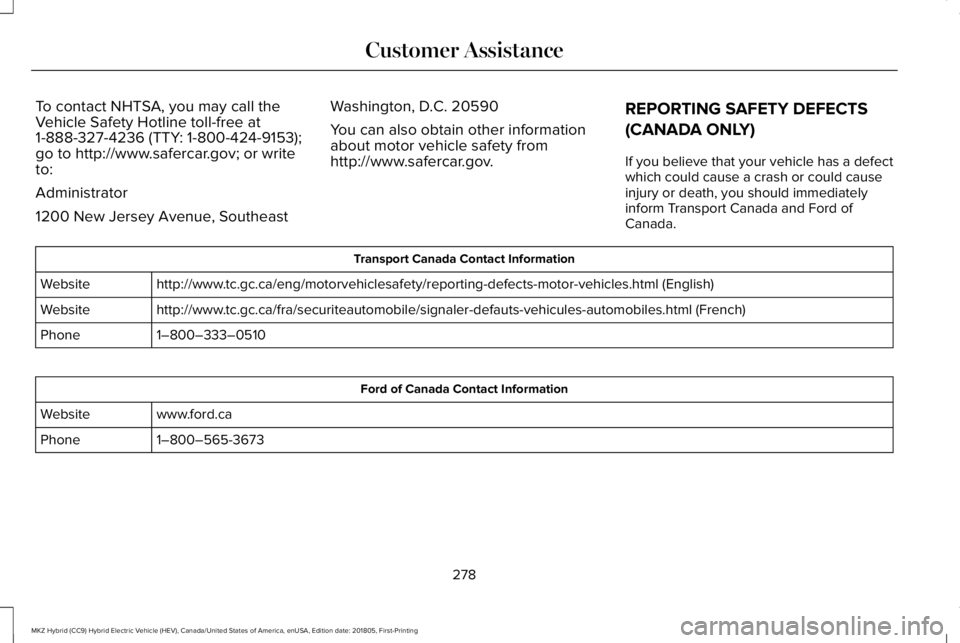

To contact NHTSA, you may call theVehicle Safety Hotline toll-free at1-888-327-4236 (TTY: 1-800-424-9153);go to http://www.safercar.gov; or writeto:
Administrator
1200 New Jersey Avenue, Southeast
Washington, D.C. 20590
You can also obtain other informationabout motor vehicle safety fromhttp://www.safercar.gov.
REPORTING SAFETY DEFECTS
(CANADA ONLY)
If you believe that your vehicle has a defectwhich could cause a crash or could causeinjury or death, you should immediatelyinform Transport Canada and Ford ofCanada.
Transport Canada Contact Information
http://www.tc.gc.ca/eng/motorvehiclesafety/reporting-defects-motor-vehicles.html (English)Website
http://www.tc.gc.ca/fra/securiteautomobile/signaler-defauts-vehicules-automobiles.html (French)Website
1–800–333–0510Phone
Ford of Canada Contact Information
www.ford.caWebsite
1–800–565-3673Phone
278
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Customer Assistance

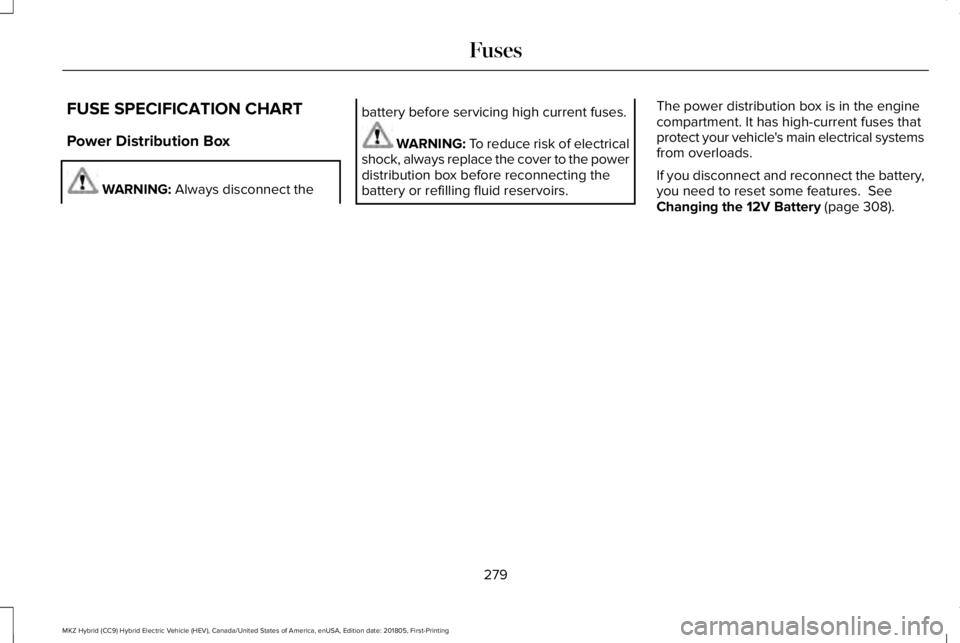

FUSE SPECIFICATION CHART
Power Distribution Box
WARNING: Always disconnect the
battery before servicing high current fuses.
WARNING: To reduce risk of electricalshock, always replace the cover to the powerdistribution box before reconnecting thebattery or refilling fluid reservoirs.
The power distribution box is in the enginecompartment. It has high-current fuses thatprotect your vehicle's main electrical systemsfrom overloads.
If you disconnect and reconnect the battery,you need to reset some features. SeeChanging the 12V Battery (page 308).
279
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Fuses

280
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

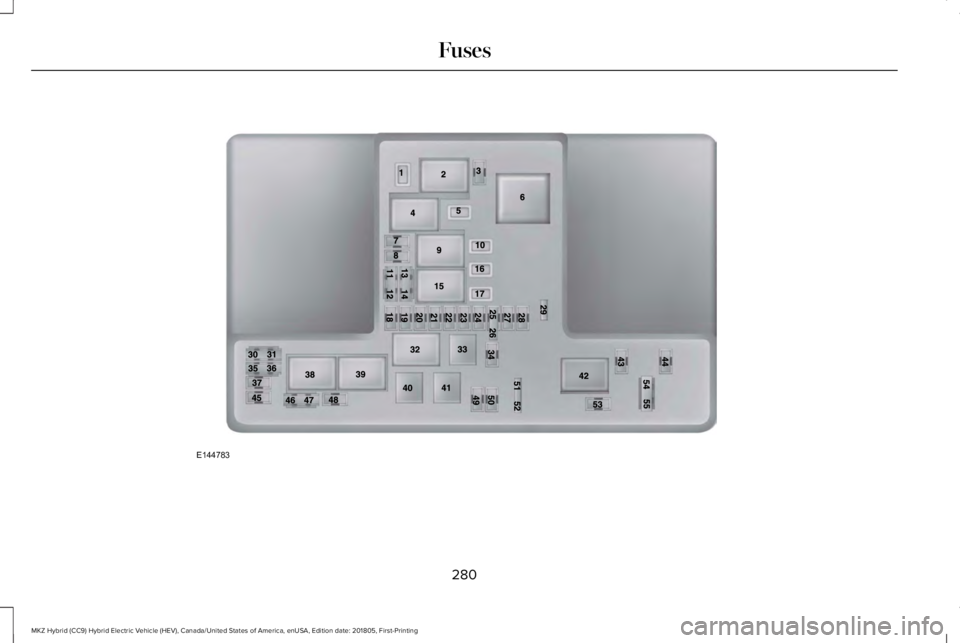

FusesE144783

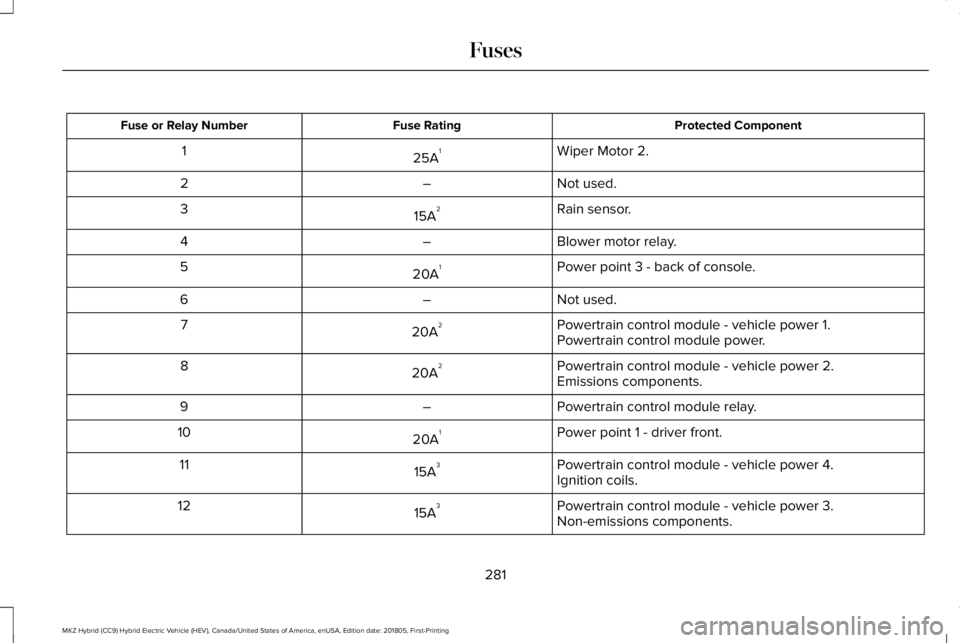

Protected ComponentFuse RatingFuse or Relay Number
Wiper Motor 2.25A11
Not used.–2
Rain sensor.15A23
Blower motor relay.–4
Power point 3 - back of console.20A15
Not used.–6
Powertrain control module - vehicle power 1.20A27Powertrain control module power.
Powertrain control module - vehicle power 2.20A28Emissions components.
Powertrain control module relay.–9
Power point 1 - driver front.20A110
Powertrain control module - vehicle power 4.15A311Ignition coils.
Powertrain control module - vehicle power 3.15A312Non-emissions components.
281
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Fuses

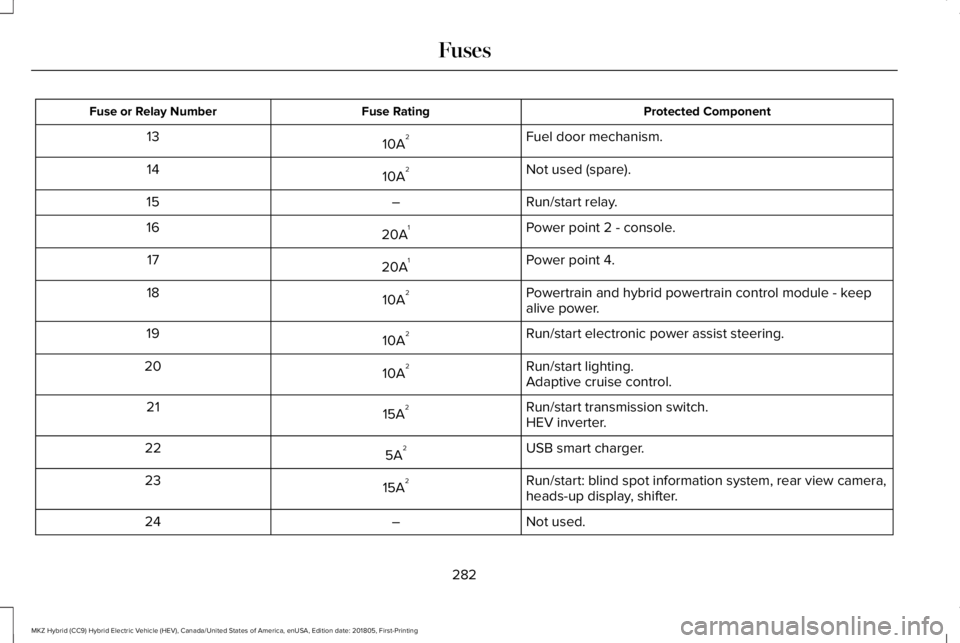

Protected ComponentFuse RatingFuse or Relay Number
Fuel door mechanism.10A213
Not used (spare).10A214
Run/start relay.–15
Power point 2 - console.20A116
Power point 4.20A117
Powertrain and hybrid powertrain control module - keepalive power.10A218
Run/start electronic power assist steering.10A219
Run/start lighting.10A220Adaptive cruise control.
Run/start transmission switch.15A221HEV inverter.
USB smart charger.5A222
Run/start: blind spot information system, rear view camera,heads-up display, shifter.15A223
Not used.–24
282
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Fuses

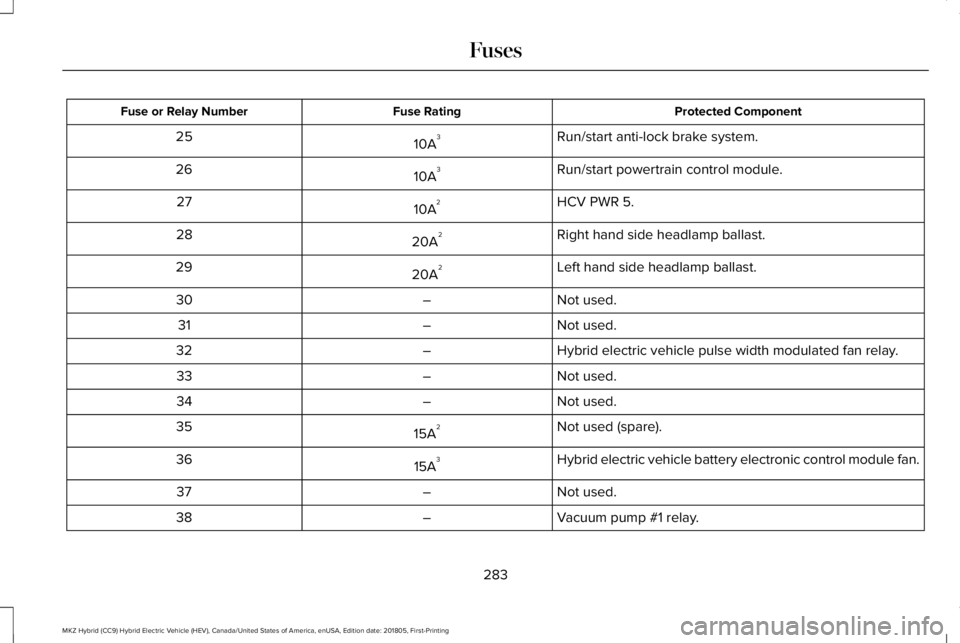

Protected ComponentFuse RatingFuse or Relay Number
Run/start anti-lock brake system.10A325
Run/start powertrain control module.10A326
HCV PWR 5.10A227
Right hand side headlamp ballast.20A228
Left hand side headlamp ballast.20A229
Not used.–30
Not used.–31
Hybrid electric vehicle pulse width modulated fan relay.–32
Not used.–33
Not used.–34
Not used (spare).15A235
Hybrid electric vehicle battery electronic control module fan.15A336
Not used.–37
Vacuum pump #1 relay.–38
283
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Fuses

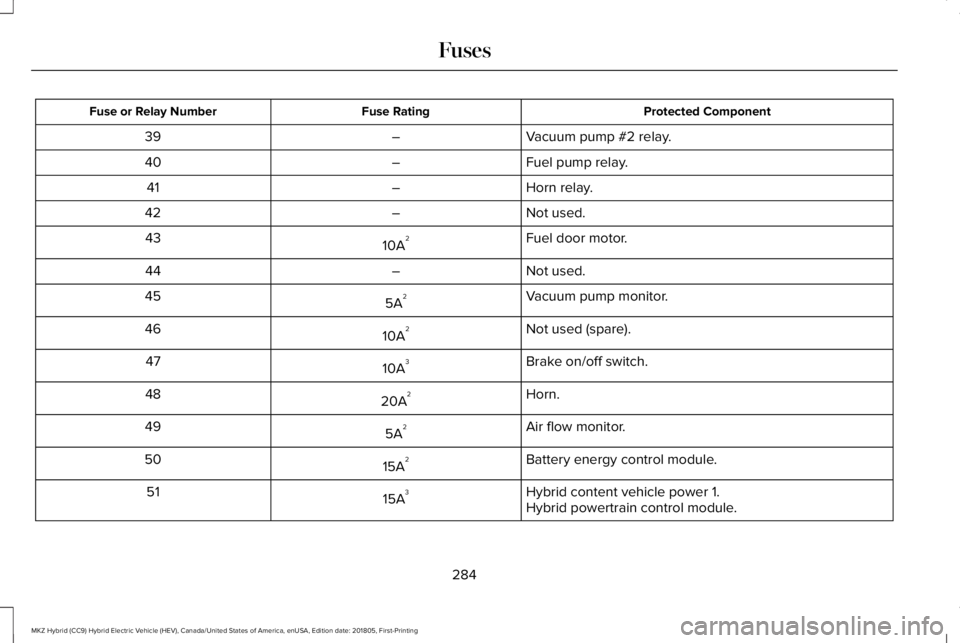

Protected ComponentFuse RatingFuse or Relay Number
Vacuum pump #2 relay.–39
Fuel pump relay.–40
Horn relay.–41
Not used.–42
Fuel door motor.10A243
Not used.–44
Vacuum pump monitor.5A245
Not used (spare).10A246
Brake on/off switch.10A347
Horn.20A248
Air flow monitor.5A249
Battery energy control module.15A250
Hybrid content vehicle power 1.15A351Hybrid powertrain control module.
284
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Fuses

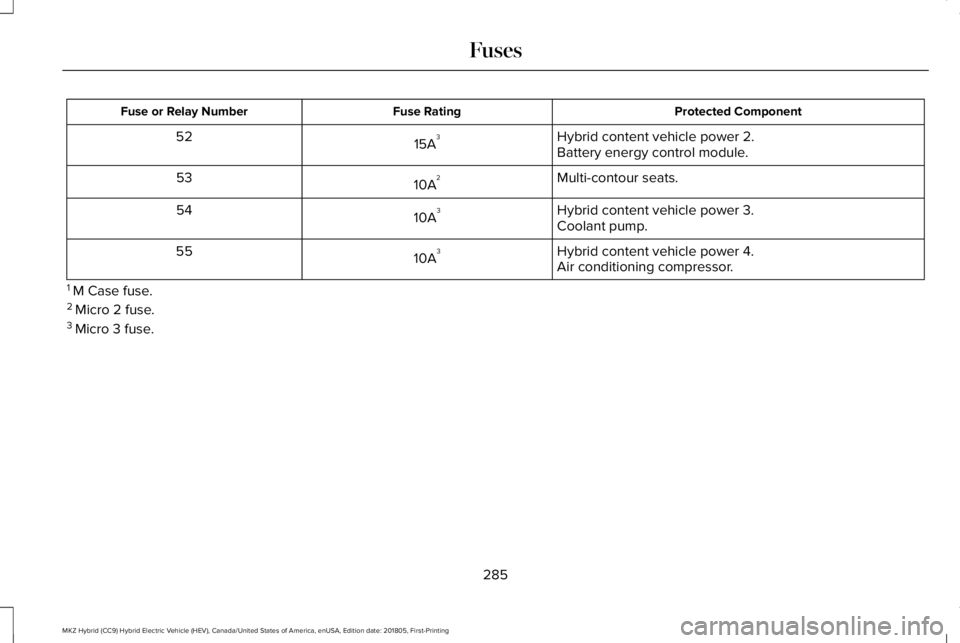

Protected ComponentFuse RatingFuse or Relay Number
Hybrid content vehicle power 2.15A352Battery energy control module.
Multi-contour seats.10A253
Hybrid content vehicle power 3.10A354Coolant pump.
Hybrid content vehicle power 4.10A355Air conditioning compressor.
1 M Case fuse.2 Micro 2 fuse.3 Micro 3 fuse.
285
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Fuses

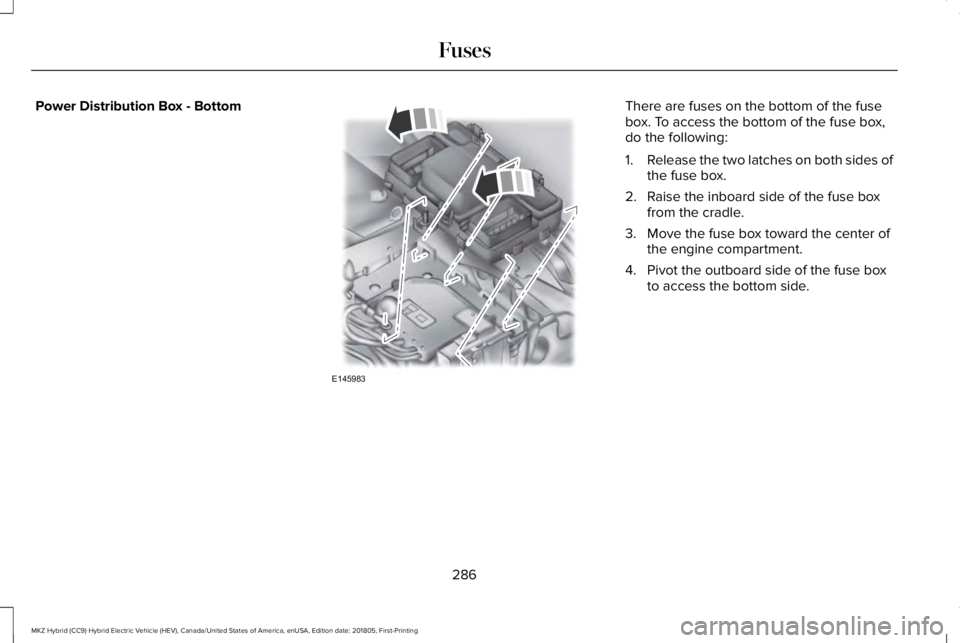

Power Distribution Box - BottomThere are fuses on the bottom of the fusebox. To access the bottom of the fuse box,do the following:
1.Release the two latches on both sides ofthe fuse box.
2. Raise the inboard side of the fuse boxfrom the cradle.
3. Move the fuse box toward the center ofthe engine compartment.
4. Pivot the outboard side of the fuse boxto access the bottom side.
286
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing
FusesE145983

287
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

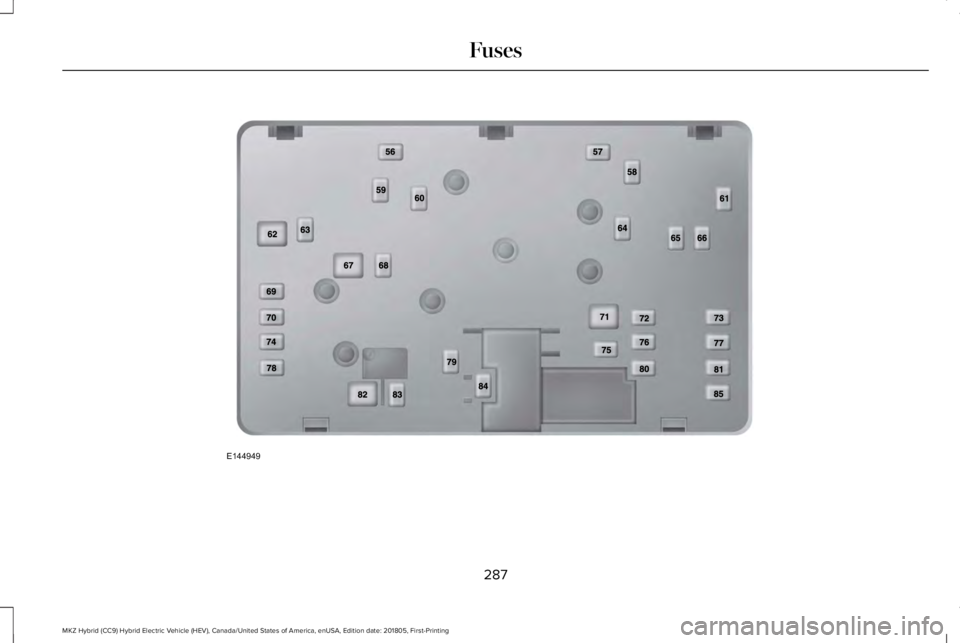

FusesE144949
