LINCOLN MKZ HYBRID 2019 Owners Manual

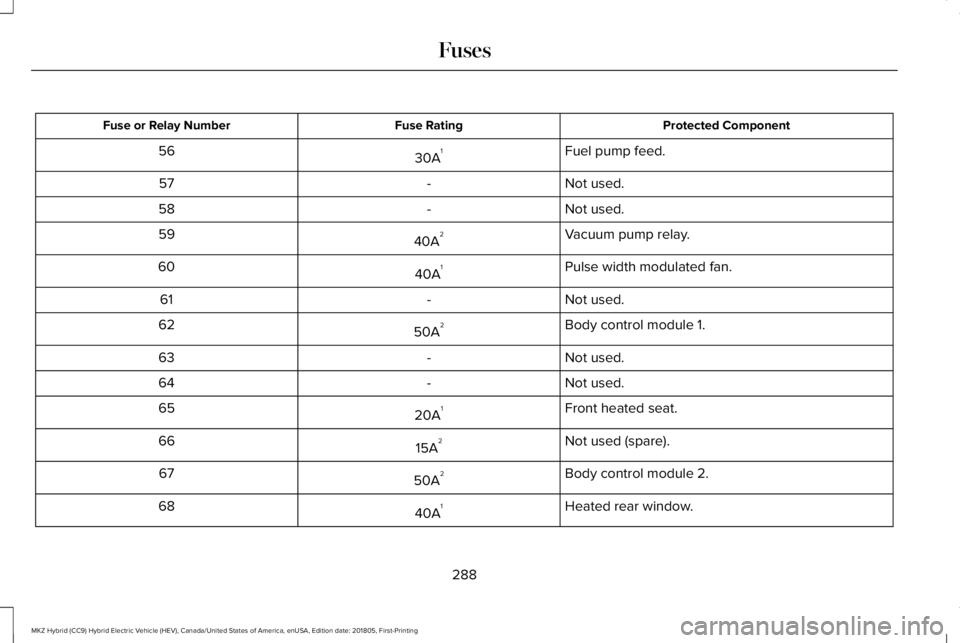

Protected ComponentFuse RatingFuse or Relay Number
Fuel pump feed.30A156
Not used.-57
Not used.-58
Vacuum pump relay.40A259
Pulse width modulated fan.40A160
Not used.-61
Body control module 1.50A262
Not used.-63
Not used.-64
Front heated seat.20A165
Not used (spare).15A266
Body control module 2.50A267
Heated rear window.40A168
288
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Fuses

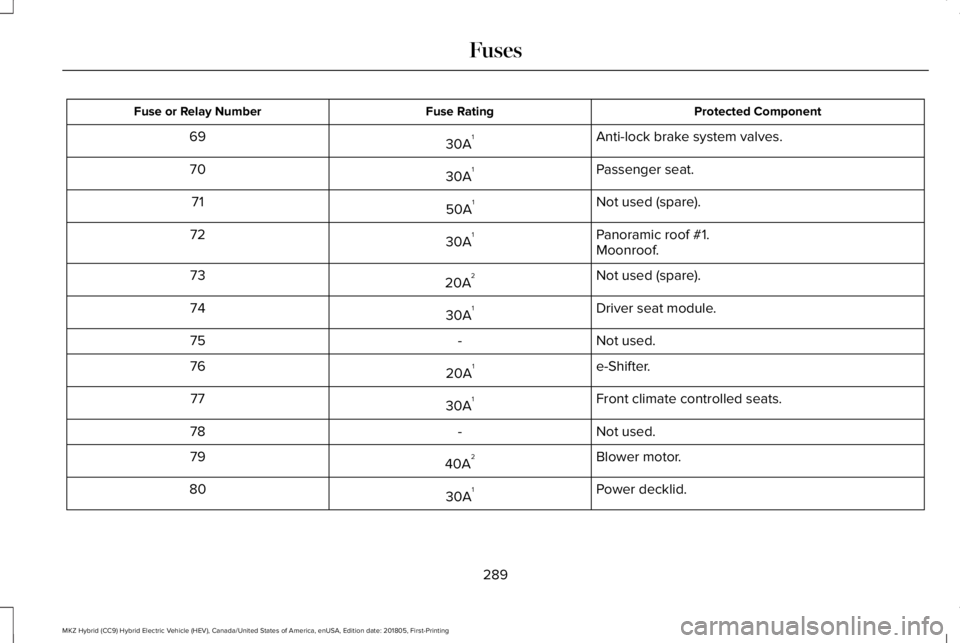

Protected ComponentFuse RatingFuse or Relay Number
Anti-lock brake system valves.30A169
Passenger seat.30A170
Not used (spare).50A171
Panoramic roof #1.30A172Moonroof.
Not used (spare).20A273
Driver seat module.30A174
Not used.-75
e-Shifter.20A176
Front climate controlled seats.30A177
Not used.-78
Blower motor.40A279
Power decklid.30A180
289
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Fuses

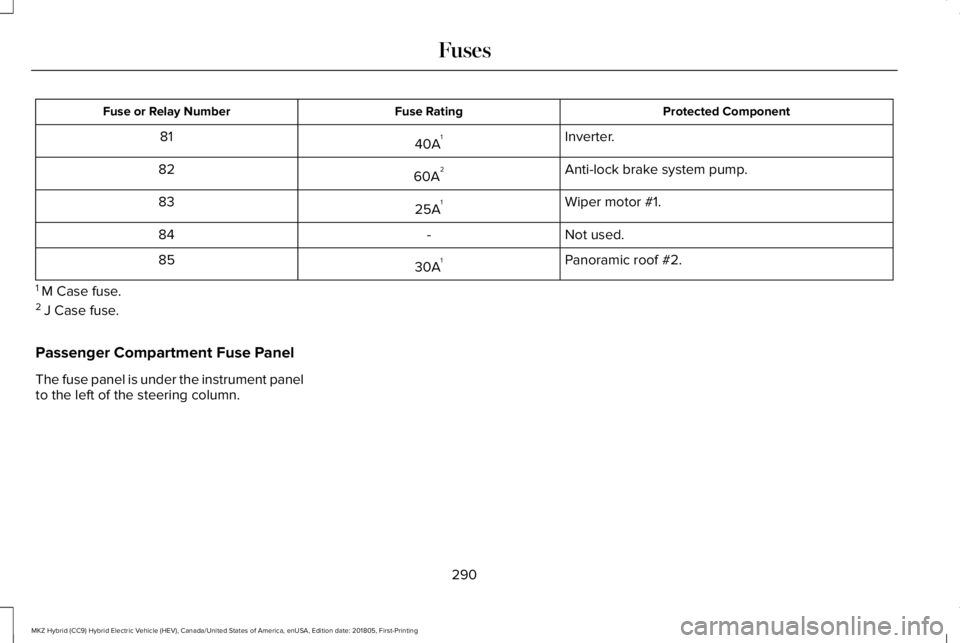

Protected ComponentFuse RatingFuse or Relay Number
Inverter.40A181
Anti-lock brake system pump.60A282
Wiper motor #1.25A183
Not used.-84
Panoramic roof #2.30A185
1 M Case fuse.2 J Case fuse.

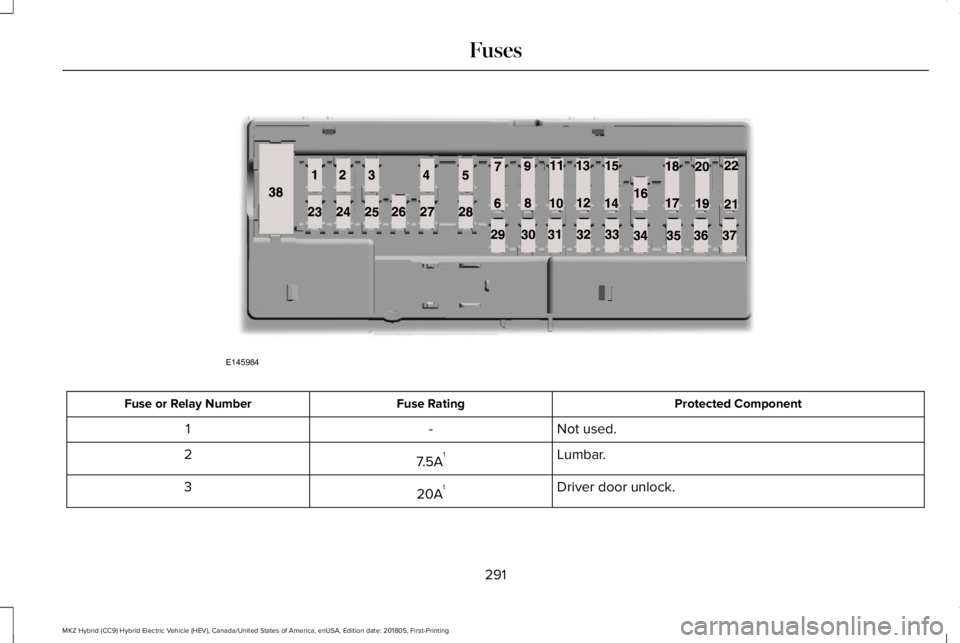

Passenger Compartment Fuse Panel
The fuse panel is under the instrument panelto the left of the steering column.
290
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Fuses

Protected ComponentFuse RatingFuse or Relay Number
Not used.-1
Lumbar.7.5A12
Driver door unlock.20A13
291
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing
FusesE145984

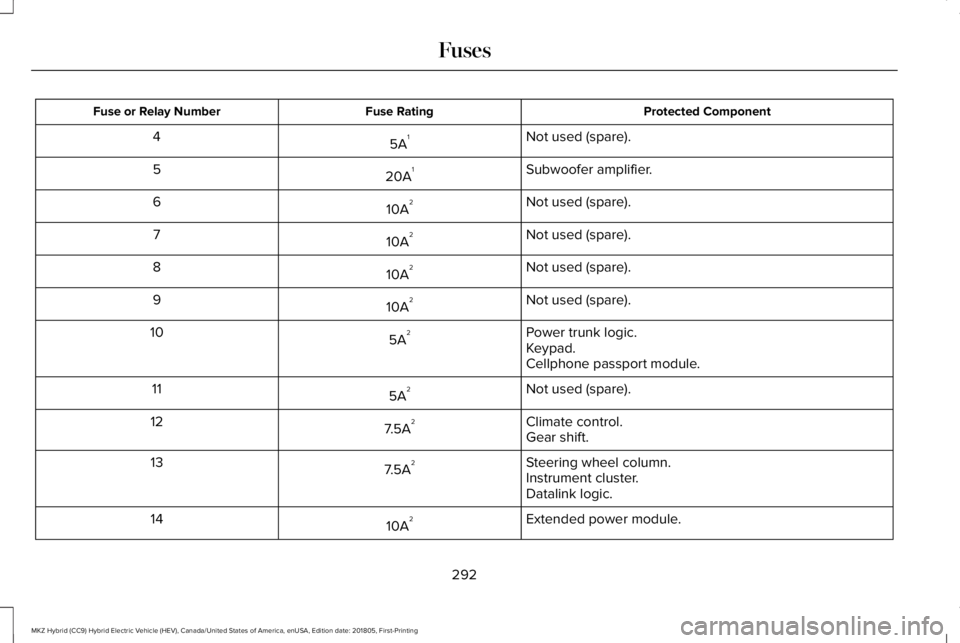

Protected ComponentFuse RatingFuse or Relay Number
Not used (spare).5A14
Subwoofer amplifier.20A15
Not used (spare).10A26
Not used (spare).10A27
Not used (spare).10A28
Not used (spare).10A29
Power trunk logic.5A210Keypad.Cellphone passport module.
Not used (spare).5A211
Climate control.7.5A212Gear shift.
Steering wheel column.7.5A213Instrument cluster.Datalink logic.
Extended power module.10A214
292
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Fuses

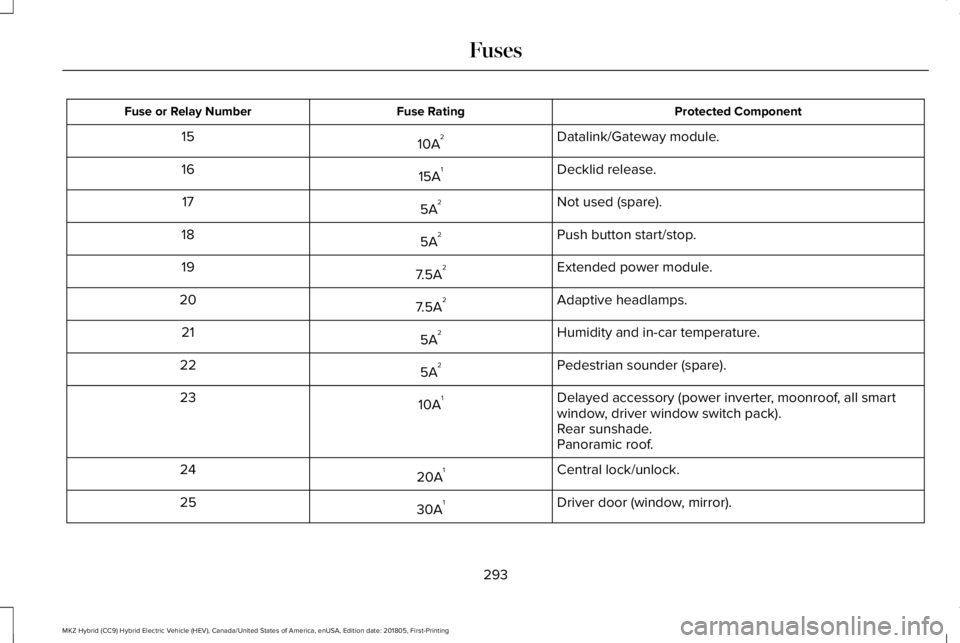

Protected ComponentFuse RatingFuse or Relay Number
Datalink/Gateway module.10A215
Decklid release.15A116
Not used (spare).5A217
Push button start/stop.5A218
Extended power module.7.5A219
Adaptive headlamps.7.5A220
Humidity and in-car temperature.5A221
Pedestrian sounder (spare).5A222
Delayed accessory (power inverter, moonroof, all smartwindow, driver window switch pack).10A123
Rear sunshade.Panoramic roof.
Central lock/unlock.20A124
Driver door (window, mirror).30A125
293
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Fuses

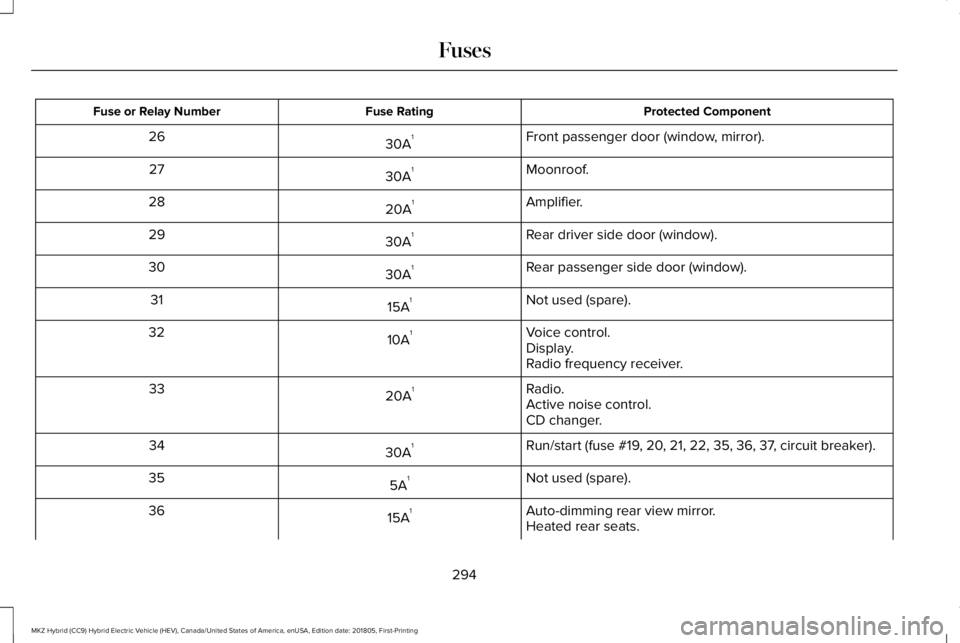

Protected ComponentFuse RatingFuse or Relay Number
Front passenger door (window, mirror).30A126
Moonroof.30A127
Amplifier.20A128
Rear driver side door (window).30A129
Rear passenger side door (window).30A130
Not used (spare).15A131
Voice control.10A132Display.Radio frequency receiver.
Radio.20A133Active noise control.CD changer.
Run/start (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker).30A134
Not used (spare).5A135
Auto-dimming rear view mirror.15A136Heated rear seats.
294
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Fuses

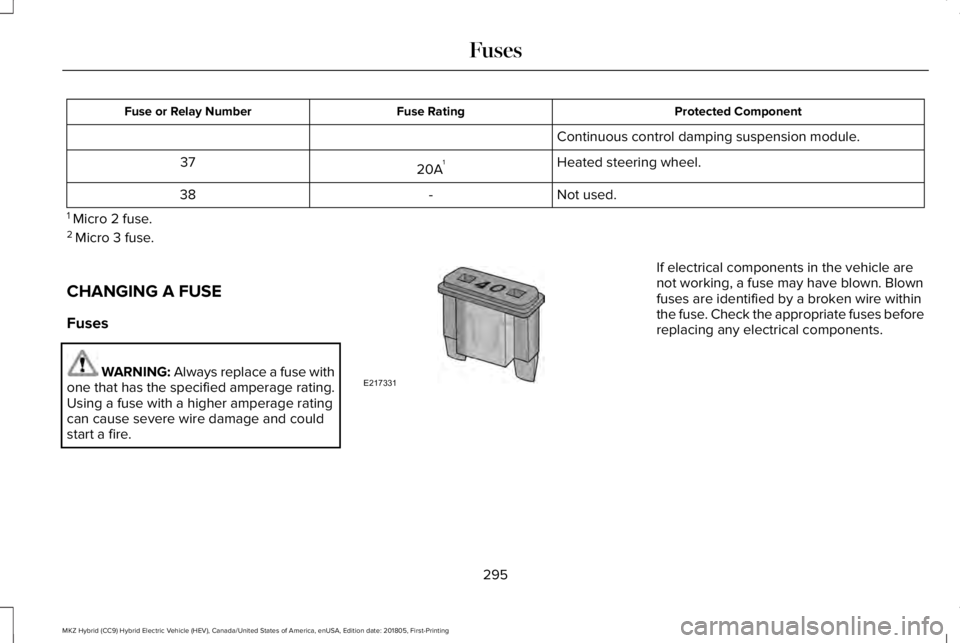

Protected ComponentFuse RatingFuse or Relay Number
Continuous control damping suspension module.
Heated steering wheel.20A137
Not used.-38
1 Micro 2 fuse.2 Micro 3 fuse.
CHANGING A FUSE
Fuses
WARNING: Always replace a fuse withone that has the specified amperage rating.Using a fuse with a higher amperage ratingcan cause severe wire damage and couldstart a fire.
If electrical components in the vehicle arenot working, a fuse may have blown. Blownfuses are identified by a broken wire withinthe fuse. Check the appropriate fuses beforereplacing any electrical components.
295
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing
FusesE217331

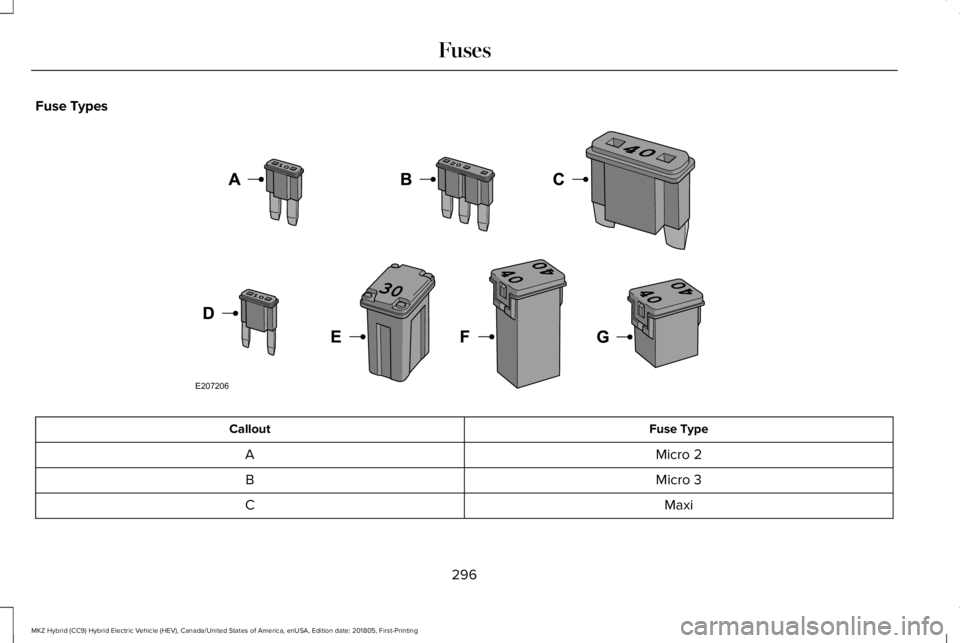

Fuse Types
Fuse TypeCallout
Micro 2A
Micro 3B
MaxiC
296
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing
FusesE207206

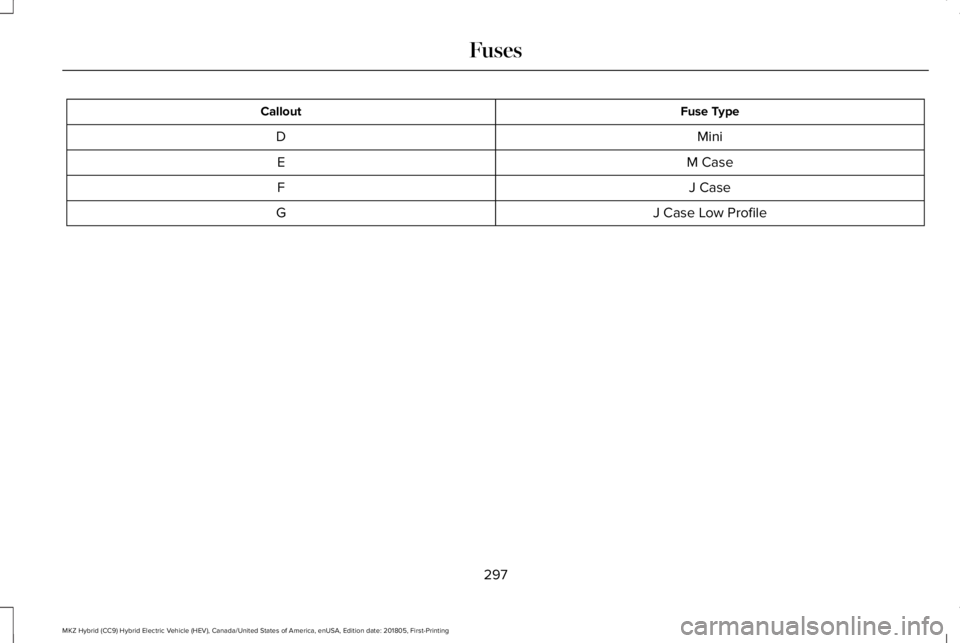

Fuse TypeCallout
MiniD
M CaseE
J CaseF
J Case Low ProfileG
297
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing
