LINCOLN MKZ HYBRID 2020 Owners Manual

Protected Component
Fuse Rating
Fuse or Relay Number
Hybrid content vehicle power 2.
15A 3
52
Battery energy control module.
Multi-contour seats.
10A 2
53
Hybrid content vehicle power 3.
10A 3
54
Coolant pump.
Hybrid content vehicle power 4.
10A 3
55
Air conditioning compressor.
1 M Case fuse.
2 Micro 2 fuse.
3 Micro 3 fuse.
Note: Spare fuses can vary per amperage depending on the trim level of the veh\
icle.
288
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses

Power Distribution Box - Bottom There are fuses on the bottom of the fuse
box. To access the bottom of the fuse box,
do the following:
1.
Release the two latches on both sides of
the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outboard side of the fuse box to access the bottom side.
289
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing FusesE145983

290

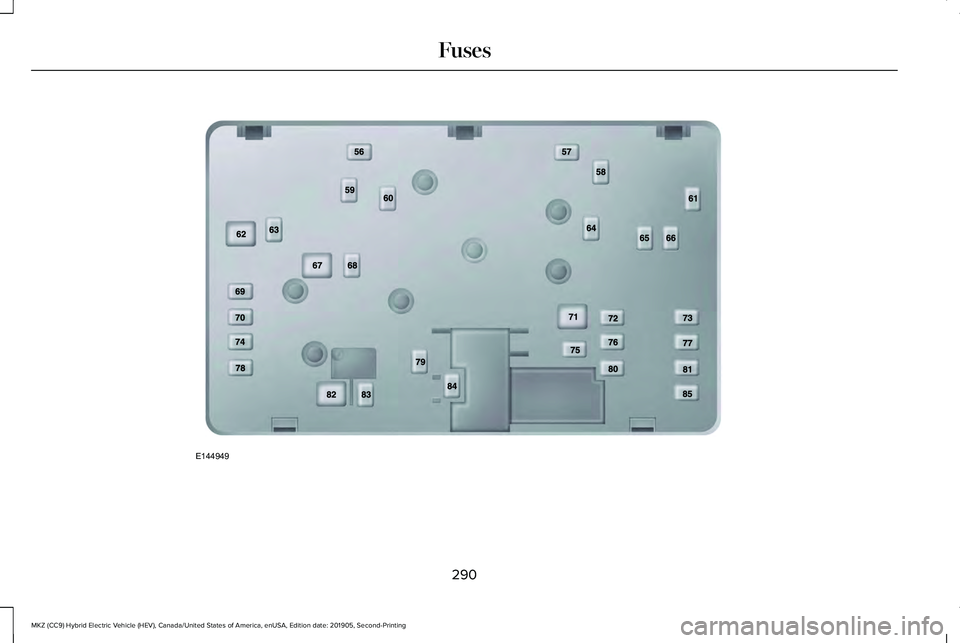

MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing FusesE144949

Protected Component
Fuse Rating
Fuse or Relay Number
Fuel pump feed.
30A 1
56
Not used.
-
57
Not used.
-
58
Vacuum pump relay.
40A 2
59
Pulse width modulated fan.
40A 1
60
Not used.
-
61
Body control module 1.
50A 2
62
Not used.
-
63
Not used.
-
64
Front heated seat.
20A 1
65
Not used (spare).
15A 2
66
Body control module 2.
50A 2
67
Heated rear window.
40A 1
68
291
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse or Relay Number
Anti-lock brake system valves.
30A 1
69
Passenger seat.
30A 1
70
Not used (spare).
50A 1
71
Panoramic roof number 1.
30A 1
72
Moonroof.
Not used (spare).
20A 2
73
Driver seat module.
30A 1
74
Not used.
-
75
e-Shifter.
20A 1
76
Front climate controlled seats.
30A 1
77
Not used.
-
78
Blower motor.
40A 2
79
Power decklid.
30A 1
80
292
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse or Relay Number
Inverter.
40A 1
81
Anti-lock brake system pump.
60A 2
82
Wiper motor number 1.
25A 1
83
Not used.
-
84
Panoramic roof number 2.
30A 1
85
1 M Case fuse.
2 J Case fuse.
Note: Spare fuses can vary per amperage depending on the trim level of the veh\
icle.
Passenger Compartment Fuse Panel
The fuse panel is under the instrument panel
to the left of the steering column.
293
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse or Relay Number
Not used.
-
1
Lumbar.
7.5A 1
2
Driver door unlock.
20A 1
3
294
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing FusesE145984

Protected Component
Fuse Rating
Fuse or Relay Number
Not used (spare).
5A 1
4
Subwoofer amplifier.
20A 1
5
Not used (spare).
10A 2
6
Not used (spare).
10A 2
7
Not used (spare).
10A 2
8
Not used (spare).
10A 2
9
Power trunk logic.
5A 2
10
Keypad.
Cellphone passport module.
Not used (spare).
5A 2
11
Climate control.
7.5A 2
12
Gear shift.
Steering wheel column.
7.5A 2
13
Instrument cluster.
Datalink logic.
Extended power module.
10A 2
14
295
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse or Relay Number
Datalink/Gateway module.
10A 2
15
Decklid release.
15A 1
16
Not used (spare).
5A 2
17
Push button start/stop.
5A 2
18
Extended power module.
7.5A 2
19
Adaptive headlamps.
7.5A 2
20
Humidity and in-car temperature.
5A 2
21
Not used (spare).
5A 2
22
Delayed accessory (power inverter, moonroof, all smart
window, driver window switch pack).
10A 1
23
Rear sunshade.
Panoramic roof.
Central lock/unlock.
20A 1
24
Driver door (window, mirror).
30A 1
25
296
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse or Relay Number
Front passenger door (window, mirror).
30A 1
26
Moonroof.
30A 1
27
Amplifier.
20A 1
28
Rear driver side door (window).
30A 1
29
Rear passenger side door (window).
30A 1
30
Not used (spare).
15A 1
31
Voice control.
10A 1
32
Display.
Radio frequency receiver.
Radio.
20A 1
33
Active noise control.
CD changer.
Run/start (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker).
30A 1
34
Not used (spare).
5A 1
35
Auto-dimming rear view mirror.
15A 1
36
Heated rear seats.
297
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses
