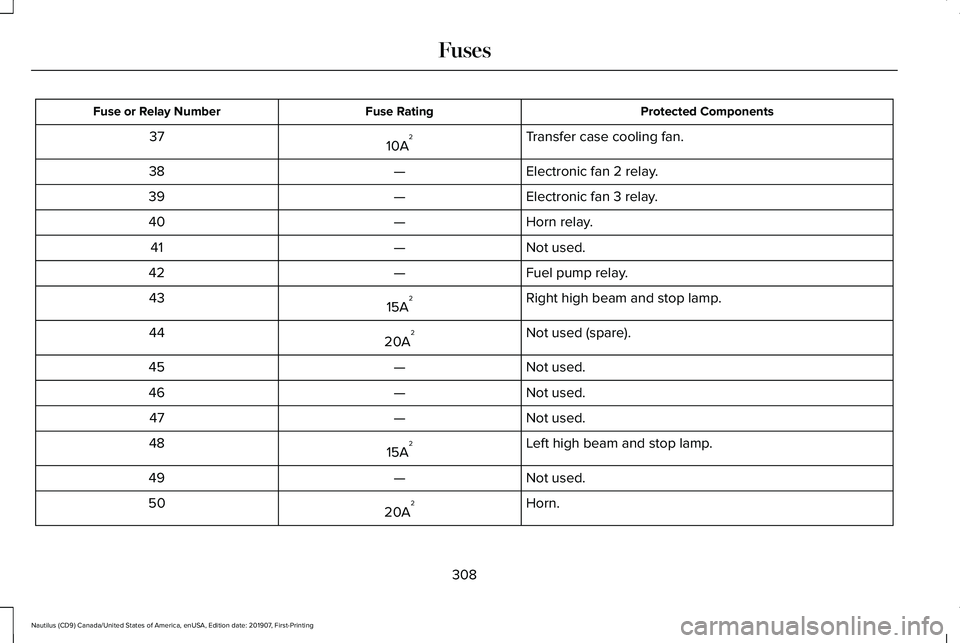

Protected Components
Fuse Rating
Fuse or Relay Number
Transfer case cooling fan.
10A 2
37
Electronic fan 2 relay.
—
38
Electronic fan 3 relay.
—
39
Horn relay.
—
40
Not used.
—
41
Fuel pump relay.
—
42
Right high beam and stop lamp.
15A 2
43
Not used (spare).
20A 2
44
Not used.
—
45
Not used.
—
46
Not used.
—
47
Left high beam and stop lamp.
15A 2
48
Not used.
—
49
Horn.
20A 2
50
308
Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201907, First-Printing Fuses

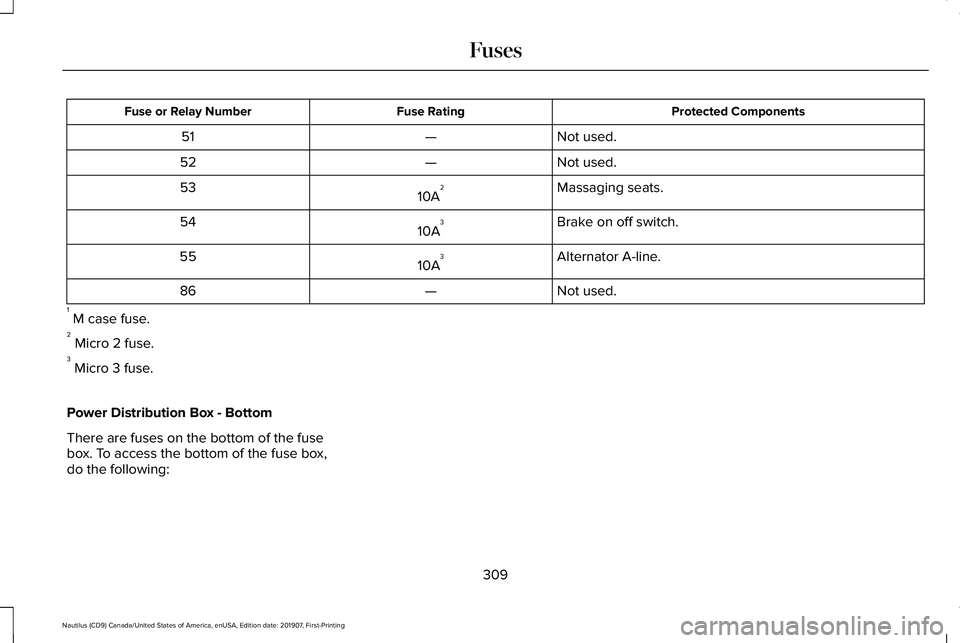

Protected Components
Fuse Rating
Fuse or Relay Number
Not used.
—
51
Not used.
—
52
Massaging seats.
10A 2
53
Brake on off switch.
10A 3
54
Alternator A-line.
10A 3
55
Not used.
—
86
1 M case fuse.
2 Micro 2 fuse.
3 Micro 3 fuse.
Power Distribution Box - Bottom
There are fuses on the bottom of the fuse
box. To access the bottom of the fuse box,
do the following:
309
Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201907, First-Printing Fuses

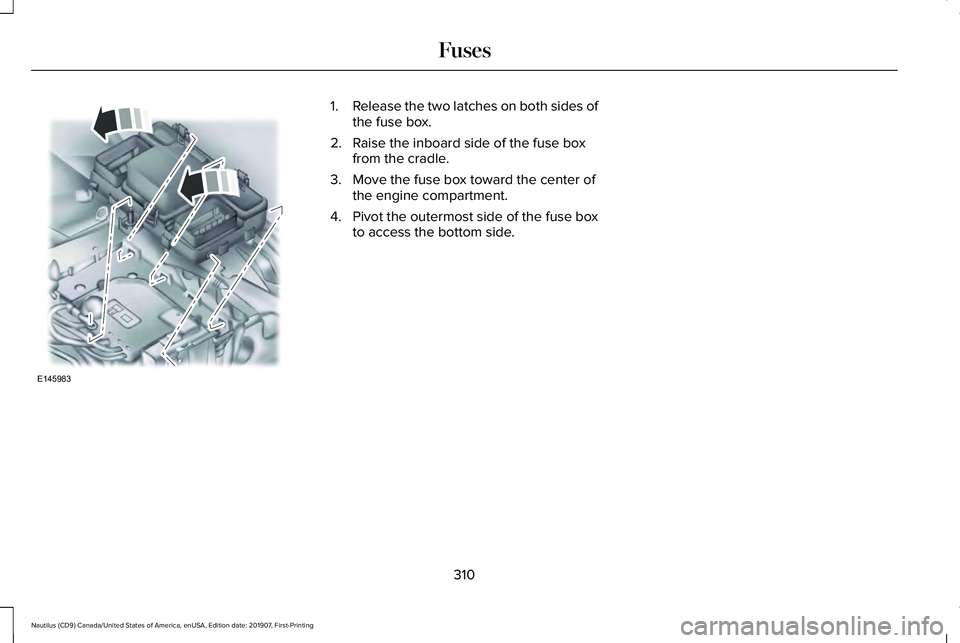

1.
Release the two latches on both sides of
the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outermost side of the fuse box to access the bottom side.
310
Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201907, First-Printing FusesE145983

311

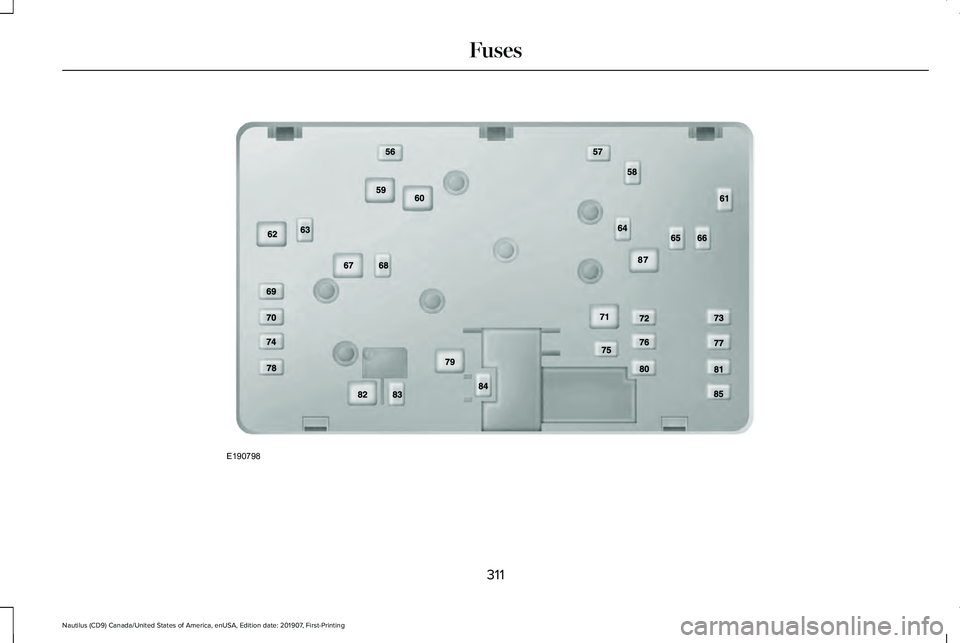

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201907, First-Printing FusesE190798

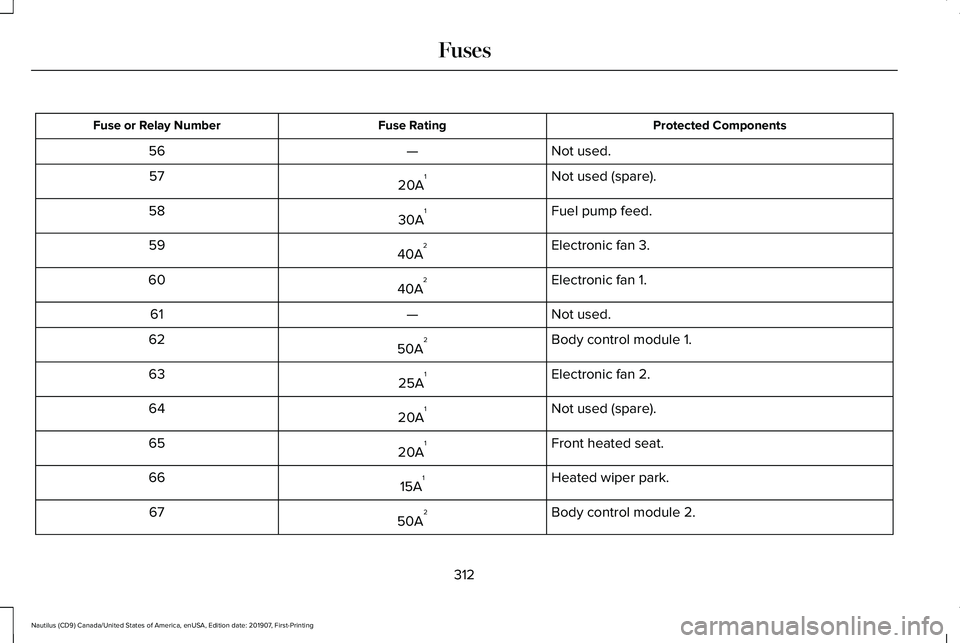

Protected Components
Fuse Rating
Fuse or Relay Number
Not used.
—
56
Not used (spare).
20A 1
57
Fuel pump feed.
30A 1
58
Electronic fan 3.
40A 2
59
Electronic fan 1.
40A 2
60
Not used.
—
61
Body control module 1.
50A 2
62
Electronic fan 2.
25A 1
63
Not used (spare).
20A 1
64
Front heated seat.
20A 1
65
Heated wiper park.
15A 1
66
Body control module 2.
50A 2
67
312
Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201907, First-Printing Fuses

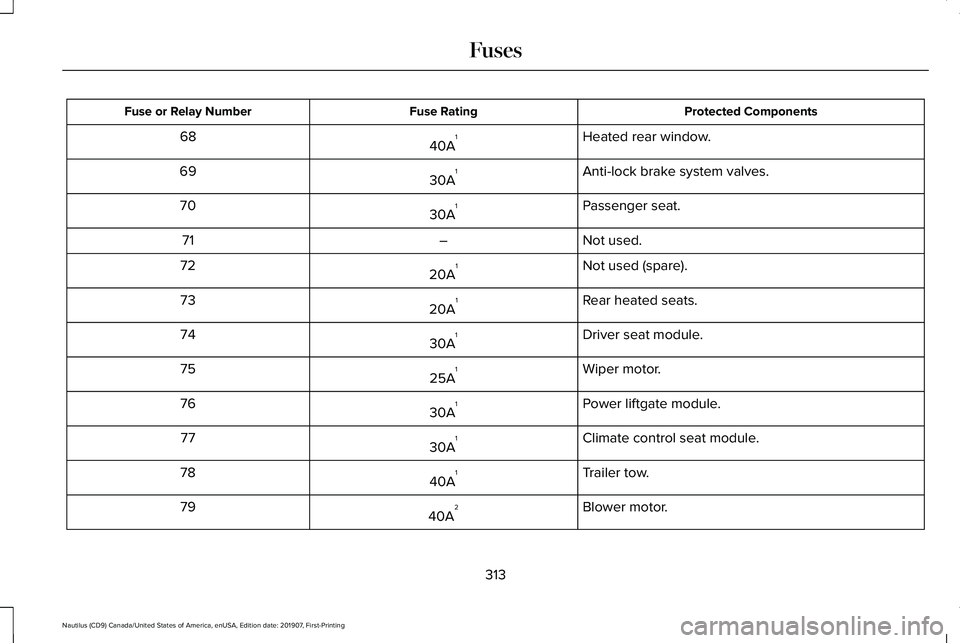

Protected Components
Fuse Rating
Fuse or Relay Number
Heated rear window.
40A 1
68
Anti-lock brake system valves.
30A 1
69
Passenger seat.
30A 1
70
Not used.
–
71
Not used (spare).
20A 1
72
Rear heated seats.
20A 1
73
Driver seat module.
30A 1
74
Wiper motor.
25A 1
75
Power liftgate module.
30A 1
76
Climate control seat module.
30A 1
77
Trailer tow.
40A 1
78
Blower motor.
40A 2
79
313
Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201907, First-Printing Fuses

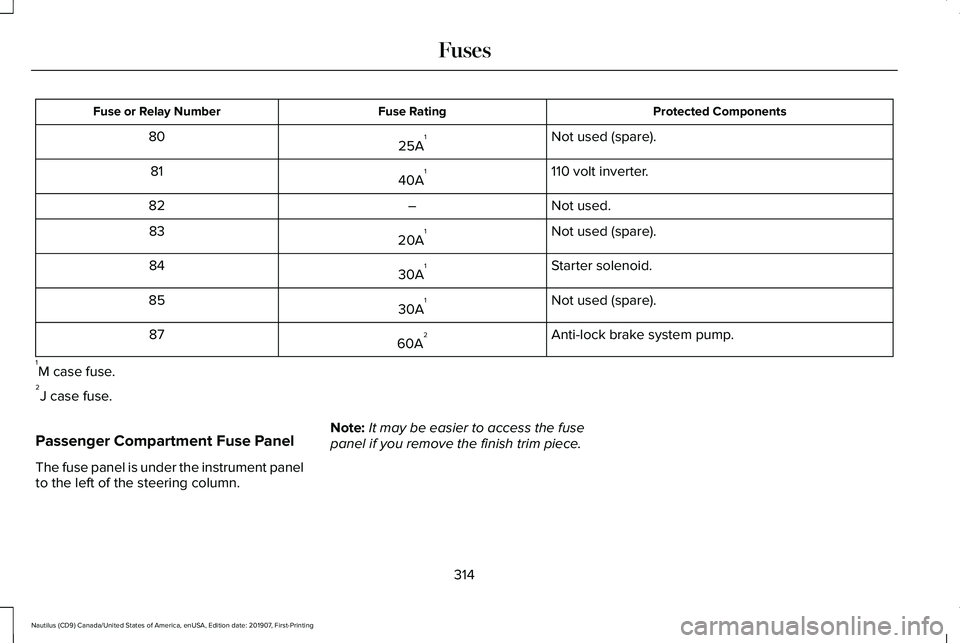

Protected Components
Fuse Rating
Fuse or Relay Number
Not used (spare).
25A 1
80
110 volt inverter.
40A 1
81
Not used.
–
82
Not used (spare).
20A 1
83
Starter solenoid.
30A 1
84
Not used (spare).
30A 1
85
Anti-lock brake system pump.
60A 2
87
1 M case fuse.
2 J case fuse.
Passenger Compartment Fuse Panel
The fuse panel is under the instrument panel
to the left of the steering column. Note:
It may be easier to access the fuse
panel if you remove the finish trim piece.
314
Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201907, First-Printing Fuses

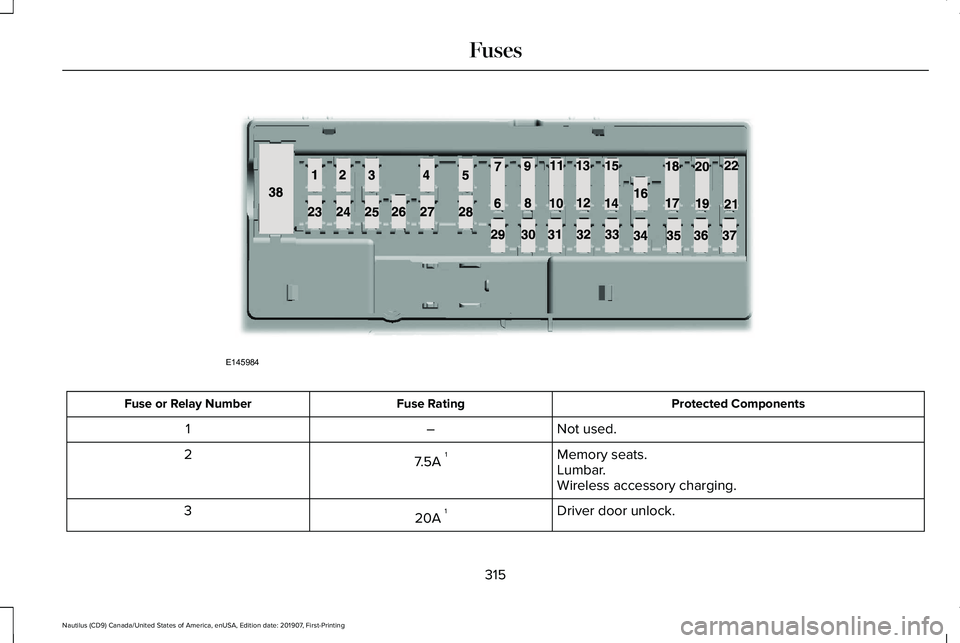

Protected Components
Fuse Rating
Fuse or Relay Number
Not used.
–
1
Memory seats.
7.5A 1
2
Lumbar.
Wireless accessory charging.
Driver door unlock.
20A 1
3
315
Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201907, First-Printing FusesE145984

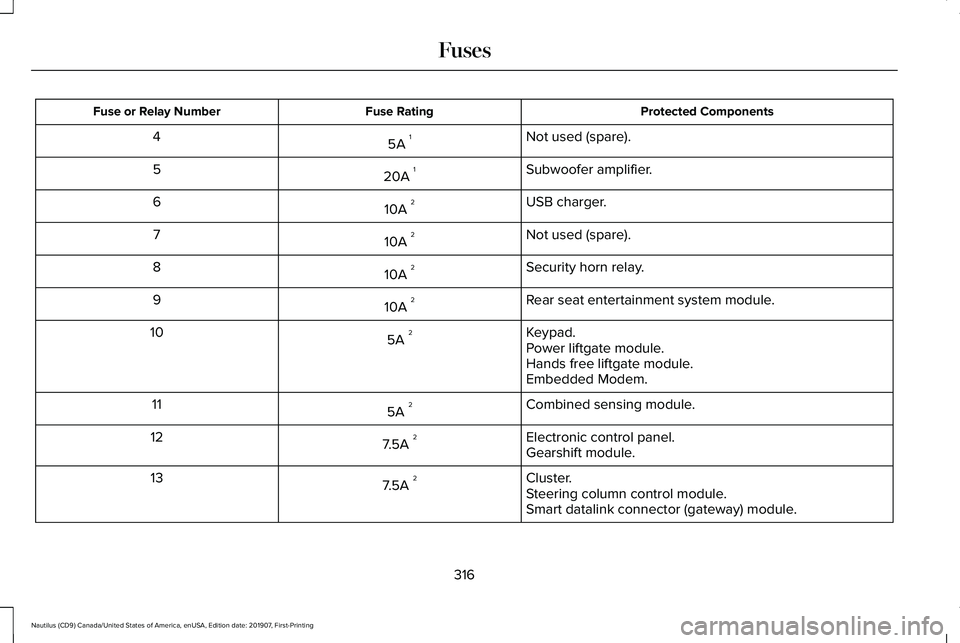

Protected Components
Fuse Rating
Fuse or Relay Number
Not used (spare).
5A 1
4
Subwoofer amplifier.
20A 1
5
USB charger.
10A 2
6
Not used (spare).
10A 2
7
Security horn relay.
10A 2
8
Rear seat entertainment system module.
10A 2
9
Keypad.
5A 2
10
Power liftgate module.
Hands free liftgate module.
Embedded Modem.
Combined sensing module.
5A 2
11
Electronic control panel.
7.5A 2
12
Gearshift module.
Cluster.
7.5A 2
13
Steering column control module.
Smart datalink connector (gateway) module.
316
Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201907, First-Printing Fuses

Protected Components
Fuse Rating
Fuse or Relay Number
Extended power module - power.
10A 2
14
Smart datalink connector (SDLC) power (OBD connector).
10A 2
15
Not used (spare).
15A 1
16
Not used (spare).
5A 2
17
Not used (spare).
5A 2
18
Extended power module - Run/Start.
7.5A 2
19
Headlamp control module.
7.5A 2
20
Humidity sensor.
5A 2
21
Not used (spare).
5A 2
22
Delayed accessory (power inverter logic, moonroof logic,
driver window switch power).
10A 1
23
Central lock/unlock.
20A 1
24
Driver door (window, mirror).
30A 1
25
Driver door module.
317
