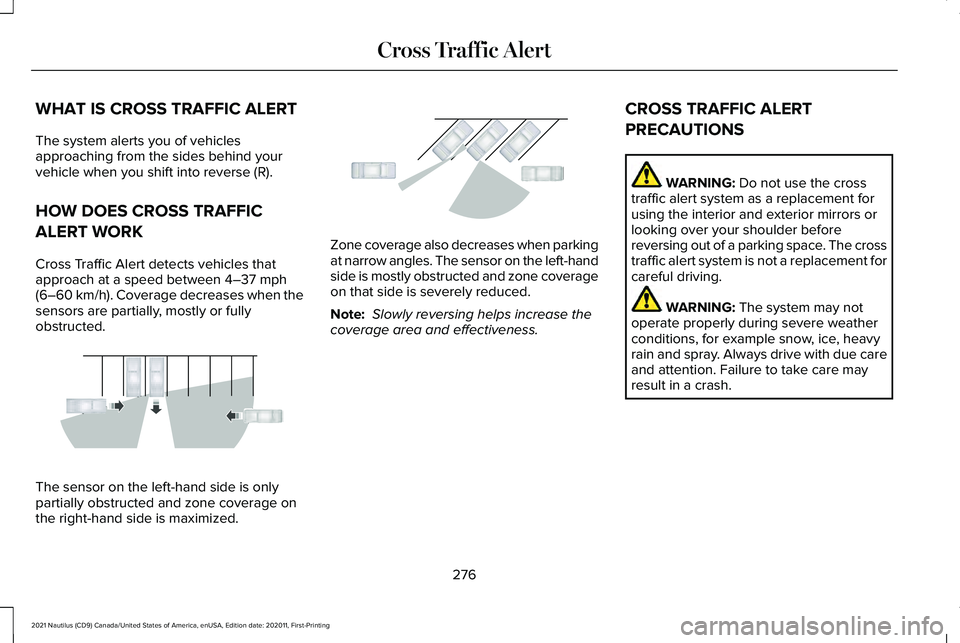

WHAT IS CROSS TRAFFIC ALERT
The system alerts you of vehicles
approaching from the sides behind your
vehicle when you shift into reverse (R).
HOW DOES CROSS TRAFFIC
ALERT WORK
Cross Traffic Alert detects vehicles that
approach at a speed between 4–37 mph
(6–60 km/h). Coverage decreases when the
sensors are partially, mostly or fully
obstructed. The sensor on the left-hand side is only
partially obstructed and zone coverage on
the right-hand side is maximized. Zone coverage also decreases when parking
at narrow angles. The sensor on the left-hand
side is mostly obstructed and zone coverage
on that side is severely reduced.
Note:
Slowly reversing helps increase the
coverage area and effectiveness. CROSS TRAFFIC ALERT
PRECAUTIONS WARNING:
Do not use the cross
traffic alert system as a replacement for
using the interior and exterior mirrors or
looking over your shoulder before
reversing out of a parking space. The cross
traffic alert system is not a replacement for
careful driving. WARNING:
The system may not
operate properly during severe weather
conditions, for example snow, ice, heavy
rain and spray. Always drive with due care
and attention. Failure to take care may
result in a crash.
276
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Cross Traffic AlertE142440 E142441

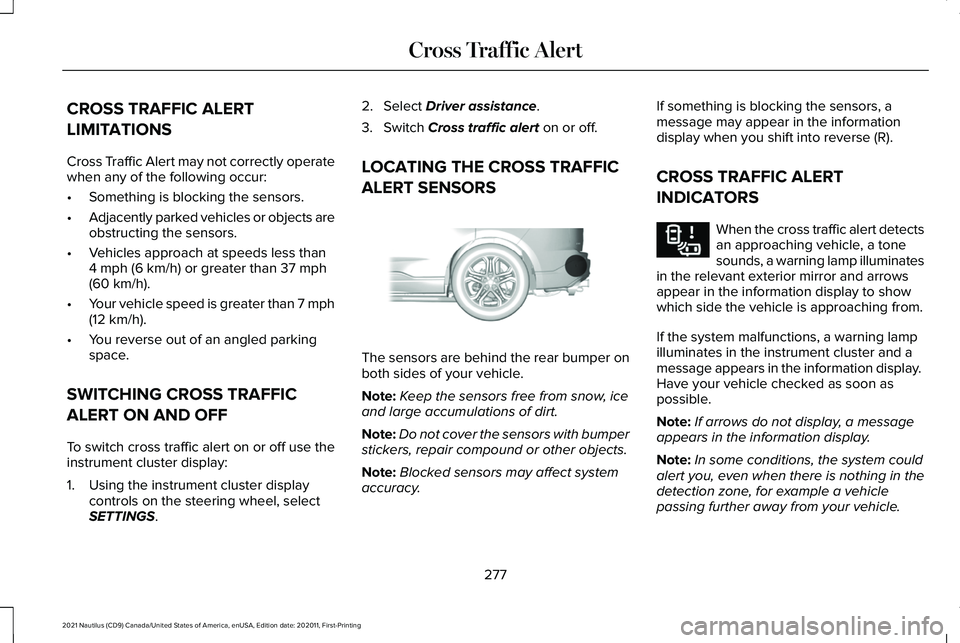

CROSS TRAFFIC ALERT
LIMITATIONS
Cross Traffic Alert may not correctly operate
when any of the following occur:
•
Something is blocking the sensors.
• Adjacently parked vehicles or objects are
obstructing the sensors.
• Vehicles approach at speeds less than
4 mph (6 km/h) or greater than 37 mph
(60 km/h).
• Your vehicle speed is greater than 7 mph
(12 km/h)
.
• You reverse out of an angled parking
space.
SWITCHING CROSS TRAFFIC
ALERT ON AND OFF
To switch cross traffic alert on or off use the
instrument cluster display:
1. Using the instrument cluster display controls on the steering wheel, select
SETTINGS
. 2. Select
Driver assistance.
3. Switch
Cross traffic alert on or off.
LOCATING THE CROSS TRAFFIC
ALERT SENSORS The sensors are behind the rear bumper on
both sides of your vehicle.
Note:
Keep the sensors free from snow, ice
and large accumulations of dirt.
Note: Do not cover the sensors with bumper
stickers, repair compound or other objects.
Note: Blocked sensors may affect system
accuracy. If something is blocking the sensors, a
message may appear in the information
display when you shift into reverse (R).
CROSS TRAFFIC ALERT
INDICATORS
When the cross traffic alert detects
an approaching vehicle, a tone
sounds, a warning lamp illuminates
in the relevant exterior mirror and arrows
appear in the information display to show
which side the vehicle is approaching from.
If the system malfunctions, a warning lamp
illuminates in the instrument cluster and a
message appears in the information display.
Have your vehicle checked as soon as
possible.
Note: If arrows do not display, a message
appears in the information display.
Note: In some conditions, the system could
alert you, even when there is nothing in the
detection zone, for example a vehicle
passing further away from your vehicle.
277
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Cross Traffic AlertE205199 E268294

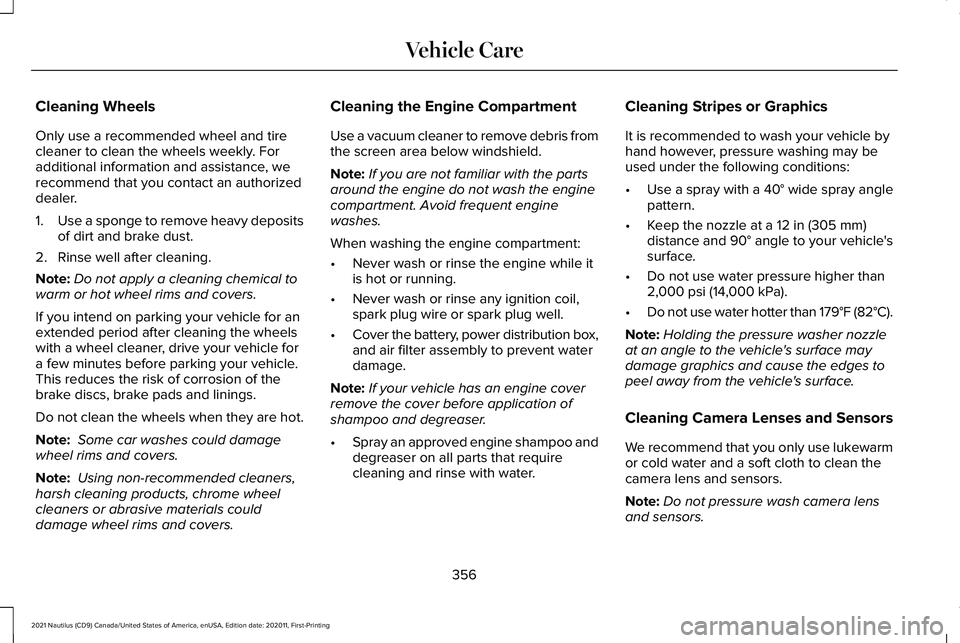

Cleaning Wheels
Only use a recommended wheel and tire
cleaner to clean the wheels weekly. For
additional information and assistance, we
recommend that you contact an authorized
dealer.
1.
Use a sponge to remove heavy deposits
of dirt and brake dust.
2. Rinse well after cleaning.
Note: Do not apply a cleaning chemical to
warm or hot wheel rims and covers.
If you intend on parking your vehicle for an
extended period after cleaning the wheels
with a wheel cleaner, drive your vehicle for
a few minutes before parking your vehicle.
This reduces the risk of corrosion of the
brake discs, brake pads and linings.
Do not clean the wheels when they are hot.
Note: Some car washes could damage
wheel rims and covers.
Note: Using non-recommended cleaners,
harsh cleaning products, chrome wheel
cleaners or abrasive materials could
damage wheel rims and covers. Cleaning the Engine Compartment
Use a vacuum cleaner to remove debris from
the screen area below windshield.
Note:
If you are not familiar with the parts
around the engine do not wash the engine
compartment. Avoid frequent engine
washes.
When washing the engine compartment:
• Never wash or rinse the engine while it
is hot or running.
• Never wash or rinse any ignition coil,
spark plug wire or spark plug well.
• Cover the battery, power distribution box,
and air filter assembly to prevent water
damage.
Note: If your vehicle has an engine cover
remove the cover before application of
shampoo and degreaser.
• Spray an approved engine shampoo and
degreaser on all parts that require
cleaning and rinse with water. Cleaning Stripes or Graphics
It is recommended to wash your vehicle by
hand however, pressure washing may be
used under the following conditions:
•
Use a spray with a 40° wide spray angle
pattern.
• Keep the nozzle at a 12 in (305 mm)
distance and 90° angle to your vehicle's
surface.
• Do not use water pressure higher than
2,000 psi (14,000 kPa)
.
• Do not use water hotter than 179°F (82°C).
Note: Holding the pressure washer nozzle
at an angle to the vehicle's surface may
damage graphics and cause the edges to
peel away from the vehicle's surface.
Cleaning Camera Lenses and Sensors
We recommend that you only use lukewarm
or cold water and a soft cloth to clean the
camera lens and sensors.
Note: Do not pressure wash camera lens
and sensors.
356
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Vehicle Care

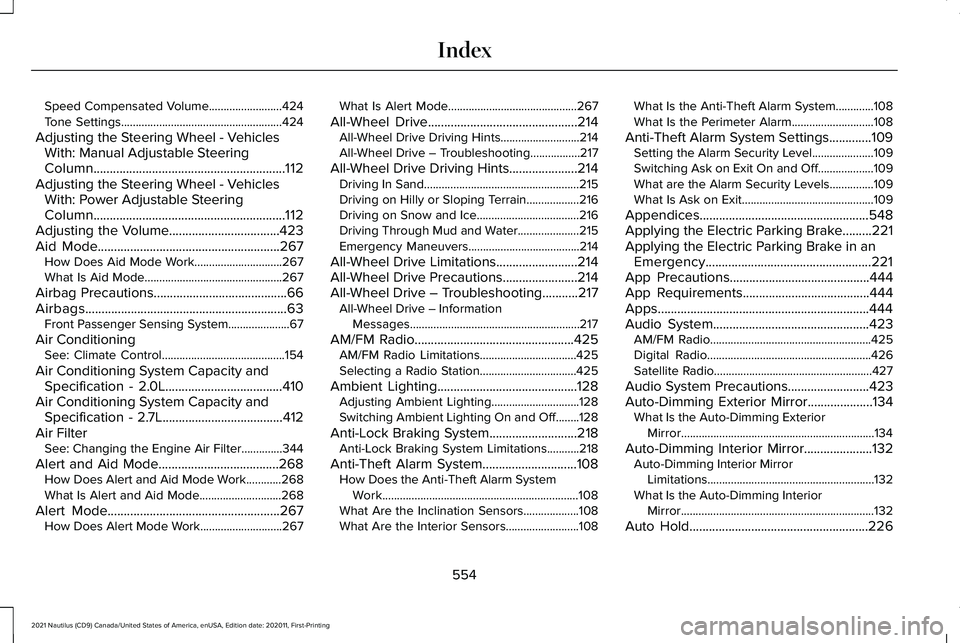

Speed Compensated Volume.........................424
Tone Settings.......................................................424
Adjusting the Steering Wheel - Vehicles With: Manual Adjustable Steering
Column...........................................................112
Adjusting the Steering Wheel - Vehicles With: Power Adjustable Steering
Column...........................................................112
Adjusting the Volume..................................423
Aid Mode........................................................267
How Does Aid Mode Work..............................267
What Is Aid Mode...............................................267
Airbag Precautions
.........................................66
Airbags..............................................................63 Front Passenger Sensing System.....................
67
Air Conditioning See: Climate Control..........................................154
Air Conditioning System Capacity and Specification - 2.0L....................................410
Air Conditioning System Capacity and Specification - 2.7L
.....................................412
Air Filter See: Changing the Engine Air Filter..............344
Alert and Aid Mode.....................................268 How Does Alert and Aid Mode Work............268
What Is Alert and Aid Mode............................268
Alert Mode
.....................................................267
How Does Alert Mode Work............................267 What Is Alert Mode............................................267
All-Wheel Drive
..............................................214
All-Wheel Drive Driving Hints...........................214
All-Wheel Drive – Troubleshooting.................217
All-Wheel Drive Driving Hints
.....................214
Driving In Sand.....................................................215
Driving on Hilly or Sloping Terrain..................216
Driving on Snow and Ice...................................216
Driving Through Mud and Water.....................215
Emergency Maneuvers......................................214
All-Wheel Drive Limitations
.........................214
All-Wheel Drive Precautions.......................214
All-Wheel Drive – Troubleshooting...........217 All-Wheel Drive – Information
Messages..........................................................217
AM/FM Radio
.................................................425
AM/FM Radio Limitations.................................425
Selecting a Radio Station.................................425
Ambient Lighting...........................................128 Adjusting Ambient Lighting..............................128
Switching Ambient Lighting On and Off........128
Anti-Lock Braking System
...........................218
Anti-Lock Braking System Limitations...........218
Anti-Theft Alarm System.............................108 How Does the Anti-Theft Alarm System
Work...................................................................108
What Are the Inclination Sensors...................108
What Are the Interior Sensors.........................
108 What Is the Anti-Theft Alarm System.............108
What Is the Perimeter Alarm............................108
Anti-Theft Alarm System Settings.............109 Setting the Alarm Security Level.....................109
Switching Ask on Exit On and Off...................109
What are the Alarm Security Levels...............109
What Is Ask on Exit.............................................109
Appendices....................................................548
Applying the Electric Parking Brake
.........221
Applying the Electric Parking Brake in an Emergency...................................................221
App Precautions...........................................444
App Requirements.......................................444
Apps
.................................................................444
Audio System................................................423
AM/FM Radio.......................................................425
Digital Radio........................................................426
Satellite Radio......................................................427
Audio System Precautions.........................423
Auto-Dimming Exterior Mirror
....................134
What Is the Auto-Dimming Exterior
Mirror..................................................................134
Auto-Dimming Interior Mirror.....................132 Auto-Dimming Interior Mirror
Limitations.........................................................132
What Is the Auto-Dimming Interior Mirror..................................................................132
Auto Hold
.......................................................226
554
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Index

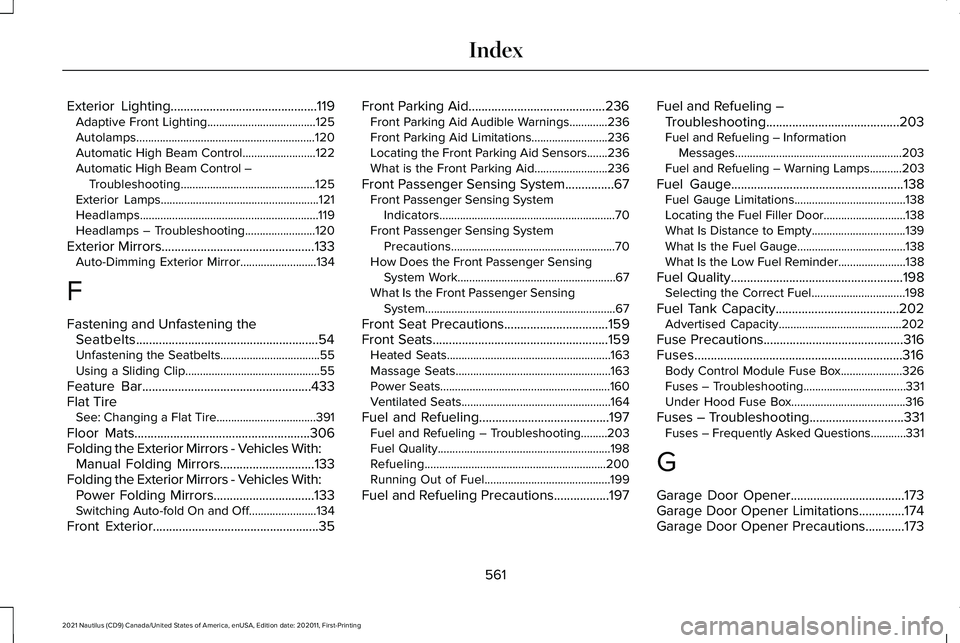

Exterior Lighting.............................................119
Adaptive Front Lighting.....................................125
Autolamps.............................................................120
Automatic High Beam Control.........................122
Automatic High Beam Control –
Troubleshooting..............................................125
Exterior Lamps......................................................121
Headlamps.............................................................119
Headlamps – Troubleshooting........................120
Exterior Mirrors
...............................................133
Auto-Dimming Exterior Mirror..........................134
F
Fastening and Unfastening the Seatbelts........................................................54
Unfastening the Seatbelts..................................55
Using a Sliding Clip..............................................55
Feature Bar
....................................................433
Flat Tire See: Changing a Flat Tire..................................391
Floor Mats
......................................................306
Folding the Exterior Mirrors - Vehicles With: Manual Folding Mirrors
.............................133
Folding the Exterior Mirrors - Vehicles With: Power Folding Mirrors...............................133
Switching Auto-fold On and Off.......................134
Front Exterior...................................................35 Front Parking Aid..........................................236
Front Parking Aid Audible Warnings.............236
Front Parking Aid Limitations..........................
236
Locating the Front Parking Aid Sensors.......236
What is the Front Parking Aid.........................236
Front Passenger Sensing System...............67 Front Passenger Sensing System
Indicators............................................................70
Front Passenger Sensing System Precautions........................................................70
How Does the Front Passenger Sensing System Work......................................................67
What Is the Front Passenger Sensing System.................................................................67
Front Seat Precautions
................................159
Front Seats......................................................159
Heated Seats........................................................163
Massage Seats.....................................................163
Power Seats..........................................................160
Ventilated Seats...................................................164
Fuel and Refueling
........................................197
Fuel and Refueling – Troubleshooting.........203
Fuel Quality...........................................................198
Refueling..............................................................200
Running Out of Fuel...........................................199
Fuel and Refueling Precautions.................197 Fuel and Refueling –
Troubleshooting.........................................
203
Fuel and Refueling – Information
Messages .........................................................203
Fuel and Refueling – Warning Lamps...........203
Fuel Gauge
.....................................................138
Fuel Gauge Limitations......................................138
Locating the Fuel Filler Door............................138
What Is Distance to Empty................................139
What Is the Fuel Gauge.....................................138
What Is the Low Fuel Reminder.......................138
Fuel Quality.....................................................198 Selecting the Correct Fuel................................198
Fuel Tank Capacity......................................202 Advertised Capacity..........................................202
Fuse Precautions
...........................................316
Fuses................................................................316 Body Control Module Fuse Box.....................326
Fuses – Troubleshooting...................................331
Under Hood Fuse Box.......................................316
Fuses – Troubleshooting.............................331 Fuses – Frequently Asked Questions............331
G
Garage Door Opener...................................173
Garage Door Opener Limitations
..............174
Garage Door Opener Precautions............173
561
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Index

Lane Keeping System –
Troubleshooting.........................................270
Lane Keeping System – Frequently Asked Questions..........................................................271
Lane Keeping System – Information Messages.........................................................270
Launching or Retrieving a Boat or Personal Watercraft.....................................................301
Liftgate.............................................................100 Closing the Liftgate.............................................103
Liftgate – Troubleshooting...............................105
Opening the Liftgate..........................................100
Liftgate Obstacle Detection.......................105 Closing the Liftgate............................................105
Opening the Liftgate..........................................105
Liftgate Precautions.....................................100
Liftgate – Troubleshooting.........................105 Liftgate – Frequently Asked Questions.........107
Liftgate – Information Messages....................106
Liftgate – Warning Lamps.................................105
Lincoln Protect..............................................456
Linking or Unlinking a Personal Profile to a Device.......................................................448
Linking or Unlinking a Personal Profile to a Remote Control.......................................448
Live Traffic......................................................449 Switching Live Traffic On and Off...................
449
What Is Live Traffic.............................................449 Load Carrying
................................................289
Roof Rack.............................................................293
Load Carrying Precautions........................289
Loading Your Trailer....................................300
Locating the 360 Degree Cameras.........243 Front View Camera............................................244
Rear View Camera.............................................243
Side View Camera..............................................244
Locating the Blind Spot Information System Sensors.........................................................274
Locating the Brake Fluid Reservoir..........218
Locating the Cross Traffic Alert Sensors.........................................................277
Locating the Fuel Filler Funnel..................198
Locating the Keyless Entry Keypad...........95
Locating the Memory Function Buttons...........................................................171
Locating the Power Outlet..........................180
Locating the Pre-Collision Assist Sensors.........................................................281
Locating the Rear View Camera..............240
Locating the Safety Compliance Certification Labels
...................................290
Locating the Tire label................................363
Locating the Tire Sealant and Inflator Kit...................................................................378
Locating the USB Ports................................178 Charge Only USB Ports......................................178 Data Transfer USB Ports....................................178
Locating the Wireless Accessory Charger.........................................................183
Locating Your Vehicle
....................................76
Locking the Rear Window Controls...........131
Luggage Compartment
..............................295
M
Maintenance..................................................332 Engine Oil.............................................................338
Exterior Bulbs......................................................350
Interior Bulbs.......................................................353
Maintenance Precautions..........................332
Making and Receiving a Phone Call.......439 During a Phone Call...........................................439
Making Calls........................................................439
Receiving Calls....................................................439
Manually Releasing the Electric Parking Brake.............................................................221
........................................................................\
.........221
Manually Shifting Gears..............................207 Shifting Using the Paddle Shifters.................207
Manual Park Release....................................210 Manual Park Release Precautions..................
210
Using Manual Park Release..............................210
What Is Manual Park Release...........................210
565
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Index

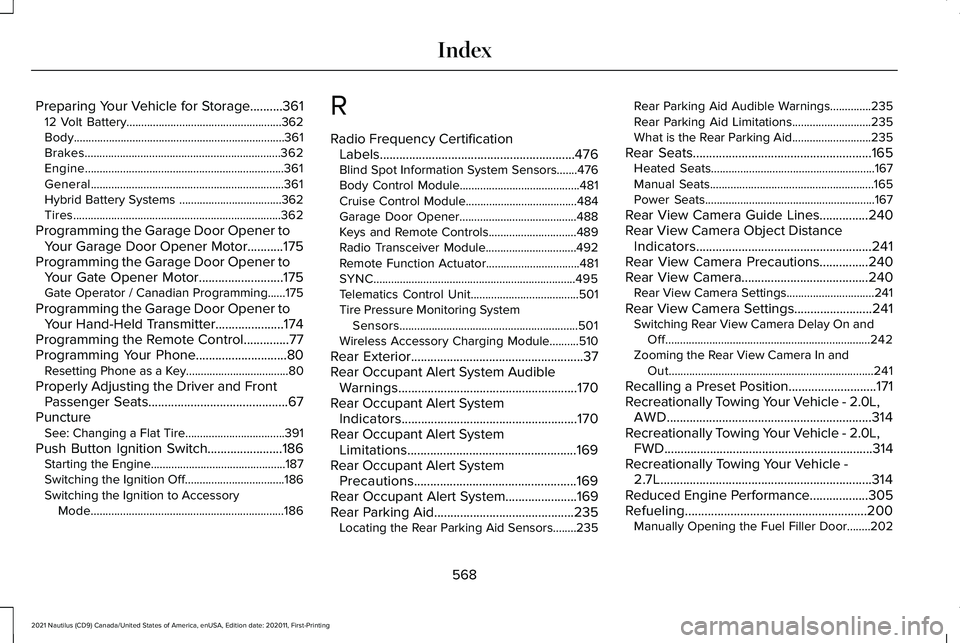

Preparing Your Vehicle for Storage..........361
12 Volt Battery.....................................................362
Body........................................................................\
361
Brakes...................................................................362
Engine....................................................................361
General..................................................................361
Hybrid Battery Systems ...................................362
Tires.......................................................................362
Programming the Garage Door Opener to Your Garage Door Opener Motor...........175
Programming the Garage Door Opener to Your Gate Opener Motor..........................175
Gate Operator / Canadian Programming......175
Programming the Garage Door Opener to Your Hand-Held Transmitter
.....................174
Programming the Remote Control..............77
Programming Your Phone............................80 Resetting Phone as a Key...................................80
Properly Adjusting the Driver and Front Passenger Seats
...........................................67
Puncture See: Changing a Flat Tire..................................391
Push Button Ignition Switch.......................186 Starting the Engine..............................................187
Switching the Ignition Off..................................186
Switching the Ignition to Accessory
Mode..................................................................186 R
Radio Frequency Certification
Labels ............................................................
476
Blind Spot Information System Sensors.......476
Body Control Module.........................................481
Cruise Control Module......................................484
Garage Door Opener........................................488
Keys and Remote Controls..............................
489
Radio Transceiver Module...............................492
Remote Function Actuator................................
481
SYNC.....................................................................495
Telematics Control Unit.....................................
501
Tire Pressure Monitoring System Sensors.............................................................501
Wireless Accessory Charging Module..........510
Rear Exterior.....................................................37
Rear Occupant Alert System Audible Warnings.......................................................170
Rear Occupant Alert System Indicators......................................................170
Rear Occupant Alert System Limitations....................................................169
Rear Occupant Alert System Precautions..................................................169
Rear Occupant Alert System......................169
Rear Parking Aid...........................................235 Locating the Rear Parking Aid Sensors........235 Rear Parking Aid Audible Warnings..............235
Rear Parking Aid Limitations...........................235
What is the Rear Parking Aid...........................235
Rear Seats
.......................................................165
Heated Seats........................................................167
Manual Seats........................................................165
Power Seats..........................................................167
Rear View Camera Guide Lines...............240
Rear View Camera Object Distance Indicators......................................................241
Rear View Camera Precautions...............240
Rear View Camera.......................................240 Rear View Camera Settings..............................241
Rear View Camera Settings........................241 Switching Rear View Camera Delay On and
Off......................................................................242
Zooming the Rear View Camera In and Out
......................................................................241
Recalling a Preset Position...........................171
Recreationally Towing Your Vehicle - 2.0L, AWD...............................................................314
Recreationally Towing Your Vehicle - 2.0L, FWD................................................................314
Recreationally Towing Your Vehicle - 2.7L.................................................................314
Reduced Engine Performance..................305
Refueling
........................................................200
Manually Opening the Fuel Filler Door........202
568
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Index

S
Satellite Radio................................................427
Locating the Satellite Radio Identification
Number.............................................................428
Replaying the Audio..........................................429
Satellite Radio Limitations................................428
Satellite Radio Settings.....................................428
Selecting a Channel..........................................428
Setting an Alert...................................................429
What Is Satellite Radio.......................................427
Saving a Preset Position...............................171
Scheduled Maintenance............................459
Seatbelt Extensions.......................................60
Seatbelt Precautions......................................53
Seatbelt Reminder
..........................................57
How Does the Seatbelt Reminder Work.........57
Seatbelt Reminder Audible Warnings.............59
Seatbelt Reminder Indicators............................59
Switching the Seatbelt Reminder On and Off........................................................................\
.59
Seatbelts...........................................................53 Automatic Locking Mode....................................55
Seatbelt Reminder................................................57
Sensitive Locking Mode......................................55
Security............................................................108 Anti-Theft Alarm System...................................108
Anti-Theft Alarm System Settings...................
109 Passive Anti-Theft System................................108
Security – Troubleshooting...............................110
Security – Troubleshooting
.........................110
Security – Frequently Asked Questions.........111
Security – Information Messages....................110
Selecting a Drive Mode..............................264
Selecting the Audio Source.......................423 Audio Unit.............................................................423
Touchscreen........................................................423
Sending and Receiving a Text Message........................................................441
Sensitive Locking Mode...............................55 How Does Sensitive Locking Mode
Work.....................................................................55
What is Sensitive Locking Mode.......................55
Service Data
.....................................................23
Setting a Destination...................................449 Setting a Destination Using a Point of
Interest.............................................................450
Setting a Destination Using a Predictive Destination......................................................450
Setting a Destination Using a Recent Destination......................................................450
Setting a Destination Using a Saved Destination......................................................450
Setting a Destination Using the Map Screen..............................................................450 Setting a Destination Using the Text Entry
Screen...............................................................449
Setting a Memory Preset............................424
Settings Data
...................................................24
Comfort and Convenience Data.......................24
Entertainment Data..............................................24
Setting the Adaptive Cruise Control Gap................................................................258
Following a Vehicle...........................................258
Setting the Adaptive Cruise Control Speed...........................................................257
Manually Changing the Set Speed................257
Setting the Adaptive Cruise Speed from a Complete Stop................................................257
Setting the Blower Motor Speed..............155
Setting the Clock and Date.......................425 Switching Automatic Time Updates On and
Off......................................................................425
Setting the Cruise Control Speed.............251 Changing the Set Speed...................................251
Setting the Liftgate Opening Height........102
Setting the Temperature
.............................155
Setting the Wake Word...............................435
Shifting Your Vehicle Into Gear.................207
Side Parking Aid...........................................237 Locating the Side Parking Aid Sensors........238
Side Parking Aid Audible Warnings...............238
Side Parking Aid Limitations............................
237
570
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Index
