Page 366 of 579

LINCOLN NAUTILUS 2021 Manual Online Hybrid Battery Systems
We recommend the following actions for your
vehicle:
•
When storing your vehicle for greater
than 30 days the state of charge should
be approximately 50%. Additionally we
reco

Page 382 of 579

LINCOLN NAUTILUS 2021 Manual Online WHAT IS THE TIRE SEALANT AND
INFLATOR KIT
Tire Inflator and Sealant Kit
The kit consists of an air compressor to
re-inflate the tire and a canister of sealing
compound that will effectively seal most

Page 397 of 579

LINCOLN NAUTILUS 2021 Manual Online WARNING: Park your vehicle so that
you do not obstruct the flow of traffic or
place yourself in any danger and set up a
warning triangle. WARNING:
Do not get under a
vehicle that is only supported by

Page 402 of 579

LINCOLN NAUTILUS 2021 Manual Online ENGINE SPECIFICATIONS - 2.0L
Specification
Engine
10.0:1
Compression ratio.
122 in³ (2,000 cm³)
Displacement.
1-3-4-2
Firing order.
Coil on plug
Ignition system.
Minimum 87 octane
Required fuel.
0.0

Page 403 of 579

LINCOLN NAUTILUS 2021 Manual Online ENGINE SPECIFICATIONS - 2.7L
Specification
Engine
10.0:1
Compression ratio.
165 in³ (2,700 cm³)
Displacement.
1-4-2-5-3-6
Firing order.
Coil on plug
Ignition system.
Minimum 87 octane
Required fuel.

Page 404 of 579

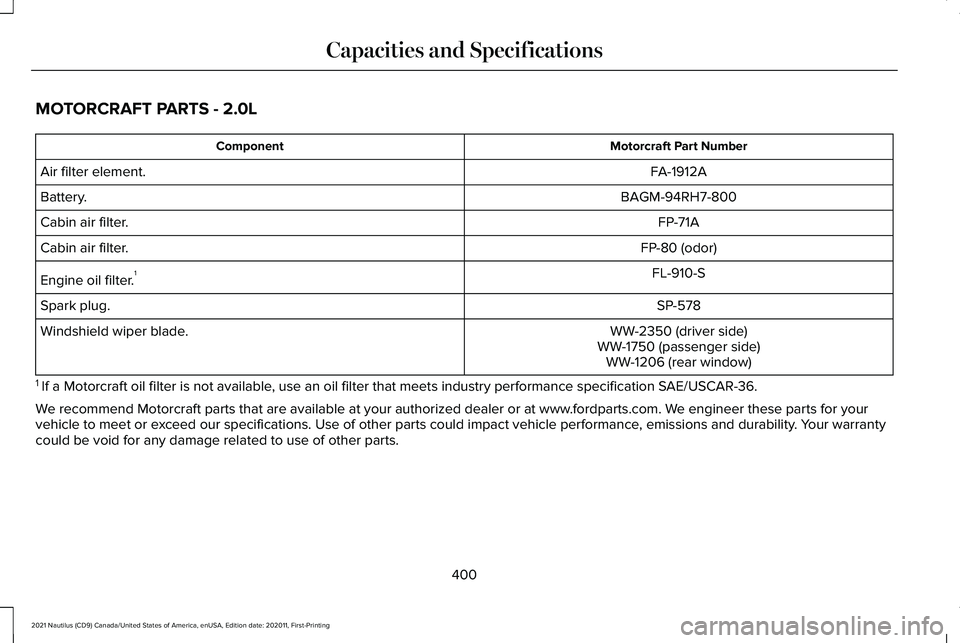

LINCOLN NAUTILUS 2021 Manual Online MOTORCRAFT PARTS - 2.0L
Motorcraft Part Number
Component
FA-1912A
Air filter element.
BAGM-94RH7-800
Battery.
FP-71A
Cabin air filter.
FP-80 (odor)
Cabin air filter.
FL-910-S
Engine oil filter. 1
SP-5

Page 405 of 579

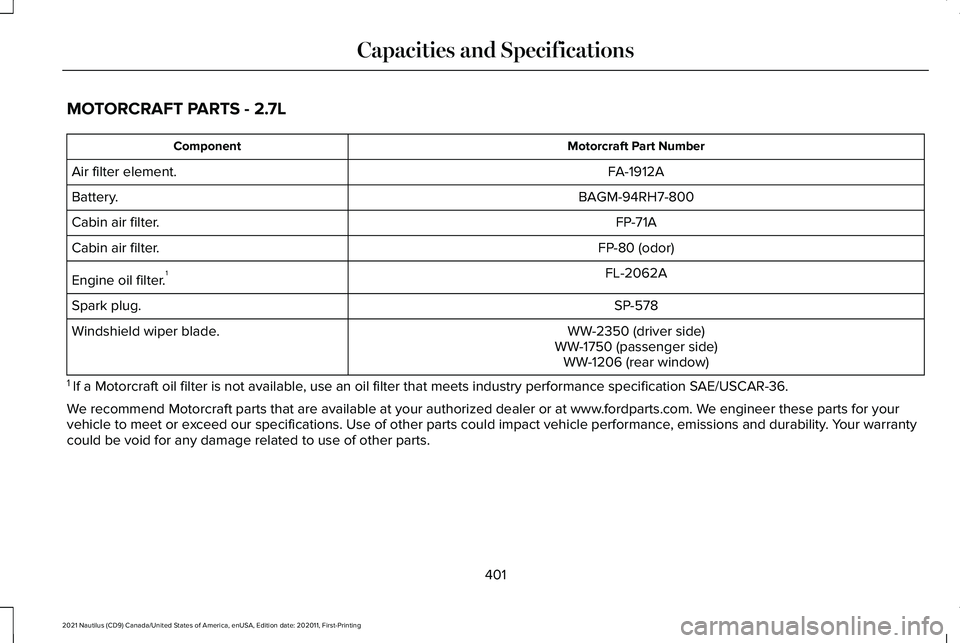

LINCOLN NAUTILUS 2021 Manual Online MOTORCRAFT PARTS - 2.7L
Motorcraft Part Number
Component
FA-1912A
Air filter element.
BAGM-94RH7-800
Battery.
FP-71A
Cabin air filter.
FP-80 (odor)
Cabin air filter.
FL-2062A
Engine oil filter. 1
SP-5

Page 406 of 579

LINCOLN NAUTILUS 2021 Manual Online ENGINE OIL CAPACITY AND
SPECIFICATION - 2.0L
Use oil that meets the defined specification
and viscosity grade.
If you do not use oil that meets the defined
specification and viscosity grade, it could

Page 407 of 579

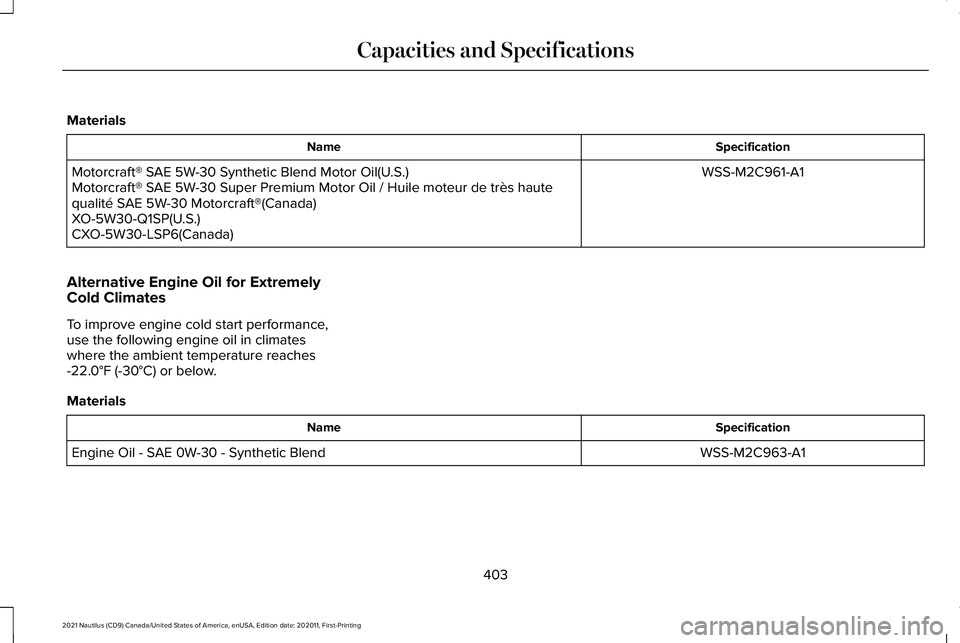

LINCOLN NAUTILUS 2021 Manual Online Materials
Specification
Name
WSS-M2C961-A1
Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil(U.S.)
Motorcraft® SAE 5W-30 Super Premium Motor Oil / Huile moteur de très haute
qualité SAE 5W-30 Motorc

Page 408 of 579

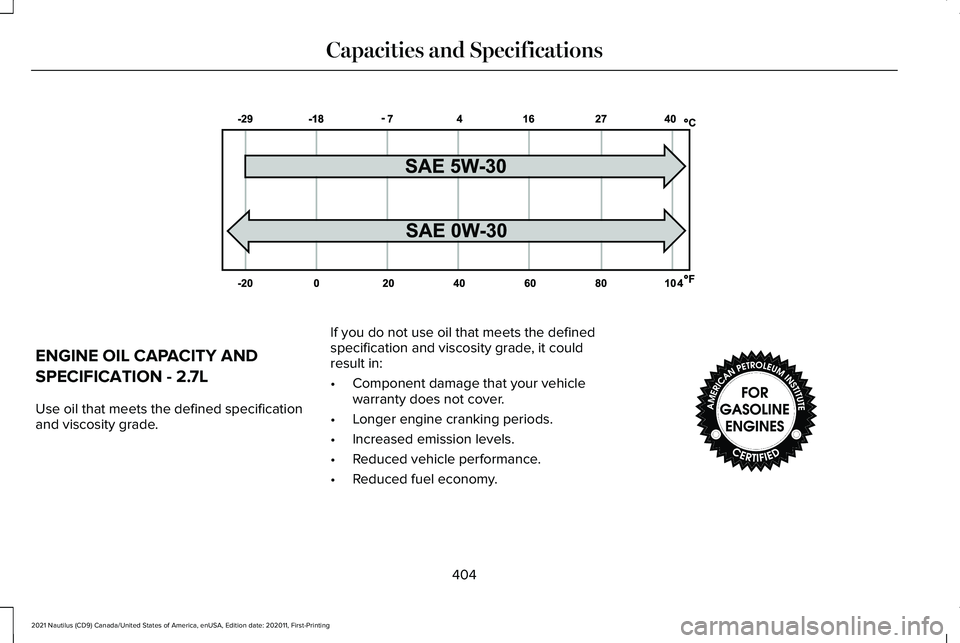

LINCOLN NAUTILUS 2021 Manual Online ENGINE OIL CAPACITY AND
SPECIFICATION - 2.7L
Use oil that meets the defined specification
and viscosity grade.
If you do not use oil that meets the defined
specification and viscosity grade, it could
