jump start LINCOLN NAUTILUS 2021 Owners Manual

How Does Driver Alert Work
....................287
Driver Alert Precautions ............................
287
Driver Alert Limitations ..............................
288
Switching Driver Alert On and Off ..........
288
Driver Alert – Troubleshooting ................
288
Load Carrying
Load Carrying Precautions .......................
289
Locating the Safety Compliance Certification Labels ................................
290
What Is the Gross Axle Weight Rating ......................................................................
290
What Is the Gross Vehicle Weight Rating ......................................................................
290
What Is the Gross Combined Weight Rating .........................................................
290
Calculating Payload .....................................
291
Calculating the Load Limit .........................
291
Roof Rack ......................................................
293
Luggage Compartment
Installing and Removing the Luggage Compartment Cargo Net ......................
295Installing and Removing the Luggage
Compartment Cover ..............................
295
Connecting a Trailer
Connecting a Trailer Precautions ............
297
Connecting a Trailer ...................................
297
Towing a Trailer
Towing a Trailer Precautions ....................
299
Trailer Brake Precautions ..........................
299
Towing a Trailer Limitations ......................
300
Loading Your Trailer ...................................
300
Trailer Towing Hints ....................................
300
Launching or Retrieving a Boat or Personal Watercraft ..................................................
301
Towing Weights and Dimensions ............
302
Trailer Sway Control
How Does Trailer Sway Control Work ......................................................................
304
Trailer Sway Control Precautions ............
304
Switching Trailer Sway Control On and Off ......................................................................
304 Driving Hints
Reduced Engine Performance
................
305
Cold Weather Precautions ........................
305
Breaking-In ...................................................
305
Driving Through Water ..............................
305
Driving Economically ..................................
306
Floor Mats .....................................................
306
Crash and Breakdown Information
Roadside Assistance ..................................
308
Switching the Hazard Flashers On and Off ......................................................................
309
Jump Starting the Vehicle .........................
309
Post-Crash Alert System ..............................
311
Automatic Crash Shutoff ............................
312
Transporting the Vehicle ............................
312
Towing Your Vehicle
Towing Your Vehicle Precautions .............
314
Recreationally Towing Your Vehicle - 2.0L, AWD ............................................................
314
10
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Table of Contents

WHAT IS THE CATALYTIC
CONVERTER
The catalytic converter is part of your
vehicle's emissions system and filters harmful
pollutants from the exhaust gas.
CATALYTIC CONVERTER
PRECAUTIONS
WARNING: Do not park, idle or drive
your vehicle on dry grass or other dry
ground cover. The emission system heats
up the engine compartment and exhaust
system, creating the risk of fire. WARNING:
The normal operating
temperature of the exhaust system is very
high. Never work around or attempt to
repair any part of the exhaust system until
it has cooled. Use special care when
working around the catalytic converter.
The catalytic converter heats up to a very
high temperature after only a short period
of engine operation and stays hot after the
engine is switched off.
To avoid damaging the catalytic converter:
• Do not crank the engine for more than
10 seconds at a time.
• Do not run the engine with a spark plug
lead disconnected.
• Do not push-start or tow-start your
vehicle. Use booster cables.
See Jump
Starting Precautions (page 309).
• Use the correct fuel.
See Fuel and
Refueling (page 197).
• Do not switch the ignition off when your
vehicle is moving. •
Avoid running out of fuel.
• Have the items listed in scheduled
maintenance information performed
according to the specified schedule.
Note: Do not make any unauthorized
changes to your vehicle or engine. By law,
vehicle owners and anyone who
manufactures, repairs, or services a fleet of
vehicles are not permitted to intentionally
remove an emission control device or
prevent it from working.
CATALYTIC CONVERTER –
TROUBLESHOOTING
Catalytic Converter – Warning Lamps
Your vehicle has an on-board diagnostics
system that monitors the emission control
system. If any of the following warning lamps
illuminate, this may indicate that the on-board
diagnostics system has detected an emission
control system malfunction.
204
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Catalytic Converter

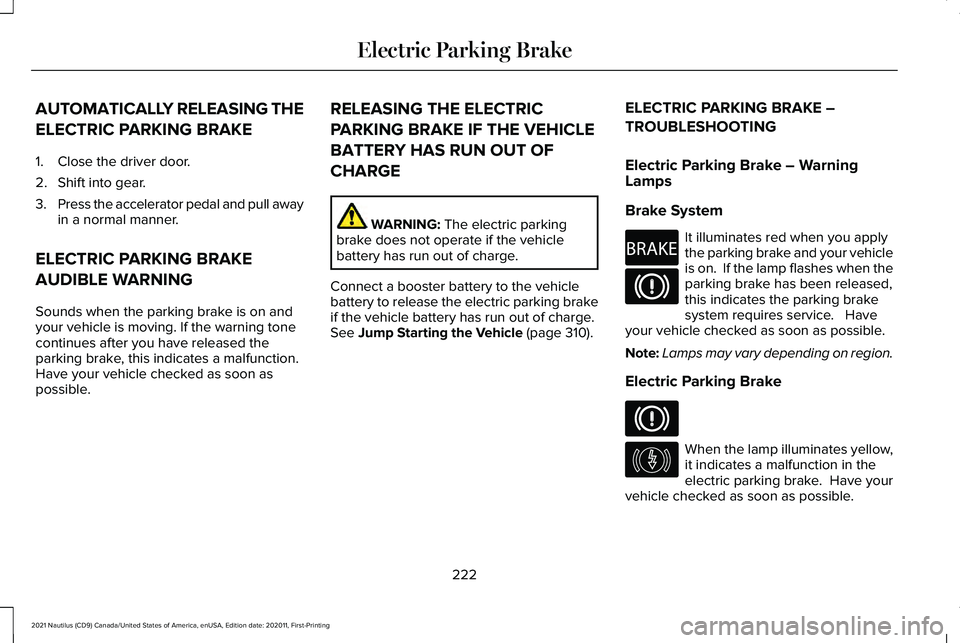

AUTOMATICALLY RELEASING THE
ELECTRIC PARKING BRAKE
1. Close the driver door.
2. Shift into gear.
3.
Press the accelerator pedal and pull away
in a normal manner.
ELECTRIC PARKING BRAKE
AUDIBLE WARNING
Sounds when the parking brake is on and
your vehicle is moving. If the warning tone
continues after you have released the
parking brake, this indicates a malfunction.
Have your vehicle checked as soon as
possible. RELEASING THE ELECTRIC
PARKING BRAKE IF THE VEHICLE
BATTERY HAS RUN OUT OF
CHARGE WARNING: The electric parking
brake does not operate if the vehicle
battery has run out of charge.
Connect a booster battery to the vehicle
battery to release the electric parking brake
if the vehicle battery has run out of charge.
See
Jump Starting the Vehicle (page 310). ELECTRIC PARKING BRAKE –
TROUBLESHOOTING
Electric Parking Brake – Warning
Lamps
Brake System It illuminates red when you apply
the parking brake and your vehicle
is on. If the lamp flashes when the
parking brake has been released,
this indicates the parking brake
system requires service. Have
your vehicle checked as soon as possible.
Note: Lamps may vary depending on region.
Electric Parking Brake When the lamp illuminates yellow,
it indicates a malfunction in the
electric parking brake. Have your
vehicle checked as soon as possible.
222
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Electric Parking BrakeE270480 E146190

ROADSIDE ASSISTANCE
Vehicles sold in the United States:
Getting Roadside Assistance
To fully assist you should you have a vehicle
concern, Lincoln Motor Company offers a
complimentary roadside assistance program.
This program is separate from the New
Vehicle Limited Warranty.
The service is available:
•
Throughout the life of the vehicle for
original owners.
• For six years or 70,000 mi (110,000 km),
whichever comes first, for subsequent
owners.
Roadside Assistance covers:
• A flat tire change with a good spare,
except vehicles supplied with a tire
inflation kit.
• Battery jump start.
• Lock-out assistance - key replacement
cost is the client's responsibility. •
Fuel delivery — independent service
contractors, if not prohibited by state,
local or municipal law shall deliver up to
2 gal (8 L)
of gasoline fuel to a disabled
vehicle. Roadside Assistance limits fuel
delivery service to two no-charge
occurrences within a 12-month period.
• Winch out — available within 100 ft (30 m)
of a paved or county maintained road,
no recoveries. •
Towing — independent service
contractors, if not prohibited by state,
local or municipal law shall tow Lincoln
eligible vehicles to the client's selling or
preferred dealer within 100 mi (160 km)
of the disablement location or to the
nearest Lincoln dealer. If a client requests
a tow to a selling or preferred dealer that
is more than
100 mi (160 km) from the
disablement location, the client is
responsible for any mileage costs in
excess of
100 mi (160 km).
• Roadside Assistance includes up to $200
for a towed trailer if the disabled eligible
vehicle requires service at the nearest
authorized dealer. If the towing vehicle
is operational but the trailer is not, then
the trailer does not qualify for any
roadside services.
Vehicles Sold in the United States:
Using Roadside Assistance
United States clients who require roadside
assistance, call 1-800-521-4140 or contact
Roadside Assistance using the Lincoln Way
mobile app.
308
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Crash and Breakdown Information

If you need to arrange roadside assistance
for yourself, Lincoln Motor Company
reimburses a reasonable amount for towing
to the nearest Lincoln dealership within
100 mi (160 km). To obtain reimbursement
information, United States clients, call
1-800-521-4140. Clients need to submit their
original receipts.
Vehicles Sold in Canada: Getting
Roadside Assistance
To fully assist you should you have a vehicle
concern, Lincoln Motor Company offers a
complimentary roadside assistance program.
This program is eligible within Canada or the
continental United States.
The service is available 24 hours a day,
seven days a week.
This program is separate from the New
Vehicle Limited Warranty, beginning from
the original warranty start date and lasts the
life of the vehicle for the original owner.
Subsequent owners receive coverage that
is concurrent with the 6 years or
70,000 mi
(110,000 km), whichever occurs first,
powertrain warranty coverage period. Note:
Canadian roadside coverage and
benefits may differ from the U.S. coverage.
For complete program coverage details,
review your warranty guide, contact your
dealer, call us in Canada at 1-800-387-9333,
or visit our website at
www.lincolncanada.com.
If you purchased your vehicle in Canada and
require roadside assistance, please call
1-800-387-9333 or contact Roadside
Assistance using the Lincoln Way mobile
app.
Note: For quick reference, complete the
roadside assistance identification card found
in the glove compartment of your vehicle
and place it in your wallet.
SWITCHING THE HAZARD
FLASHERS ON AND OFF The hazard flasher button is on the
instrument panel. Press the button
to switch the hazard flashers on if
your vehicle is creating a safety hazard for
other road users. When you switch the hazard flashers on, all
front and rear direction indicators flash.
Note:
The hazard flashers operate when the
ignition is in any position, or if the key is not
in the ignition. The battery loses charge and
could have insufficient power to restart your
vehicle.
Press the button again to switch them off.
JUMP STARTING THE VEHICLE
Jump Starting Precautions WARNING:
Batteries normally
produce explosive gases which can cause
personal injury. Therefore, do not allow
flames, sparks or lighted substances to
come near the battery. When working near
the battery, always shield your face and
protect your eyes. Always provide correct
ventilation.
309
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Crash and Breakdown Information

WARNING: Keep batteries out of
reach of children. Batteries contain sulfuric
acid. Avoid contact with skin, eyes or
clothing. Shield your eyes when working
near the battery to protect against possible
splashing of acid solution. In case of acid
contact with skin or eyes, flush immediately
with water for a minimum of 15 minutes and
get prompt medical attention. If acid is
swallowed, call a physician immediately. WARNING:
Use only adequately
sized cables with insulated clamps. WARNING: Make sure that the cables
are clear of any moving parts and fuel
delivery system parts. WARNING:
Connect batteries with
only the same nominal voltage. WARNING:
If the engine is running
while the hood is open, stay clear of
moving engine components. Failure to
follow this warning could result in serious
personal injury or death. Do not attempt to push-start an automatic
transmission vehicle. This could cause
transmission damage.
Do not disconnect the battery of the disabled
vehicle. This could damage your vehicle's
electrical system.
Preparing the Vehicle
Use only a 12 volt supply to start your vehicle.
Park the booster vehicle close to the hood
of the disabled vehicle, making sure the two
vehicles do not touch.
Jump Starting the Vehicle
Connecting the Jumper Cables
WARNING:
Do not connect the
negative jumper cable to any other part of
your vehicle. Use the ground point.
Note: If you are using a jump pack or booster
box, follow the manufacturer's instructions. 1. Pull the red rubber boot backward.
Connect the positive (+) jumper cable to
the positive (+) terminal of the discharged
battery.
310
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Crash and Breakdown InformationE281345

2.
Connect the other end of the positive (+)
jumper cable to the positive (+) terminal
of the booster vehicle battery.
3. Connect the negative (-) jumper cable to
the negative (-) terminal of the booster
vehicle battery.
4. Make the final connection of the negative
(-) jumper cable to an exposed metal part
of the disabled vehicle's engine, as
shown in the following illustration, away
from the battery and fuel injection
system, or connect the negative (-)
jumper cable to a ground connection
point if available. Starting the Engine
1. Start the engine of the booster vehicle
and moderately rev the engine, or gently
press the accelerator to keep the engine
speed between 2000 and 3000 RPM, as
shown in your tachometer.
2. Start the engine of the disabled vehicle.
3. Once you start the disabled vehicle, run both vehicle engines for an additional
three minutes before disconnecting the
jumper cables.
Removing the Jumper Cables
Remove the jumper cables in the reverse
order that they were connected.
Note: Do not switch the headlamps on when
disconnecting the cables. The peak voltage
could blow the bulbs.
POST-CRASH ALERT SYSTEM
What Is the Post-Crash Alert System
The system helps draw attention to your
vehicle in the event of a serious impact. How Does the Post-Crash Alert System
Work
The system is designed to turn the hazard
flashers on and to intermittently sound the
horn in the event of a serious impact that
deploys an airbag or the seatbelt
pretensioners.
Post-Crash Alert System Limitations
Depending on applicable laws in the country
your vehicle was built for, the horn does not
sound in the event of a serious impact.
Switching the Post-Crash Alert System
Off
Press the hazard flasher switch or the unlock
button on the remote control to switch the
system off.
Note:
The alert turns off when the vehicle
battery runs out of charge.
311
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Crash and Breakdown InformationE309115

WHAT IS LINCOLN PROTECT
Protect yourself from the rising cost of
vehicle repairs with the Lincoln Protect
extended service plan.
Lincoln Protect Extended Service Plans
(United States Only)
Lincoln Protect means peace of mind. It is
the extended service plan backed by the
Lincoln Motor Company, and provides more
protection beyond the New Vehicle Limited
Warranty coverage. When you visit your
Lincoln Dealer, insist on genuine Lincoln
Protect extended service plans.
Lincoln Protect Extended Service Plan Can
Quickly Pay for Itself
One trip to the Service Center could easily
exceed the price of your Lincoln Protect
extended service plan. With Lincoln Protect,
you minimize your risk for unexpected repair
bills and rising repair costs.
Up to 1000+ Covered Vehicle Components
There are four mechanical Lincoln Protect
extended service plans with different levels
of coverage. Ask your authorized dealer for
details.
1.
PremiumCARE - Our most comprehensive
coverage. With over 1,000 covered
components, this plan is so complete it
is probably easier to list what is not
covered.
2. ExtraCARE - Covers 113 components, and
includes many high-tech items.
3. BaseCARE - Covers 84 components.
4. PowertrainCARE - Covers 29 critical components.
Lincoln Protect extended service plans are
honored by all authorized Lincoln dealers in
the United States, Canada and Mexico.
That means you get:
• Reliable, quality service at any Lincoln or
Ford dealership.
• Repairs performed by factory trained
technicians, using genuine parts. Rental Car Reimbursement
First Day Rental Benefit
If you bring your car into your dealer for
service, we will give you a rental vehicle to
use for the day.
Extended Rental Benefits
If your vehicle is kept overnight for covered
repairs, you are eligible for rental car
coverage, including bumper to bumper
warranty repairs, and field service actions.
Roadside Assistance
Exclusive 24/7 roadside assistance, including:
•
Towing, flat-tire change and battery jump
starts.
• Out of fuel and lock-out assistance.
• Travel expense reimbursement for
lodging, meals and rental car.
• Assistance for taxi, shuttle, rental car
coverage and other transportation.
456
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Lincoln Protect

Climate Control – Troubleshooting..........157
Climate Control – Frequently Asked
Questions..........................................................157
Closing the Liftgate......................................103 Closing the Hands-Free Liftgate.....................104
Closing the Liftgate From Inside Your
Vehicle...............................................................103
Closing the Liftgate From Outside Your Vehicle...............................................................103
Closing the Liftgate Using the Remote Control...............................................................104
Cold Weather Precautions
.........................305
Connected Vehicle........................................417 Connected Vehicle – Troubleshooting..........
418
Connecting the Vehicle to a Mobile Network.............................................................417
Connected Vehicle Data...............................25
Connected Vehicle Limitations
..................417
Connected Vehicle Requirements............417
Connected Vehicle – Troubleshooting..........................................
418
Connected Vehicle – Frequently Asked
Questions..........................................................418
Connecting a Bluetooth® Device.............443
Connecting a Trailer....................................297 Safety Chains......................................................298
Trailer Lamps.......................................................298
Trailer Towing Connector.................................297 Connecting a Trailer Precautions
.............297
Connecting the Vehicle to a Mobile Network.........................................................417
Connecting Lincoln Way to the Modem........417
Enabling and Disabling the Modem...............417
What Is the Modem.............................................417
Connecting the Vehicle to a Wi-Fi Network.........................................................417
Connecting Your Phone..............................437
Contacting Us...................................................15 Argentina.................................................................15
Asia Pacific..............................................................15
Australia...................................................................15
Brazil........................................................................\
..15
Canada.....................................................................15
Caribbean, Central America and Israel............15
Europe......................................................................15
Lincoln Automotive Financial Services - US
Only.......................................................................16
Middle East..............................................................16
New Zealand...........................................................15
North Africa ............................................................16
Puerto Rico..............................................................16
South Korea.............................................................16
Sub-Saharan Africa ..............................................16
U.S. Virgin Islands and Puerto Rico..................
15
United States..........................................................15 Cooling System Capacity and Specification
- 2.0L
.............................................................407
Cooling System Capacity and Specification - 2.7L.............................................................408
Crash and Breakdown Information.........308 Automatic Crash Shutoff...................................312
Jump Starting the Vehicle................................309
Post-Crash Alert System.....................................311
Crash Sensors and Airbag Indicator...........71
Creating a MyKey...........................................85 Programming and Changing Configurable
Settings...............................................................86
Creating a Personal Profile........................447
Creating a Vehicle Wi-Fi Hotspot..............421 Connecting a Device to the Wi-Fi
Hotspot..............................................................421
Finding the Wi-Fi Hotspot Name and Password...........................................................421
Cross Traffic Alert.........................................276 Cross Traffic Alert – Troubleshooting...........278
Cross Traffic Alert Indicators......................277
Cross Traffic Alert Limitations....................277
Cross Traffic Alert Precautions.................276
Cross Traffic Alert – Troubleshooting.........................................278
Cross Traffic Alert – Information Messages.........................................................278
Cruise Control
................................................251
558
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Index

Interior Lamp Function.................................128
Switching the Interior Lamp Function On and
Off.......................................................................128
What Is the Interior Lamp Function................128
Interior Lighting
..............................................127
Ambient Lighting.................................................128
Interior Lamp Function.......................................128
Interior Lighting – Troubleshooting................
128
Interior Lighting – Troubleshooting
..........128
Interior Lighting – Frequently Asked
Questions..........................................................128
Interior Mirror
..................................................132
Auto-Dimming Interior Mirror...........................132
Interior Mirror Precautions..........................132
Introduction.......................................................17
J
Jump Starting the Vehicle..........................309 Jump Starting Precautions...............................309
Jump Starting the Vehicle.................................310
Preparing the Vehicle.........................................310
K
Keyless Entry....................................................93 Keyless Entry – Troubleshooting......................
94 Keyless Entry Keypad....................................95
Keyless Entry Keypad –
Troubleshooting...............................................98
Keyless Entry Keypad Limitations
..............95
Keyless Entry Keypad Master Access Code................................................................95
Locking the Doors................................................96
Unlocking the Doors............................................95
Keyless Entry Keypad Personal Access Codes
..............................................................96
Programming a Personal Entry Code..............96
Keyless Entry Keypad – Troubleshooting...........................................98
Keyless Entry Keypad – Frequently Asked Questions...........................................................98
Keyless Entry Limitations..............................93
Keyless Entry Settings
...................................93
Reprogramming the Unlocking Function.......93
Switching Keyless Entry On and Off................93
Keyless Entry – Troubleshooting................94 Keyless Entry – Frequently Asked
Questions...........................................................94
Keys and Remote Controls
...........................75
Keys and Remote Controls –
Troubleshooting................................................79 Keys and Remote Controls –
Troubleshooting...........................................79
Keys and Remote Controls – Information Messages...........................................................79
L
Lane Centering.............................................260 How Does Lane Centering Work...................
260
Lane Centering Alerts........................................261
Lane Centering Automatic Cancellation......262
Lane Centering Indicators...............................262
Lane Centering Limitations...............................261
Lane Centering Precautions...........................260
Lane Centering Requirements........................260
Switching Lane Centering On and Off...........261
Lane Keeping System Indicators.............268
Lane Keeping System.................................265 Aid Mode..............................................................267
Alert and Aid Mode............................................268
Alert Mode............................................................267
Lane Keeping System –
Troubleshooting.............................................270
Lane Keeping System Limitations ............
266
Lane Keeping System Precautions..........265
Lane Keeping System Settings
.................267
564
2021 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Index
