sensor LINCOLN NAUTILUS 2022 Owners Manual

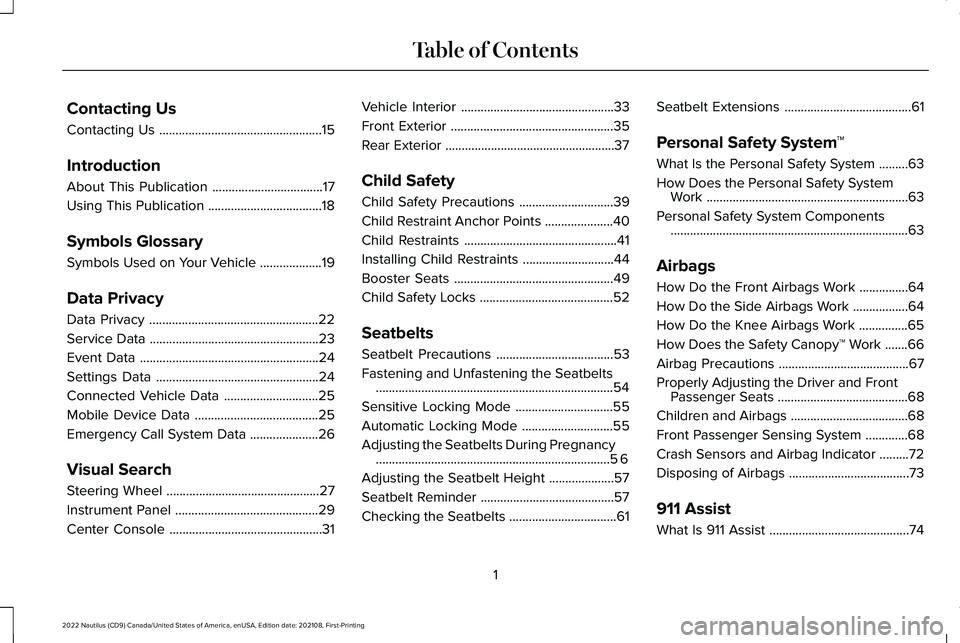

Contacting Us
Contacting Us..................................................15
Introduction
About This Publication..................................17
Using This Publication...................................18
Symbols Glossary
Symbols Used on Your Vehicle...................19
Data Privacy
Data Privacy....................................................22
Service Data....................................................23
Event Data.......................................................24
Settings Data..................................................24
Connected Vehicle Data.............................25
Mobile Device Data......................................25
Emergency Call System Data.....................26
Visual Search
Steering Wheel...............................................27
Instrument Panel............................................29
Center Console...............................................31
Vehicle Interior...............................................33
Front Exterior..................................................35
Rear Exterior....................................................37
Child Safety
Child Safety Precautions.............................39
Child Restraint Anchor Points.....................40
Child Restraints...............................................41
Installing Child Restraints............................44
Booster Seats.................................................49
Child Safety Locks.........................................52
Seatbelts
Seatbelt Precautions....................................53
Fastening and Unfastening the Seatbelts.........................................................................54
Sensitive Locking Mode..............................55
Automatic Locking Mode............................55
Adjusting the Seatbelts During Pregnancy........................................................................56
Adjusting the Seatbelt Height....................57
Seatbelt Reminder.........................................57
Checking the Seatbelts.................................61
Seatbelt Extensions.......................................61
Personal Safety System™
What Is the Personal Safety System.........63
How Does the Personal Safety SystemWork..............................................................63
Personal Safety System Components.........................................................................63
Airbags
How Do the Front Airbags Work...............64
How Do the Side Airbags Work.................64
How Do the Knee Airbags Work...............65
How Does the Safety Canopy™ Work.......66
Airbag Precautions........................................67
Properly Adjusting the Driver and FrontPassenger Seats........................................68
Children and Airbags....................................68
Front Passenger Sensing System.............68
Crash Sensors and Airbag Indicator.........72
Disposing of Airbags.....................................73
911 Assist
What Is 911 Assist...........................................74
1
2022 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202108, First-PrintingTable of Contents

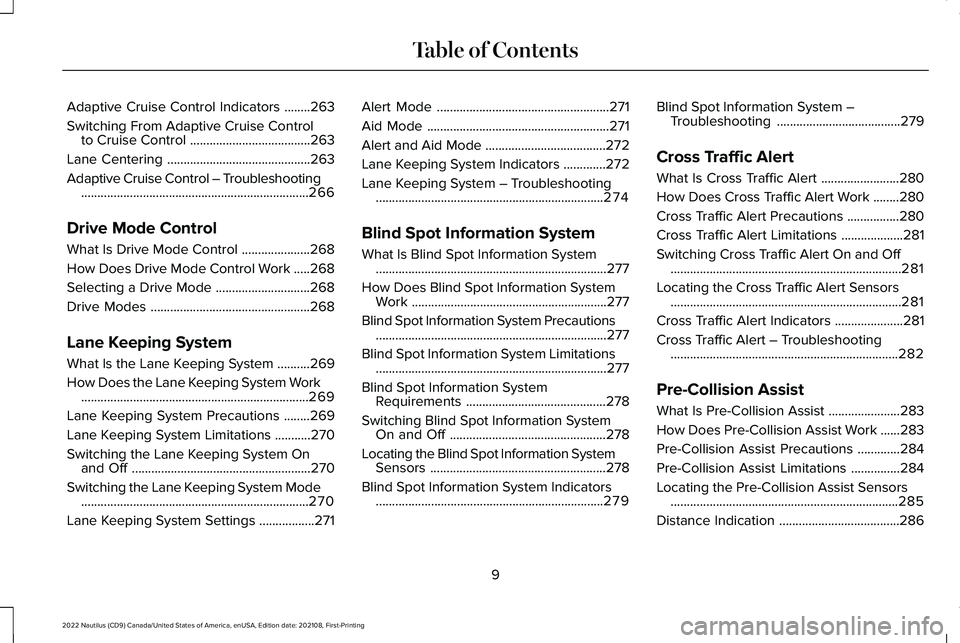

Adaptive Cruise Control Indicators........263
Switching From Adaptive Cruise Controlto Cruise Control.....................................263
Lane Centering............................................263
Adaptive Cruise Control – Troubleshooting......................................................................266
Drive Mode Control
What Is Drive Mode Control.....................268
How Does Drive Mode Control Work.....268
Selecting a Drive Mode.............................268
Drive Modes.................................................268
Lane Keeping System
What Is the Lane Keeping System..........269
How Does the Lane Keeping System Work......................................................................269
Lane Keeping System Precautions........269
Lane Keeping System Limitations...........270
Switching the Lane Keeping System Onand Off.......................................................270
Switching the Lane Keeping System Mode......................................................................270
Lane Keeping System Settings.................271
Alert Mode.....................................................271
Aid Mode........................................................271
Alert and Aid Mode.....................................272
Lane Keeping System Indicators.............272
Lane Keeping System – Troubleshooting......................................................................274
Blind Spot Information System
What Is Blind Spot Information System.......................................................................277
How Does Blind Spot Information SystemWork............................................................277
Blind Spot Information System Precautions.......................................................................277
Blind Spot Information System Limitations.......................................................................277
Blind Spot Information SystemRequirements...........................................278
Switching Blind Spot Information SystemOn and Off................................................278
Locating the Blind Spot Information SystemSensors......................................................278
Blind Spot Information System Indicators......................................................................279
Blind Spot Information System –Troubleshooting......................................279
Cross Traffic Alert
What Is Cross Traffic Alert........................280
How Does Cross Traffic Alert Work........280
Cross Traffic Alert Precautions................280
Cross Traffic Alert Limitations...................281
Switching Cross Traffic Alert On and Off.......................................................................281
Locating the Cross Traffic Alert Sensors.......................................................................281
Cross Traffic Alert Indicators.....................281
Cross Traffic Alert – Troubleshooting......................................................................282
Pre-Collision Assist
What Is Pre-Collision Assist......................283
How Does Pre-Collision Assist Work......283
Pre-Collision Assist Precautions.............284
Pre-Collision Assist Limitations...............284
Locating the Pre-Collision Assist Sensors......................................................................285
Distance Indication.....................................286
9
2022 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202108, First-PrintingTable of Contents

See Opening and Closing the Hood (page 339).A
See Replacing the Front Wiper Blades (page 118).B
See Locating the Keyless Entry Keypad (page 97).C
See Locating the Front Parking Aid Sensors (page 238).D
See Locating the 360 Degree Cameras (page 246).E
36
2022 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202108, First-PrintingVisual Search

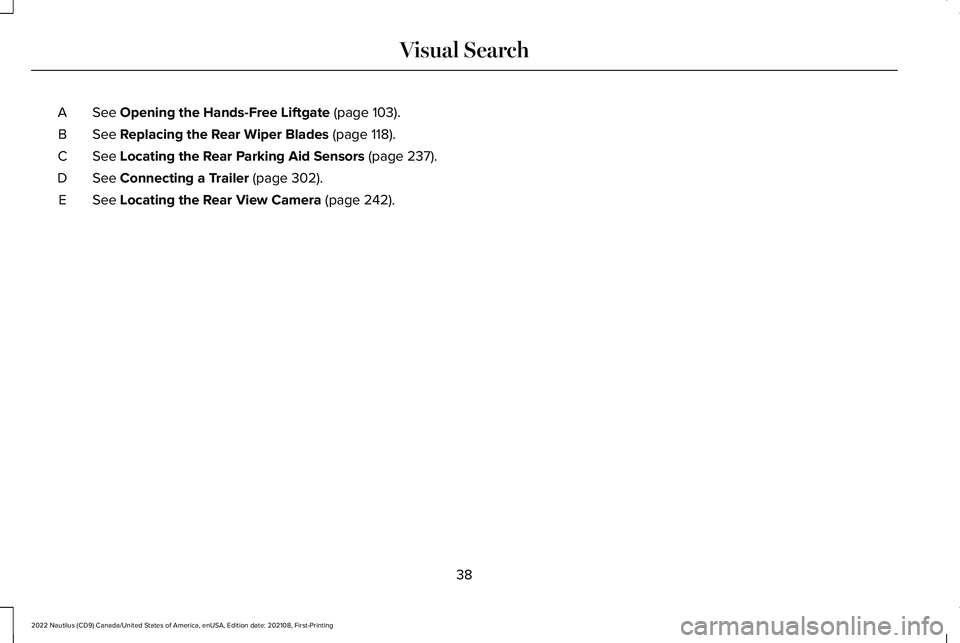

See Opening the Hands-Free Liftgate (page 103).A
See Replacing the Rear Wiper Blades (page 118).B
See Locating the Rear Parking Aid Sensors (page 237).C
See Connecting a Trailer (page 302).D
See Locating the Rear View Camera (page 242).E
38
2022 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202108, First-PrintingVisual Search

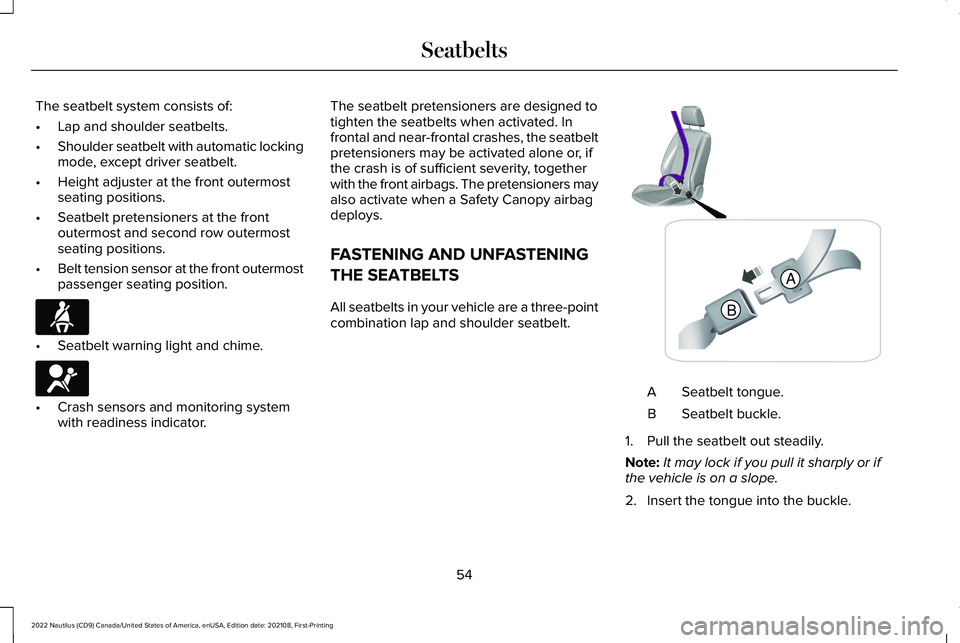

The seatbelt system consists of:
•Lap and shoulder seatbelts.
•Shoulder seatbelt with automatic lockingmode, except driver seatbelt.
•Height adjuster at the front outermostseating positions.
•Seatbelt pretensioners at the frontoutermost and second row outermostseating positions.
•Belt tension sensor at the front outermostpassenger seating position.
•Seatbelt warning light and chime.
•Crash sensors and monitoring systemwith readiness indicator.
The seatbelt pretensioners are designed totighten the seatbelts when activated. Infrontal and near-frontal crashes, the seatbeltpretensioners may be activated alone or, ifthe crash is of sufficient severity, togetherwith the front airbags. The pretensioners mayalso activate when a Safety Canopy airbagdeploys.
FASTENING AND UNFASTENING
THE SEATBELTS
All seatbelts in your vehicle are a three-pointcombination lap and shoulder seatbelt.
Seatbelt tongue.A
Seatbelt buckle.B
1.Pull the seatbelt out steadily.
Note:It may lock if you pull it sharply or ifthe vehicle is on a slope.
2.Insert the tongue into the buckle.
54
2022 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202108, First-PrintingSeatbeltsE71880 E67017 BA E338014

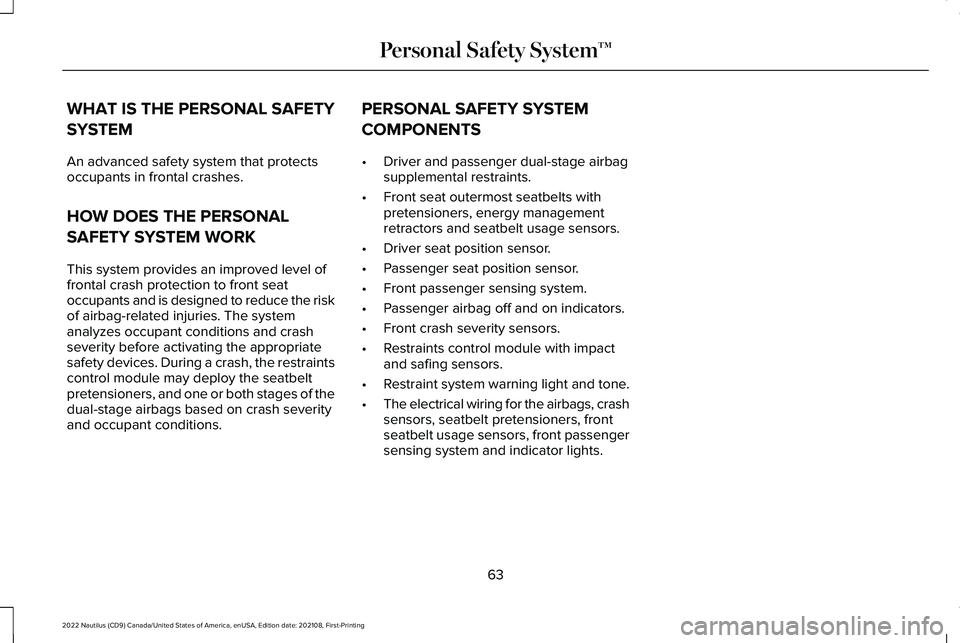

WHAT IS THE PERSONAL SAFETY
SYSTEM
An advanced safety system that protectsoccupants in frontal crashes.
HOW DOES THE PERSONAL
SAFETY SYSTEM WORK
This system provides an improved level offrontal crash protection to front seatoccupants and is designed to reduce the riskof airbag-related injuries. The systemanalyzes occupant conditions and crashseverity before activating the appropriatesafety devices. During a crash, the restraintscontrol module may deploy the seatbeltpretensioners, and one or both stages of thedual-stage airbags based on crash severityand occupant conditions.
PERSONAL SAFETY SYSTEM
COMPONENTS
•Driver and passenger dual-stage airbagsupplemental restraints.
•Front seat outermost seatbelts withpretensioners, energy managementretractors and seatbelt usage sensors.
•Driver seat position sensor.
•Passenger seat position sensor.
•Front passenger sensing system.
•Passenger airbag off and on indicators.
•Front crash severity sensors.
•Restraints control module with impactand safing sensors.
•Restraint system warning light and tone.
•The electrical wiring for the airbags, crashsensors, seatbelt pretensioners, frontseatbelt usage sensors, front passengersensing system and indicator lights.
63
2022 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202108, First-PrintingPersonal Safety System™

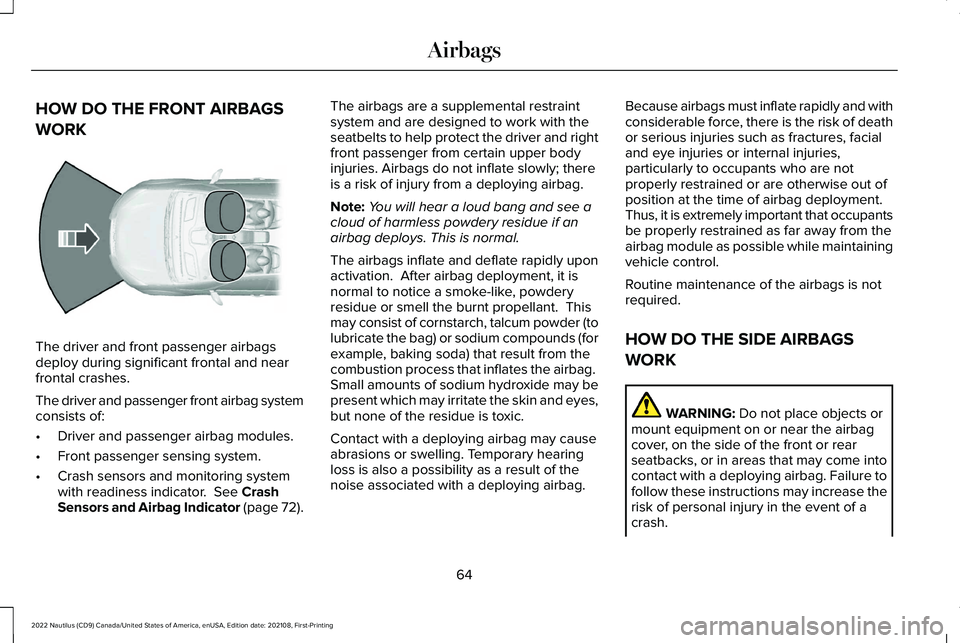

HOW DO THE FRONT AIRBAGS
WORK
The driver and front passenger airbagsdeploy during significant frontal and nearfrontal crashes.
The driver and passenger front airbag systemconsists of:
•Driver and passenger airbag modules.
•Front passenger sensing system.
•Crash sensors and monitoring systemwith readiness indicator. See CrashSensors and Airbag Indicator (page 72).
The airbags are a supplemental restraintsystem and are designed to work with theseatbelts to help protect the driver and rightfront passenger from certain upper bodyinjuries. Airbags do not inflate slowly; thereis a risk of injury from a deploying airbag.
Note:You will hear a loud bang and see acloud of harmless powdery residue if anairbag deploys. This is normal.
The airbags inflate and deflate rapidly uponactivation. After airbag deployment, it isnormal to notice a smoke-like, powderyresidue or smell the burnt propellant. Thismay consist of cornstarch, talcum powder (tolubricate the bag) or sodium compounds (forexample, baking soda) that result from thecombustion process that inflates the airbag. Small amounts of sodium hydroxide may bepresent which may irritate the skin and eyes,but none of the residue is toxic.
Contact with a deploying airbag may causeabrasions or swelling. Temporary hearingloss is also a possibility as a result of thenoise associated with a deploying airbag.
Because airbags must inflate rapidly and withconsiderable force, there is the risk of deathor serious injuries such as fractures, facialand eye injuries or internal injuries,particularly to occupants who are notproperly restrained or are otherwise out ofposition at the time of airbag deployment.Thus, it is extremely important that occupantsbe properly restrained as far away from theairbag module as possible while maintainingvehicle control.
Routine maintenance of the airbags is notrequired.
HOW DO THE SIDE AIRBAGS
WORK
WARNING: Do not place objects ormount equipment on or near the airbagcover, on the side of the front or rearseatbacks, or in areas that may come intocontact with a deploying airbag. Failure tofollow these instructions may increase therisk of personal injury in the event of acrash.
64
2022 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202108, First-PrintingAirbagsE151127

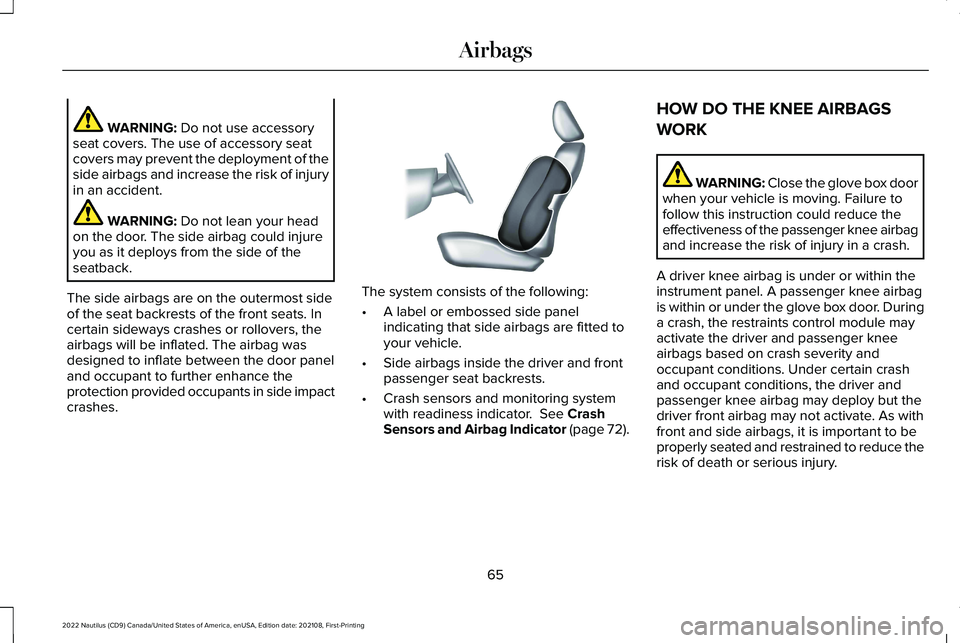

WARNING: Do not use accessoryseat covers. The use of accessory seatcovers may prevent the deployment of theside airbags and increase the risk of injuryin an accident.
WARNING: Do not lean your headon the door. The side airbag could injureyou as it deploys from the side of theseatback.
The side airbags are on the outermost sideof the seat backrests of the front seats. Incertain sideways crashes or rollovers, theairbags will be inflated. The airbag wasdesigned to inflate between the door paneland occupant to further enhance theprotection provided occupants in side impactcrashes.
The system consists of the following:
•A label or embossed side panelindicating that side airbags are fitted toyour vehicle.
•Side airbags inside the driver and frontpassenger seat backrests.
•Crash sensors and monitoring systemwith readiness indicator. See CrashSensors and Airbag Indicator (page 72).
HOW DO THE KNEE AIRBAGS
WORK
WARNING: Close the glove box doorwhen your vehicle is moving. Failure tofollow this instruction could reduce theeffectiveness of the passenger knee airbagand increase the risk of injury in a crash.
A driver knee airbag is under or within theinstrument panel. A passenger knee airbagis within or under the glove box door. Duringa crash, the restraints control module mayactivate the driver and passenger kneeairbags based on crash severity andoccupant conditions. Under certain crashand occupant conditions, the driver andpassenger knee airbag may deploy but thedriver front airbag may not activate. As withfront and side airbags, it is important to beproperly seated and restrained to reduce therisk of death or serious injury.
65
2022 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202108, First-PrintingAirbagsE152533

Make sure the knee airbags areoperating properly. See CrashSensors and Airbag Indicator(page 72).

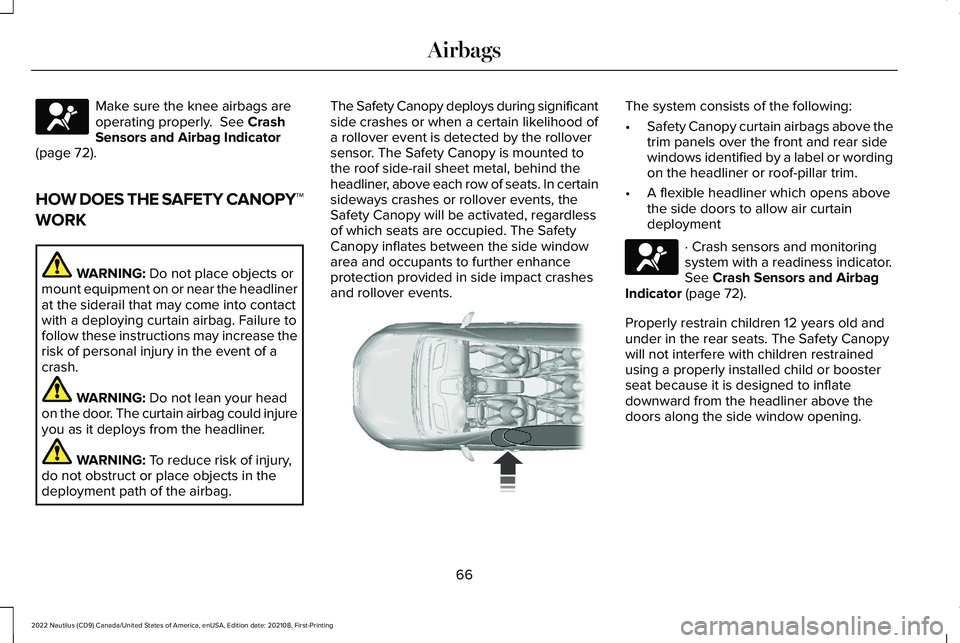

HOW DOES THE SAFETY CANOPY™
WORK
WARNING: Do not place objects ormount equipment on or near the headlinerat the siderail that may come into contactwith a deploying curtain airbag. Failure tofollow these instructions may increase therisk of personal injury in the event of acrash.
WARNING: Do not lean your headon the door. The curtain airbag could injureyou as it deploys from the headliner.
WARNING: To reduce risk of injury,do not obstruct or place objects in thedeployment path of the airbag.
The Safety Canopy deploys during significantside crashes or when a certain likelihood ofa rollover event is detected by the rolloversensor. The Safety Canopy is mounted tothe roof side-rail sheet metal, behind theheadliner, above each row of seats. In certainsideways crashes or rollover events, theSafety Canopy will be activated, regardlessof which seats are occupied. The SafetyCanopy inflates between the side windowarea and occupants to further enhanceprotection provided in side impact crashesand rollover events.
The system consists of the following:
•Safety Canopy curtain airbags above thetrim panels over the front and rear sidewindows identified by a label or wordingon the headliner or roof-pillar trim.
•A flexible headliner which opens abovethe side doors to allow air curtaindeployment
· Crash sensors and monitoringsystem with a readiness indicator.See Crash Sensors and AirbagIndicator (page 72).
Properly restrain children 12 years old andunder in the rear seats. The Safety Canopywill not interfere with children restrainedusing a properly installed child or boosterseat because it is designed to inflatedownward from the headliner above thedoors along the side window opening.
66
2022 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202108, First-PrintingAirbagsE67017 E75004 E67017

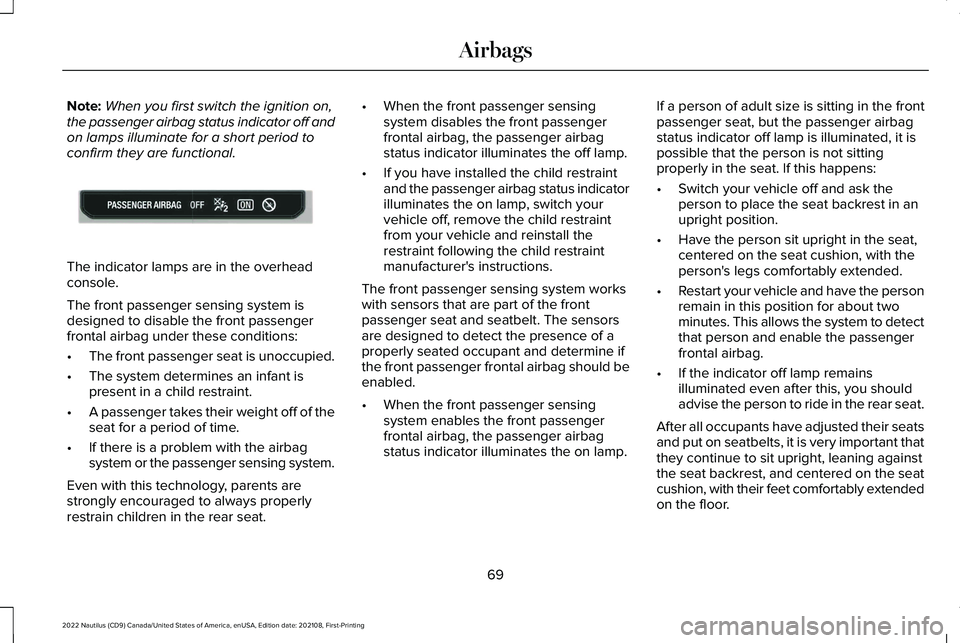

Note:When you first switch the ignition on,the passenger airbag status indicator off andon lamps illuminate for a short period toconfirm they are functional.
The indicator lamps are in the overheadconsole.
The front passenger sensing system isdesigned to disable the front passengerfrontal airbag under these conditions:
•The front passenger seat is unoccupied.
•The system determines an infant ispresent in a child restraint.
•A passenger takes their weight off of theseat for a period of time.
•If there is a problem with the airbagsystem or the passenger sensing system.
Even with this technology, parents arestrongly encouraged to always properlyrestrain children in the rear seat.
•When the front passenger sensingsystem disables the front passengerfrontal airbag, the passenger airbagstatus indicator illuminates the off lamp.
•If you have installed the child restraintand the passenger airbag status indicatorilluminates the on lamp, switch yourvehicle off, remove the child restraintfrom your vehicle and reinstall therestraint following the child restraintmanufacturer's instructions.
The front passenger sensing system workswith sensors that are part of the frontpassenger seat and seatbelt. The sensorsare designed to detect the presence of aproperly seated occupant and determine ifthe front passenger frontal airbag should beenabled.
•When the front passenger sensingsystem enables the front passengerfrontal airbag, the passenger airbagstatus indicator illuminates the on lamp.
If a person of adult size is sitting in the frontpassenger seat, but the passenger airbagstatus indicator off lamp is illuminated, it ispossible that the person is not sittingproperly in the seat. If this happens:
•Switch your vehicle off and ask theperson to place the seat backrest in anupright position.
•Have the person sit upright in the seat,centered on the seat cushion, with theperson's legs comfortably extended.
•Restart your vehicle and have the personremain in this position for about twominutes. This allows the system to detectthat person and enable the passengerfrontal airbag.
•If the indicator off lamp remainsilluminated even after this, you shouldadvise the person to ride in the rear seat.
After all occupants have adjusted their seatsand put on seatbelts, it is very important thatthey continue to sit upright, leaning againstthe seat backrest, and centered on the seatcushion, with their feet comfortably extendedon the floor.
69
2022 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202108, First-PrintingAirbagsE181984
