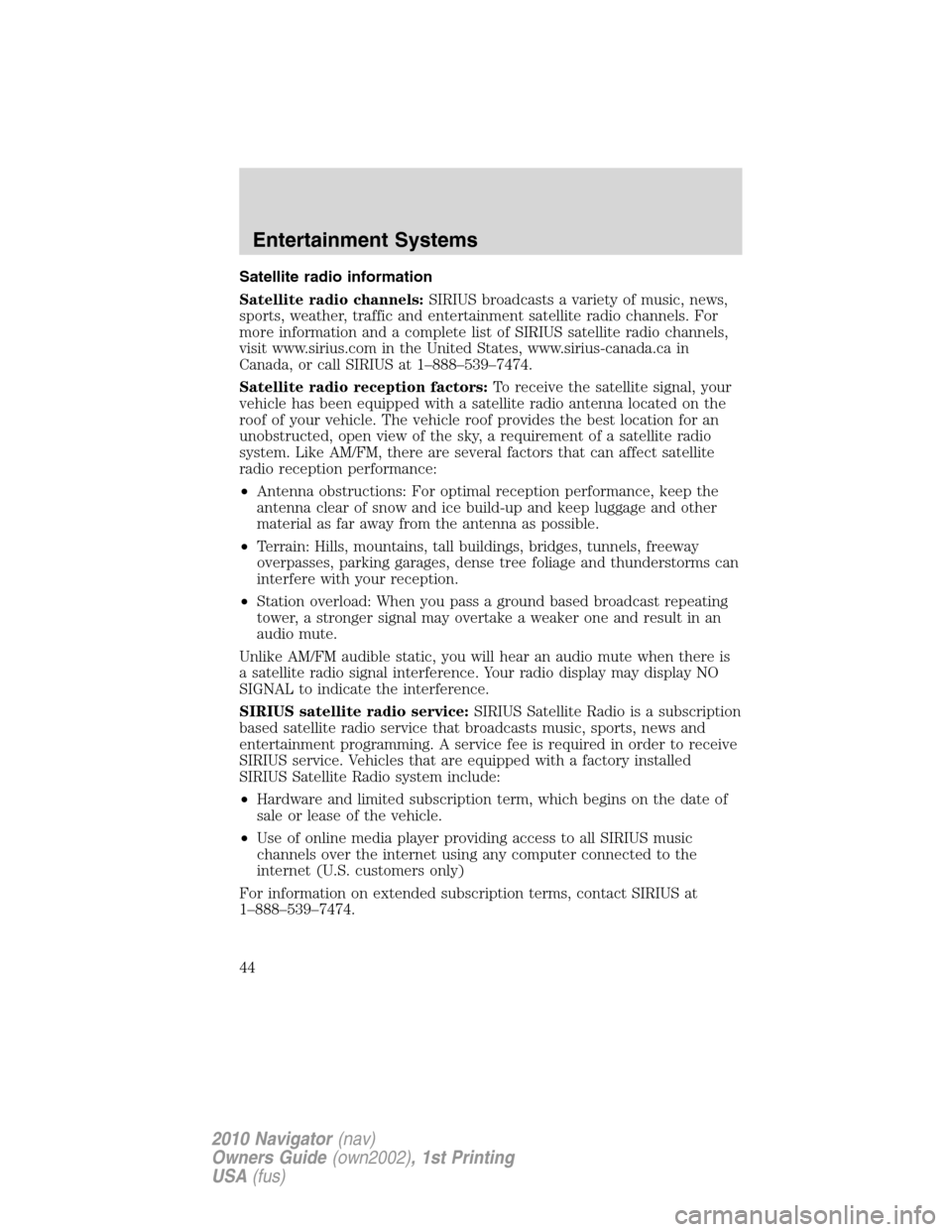

Satellite radio information 44
Family entertainment system 47
Navigation system 78
SYNC
78
Climate Controls 79
Dual automatic temperature control 79
Rear window defroster 85
Lights 86
Headlamps 86
Turn signal control 90
Bulb replacement 92
Driver Controls 97
Windshield wiper/washer control 97
Steering wheel adjustment 99
Power windows 104
Mirrors 106
Speed control 110
Moon roof 113
Table of Contents
1
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

AUDIO SYSTEMS
Note:If your volume is muted and MYKEY VOLUME LIMITED is
displayed, refer toMyKey™in theLocks and Securitychapter for more
information.
AM/FM In-dash six CD/MP3 satellite compatible sound system
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. The driver’s primary responsibility is the safe
operation of their vehicle. Only use cell phones and other devices not
essential to the driving task when it is safe to do so.
Accessory delay:Your vehicle is equipped with accessory delay. With
this feature, the window controls, radio and moon roof (if equipped) may
be used for up to ten minutes after the ignition is turned off or until
either front door is opened.
Entertainment Systems
30
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

THX:Your vehicle is equipped with
the THX
II certified premium audio
system. This system creates optimal
acoustic quality for all seating
positions and road conditions. The
system offers an advanced speaker
system, amplifier, subwoofer and
equalization.
1.Memory presets:To set a
station: Select frequency band
AM/FM1/FM2; tune to a station,
press and hold a preset button until
sound returns. PRESET SAVED will appear in the display. You may store
up to 18 stations, six presets in AM, FM1 and FM2.
In satellite radio mode,there are 18 available presets, six each for
SAT1, SAT2 and SAT3. To save satellite channels in your memory
presets, tune to the desired channel then press and hold a preset control
until sound returns.
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability.
2.
(Eject):Press to eject the
current CD. To eject a specific CD,
press
and the corresponding
memory preset. Press and hold
to autoeject all discs in the system.
3.TUNE: In radio mode,turn to
go up/down the frequency band in
individual increments.
In MP3 mode,with folder mode
active, turn to advance to the next/previous MP3 folder.
In satellite radio mode,press
SEEKto tune to the
next/previous channel.
In CATEGORY MODE,press turn the TUNE knob to scroll through the
list of available SIRIUS channel Categories (Pop, Rock, News, etc.). Refer
toCategory ModeunderMenufor further information.
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability.
(Phone): Press to access SYNC
phone features. For further
information, please refer to theSYNC
supplement.
Entertainment Systems
31
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

4.MENU:Press MENU repeatedly
to scroll through the following
modes:
SATELLITE RADIO MENU (if equipped):Press MENU when satellite
radio mode is active to access. Press OK to enter into the satellite radio
menu. Press
/to cycle through the following options:
•CATEGORY:Press OK to enter category mode. Press
/to
scroll through the list of available SIRIUS channel Categories (Pop,
Rock, News, etc.) Press OK when the desired category appears in the
display. After a category is selected, press SEEK to search for that
specific category of channels only (i.e. ROCK). You may also select
CATEGORY ALL to seek all available SIRIUS categories and channels.
Press OK to close and return to the main menu.
•SAVE SONG:Press OK to save the currently playing song in the
system’s memory. (If you try to save something other than a song,
CANT SAVE will appear in the display.) When the chosen song is
playing on any satellite radio channel, the system will alert you with
an audible prompt. Press OK while SONG ALERT is in the display and
the system will take you to the channel playing the desired song. You
can save up to 20 songs. If you attempt to save a song when the
system is full, the display will read REPLACE SONG? Press OK to
access the saved songs and press
/to cycle through the saved
songs. When the song appears in the display that you would like to
replace, press OK. SONG REPLACED will appear in the display.
•DELETE SONG:Press OK to delete a song from the system’s
memory. Press
/to cycle through the saved songs. When the
song appears in the display that you would like to delete, press OK.
The song will appear in the display for confirmation. Press OK again
and the display will read SONG DELETED. If you do not want to
delete the currently listed song, press
/to select either
RETURN or CANCEL.
Note:If there are no songs presently saved, the display will read NO
SONGS.
•DELETE ALL SONGS:Press OK to delete all song’s from the
system’s memory. The display will read ARE YOU SURE ? Press OK to
confirm deletion of all saved songs and the display will read ALL
DELETED.
Note:If there are no songs presently saved, the display will read NO
SONGS.
Entertainment Systems
32
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

•ENABLE ALERTS / DISABLE ALERTS:Press OK to enable/disable
the satellite alert status which alerts you when your selected songs are
playing on a satellite radio channel. (The system default is disabled.)
SONG ALERTS ENABLED/DISABLED will appear in the display. The
menu listing will display the opposite state. For example, if you have
chosen to enable the song alerts, the menu listing will read DISABLE
as the alerts are currently on, so your other option is to turn them off.
Satellite radio is available only with a valid SIRIUS radio
subscription. Check with your authorized dealer for availability.
Setting the clock:Your vehicle is equipped with an in-dash clock. Refer
toClockin theDriver Controlschapter for instructions on how to set
the time.
RBDS ON/OFF:Press
/to turn RBDS ON or OFF.
Program Type:If RBDS is ON, press
/to find the desired
program type, (Info (Information), Religious, R&B, Classical, Jazz, Oldies,
Country, Top 40, Soft and Rock or alert and test announcements.)
Press
SEEKor SCAN to search for FM radio stations
broadcasting the desired program type.
RBDS (Radio Broadcast Data System): Available in FM mode only.
When RBDS is ON, you can search RBDS-equipped stations for certain
program types or announcements (Alert and Test ). When the desired
category appears in the display, press
SEEKto initiate the
search. The system will cycle through the FM frequency band searching
for stations broadcasting the selected category type. If the desired
program type is not found after searching the frequency band three
times, the search will stop.
The announcement categories are as follows:
•Alert: Searches for RBDS stations actively broadcasting important
messages relating to weather or government emergencies.
•Test: Searches for RBDS stations actively broadcasting a test message.
Autoset:In radio mode, this allows you to set the strongest local radio
stations without losing your original manually set preset stations for
AM/FM1/FM2. Use
/to turn on/off.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets. Press OK to close and
return to the main menu.
Bass:Press
/to adjust the bass setting. Press OK to close and
return to the main menu.
Entertainment Systems
33
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

Treble:Press/to adjust the treble setting. Press OK to close and
return to the main menu.
Balance:Press
/to adjust the audio between the right and left
speakers. Press OK to close and return to the main menu.
Fade:Press
/to adjust the audio between the front and rear
speakers. Press OK to close and return to the main menu.
Speed sensitive volume:Radio volume automatically changes slightly
with vehicle speed to compensate for road and wind noise. Use
/
to adjust. Recommended level is 1–3. Level 7 is the maximum setting.
Press OK to close and return to the main menu.
Occupancy mode:Use
/to select and optimize sound for ALL
SEATS, DRIVERS SEAT or FRONT SEATS. Press OK to close and return
to the main menu.
Compression:Available in CD mode, this feature brings soft and loud
CD passages together for a more consistent listening level. Press MENU
until compression status is displayed. Press
/to turn the feature
on/off. Press OK to close and return to the main menu.
FES options (if equipped):Some FES options will also be available
when scrolling through the menu. SeeFamily entertainment DVD
systemin theEntertainment systemschapter for more information.
5.
/Select:These controls
are used in Menu mode to select
various settings/options.
6.
Play/Pause/OK: In CD/MP3
and USB mode only,press to
pause the playing media. Press again
to return to the playing media.
OK:Use in various menu selections.
7.SEEK
:In radio or CD/MP3
mode,press to access the next
strong station or track.
In satellite radio mode,press SEEK
to seek to the next channel.
Press and hold SEEK
to fast seek through the next channels.
In CATEGORY MODE,press
/to select a category.
Entertainment Systems
34
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

In TEXT MODE,press TEXT and then SEEKto view the
additional display text when “>” is active in the display.Satellite radio is
available only with a valid SIRIUS subscription. Check with your
authorized dealer for availability.
8.
FWD (Fast Forward):
Press FWD to manually advance in a
CD/MP3 track.
9.TEXT/SCAN: In radio mode,
press and hold for a brief sampling
of radio stations.
In CD/MP3 mode,press and release to view the track title, artist name
or disc title. Press and hold for a brief sampling of all tracks on the
current disc.
In satellite radio mode,press and release to enter TEXT MODE and
toggle between channel name/channel category and the current song
title/artist.
In TEXT MODE,sometimes the display requires additional text to be
displayed. When the “>” indicator is active, press TEXT and then
SEEK
to view the additional display text. When the “<” indicator is
active, press TEXT and then
SEEK to view the previous display
text.
10.
REV (Reverse):Press
REV to manually reverse in a CD
track.
11.
SEEK: In radio and
CD/MP3 mode,press to access the
previous strong station or track.
In satellite radio mode,press
SEEK to seek to the previous
channel. If a specific category is selected, (Jazz, Rock, News, etc.),
press
SEEK to seek to the previous channel in the selected category.
Press and hold
SEEK to fast seek through the previous channels.
In TEXT MODEpress
SEEK to view the previous display text
when “<” is active in the display.
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability.
Entertainment Systems
35
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

12.SHUFFLE:Press to play all
tracks on the current disc in random
order.
13.AM/FM:Press to select
AM/FM1/FM2 frequency band.
14.CD:Press to enter CD mode. If
a CD is already loaded into the
system, CD play will begin where it
ended last. If no CD is loaded, NO DISC will appear in the display.
15.AUX:Press repeatedly to cycle
through SAT1, SAT2 and SAT3
(satellite radio mode), FES/DVD
(DVD mode, if equipped), SYNC
or LINE IN (auxiliary audio mode).
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability.
16.ON/OFF/Volume:Press to turn
ON/OFF. Turn to increase/decrease
volume.
If the volume is set above a certain
level and the ignition is turned off, the volume will come back on at a
“nominal” listening level when the ignition switch is turned back on.
17.CD slot:Insert a CD label side
up.
18.LOAD:Press to load a CD.
Press LOAD and a memory preset
to load to a specific slot. Press and
hold to autoload up to six CD. The
last disc loaded will begin to play.
Auxiliary input jack (Line in)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. The driver’s primary responsibility is the safe
operation of their vehicle. Only use cell phones and other devices not
essential to the driving task when it is safe to do so.
Entertainment Systems
36
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

Your vehicle is equipped with a USB
port inside your center console. This
feature allows you to plug in media
playing devices, memory sticks, and
also to charge devices if they
support this feature. For further
information on this feature, refer to
Accessing and using your USB
portin theSYNC
supplement or
Navigation systemsupplement.
Rear seat radio controls (if equipped)
Your vehicle is equipped with rear seat radio controls. This feature allows
front and middle seat passengers to listen to different media sources
(radio, CD, SYNC or DVD) simultaneously; however, the front and
middle-seat passengers cannot listen to two different radio stations at
the same time.
1.MEDIA:Push repeatedly to cycle
through available playing medias
such as AM, FM1, FM2, CD, SAT1,
SAT2, SAT3 (satellite radio if
equipped), DVD (if equipped) and
SYNC
(if equipped). If in Dual Play
mode, SHARED illuminates in the
radio display when the front and
rear modes are set to the same
media.
Entertainment Systems
39
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)

Satellite radio information
Satellite radio channels:SIRIUS broadcasts a variety of music, news,
sports, weather, traffic and entertainment satellite radio channels. For
more information and a complete list of SIRIUS satellite radio channels,
visit www.sirius.com in the United States, www.sirius-canada.ca in
Canada, or call SIRIUS at 1–888–539–7474.
Satellite radio reception factors:To receive the satellite signal, your
vehicle has been equipped with a satellite radio antenna located on the
roof of your vehicle. The vehicle roof provides the best location for an
unobstructed, open view of the sky, a requirement of a satellite radio
system. Like AM/FM, there are several factors that can affect satellite
radio reception performance:
•Antenna obstructions: For optimal reception performance, keep the
antenna clear of snow and ice build-up and keep luggage and other
material as far away from the antenna as possible.
•Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway
overpasses, parking garages, dense tree foliage and thunderstorms can
interfere with your reception.
•Station overload: When you pass a ground based broadcast repeating
tower, a stronger signal may overtake a weaker one and result in an
audio mute.
Unlike AM/FM audible static, you will hear an audio mute when there is
a satellite radio signal interference. Your radio display may display NO
SIGNAL to indicate the interference.
SIRIUS satellite radio service:SIRIUS Satellite Radio is a subscription
based satellite radio service that broadcasts music, sports, news and
entertainment programming. A service fee is required in order to receive
SIRIUS service. Vehicles that are equipped with a factory installed
SIRIUS Satellite Radio system include:
•Hardware and limited subscription term, which begins on the date of
sale or lease of the vehicle.
•Use of online media player providing access to all SIRIUS music
channels over the internet using any computer connected to the
internet (U.S. customers only)
For information on extended subscription terms, contact SIRIUS at
1–888–539–7474.
Entertainment Systems
44
2010 Navigator(nav)
Owners Guide(own2002), 1st Printing
USA(fus)
