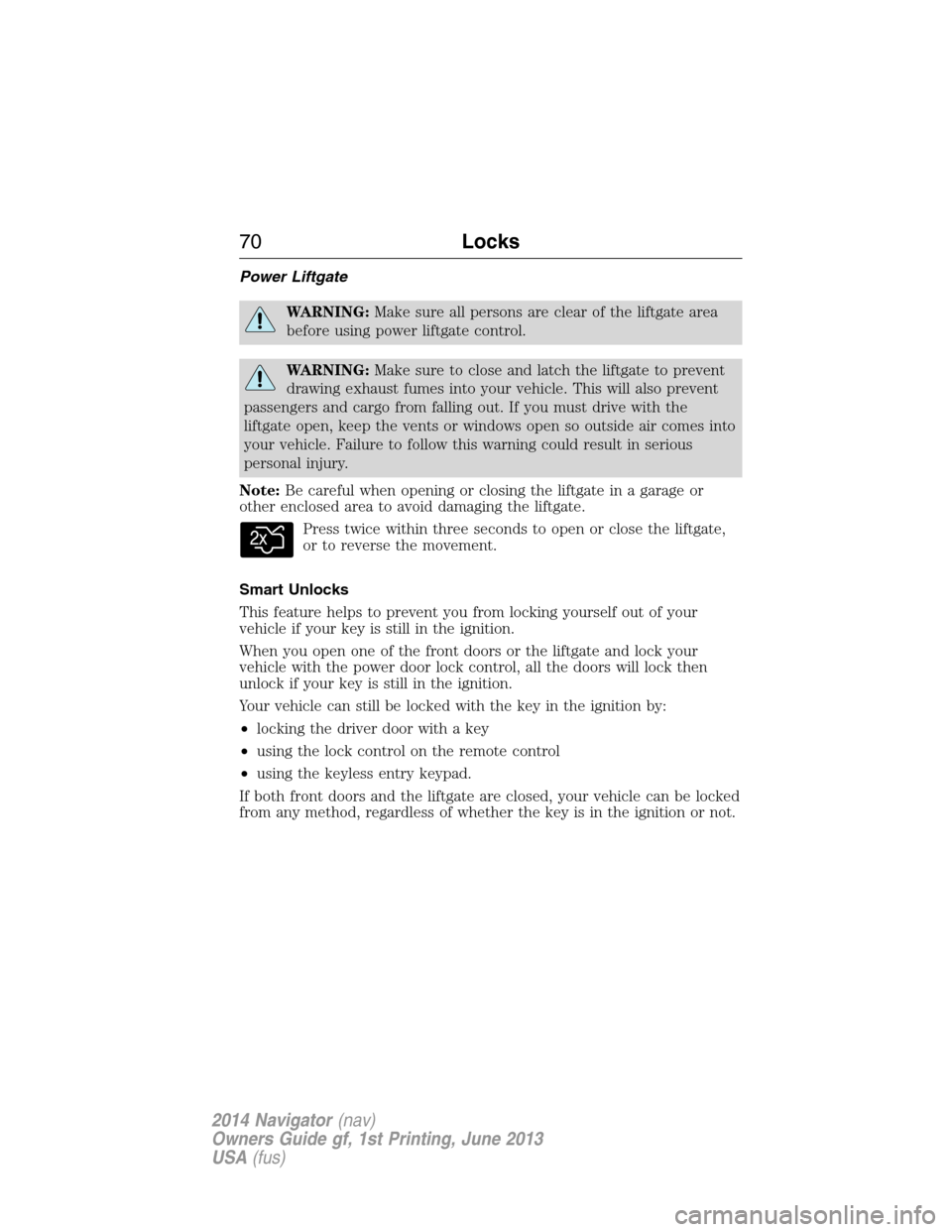

Power Liftgate
WARNING:Make sure all persons are clear of the liftgate area
before using power liftgate control.
WARNING:Make sure to close and latch the liftgate to prevent
drawing exhaust fumes into your vehicle. This will also prevent
passengers and cargo from falling out. If you must drive with the
liftgate open, keep the vents or windows open so outside air comes into
your vehicle. Failure to follow this warning could result in serious
personal injury.
Note:Be careful when opening or closing the liftgate in a garage or
other enclosed area to avoid damaging the liftgate.
Press twice within three seconds to open or close the liftgate,
or to reverse the movement.
Smart Unlocks
This feature helps to prevent you from locking yourself out of your
vehicle if your key is still in the ignition.
When you open one of the front doors or the liftgate and lock your
vehicle with the power door lock control, all the doors will lock then
unlock if your key is still in the ignition.
Your vehicle can still be locked with the key in the ignition by:
•locking the driver door with a key
•using the lock control on the remote control
•using the keyless entry keypad.
If both front doors and the liftgate are closed, your vehicle can be locked
from any method, regardless of whether the key is in the ignition or not.
70Locks
2014 Navigator(nav)
Owners Guide gf, 1st Printing, June 2013
USA(fus)

Autolock and Unlock
The autolock feature will lock all the doors, the liftgate and the liftgate
window when:
•all doors are closed,
•the ignition is on,
•you shift into any gear putting the vehicle in motion, and
•the vehicle attains a speed greater than 12 mph (20 km/h).
If the vehicle was autolocked, the autounlock feature will unlock all
doors when the driver’s door is opened within 10 minutes of switching
the ignition off.
Enabling or Disabling Autolock and Autounlock
These features can be enabled or disabled:
•by your authorized dealer
•through the information display
•using the power door lock procedure.
To enable or disable using the power door locks, do the following:
Note:You will have 30 seconds to complete the procedure.
1. Switch the ignition on.
2. Press the power door unlock button three times.
3. Switch the ignition off.
4. Press the power door unlock button three times.
5. Switch the ignition on. The horn will chirp indicating the programming
mode has been entered.
Autolock:Once in programming mode, press the power door unlock
button then the lock button. The horn will chirp once if autolock was
deactivated or twice (one short and one long chirp) if autolock was
activated.
Autounlock:Once in programming mode, press the power door lock
button then the unlock button. The horn will chirp once if autounlock
was deactivated or twice (one short and one long chirp) if autounlock
was activated.
6. Turn the ignition off. The horn will chirp once to confirm the
procedure is complete.
Note:The autounlock feature can be enabled or disabled independently
of the autolock feature.
Locks71
2014 Navigator(nav)
Owners Guide gf, 1st Printing, June 2013
USA(fus)

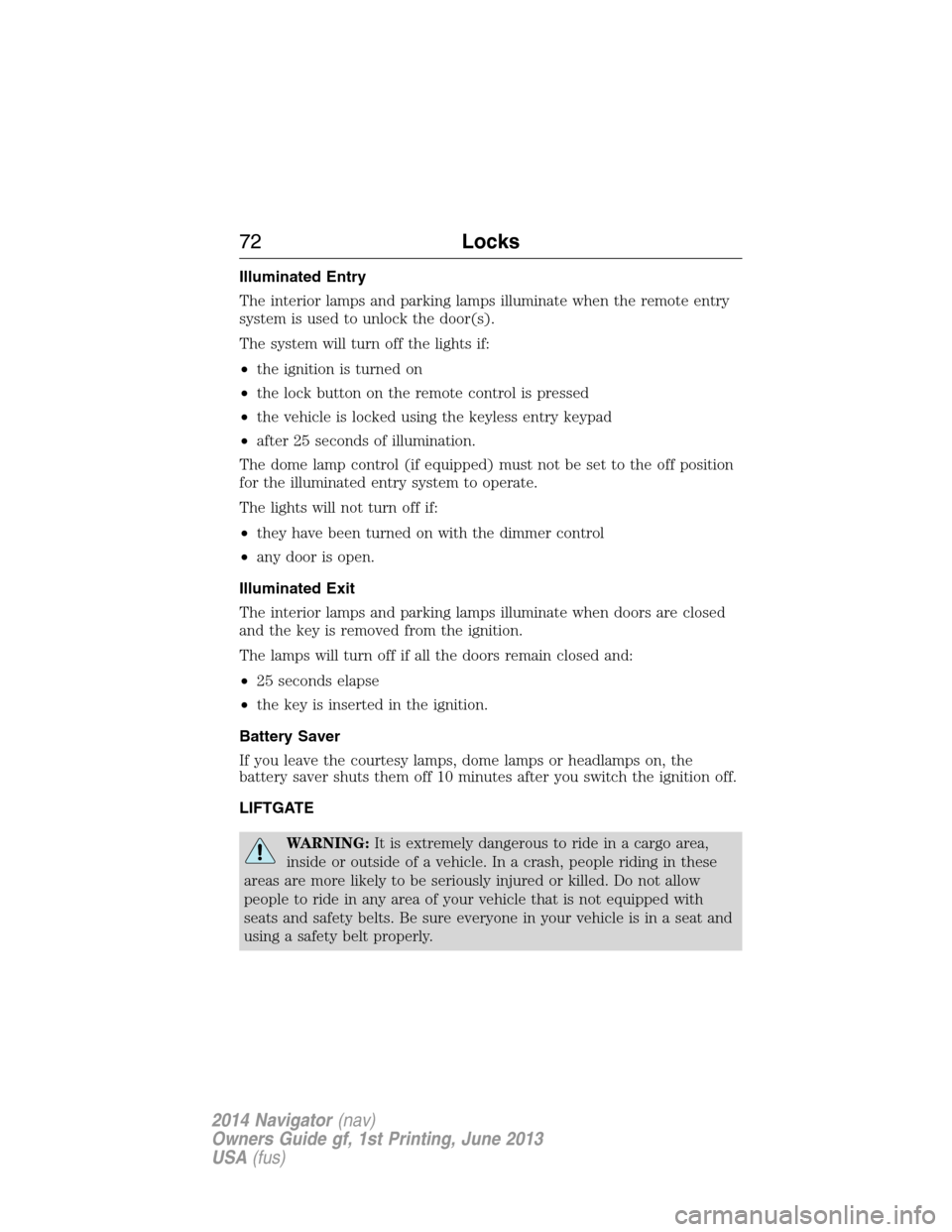

Illuminated Entry
The interior lamps and parking lamps illuminate when the remote entry
system is used to unlock the door(s).
The system will turn off the lights if:
•the ignition is turned on
•the lock button on the remote control is pressed
•the vehicle is locked using the keyless entry keypad
•after 25 seconds of illumination.
The dome lamp control (if equipped) must not be set to the off position
for the illuminated entry system to operate.
The lights will not turn off if:
•they have been turned on with the dimmer control
•any door is open.
Illuminated Exit
The interior lamps and parking lamps illuminate when doors are closed
and the key is removed from the ignition.
The lamps will turn off if all the doors remain closed and:
•25 seconds elapse
•the key is inserted in the ignition.
Battery Saver
If you leave the courtesy lamps, dome lamps or headlamps on, the
battery saver shuts them off 10 minutes after you switch the ignition off.
LIFTGATE
WARNING:It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a crash, people riding in these
areas are more likely to be seriously injured or killed. Do not allow
people to ride in any area of your vehicle that is not equipped with
seats and safety belts. Be sure everyone in your vehicle is in a seat and
using a safety belt properly.
72Locks
2014 Navigator(nav)
Owners Guide gf, 1st Printing, June 2013
USA(fus)

Power Liftgate
WARNING:Make sure to close and latch the liftgate to prevent
drawing exhaust fumes into your vehicle. This will also prevent
passengers and cargo from falling out. If you must drive with the
liftgate open, keep the vents or windows open so outside air comes
into your vehicle. Failure to follow this warning could result in serious
personal injury.
WARNING:Make sure all persons are clear of the power liftgate
area before using the power liftgate control.
WARNING:Keep keys out of the reach of children. Do not allow
children to operate the power liftgate, or to play near to an open
or moving power liftgate.
Note:Cycling the ignition prior to completely latching the liftgate could
result in damage to the liftgate or its power components. Make sure the
liftgate is fully latched before operating the vehicle.
If the ignition is cycled during a liftgate power close cycle and the
liftgate is 6-10 inches (15-24 centimeters) from being latched, the liftgate
may reverse to the full open position. Verify that the liftgate is closed
before operating or moving the vehicle, especially in an enclosure, like
a garage or a parking structure. The liftgate or it components could be
damaged in an enclosure, if the liftgate is open.
When power operating the liftgate at temperatures below 32°F (0°C),
the liftgate may stop about 5 inches (13 centimeters) from the full open
position. The liftgate can be fully opened by pushing it upward to the
maximum open position.
Opening and Closing the Power Liftgate
Note:The liftgate can be reversed with a second press on a control
button or transmitter and can be manually closed at any time.
The liftgate will only operate with your vehicle inP. The chime will beep
once if conditions are not correct to start an operation. These conditions
include:
•The ignition is in on and the transmission is not inP.
•The battery voltage is below the minimum operating voltage.
•The vehicle speed is at or above 3 mph (5 km/h).
Locks73
2014 Navigator(nav)
Owners Guide gf, 1st Printing, June 2013
USA(fus)

If the liftgate reverses and starts to close after a open request, a fast
continuous chime indicates excessive load on the liftgate or a possible
strut failure. If any excessive load is removed and you still have a faster
chime, have the system serviced immediately by your authorized dealer.
Do not attempt to manually force the liftgate to travel faster than the
power system will permit. This will activate the obstacle detection
feature.
To open or close from the instrument panel:
Press the instrument panel button.
To open or close with the remote control:
Press the remote control button twice within three seconds.
To open with the outside liftgate
button (manual actuation):
1. Unlock the liftgate with the
remote entry transmitter or power
door unlock control.
2. Press the control button located
in the top of the liftgate pull cup
handle.
Note:Let the power system open the liftgate after releasing the control
button. Continued upward force after unlatching may activate the
obstacle detection feature and stop the power operation.
Note:If weight is added to the liftgate (bike rack, snow, etc.) it may
start a power close event immediately after a power open. If this
happens, a unique continuous chime will sound.
74Locks
2014 Navigator(nav)
Owners Guide gf, 1st Printing, June 2013
USA(fus)

To close with the rear cargo area button:
WARNING:Keep clear of the liftgate when activating the rear
switch.
Note:The rear cargo area control button is disabled when the liftgate is
latched.
Press and release the control on the
left rear quarter panel. A chime will
beep once if conditions are not
correct to start an operation (i.e., the
vehicle is out of park). In a normal
close, the chime will begin just
before the gate starts to move and
continue for a total of three seconds.
To manually operate the liftgate:
Note:Manual operation is suggested on extreme inclines or in extreme
cold -40°F (-40°C).
Note:In the event of a power failure, the latch can be accessed and
released from the inside using the access panel on the liftgate trim.
1. Disable the liftgate power function in the information display. See the
Information Displayschapter.
2. Push the control button located
in the top of the liftgate pull cup
handle to unlatch the liftgate, then
pull on the outside handle.
Locks75
2014 Navigator(nav)
Owners Guide gf, 1st Printing, June 2013
USA(fus)

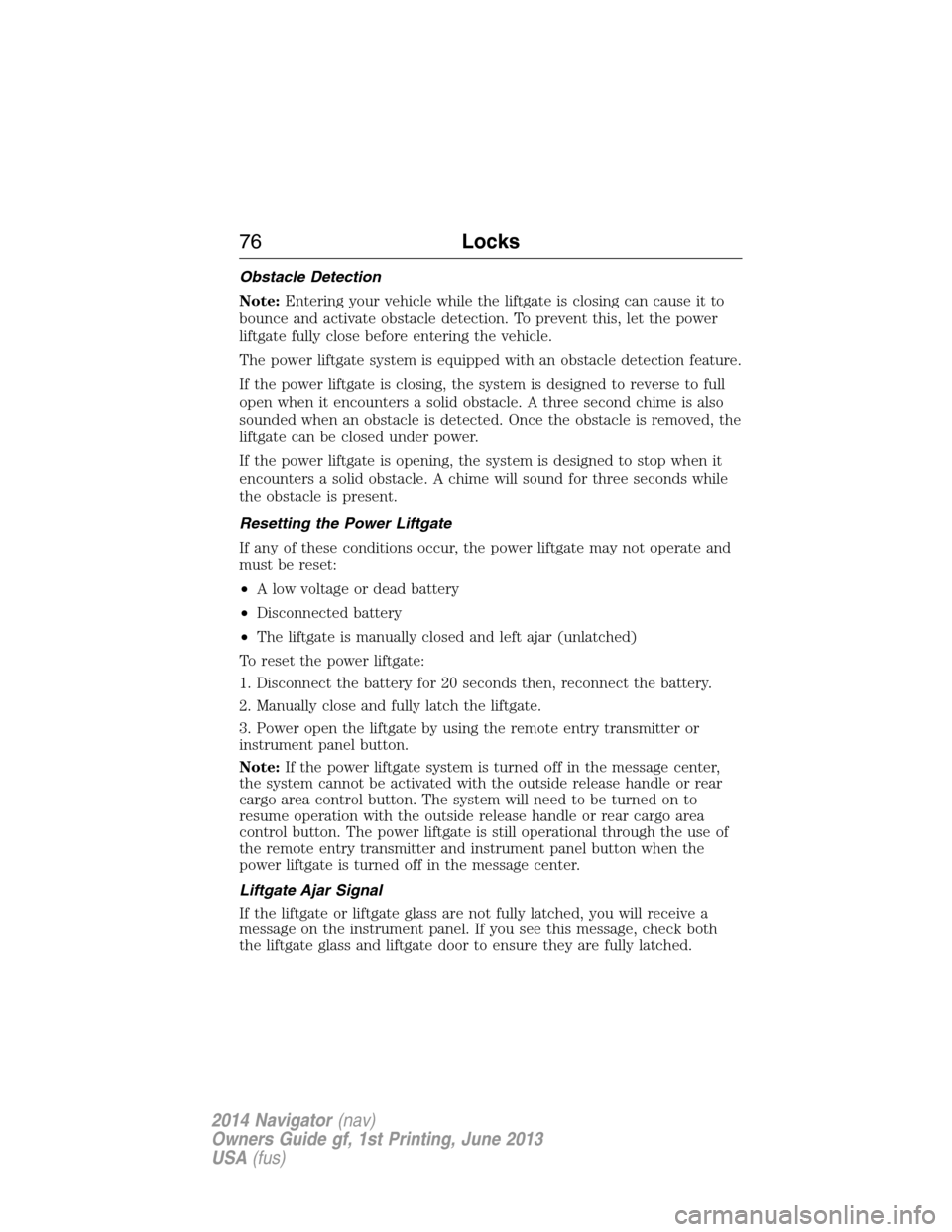

Obstacle Detection
Note:Entering your vehicle while the liftgate is closing can cause it to
bounce and activate obstacle detection. To prevent this, let the power
liftgate fully close before entering the vehicle.
The power liftgate system is equipped with an obstacle detection feature.
If the power liftgate is closing, the system is designed to reverse to full
open when it encounters a solid obstacle. A three second chime is also
sounded when an obstacle is detected. Once the obstacle is removed, the
liftgate can be closed under power.
If the power liftgate is opening, the system is designed to stop when it
encounters a solid obstacle. A chime will sound for three seconds while
the obstacle is present.
Resetting the Power Liftgate
If any of these conditions occur, the power liftgate may not operate and
must be reset:
•A low voltage or dead battery
•Disconnected battery
•The liftgate is manually closed and left ajar (unlatched)
To reset the power liftgate:
1. Disconnect the battery for 20 seconds then, reconnect the battery.
2. Manually close and fully latch the liftgate.
3. Power open the liftgate by using the remote entry transmitter or
instrument panel button.
Note:If the power liftgate system is turned off in the message center,
the system cannot be activated with the outside release handle or rear
cargo area control button. The system will need to be turned on to
resume operation with the outside release handle or rear cargo area
control button. The power liftgate is still operational through the use of
the remote entry transmitter and instrument panel button when the
power liftgate is turned off in the message center.
Liftgate Ajar Signal
If the liftgate or liftgate glass are not fully latched, you will receive a
message on the instrument panel. If you see this message, check both
the liftgate glass and liftgate door to ensure they are fully latched.
76Locks
2014 Navigator(nav)
Owners Guide gf, 1st Printing, June 2013
USA(fus)

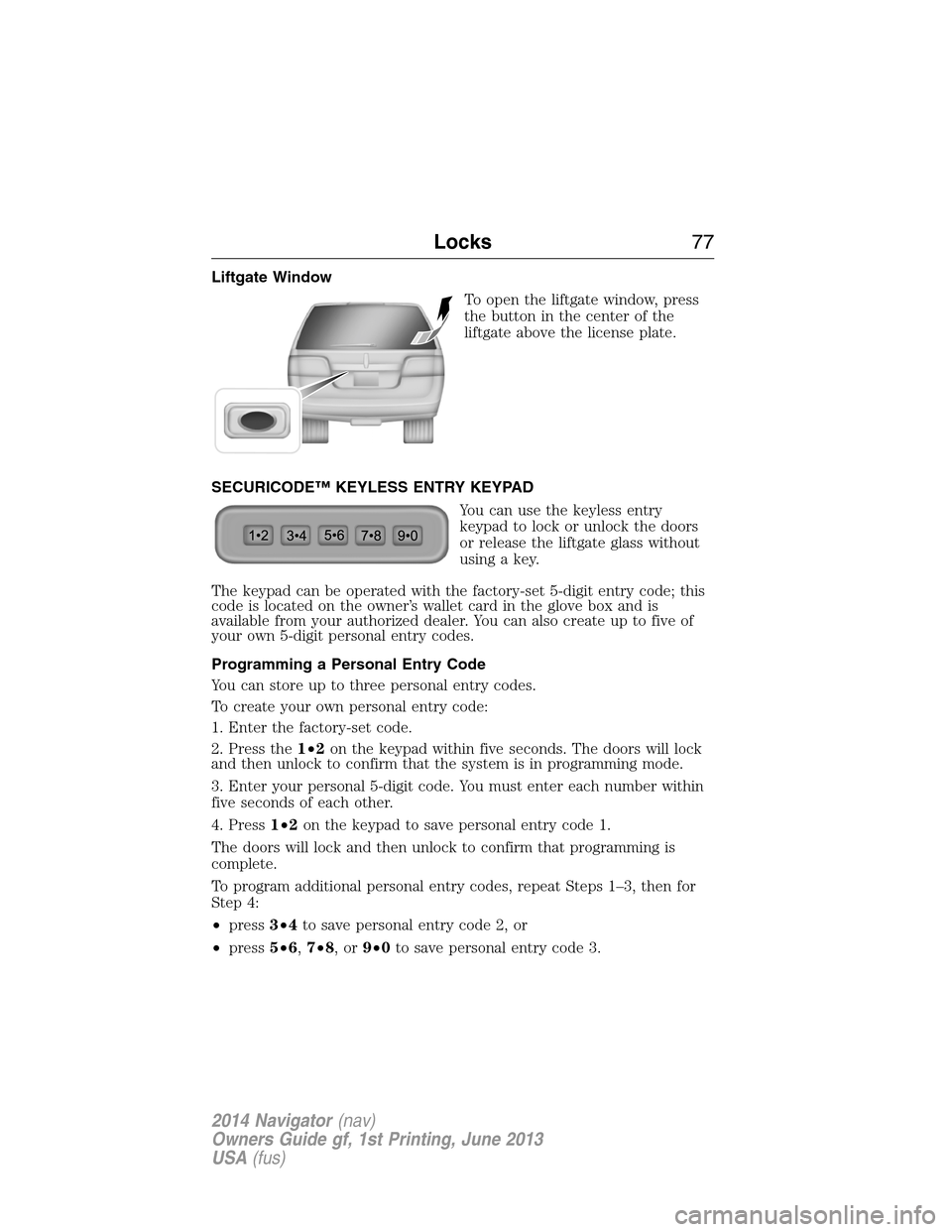

Liftgate Window
To open the liftgate window, press
the button in the center of the
liftgate above the license plate.
SECURICODE™ KEYLESS ENTRY KEYPAD
You can use the keyless entry
keypad to lock or unlock the doors
or release the liftgate glass without
using a key.
The keypad can be operated with the factory-set 5-digit entry code; this
code is located on the owner’s wallet card in the glove box and is
available from your authorized dealer. You can also create up to five of
your own 5-digit personal entry codes.
Programming a Personal Entry Code
You can store up to three personal entry codes.
To create your own personal entry code:
1. Enter the factory-set code.
2. Press the1•2on the keypad within five seconds. The doors will lock
and then unlock to confirm that the system is in programming mode.
3. Enter your personal 5-digit code. You must enter each number within
five seconds of each other.
4. Press1•2on the keypad to save personal entry code 1.
The doors will lock and then unlock to confirm that programming is
complete.
To program additional personal entry codes, repeat Steps 1–3, then for
Step 4:
•press3•4to save personal entry code 2, or
•press5•6,7•8,or9•0to save personal entry code 3.
Locks77
2014 Navigator(nav)
Owners Guide gf, 1st Printing, June 2013
USA(fus)

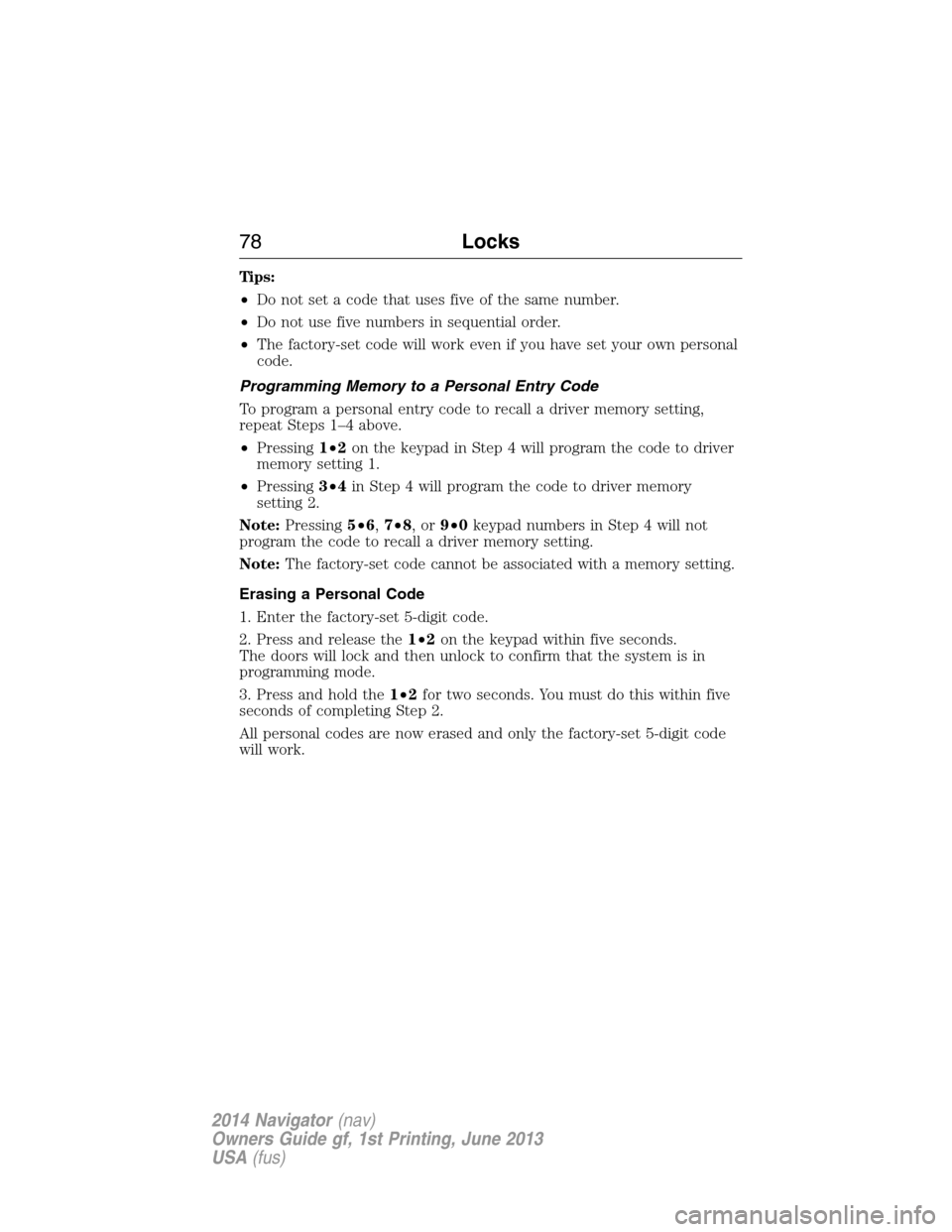

Tips:
•Do not set a code that uses five of the same number.
•Do not use five numbers in sequential order.
•The factory-set code will work even if you have set your own personal
code.
Programming Memory to a Personal Entry Code
To program a personal entry code to recall a driver memory setting,
repeat Steps 1–4 above.
•Pressing1•2on the keypad in Step 4 will program the code to driver
memory setting 1.
•Pressing3•4in Step 4 will program the code to driver memory
setting 2.
Note:Pressing5•6,7•8,or9•0keypad numbers in Step 4 will not
program the code to recall a driver memory setting.
Note:The factory-set code cannot be associated with a memory setting.
Erasing a Personal Code
1. Enter the factory-set 5-digit code.
2. Press and release the1•2on the keypad within five seconds.
The doors will lock and then unlock to confirm that the system is in
programming mode.
3. Press and hold the1•2for two seconds. You must do this within five
seconds of completing Step 2.
All personal codes are now erased and only the factory-set 5-digit code
will work.
78Locks
2014 Navigator(nav)
Owners Guide gf, 1st Printing, June 2013
USA(fus)

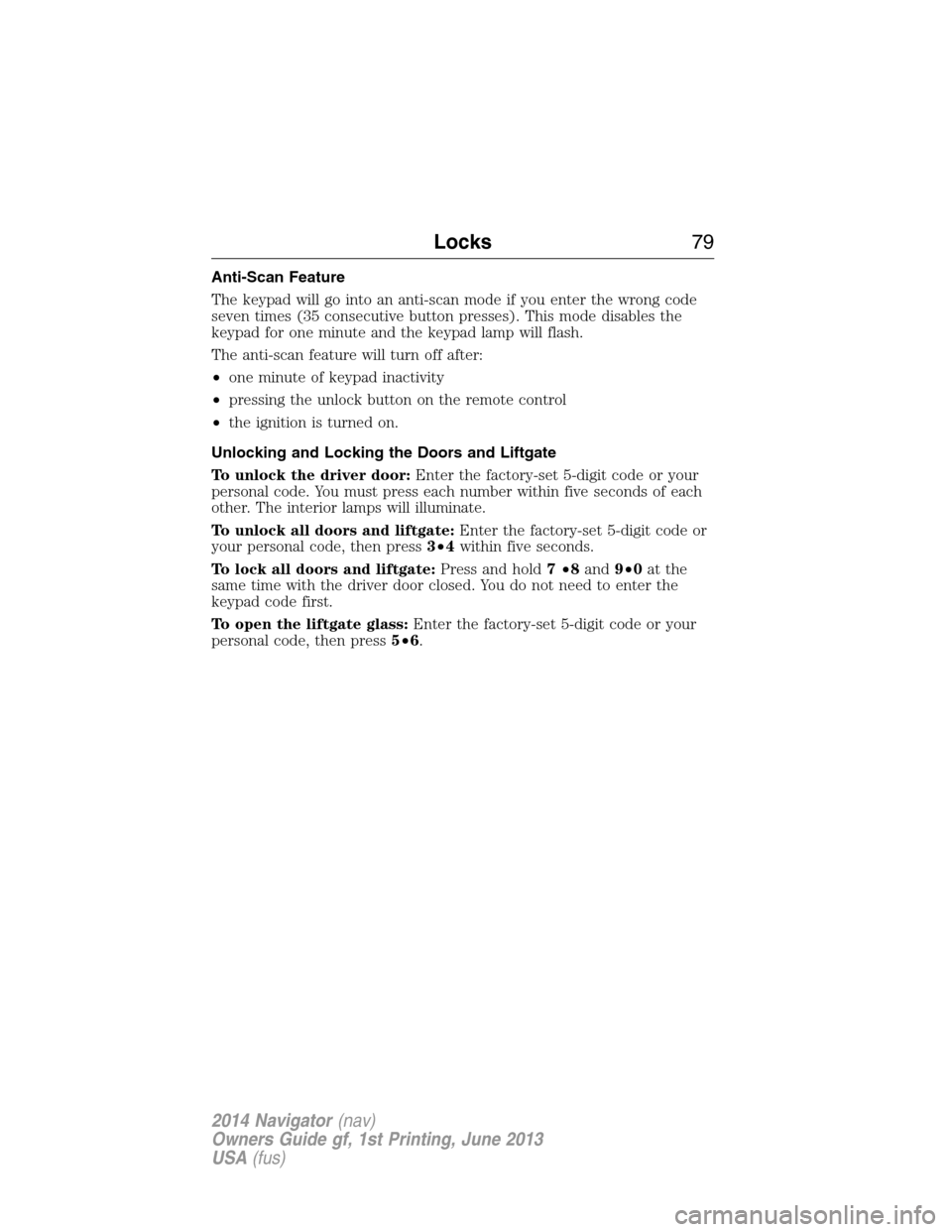

Anti-Scan Feature
The keypad will go into an anti-scan mode if you enter the wrong code
seven times (35 consecutive button presses). This mode disables the
keypad for one minute and the keypad lamp will flash.
The anti-scan feature will turn off after:
•one minute of keypad inactivity
•pressing the unlock button on the remote control
•the ignition is turned on.
Unlocking and Locking the Doors and Liftgate
To unlock the driver door:Enter the factory-set 5-digit code or your
personal code. You must press each number within five seconds of each
other. The interior lamps will illuminate.
To unlock all doors and liftgate:Enter the factory-set 5-digit code or
your personal code, then press3•4within five seconds.
To lock all doors and liftgate:Press and hold7•8and9•0at the
same time with the driver door closed. You do not need to enter the
keypad code first.
To open the liftgate glass:Enter the factory-set 5-digit code or your
personal code, then press5•6.
Locks79
2014 Navigator(nav)
Owners Guide gf, 1st Printing, June 2013
USA(fus)
