LINCOLN NAVIGATOR 2018 Owner's Guide

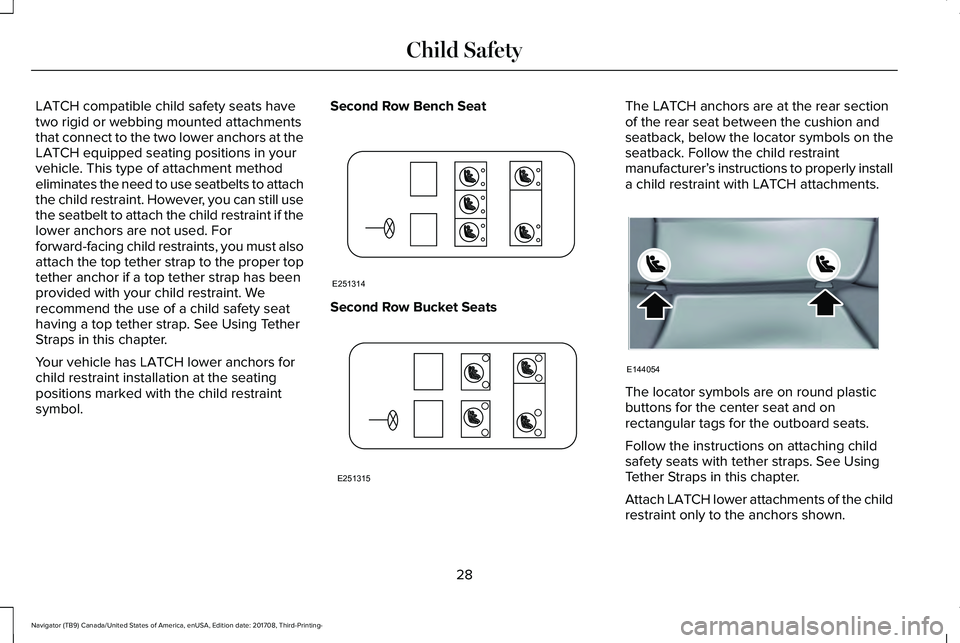

LATCH compatible child safety seats havetwo rigid or webbing mounted attachmentsthat connect to the two lower anchors at theLATCH equipped seating positions in yourvehicle. This type of attachment methodeliminates the need to use seatbelts to attachthe child restraint. However, you can still usethe seatbelt to attach the child restraint if thelower anchors are not used. Forforward-facing child restraints, you must alsoattach the top tether strap to the proper toptether anchor if a top tether strap has beenprovided with your child restraint. Werecommend the use of a child safety seathaving a top tether strap. See Using TetherStraps in this chapter.
Your vehicle has LATCH lower anchors forchild restraint installation at the seatingpositions marked with the child restraintsymbol.
Second Row Bench Seat
Second Row Bucket Seats
The LATCH anchors are at the rear sectionof the rear seat between the cushion andseatback, below the locator symbols on theseatback. Follow the child restraintmanufacturer’s instructions to properly installa child restraint with LATCH attachments.
The locator symbols are on round plasticbuttons for the center seat and onrectangular tags for the outboard seats.
Follow the instructions on attaching childsafety seats with tether straps. See UsingTether Straps in this chapter.
Attach LATCH lower attachments of the childrestraint only to the anchors shown.
28
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201708, Third-Printing-
Child SafetyE251314 E251315 E144054

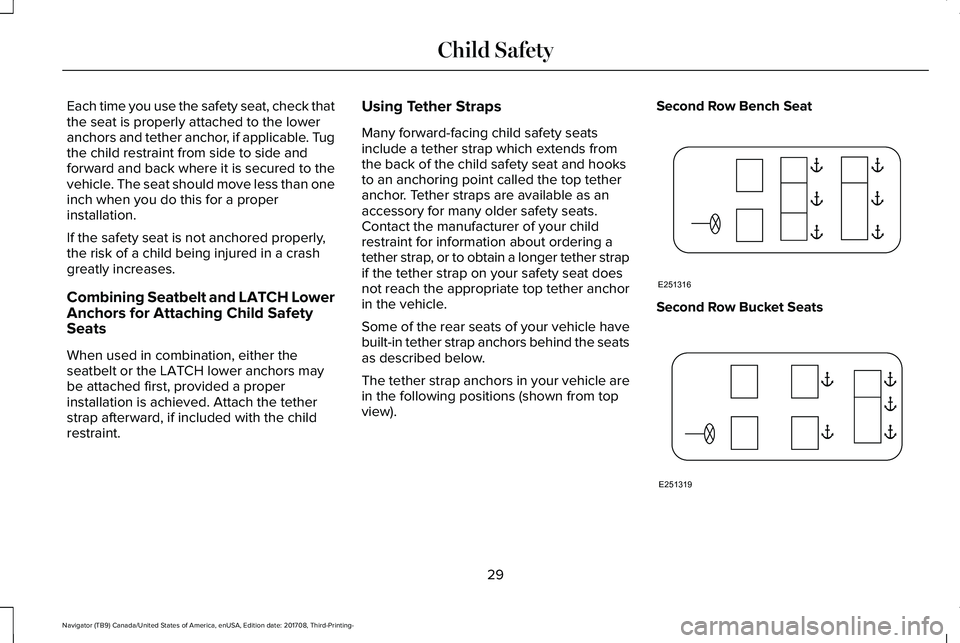

Each time you use the safety seat, check thatthe seat is properly attached to the loweranchors and tether anchor, if applicable. Tugthe child restraint from side to side andforward and back where it is secured to thevehicle. The seat should move less than oneinch when you do this for a properinstallation.
If the safety seat is not anchored properly,the risk of a child being injured in a crashgreatly increases.
Combining Seatbelt and LATCH LowerAnchors for Attaching Child SafetySeats
When used in combination, either theseatbelt or the LATCH lower anchors maybe attached first, provided a properinstallation is achieved. Attach the tetherstrap afterward, if included with the childrestraint.
Using Tether Straps
Many forward-facing child safety seatsinclude a tether strap which extends fromthe back of the child safety seat and hooksto an anchoring point called the top tetheranchor. Tether straps are available as anaccessory for many older safety seats.Contact the manufacturer of your childrestraint for information about ordering atether strap, or to obtain a longer tether strapif the tether strap on your safety seat doesnot reach the appropriate top tether anchorin the vehicle.
Some of the rear seats of your vehicle havebuilt-in tether strap anchors behind the seatsas described below.
The tether strap anchors in your vehicle arein the following positions (shown from topview).
Second Row Bench Seat
Second Row Bucket Seats
29
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201708, Third-Printing-
Child SafetyE251316 E251319

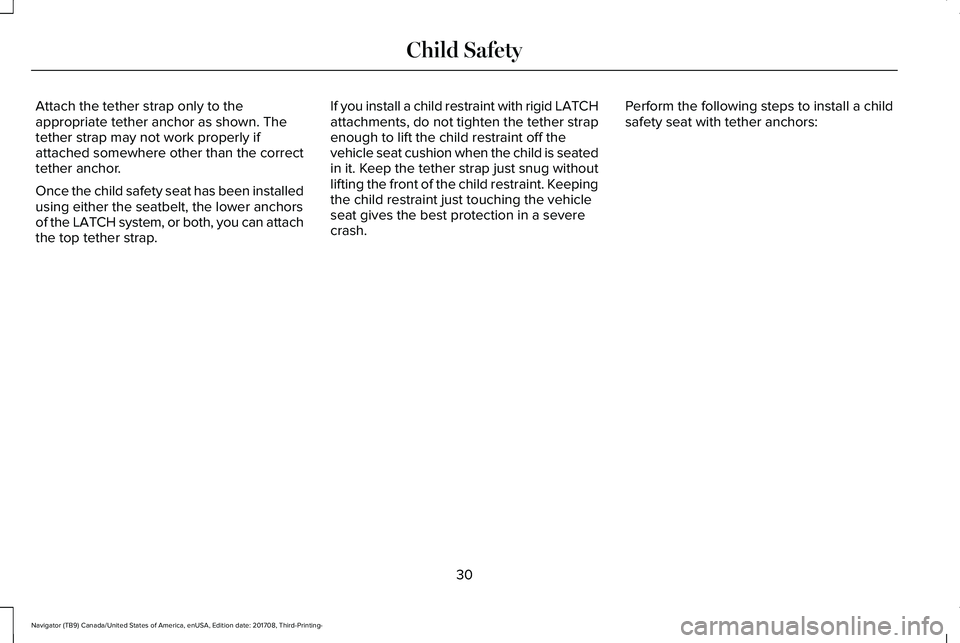

Attach the tether strap only to theappropriate tether anchor as shown. Thetether strap may not work properly ifattached somewhere other than the correcttether anchor.
Once the child safety seat has been installedusing either the seatbelt, the lower anchorsof the LATCH system, or both, you can attachthe top tether strap.
If you install a child restraint with rigid LATCHattachments, do not tighten the tether strapenough to lift the child restraint off thevehicle seat cushion when the child is seatedin it. Keep the tether strap just snug withoutlifting the front of the child restraint. Keepingthe child restraint just touching the vehicleseat gives the best protection in a severecrash.
Perform the following steps to install a childsafety seat with tether anchors:
30
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201708, Third-Printing-
Child Safety

Second Row Seating Positions
31
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201708, Third-Printing-
Child SafetyE251593

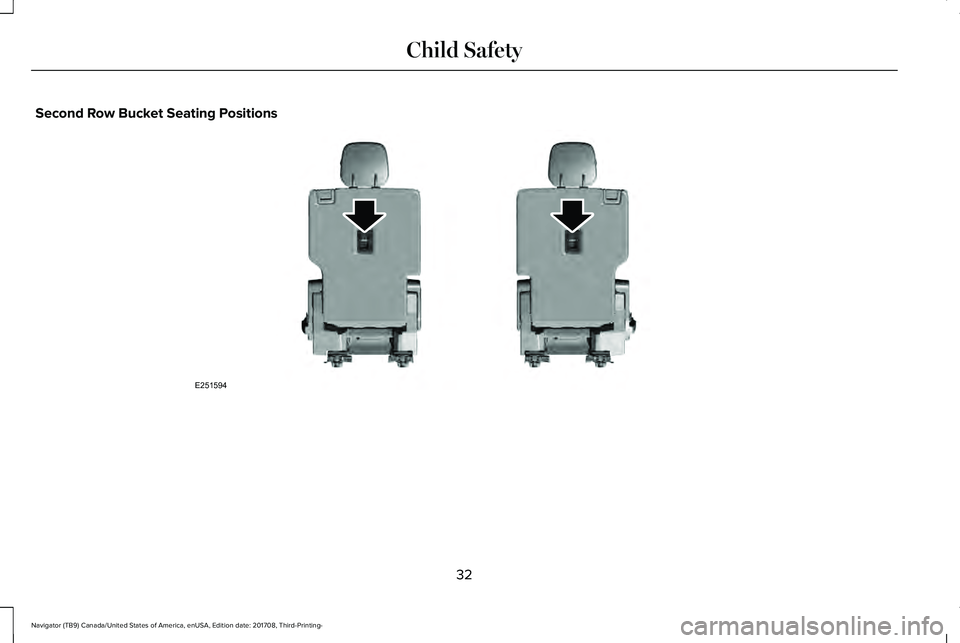

Second Row Bucket Seating Positions
32
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201708, Third-Printing-
Child SafetyE251594

Third Row Seating Positions
1. For center seating positions, route thechild safety seat tether strap over theback of the seat. For outboard seatingpositions, route the tether strap underthe head restraint and between the headrestraint posts. If the top of the safetyseat hits the head restraint, recline theseatback slightly to obtain proper fit.
2. Clip the tether strap to the anchor. If thetether strap is clipped incorrectly, thechild safety seat may not be retainedproperly in the event of a crash.
3.Tighten the child safety seat tether strapaccording to the manufacturer’sinstructions. If the safety seat is notanchored properly, the risk of a childbeing injured in a crash greatly increases.
33
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201708, Third-Printing-
Child SafetyE251595

If your child restraint system has a tetherstrap and the child restraint manufacturerrecommends its use, we also recommend itsuse.

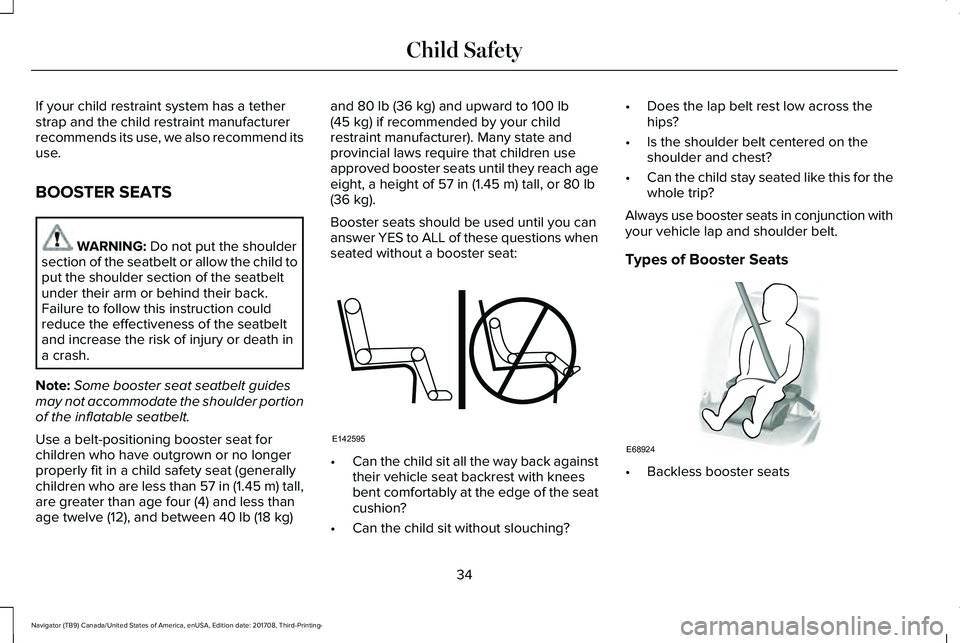

BOOSTER SEATS
WARNING: Do not put the shouldersection of the seatbelt or allow the child toput the shoulder section of the seatbeltunder their arm or behind their back.Failure to follow this instruction couldreduce the effectiveness of the seatbeltand increase the risk of injury or death ina crash.
Note:Some booster seat seatbelt guidesmay not accommodate the shoulder portionof the inflatable seatbelt.
Use a belt-positioning booster seat forchildren who have outgrown or no longerproperly fit in a child safety seat (generallychildren who are less than 57 in (1.45 m) tall,are greater than age four (4) and less thanage twelve (12), and between 40 lb (18 kg)
and 80 lb (36 kg) and upward to 100 lb(45 kg) if recommended by your childrestraint manufacturer). Many state andprovincial laws require that children useapproved booster seats until they reach ageeight, a height of 57 in (1.45 m) tall, or 80 lb(36 kg).
Booster seats should be used until you cananswer YES to ALL of these questions whenseated without a booster seat:
•Can the child sit all the way back againsttheir vehicle seat backrest with kneesbent comfortably at the edge of the seatcushion?
•Can the child sit without slouching?
•Does the lap belt rest low across thehips?
•Is the shoulder belt centered on theshoulder and chest?
•Can the child stay seated like this for thewhole trip?
Always use booster seats in conjunction withyour vehicle lap and shoulder belt.
Types of Booster Seats
•Backless booster seats
34
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201708, Third-Printing-
Child SafetyE142595 E68924

If your backless booster seat has aremovable shield, remove the shield. If avehicle seating position has a low seatbackrest or no head restraint, a backlessbooster seat may place your child's head (asmeasured at the tops of the ears) above thetop of the seat. In this case, move thebackless booster to another seating positionwith a higher seat backrest or head restraintand lap and shoulder belts, or consider usinga high back booster seat.
•High back booster seats
If, with a backless booster seat, you cannotfind a seating position that adequatelysupports your child's head, a high backbooster seat would be a better choice.

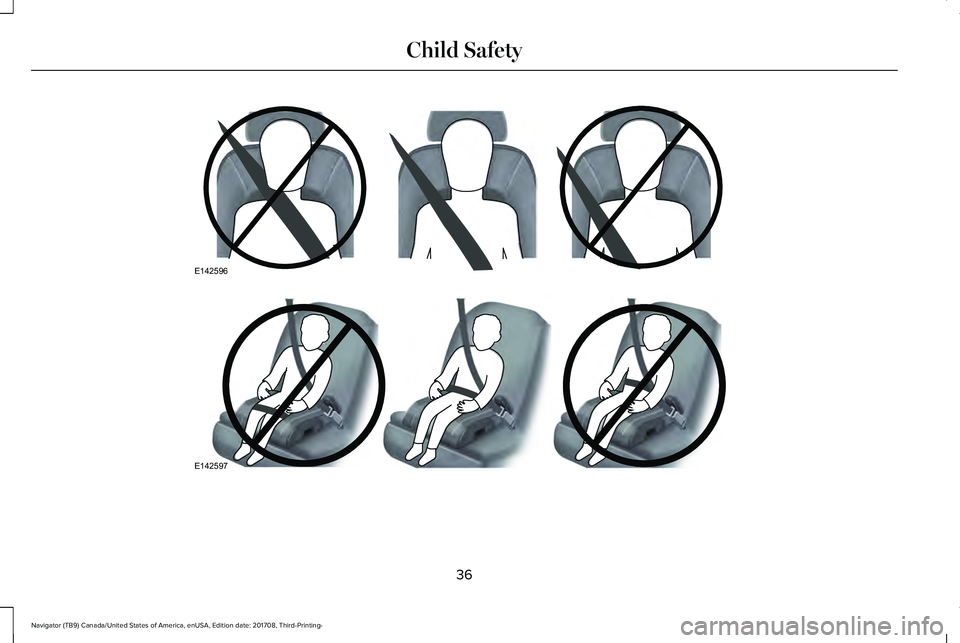

Children and booster seats vary in size andshape. Choose a booster that keeps the lapbelt low and snug across the hips, never upacross the stomach, and lets you adjust theshoulder belt to cross the chest and restsnugly near the center of the shoulder. Thefollowing drawings compare the ideal fit(center) to a shoulder belt uncomfortablyclose to the neck and a shoulder belt thatcould slip off the shoulder. The drawings alsoshow how the lap belt should be low andsnug across the child's hips.
35
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201708, Third-Printing-
Child SafetyE70710

36
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201708, Third-Printing-
Child SafetyE142596 E142597

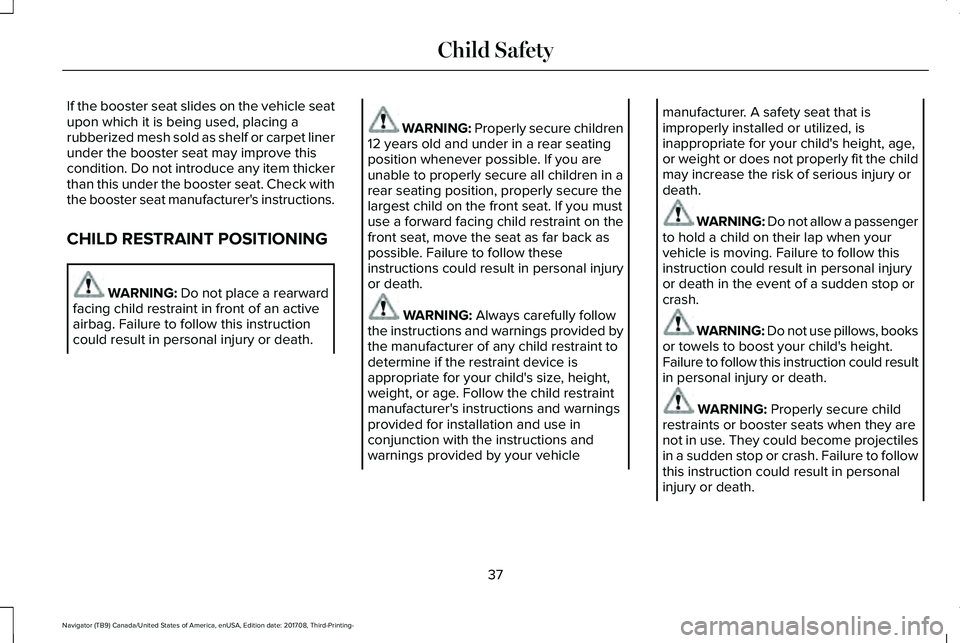

If the booster seat slides on the vehicle seatupon which it is being used, placing arubberized mesh sold as shelf or carpet linerunder the booster seat may improve thiscondition. Do not introduce any item thickerthan this under the booster seat. Check withthe booster seat manufacturer's instructions.
CHILD RESTRAINT POSITIONING
WARNING: Do not place a rearwardfacing child restraint in front of an activeairbag. Failure to follow this instructioncould result in personal injury or death.
WARNING: Properly secure children12 years old and under in a rear seatingposition whenever possible. If you areunable to properly secure all children in arear seating position, properly secure thelargest child on the front seat. If you mustuse a forward facing child restraint on thefront seat, move the seat as far back aspossible. Failure to follow theseinstructions could result in personal injuryor death.
WARNING: Always carefully followthe instructions and warnings provided bythe manufacturer of any child restraint todetermine if the restraint device isappropriate for your child's size, height,weight, or age. Follow the child restraintmanufacturer's instructions and warningsprovided for installation and use inconjunction with the instructions andwarnings provided by your vehicle
manufacturer. A safety seat that isimproperly installed or utilized, isinappropriate for your child's height, age,or weight or does not properly fit the childmay increase the risk of serious injury ordeath.
WARNING: Do not allow a passengerto hold a child on their lap when yourvehicle is moving. Failure to follow thisinstruction could result in personal injuryor death in the event of a sudden stop orcrash.
WARNING: Do not use pillows, booksor towels to boost your child's height.Failure to follow this instruction could resultin personal injury or death.
WARNING: Properly secure childrestraints or booster seats when they arenot in use. They could become projectilesin a sudden stop or crash. Failure to followthis instruction could result in personalinjury or death.
37
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201708, Third-Printing-
Child Safety
