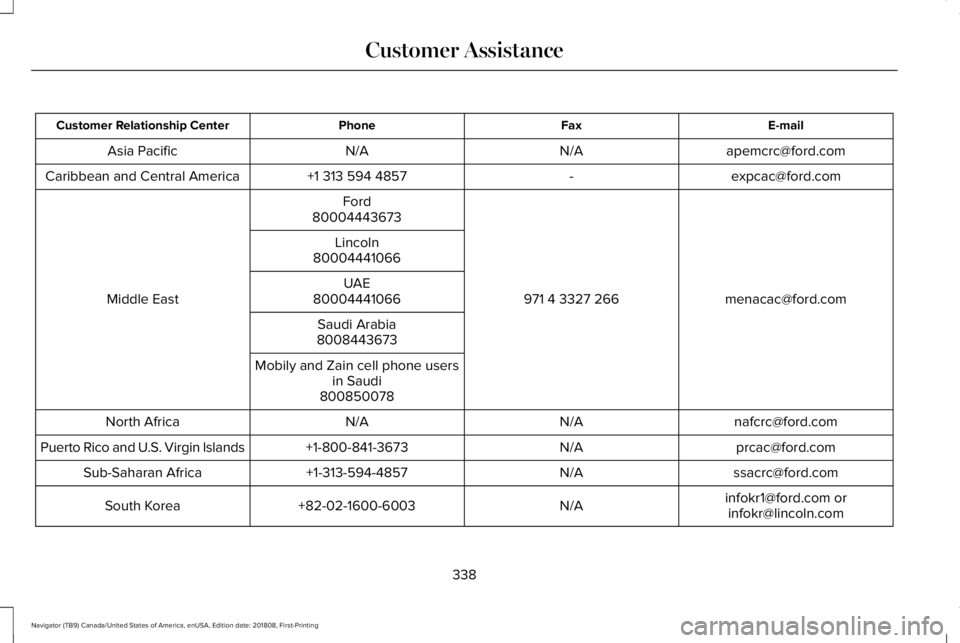

E-mailFaxPhoneCustomer Relationship Center
[email protected]/AN/AAsia Pacific
[email protected]+1 313 594 4857Caribbean and Central America
[email protected] 4 3327 266
Ford
Middle East
80004443673
Lincoln80004441066
UAE80004441066
Saudi Arabia8008443673
Mobily and Zain cell phone usersin Saudi800850078
[email protected]/AN/ANorth Africa
[email protected]/A+1-800-841-3673Puerto Rico and U.S. Virgin Islands
[email protected]/A+1-313-594-4857Sub-Saharan Africa
[email protected] [email protected]/A+82-02-1600-6003South Korea
338
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
Customer Assistance

If you buy your vehicle in North America andthen relocate to any of the above locations,register your vehicle identification number(VIN) and new address with Ford GlobalTrade Services by emailing,[email protected].
If you are in another foreign country, contactthe nearest authorized dealer. In the eventyour inquiry is unresolved, communicate yourconcern with the dealership’s Sales Manager,Service Manager or Customer RelationsManager. If you require additional assistanceor clarification, please contact the respectiveCustomer Relationship Center as previouslylisted.
Customers in the U.S. should call1-800-392-3673.

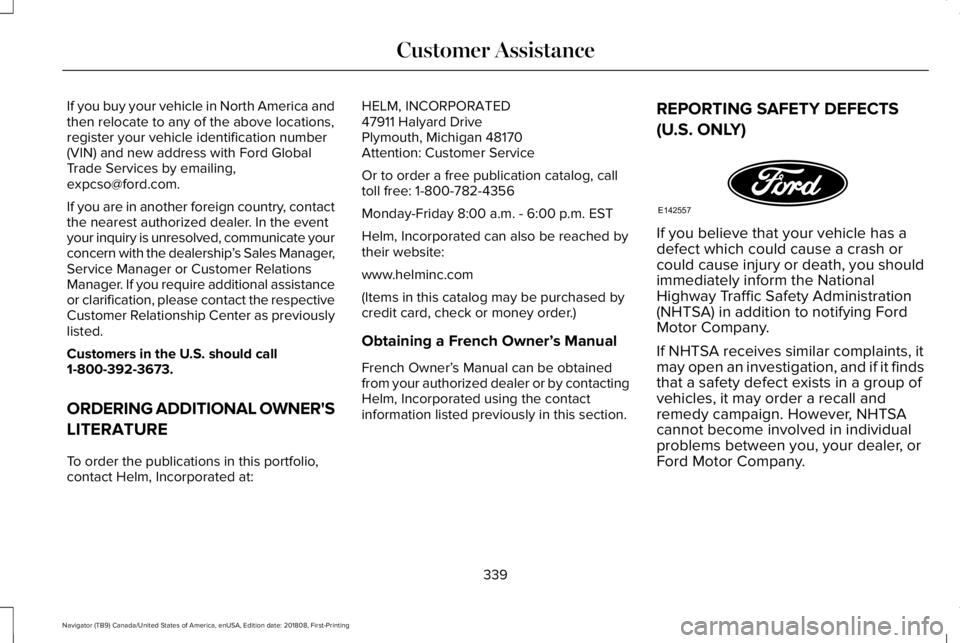

ORDERING ADDITIONAL OWNER'S
LITERATURE
To order the publications in this portfolio,contact Helm, Incorporated at:
HELM, INCORPORATED47911 Halyard DrivePlymouth, Michigan 48170Attention: Customer Service
Or to order a free publication catalog, calltoll free: 1-800-782-4356
Monday-Friday 8:00 a.m. - 6:00 p.m. EST
Helm, Incorporated can also be reached bytheir website:
www.helminc.com
(Items in this catalog may be purchased bycredit card, check or money order.)
Obtaining a French Owner’s Manual
French Owner’s Manual can be obtainedfrom your authorized dealer or by contactingHelm, Incorporated using the contactinformation listed previously in this section.
REPORTING SAFETY DEFECTS
(U.S. ONLY)
If you believe that your vehicle has adefect which could cause a crash orcould cause injury or death, you shouldimmediately inform the NationalHighway Traffic Safety Administration(NHTSA) in addition to notifying FordMotor Company.
If NHTSA receives similar complaints, itmay open an investigation, and if it findsthat a safety defect exists in a group ofvehicles, it may order a recall and
remedy campaign. However, NHTSAcannot become involved in individualproblems between you, your dealer, orFord Motor Company.
339
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
Customer AssistanceE142557

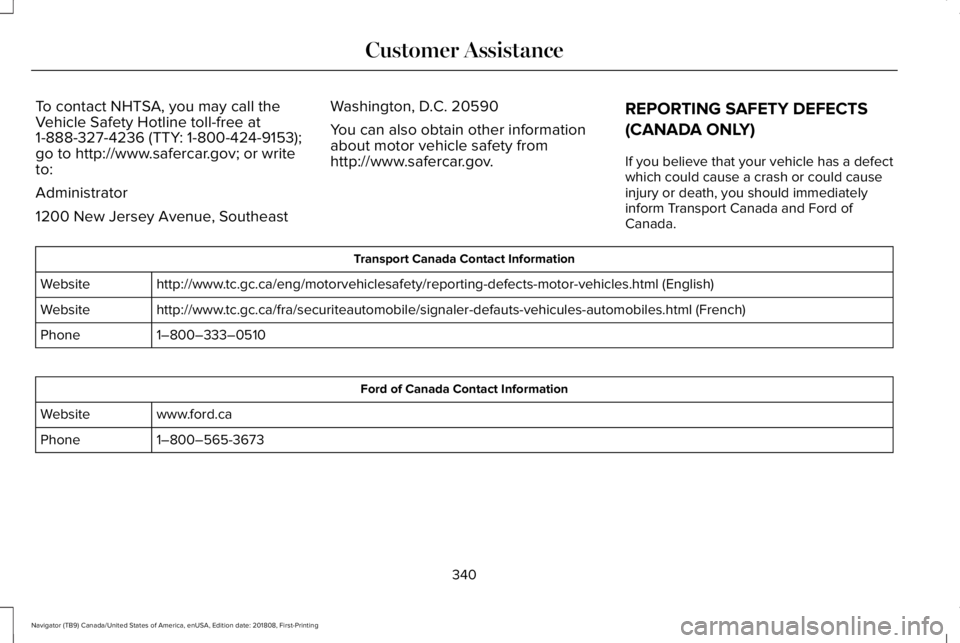

To contact NHTSA, you may call theVehicle Safety Hotline toll-free at1-888-327-4236 (TTY: 1-800-424-9153);go to http://www.safercar.gov; or writeto:
Administrator
1200 New Jersey Avenue, Southeast
Washington, D.C. 20590
You can also obtain other informationabout motor vehicle safety fromhttp://www.safercar.gov.
REPORTING SAFETY DEFECTS
(CANADA ONLY)
If you believe that your vehicle has a defectwhich could cause a crash or could causeinjury or death, you should immediatelyinform Transport Canada and Ford ofCanada.
Transport Canada Contact Information
http://www.tc.gc.ca/eng/motorvehiclesafety/reporting-defects-motor-vehicles.html (English)Website
http://www.tc.gc.ca/fra/securiteautomobile/signaler-defauts-vehicules-automobiles.html (French)Website
1–800–333–0510Phone
Ford of Canada Contact Information
www.ford.caWebsite
1–800–565-3673Phone
340
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
Customer Assistance

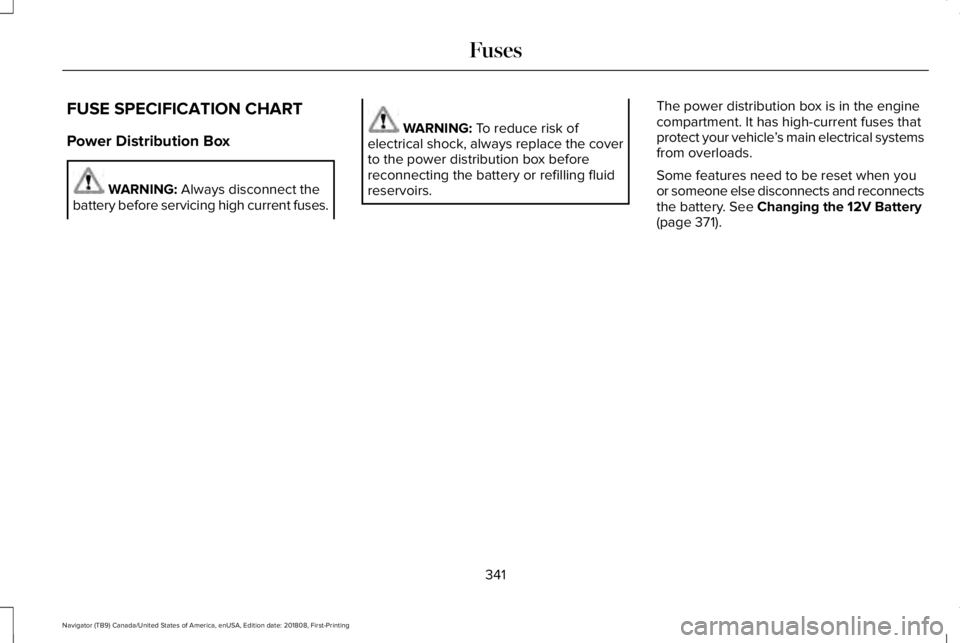

FUSE SPECIFICATION CHART
Power Distribution Box
WARNING: Always disconnect thebattery before servicing high current fuses.
WARNING: To reduce risk ofelectrical shock, always replace the coverto the power distribution box beforereconnecting the battery or refilling fluidreservoirs.
The power distribution box is in the enginecompartment. It has high-current fuses thatprotect your vehicle’s main electrical systemsfrom overloads.
Some features need to be reset when youor someone else disconnects and reconnectsthe battery. See Changing the 12V Battery(page 371).
341
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
Fuses

342
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
FusesE251921

Protected ComponentFuse RatingFuse Number
Horn.25A11
Fan 1.50A22
Front wiper motor.30A23
Not used.—4
Starter relay.30A25
Power point #1.20A26
Power point #2.20A28
Rain sensor.5A110
Not used.—12
4X4 module.10A113Heated backlite.Heated mirror relay coil.Heated wiper park relay coil.Transmission isolation relay coil.
Transmission coil module.15A114
343
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
Fuses

Protected ComponentFuse RatingFuse Number

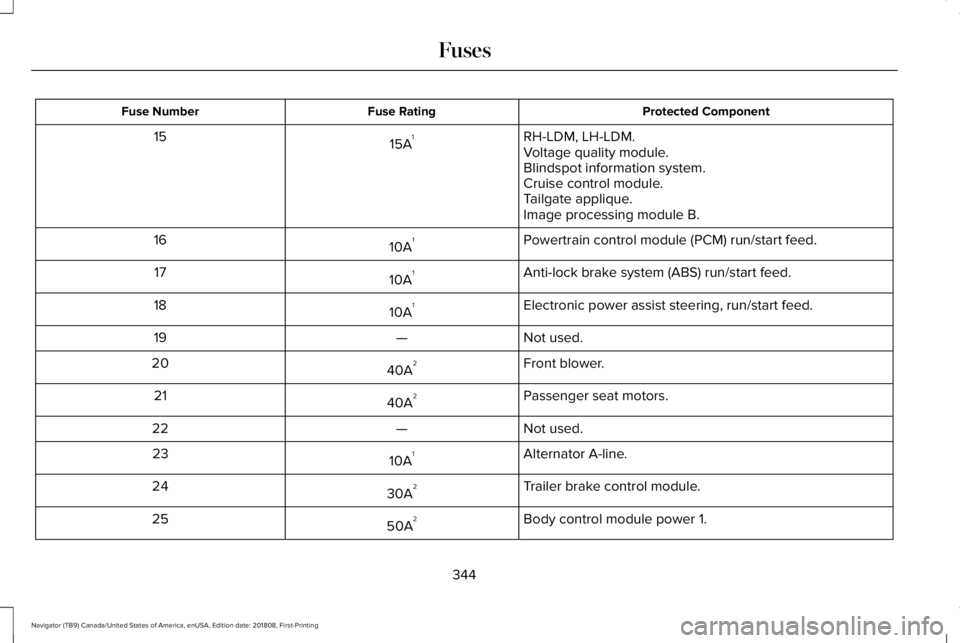

RH-LDM, LH-LDM.15A115Voltage quality module.Blindspot information system.Cruise control module.Tailgate applique.Image processing module B.
Powertrain control module (PCM) run/start feed.10A116
Anti-lock brake system (ABS) run/start feed.10A117
Electronic power assist steering, run/start feed.10A118
Not used.—19
Front blower.40A220
Passenger seat motors.40A221
Not used.—22
Alternator A-line.10A123
Trailer brake control module.30A224
Body control module power 1.50A225
344
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
Fuses

Protected ComponentFuse RatingFuse Number
Electronic fan 3.50A226

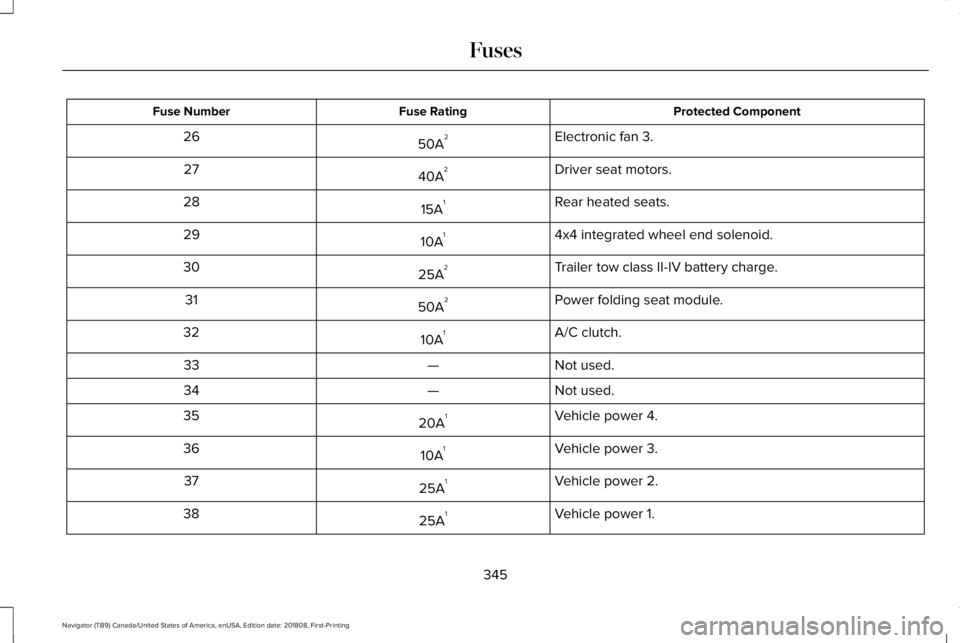

Driver seat motors.40A227
Rear heated seats.15A128
4x4 integrated wheel end solenoid.10A129
Trailer tow class II-IV battery charge.25A230
Power folding seat module.50A231
A/C clutch.10A132
Not used.—33
Not used.—34
Vehicle power 4.20A135
Vehicle power 3.10A136
Vehicle power 2.25A137
Vehicle power 1.25A138
345
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
Fuses

Protected ComponentFuse RatingFuse Number
Not used.—39
Inverter.50A241
Trailer tow light module class II-IV.20A243
Front/rear washer pump.20A245
Family entertainment system.7.5A146
Not used.—47
Not used.—48
Not used.—49
Fuel pump.30A250
Power point #3.20A251
Body control module (BCM) voltage quality monitor (VQM).50A252
Trailer tow park lamps relay.25A253
Electronic limited slip differential (ELSD) relay.40A254
346
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
Fuses

Protected ComponentFuse RatingFuse Number

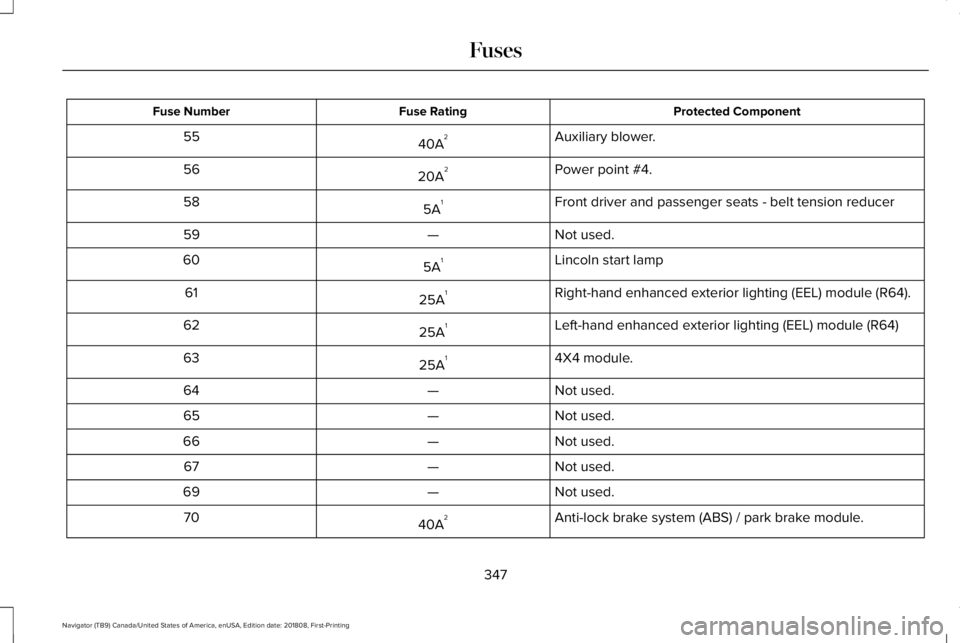

Auxiliary blower.40A255
Power point #4.20A256
Front driver and passenger seats - belt tension reducer5A158
Not used.—59
Lincoln start lamp5A160
Right-hand enhanced exterior lighting (EEL) module (R64).25A161
Left-hand enhanced exterior lighting (EEL) module (R64)25A162
4X4 module.25A163
Not used.—64
Not used.—65
Not used.—66
Not used.—67
Not used.—69
Anti-lock brake system (ABS) / park brake module.40A270
347
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
Fuses
