LINCOLN NAVIGATOR 2019 Owners Manual

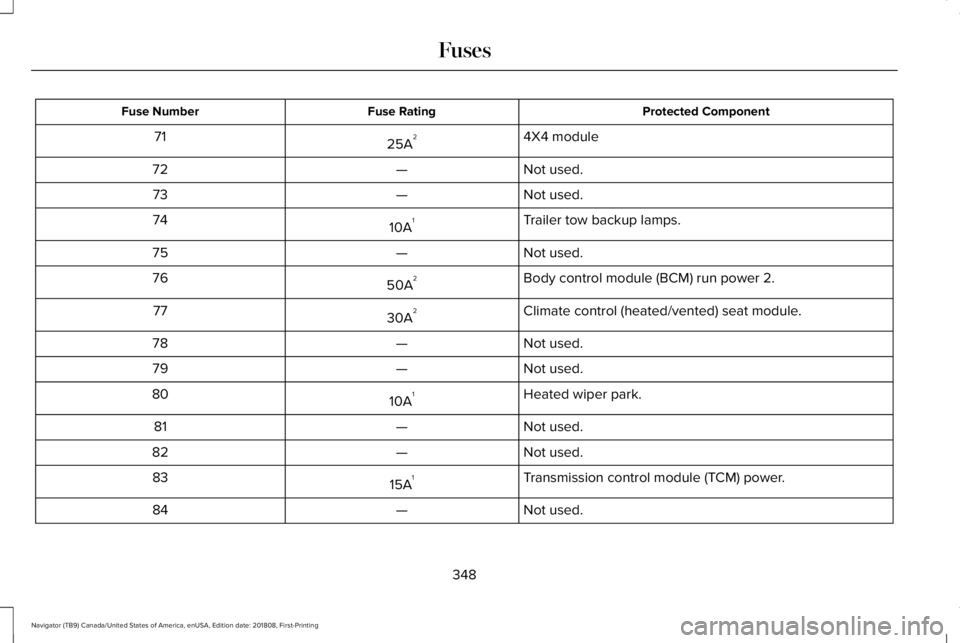

Protected ComponentFuse RatingFuse Number
4X4 module25A271
Not used.—72
Not used.—73
Trailer tow backup lamps.10A174
Not used.—75
Body control module (BCM) run power 2.50A276
Climate control (heated/vented) seat module.30A277
Not used.—78
Not used.—79
Heated wiper park.10A180
Not used.—81
Not used.—82
Transmission control module (TCM) power.15A183
Not used.—84
348
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
Fuses

Protected ComponentFuse RatingFuse Number
Not used.—85
USB smart charger #5.5A186
USB smart charger #3.5A187
Multi contour seats relay.10A188
Power running boards.40A289
Power liftgate module.30A291
Heated mirrors.15A193
USB smart charger #1.5A194
USB smart charger #2.10A195
Rear wiper motor relay30A296
Intercooler puller fan relay.40A297
Transmission oil pump.15A298
349
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
Fuses

Protected ComponentFuse RatingFuse Number
Heated backlight.40A299
Power point #5.20A2100
Electric fan 2.25A2101
Not used.—102
Not used.—103
Not used.—104
Not used.—105
1 Micro 2 fuse.2 Slotted M case fuse.
Protected ComponentRelay
Powertrain control module.R02
Electric fan 2.R05
350
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
Fuses

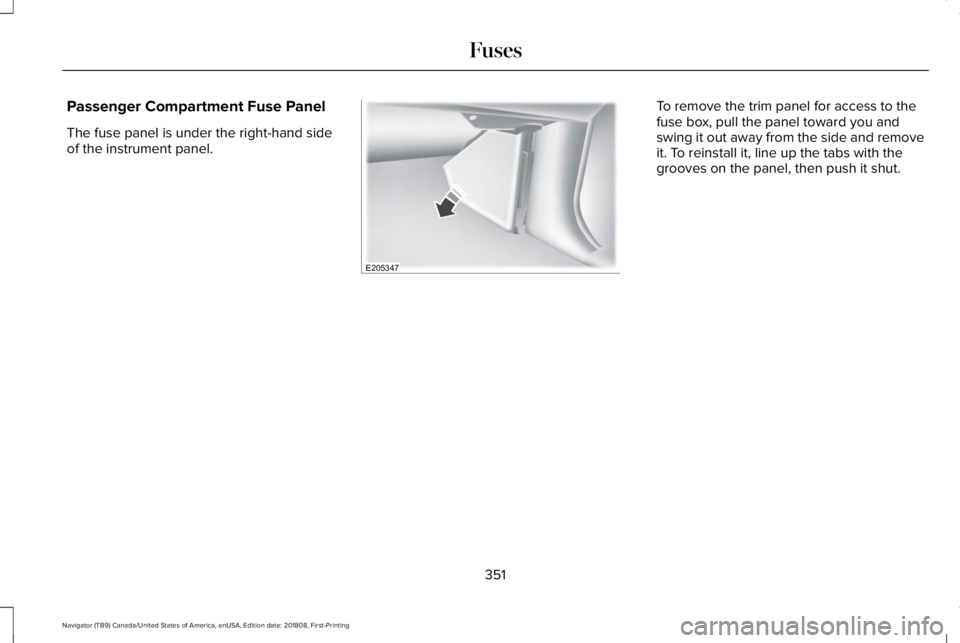

Passenger Compartment Fuse Panel
The fuse panel is under the right-hand sideof the instrument panel.
To remove the trim panel for access to thefuse box, pull the panel toward you andswing it out away from the side and removeit. To reinstall it, line up the tabs with thegrooves on the panel, then push it shut.
351
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
FusesE205347

The fuses are coded as follows:
Protected ComponentFuse RatingFuse or Relay Number
Not used.—1
Driver seat switch.7.5A12
Driver door unlock.20A13
352
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
FusesE145984

Protected ComponentFuse RatingFuse or Relay Number
Trailer brake controller (TBM).5A14
Revel II amplifier.20A15
Not used (spare).10A26
Not used (spare).10A27
Not used (spare).10A28
Rear seat entertainment module (RSEM).10A29Automatic heads up display.
Wireless accessory charger module (WACM).5A210Hands free liftgate module.Power liftgate module Logic (PLGM).
Combined sensor module (CSM).5A211Keypad.
Cluster.7.5A212Smart datalink connector Logic (SDLC).Electronic control panel (ECP).
Steering column control module (SCCM) (Logic).7.5A213Gear shift module (GSM).
353
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
Fuses

Protected ComponentFuse RatingFuse or Relay Number
Extended power mode module (EPM).10A214Brake Switch.
Smart datalink connector Power (SDLC).10A215
Liftglass release relay.15A116
Telematics control unit - modem.5A217
Push-button start switch.5A218
Not used (spare).7.5A219
Headlamp control module (HCM).7.5A220
In-car temperature and humidity sensor.5A221
Electrochromic (EC)mirror.5A2222nd row heated seat module.
Moonroof (logic).10A123Inverter (LIN logic).Power window switch.Power mirror switch.DVD player (if equipped).
354
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
Fuses

Protected ComponentFuse RatingFuse or Relay Number
Central lock relay.20A124Central unlock relay.
Left front door zone module (DZM).30A125
Right front door zone module (DZM).30A126
Moonroof - Tilt, Vent. Slide.30A127
Revel II Amp.20A128
Left rear door zone module (DZM).30A129
Right rear door zone module (DZM).30A130
Adjustable column and pedal memory module (CAPM).15A131
Accessory protocol interface module (APIM) (Media GatewayModule or SYNC).10A132
Drive mode switch module (DMSM) (if equipped).Radio frequency transceiver module (RTM).Rear heating, ventilation and air conditioning (HVAC) control.
Audio control module (ACM).20A133Rear audio control module (RACM).Remote CD mechanism (if equipped).
355
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
Fuses

Protected ComponentFuse RatingFuse or Relay Number
Run/start relay.30A134
Extended power mode module (EPM).5A135
Image processing module A (IPMA).15A136Automated Park Assist ModuleContinuous control damping module (CCD Module).
Heated steering wheel.20A137
Left rear power window.30A Circuit Breaker38Right rear power window.
1 Micro 2 fuse.2 Micro 3 fuse
356
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
Fuses

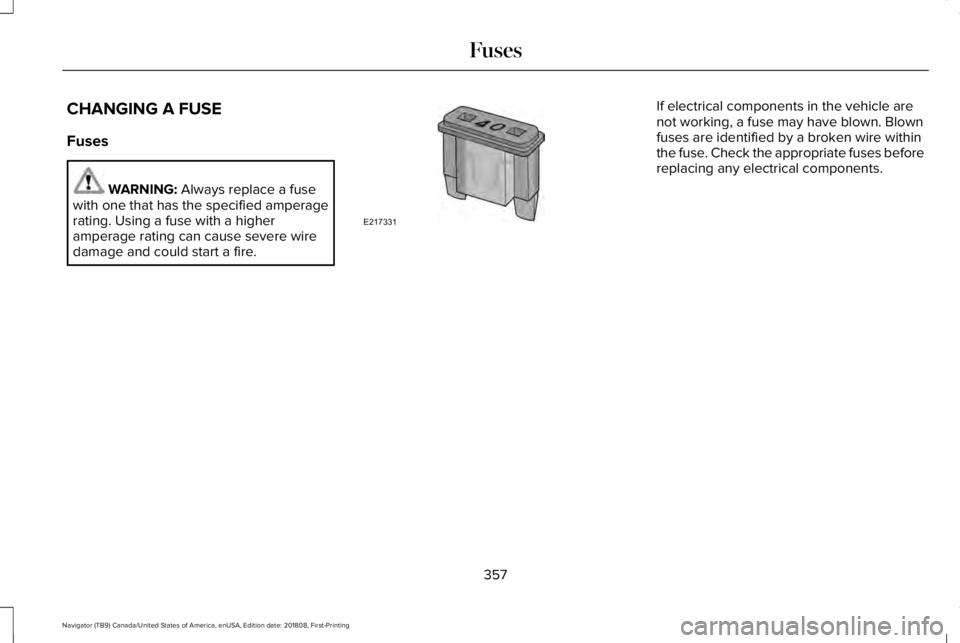

CHANGING A FUSE
Fuses
WARNING: Always replace a fusewith one that has the specified amperagerating. Using a fuse with a higheramperage rating can cause severe wiredamage and could start a fire.
If electrical components in the vehicle arenot working, a fuse may have blown. Blownfuses are identified by a broken wire withinthe fuse. Check the appropriate fuses beforereplacing any electrical components.
357
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing
FusesE217331
