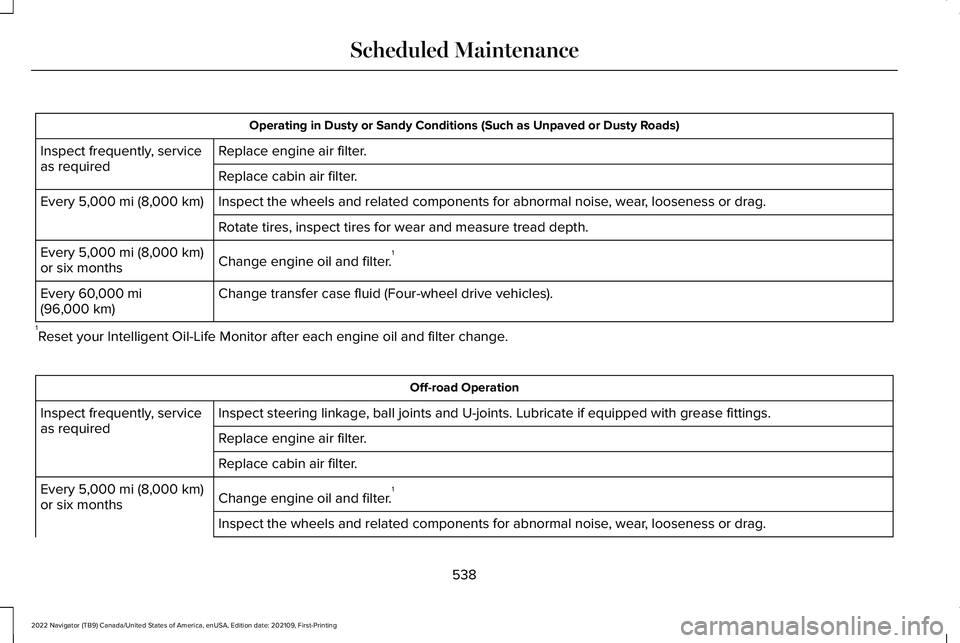

Operating in Dusty or Sandy Conditions (Such as Unpaved or Dusty Roads)
Replace engine air filter.
Inspect frequently, service
as required
Replace cabin air filter.
Inspect the wheels and related components for abnormal noise, wear, looseness or drag.
Every 5,000 mi (8,000 km)
Rotate tires, inspect tires for wear and measure tread depth.
Change engine oil and filter. 1
Every
5,000 mi (8,000 km)
or six months
Change transfer case fluid (Four-wheel drive vehicles).
Every
60,000 mi
(96,000 km)
1 Reset your Intelligent Oil-Life Monitor after each engine oil and filter \
change. Off-road Operation
Inspect steering linkage, ball joints and U-joints. Lubricate if equipped with grease fittings.
Inspect frequently, service
as required
Replace engine air filter.
Replace cabin air filter.
Change engine oil and filter.1
Every
5,000 mi (8,000 km)
or six months
Inspect the wheels and related components for abnormal noise, wear, looseness or drag.
538
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Scheduled Maintenance

Off-road Operation
Rotate tires, inspect tires for wear and measure tread depth.
Change transfer case fluid (Four-wheel drive vehicles).
Every 60,000 mi
(96,000 km)
1 Reset your Intelligent Oil-Life Monitor after each engine oil and filter \
change.
Exceptions
There are several exceptions to the Normal
Schedule.
Axle and Transfer Case Maintenance
Axle(s) and transfer case (Four-wheel drive
vehicles) fluid changes or level checks are
not required unless a leak is suspected or
the assembly has been submerged in water.
Contact an authorized dealer for service. California Fuel Filter Replacement
If you register your vehicle in California, the
California Air Resources Board has
determined that the failure to perform this
maintenance item does not nullify the
emission warranty or limit recall liability
before the completion of your vehicle's
useful life. Lincoln, however, urges you to
have all recommended maintenance services
performed at the specified intervals and to
record all vehicle service.Hot Climate Oil Change Intervals
Vehicles operating in the Middle East, North
Africa, Sub-Saharan Africa or locations with
similar climates using an American Petroleum
Institute (API) Certified for Gasoline Engines
(Certification mark) oil of SM or SN quality,
the normal oil change interval is
3,000 mi
(4,800 km).
If the available API SM or SN oils are not
available, then the oil change interval is
1,800 mi (2,900 km)
.
Engine Air Filter Replacement
The life of the engine air filter is dependent
on exposure to dusty and dirty conditions.
Vehicles operated in these conditions
require frequent inspection and replacement
of the engine air filter.
539
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Scheduled Maintenance

Enabling Apps on an Android
Device............................................................513
Enabling Apps on an iOS Device..............513
Enabling or Disabling Personal Profiles..........................................................516
Enabling Remote Start.................................155
End User License Agreement...................578
Engine Air Filter............................................422
Changing the Engine Air Filter........................422
Engine Block Heater
...................................202
Engine Block Heater Precautions..................202
How Does the Engine Block Heater
Work..................................................................202
Using the Engine Block Heater......................203
Engine Coolant Temperature Gauge.......143
Engine Oil Capacity and Specification.................................................471
Engine Oil
........................................................417
Adding Engine Oil...............................................417
Checking the Engine Oil Level.........................417
Engine Oil Capacity and Specification...........418
Engine Oil Dipstick Overview...........................417
Resetting the Engine Oil Change
Reminder...........................................................418
Engine Oil Pressure Gauge........................143
Engine Specifications
..................................469
Entering a Parallel Parking Space...........266 Entering a Perpendicular Parking
Space............................................................266
Evasive Steering Assist
...............................326
Evasive Steering Assist Limitations...............327
Switching Evasive Steering Assist On and
Off......................................................................327
What Is Evasive Steering Assist......................
326
Event Data
........................................................26
Exiting a Parking Space..............................267
Export Unique Options
...............................609
Extending the Remote Start Duration........................................................156
Exterior Bulbs
................................................428
Exterior Bulb Specification Chart...................428
Exterior Lamps
...............................................122
Exterior Lamp Audible Warning.......................123
Exterior Lamp Indicators....................................123
Switching the Daytime Running Lamps On
and Off...............................................................122
Switching the Front Fog Lamps On and Off.......................................................................123
Switching the Turn Signal Lamps On and Off.......................................................................122
Switching Welcome Lighting On and Off.......................................................................123
Exterior Lighting Control.............................120
Exterior Lighting
............................................120
Adaptive Front Lighting.....................................129 Autolamps..............................................................121
Automatic High Beam Control.........................123
Automatic High Beam Control –
Troubleshooting..............................................126
Exterior Lamps.....................................................122
Glare Free Lighting.............................................126
Glare Free Lighting – Troubleshooting.........129
Headlamps............................................................120
Headlamps – Troubleshooting.........................121
Exterior Mirrors...............................................137 Auto-Dimming Exterior Mirror..........................
138
F
Fastening and Unfastening the Seatbelts........................................................53
Feature Bar
....................................................502
Flat Tire See: Changing a Flat Tire..................................461
Floor Mats
......................................................388
Folding the Exterior Mirrors........................137
Foot Pedals See: Adjusting the Pedals..................................113
Four-Wheel Drive Driving Hints................226 Driving In Sand....................................................227
Driving on Hilly or Sloping Terrain.................228
Driving on Snow and Ice..................................228
Driving Through Mud and Water....................227
624
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Index

Side Parking Aid.................................................258
Parking Aids – Troubleshooting...............259 Parking Aids – Information Messages..........259
Passive Anti-Theft System..........................106 How Does the Passive Anti-Theft System
Work...................................................................106
What Is the Passive Anti-Theft System..........106
Perchlorate.....................................................576
Performing a Master Reset........................522
Personalized Settings..................................150
Personal Profiles............................................516
Personal Safety System Components......60
Personal Safety System ™
..............................60
Phone as a Key Limitations..........................78
Phone as a Key................................................78 Phone as a Key – Troubleshooting..................80
Phone as a Key – Troubleshooting............80 Phone as a Key – Frequently Asked
Questions...........................................................80
Phone Menu
..................................................506
Phone..............................................................506
Phone Precautions
......................................506
Playing and Pausing the Audio Source..........................................................500
Playing Media Using Bluetooth®...............512
Playing Media Using the USB Port...........192
Playing or Pausing the Audio Source
..........................................................488 Post-Crash Alert System
.............................393
How Does the Post-Crash Alert System
Work..................................................................393
Post-Crash Alert System Limitations.............393
Switching the Post-Crash Alert System Off......................................................................394
What Is the Post-Crash Alert System............393
Power Outlet Indicators
...............................196
Power Outlet Limitations.............................195
Power Outlet
...................................................194
Power Outlet Precautions...........................194
Power Running Board Precautions...........110
Power Running Board Settings..................110
Power Running Boards.................................110 Power Running Boards –
Troubleshooting................................................111
Power Running Boards – Troubleshooting............................................111
Power Running Boards – Frequently Asked Questions............................................................111
Power Seats
....................................................167
Adjusting the Head Restraint...........................167
Adjusting the Lumbar Support..........................171
Adjusting the Seat Backrest.............................170
Adjusting the Seat Cushion..............................169
Adjusting the Seat Height..................................171
Folding the Seat Backrest.................................179
Head Restraint Components............................167 Installing the Head Restraint............................
168
Moving the Seat Backward and Forward.............................................................169
Removing the Head Restraint..........................168
Unfolding the Seat Backrest............................
180
Pre-Collision Assist Limitations..................321
Pre-Collision Assist Precautions..............320
Pre-Collision Assist
......................................320
Automatic Emergency Braking.......................326
Distance Alert......................................................326
Distance Indication............................................323
Evasive Steering Assist.....................................326
Pre-Collision Assist – Troubleshooting.........327
Pre-Collision Assist – Troubleshooting.........................................327
Pre-Collision Assist – Frequently Asked Questions.........................................................328
Pre-Collision Assist – Information Messages.........................................................327
Pre-Collision Assist – Warning Lamps..........327
Preparing Your Vehicle for Storage.........435
Programming a MyKey..................................84
Programming the Garage Door Opener to Your Garage Door Opener Motor..........189
Programming the Garage Door Opener to Your Gate Opener Motor..........................189
Programming the Garage Door Opener to Your Hand-Held Transmitter....................188
631
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Index

Programming the Remote Control.............75
Programming Your Phone.............................78
Properly Adjusting the Driver and Front
Passenger Seats..........................................64
Puncture See: Changing a Flat Tire..................................461
Push Button Ignition Switch......................200
R
Radio Frequency Certification Labels...........................................................544
Blind Spot Information System Sensors.......544
Body Control Module........................................552
Cruise Control Module......................................555
Keys and Remote Controls..............................559
Radio Transceiver Module...............................
562
SYNC.....................................................................565
Tire Pressure Monitoring System Sensors..............................................................571
Wireless Accessory Charging Module..........575
Rear Auto Mode.............................................164 Switching Rear Auto Mode On and Off.........164
Rear Axle Fluid Capacity and Specification...............................................480
Rear Exterior.....................................................37
Rear Occupant Alert System Audible Warnings.......................................................184 Rear Occupant Alert System
Indicators......................................................184
Rear Occupant Alert System Limitations....................................................183
Rear Occupant Alert System Precautions..................................................183
Rear Occupant Alert System......................183
Rear Parking Aid...........................................256 Locating the Rear Parking Aid Sensors........256
Rear Parking Aid Audible Warnings...............257
Rear Parking Aid Limitations...........................
256
What is the Rear Parking Aid..........................256
Rear Passenger Audio Controls...............500
Rear Passenger Climate Control Indicators......................................................164
Rear Passenger Climate Control...............163 Rear Auto Mode...................................................164
Rear Seats
.......................................................174
Heated Seats.........................................................181
Manual Seats........................................................174
Massage Seats......................................................181
Power Seats..........................................................178
Ventilated Seats...................................................182
Recalling a Preset Position.........................185
Recovery Towing
..........................................394
Accessing the Front Towing Point.................394
Recreationally Towing Your Vehicle - 4x2.................................................................399 Recreationally Towing Your Vehicle -
4x4.................................................................397
Reduced Engine Performance
..................384
Refueling..........................................................213
Manually Opening the Fuel Filler Door.........215
Refueling System Overview.............................
213
Refueling Your Vehicle.......................................213
Releasing the Electric Parking Brake if the Vehicle Battery Has Run Out of
Charge..........................................................237
Remote Control Limitations
..........................72
Remotely Starting and Stopping the Vehicle
...........................................................155
Remote Start Limitations.............................155
Remote Start Precautions...........................155
Remote Start Remote Control Indicators......................................................156
Remote Start
...................................................155
Remote Start Settings........................................156
Remote Start Settings..................................156 Setting the Remote Start Duration..................
157
Switching Climate Control Last Settings On and Off...............................................................156
Switching the Heated Seat Settings On and Off.......................................................................156
Switching the Heated Steering Wheel Settings On and Off........................................................157
Removing the Key Blade
...............................73
632
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Index

Removing Your Vehicle From
Storage.........................................................436
Repairing Minor Paint Damage.................434
Replacement Parts Recommendation.......................................577
Replacing a Lost Key or Remote Control............................................................75
Replacing the Cabin Air Filter
....................165
Replacing the Front Wiper Blades.............116
Replacing the Rear Wiper Blades...............117
Reporting Safety Defects in Canada.......543
Reporting Safety Defects in the United States............................................................542
Reprogramming the Garage Door Opener..........................................................190
Resetting the Stopping Position.................112
Resetting Tire Pressure Monitoring System..........................................................455
Restarting the Engine
..................................207
Resuming the Set Speed............................276
Reverse Braking Assist Indicators...........240
Reverse Braking Assist Precautions.......239
Reverse Braking Assist...............................239 Reverse Braking Assist –
Troubleshooting..............................................241 Reverse Braking Assist –
Troubleshooting..........................................241
Reverse Braking Assist – Frequently Asked Questions.........................................................242
Reverse Braking Assist – Information Messages..........................................................241
Reverse Wipe
..................................................115
Reverse Wipe Settings........................................115
What Is Reverse Wipe.........................................115
Roadside Assistance
...................................390
Rollover Warning..........................................540
Roof Rack.......................................................339
Roof Rack Load Capacities..............................339
Roof Rack Precautions......................................339
Route Guidance............................................520 Adjusting the Guidance Prompt
Volume.............................................................520
Canceling Route Guidance..............................520
Repeating an Instruction..................................
520
Running-In See: Breaking-In.................................................385
Running Out of Fuel.....................................212 Adding Fuel From a Portable Fuel
Container..........................................................212
Filling a Portable Fuel Container.....................212 S
Satellite Radio
...............................................493
Locating the Satellite Radio Identification
Number.............................................................493
Satellite Radio Limitations................................493
Satellite Radio Settings.....................................494
Selecting a Channel...........................................493
What Is Satellite Radio......................................
493
Saving a Preset Position..............................185
Scheduled Maintenance
............................528
Seatbelt Extensions.......................................58
Seatbelt Precautions.....................................52
Seatbelt Reminder
..........................................56
How Does the Seatbelt Reminder Work.........56
Seatbelt Reminder Audible Warnings..............
57
Seatbelt Reminder Indicators............................56
Switching the Seatbelt Reminder On and Off........................................................................\
.57
Seatbelts...........................................................52 Automatic Locking Mode....................................
54
Seatbelt Reminder................................................56
Sensitive Locking Mode......................................54
Security............................................................106 Anti-Theft Alarm System...................................106
Anti-Theft Alarm System Settings...................107
Passive Anti-Theft System................................106
Security – Troubleshooting..............................108
633
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Index

Security – Troubleshooting........................108
Security – Frequently Asked Questions.......109
Security – Information Messages...................108
Selecting a Drive Mode..............................294
Selecting a Four-Wheel Drive Mode
.......225
Selecting the Audio Source.......................488
Sending and Receiving a Text Message.......................................................510
Sensitive Locking Mode
................................54
How Does Sensitive Locking Mode
Work.....................................................................54
What is Sensitive Locking Mode.......................
54
Service Data.....................................................25
Setting a Destination....................................518 Setting a Destination Using a Point of
Interest...............................................................519
Setting a Destination Using a Predictive Destination.......................................................519
Setting a Destination Using a Recent Destination.......................................................519
Setting a Destination Using a Saved Destination.......................................................519
Setting a Destination Using the Map Screen...............................................................519
Setting a Destination Using the Text Entry Screen...............................................................518
Setting a Memory Preset............................489
Settings Data...................................................26 Setting the Adaptive Cruise Control
Gap................................................................275
Setting the Adaptive Cruise Control Speed............................................................274
Setting the Blower Motor Speed
..............159
Setting the Clock and Date.......................490
Setting the Hill Descent Speed.................251
Setting the Liftgate Opening Height........100
Setting the Speed Sign Recognition Speed Tolerance.....................................................333
Setting the Speed Sign Recognition Speed Warning........................................................333
Setting the Temperature
.............................159
Setting the Wake Word...............................504
Setting Up the Trailer Backup Assistance for a Conventional Trailer........................363
Applying the Trailer Reversing Aid Sticker...............................................................364
Calibrating the System......................................365
Configuring the Trailer......................................363
Setting Up Trailer Reverse Guidance for a Conventional Trailer
..................................375
Applying the Trailer Reverse Aid
Sticker...............................................................376
Calibrating the System......................................377
Configuring the Trailer.......................................375
Shifting Your Vehicle Into Gear
................220 Side Parking Aid
...........................................258
Locating the Side Parking Aid Sensors........259
Side Parking Aid Audible Warnings..............259
Side Parking Aid Limitations...........................258
What is the Side Parking Aid...........................258
Sitting in the Correct Position
....................166
Sounding the Panic Alarm............................73
Special Operating Conditions Scheduled Maintenance...............................................536
Speedometer.................................................142
Speed Sign Recognition Indicators.........333
Speed Sign Recognition Limitations.......332
Speed Sign Recognition Precautions.................................................332
Speed Sign Recognition.............................332 Speed Sign Recognition –
Troubleshooting.............................................333
Speed Sign Recognition – Troubleshooting.........................................333
Speed Sign Recognition – Frequently Asked Questions.........................................................334
Speed Sign Recognition – Information Messages.........................................................333
Stability Control Indicator..........................250
Stability Control............................................248
Starting and Stopping the Engine – Precautions.................................................200
634
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Index

Towing Weights and Dimensions.............352
Calculating the Maximum Loaded Trailer
Weight for Your Vehicle................................353
Recommended Towing Weights.....................352
What Is the Maximum Loaded Trailer Weight...............................................................353
Towing Your Vehicle Precautions.............397
Towing Your Vehicle
....................................397
Towing Your Vehicle –
Troubleshooting.............................................400
Towing Your Vehicle – Troubleshooting.........................................400
Towing Your Vehicle – Information Messages........................................................400
Traction Control Indicator..........................246
Traction Control
............................................246
Traction Control – Troubleshooting...............247
Traction Control – Troubleshooting.........247 Traction Control – Information
Messages.........................................................247
Trailer Backup Assistance Precautions.................................................362
Trailer Backup Assistance
..........................362
Setting Up the Trailer Backup Assistance for
a Conventional Trailer...................................363
Trailer Backup Assistance – Troubleshooting.............................................369 Trailer Backup Assistance –
Troubleshooting.........................................369
Trailer Backup Assistance – Frequently Asked Questions.........................................................372
Trailer Backup Assistance – Information Messages.........................................................369
Trailer Brake Precautions
...........................349
Trailer Reverse Guidance Precautions..................................................375
Trailer Reverse Guidance
...........................375
Setting Up Trailer Reverse Guidance for a
Conventional Trailer......................................
375
Trailer Reverse Guidance – Troubleshooting.............................................380
Trailer Reverse Guidance – Troubleshooting.........................................380
Trailer Reverse Guidance – Frequently Asked Questions.........................................................382
Trailer Reverse Guidance – Information Messages.........................................................380
Trailer Sway Control Precautions..............361
Trailer Sway Control.....................................361
Trailer Towing Hints
.....................................350
Transfer Case Fluid Capacity and Specification ................................................
478
Transmission Fluid Temperature Gauge............................................................143
Transporting the Vehicle............................395 Trip Computer
................................................148
Accessing the Trip Computer...........................148
Resetting the Individual Trip Values...............
149
U
Under Hood Fuse Box.................................401 Accessing the Under Hood Fuse Box...........401
Identifying the Fuses in the Under Hood Fuse
Box.....................................................................402
Locating the Under Hood Fuse Box...............401
Under Hood Overview
.................................415
Updating the Vehicle Systems Wirelessly.....................................................521
USB Ports........................................................192
Using Auto Hold...........................................244
Using Keyless Entry
........................................91
Using MyKey With Remote Start Systems
..........................................................84
Using Snow Chains......................................446
Using the Backup Start Passcode..............79
Using the Instrument Cluster Display Controls.........................................................147
Using the Integrated Trailer Brake Controller
.....................................................356
Using the Keyless Entry Keypad.................95
Using the Remote Control............................72
637
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Index
