LINCOLN TOWN CAR 1997 Owners Manual

178Limiting Your Vehicle's LoadThe load that you add to your vehicle must not
exceed the maximum load stated on the Safety
Compliance Certification Decal attached to the left
front door pillar.
To figure the weight of your vehicle's load, add the
weights of:q
the driver and passengers
q
luggage and any other items that you put in
your vehicle
q
the tongue load of the loaded trailer
q
the weight of any equipment that has been
added to your vehicle since it was delivered to
your dealer
If you do not know the actual weights of these
items, use the following procedure to figure the
weight of a load:
1. Weigh your vehicle without the driver,
passengers and luggage. You might take your
vehicle to a shipping company or an inspection
station for trucks.
2. Then weigh your vehicle with the driver,
passengers and luggage.
3. Subtract the first reading from the second to
figure the total weight of the load.
File:09fngft.ex
Update:Mon Jun 17 13:52:03 1996

179
WARNING
Improperdistributio nof you rvehicle's

181
Roadside EmergenciesThe flashers work whether your vehicle is running
or not. The flashers work for up to two hours
when the battery is fully charged and in good
condition without draining the battery excessively. If
the flashers run for longer than two hours or if the
battery is not fully charged, the battery can be
drained.
If the Engine Cranks but Does
Not Start or Does Not Start After
a CollisionFuel Pump Shut-off SwitchIf the engine cranks but does not start even after a
small collision, the fuel pump shut-off switch may
have been actuated. The shut-off switch is a device
intended to stop the fuel pump when your vehicle
has been involved in a substantial jolt.
Once the shut-off switch is actuated, you must reset
the switch by hand before you can start your
vehicle. The switch is on the left side of the trunk.
File:10fnert.ex
Update:Thu Jun 20 15:16:36 1996

182
Fuelpum pshut-of fswitch
W ARNING
If yo useeor smel lfuel ,do no treset

183
5. Check under the vehicle again for leaking fuel.
If you see or smell fuel, do not start your
vehicle again.If you do not see or smell fuel,
you can try to start your vehicle again.
Fuses and Circuit BreakersFuses (conventional and high current) and circuit
breakers protect your vehicle's wiring system from
overloading. If electrical parts in your vehicle are
not working, the system may have been overloaded
and blown a fuse or tripped a circuit breaker.
Before you replace or repair any electrical parts,
check the appropriate fuses (conventional and high
current) or circuit breakers.
The following charts tell you which fuses or circuit
breakers protect the wiring for each electrical part
of your vehicle. If a fuse blows or a circuit breaker
opens a circuit,allthe parts of your vehicle that
use that circuit will not work.
Once you have determined which fuses or circuit
breakers to check, follow the procedures under
Checking and replacing fusesorChecking and
replacing circuit breakersin this chapter.
File:10fnert.ex
Update:Thu Jun 20 15:16:36 1996

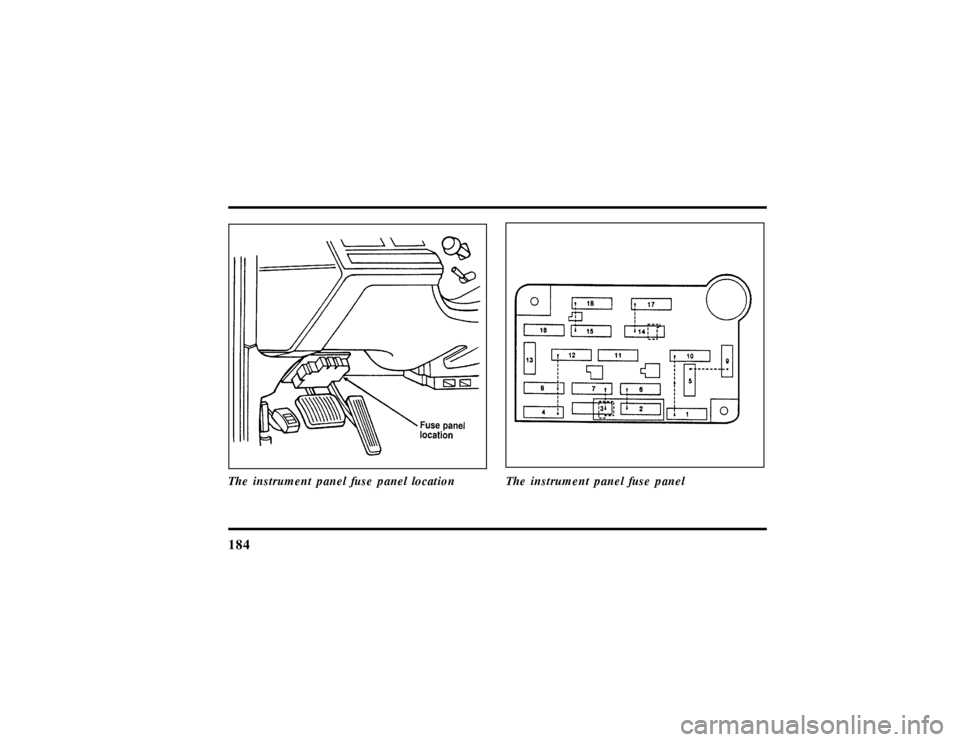

184The instrument panel fuse panel location
The instrument panel fuse panel
File:10fnert.ex
Update:Thu Jun 20 15:16:36 1996

185

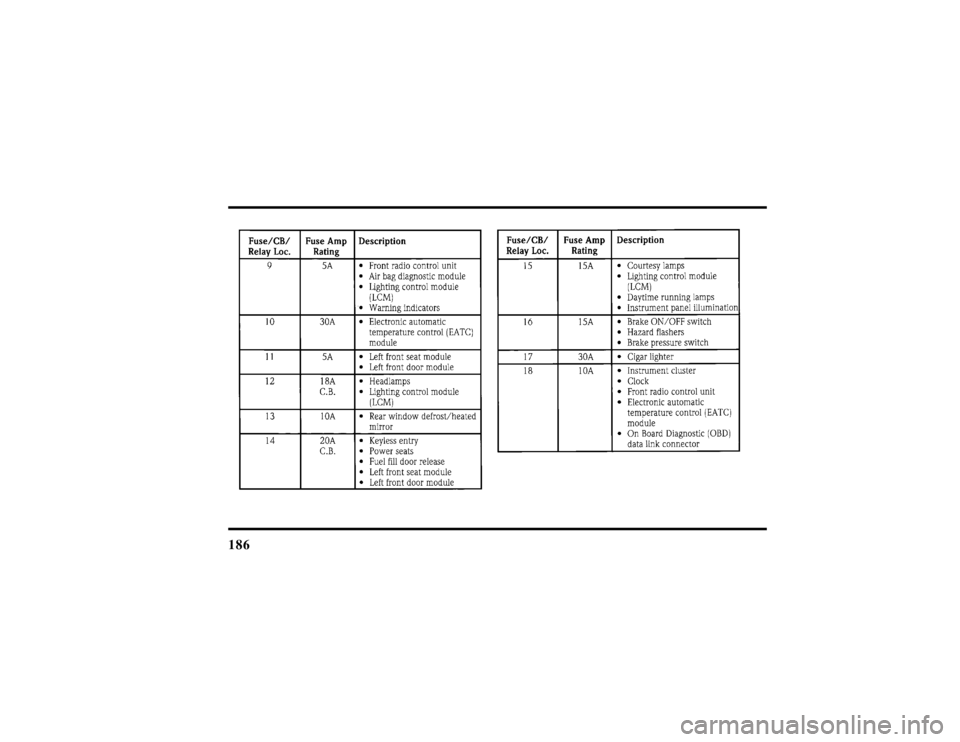

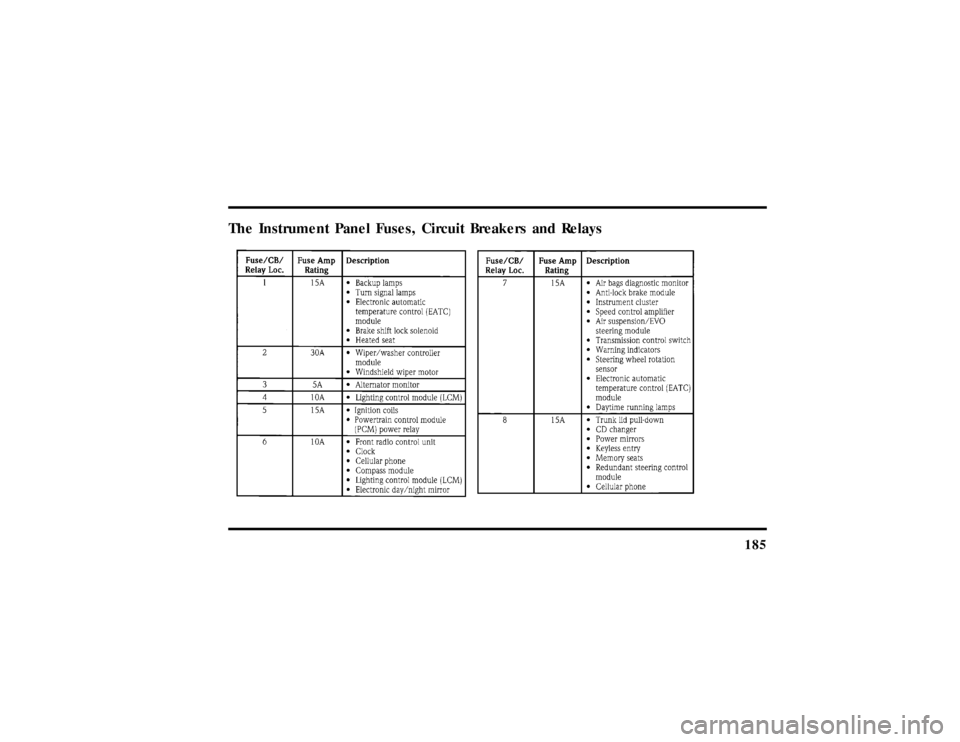

The Instrument Panel Fuses, Circuit Breakers and Relays
File:10fnert.ex
Update:Thu Jun 20 15:16:36 1996

186
File:10fnert.ex
Update:Thu Jun 20 15:16:36 1996

187
WARNING
Alwaysdisconnec tth ebatter ybefore

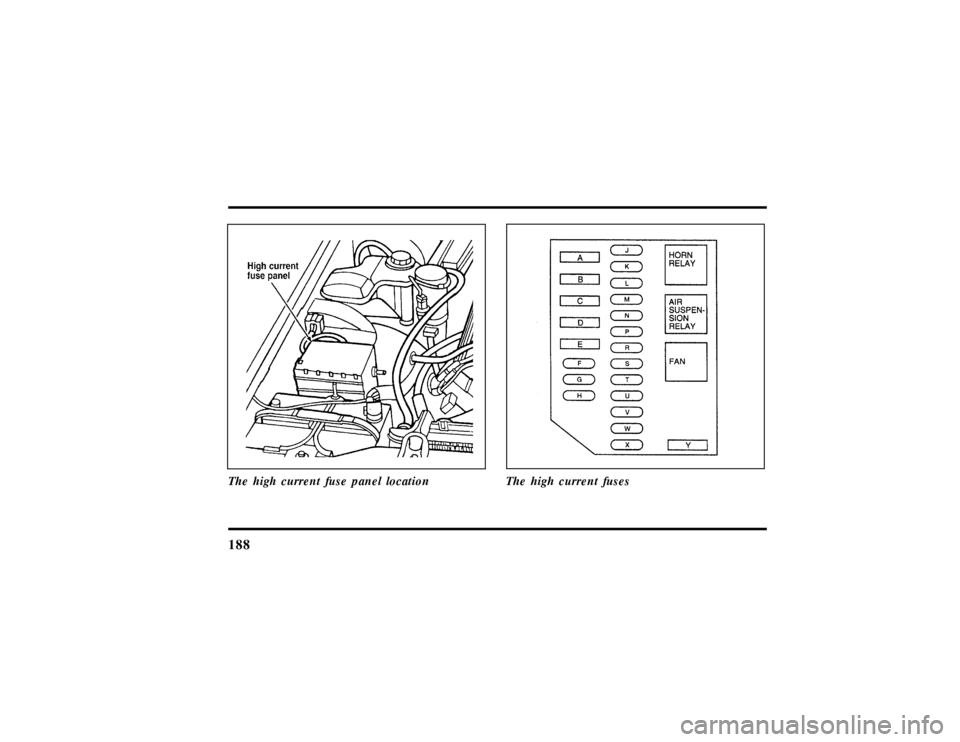

188The high current fuse panel location
The high current fuses
File:10fnert.ex
Update:Thu Jun 20 15:16:36 1996
