LUCID AIR 2022 Owner's Manual

Interior
Interior Overview
1. Glass Cockpit, see Glass Cockpit on page 12
2. Left control stalk:

13. DreamDrive controls
14. Horn, see Horn on page 68
15. Media controls, see Steering Wheel - Right Controls on page 67
16. Right toggle switch, see Steering Wheel - Right Controls on page 67
17. Pilot panel, see Pilot Panel on page 56
18. Glove boxVehicle Overview9

Vehicle Identification
Vehicle Identi

Steering Wheel Controls
1. Left toggle switch
2. DreamDrive button
3. Following distance button
4. Cancel button
5. Right toggle switch, see Steering Wheel Media Controls
6. Previous button, see Steering Wheel Media Controls
7. Next button, see Steering Wheel Media Controls
8. Voice Assistant button, see Steering Wheel Media Controls
Vehicle Overview11

Glass Cockpit
The 34-inch (86 cm) Glass Cockpit is ergonomically contoured to the driver, giving you easy access
to controls without being distracted.
1. Left Cockpit Panel: The functions on this touchscreen are available at all times:

Pilot Panel
The icons along the bottom of the Pilot Panel
touchscreen allow you to access:
-
Vehicle controls
-
Climate controls, see Temperature
Control on page 84
-
Settings menu
-
Parking controls, see Parking
Experience on page 111
Note: In some menus on the Pilot Panel,
you can press the icons for
list view
or
tile view to toggle between display
options.
Note: The Pilot Panel can be retracted to
access the storage space behind it. See
Extending and Retracting the Pilot Panel on
page 56.
Smart Drawer
Some applications display in the smart drawer
window on the right Cockpit Panel, allowing
you to browse the contents. The Pilot Panel
view of the smart drawer shows additional
details for lists and libraries.
WARNING: This content is intended
to minimize driver distraction to
facilitate safe driver behavior. It
is recommended that the driver
maintains vision of the road at
all times during normal driving
maneuvers. Distracted driving can
lead to serious injury or death.
To open the smart drawer in the Pilot Panel,
press the bar at the top of the touchscreen;
in the right Cockpit Panel, press the bar at
the bottom of the touchscreen. Swipe the
smart drawer up or down to slide it between
screens. If the smart drawer collapses due
to timeout on either screen, touch the bar to
expand it again.
Vehicle Overview13

The < arrow in the upper left corner of a menu
title returns you to the previous screen.
Rear Center Console Display (RCCD)
The Rear Center Console Display (RCCD) is
located at the back of the center console
and allows rear seat passengers to control the
climate and the sunshade settings.
The RCCD provides the following options for
rear seat passengers:
-
Sunshade - Deploys and retracts the
Rear Sunshade, see Sunshades on page
22.
-
Climate - Controls for temperature,
fan speed, and seat heating in the rear
seats, see Rear Seat Heaters on page
33.
Note: You can lock access to the Rear Center
Console Display (RCCD) by navigating to
Settings > Pilot Displays on the Pilot Panel.
Vehicle Overview14

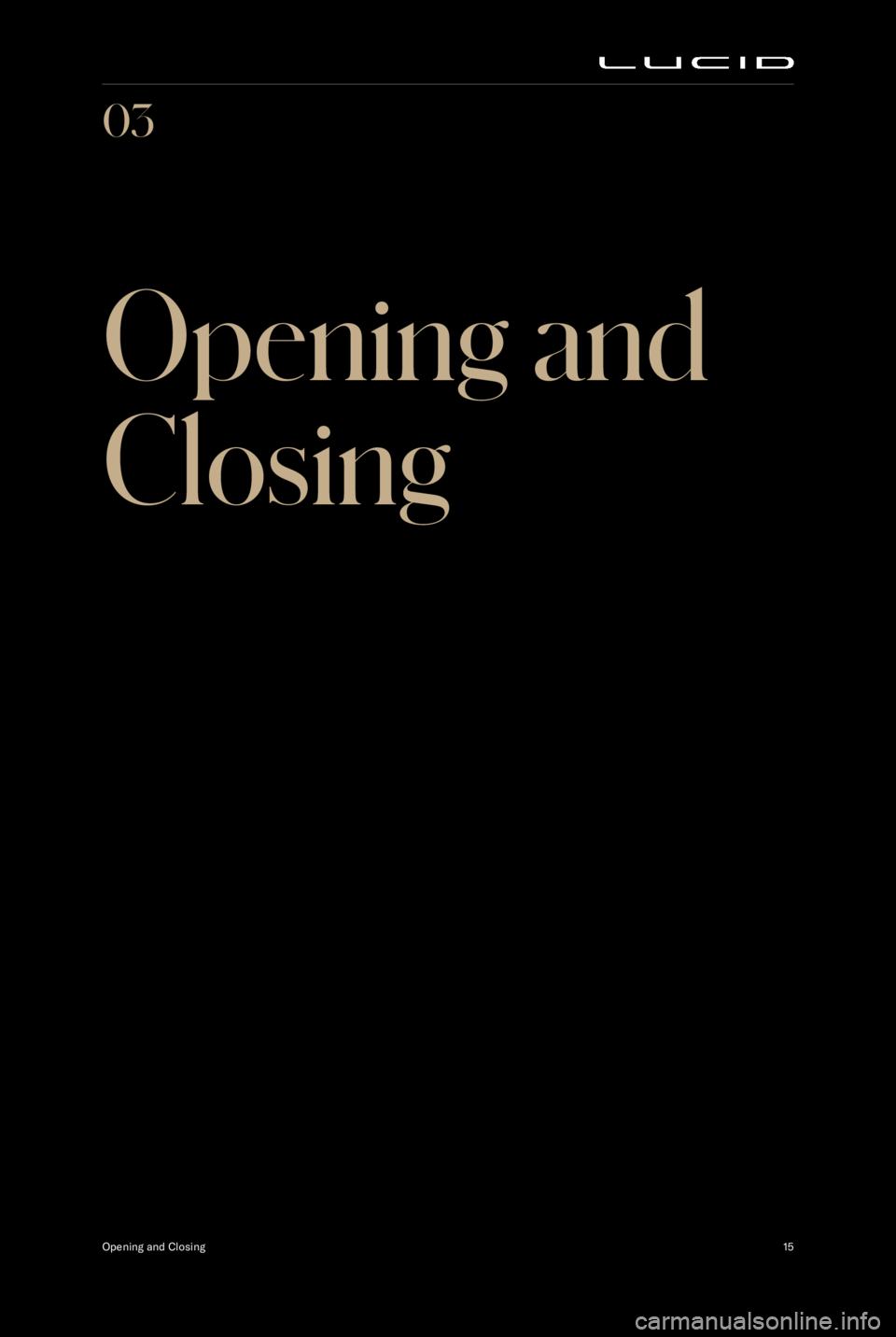

03Opening andClosing
Opening and Closing15

Keyless Entry System
Using the Mobile Key
Mobile Key allows you to use your phone to
unlock, lock, and gain drive access to the
vehicle using the Lucid Mobile app. In order to use the Mobile Key, you must first pair it
with the vehicle.
Pairing
You must pair the mobile device in order to
access the Mobile Key functions.
1. On the Pilot Panel: a. Go to Settings > Access & Profiles >
Profile Detection > Keys.
b. Make sure that Key Detection is enabled.
c. Press Link Mobile Key.
2. On your mobile device: a. Open the Lucid Mobile app.
b. Press the Mobile Key icon in the top right-hand corner of the home
screen.
c. Press Link Now.
d. Wait for the 6-digit passcode.
3. Confirm the 6-digit passcode on to the
Pilot Panel matches the mobile device
code.
4. Type a name for the mobile device on the Pilot Panel, and press Done.
Unpairing
You can unpair mobile devices either from
within the Settings in the vehicle or from the
mobile device. Once unpaired, you will not be
able to use the mobile device for Mobile Key
functions.
Unpairing from the Settings app 1. Go to Settings > Access & Profiles >
Profile Detection > Keys.
2. Press Edit.
3. Press Remove next to the mobile device to be unpaired.
Unpairing from the Lucid Mobile app 1. Press the Mobile Key icon in the top right-hand corner of the home screen.
2. Press Remove Vehicle.
3. Go to your device

Key fob range
The key fob communicates with receivers
in the vehicle via Bluetooth
