G—8
TOWING
Proper towing equipment is necessary to prevent
damage to the vehicle during any towing operation.
Laws and regulations applicable to vehicles in tow
must always be observed.
Whether the vehicle is equipped with either an auto-
matic or manual transaxle, release the parking brake,
place the selector lever (shift lever) in neutral, and set
the ignition key in the "ACC" position. As a rule,
towed vehicles should be pulled with their drive
wheels off the ground.
If excessive vehicle damage or other conditions pre-
vent towing a vehicle with its drive wheels up, use
wheel dollies. With all four wheels on the ground, the
vehicle may be towed only forward. In this case, it
cannot be towed at a speed exceeding 56 km/h (35
mph) for more than 80 km (50 miles) without danger
of damaging the transaxle.
If the towing speed will exceed 56 km/h (35 mph),
or if the towing distance will exceed 80 km (50 miles),
use either of these two methods:
1. Place the front wheels on dollies.
2. Tow with the front wheels off the ground.
CAUTIONS
a) The power assist for the brakes and steer-
ing (if so equipped) will be inoperable while
the engine is off.
b)When either of the towing hooks is used,
always pull the cable or chain straight away
from the hook and do not apply any side-
ways force to it. To further help prevent
damage, do not take up slack too quickly
in the cable or chain.
c) The rear towing hook should be used only
in an emergency situation, (e.g., to pull the
vehicle from a ditch, a snowbank, or mud).

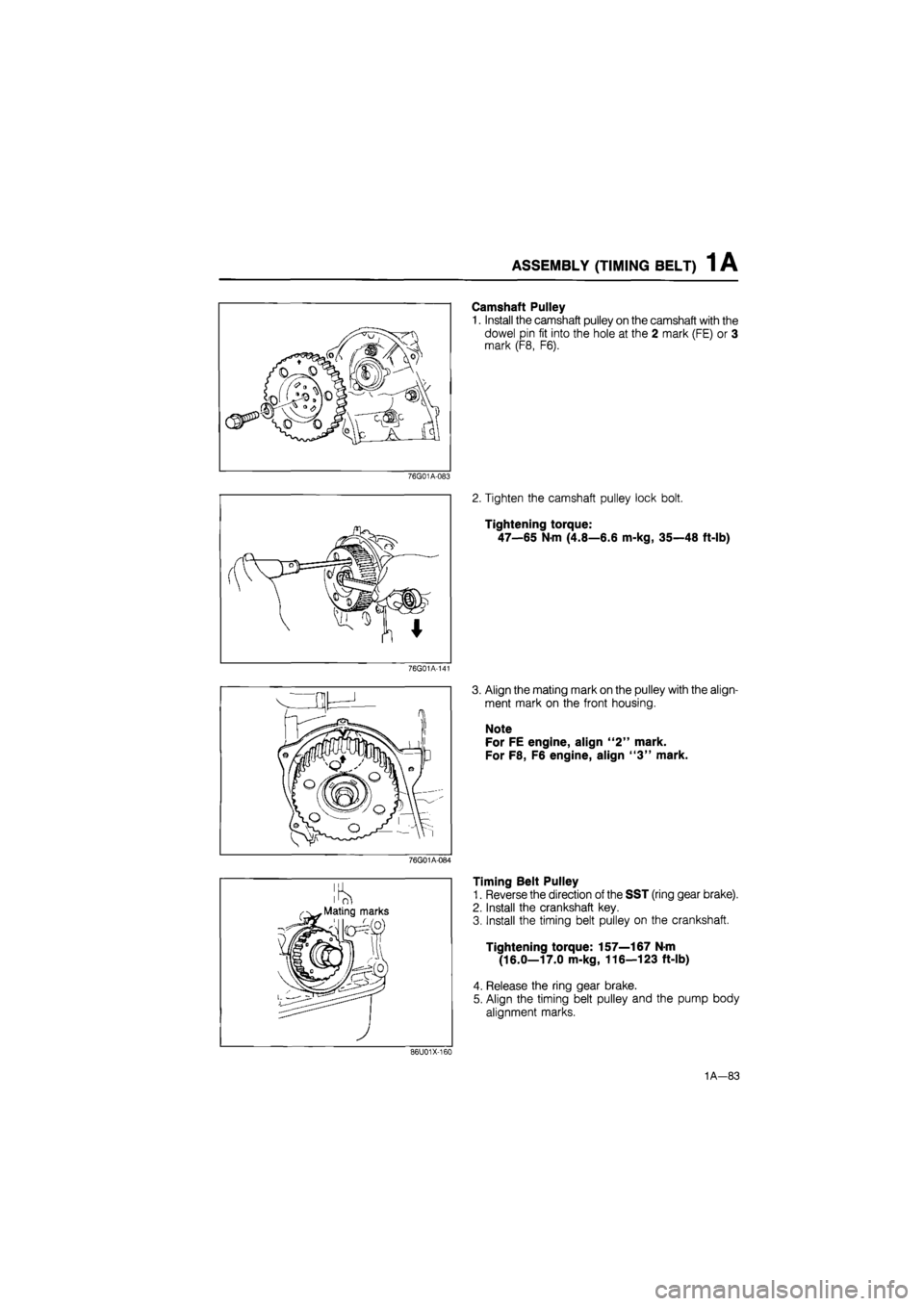

ASSEMBLY (TIMING BELT) 1 A
Camshaft Pulley
1. Install the camshaft pulley on the camshaft with the
dowel pin fit into the hole at the 2 mark (FE) or 3
mark (F8, F6).
76G01A-083
2. Tighten the camshaft pulley lock bolt.
Tightening torque:
47—65 N-m (4.8—6.6 m-kg, 35—48 ft-lb)
76G01A-141
3. Align the mating mark on the pulley with the align-
ment mark on the front housing.
Note
For FE engine, align "2" mark.
For F8, F6 engine, align "3" mark.
76G01A-084
Timing Belt Pulley
1. Reverse the direction of the SST (ring gear brake).
2. Install the crankshaft key.
3. Install the timing belt pulley on the crankshaft.
Tightening torque: 157—167 N-m
(16.0—17.0 m-kg, 116—123 ft-lb)
4. Release the ring gear brake.
5. Align the timing belt pulley and the pump body
alignment marks.
86U01X-160

1
A—83

ASSEMBLY (TIMING BELT) 1 B
Camshaft Pulley
1. Install the camshaft pulley on the camshaft with the
dowel pin fit into the hole at the I mark (intake side)
and E mark (exhanst side).
76G01B-127
2. Tighten the camshaft pulley lock bolt.
Tightening torque:
47—65 Nm (4.8—6.6 m-kg, 35—48 ft-lb)
76G01A-141
3. Align the mating mark on the camshaft pulleys with
the alignment mark on the seal plate.
Note
For intake side camshaft pulley, align "I"
mark.
For exhanst side camshaft pulley, align "E"
mark.
76G01B-094
Timing Belt Pulley
1. Reverse the direction of the SST (ring gear brake).
2. Install the crankshaft key.
3. Install the timing belt pulley on the crankshaft.
Tightening torque: 157—167 N m
(16.0—17.0 m-kg, 116—123 ft-lb)
4. Release the ring gear brake.
5. Align the timing belt pulley and the pump body
alignment marks.
86U01X-160
1B—65

ON-VEHICLE MAINTENANCE (CYLINDER HEAD) 1 C
76G01C-041
76G01C-042
76G01C-043
Seal plate
1. Install the seal plate.
Tightening torque:
8—12
N
m (80—120 cm-kg, 69—104 in-lb)
2. Check that the seal plate sealing rubbers are in-
stalled in position.
Rear camshaft pulley
1. Install the rear camshaft pulley.
2. Hold the camshaft with a wrench (29 mm, 1.14 in),
and tighten to the specification.
Tightening torque:
55—65
N
m (5.6—6.6 m-kg, 41—48 ft-lb)
Camshaft pulley
1. Connect the camshaft pulley onto the camshaft with
the semicircular (woodruff) key.
2. Hold the camshaft with a wrench (29 mm, 1.14 in),
tighten the camshaft pulley lock bolt.
Tightening torque:
55—65 Nm (5.6—6.6 m-kg, 41—48 ft-lb)
3. Align the mark on the camshaft pulley with the mark
on the seal plate.
76G01C-044
1C—21

1 C ON-VEHICLE MAINTENANCE (CYLINDER HEAD)
76G01C-045
Gasket
Head cover Apply sealant
J
76G01C-046
76G01C-047
Timing marks
Timing marks
Timing
marks-
Injection pump pulley
1. Install the injection pump pulley with the semicir-
cular (woodruff) key to the injection pump shaft.
2. Rotate the injection pump pulley until the timing
marks are aligned.
3. Affix the injection pump pulley to the bracket us-
ing two bolts (35—40 mm, 1.4—1.6 in).
4. Tighten the lock nut.
Tightening torque:
59—69 Nm (6.0—7.0 m-kg, 43—51 ft-lb)
Cylinder head cover
1. Apply sealant to the shaded areas.
2. Install the cylinder head cover.
Tightening torque:
7—10
N
m (70—100 cm-kg, 61—87 in-lb)
3. Install the PCV hose.
Timing belt
1. Return the crankshaft about 45° to the timing mark
on the oil pump housing.
2. Check that the timing marks of the camshaft pul-
ley and the injection pump pulley align with the tim-
ing marks on the seal plate.
3. Install the timing belt. (Refer to TIMING BELT of
ON-VEHICLE MAINTENANCE)
76G01C-048
1C-22

ON-VEHICLE MAINTENANCE (VALVE SEAL) 1 C
4. Set the camshaft and camshaft cap so that the key
groove faces directly upward.
And tighten the cap nuts loosely.
5. Apply a coat of engine oil to the new oil seal lip
and insert it.
76G01C-063
6. Tighten the camshaft cap nuts gradually and in the
order shown in the figure.
Tightening torque:
20—26 N-m (2.0—2.7 m-kg, 14—20 ft-lb)
76G01C-064
Camshaft pulley and rear camshaft pulley
Hold the camshaft with a wrench (29 mm, 1.14 in),
tighten the camshaft pulley and rear camshaft pul-
ley lock bolts.
Tightening torque:
55—65 N-m (5.6—6.6 m-kg, 41—48 ft-lb)
76G01C-066
1C—29

1 C ASSEMBLY (CYLINDER BLOCK)
Clutch Disc and Clutch Cover
Install the clutch disc and clutch cover using the SST.
(Refer to Section 6.)
Tightening torque:
18—26 Nm (1.8—2.7 m-kg, 13—20 ft-lb)
76G01C-169
Timing Belt Pulley
1. Install the timing belt pulley with the semicircular
(woodruff) key.
Tightening torque:
179—193 Nm (18.3—19.7 m-kg,
132—142 ft-lb)
4BG01B-180
2. Release the ring gear brake, turn the flywheel,
move the No.
1
piston to the top position, and then
turn it approximately 45° in the forward direction.
Caution
This is to prevent damage to the pistons and
valves when the cylinder head is installed.
4BG01B-181
1C—72

ASSEMBLY (CYLINDER
BLOCK)
1 C
6. Apply engine oil to the cylinder head bolts.
7. Tighten the cylinder head bolts.
(1) Tighten the bolts to the specified torque, in or-
der shown in the figure.
Tightening torque:
29 Nm (3.0 m-kg, 22 ft-lb)
4BG01B184
(2)Make paint marks on the bolt heads, as shown
in the figure.
(3)With the paint marks as a reference point, turn
the cylinder head bolts another 90°
(90°—105°) in the tightening direction. Tight-
en them in the order.
(4)Then tighten them once again 90°
(90°—105°) in the tightening order.
Caution
Be absolutely sure to tighten all bolts in the
order.
4BG01 B-185
Camshaft
1. Apply engine oil to the camshaft and journal part
of the cylinder head.
2. Set the seal cap.
3. Apply a coat of sealant (1016 77 739) to the area
shown in the figure.
4. Install the camshaft so that the key groove faces
directly upward.
4BG01 B-186
5. Install the camshaft caps according to the number

and
^
mark,
and loosely tighten the camshaft cap
nuts.
76G01C-172
1C—75

1C ASSEMBLY (TIMING BELT)
Rear Camshaft Pulley
1. Install the rear camshaft pulley.
2. Hold the camshaft with a wrench (29 mm, 1.14 in)
and tighten to the specification.
Tightening torque:
55—65 Nm (5.6—6.6 m-kg, 41—48 ft-lb)
76G01C-189
Camshaft Pulley
1. Connect the camshaft pulley onto the camshaft with
the semicircular (woodruff) key.
4BG01B-200
2. Hold the camshaft with a wrench (29 mm, 1.14 in),
tighten the camshaft pulley lock bolt.
Tightening torque:
55—65 Nm (5.6—6.6 m-kg, 41—48 ft-lb)
3. Align the mark on the camshaft pulley with the mark
on the seal plate.
76G01C-190
Injection Pump Pulley
1. Install the injection pump pulley with the semicir-
cular (woodruff) key to the injection pump shaft.
2. Rotate the injection pump pulley until the timing
marks are aligned.
3. Affix the injection pump pulley to the bracket us-
ing two bolts (35—40 mm, 1.4—1.6 in).
4. Tighten the lock nut.
Tightening torque:
59—69 N-m (6.0—7.0 m-kg, 43—51 ft-lb)
1C-82

TROUBLESHOOTING GUIDE 7A
TROUBLESHOOTING GUIDE
Problem Possible cause Remedy Page
Change lever won't Seized change lever ball Replace 7A-58 shift smoothly, or is Seized change control rod joint Replace 7A-58
hard to shift Bent change control rod Replace 7A-58
Too much play in Worn change control rod bushing Replace 7A-58 change lever Weak spring of ball or change lever Replace 7A-58 Worn bushing of ball or change lever Replace 7A—58
Difficult to shift Bent change rod Replace 7A—58
No grease in transmission control Lubricate with grease 7A-58
Insufficient oil Add oil 7A-6
Deterioration of oil quality Replace with oil of 7A-6 specified quality
Wear or play of shift fork or shift rod Replace 7 A—18
Wear of synchronizer ring Replace 7A-27
Wear of synchronizer cone of gear Replace 7A-27
Bed contact of synchronizer ring and cone of Replace 7A-27 gear
Excessive longitudinal play of gears Replace 7A-22
Wear of bearing Adjust or replace 7A—22
Wear of synchronizer key spring Replace 7A-27
Excessive shaft gear bearing preload Adjust 7A-37
Improperly adjusted change guide plate Adjust 7A-20
Won't stay in gear Bent change control rod Replace 7A-58
Worn change control rod bushing Replace 7A-58
Weak change lever ball spring Replace 7A-58
Improperly installed extension bar Tighten 7A-58
Wear of shift fork Replace 7A—22
Wear of clutch hub Replace 7A-27
Worn clutch hub sleeve Replace 7A-27
Worn gear sliding part of both shaft gears Replace 7A-26
Worn gear sliding part of each gear Replace 7A-26
Worn steel sliding groove of control end Replace 7 A—18
Weak spring pressing against steel ball Replace 7A-18
Excessive thrust clearance Replace 7A—33,35
Worn bearing Replace 7A—22
Improperly installed engine mount Tighten 7A—49
Abnormal noise Insufficient oil Add oil 7A-6
Deterioration of oil quality Replace 7A-6
Worn bearing Adjust or replace 7A-22
Worn gear sliding surface of both shaft gears Replace 7A—26
Wear of sliding surfaces of gears Replace 7A-26
Excessive thrust clearance Replace 7A—33,35
Damaged gear teeth Replace with oil of 7A-26
specified quality Foreign material in gears Replace 7A-22
Damaged differential gear, or excessive backlash Adjust or replace 7A—30
76G07A-005
