▼When Warning Indicator/Beep is Activated
The system notifies the driver
of an abnormality by activating the beep sound and the
indicator light.
Indicator/Beep How to check
The indicator light flashes when
the parking sensor switch is
pressed at a vehicle speed of 10
km/h (6 mph) or less. The system may have a malfunctio
n. Have the vehicle inspected at an Author‐
ized Mazda Dealer as soon as possible.
The beep sound is not heard. The system may have a malfunctio
n. Have the vehicle inspected at an Author‐
ized Mazda Dealer as soon as possible.
The intermittent sound of the
buzzer is heard 5 times. Remove any foreign material from the sensor area. If the system
does not re‐
cover, have the vehicle inspect ed at an Authorized Mazda Dealer .
A certain obstruction detection
indicator is continuously dis‐
played. Refer to Obstruction Detection Indication on page 4-282.
When Driving
Parking Sensor System (M
azda Connect (Type A))
4-286
CX-9_8LJ2-EA-22H_Edition1_old 2022-6-9 13:33:08

Parking Sensor System (Mazda Connect (Type B))*
The parking sensors use ultrasonic sensors which detect obstructions around the vehicle
when the vehicle is driven at low speeds, such as during garage or parallel parking, and a
buzzer sound and detection indicator notify the driver of the a pproximate distance from the
vehicle to the surrounding obstruction.

Rear corner ultrasonic sensor
Front corner ultrasonic sensor
Rear ultrasonic
sensor
Front ultrasonic sensorSome models.
WA R N I N G
Do not rely completely on the parking sensor system and be sure to confirm the safety around
your vehicle visually when driving:
This system can assist the driver in operat ing the vehicle in the forward and backward
directions while parking. The detection ranges of the sensors are limited, therefore, driving the
vehicle while relying only on the system may cause an accident. Always confirm the safety
around your vehicle visually when driving.
NOTE
Do not install any accessories within the detection ranges of the sensors. It may affect the
system operation.
Depending on the type of obstruction and the surrounding conditions, the detection range
of a sensor may narrow, or the sensors may not be able to detect obstructions.
The system may not operate normally under the following conditions:
Mud, ice, or snow is adhering to the sensor area (Returns to normal operation when
removed).
The sensor area is frozen (Returns to normal operation when the ice is thawed).
The sensor is covered by a hand.
The sensor is excessively shocked.
The vehicle is excessively tilted.
When Driving
Parking Sensor System (Mazda Connect (Type B))
*Some models.4-287
CX-9_8LJ2-EA-22H_Edition1_old 2022-6-9 13:33:08

Under extremely hot or cold weather conditions.
The vehicle is driven on bumps, inclines, gravel, or grass covered roads.
Anything which generates ultrasound is near the vehicle, such as another vehicle's
horn, the engine sound of a motorcycle, the air brake sound of a large-sized vehicle, or
another vehicle's sensors.
The vehicle is driven in heavy rain or in road conditions causing water-splash.
A commercially-available fender pole or an antenna for a radio transmitter is installed
to the vehicle.
The vehicle is moving towards a tall or square curbstone.
An obstruction is too close to the sensor.
Obstructions under the bumper may not be detected. Obstructions that are lower than the
bumper or thin which may have been initially detected may no longer be detected as the
vehicle approaches more closely to the obstruction.
The following types of obstructions may not be detected:
Thin objects such as wire or rope
Things which absorb sonic waves easily such as cotton or snow
Angular shaped objects
Very tall objects, and those which are wide at the top
Small, short objects
Always have the system inspected at an Authorized Mazda Dealer if any shock is applied
to the bumpers, even in a minor accident. If the sensors are deviated, they cannot detect
obstructions.
The system may have a malfunction if the b eep does not operate or the indicator light
does not illuminate when the parking sensor switch is turned on. Consult an Authorized
Mazda Dealer.
The system may have a malfunction if the beep sound which indicates a system
malfunction is heard and the indicator light flashes. Consult an Authorized Mazda Dealer.
The beeper which indicates a system malfunction may not be heard if the ambient
temperature is extremely cold, or mud, ice, or snow adheres to the sensor area. Remove
any foreign material from the sensor area.
When installing a trailer hitch, c onsult an Authorized Mazda Dealer.
When Driving
Parking Sensor System (Mazda Connect (Type B))
4-288
CX-9_8LJ2-EA-22H_Edition1_old 2022-6-9 13:33:08

▼Sensor Detection Range
The sensors detect obstructions within the following range.

Front ultrasonic sensor detection range
Front corner ultrasonic sensor detection range Rear ultrasonic sensor detection range
Rear corner ultrasonic sensor detection range
B
A
D
C A: About 55 cm (About 21.6 in)
B: About 55 cm (About 21.6 in)
C: About 100 cm (About 39.3 in)
D: About 150 cm (About 59.0 in)

Viewing distance display
Display
Distance between vehicle and obstruction
Without 360° view moni‐ tor With 360° view monitor Front ultrasonic sensor
*/
Front corner ultrasonic
sensor
*
Rear ultrasonic sensor/Rear corner ultrasonic
sensor
*
Green
Front ultrasonic sensor:Approx. 100―60 cm (39.3―23.6 in) Rear ultrasonic sensor:
Approx. 150―60 cm (59.0―23.6 in)
When Driving
Parking Sensor System (M azda Connect (Type B))
*Some models.4-289
CX-9_8LJ2-EA-22H_Edition1_old 2022-6-9 13:33:08

DisplayDistance between vehicle and obstruction
Without 360° view moni‐ tor With 360° view monitor Front ultrasonic sensor
*/
Front corner ultrasonic
sensor
*
Rear ultrasonic sensor/Rear corner ultrasonic
sensor
*
Yellow
Front ultrasonic sensor:Approx. 60―45 cm (23.6―17.7 in)
Front corner ultrasonic sen‐ sor:
Approx. 55―38 cm (21.6―14.9 in) Rear ultrasonic sensor:
Approx. 60―45 cm (23.6―17.7 in)
Rear corner ultrasonic sen‐ sor:
Approx. 55―38 cm (21.6―14.9 in)
Amber
Front ultrasonic sensor:Approx. 45―35 cm (17.7―13.7 in)
Front corner ultrasonic sen‐ sor:
Approx. 38―25 cm (14.9―9.8 in) Rear ultrasonic sensor:
Approx. 45―35 cm (17.7―13.7 in)
Rear corner ultrasonic sen‐ sor:
Approx. 38―25 cm (14.9―9.8 in)
Red
Front ultrasonic sensor:
Within approx. 35 cm (13.7 in)
Front corner ultrasonic sen‐ sor:
Within approx. 25 cm (9.8 in) Rear ultrasonic sensor:
Within approx. 35 cm (13.7 in)
Rear corner ultrasonic sen‐ sor:
Within approx. 25 cm (9.8 in)
When Driving
Parking Sensor System (M azda Connect (Type B))
4-290*Some models.
CX-9_8LJ2-EA-22H_Edition1_old 2022-6-9 13:33:08

▼Parking Sensor System Operation
The switch can be activated when the ignition is switched ON, t
he selector lever is in any
position except reverse (R), and the vehicle speed is about 10 km/h (6 mph) or less.
When the parking sensor switch is pressed, a beep sound is hear d, the obstruction detection
indication is displayed in the audio screen, and the indicator light in the switch illuminates.

Indicator light
NOTE
If the system is cancelled, it will not restore automatically even when the vehicle speed is
decreased to 10 km/h (6 mph) or less.
When the ignition is switched OFF, the system status before it was turned off is
maintained. For example, if the ignition is switched OFF while the parking sensor is
activated, the system will be activated when the ignition is switched ON the next time.
Sensor detection condition
The system can be used when the ignition is switched ON and the parking sensor switch has
been turned on.
The sensors detect obstructions under the following conditions:
Sensor Condition
Front Ultrasonic Sensor The selector lever is in any po
sition except reverse (R), and the vehicle speed is
about 10 km/h (6 mph) or less.
Front Corner Ultrasonic
Sensor The vehicle speed is about
10 km/h (6 mph) or less.
Rear Ultrasonic Sensor The selector lever is in reverse (R).
Rear Corner Ultrasonic
Sensor The selector lever is in rever
se (R), and the vehicle speed is about 10 km/h (6 mph)
or less.
The system is cancelled under the following conditions:
The parking sensor switch is pressed while the parking sensor i s in operation.
The vehicle speed is 10 km/h (6 mph) or more. (Except rear sens or)
When Driving
Parking Sensor System (Mazda Connect (Type B))
4-291
CX-9_8LJ2-EA-22H_Edition1_old 2022-6-9 13:33:08

▼Obstruction Detection Indication
The position of a sensor which has detected an obstruction is i
ndicated. The gauge
illuminates in different areas d epending on the distance to an obstruction detected by the
sensor.
As the vehicle approaches closer to an obstruction, the zone in the gauge closer to the
vehicle illuminates.
Without 360°view monitor
Left front corner
ultrasonic sensor gauge Right front corner
ultrasonic sensor gauge
Rear ultrasonic sensor gauge
Left rear corner
ultrasonic sensor gauge
Right rear corner
ultrasonic sensor gauge
Front sensor ultrasonic gauge
With 360°vie
w monitor
Rear sensor ultrasonic gauge
Left front corner
ultrasonic sensor gauge
Left rear corner
ultrasonic sensor gauge
Right front corner
ultrasonic sensor gauge
Right rear corner
ultrasonic sensor gauge
Front ultrasonic sensor gauge
NOTE
The detection indicator can be switched between display and non-display and the buzzer
volume can be changed.
Refer to the Settings section in the Mazda Connect Owner's Manual.
(Vehicles with 360° View Monitor)
When the detection indicator is set to “Dis
play”, even with the 360° view monitor not
displayed, if a front ultrasonic sensor or a front corner ultrasonic sensor detects an
obstruction, the 360° view monitor switches automatically to display. When an obstruction
is no longer detected, the display switches to the display before the obstruction was
detected. However, while the 360° view moni tor is displayed, it continues to display no
matter if an obstruction is detected or not.
When Driving
Parking Sensor System (M azda Connect (Type B))
4-292
CX-9_8LJ2-EA-22H_Edition1_old 2022-6-9 13:33:08

System problem notification
The indication displays if the system has a malfunction.
Without 360°view monitor
With 360°view monitor
Check the reason for the indication displaying on the center display or multi-information
display.
Refer to If a Warning Light Turns On or Flashes on page 7-28.
When Driving
Parking Sensor System (M azda Connect (Type B))
4-293
CX-9_8LJ2-EA-22H_Edition1_old 2022-6-9 13:33:08

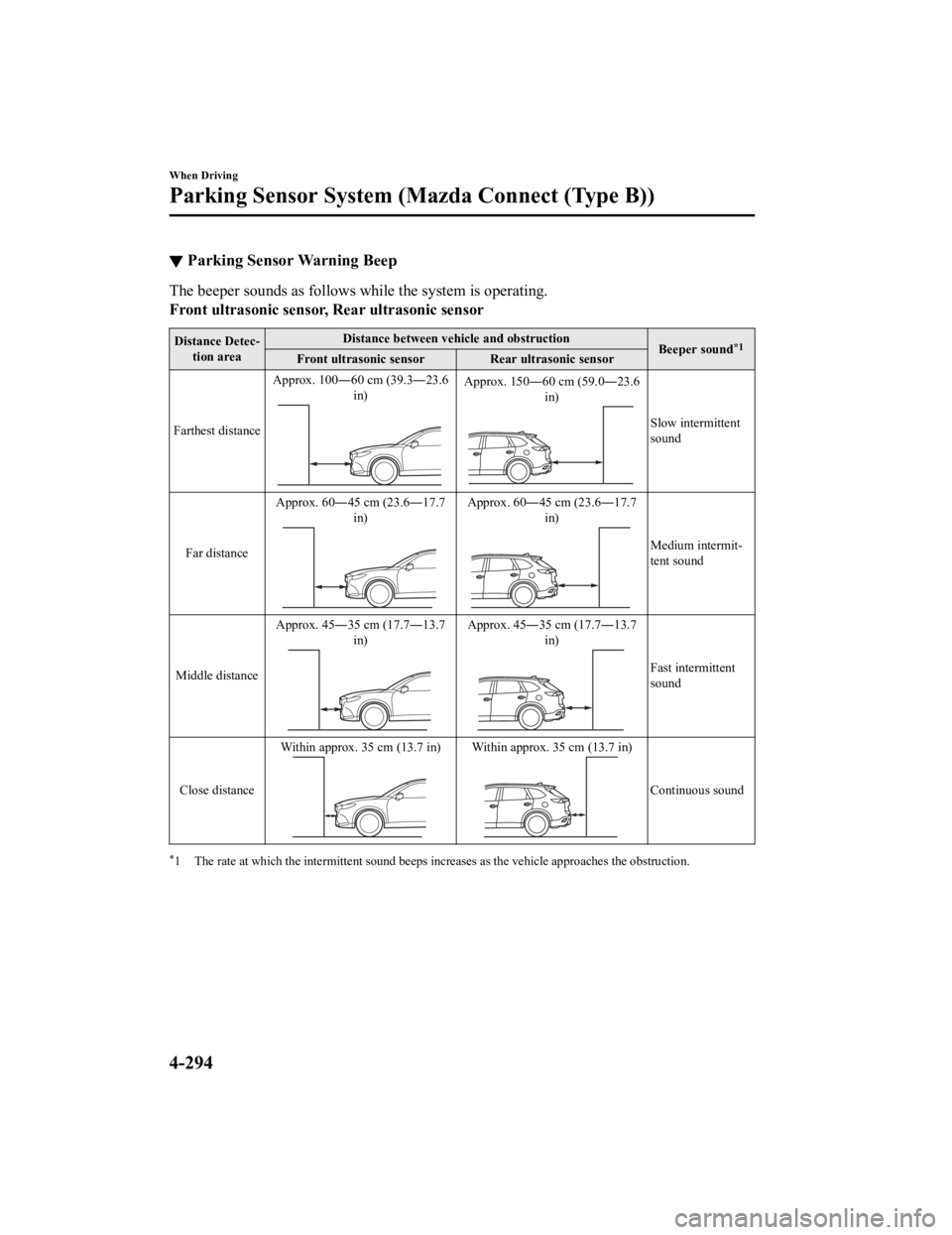

▼Parking Sensor Warning Beep
The beeper sounds as follows while the system is operating.
Front ultrasonic sensor, Rear ultrasonic sensor
Distance Detec‐
tion area Distance between vehicle and obstruction
Beeper sound*1Front ultrasonic sensorRear ultrasonic sensor
Farthest distance Approx. 100―60 cm (39.3―23.6
in)
Approx. 150―60 cm (59.0―23.6in)
Slow intermittent
sound
Far distance Approx. 60―45 cm (23.6―17.7
in)
Approx. 60―45 cm (23.6―17.7in)
Medium intermit‐
tent sound
Middle distance Approx. 45―35 cm (17.7―13.7
in)
Approx. 45―35 cm (17.7―13.7in)
Fast intermittent
sound
Close distance Within approx. 35 cm (13.7 in)
Within approx. 35 cm (13.7 in)
Continuous sound
*1 The rate at which the interm
ittent sound beeps increases as the vehicle approaches the obstruction.
When Driving
Parking Sensor System (Mazda Connect (Type B))
4-294
CX-9_8LJ2-EA-22H_Edition1_old 2022-6-9 13:33:08

Front corner ultrasonic sensor, Rear corner ultrasonic sensor
Distance Detection area Distance between vehicle and obstruction
Beeper sound*1Front corner ultrasonic sensor/Rear corner ultra‐sonic sensor
Far distance Approx. 55―38 cm (21.6―14.9 in)
Medium intermittent sound
Middle distance Approx. 38―25 cm (14.9―9.8 in)
Fast intermittent sound
Close distance Within approx. 25 cm (9.8 in)
Continuous sound
*1 The rate at which the intermitte
nt sound beeps increases as the vehicle approaches the obstruction.
NOTE
If an obstruction is detected in a zone for 6 seconds or more, the beep sound is stopped
(except for the close-distance zone). If the same obstruction is detected in another zone,
the corresponding beep sound is heard.
When Driving
Parking Sensor System (M azda Connect (Type B))
4-295
CX-9_8LJ2-EA-22H_Edition1_old 2022-6-9 13:33:08
