Fig. 25: 6C. Solenoid Test (3 of 4)
Courtesy of MAZDA MOTORS CORP.

1991 Mazda MX-5 Miata
ANTI-LOCK BRAKE SYSTEM 1988-91 BRAKES Mazda Anti-Lock Brake System
Microsoft
Sunday, July 05, 2009 2:17:32 PMPage 29 © 2005 Mitchell Repair Information Company, LLC.

Fig. 26: 6C. Solenoid Test (4 of 4)

1991 Mazda MX-5 Miata
ANTI-LOCK BRAKE SYSTEM 1988-91 BRAKES Mazda Anti-Lock Brake System
Microsoft
Sunday, July 05, 2009 2:17:32 PMPage 30 © 2005 Mitchell Repair Information Company, LLC.

Courtesy of MAZDA MOTORS CORP.
ADJUSTMENTS
PEDAL FREE PLAY
Depress pedal several times to release vacuum. Pedal free play should be .16-.28" (4-7 mm).
PEDAL HEIGHT & STOPLIGHT SWITCH
1. Released pedal height is measured from carpet surface on vertical portion of firewall to pedal pad center.
Disconnect stoplight switch. Move switch away from pedal. Adjust brake pedal push rod until correct
released pedal height is obtained. See BRAKE PEDAL HEIGHT SPECIFICATIONS TABLE.
2. Adjust pedal free play. See PEDAL FREE PLAY under ADJUSTMENTS. Tighten push rod lock nut.
Rotate stoplight switch until it contacts pedal, then rotate an additional 1/2 turn. Tighten stoplight switch
lock nut. Reconnect stoplight switch.
3. The applied pedal height is measured from angled portion of firewall (without carpet) to pedal pad center.
Start engine. Depress brake pedal with 132-lb. (60 kg) pressure.
4. Measure the applied pedal height. If distance is not as specified, check brake adjustment, or check for air
in system. See BRAKE PEDAL HEIGHT SPECIFICATIONS TABLE.
BRAKE PEDAL HEIGHT SPECIFICATIONS
TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS
Application(1) In. (mm)
Pedal Released
Miata & 9296.7-7.1 (171-181)
RX77.2-7.4 (184-189)
Pedal Applied
Miata & 9293.7 (95)
RX73.9 (100)
(1)Minimum height.
ApplicationFt. Lbs. (N.m)
Brake Caliper Mounting Bolts
Miata36-51 (49-69)
RX7
Front58-72 (79-98)
Rear33-40 (45-54)
929
Front61-69 (83-94)

1991 Mazda MX-5 Miata
ANTI-LOCK BRAKE SYSTEM 1988-91 BRAKES Mazda Anti-Lock Brake System
Microsoft
Sunday, July 05, 2009 2:17:32 PMPage 31 © 2005 Mitchell Repair Information Company, LLC.

WIRING DIAGRAMS
Rear12-17 (16-23)
Brake Line Nuts10-16 (14-22)
Hydraulic Unit Mounting Nuts
Miata & 92914-19 (19-26)
RX712-21 (16-28)
Speed Sensor Bolt12-17 (16-23)
Union Bolt14-22 (19-30)
Wheel Bearing Nut (1)
Miata
Front123-159 (167-216)
Rear159-217 (216-294)
RX7
Front(1) 14-22 (19-30)
Rear174-231 (235-314)
929
Front72-130 (98-176)
Rear174-231 (235-314)
(1)Tighten and loosen 2 or 3 times to seat bearing.

1991 Mazda MX-5 Miata
ANTI-LOCK BRAKE SYSTEM 1988-91 BRAKES Mazda Anti-Lock Brake System
Microsoft
Sunday, July 05, 2009 2:17:32 PMPage 32 © 2005 Mitchell Repair Information Company, LLC.

Fig. 27: Anti-Lock Brake System Wiring Diagram (Miata)

1991 Mazda MX-5 Miata
ANTI-LOCK BRAKE SYSTEM 1988-91 BRAKES Mazda Anti-Lock Brake System
Microsoft
Sunday, July 05, 2009 2:17:32 PMPage 33 © 2005 Mitchell Repair Information Company, LLC.

Fig. 28: Anti-Lock Brake System Wiring Diagram (RX7)
Fig. 29: Anti-Lock Brake System Wiring Diagram (929)

1991 Mazda MX-5 Miata
ANTI-LOCK BRAKE SYSTEM 1988-91 BRAKES Mazda Anti-Lock Brake System
Microsoft
Sunday, July 05, 2009 2:17:32 PMPage 34 © 2005 Mitchell Repair Information Company, LLC.

1990-93 DRIVE AXLES
Axle Shafts - MX-5 Miata
DESCRIPTION
The axle shaft is a double offset, constant velocity joint type.
TROUBLE SHOOTING
Check dust boot on axle shaft for cracks, damage, leaking grease, and loose boot bands. Check axle shaft for
bending, cracks, and wear of joints or splines. Repair or replace axle shaft if necessary.
REMOVAL & INSTALLATION
AXLE SHAFTS
Removal
1. Raise vehicle and support with safety stands. Remove wheel and tire assembly. See Fig. 1 . Loosen axle
shaft lock nut until flush with end of axle shaft. Mark differential and axle shaft flanges for installation
reference. See Fig. 2
. Remove axle shaft flange nuts. NOTE: See TROUBLE SHOOTING
- BASIC PROCEDURES article in GENERAL
INFORMATION.
NOTE: Manufacturer recommends using new axle shaft lock nut during
installation.

1991 Mazda MX-5 Miata
1990-93 DRIVE AXLES Axle Shafts - MX-5 Miata

1991 Mazda MX-5 Miata
1990-93 DRIVE AXLES Axle Shafts - MX-5 Miata
Microsoft
Sunday, July 05, 2009 2:16:32 PMPage 1 © 2005 Mitchell Repair Information Company, LLC.
Microsoft
Sunday, July 05, 2009 2:16:36 PMPage 1 © 2005 Mitchell Repair Information Company, LLC.

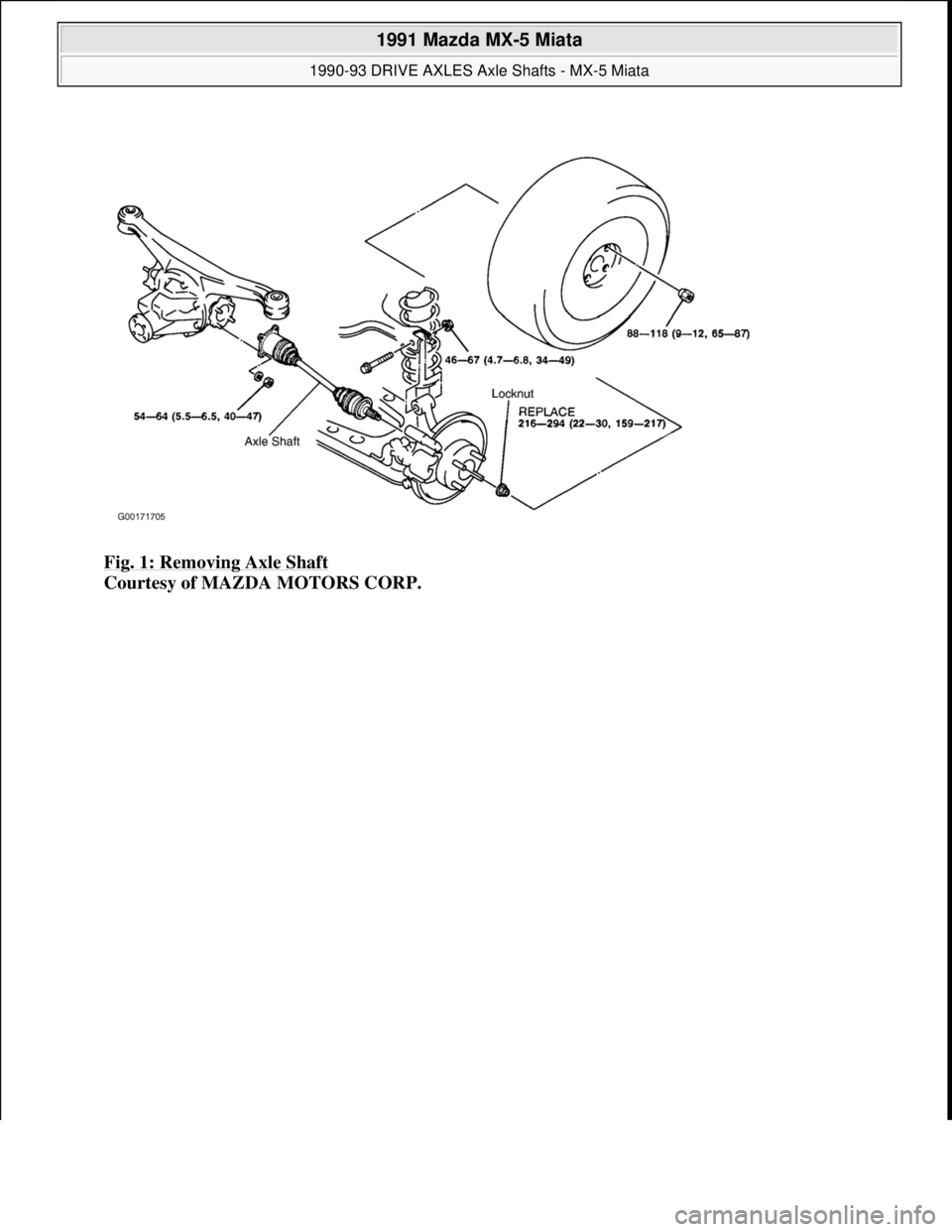

Fig. 1: Removing Axle Shaft
Courtesy of MAZDA MOTORS CORP.

1991 Mazda MX-5 Miata
1990-93 DRIVE AXLES Axle Shafts - MX-5 Miata
Microsoft
Sunday, July 05, 2009 2:16:33 PMPage 2 © 2005 Mitchell Repair Information Company, LLC.

Fig. 2: Identifying Differential-To-Axle Shaft Flange Mark
Courtesy of MAZDA MOTORS CORP.

1991 Mazda MX-5 Miata
1990-93 DRIVE AXLES Axle Shafts - MX-5 Miata
Microsoft
Sunday, July 05, 2009 2:16:33 PMPage 3 © 2005 Mitchell Repair Information Company, LLC.

Fig. 3: Removing Axle Shaft From Hub Assembly
Courtesy of MAZDA MOTORS CORP.
2. Remove upper control arm bolt, and pull knuckle/hub assembly outward. Remove inner CV joint from
differential flange. Remove axle shaft from knuckle/hub assembly. If axle shaft is stuck in knuckle/hub
assembly, use plastic or soft-faced hammer to tap axle shaft from knuckle/hub assembly. See Fig. 3
.
Remove axle shaft lock nut.
Installation
To install, reverse removal procedure. Align marks on differential and axle shaft flanges. Check rear wheel
alignment. See appropriate article in WHEEL ALIGNMENT. Tighten all bolts and nuts to specification. See
TORQUE SPECIFICATIONS
. Stake axle shaft lock nut. See Fig. 4.
NOTE: Manufacturer recommends using new axle shaft lock nut during installation.

1991 Mazda MX-5 Miata
1990-93 DRIVE AXLES Axle Shafts - MX-5 Miata
Microsoft
Sunday, July 05, 2009 2:16:33 PMPage 4 © 2005 Mitchell Repair Information Company, LLC.
