1991 Mazda MX-5 Miata
ANTI-LOCK BRAKE SYSTEM 1988-91 BRAKES Mazda Anti-Lock Brake System
Microsoft
Sunday, July 05, 2009 2:17:32 PMPage 19 © 2005 Mitchell Repair Information Company, LLC.
Page 172 of 392

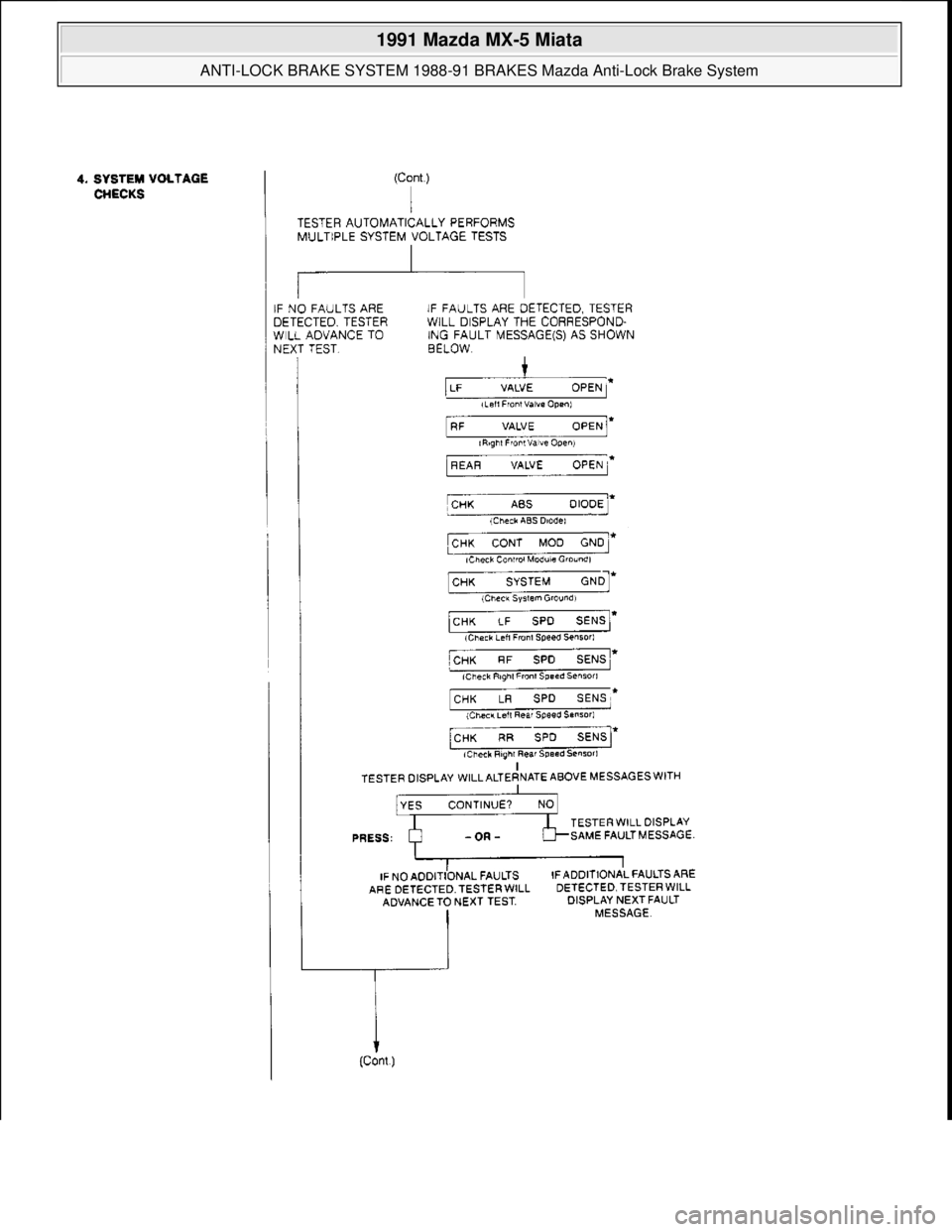

Fig. 16: Test 4 System Voltage Test
Courtesy of MAZDA MOTORS CORP.
TEST 5A. ANTI-LOCK LIGHT TEST
Fig. 17: Test 5A. Anti
-Lock Light Test
Courtesy of MAZDA MOTORS CORP.
TEST 5B. BRAKE LIGHT SWITCH TEST
1991 Mazda MX-5 Miata
ANTI-LOCK BRAKE SYSTEM 1988-91 BRAKES Mazda Anti-Lock Brake System
Microsoft
Sunday, July 05, 2009 2:17:32 PMPage 20 © 2005 Mitchell Repair Information Company, LLC.
Page 173 of 392
Fig. 18: Test 5B. Brake Light Switch Test
Courtesy of MAZDA MOTORS CORP.
TEST 5C. PUMP TEST
1991 Mazda MX-5 Miata
ANTI-LOCK BRAKE SYSTEM 1988-91 BRAKES Mazda Anti-Lock Brake System
Microsoft
Sunday, July 05, 2009 2:17:32 PMPage 21 © 2005 Mitchell Repair Information Company, LLC.
Page 174 of 392

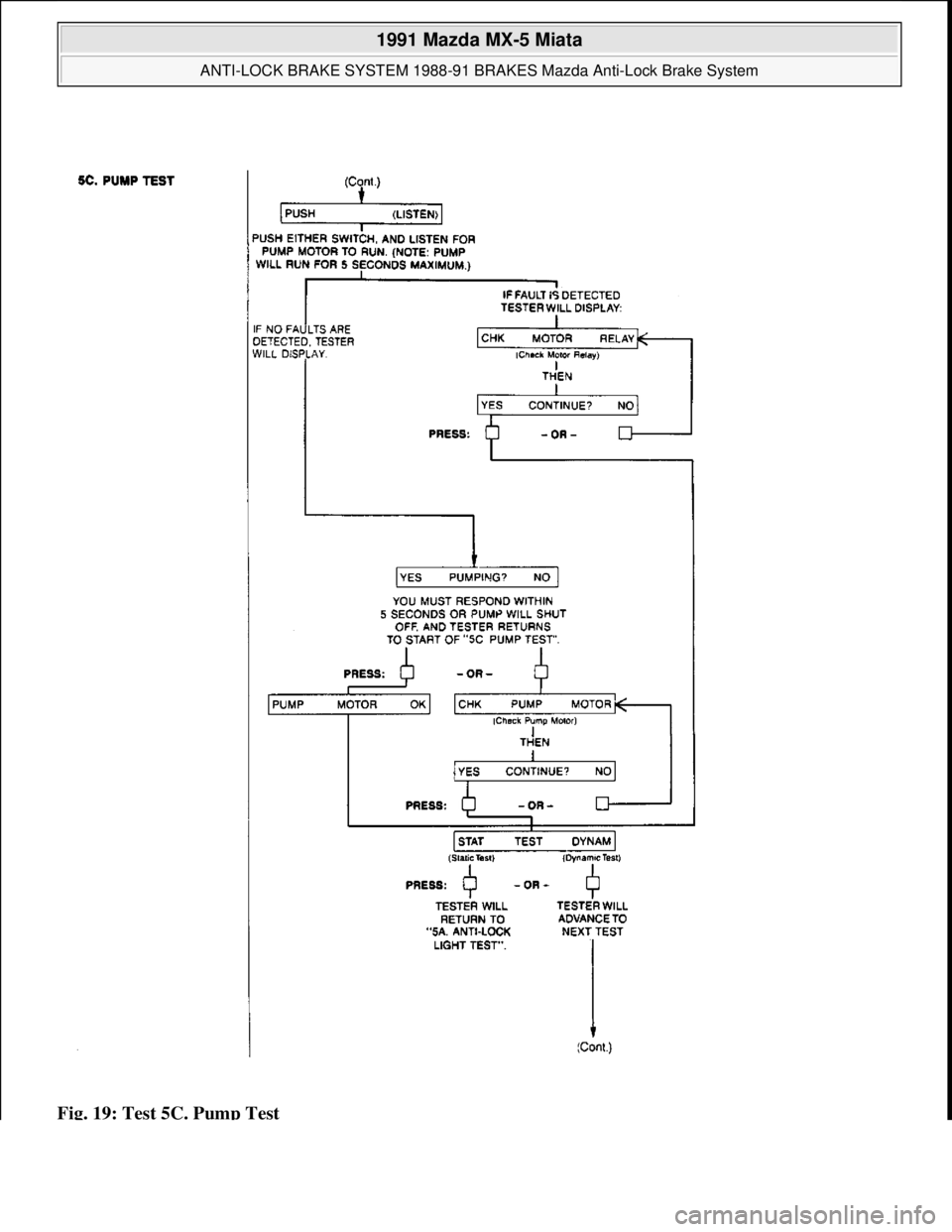

Fig. 19: Test 5C. Pump Test
1991 Mazda MX-5 Miata
ANTI-LOCK BRAKE SYSTEM 1988-91 BRAKES Mazda Anti-Lock Brake System
Microsoft
Sunday, July 05, 2009 2:17:32 PMPage 22 © 2005 Mitchell Repair Information Company, LLC.
Page 175 of 392
Courtesy of MAZDA MOTORS CORP.
6A. DYNAMIC WHEEL SELECTION TEST OR EXIT
WHEEL SELECTION TEST
These three messages will alternate on the dispaly screen at 3 1/2 second intervals. Now, select one of the four
wheels to begin the dynamic test sequence.
EXIT
Press either switch under "PUSH TO EXIT" Display to return to "STAT TEST DYNAM" Selection.
NOTE: When entering the dynamic test sequence, you will select one of four wheels to
begin. When you have finished with that wheel test, you should return to 6A.
WHEEL SELECTION TEST to select another wheel, and repeat these test
procedures for all four wheels
1991 Mazda MX-5 Miata
ANTI-LOCK BRAKE SYSTEM 1988-91 BRAKES Mazda Anti-Lock Brake System
Microsoft
Sunday, July 05, 2009 2:17:32 PMPage 23 © 2005 Mitchell Repair Information Company, LLC.
Page 176 of 392
Fig. 20: 6A. Dynamic Wheel Selection Test
Courtesy of MAZDA MOTORS CORP.
6B. DYNAMIC WHEEL SENSOR TEST
1991 Mazda MX-5 Miata
ANTI-LOCK BRAKE SYSTEM 1988-91 BRAKES Mazda Anti-Lock Brake System
Microsoft
Sunday, July 05, 2009 2:17:32 PMPage 24 © 2005 Mitchell Repair Information Company, LLC.
Page 177 of 392
Fig. 21: 6B. Dynamic Wheel Sensor Test (1 of 2)
Courtesy of MAZDA MOTORS CORP.
1991 Mazda MX-5 Miata
ANTI-LOCK BRAKE SYSTEM 1988-91 BRAKES Mazda Anti-Lock Brake System
Microsoft
Sunday, July 05, 2009 2:17:32 PMPage 25 © 2005 Mitchell Repair Information Company, LLC.
Page 178 of 392
Fig. 22: 6B. Dynamic Wheel Sensor Test (2 of 2)
Courtesy of MAZDA MOTORS CORP.
6C. SOLENOID TEST
1991 Mazda MX-5 Miata
ANTI-LOCK BRAKE SYSTEM 1988-91 BRAKES Mazda Anti-Lock Brake System
Microsoft
Sunday, July 05, 2009 2:17:32 PMPage 26 © 2005 Mitchell Repair Information Company, LLC.
Page 179 of 392

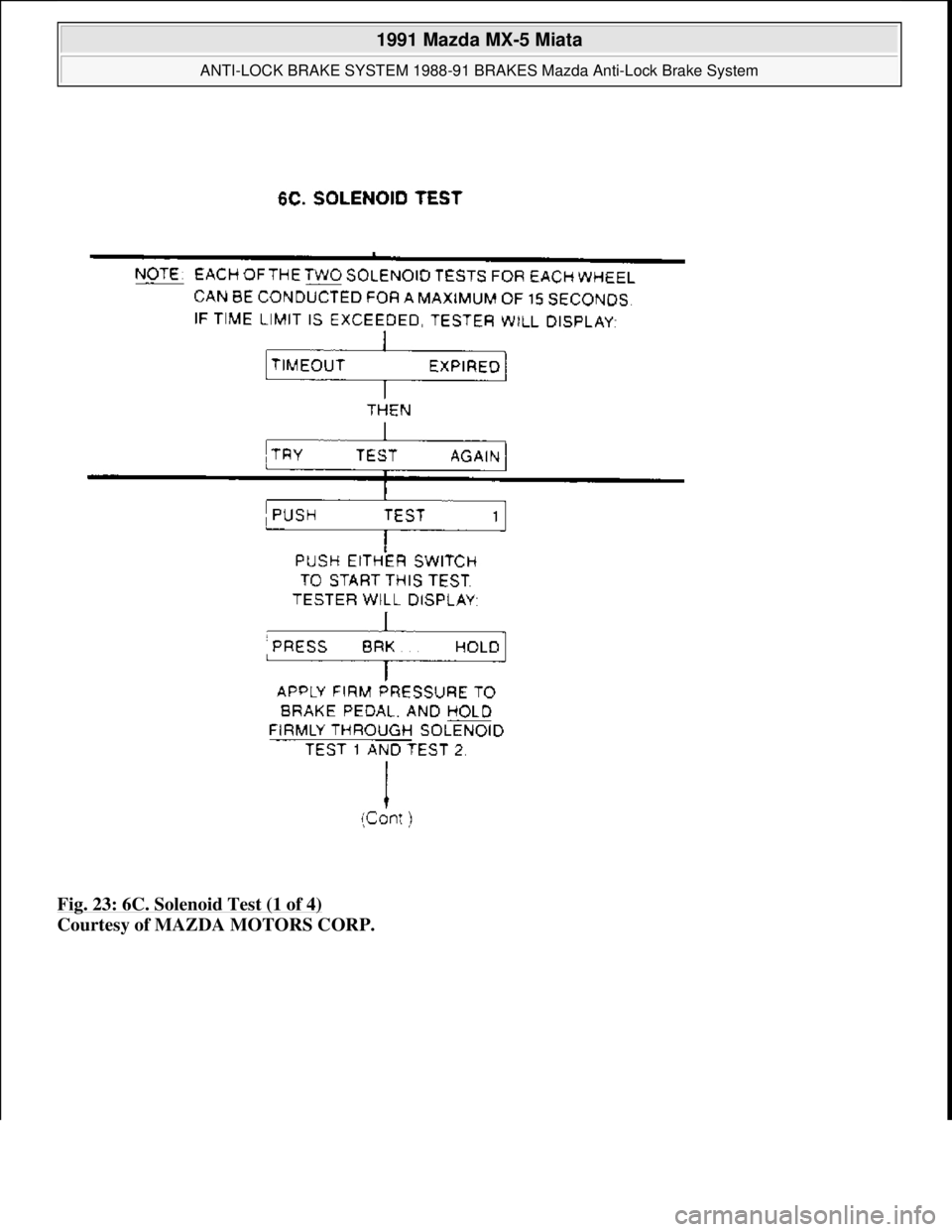

Fig. 23: 6C. Solenoid Test (1 of 4)
Courtesy of MAZDA MOTORS CORP.
1991 Mazda MX-5 Miata
ANTI-LOCK BRAKE SYSTEM 1988-91 BRAKES Mazda Anti-Lock Brake System
Microsoft
Sunday, July 05, 2009 2:17:32 PMPage 27 © 2005 Mitchell Repair Information Company, LLC.
Page 180 of 392

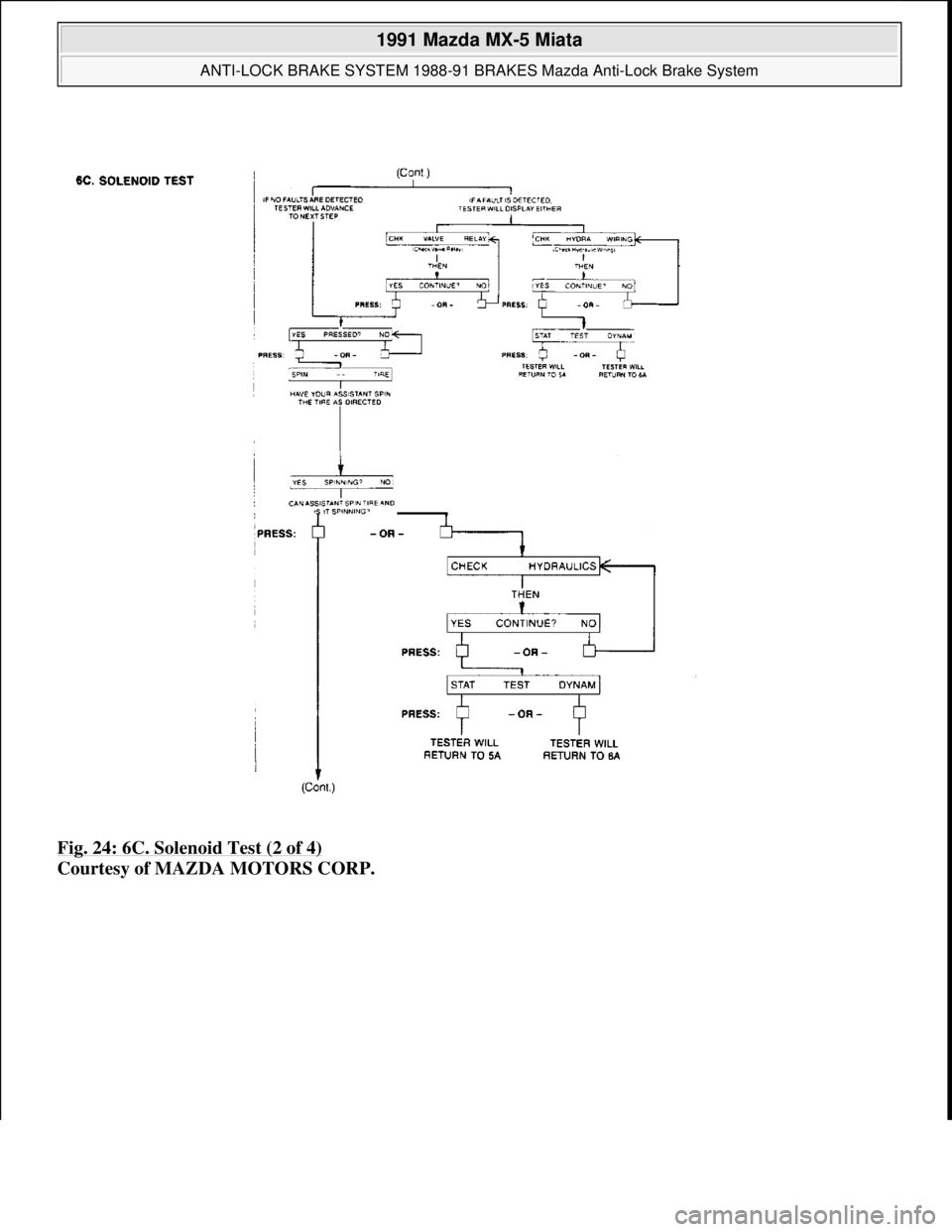

Fig. 24: 6C. Solenoid Test (2 of 4)
Courtesy of MAZDA MOTORS CORP.
