5–31
Interior Features
Audio Set [Type A (non-touchscreen)]
Tuning
The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.
Manual tuning
Select the station by pressing the tuning
button (
, ) lightly.
Seek tuning
Automatic search for radio stations starts
when the tuning button (
, ) is pressed
until a beep sound is heard. The search
stops when a station is found.
NOTE
If you continue to press and hold the
button, the frequency will continue
changing without stopping.
Scan tuning
Press and hold the scan button (
) to
automatically sample strong stations.
Scanning stops at each station for about 5
seconds. To hold a station, press and hold
the scan button (
) again during this
interval. Preset channel tuning
The 6 preset channels can be used to
store 6 AM (Without Radio Data System
(RDS)), MW/LW (With Radio Data
System (RDS)) and 12 FM stations.

1. To set a channel ¿ rst select AM
(Without Radio Data System (RDS)),
MW/LW (With Radio Data System
(RDS)), FM1, or FM2. Tune to the
desired station.
2. Press a channel preset button for
about 2 seconds until a beep is heard.
The preset channel number or station
frequency will be displayed. The
station is now held in the memory.
3. Repeat this operation for the other
stations and bands you want to store.
To tune one in the memory, select AM
(Without Radio Data System (RDS)),
MW/LW (With Radio Data System
(RDS)), FM1, or FM2 and then press
its channel preset button. The station
frequency or the channel number will
be displayed.

5–35
Interior Features
Audio Set [Type A (non-touchscreen)]
Playback
Press the media button ( ) to switch
to CD mode and start playback.
NOTE
The CD mode cannot be selected if a
CD has not been inserted.
Pause
To stop playback, press the Play/Pause
button ( 4 ).
Press the button again to resume playback.
Fast-forward/Reverse
Press and hold the fast-forward button (
)
to advance through a track at high speed.
Press and hold the reverse button (
) to
reverse through a track at high speed.
Track search
Press the track up button (
) once to skip
forward to the beginning of the next track.
Press the track down button (
) within a
few seconds after playback begins to track
down to the beginning of the previous
track.
Press the track down button (
) after a
few seconds have elapsed to start playback
from the beginning of the current track.
Folder search (during MP3/WMA/AAC
CD playback)
To change to the previous folder, press the
folder down button (
), or press the folder
up button (
) to advance to the next
folder.
Music scan
During music CD playback
This function scans the titles on a CD and
plays 10 seconds of each song to aid you
in ¿ nding a song you want to listen to.
Press and hold the scan button (
)
during playback to start the scan play
operation (the track number will À ash).
Press and hold the scan button (
)
again to cancel scan playback.
During MP3/WMA/AAC CD playback
This function scans the titles in a folder
currently being played and plays 10
seconds of each song to aid you in ¿ nding
a song you want to listen to. Press and
hold the scan button (
) during
playback to start the scan play operation
(the track number will À ash).
Press and hold the scan button (
)
again to cancel scan playback.
NOTE
If the unit is left in scan, normal
playback will resume where scan was
selected.
Repeat playback
During music CD playback
1. Press the repeat button ( 1 ) during
playback to play the current track
repeatedly. “ TRACK RPT ” is displayed
(
is displayed next to RPT at the
bottom of the display area).
2. Press the button again to cancel the
repeat playback.

5–38
Interior Features
Audio Set [Type A (non-touchscreen)]
How to use USB mode
Media/Scan button
Folder down button Folder up button Play/Pause button Random button
Repeat buttonAudio display
Text button
Track down/Reverse button
Track up/Fast-forward button
Type Playable data
USB mode MP3/WMA/AAC ¿ le

This unit does not support a USB 3.0
device. In addition, other devices may not
be supported depending on the model or
OS version.
Playback
1. Switch the ignition to ACC or ON.
2. Press the power/volume dial to turn the
audio system on.
3. Press the media button (
) to
switch to the USB mode and start
playback.

NOTE
  Some devices such as smart phones
may require a setting change to allow
operation using a USB connection.
  When the USB device is not
connected, the mode does not switch
to USB mode.
  When there is no playable data in the
USB device, “ NO CONTENTS ” is
À ashed.

 Playback of the USB device is in the
order of the folder numbers. Folders
which have no MP3/WMA/AAC
¿ les are skipped.

 Do not remove the USB device while
in the USB mode. The data may be
damaged.
Pause
To stop playback, press the play/pause
button ( 4 ).
Press the button again to resume playback.
Fast-forward/Reverse
Press and hold the fast-forward button (
)
to advance through a track at high speed.
Press and hold the reverse button (
) to
reverse through a track at high speed.

5–42
Interior Features
Audio Set [Type A (non-touchscreen)]
How to use iPod mode
Media/Scan buttonList down button List up button Play/Pause button
Random button
Repeat buttonAudio display
Text button
Track down/Reverse button
Track up/Fast-forward buttonCategory down button
Category up button
An iPod may not be compatible depending
on the model or OS version. In this case,
an error message is displayed.
NOTE
The iPod functions on the iPod cannot
be operated while it is connected to the
unit because the unit controls the iPod
functions.
Playback
1. Switch the ignition to ACC or ON.
2. Press the power/volume dial to turn the
audio system on.
3. Press the media button (
) to
switch to the iPod mode and start
playback.

NOTE
  When an iPod is not connected, the
mode does not switch to the iPod
mode.
  When there is no playable data in the
iPod, “ NO CONTENTS ” is À ashed.

 Do not remove the iPod while in the
iPod mode. Otherwise, the data could
be damaged.
Pause
To stop playback, press the play/pause
button ( 4 ).
Press the button again to resume playback.
Fast-forward/Reverse
Press and hold the fast-forward button (
)
to advance through a track at high speed.
Press and hold the reverse button (
) to
reverse through a track at high speed.

5–46
Interior Features
Audio Set [Type A (non-touchscreen)]
*Some models.
Bluetooth ® *
Introduction
Bluetooth ® Hands-Free outline
When a Bluetooth
® device (mobile phone) is connected to the vehicle's Bluetooth ® unit via
radio wave transmission, a call can be made or received by pressing the talk button, pick-
up button, or hang-up button on the audio remote control switch, or by operating the centre
display. For example, even if a device (mobile phone) is in your coat pocket, a call can be
made without taking the device (mobile phone) out and operating it directly.
Bluetooth
® audio outline
When a portable audio unit equipped with the Bluetooth
® communication function is paired
to the vehicle, you can listen to music stored on the paired portable audio device from the
vehicle's speakers. It is not necessary to connect the portable audio device to the vehicle's
external input terminal. After programming, operate the vehicle audio control panel to play/
stop the audio.

NOTE
  For your safety, a device can be paired only when the vehicle is parked. If the vehicle
starts to move, the pairing procedure will end. Park the vehicle in a safe place before
pairing.
  The communication range of a Bluetooth ® equipped device is about 10 meters (32 ft)
or less.
  Basic audio operation is available using voice commands even if Bluetooth ® is not
connected.
  For safety reasons, operation of the centre display is disabled while the vehicle is being
driven. However, items not displayed in grey can be operated using the commander
switch while the vehicle is being driven.

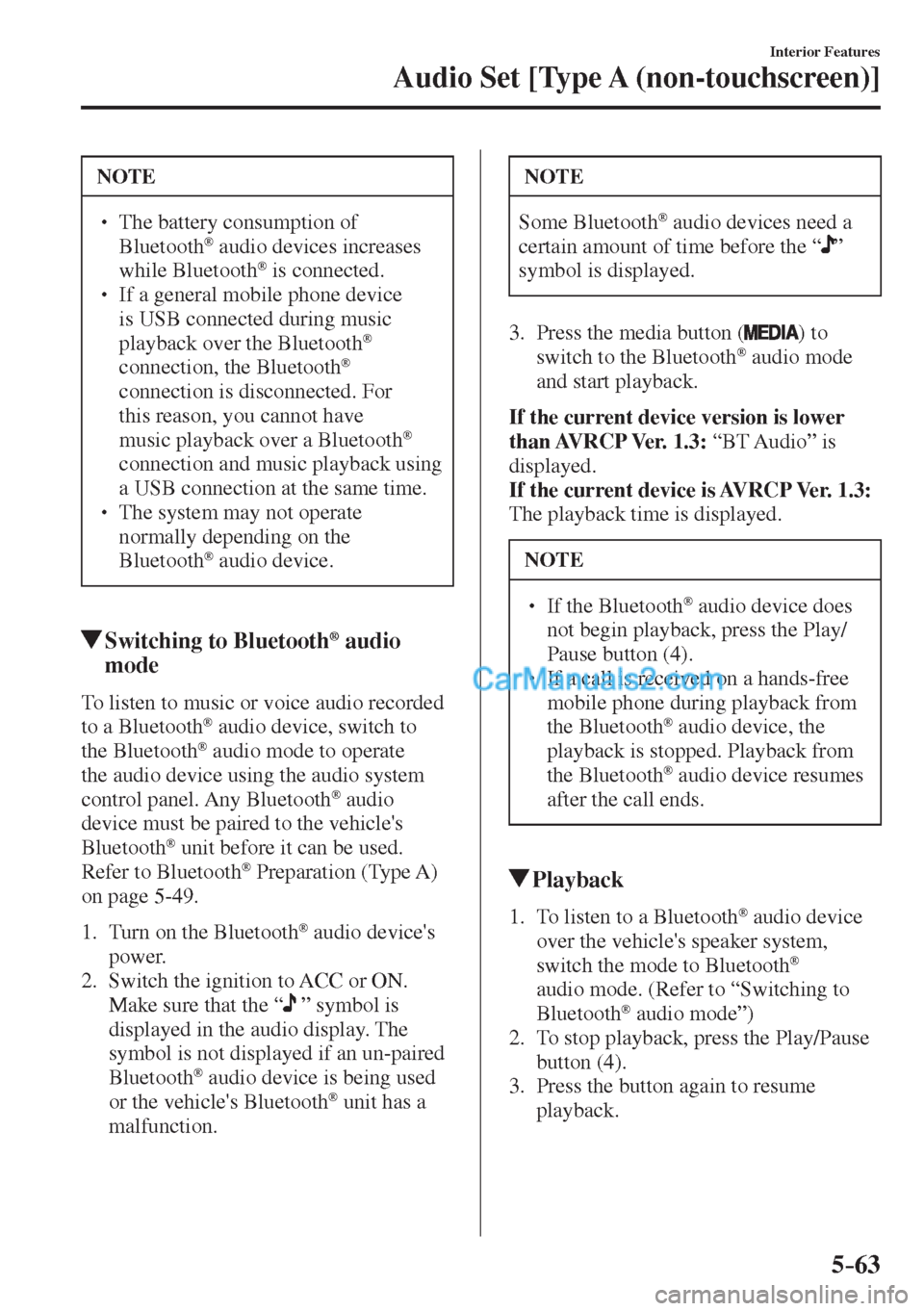

5–63
Interior Features
Audio Set [Type A (non-touchscreen)]
NOTE
  The battery consumption of
Bluetooth ® audio devices increases
while Bluetooth ® is connected.   If a general mobile phone device
is USB connected during music
playback over the Bluetooth
®
connection, the Bluetooth ®
connection is disconnected. For
this reason, you cannot have
music playback over a Bluetooth
®
connection and music playback using
a USB connection at the same time.
  The system may not operate
normally depending on the
Bluetooth
® audio device.
Switching to Bluetooth ® audio
mode
To listen to music or voice audio recorded
to a Bluetooth ® audio device, switch to
the Bluetooth ® audio mode to operate
the audio device using the audio system
control panel. Any Bluetooth
® audio
device must be paired to the vehicle's
Bluetooth
® unit before it can be used.
Refer to Bluetooth ® Preparation (Type A)
on page 5-49 .

1. Turn on the Bluetooth ® audio device's
power.
2. Switch the ignition to ACC or ON.
Make sure that the “
” symbol is
displayed in the audio display. The
symbol is not displayed if an un-paired
Bluetooth
® audio device is being used
or the vehicle's Bluetooth ® unit has a
malfunction.
NOTE
Some Bluetooth ® audio devices need a
certain amount of time before the “
”
symbol is displayed.
3. Press the media button (
) to
switch to the Bluetooth ® audio mode
and start playback.

If the current device version is lower
than AVRCP Ver. 1.3: “ BT Audio ” is
displayed.
If the current device is AVRCP Ver. 1.3:
The playback time is displayed.
NOTE
  If the Bluetooth ® audio device does
not begin playback, press the Play/
Pause button (4).
  If a call is received on a hands-free
mobile phone during playback from
the Bluetooth
® audio device, the
playback is stopped. Playback from
the Bluetooth
® audio device resumes
after the call ends.
Playback
1. To listen to a Bluetooth ® audio device
over the vehicle's speaker system,
switch the mode to Bluetooth
®
audio mode. (Refer to “Switching to
Bluetooth
® audio mode”)
2. To stop playback, press the Play/Pause
button (4).
3. Press the button again to resume
playback.

5–78
Interior Features
Audio Set [Type A (non-touchscreen)]
Voice recognition related problems
Symptom Cause Solution method
Poor voice recognition
Excessive, slow speech.
Excessive, forceful speech
(shouting).

Speaking before the beep sound
has ended.

 Loud noise (speaking or noise from
outside/inside vehicle).

 A i rÀ ow from A/C is blowing
against the microphone.

 Speaking in off-standard
expressions (dialect).
Regarding the causes indicated
on the left, be careful with how
you speak. In addition, when
numbers are spoken in a sequence,
recognition ability will improve
if no stop is placed between the
numbers. False recognition of numbers
Poor voice recognition There is a malfunction in the
microphone. A poor connection or malfunction
with the microphone may have
occurred. Consult an expert repairer,
we recommend an Authorised
Mazda Repairer.
Phone-related voice recognition is
disabled There is a problem with the
connection between the Bluetooth
®
unit and the device. If there is any malfunction after
checking the pairing situation, check
for device pairing or connection
problems.
Names in the phonebook are not
easily recognised The Bluetooth
® system is under a
condition in which recognition is
dif¿ cult. By carrying out the following
measures, the rate of recognition
will improve.
Clear memory from the phonebook
which is not used very often.

 Avoid shortened names, use full
names. (Recognition improves the
longer the name is. By not using
names such as “Mum”, “Dad”,
recognition will improve.)

When operating the audio, a song
name is not recognised Song names cannot be recognised
by voice. —
You want to skip guidance — Guidance can be skipped by quickly
pressing and releasing the Talk
button.

Regarding problems with calls
Symptom Cause Solution method
When starting a call, vehicle noise
from the other party can be heard For about three seconds after
starting a call, the Bluetooth
®
unit's Noise Suppression function
requires time to adapt to the call
environment. This does not indicate a problem
with the device.
The other party cannot be heard or
the speaker's voice is quiet The volume is set at zero or low. Increase the volume.

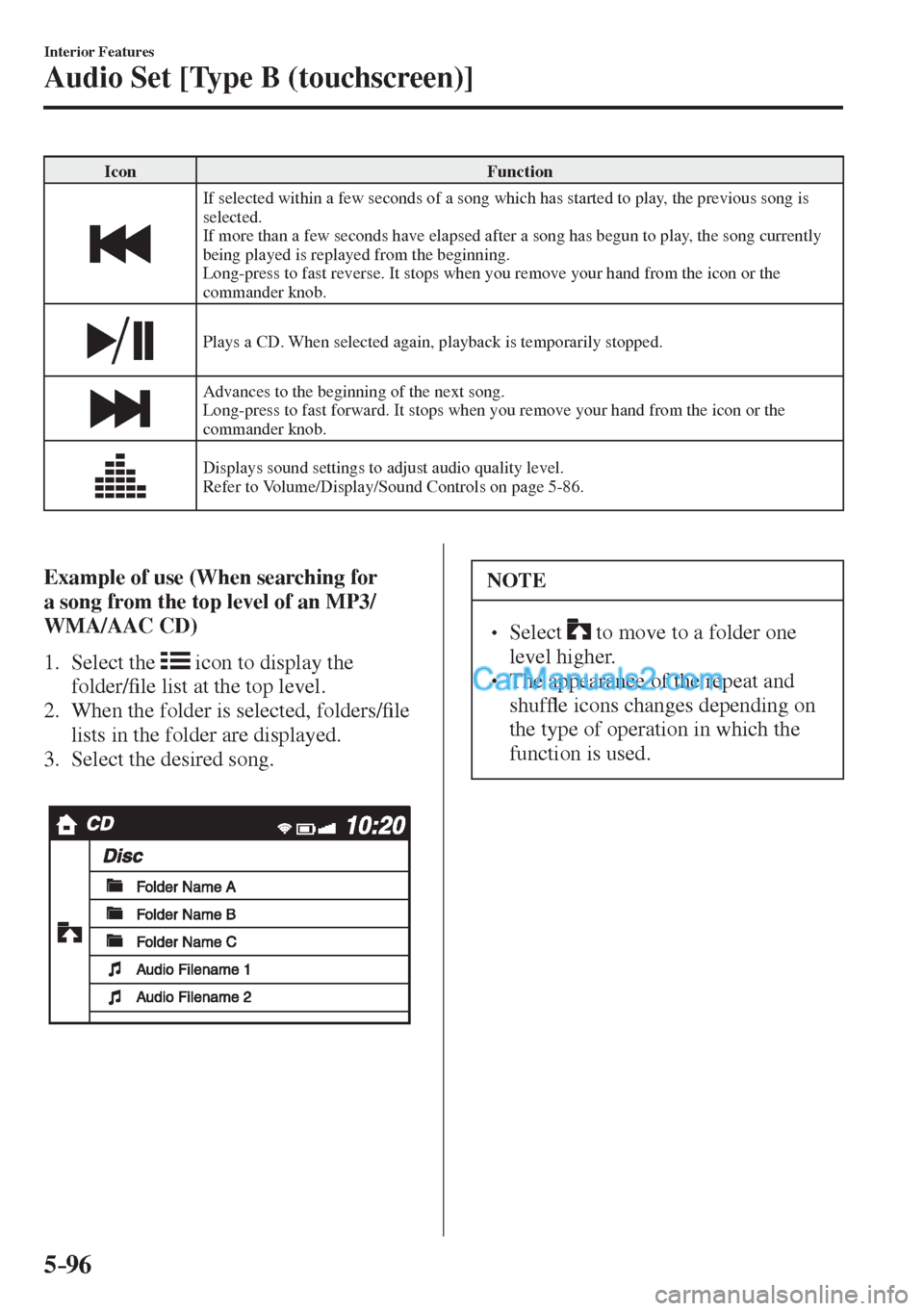

5–96
Interior Features
Audio Set [Type B (touchscreen)]
Icon Function

If selected within a few seconds of a song which has started to play, the previous song is
selected.
If more than a few seconds have elapsed after a song has begun to play, the song currently
being played is replayed from the beginning.
Long-press to fast reverse. It stops when you remove your hand from the icon or the
commander knob.

Plays a CD. When selected again, playback is temporarily stopped.

Advances to the beginning of the next song.
Long-press to fast forward. It stops when you remove your hand from the icon or the
commander knob.

Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on page 5-86 .

Example of use (When searching for
a song from the top level of an MP3/
WMA/AAC CD)
1. Select the
icon to display the
folder/¿ le list at the top level.
2. When the folder is selected, folders/¿ le
lists in the folder are displayed.
3. Select the desired song.



NOTE
  Select to move to a folder one
level higher.
  The appearance of the repeat and
shufÀ e icons changes depending on
the type of operation in which the
function is used.

5–98
Interior Features
Audio Set [Type B (touchscreen)]
Playback
Select the icon on the home screen with a DVD inserted and display the Entertainment
screen. When
is selected, the DVD top menu screen and the controller are displayed.
When starting the playback by operating the controller, the following icons are displayed at
the bottom of the screen.

Icon Function

Displays the Entertainment menu. Use to switch to a different audio source.

Returns to the DVD menu screen.

Returns to the beginning of the previous chapter if the icon is selected within a few seconds
after the playback of the current chapter has started.
Returns to the beginning of the current chapter if the icon is selected a few seconds after the
playback of the current chapter has started.
Long-press during playback to fast reverse.
Long-press during pause to play in reverse in slow motion. It stops when you remove your
hand from the icon or the commander knob.

Plays the DVD. Select again to pause the playback.

Advances to the beginning of the next chapter.
Long-press during playback to fast forward.
Long-press during pause to play in slow motion. It stops when you remove your hand from
the icon or the commander knob.

Changes camera angle each time the icon is selected (usable DVDs only).

Changes display/non-display of the sub titles (usable DVDs only).

Changes the parental lock setting.
Parental lock level and PIN code setting changes are possible.

Pauses the playback and displays the DVD setting screen.
Select
to adjust the sound quality.
Refer to Volume/Display/Sound Controls on page 5-86 .
Select
to change the aspect ratio (horizontal to vertical ratio of the screen).
16:9 Widescreen, 4:3 Letterbox, and 4:3 Pan-scan are available.

Adjusts the screen.
Displays the video setting screen at the bottom of the screen.

5–99
Interior Features
Audio Set [Type B (touchscreen)]
NOTE
  For safety reasons, images are not
displayed while the vehicle is being
driven.
  Slide the of the controller to
move the controller.
  If the mode is switched to DVD
mode once the DVD playback
has stopped, the playback restarts
without displaying the DVD menu
screen.
Setting DVD functions
Sound quality and aspect ratio settings can
be performed.
Setting sound quality
1. Select the
icon.
2. Select
to adjust the sound
quality.
Refer to Volume/Display/Sound
Controls on page 5-86 .

Setting aspect ratio
1. Select the
icon.
2. Select
.
3. Select a desired aspect ratio.

Setting image quality
Brightness, contrast, tint, colour density
can be adjusted.
When the
icon is selected, the following
tabs are displayed at the bottom of the
screen.

Tab Function

Screen brightness can be
adjusted using the slider.

Screen contrast can be
adjusted using the slider.

Colour tone of the screen
can be adjusted using the
slider.

Screen colour can be
adjusted using the slider.

Screen settings can be reset
to initial values.
Select .
