5–101
Interior Features
Audio Set [Type B (touchscreen)]
How to use USB mode
Type Playable data
USB mode MP3/WMA/AAC/OGG ¿ le

This unit does not support a USB 3.0 device. In addition, other devices may not be
supported depending on the model or OS version.
USB devices formatted to FAT32 are supported (USB devices formatted to other formats
such as NTFS are not supported).
Playback
1. Select the icon on the home screen to display the Entertainment screen.
2. Select
or to switch the USB mode. The following icons are displayed in the
lower part of the centre display.

Icon Function

Displays the Entertainment menu. Use to switch to a different audio source.

Category list is displayed.

Current track list is displayed.
Select a desired track to play it.

Plays the current track repeatedly.
Select it again to play the tracks in the current track list repeatedly.
When selected again, the function is cancelled.

Tracks in the current track list are played randomly.
Select it again to cancel.

Starts playing a track similar to the current track using Gracenote's More Like This
™.
Select the desired song from the category list to cancel More Like This™.

If selected within a few seconds from the beginning of a song which has started to play, the
previous song is selected.
If more than a few seconds have elapsed, the song currently being played is replayed from
the beginning.
Long-press to fast reverse. It stops when you remove your hand from the icon or the
commander knob.

Track is played. When selected again, playback is temporarily stopped.

5–107
Interior Features
Audio Set [Type B (touchscreen)]
Bluetooth ®
Introduction
Bluetooth ® Hands-Free outline
When a Bluetooth
® device (mobile phone) is connected to the vehicle's Bluetooth ® unit via
radio wave transmission, a call can be made or received by pressing the talk button, pick-
up button, or hang-up button on the audio remote control switch, or by operating the centre
display. For example, even if a device (mobile phone) is in your coat pocket, a call can be
made without taking the device (mobile phone) out and operating it directly.
Bluetooth
® audio outline
When a portable audio unit equipped with the Bluetooth
® communication function is paired
to the vehicle, you can listen to music stored on the paired portable audio device from the
vehicle's speakers. It is not necessary to connect the portable audio device to the vehicle's
external input terminal. After programming, operate the vehicle audio control panel to play/
stop the audio.

NOTE
  For your safety, a device can be paired only when the vehicle is parked. If the vehicle
starts to move, the pairing procedure will end. Park the vehicle in a safe place before
pairing.
  The communication range of a Bluetooth ® equipped device is about 10 meters (32 ft)
or less.
  Basic audio operation is available using voice commands even if Bluetooth ® is not
connected.
  For safety reasons, operation of the centre display is disabled while the vehicle is being
driven. However, items not displayed in grey can be operated using the commander
switch while the vehicle is being driven.

5–121
Interior Features
Audio Set [Type B (touchscreen)]
Example of use (Location Based
Services)
1. Select the desired station from the
“Nearby” tab on the main menu.
The destination name or address
playback starts in the order of the
destination name list.


2. When the
icon is selected, the
currently displayed destination is
displayed on the navigation system
(vehicles with navigation system).
3. When the
icon is selected, a phone
call is placed to the currently displayed
destination.
4. Select the
icon to display the
content list.
Selection of other destinations from the
list can be made.


Shout
Some social stations, such as Facebook or
Caraoke, support the ability to record and
share voice messages using the “Shout”
function.

1. Select the icon and start the
countdown (3, 2, 1, 0). Recording starts
when the countdown reaches zero.
2. Records voice.
3. Select
and store/post the
recording.

NOTE
  Recordable time varies depending on
the station (Max. 30 seconds).
  Recording stops automatically when
the recordable time has elapsed. You
can then post or delete the recording.

5–142
Interior Features
Audio Set [Type B (touchscreen)]
Voice recognition related problems
Symptom Cause Solution method
Poor voice recognition
Excessive, slow speech.
Excessive, forceful speech
(shouting).

Speaking before the beep sound
has ended.

Loud noise (speaking or noise from
outside/inside vehicle).

A i rÀ ow from A/C is blowing
against the microphone.

Speaking in off-standard
expressions (dialect). Regarding the causes indicated
on the left, be careful with how
you speak. In addition, when
numbers are spoken in a sequence,
recognition ability will improve
if no stop is placed between the
numbers. False recognition of numbers
Poor voice recognition There is a malfunction in the
microphone. A poor connection or malfunction
with the microphone may have
occurred. Consult an expert repairer,
we recommend an Authorised
Mazda Repairer.
Phone-related voice recognition is
disabled There is a problem with the
connection between the Bluetooth
®
unit and the device. If there is any malfunction after
checking the pairing situation, check
for device pairing or connection
problems.
Names in the phonebook are not
easily recognised The Bluetooth
® system is under a
condition in which recognition is
dif¿ cult. By carrying out the following
measures, the rate of recognition
will improve.
Clear memory from the phonebook
which is not used very often.

Avoid shortened names, use full
names. (Recognition improves the
longer the name is. By not using
names such as “Mum”, “Dad”,
recognition will improve.)
When operating the audio, a song
name is not recognised Song names cannot be recognised
by voice. —
You want to skip guidance — Guidance can be skipped by quickly
pressing and releasing the talk
button.

Regarding problems with calls
Symptom Cause Solution method
When starting a call, vehicle noise
from the other party can be heard For about three seconds after
starting a call, the Bluetooth
®
unit's Noise Suppression function
requires time to adapt to the call
environment. This does not indicate a problem
with the device.
The other party cannot be heard or
the speaker's voice is quiet The volume is set at zero or low. Increase the volume.

7–29
If Trouble Arises
Overheating
O v e r h e a t i n g
If the high engine coolant temperature
warning light turns on, the vehicle loses
power, or you hear a loud knocking or
pinging noise, the engine is probably too
hot.
WARNING
Pull over to a safe location, then
switch the ignition off and make sure
the fan is not running before
attempting to work near the cooling
fan:
Working near the cooling fan when it
is running is dangerous. The fan could
continue running inde¿ nitely even if
the engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.

Do not remove either
cooling system cap when the engine
and radiator are hot:
When the engine and radiator are hot,
scalding coolant and steam may shoot
out under pressure and cause serious
injury.

Open the bonnet ONLY after steam is
no longer escaping from the engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you.
If the high engine coolant temperature
warning light turns on:


1. Drive safely to the side of the road and
park off the right-of-way.
2. Put a vehicle with an automatic
transaxle in park (P), a manual
transaxle in neutral.
3. Apply the parking brake.
4. Turn off the air conditioner.
5. Check whether coolant or steam is
escaping from the engine compartment.

If steam is coming from the engine
compartment:
Do not go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the bonnet and start the engine.

If neither coolant nor steam is
escaping:
Open the bonnet and idle the engine
until it cools.
CAUTION
If the cooling fan does not operate
while the engine is running, the engine
temperature will increase. Stop the
engine and call an expert repairer,
we recommend an Authorised Mazda
Repairer.
6. Make sure the cooling fan is operating,
then turn off the engine after the
temperature has decreased.
7. When cool, check the coolant level.
If it is low, look for coolant leaks from
the radiator and hoses.

7–35
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
If a Warning Light Turns On or Flashes
If any warning light turns on/À ashes, take appropriate action for each light. There is no
problem if the light turns off, however if the light does not turn off or turns on/À ashes again,
consult an Authorised Mazda Repairer.
(Vehicles with type B audio)
The warning contents can be veri¿ ed on the centre display.

1. If the warning light is turned on, select icon on the home screen to display the
application screen.
2. Select “Vehicle Status Monitor”.
3. Select “Warning Guidance” to display the current warnings.
4. Select the applicable warning to view the warning details.

Stop Vehicle in Safe Place Immediately
If any of the following warning lights turns on, the system may have a malfunction. Stop the
vehicle in a safe place immediately and contact an Authorised Mazda Repairer.

Signal Warning


Brake System Warning
Light
This warning has the following functions:
Parking brake warning/Warning light inspection
The light illuminates when the parking brake is applied with the ignition switched to
START or ON. It turns off when the parking brake is fully released.
Low brake À uid level warning
If the brake warning light remains illuminated even though the parking brake is
released, the brake À uid may be low or there could be a problem with the brake
system. Park the vehicle in a safe place immediately and contact an expert repairer, we
recommend an Authorised Mazda Repairer.
WARNING
Do not drive with the brake system warning light illuminated. Contact an expert
repairer, we recommend an Authorised Mazda Repairer to have the brakes
inspected as soon as possible:
Driving with the brake system warning light illuminated is dangerous. It
indicates that your brakes may not work at all or that they could completely fail
at any time. If this light remains illuminated, after checking that the parking
brake is fully released, have the brakes inspected immediately.
CAUTION
In addition, the effectiveness of the braking may diminish so you may need to
depress the brake pedal more strongly than normal to stop the vehicle.

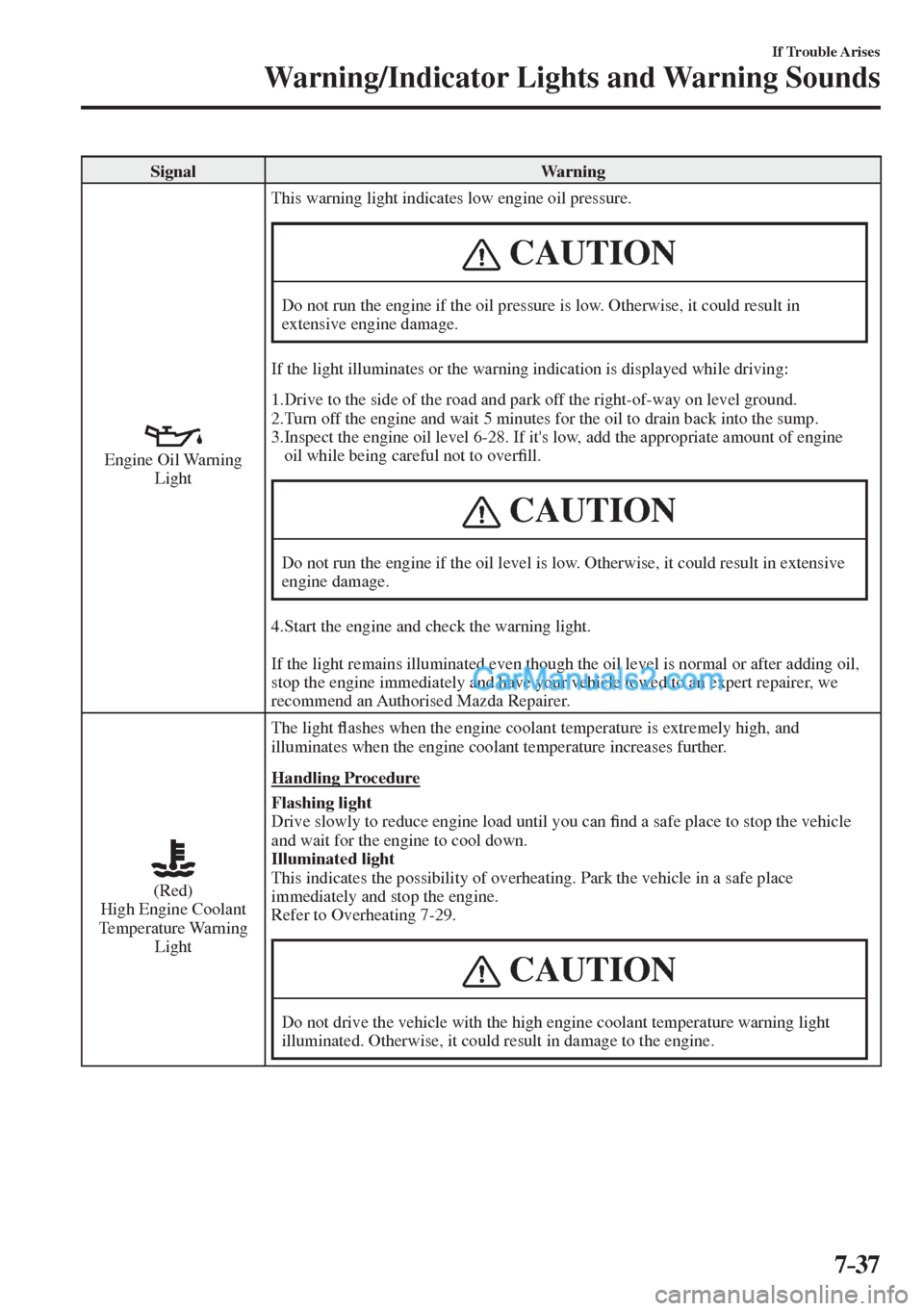

7–37
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Signal Warning


Engine Oil Warning
Light This warning light indicates low engine oil pressure.
CAUTION
Do not run the engine if the oil pressure is low. Otherwise, it could result in
extensive engine damage.
If the light illuminates or the warning indication is displayed while driving:
1. Drive to the side of the road and park off the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes for the oil to drain back into the sump.
3. Inspect the engine oil level 6-28 . If it's low, add the appropriate amount of engine
oil while being careful not to over¿ ll.
CAUTION
Do not run the engine if the oil level is low. Otherwise, it could result in extensive
engine damage.
4. Start the engine and check the warning light.

If the light remains illuminated even though the oil level is normal or after adding oil,
stop the engine immediately and have your vehicle towed to an expert repairer, we
recommend an Authorised Mazda Repairer.


(Red)
High Engine Coolant
Temperature Warning
Light
The light À ashes when the engine coolant temperature is extremely high, and
illuminates when the engine coolant temperature increases further.
Handling Procedure
Flashing light
Drive slowly to reduce engine load until you can ¿ nd a safe place to stop the vehicle
and wait for the engine to cool down.
Illuminated light
This indicates the possibility of overheating. Park the vehicle in a safe place
immediately and stop the engine.
Refer to Overheating 7-29 .
CAUTION
Do not drive the vehicle with the high engine coolant temperature warning light
illuminated. Otherwise, it could result in damage to the engine.

7–38
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Signal Warning


Power Steering
Malfunction Indicator
Light The light illuminates/À ashes if the electric power steering has a malfunction.
If the light illuminates/À ashes, stop the vehicle in a safe place and do not operate the
steering wheel. There is no problem if the light turns off after a while. Contact an
expert repairer, we recommend an Authorised Mazda Repairer if the light illuminates/
À ashes continuously.
NOTE
If the indicator light illuminates/À ashes, the power steering will not operate
normally. In this happens, the steering wheel can still be operated, however, the
operation may feel heavy compared to normal, or the steering wheel could vibrate
when turning.

Repeatedly jerking the steering wheel left and right while the vehicle is stopped
or moving extremely slowly will cause the power steering system to go into
protective mode which will make the steering feel heavy, but this does not indicate
a problem. If this occurs, park the vehicle safely and wait several minutes for the
system to return to normal.

Contact Authorised Mazda Repairer and Have Vehicle Inspected
If any of the following warning lights turns on/À ashes, the system may have a malfunction.
Contact an expert repairer, we recommend an Authorised Mazda Repairer to have your
vehicle inspected.

Signal Warning


ABS Warning Light If the ABS warning light stays on while you're driving, the ABS control unit has detected a
system malfunction. If this occurs, your brakes will function normally as if the vehicle had
no ABS.
Should this happen, consult an expert repairer, we recommend an Authorised Mazda
Repairer as soon as possible. NOTE
When the engine is jump-started to charge the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs, it is the result of the weak battery and
does not indicate an ABS malfunction.

(With DSC vehicles)
The brake assist system does not operate while the ABS warning light is illuminated.

7–44
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning Action to be taken


Seat Belt
Warning Light
(Front seat) The seat belt warning light turns on if the
driver or front passenger's seat is occupied
and the seat belt is not fastened with the
ignition switched ON.
If the driver or front passenger's seat belt is
unfastened (only when the front passenger
seat is occupied) and the vehicle is driven at
a speed faster than about 20 km/h (12 mph),
the warning light À ashes. After a short time,
the warning light stops À ashing, but remains
illuminated. If a seat belt remains unfastened,
the warning light À ashes again for a given
period of time.
NOTE
If the driver or front passenger's seat
belt is unfastened after the warning light
turns on, and the vehicle speed exceeds
20 km/h (12 mph), the warning light
À ashes again.

Placing heavy items on the front
passenger's seat may cause the front
passenger's seat belt warning function
to operate depending on the weight of
the item.

To allow the front passenger's seat
weight sensor to function properly, do
not place and sit on an additional seat
cushion on the front passenger's seat.
The sensor may not function properly
because the additional seat cushion could
cause sensor interference.

If a small child is seated on the front
passenger's seat, the warning light may
not operate. Fasten the seat belts.


(Red)
Seat Belt
Warning Light
(Rear seat)
* If the rear seat belts are not fastened while the
ignition is switched ON , the driver and the
passenger are alerted by the warning light.
The warning light operates even if there is no
passenger on the rear seat.
NOTE
If a rear seat belt is not fastened by a
certain period of time after the engine has
been started, the warning light turns off. Fasten the seat belts.

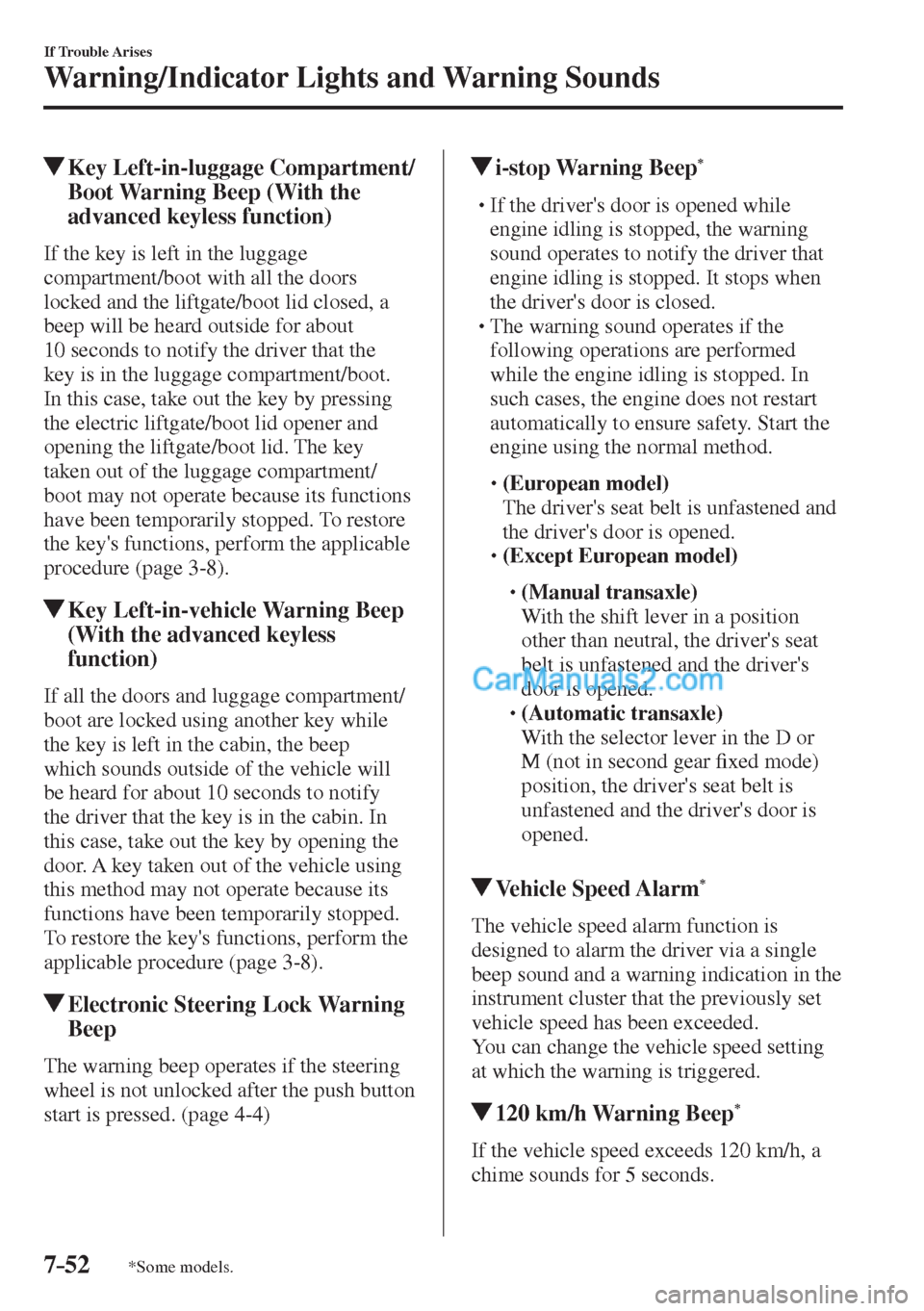

7–52
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Key Left-in-luggage Compartment/
Boot Warning Beep (With the
advanced keyless function)
If the key is left in the luggage
compartment/boot with all the doors
locked and the liftgate/boot lid closed, a
beep will be heard outside for about
10 seconds to notify the driver that the
key is in the luggage compartment/boot.
In this case, take out the key by pressing
the electric liftgate/boot lid opener and
opening the liftgate/boot lid. The key
taken out of the luggage compartment/
boot may not operate because its functions
have been temporarily stopped. To restore
the key's functions, perform the applicable
procedure (page 3-8 ).
Key Left-in-vehicle Warning Beep
(With the advanced keyless
function)
If all the doors and luggage compartment/
boot are locked using another key while
the key is left in the cabin, the beep
which sounds outside of the vehicle will
be heard for about 10 seconds to notify
the driver that the key is in the cabin. In
this case, take out the key by opening the
door. A key taken out of the vehicle using
this method may not operate because its
functions have been temporarily stopped.
To restore the key's functions, perform the
applicable procedure (page 3-8 ).
Electronic Steering Lock Warning
Beep
The warning beep operates if the steering
wheel is not unlocked after the push button
start is pressed. (page 4-4 )
i-stop Warning Beep *
















 If the driver's door is opened while
engine idling is stopped, the warning
sound operates to notify the driver that
engine idling is stopped. It stops when
the driver's door is closed.



 The warning sound operates if the
following operations are performed
while the engine idling is stopped. In
such cases, the engine does not restart
automatically to ensure safety. Start the
engine using the normal method.



 (European model)
 The driver's seat belt is unfastened and
the driver's door is opened.



 (Except European model)



 (Manual transaxle)
 With the shift lever in a position
other than neutral, the driver's seat
belt is unfastened and the driver's
door is opened.



 (Automatic transaxle)
 With the selector lever in the D or
M (not in second gear ¿ xed mode)
position, the driver's seat belt is
unfastened and the driver's door is
opened.


Vehicle Speed Alarm *
The vehicle speed alarm function is
designed to alarm the driver via a single
beep sound and a warning indication in the
instrument cluster that the previously set
vehicle speed has been exceeded.
You can change the vehicle speed setting
at which the warning is triggered.
120 km/h Warning Beep *
If the vehicle speed exceeds 120 km/h, a
chime sounds for 5 seconds.
