Maintenance and Care
Owner Maintenance

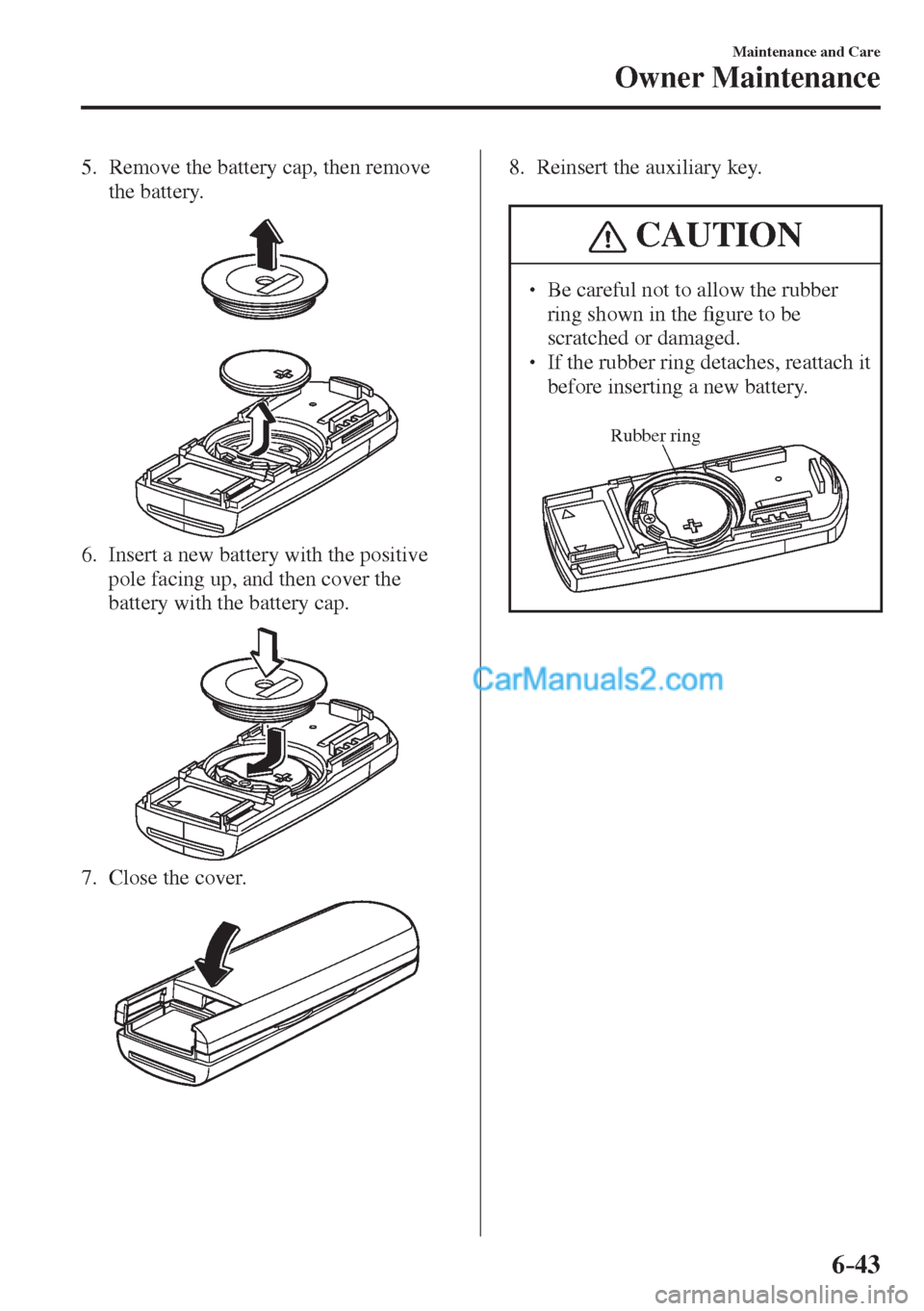

5. Remove the battery cap, then remove
the battery.


6. Insert a new battery with the positive
pole facing up, and then cover the
battery with the battery cap.


7. Close the cover.

8. Reinsert the auxiliary key.

CAUTION
  Be careful not to allow the rubber
ring shown in the ¿ gure to be
scratched or damaged.
  If the rubber ring detaches, reattach it
before inserting a new battery.


Rubber ring

6–44
Maintenance and Care
Owner Maintenance
*Some models.
Ty r e s
For reasons of proper performance, safety,
and better fuel economy, always maintain
recommended tyre inÀ ation pressures and
stay within the recommended load limits
and weight distribution.
WARNING
Using Different Tyre Types:
Driving your vehicle with different
types of tyres is dangerous. It could
cause poor handling and poor braking;
leading to loss of control.
Except for the limited use of the
temporary spare tyre, use only the same
type tyres (radial, bias-belted, bias-type)
on all four wheels.

Using Wrong-Sized Tyres:
Using any other tyre size than what is
speci¿ ed for the vehicle (page 9-10 )
is dangerous. It could seriously affect
ride, handling, ground clearance,
tyre clearance, and speedometer
calibration. This could cause you to
have an accident. Use only tyres that
are the correct size speci¿ ed for the
vehicle.
Ty r e I nÀ ation Pressure
WARNING
Always inÀ ate the tyres to the correct
pressure:
OverinÀ ation or underinÀ ation of tyres
is dangerous. Adverse handling or
unexpected tyre failure could result in
a serious accident.
Refer to Tyres on page 9-10 .

Use only a Mazda-genuine tyre valve
cap:
Use of a non-genuine part is dangerous
as the correct tyre air pressure cannot
be maintained if the tyre valve becomes
damaged. If the vehicle is driven under
this condition, the tyre air pressure
will decrease which could result in a
serious accident. Do not use any part
for the tyre valve cap that is not a
Mazda-genuine part.
Inspect all tyre pressures monthly
(including the spare
* ) when the tyres are
cold. Maintain recommended pressures for
the best ride, handling, and minimum tyre
wear.
Refer to the speci¿ cation charts (page
9-10 ).
(With tyre pressure monitoring system)
After adjusting the tyre pressure,
initialization of the tyre pressure
monitoring system is necessary to make
the system operate normally.
Refer to Tyre Pressure Monitoring System
Initialization on page 4-192 .

6–45
Maintenance and Care
Owner Maintenance
NOTE
  Always check tyre pressure when
tyres are cold.
  Warm tyres normally exceed
recommended pressures. Do not
release air from warm tyres to adjust
the pressure.
  UnderinÀ ation can cause reduced
fuel economy, uneven and
accelerated tyre wear, and poor
sealing of the tyre bead, which
will deform the wheel and cause
separation of tyre from rim.
  OverinÀ ation can produce a harsh
ride, uneven and accelerated tyre
wear, and a greater possibility of
damage from road hazards.
 Keep your tyre pressure at the correct
levels. If one frequently needs
inÀ ating, have it inspected.
Tyre Rotation
WARNING
Rotate tyres periodically:
Irregular tyre wear is dangerous. To
equalize tread wear for maintaining
good performance in handling and
braking, rotate the tyres every
10,000 km (6,250 miles), or sooner if
irregular wear develops.
During rotation, inspect them for correct
balance.
NOTE
(Without temporary spare tyre)
Because your vehicle is not equipped
with a spare tyre, you cannot do a tyre
rotation safely with the jack that comes
with your vehicle. Have an expert
repairer, we recommend an Authorised
Mazda Repairer perform tyre rotation.


Do not include (TEMPORARY USE ONLY)
spare tyre in rotation.Forward

Also, inspect them for uneven wear and
damage. Abnormal wear is usually caused
by one or a combination of the following:




 Incorrect tyre pressure



 Improper wheel alignment



 Out-of-balance wheel



 Severe braking

After rotation, inÀ ate all tyre pressures to
speci¿ cation (page 9-10 ) and inspect the
wheel nuts for tightness.
(With tyre pressure monitoring system)
After adjusting the tyre pressure,
initialization of the tyre pressure
monitoring system is necessary to make
the system operate normally.
Refer to Tyre Pressure Monitoring System
Initialization on page 4-192 .

6–46
Maintenance and Care
Owner Maintenance
*Some models.
CAUTION
Rotate unidirectional tyres and radial
tyres that have an asymmetrical tread
pattern or studs only from front to rear,
not from side to side. Tyre performance
will be reduced if rotated from side to
side.
Replacing a Tyre
WARNING
Always use tyres that are in good
condition:
Driving with worn tyres is dangerous.
Reduced braking, steering, and traction
could result in an accident.

Replace all four tyres at the same time:
Replacing just one tyre is dangerous.
It could cause poor handling and poor
braking resulting in loss of vehicle
control. Mazda strongly recommends
that you replace all four tyres at the
same time. If a tyre wears evenly, a wear indicator
will appear as a solid band across the
tread.
Replace the tyre when this happens.

New treadTread wear indicator
Worn tread

You should replace the tyre before the
band crosses the entire tread.
(With tyre pressure monitoring system)
After adjusting the tyre pressure,
initialization of the tyre pressure
monitoring system is necessary to make
the system operate normally.
Refer to Tyre Pressure Monitoring System
Initialization on page 4-192 .
Temporary Spare Tyre *
Inspect the temporary spare tyre at least
monthly to make sure it is properly
inÀ ated and stored.
NOTE
The temporary spare tyre condition
gradually deteriorates even if it has not
been used.
The temporary spare tyre is easier to
handle because of its construction which
is lighter and smaller than a conventional
tyre. This tyre should be used only for an
emergency and only for a short distance.

6–47
Maintenance and Care
Owner Maintenance
*Some models.
Use the temporary spare tyre only until
the conventional tyre is repaired, which
should be as soon as possible.

Refer to Tyre on page 9-10 .
CAUTION
  Do not use your temporary spare
tyre rim with a snow tyre or a
conventional tyre. Neither will
properly ¿ t and could damage both
tyre and rim.
  The temporary spare tyre has a tread
life of less than 5,000 km (3,000
miles). The tread life may be shorter
depending on driving conditions.
  The temporary spare tyre is for
limited use, however, if the tread
wear solid-band indicator appears,
replace the tyre with the same type of
temporary spare (page 6-46 ).
Replacing a Wheel
WARNING
Always use wheels of the correct size
on your vehicle:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be affected, leading to loss of
control and an accident.
CAUTION
A wrong-sized wheel may adversely
affect:

 Tyre ¿ t
 Wheel and bearing life
 Ground clearance
 Snow-chain clearance
 Speedometer calibration
 Headlight aim
 Bumper height
 Tyre Pressure Monitoring System *
NOTE

 When replacing a wheel, make
sure the new one is the same as the
original factory wheel in diameter,
rim width, and offset (inset/outset).
  For details, contact an expert
repairer, we recommend an
Authorised Mazda Repairer.

Proper tyre balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tyres can cause
vibration and uneven wear, such as
cupping and À at spots.

6–48
Maintenance and Care
Owner Maintenance
Light Bulbs

Saloon Hatchback With LED Headlights
With Halogen Headlights
(Without Adaptive LED Headlights (ALH))
(With Adaptive LED Headlights (ALH))

6–49
Maintenance and Care
Owner Maintenance
*Some models.
Headlights (Low/High beam)

Headlights (Low beam)

Headlights (High beam)

Running lights * /Position lights

Front fog lights *

Front direction indicator lights

Side direction indicator lights

Brake lights/Tail lights

Rear direction indicator lights

Reverse lights

Rear fog light (Left-hand drive model) *

Rear fog light (Right-hand drive model) *

Rear fog light *

High-mount brake light

Number plate lights

Overhead lights (Front)/Map lights *

Overhead lights (Rear) *

Boot light (Saloon)

Luggage compartment light (Hatchback)

6–50
Maintenance and Care
Owner Maintenance
WARNING
Never touch the glass portion of a
halogen bulb with your bare hands
and always wear eye protection when
handling or working around the bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurised gas. If one is broken, it will
explode and serious injuries could be
caused by the À ying glass.
If the glass portion is touched with bare
hands, body oil could cause the bulb to
overheat and explode when lit.

Always keep halogen bulbs out of the
reach of children:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
CAUTION
When removing the lens or lamp unit
using a À athead screwdriver, make
sure that the À athead screwdriver does
not contact the interior terminal. If
the À athead screwdriver contacts the
terminal, a short circuit may occur.
NOTE
  To replace the bulb, contact an
expert repairer, we recommend an
Authorised Mazda Repairer.
  If the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.
  Use the protective cover and carton
for the replacement bulb to dispose
of the old bulb promptly and out of
the reach of children.
Replacing Exterior Light Bulbs
Headlights (With LED headlights)
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with
the unit. We recommend an Authorised
Mazda Repairer when the replacement is
necessary.
Headlights (With halogen headlights)
1. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the left, and turn off engine.
If you are changing the left bulb, turn
the steering wheel to the right, and turn
off engine.
2. Make sure the headlight switch is off.

6–51
Maintenance and Care
Owner Maintenance
3. Pull the centre of each plastic retainer
and remove the retainers.


Removal
Installation

4. Turn the screw anticlockwise and
remove it, and then partially peel back
the mudguard.



5. Disconnect the connector from the
bulb.


6. Detach the sealing cover from the bulb.


Retaining spring
Sealing cover

7. Unhook the bulb retaining spring.
8. Swing the retaining spring out and
away to free the headlight bulb.
9. Carefully remove the headlight bulb
from the socket by pulling it straight
back.
10. Replace the bulb.
11. Install the new bulb in the reverse order
of the removal procedure.

NOTE
  To replace the bulb, contact an
expert repairer, we recommend an
Authorised Mazda Repairer.
  If the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.
  Use the protective cover and carton
of the replacement bulb to dispose
of the old bulb promptly out of the
reach of children.
  When reinstalling the sealing cover,
make sure it is ¿ tted correctly.

6–52
Maintenance and Care
Owner Maintenance
*Some models.
Running lights/Position lights (With
LED headlights)
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with
the unit. We recommend an Authorised
Mazda Repairer when the replacement is
necessary.
Front direction indicator lights,
Running lights
* /Position lights (With
halogen headlights)
1. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the left, and turn off engine.
If you are changing the left bulb, turn
the steering wheel to the right, and turn
off engine.
2. Make sure the headlight switch is off.
3. Pull the centre of each plastic retainer
and remove the retainers.


Removal
Installation
4. Turn the screw anticlockwise and
remove it, and then partially peel back
the mudguard.



5. Turn the socket and bulb assembly
anticlockwise and remove it.
