Maintenance and Care
Scheduled Maintenance
Maintenance
Interval Number of months or kilometres (miles), whichever comes ¿ rst.
Months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96
×1000 km 10 20 30 40 50 60 70 80 90
100 110 120 130 140 150 160
×1000 miles 6.25 12.5 18.75 25 31.25 37.5 43.75 50 56.25 62.5 68.75 75 81.25 87.5 93.75 100
Air ¿ lter *7 Except
below
countries C C R C C R C C
Georgia/
Armenia C R C R C R C R
Fuel lines and hoses I I I I I I I I
Battery
*8 I I I I I I I I
Brake lines, hoses and connections I I I I I I I I
Brake À uid
*9 I I I R I I I R I I I R I I I R
Parking brake I I I I I I I I I I I I I I I I
Power brake unit (Brake booster)
and hoses I I I I I I I I
Disc brakes I I I I I I I I I I I I I I I I
Drum brakes I I I I I I I I
Steering operation and linkages I I I I I I I I
Manual transaxle oil R
Front and rear suspension, ball
joints and wheel bearing axial play I I I I I I I I
Driveshaft dust boots I I I I
Exhaust system and heat shields Inspect every 80,000 km (50,000 miles).
Bolts and nuts on chassis and body T T T T T T T T
Body condition (for rust, corrosion
and perforation) Inspect annually.
Cabin air ¿ lter (if installed) R R R R R R R R
Tyres (including spare tyre) (with
inÀ ation pressure adjustment)
*10 I I I I I I I I I I I I I I I I
Tyre rotation *10 Rotate every 10,000 km (6,250 miles).
Emergency À at tyre repair kit (if
installed)
*11 Inspect annually.
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, ¿ ll up, or replace if necessary.
R : Replace
C : Clean
T : Tighten
D : Drain

6–14
Maintenance and Care
Scheduled Maintenance
Remarks:
*1 In the countries below, inspect the spark plugs at every 10,000 km (6,250 miles) or 12 months before replacing
them at the said interval.
Algeria, Armenia, Angola, Bahrain, Bolivia, Burundi, B.Virgin, Cambodia, Cameroon, Chile, Costa Rica, Cote
d'Ivoire, Curacao, El Salvador, Gabon, Ghana, Georgia, Guatemala, Haiti, Honduras, Hong Kong, Iran, Jordan,
Kenya, Macau, Malaysia, Mongolia, Mozambique, Myanmar, Nigeria, Nicaragua, Oman, Panama, Papua
New Guinea, Peru, Philippines, Senegal, Seychelles, Syria, Tanzania, United Arab Emirates, Vietnam, Zaire,
Zimbabwe
*2 Implement the fuel injection amount correction.
*3 Also inspect the air conditioner drive belts, if installed.
If the vehicle is operated primarily under any of the following conditions, inspect the drive belts more often
than the recommended intervals.
a) Driving in dusty conditions
b) Extended periods of idling or low speed operation
c) Driving for long period in cold temperatures or driving regularly at short distance only
d) Driving in extremely hot conditions
e) Driving in mountainous conditions continually
*4 If the vehicle is operated primarily under any of the following conditions, replace the engine oil and oil ¿ lter
more often than the recommended intervals.
a) Purpose of vehicle use is police car, taxi or driving school car.
b) Driving in dusty conditions
c) Extended periods of idling or low speed operation
d) Driving for long period in cold temperatures or driving regularly at short distance only
e) Driving in extremely hot conditions
f) Driving in mountainous conditions continually
*5 For SKYACTIV-D 1.5, Reset the engine oil data whenever replacing the engine oil regardless of the message/
wrench indicator light display.
*6 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*7 If the vehicle is operated in very dusty or sandy areas, clean and if necessary, replace the air ¿ lter more often
than the recommended intervals.
*8 Inspect the battery electrolyte level, speci¿ c gravity and outer appearance. If the vehicle is operated in
extremely hot and cold areas, inspect the battery electrolyte level, speci¿ c gravity and appearance every
10,000 km (6,250 miles) or 6 months. The sealed battery only requires an outer appearance inspection.
*9 If the brakes are used extensively (for example, continuous hard driving or mountain driving) or if the vehicle
is operated in extremely humid climates, replace the brake À uid annually.
*10 The Tyre Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*11 Check the tyre repair À uid expiration date every year when performing the periodic maintenance. Replace the
tyre repair À uid bottle with new one before the expiration date.

6–15
Maintenance and Care
Scheduled Maintenance
Maintenance Monitor
Maintenance Monitor (Type A audio)
“Oil Change” with À exible setting *1 is available. Consult an Authorised Mazda Repairer for
details *2 . When the engine oil À exible maintenance setting is selected, the wrench indicator
light in the instrument cluster will be illuminated when remaining oil life becomes less than
1,000 km (600 mile), or remaining days are less than 15 (Whichever comes ¿ rst).
Reset method
Press and hold the selector with the ignition switched off, then switch it on. Keep pressing
the selector for more than 5 seconds. The master warning light will À ash for a few seconds
when the reset is completed.

Selector

*1 The engine oil À exible maintenance setting is available (only some models). Based on
the engine operating conditions, the onboard computer in your vehicle calculates the
remaining oil life.
*2 When the engine oil À exible maintenance setting is selected, the system must be reset
whenever replacing the engine oil regardless of the wrench indicator light display.

Maintenance Monitor (Type B audio)
1. Select the icon on the home screen to display the “Applications” screen.
2. Select “Vehicle Status Monitor”.
3. Select “Maintenance” to display the maintenance list screen.
4. Switch the tab and select the setting item you want to change.

6–16
Maintenance and Care
Scheduled Maintenance
You can customize settings in the setup display as follows:
Tab Item Explanation
Scheduled Setting Noti¿ cation can be switched on/off.
Time (months) Displays the time or distance until maintenance is due.
Select this item to set the maintenance period.
The wrench indicator light in the instrument cluster will be
illuminated when the remaining distance is less than 1,000 km
or 600 mile, or the remaining number of days is less than 15
(whichever comes ¿ rst). Distance (km or mile)
Reset Resets the time and distance to the initial values.
Once the system turns on, it needs to be reset whenever carrying
out maintenance.
Tyre Rotation Setting Noti¿ cation can be switched on/off.
Distance (km or mile) Displays the distance until tyre rotation is due.
Select this item to set the tyre rotation distance.
The wrench indicator light in the instrument cluster will be
illuminated when the remaining distance is less than 1,000 km or
600 mile.
Reset Resets the remaining distance to the initial value.
Once the system turns on, it needs to be reset whenever rotating
the tyres.
Oil Change Setting
*1 N o t i¿ cation can be switched on/off.
Distance (km or mile) Displays the distance until the oil replacement is due.
Select this item to set the oil replacement distance.
The wrench indicator light in the instrument cluster will be
illuminated when the remaining distance is less than 1,000 km or
600 mile.
Reset
*2 Resets the remaining distance to the initial value.
Once the system turns on, it needs to be reset whenever replacing
the engine oil.
*1 The engine oil À exible maintenance setting is available (only some models). Consult an Authorised Mazda
Repairer for details.
When the engine oil À exible maintenance setting is selected, you will see the following items in the display. The
vehicle calculates the remaining oil life based on the engine operating conditions and lets you know when an oil
change is due by illuminating the wrench indicator light in the instrument cluster.
*2 Whenever the engine oil is replaced, the vehicle engine control unit reset is necessary for SKYACTIV-D 1.5.
Your Authorised Mazda Repairer will be able to reset the engine control unit or refer to the vehicle engine
control unit reset procedure on page 6-27 .


Tab Item Explanation
Oil Change Oil life (%) Displays the engine oil life until the oil replacement is due.
The wrench indicator light in the instrument cluster will be
illuminated when remaining oil life distance is less than 1,000
km (600 mile), or remaining days are less than 15 (whichever
comes ¿ rst).
Reset Resets the remaining oil life to 100 %.
The system must be reset whenever replacing the engine oil.

6–17
Maintenance and Care
Owner Maintenance
Owner Maintenance Precautions
R o u t i n e S e r v i c e
We highly recommend that these items be inspected daily, or at least every week.



 Engine Oil Level (page 6-28 )



 Engine Coolant Level (page 6-29 )



 Brake and clutch Fluid Level (page 6-31 )



 Washer Fluid Level (page 6-32 )



 Battery Maintenance (page 6-40 )



 Tyre InÀ ation Pressure (page 6-44 )

Improper or incomplete service may result in problems. This section gives instructions only
for items that are easy to perform.

As explained in the Introduction (page 6-2 ), several procedures can be done only by a
quali¿ ed service technician with special tools.

Improper do-it yourself maintenance during the warranty period may affect warranty
coverage. For details, read the separate Mazda Warranty statement provided with the
vehicle. If you are unsure about any servicing or maintenance procedure, have it done by an
expert repairer, we recommend an Authorised Mazda Repairer.

There are strict environmental laws regarding the disposal of waste oil and À uids. Please
dispose of your waste properly and with due regard to the environment.

We recommend that you entrust the oil and À uid changes of your vehicle to an Authorised
Mazda Repairer.

6–18
Maintenance and Care
Owner Maintenance
WARNING
Do not perform maintenance work if you lack suf¿ cient knowledge and experience
or the proper tools and equipment to do the work. Have maintenance work done by a
quali¿ ed technician:
Performing maintenance work on a vehicle is dangerous if not done properly. You can
be seriously injured while performing some maintenance procedures.

If you must run the engine while working under the bonnet, make certain that you
remove all jewellery (especially rings, bracelets, watches, and necklaces) and all
neckties, scarves, and similar loose clothing before getting near the engine or cooling
fan which may turn on unexpectedly:
Working under the bonnet with the engine running is dangerous. It becomes even more
dangerous when you wear jewellery or loose clothing.
Either can become entangled in moving parts and result in injury.

Pull over to a safe location, then switch the ignition off and make sure the fan is
not running before attempting to work near the cooling fan:
Working near the cooling fan when it is running is dangerous. The fan could continue
running inde¿ nitely even if the engine has stopped and the engine compartment
temperature is high. You could be hit by the fan and seriously injured.

Do not leave items in the engine compartment:
After you have ¿ nished checking or doing servicing in the engine compartment, do not
forget and leave items such as tools or rags in the engine compartment.
Tools or other items left in the engine compartment could cause engine damage or a ¿ re
leading to an unexpected accident.

6–19
Maintenance and Care
Owner Maintenance
Bonnet
WARNING
Always check that the bonnet is closed
and securely locked:
A bonnet that is not closed and securely
locked is dangerous as it could À y open
while the vehicle is moving and block
the driver's vision which could result in
a serious accident.
Opening the Bonnet
1. With the vehicle parked, pull the
release handle to unlock the bonnet.


Release handle 2. Insert your hand into the bonnet
opening, slide the latch lever to the
right, and lift up the bonnet.


Lever

3. Grasp the support rod in the padded
area and secure it in the support rod
hole indicated by the arrow to hold the
bonnet open.


Pad
ClipClip

6–20
Maintenance and Care
Owner Maintenance
Closing the Bonnet
1. Check under the bonnet area to make
certain all ¿ ller caps are in place and all
loose items (e.g. tools, oil containers,
etc.) have been removed.
2. Lift the bonnet, grasp the padded area
on the support rod, and secure the
support rod in the clip. Verify that the
support rod is secured in the clip before
closing the bonnet.


Clip
ClipClip

3. Lower the bonnet slowly to a height of
about 20 cm (7.9 in) above its closed
position and then let it drop.

CAUTION
When closing the bonnet, do not push
it excessively such as by applying your
weight. Otherwise, the bonnet could be
deformed.

6–21
Maintenance and Care
Owner Maintenance

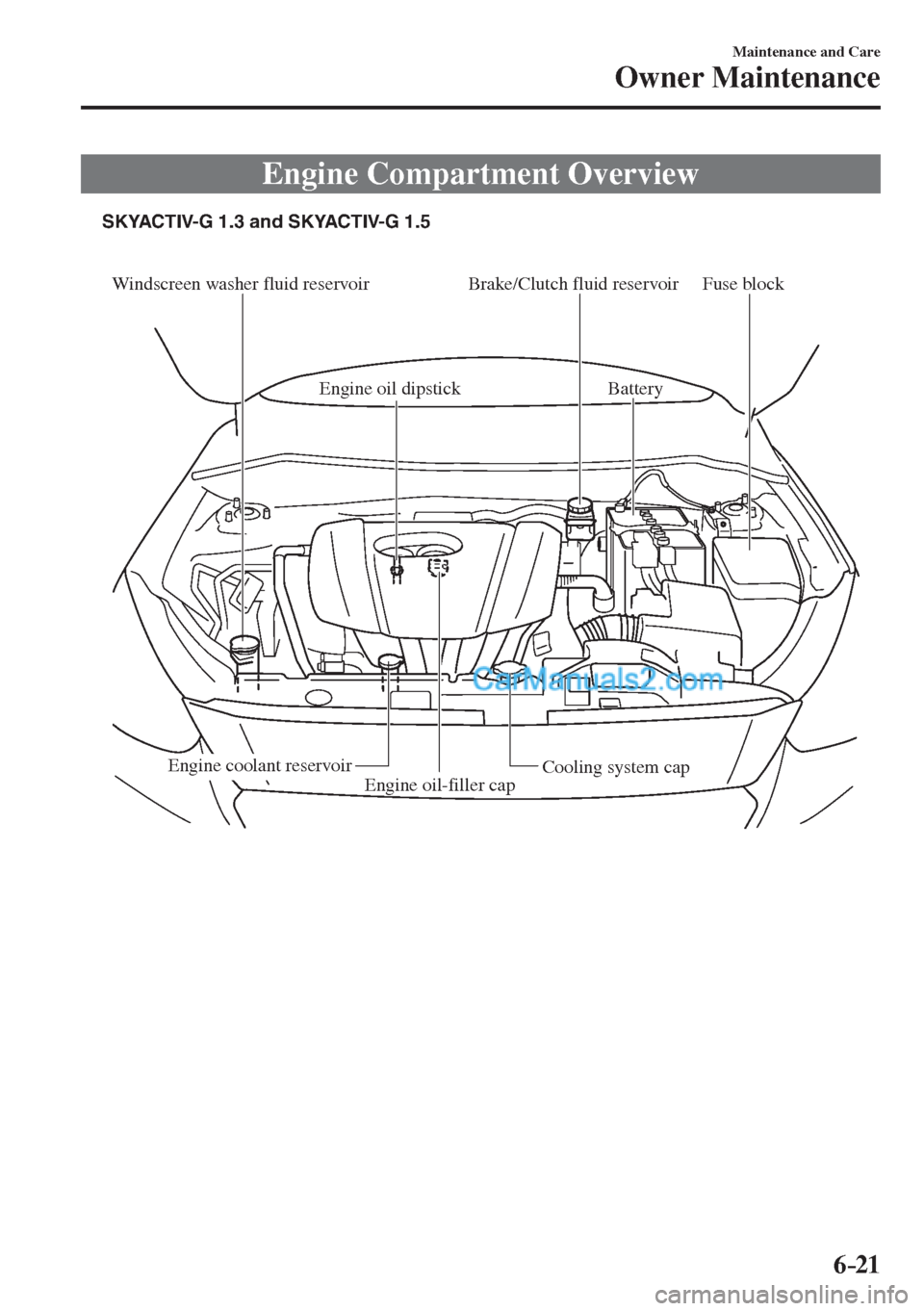

Engine Compartment Overview

Windscreen washer fluid reservoir Brake/Clutch fluid reservoir
Engine oil dipstick Battery
Fuse block
Cooling system capEngine coolant reservoirEngine oil-filler cap SKYACTIV-G 1.3 and SKYACTIV-G 1.5

6–22
Maintenance and Care
Owner Maintenance

Windscreen washer fluid reservoir Engine oil dipstick
BatteryFuse block
Coolin
g system capEngine coolant reservoirEngine oil-filler cap SKYACTIV-D 1.5
Brake/Clutch fluid reservoir
