Replacing a fog light bulbí
1. Turn the screw counterclockwise andremove it and partially peel back the
mudguard.
2. Disconnect the electrical connector
from the bulb by pressing the tab on
the connector with your finger and
pulling the connector downward.
3. Turn the socket and bulb assembly to remove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
4. Install the new bulb in the reverse order
of removal.
NOTE
lTo replace the bulb, contact an
Authorized Mazda Dealer.
lIf the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.
lUse the protective cover and carton
for the replacement bulb to dispose
of the old bulb promptly and out of
the reach of children.
Front turn signal lights/Side-marker
lights
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
Side turn signal lights
1. Slide the unit as shown in the figure toremove it.
2. Detach the electrical connector from the unit by pulling it to the rear.
3. Install the new side turn signal unit inthe reverse order of removal.
Maintenance and Care
Owner Maintenance
8-45íSome models.
Mazda3_8V66-EA-06F_Edition3 Page319
Wednesday, August 23 2006 11:21 AM
Form No.8V66-EA-06F

Black plate (320,1)
NOTE
Bulb replacement is not possible
because it is built into the unit. Replace
the unit.
Brake lights/Taillights (4 Door)
With LED bulb
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible.
The rear combination component must
be replaced.
With Non-LED bulb
1. Pull the center of each plastic retainer and remove the retainers and the trunk
end trim.
Removal
Installation
2. Pull the center of each plastic retainer and remove the retainers and partially
open the trunk side trim.
Removal
Installation
3. Turn the socket and bulb assembly counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
8-46
Maintenance and Care
Owner Maintenance
Mazda3_8V66-EA-06F_Edition3 Page320
Wednesday, August 23 2006 11:21 AM
Form No.8V66-EA-06F

Black plate (321,1)

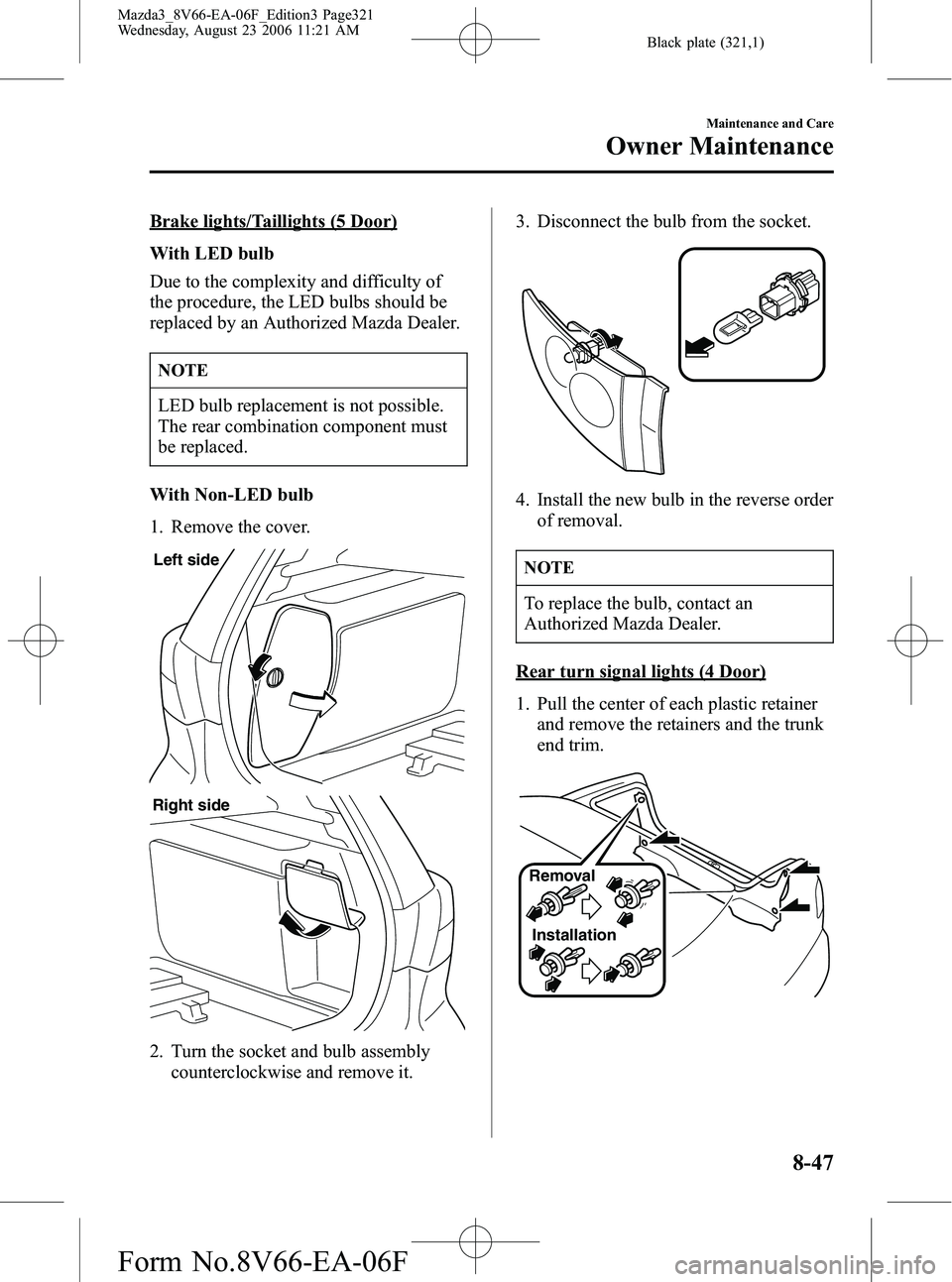

Brake lights/Taillights (5 Door)
With LED bulb
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible.
The rear combination component must
be replaced.
With Non-LED bulb
1. Remove the cover.
Left side
Right side
2. Turn the socket and bulb assembly counterclockwise and remove it. 3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
Rear turn signal lights (4 Door)
1. Pull the center of each plastic retainer
and remove the retainers and the trunk
end trim.
Removal
Installation
Maintenance and Care
Owner Maintenance
8-47
Mazda3_8V66-EA-06F_Edition3 Page321
Wednesday, August 23 2006 11:21 AM
Form No.8V66-EA-06F

Black plate (322,1)

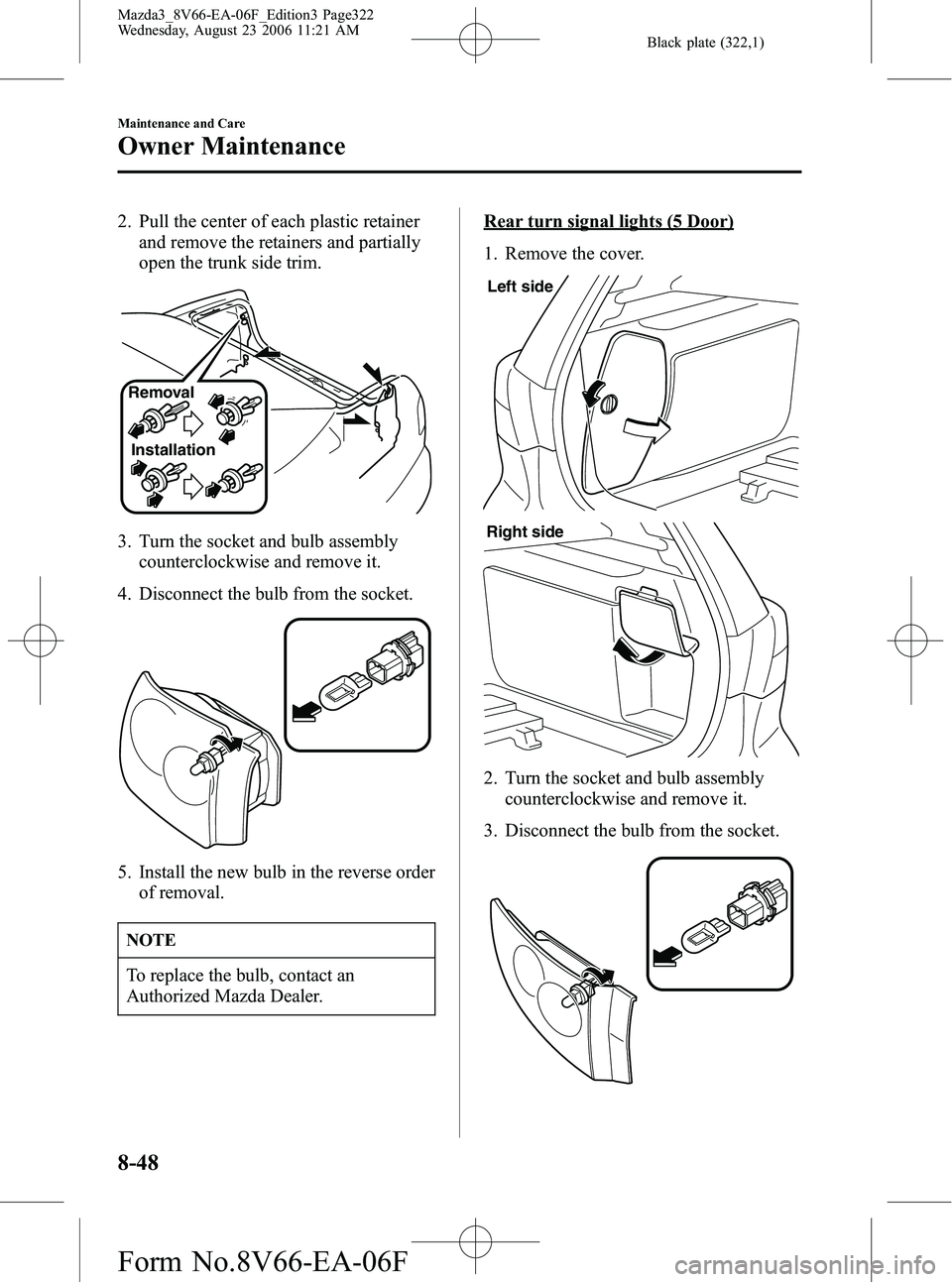

2. Pull the center of each plastic retainerand remove the retainers and partially
open the trunk side trim.
Removal
Installation
3. Turn the socket and bulb assembly counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
Rear turn signal lights (5 Door)
1. Remove the cover.
Left side
Right side
2. Turn the socket and bulb assemblycounterclockwise and remove it.
3. Disconnect the bulb from the socket.
8-48
Maintenance and Care
Owner Maintenance
Mazda3_8V66-EA-06F_Edition3 Page322
Wednesday, August 23 2006 11:21 AM
Form No.8V66-EA-06F

Black plate (323,1)
4. Install the new bulb in the reverse orderof removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.

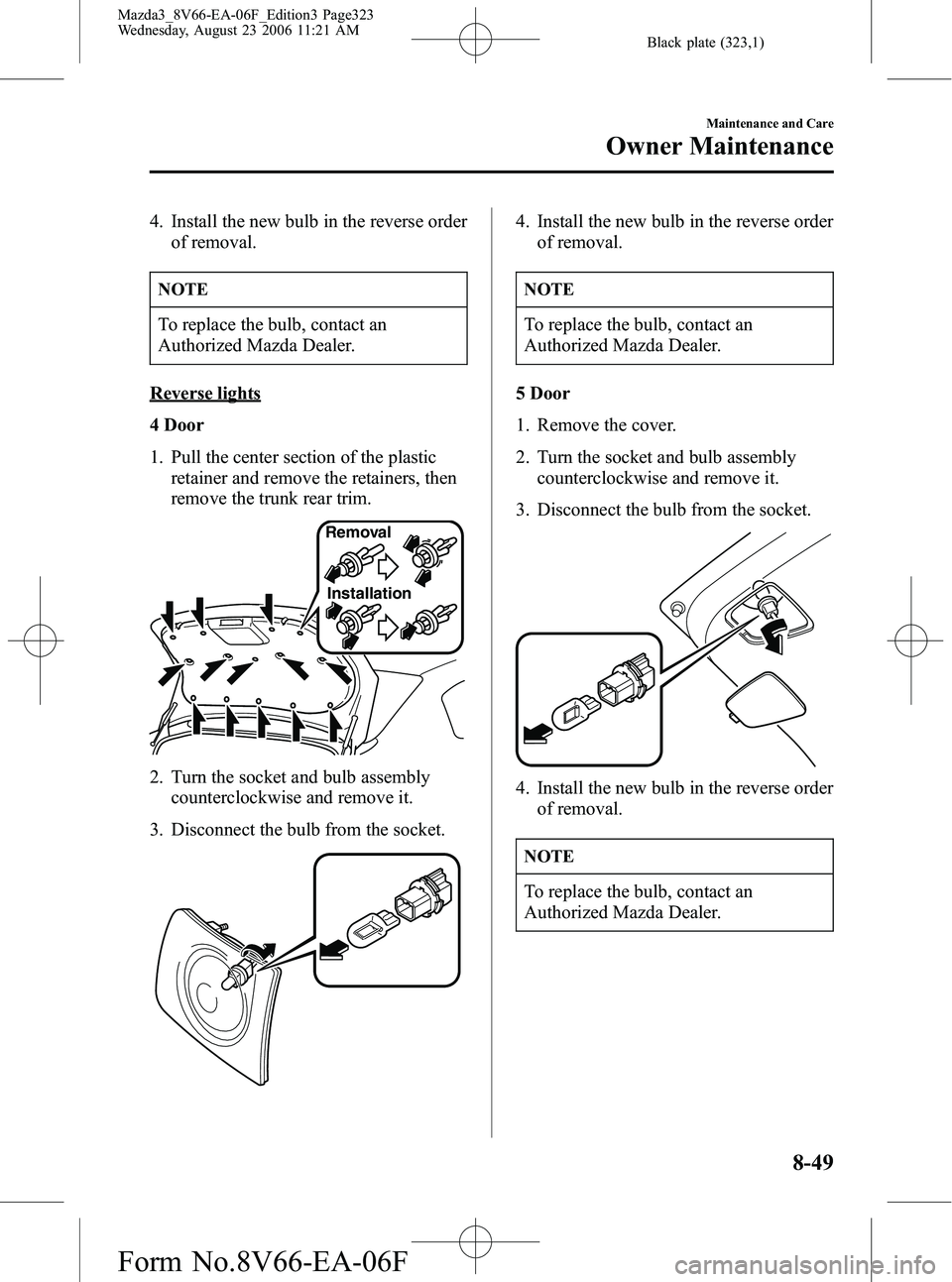

Reverse lights
4 Door
1. Pull the center section of the plasticretainer and remove the retainers, then
remove the trunk rear trim.
Removal
Installation
2. Turn the socket and bulb assembly counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
5 Door
1. Remove the cover.
2. Turn the socket and bulb assembly counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
Maintenance and Care
Owner Maintenance
8-49
Mazda3_8V66-EA-06F_Edition3 Page323
Wednesday, August 23 2006 11:21 AM
Form No.8V66-EA-06F

Black plate (324,1)

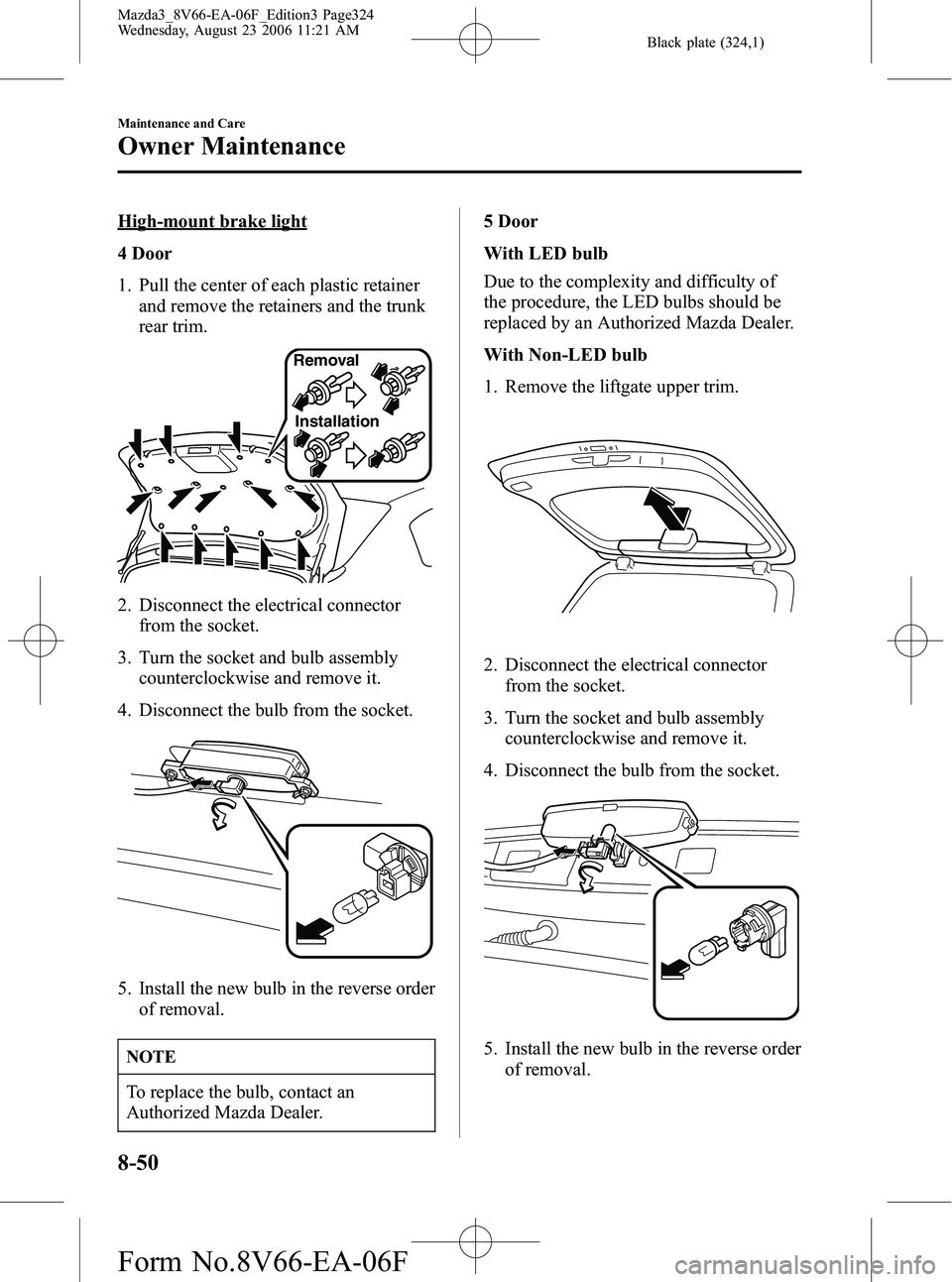

High-mount brake light
4 Door
1. Pull the center of each plastic retainerand remove the retainers and the trunk
rear trim.
Removal
Installation
2. Disconnect the electrical connector from the socket.
3. Turn the socket and bulb assembly counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer. 5 Door
With LED bulb
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an Authorized Mazda Dealer.
With Non-LED bulb
1. Remove the liftgate upper trim.
2. Disconnect the electrical connector
from the socket.
3. Turn the socket and bulb assembly counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of removal.
8-50
Maintenance and Care
Owner Maintenance
Mazda3_8V66-EA-06F_Edition3 Page324
Wednesday, August 23 2006 11:21 AM
Form No.8V66-EA-06F

Black plate (327,1)
3. Turn the knobs counterclockwise andlower the fuse block.
4. Locate the position of the suspected
fuse by using the chart inside the fuse
block cover.
5. Pull the fuse straight out with the fuse puller provided on the inside of the
engine compartment fuse block cover.
6. Inspect the fuse and replace it if it'sblown.
Normal Blown
7. Push in a new fuse of the same
amperage rating, and make sure it fits
tightly. If it doesn't, have an expert
repairer install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the MIRROR or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Turn off the ignition switch and allother switches.
Maintenance and Care
Owner Maintenance
8-53
Mazda3_8V66-EA-06F_Edition3 Page327
Wednesday, August 23 2006 11:21 AM
Form No.8V66-EA-06F

Black plate (396,1)
