MAZDA MODEL 3 4-DOOR 2013 Owners Manual

Black plate (111,1)

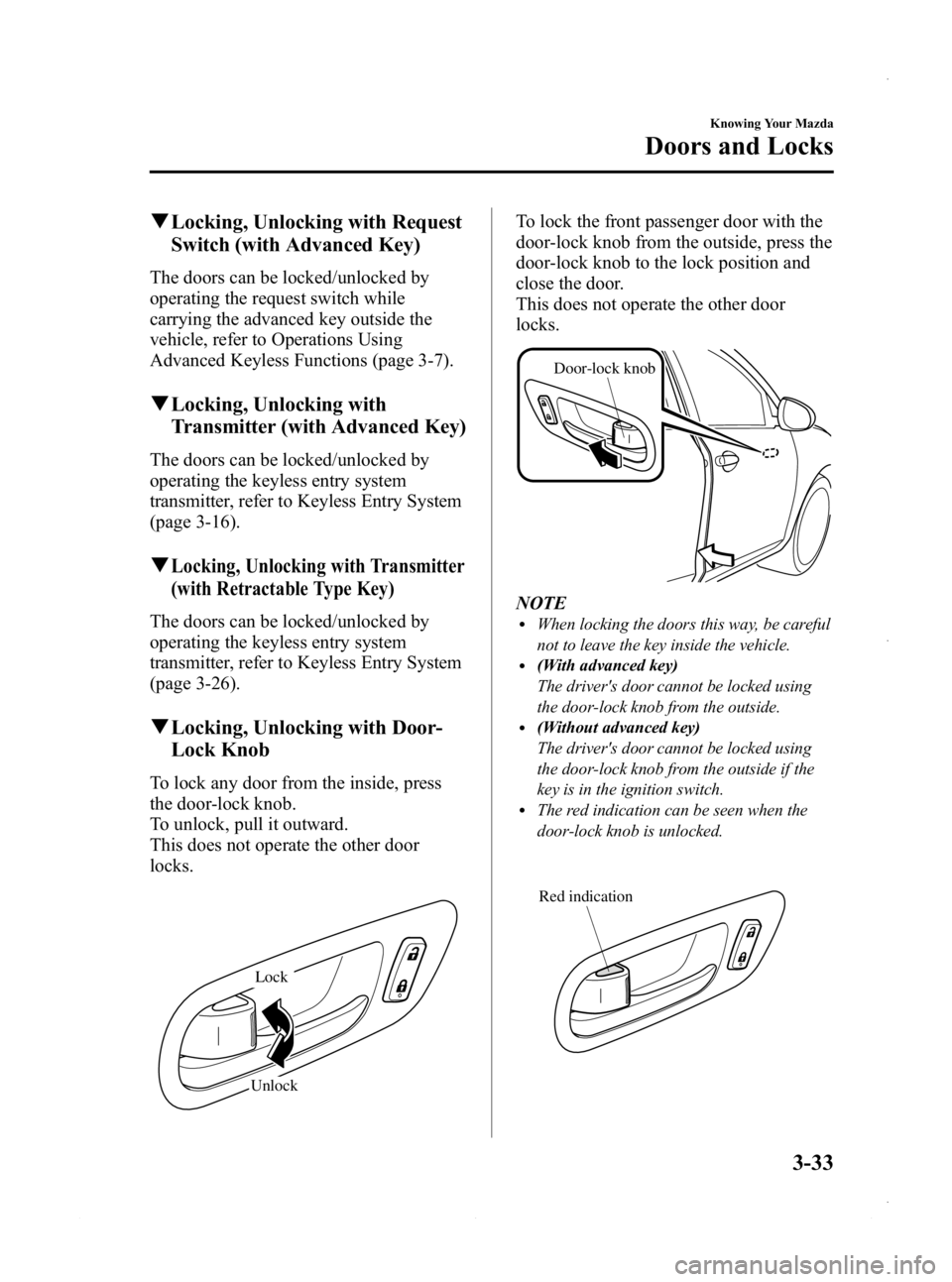

qLocking, Unlocking with Request
Switch (with Advanced Key)
The doors can be locked/unlocked by
operating the request switch while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
qLocking, Unlocking with
Transmitter (with Advanced Key)
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-16).
qLocking, Unlocking with Transmitter
(with Retractable Type Key)
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-26).
qLocking, Unlocking with Door-
Lock Knob
To lock any door from the inside, press
the door-lock knob.
To unlock, pull it outward.
This does not operate the other door
locks.
Lock
Unlock
To lock the front passenger door with the
door-lock knob from the outside, press the
door-lock knob to the lock position and
close the door.
This does not operate the other door
locks.
Door-lock knob
NOTElWhen locking the doors this way, be careful
not to leave the key inside the vehicle.
l(With advanced key)
The driver's door cannot be locked using
the door-lock knob from the outside.
l(Without advanced key)
The driver's door cannot be locked using
the door-lock knob from the outside if the
key is in the ignition switch.
lThe red indication can be seen when the
door-lock knob is unlocked.
Red indication
Knowing Your Mazda
Doors and Locks
3-33
Mazda3_8CV6-EA-12H_Edition3 Page111
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (112,1)
qPower Door Locksí
Vehicle lock-out prevention
(With advanced key)
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. All doors and the liftgate will
automatically unlock if they are locked
using the power door locks with any door
or the liftgate open.
(Without advanced key)
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. With the key in the ignition
switch, all doors and the liftgate will
automatically unlock if they are locked
using the power door locks with any door
or the liftgate open.
Locking, unlocking with key
All doors and the liftgate lock
automatically when any front door is
locked with the key.
All doors and the liftgate unlock when the
driver's door is unlocked and the key is
held in the unlock position for one second
or longer.
Lock Unlock
NOTElHolding the key in the unlocked position in
the driver's door lock for about a second
unlocks all doors and the liftgate. To unlock
only the driver's door, insert the key into the
driver's door lock and turn the key briefly
to the unlock position and then immediately
return it to the center position.
lThe system can be set to unlock all doors by
performing a single operation.
Refer to Personalization Features on page
10-13.
Locking, unlocking with door-lock
switch
All doors and the liftgate lock
automatically when lock side is pressed.
They all unlock when unlock side is
pressed.
Lock
Unlock
Locking, unlocking with request switch
(with advanced key)
All doors and the liftgate can be locked/
unlocked by operating the request switch
on the front doors and the liftgate while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
3-34
Knowing Your Mazda
íSome models.
Doors and Locks
Mazda3_8CV6-EA-12H_Edition3 Page112
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (113,1)

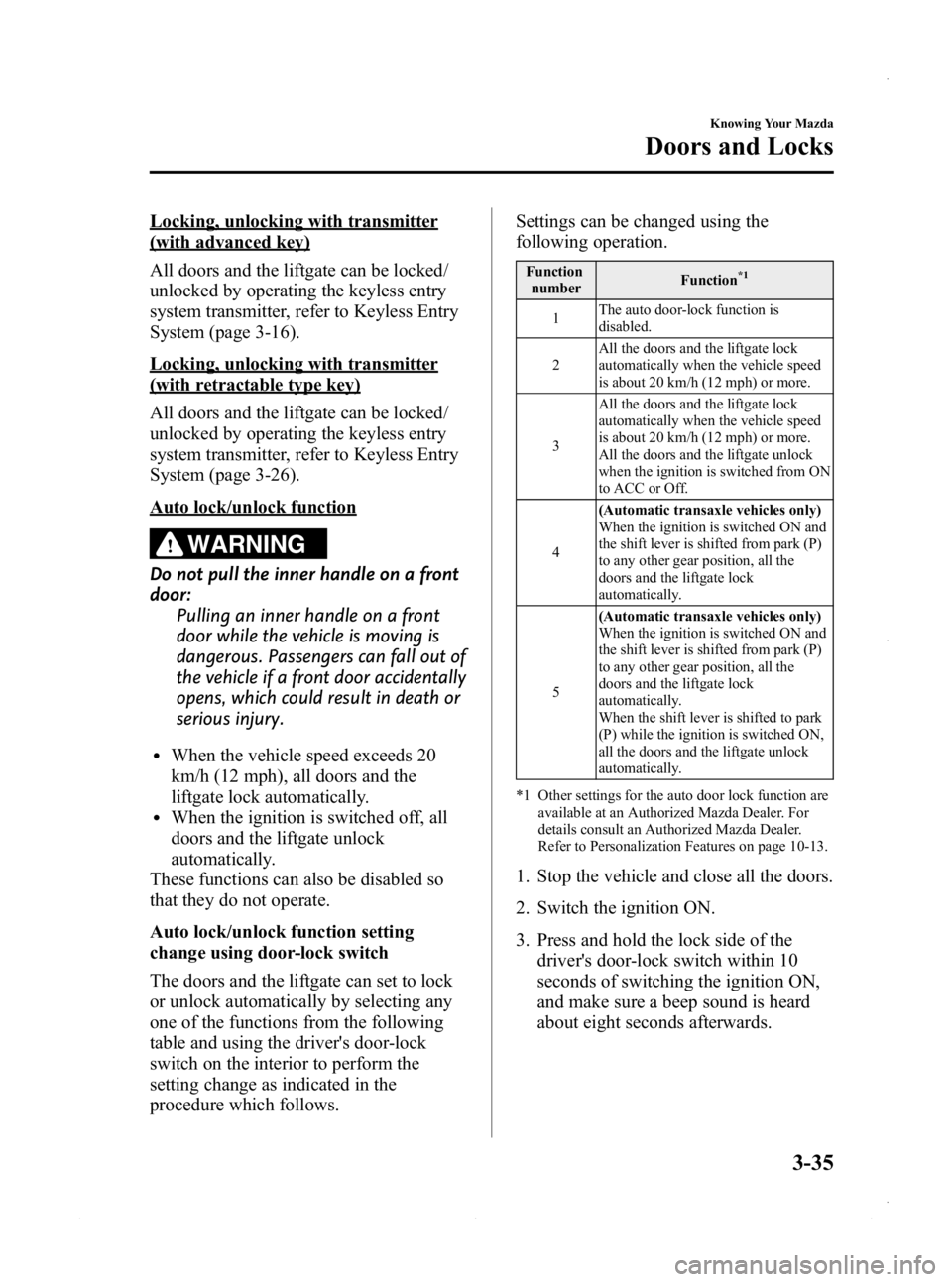

Locking, unlocking with transmitter
(with advanced key)
All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-16).
Locking, unlocking with transmitter
(with retractable type key)
All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-26).
Auto lock/unlock function
WARNING
Do not pull the inner handle on a front
door:Pulling an inner handle on a front
door while the vehicle is moving is
dangerous. Passengers can fall out of
the vehicle if a front door accidentally
opens, which could result in death or
serious injury.
lWhen the vehicle speed exceeds 20
km/h (12 mph), all doors and the
liftgate lock automatically.
lWhen the ignition is switched off, all
doors and the liftgate unlock
automatically.
These functions can also be disabled so
that they do not operate.
Auto lock/unlock function setting
change using door-lock switch
The doors and the liftgate can set to lock
or unlock automatically by selecting any
one of the functions from the following
table and using the driver's door-lock
switch on the interior to perform the
setting change as indicated in the
procedure which follows. Settings can be changed using the
following operation.
Function
number Function*1
1The auto door-lock function is
disabled.
2 All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
3 All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
All the doors and the liftgate unlock
when the ignition is switched from ON
to ACC or Off.
4 (Automatic transaxle vehicles only)
When the ignition is switched ON and
the shift lever is shifted from park (P)
to any other gear position, all the
doors and the liftgate lock
automatically.
5 (Automatic transaxle vehicles only)
When the ignition is switched ON and
the shift lever is shifted from park (P)
to any other gear position, all the
doors and the liftgate lock
automatically.
When the shift lever is shifted to park
(P) while the ignition is switched ON,
all the doors and the liftgate unlock
automatically.
*1 Other settings for the auto door lock function are available at an Authorized Mazda Dealer. For
details consult an Authorized Mazda Dealer.
Refer to Personalization Features on page 10-13.
1. Stop the vehicle and close all the doors.
2. Switch the ignition ON.
3. Press and hold the lock side of thedriver's door-lock switch within 10
seconds of switching the ignition ON,
and make sure a beep sound is heard
about eight seconds afterwards.
Knowing Your Mazda
Doors and Locks
3-35
Mazda3_8CV6-EA-12H_Edition3 Page113
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (114,1)

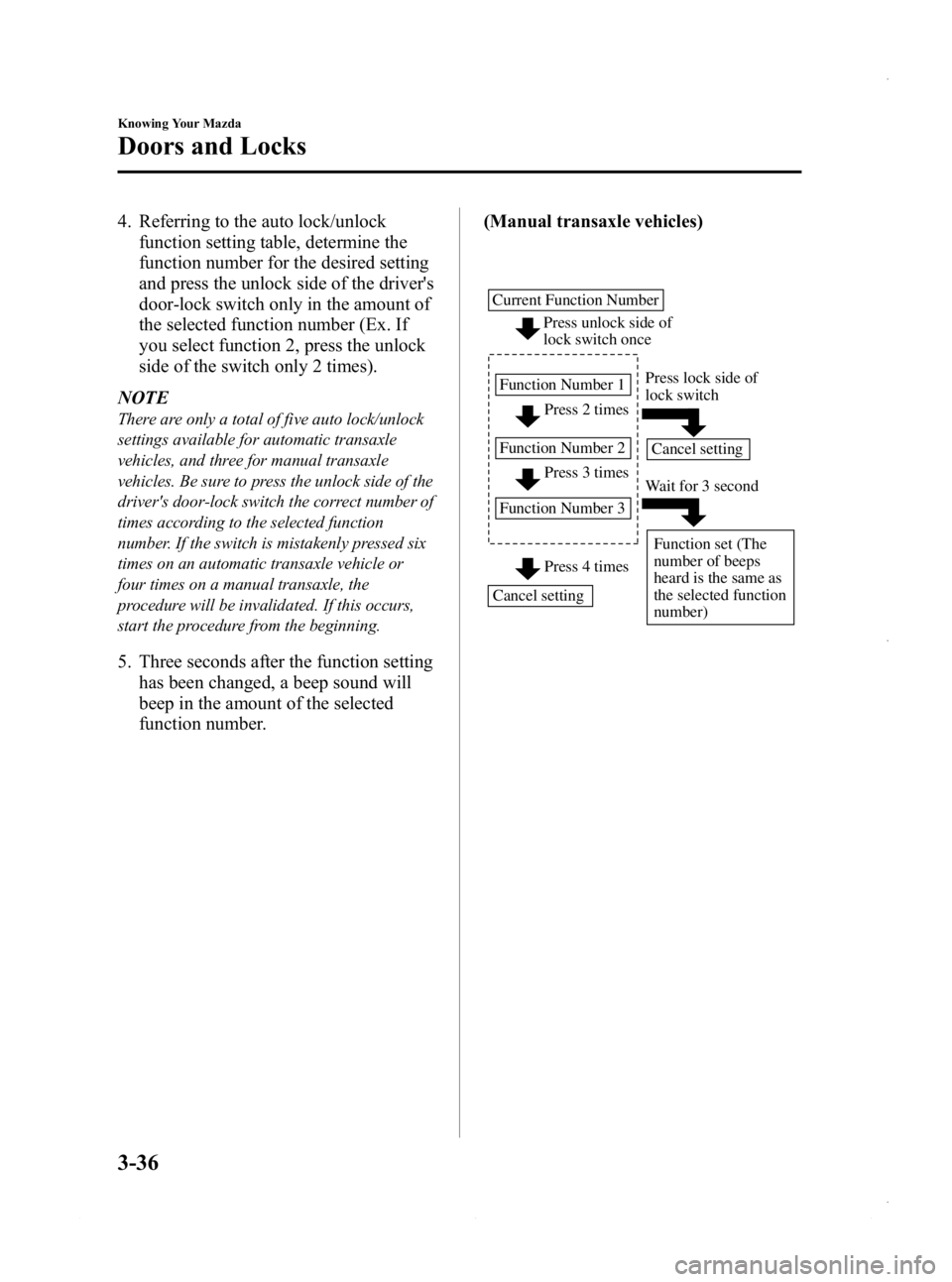

4. Referring to the auto lock/unlockfunction setting table, determine the
function number for the desired setting
and press the unlock side of the driver's
door-lock switch only in the amount of
the selected function number (Ex. If
you select function 2, press the unlock
side of the switch only 2 times).
NOTE
There are only a total of five auto lock/unlock
settings available for automatic transaxle
vehicles, and three for manual transaxle
vehicles. Be sure to press the unlock side of the
driver's door-lock switch the correct number of
times according to the selected function
number. If the switch is mistakenly pressed six
times on an automatic transaxle vehicle or
four times on a manual transaxle, the
procedure will be invalidated. If this occurs,
start the procedure from the beginning.
5. Three seconds after the function setting has been changed, a beep sound will
beep in the amount of the selected
function number. (Manual transaxle vehicles)
Press 2 times
Press 3 times
Current Function Number
Function Number 1
Function Number 2
Function Number 3 Press 4 times
Press unlock side of
lock switch once
Cancel setting Cancel setting
Function set (The
number of beeps
heard is the same as
the selected function
number)
Press lock side of
lock switch
Wait for 3 second
3-36
Knowing Your Mazda
Doors and Locks
Mazda3_8CV6-EA-12H_Edition3 Page114
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (115,1)

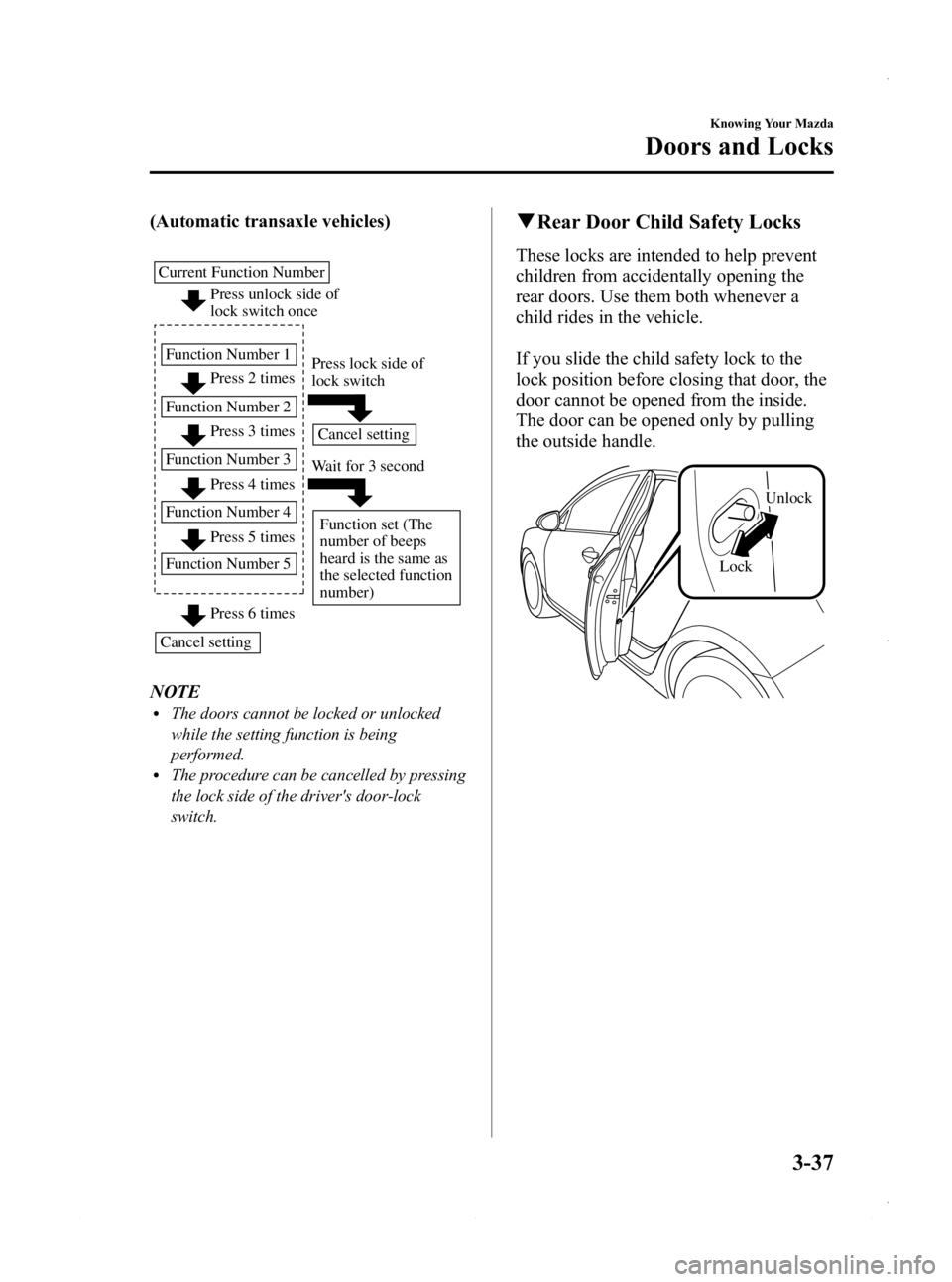

(Automatic transaxle vehicles)
Press unlock side of
lock switch once
Press 2 times
Press 3 times
Current Function Number
Function Number 1
Function Number 2 Press 4 times
Function Number 3
Press 5 times
Function Number 4
Press 6 times
Function Number 5
Cancel setting Cancel setting
Function set (The
number of beeps
heard is the same as
the selected function
number)
Press lock side of
lock switch
Wait for 3 second
NOTElThe doors cannot be locked or unlocked
while the setting function is being
performed.
lThe procedure can be cancelled by pressing
the lock side of the driver's door-lock
switch.
q
Rear Door Child Safety Locks
These locks are intended to help prevent
children from accidentally opening the
rear doors. Use them both whenever a
child rides in the vehicle.
If you slide the child safety lock to the
lock position before closing that door, the
door cannot be opened from the inside.
The door can be opened only by pulling
the outside handle.
Lock Unlock
Knowing Your Mazda
Doors and Locks
3-37
Mazda3_8CV6-EA-12H_Edition3 Page115
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (116,1)

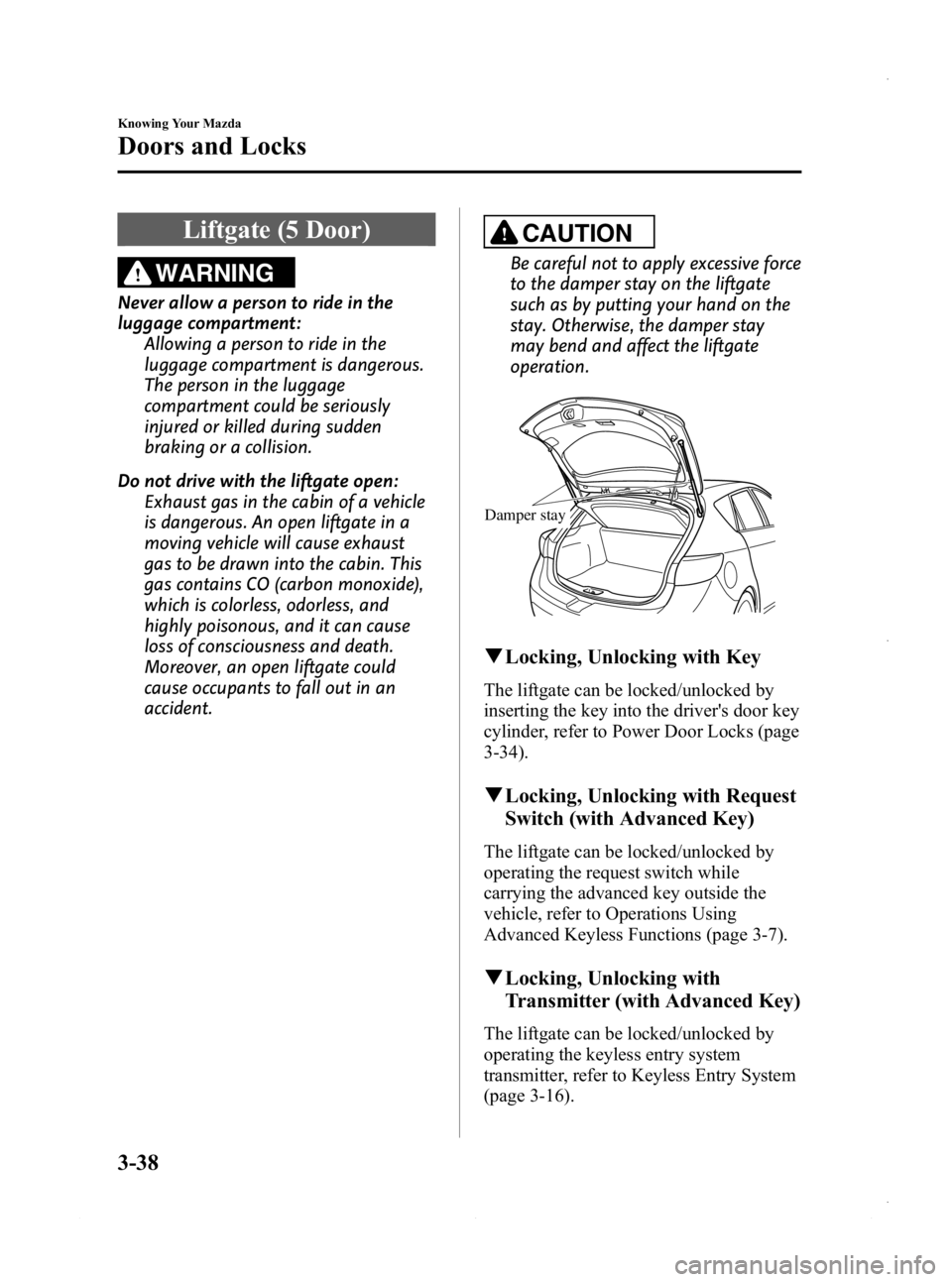

Liftgate (5 Door)
WARNING
Never allow a person to ride in the
luggage compartment:Allowing a person to ride in the
luggage compartment is dangerous.
The person in the luggage
compartment could be seriously
injured or killed during sudden
braking or a collision.
Do not drive with the liftgate open: Exhaust gas in the cabin of a vehicle
is dangerous. An open liftgate in a
moving vehicle will cause exhaust
gas to be drawn into the cabin. This
gas contains CO (carbon monoxide),
which is colorless, odorless, and
highly poisonous, and it can cause
loss of consciousness and death.
Moreover, an open liftgate could
cause occupants to fall out in an
accident.
CAUTION
Be careful not to apply excessive force
to the damper stay on the liftgate
such as by putting your hand on the
stay. Otherwise, the damper stay
may bend and affect the liftgate
operation.
Damper stay
qLocking, Unlocking with Key
The liftgate can be locked/unlocked by
inserting the key into the driver's door key
cylinder, refer to Power Door Locks (page
3-34).
qLocking, Unlocking with Request
Switch (with Advanced Key)
The liftgate can be locked/unlocked by
operating the request switch while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
qLocking, Unlocking with
Transmitter (with Advanced Key)
The liftgate can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-16).
3-38
Knowing Your Mazda
Doors and Locks
Mazda3_8CV6-EA-12H_Edition3 Page116
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (117,1)

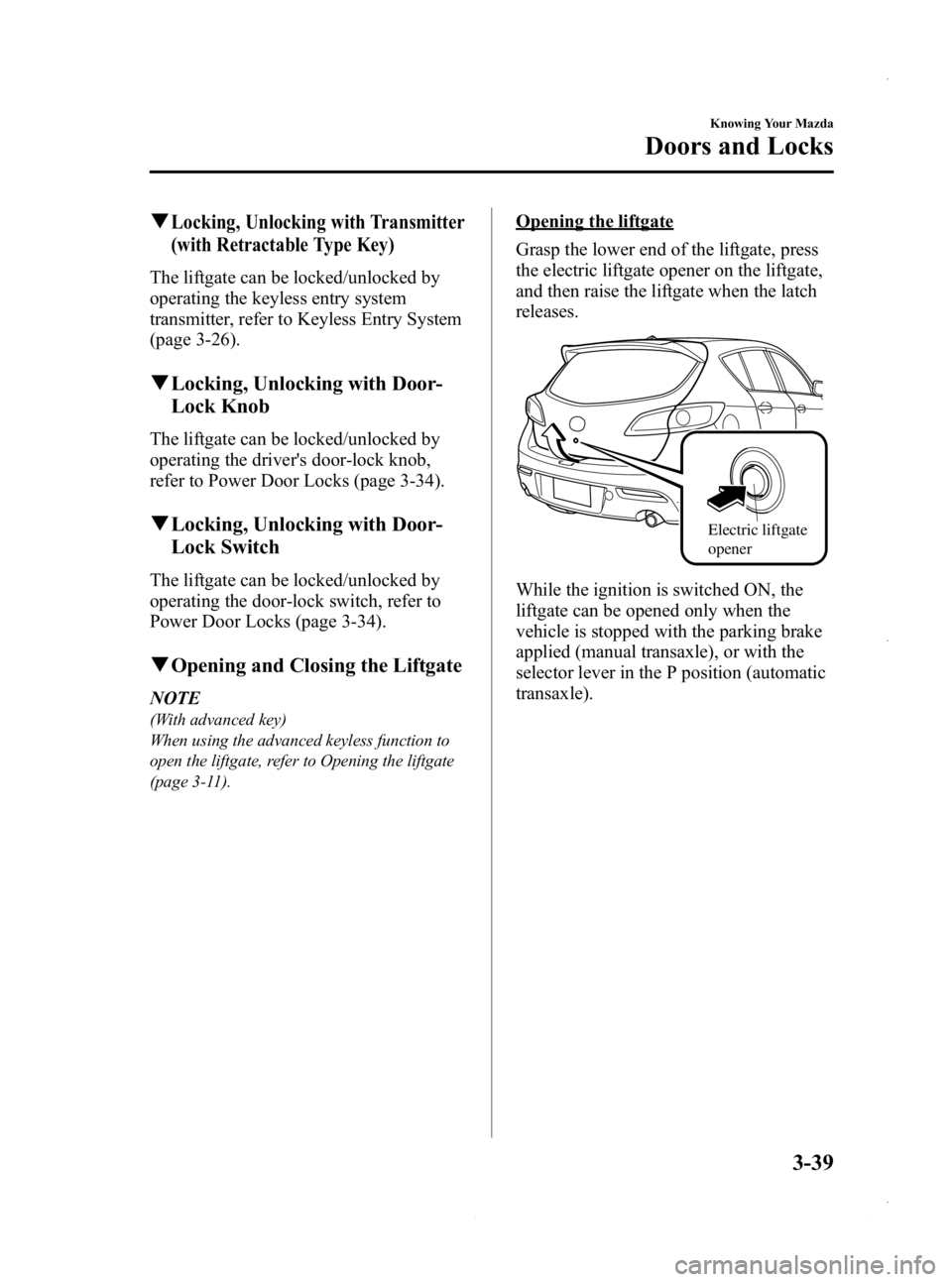

qLocking, Unlocking with Transmitter
(with Retractable Type Key)
The liftgate can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-26).
qLocking, Unlocking with Door-
Lock Knob
The liftgate can be locked/unlocked by
operating the driver's door-lock knob,
refer to Power Door Locks (page 3-34).
qLocking, Unlocking with Door-
Lock Switch
The liftgate can be locked/unlocked by
operating the door-lock switch, refer to
Power Door Locks (page 3-34).
qOpening and Closing the Liftgate
NOTE
(With advanced key)
When using the advanced keyless function to
open the liftgate, refer to Opening the liftgate
(page 3-11).
Opening the liftgate
Grasp the lower end of the liftgate, press
the electric liftgate opener on the liftgate,
and then raise the liftgate when the latch
releases.
Electric liftgate
opener
While the ignition is switched ON, the
liftgate can be opened only when the
vehicle is stopped with the parking brake
applied (manual transaxle), or with the
selector lever in the P position (automatic
transaxle).
Knowing Your Mazda
Doors and Locks
3-39
Mazda3_8CV6-EA-12H_Edition3 Page117
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (118,1)

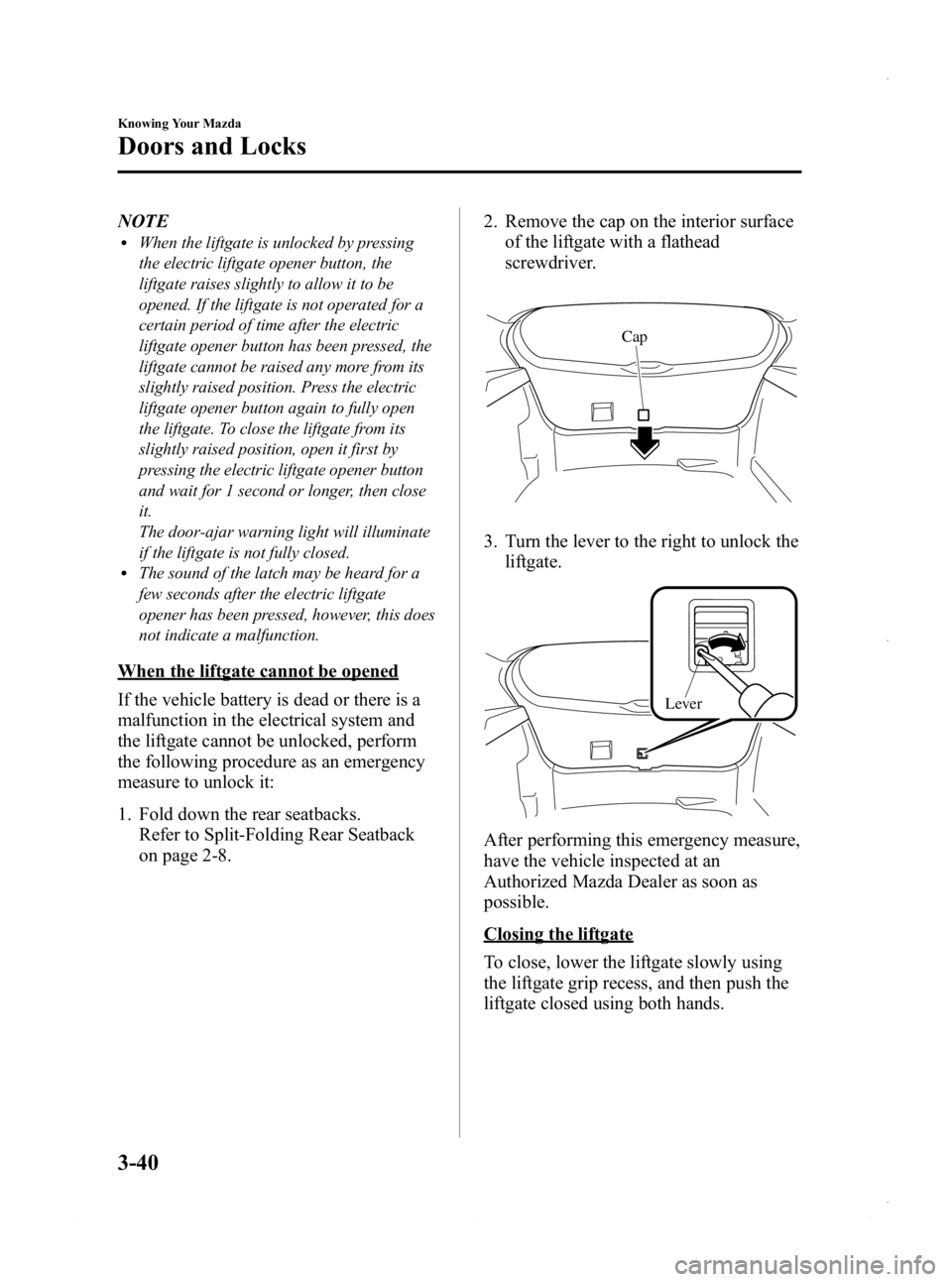

NOTElWhen the liftgate is unlocked by pressing
the electric liftgate opener button, the
liftgate raises slightly to allow it to be
opened. If the liftgate is not operated for a
certain period of time after the electric
liftgate opener button has been pressed, the
liftgate cannot be raised any more from its
slightly raised position. Press the electric
liftgate opener button again to fully open
the liftgate. To close the liftgate from its
slightly raised position, open it first by
pressing the electric liftgate opener button
and wait for 1 second or longer, then close
it.
The door-ajar warning light will illuminate
if the liftgate is not fully closed.
lThe sound of the latch may be heard for a
few seconds after the electric liftgate
opener has been pressed, however, this does
not indicate a malfunction.
When the liftgate cannot be opened
If the vehicle battery is dead or there is a
malfunction in the electrical system and
the liftgate cannot be unlocked, perform
the following procedure as an emergency
measure to unlock it:
1. Fold down the rear seatbacks.Refer to Split-Folding Rear Seatback
on page 2-8. 2. Remove the cap on the interior surface
of the liftgate with a flathead
screwdriver.
Cap
3. Turn the lever to the right to unlock theliftgate.
Lever
After performing this emergency measure,
have the vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
Closing the liftgate
To close, lower the liftgate slowly using
the liftgate grip recess, and then push the
liftgate closed using both hands.
3-40
Knowing Your Mazda
Doors and Locks
Mazda3_8CV6-EA-12H_Edition3 Page118
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (119,1)

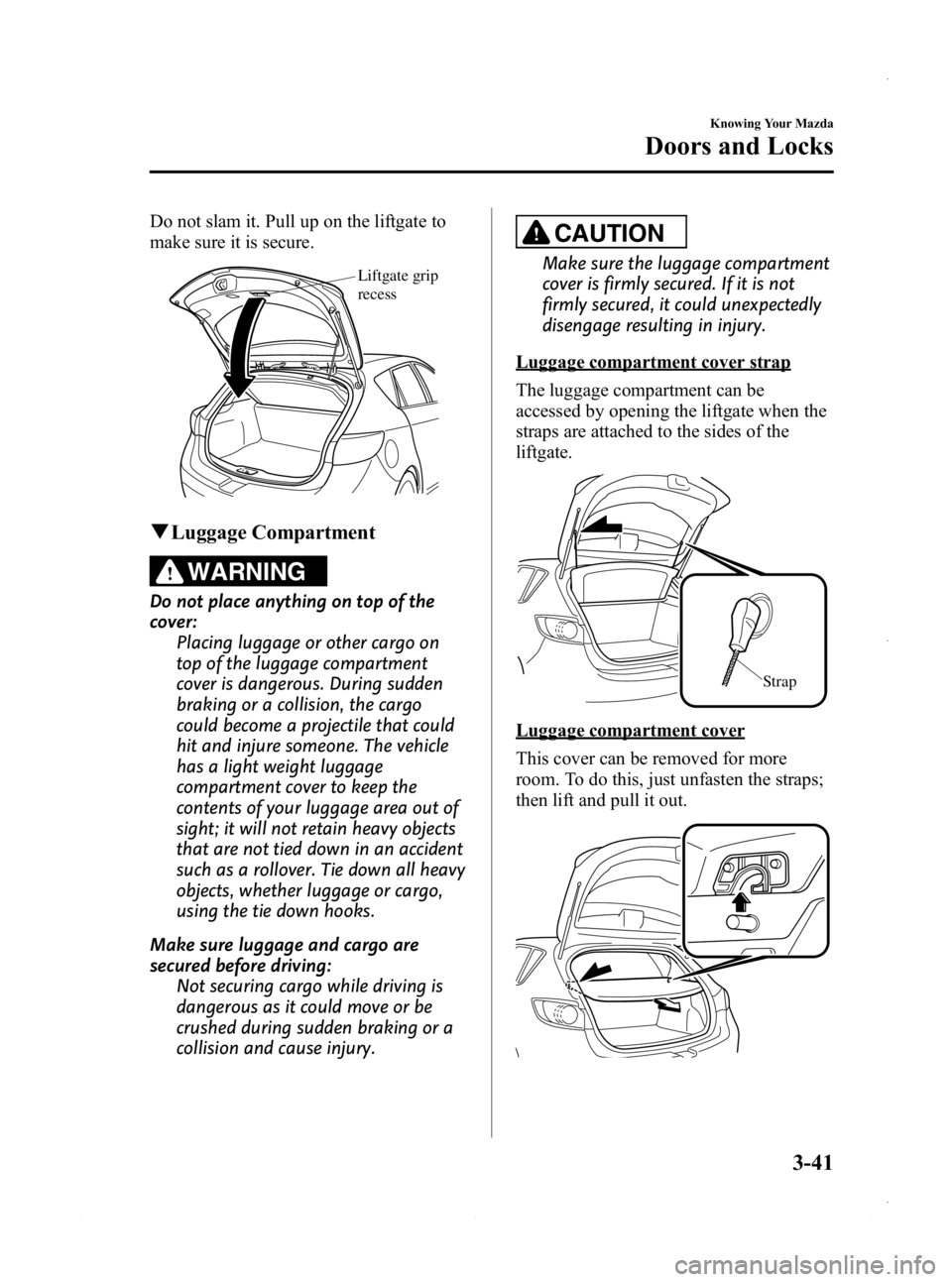

Do not slam it. Pull up on the liftgate to
make sure it is secure.
Liftgate grip
recess
qLuggage Compartment
WARNING
Do not place anything on top of the
cover:
Placing luggage or other cargo on
top of the luggage compartment
cover is dangerous. During sudden
braking or a collision, the cargo
could become a projectile that could
hit and injure someone. The vehicle
has a light weight luggage
compartment cover to keep the
contents of your luggage area out of
sight; it will not retain heavy objects
that are not tied down in an accident
such as a rollover. Tie down all heavy
objects, whether luggage or cargo,
using the tie down hooks.
Make sure luggage and cargo are
secured before driving: Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
CAUTION
Make sure the luggage compartment
cover is firmly secured. If it is not
firmly secured, it could unexpectedly
disengage resulting in injury.
Luggage compartment cover strap
The luggage compartment can be
accessed by opening the liftgate when the
straps are attached to the sides of the
liftgate.
Strap
Luggage compartment cover
This cover can be removed for more
room. To do this, just unfasten the straps;
then lift and pull it out.
Knowing Your Mazda
Doors and Locks
3-41
Mazda3_8CV6-EA-12H_Edition3 Page119
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (120,1)

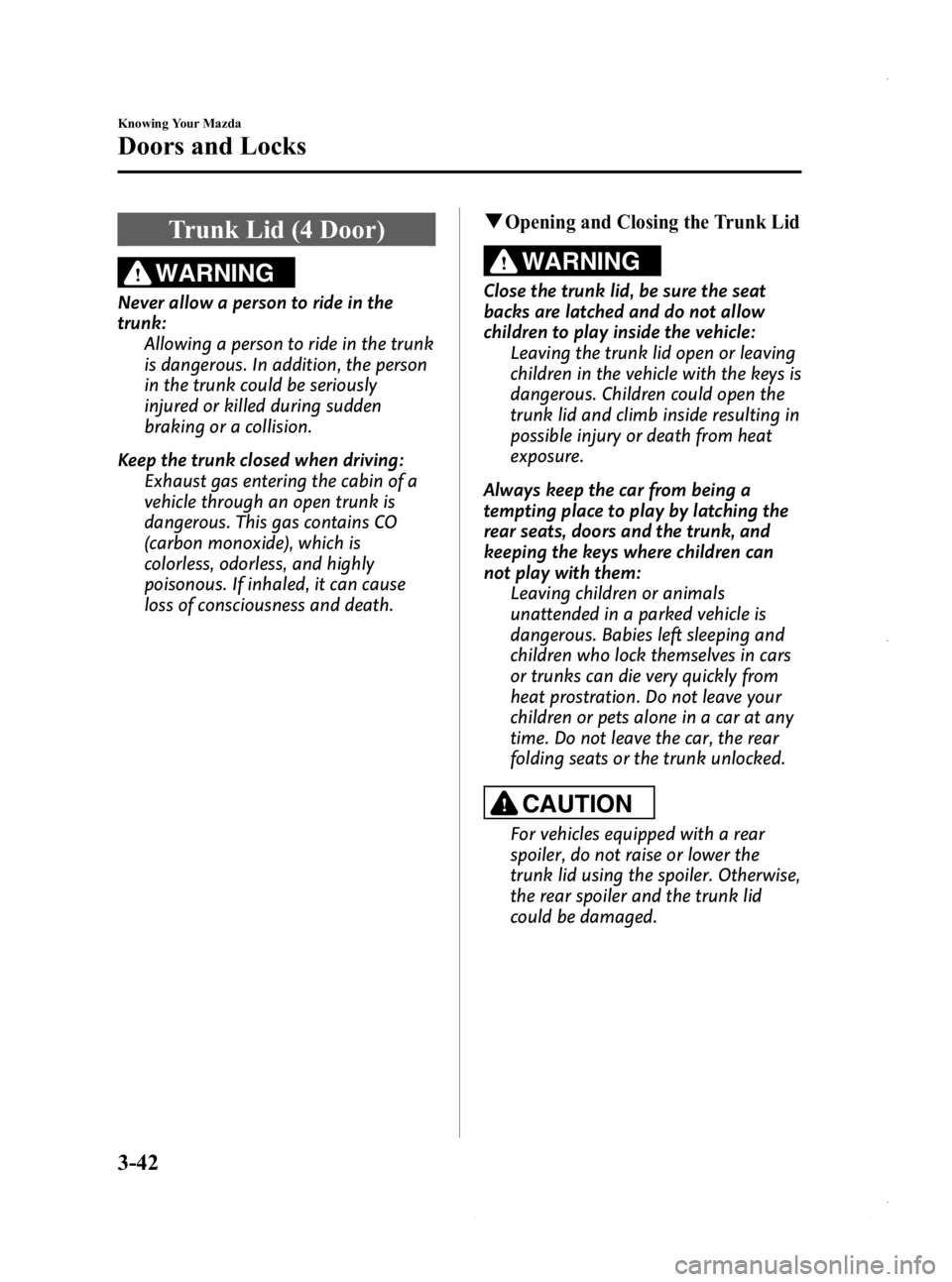

Trunk Lid (4 Door)
WARNING
Never allow a person to ride in the
trunk:Allowing a person to ride in the trunk
is dangerous. In addition, the person
in the trunk could be seriously
injured or killed during sudden
braking or a collision.
Keep the trunk closed when driving: Exhaust gas entering the cabin of a
vehicle through an open trunk is
dangerous. This gas contains CO
(carbon monoxide), which is
colorless, odorless, and highly
poisonous. If inhaled, it can cause
loss of consciousness and death.
qOpening and Closing the Trunk Lid
WARNING
Close the trunk lid, be sure the seat
backs are latched and do not allow
children to play inside the vehicle:Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by latching the
rear seats, doors and the trunk, and
keeping the keys where children can
not play with them: Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car, the rear
folding seats or the trunk unlocked.
CAUTION
For vehicles equipped with a rear
spoiler, do not raise or lower the
trunk lid using the spoiler. Otherwise,
the rear spoiler and the trunk lid
could be damaged.
3-42
Knowing Your Mazda
Doors and Locks
Mazda3_8CV6-EA-12H_Edition3 Page120
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H
