MAZDA MODEL 3 4-DOOR 2013 Owners Manual

Black plate (141,1)

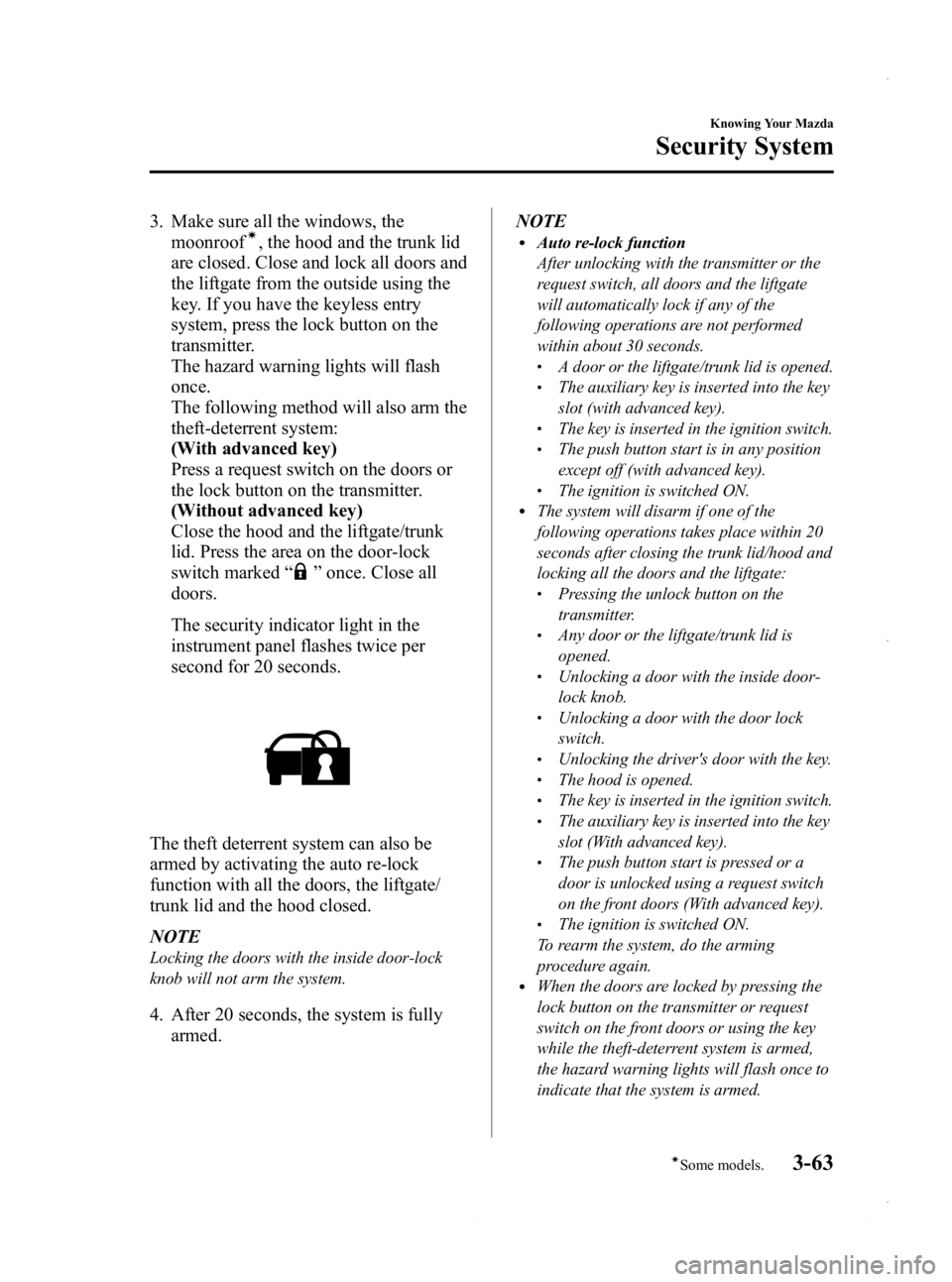

3. Make sure all the windows, themoonroofí, the hood and the trunk lid
are closed. Close and lock all doors and
the liftgate from the outside using the
key. If you have the keyless entry
system, press the lock button on the
transmitter.
The hazard warning lights will flash
once.
The following method will also arm the
theft-deterrent system:
(With advanced key)
Press a request switch on the doors or
the lock button on the transmitter.
(Without advanced key)
Close the hood and the liftgate/trunk
lid. Press the area on the door-lock
switch marked “
”once. Close all
doors.
The security indicator light in the
instrument panel flashes twice per
second for 20 seconds.
The theft deterrent system can also be
armed by activating the auto re-lock
function with all the doors, the liftgate/
trunk lid and the hood closed.
NOTE
Locking the doors with the inside door-lock
knob will not arm the system.
4. After 20 seconds, the system is fully armed. NOTE
lAuto re-lock function
After unlocking with the transmitter or the
request switch, all doors and the liftgate
will automatically lock if any of the
following operations are not performed
within about 30 seconds.
lA door or the liftgate/trunk lid is opened.lThe auxiliary key is inserted into the key
slot (with advanced key).
lThe key is inserted in the ignition switch.lThe push button start is in any position
except off (with advanced key).
lThe ignition is switched ON.lThe system will disarm if one of the
following operations takes place within 20
seconds after closing the trunk lid/hood and
locking all the doors and the liftgate:
lPressing the unlock button on the
transmitter.
lAny door or the liftgate/trunk lid is
opened.
lUnlocking a door with the inside door-
lock knob.
lUnlocking a door with the door lock
switch.
lUnlocking the driver's door with the key.lThe hood is opened.lThe key is inserted in the ignition switch.lThe auxiliary key is inserted into the key
slot (With advanced key).
lThe push button start is pressed or a
door is unlocked using a request switch
on the front doors (With advanced key).
lThe ignition is switched ON.
To rearm the system, do the arming
procedure again.
lWhen the doors are locked by pressing the
lock button on the transmitter or request
switch on the front doors or using the key
while the theft-deterrent system is armed,
the hazard warning lights will flash once to
indicate that the system is armed.
Knowing Your Mazda
Security System
3-63íSome models.
Mazda3_8CV6-EA-12H_Edition3 Page141
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (142,1)
qTo Turn Off an Armed System
An armed system can be turned off by any
one of the following methods:
lUnlock a door with the key.lPress the unlock button on the keyless
entry system transmitter.
lThe ignition is switched ON.l(With advanced key)
Press a request switch on the doors or
the unlock button on the transmitter.
The hazard warning lights will flash twice
to indicate that the system is turned off.
NOTE
When the doors are unlocked by pressing the
unlock button on the transmitter or request
switch on the front doors or using the key
while the theft-deterrent system is turned off,
the hazard warning lights will flash twice to
indicate that the system is turned off.
q To Stop the Alarm
A triggered alarm can be turned off by
any one of the following methods:
lUnlock a door with the key.lPress the unlock button or press and
hold the trunk button on the keyless
entry system transmitter.
lThe engine is started with the ignition
key.
l(With advanced key)lPress a request switch on the doors.lPress the electric liftgate/trunk lid
opener.
lPress the unlock button or press and
hold the trunk button on the
transmitter.
lThe engine is started with the push
button start. NOTE
If you have any problem with the theft-
deterrent system, consult an Authorized Mazda
Dealer.
q
Theft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the glove compartment.
Mazda recommends that you affix it to the
lower rear corner of a front door window.
3-64
Knowing Your Mazda
Security System
Mazda3_8CV6-EA-12H_Edition3 Page142
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (143,1)
Steering Wheel
WARNING
Never adjust the steering wheel while
the vehicle is moving:Adjusting the steering wheel while
the vehicle is moving is dangerous.
Moving it can very easily cause the
driver to abruptly turn to the left or
right. This can lead to loss of control
or an accident.
qSteering Wheel Adjustment
To change the angle or length of the
steering wheel:
1. Stop the vehicle, pull up the lock
release lever under the steering
column.
Lock release lever
2. Tilt the steering wheel and/or adjust thesteering column length to the desired
positions, push the lever down to lock
the column.
3. Push the wheel up and down to be certain it's locked before driving.
Mirrors
qOutside Mirrors
Check the mirror angles before driving.
Mirror type
Flat type (driver's side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its
surface.
WARNING
Be sure to look over your shoulder
before changing lanes:
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears.
Power mirror
The ignition must be switched to ACC or
ON.
To adjust:
1. Press the left or right side of the
selector switch to choose the left or
right side mirror.
Knowing Your Mazda
Steering Wheel and Mirrors
3-65
Mazda3_8CV6-EA-12H_Edition3 Page143
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (144,1)

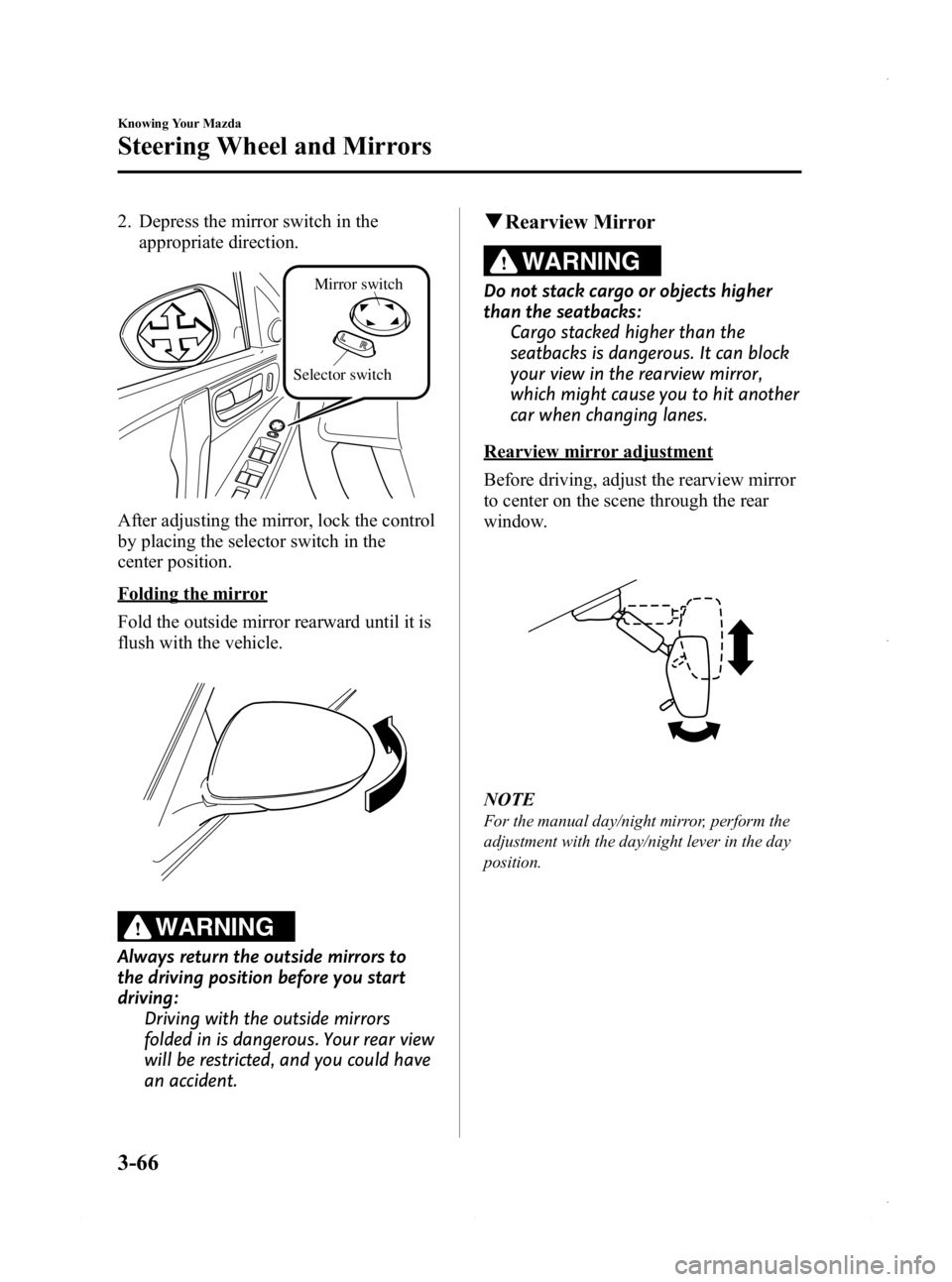

2. Depress the mirror switch in theappropriate direction.
Selector switch Mirror switch
After adjusting the mirror, lock the control
by placing the selector switch in the
center position.
Folding the mirror
Fold the outside mirror rearward until it is
flush with the vehicle.
WARNING
Always return the outside mirrors to
the driving position before you start
driving:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident.
qRearview Mirror
WARNING
Do not stack cargo or objects higher
than the seatbacks:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes.
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
NOTE
For the manual day/night mirror, perform the
adjustment with the day/night lever in the day
position.
3-66
Knowing Your Mazda
Steering Wheel and Mirrors
Mazda3_8CV6-EA-12H_Edition3 Page144
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (145,1)
Reducing glare from headlights
Manual day/night mirror
Push the day/night lever forward for day
driving. Pull it back to reduce glare of
headlights from cars at the rear.
Night
Day Day/Night lever
Auto-dimming mirror
The auto-dimming mirror automatically
reduces glare of headlights from cars at
the rear when the ignition is switched ON.
Press the ON/OFF button (
) to cancel
the automatic dimming function. The
indicator light will turn off.
To reactivate the automatic dimming
function, press the ON/OFF button (
).
The indicator light will illuminate.
ON/OFF button
Indicator light
NOTElDo not use glass cleaner or suspend objects
on or around the light sensor. Otherwise,
light sensor sensitivity will be affected and
may not operate normally.
Light sensor
Light sensor
lThe auto-dimmer function is canceled when
the ignition is switched ON and the shift
lever/selector lever is in reverse (R).
Knowing Your Mazda
Steering Wheel and Mirrors
3-67
Mazda3_8CV6-EA-12H_Edition3 Page145
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (146,1)
3-68
Mazda3_8CV6-EA-12H_Edition3 Page146
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (147,1)

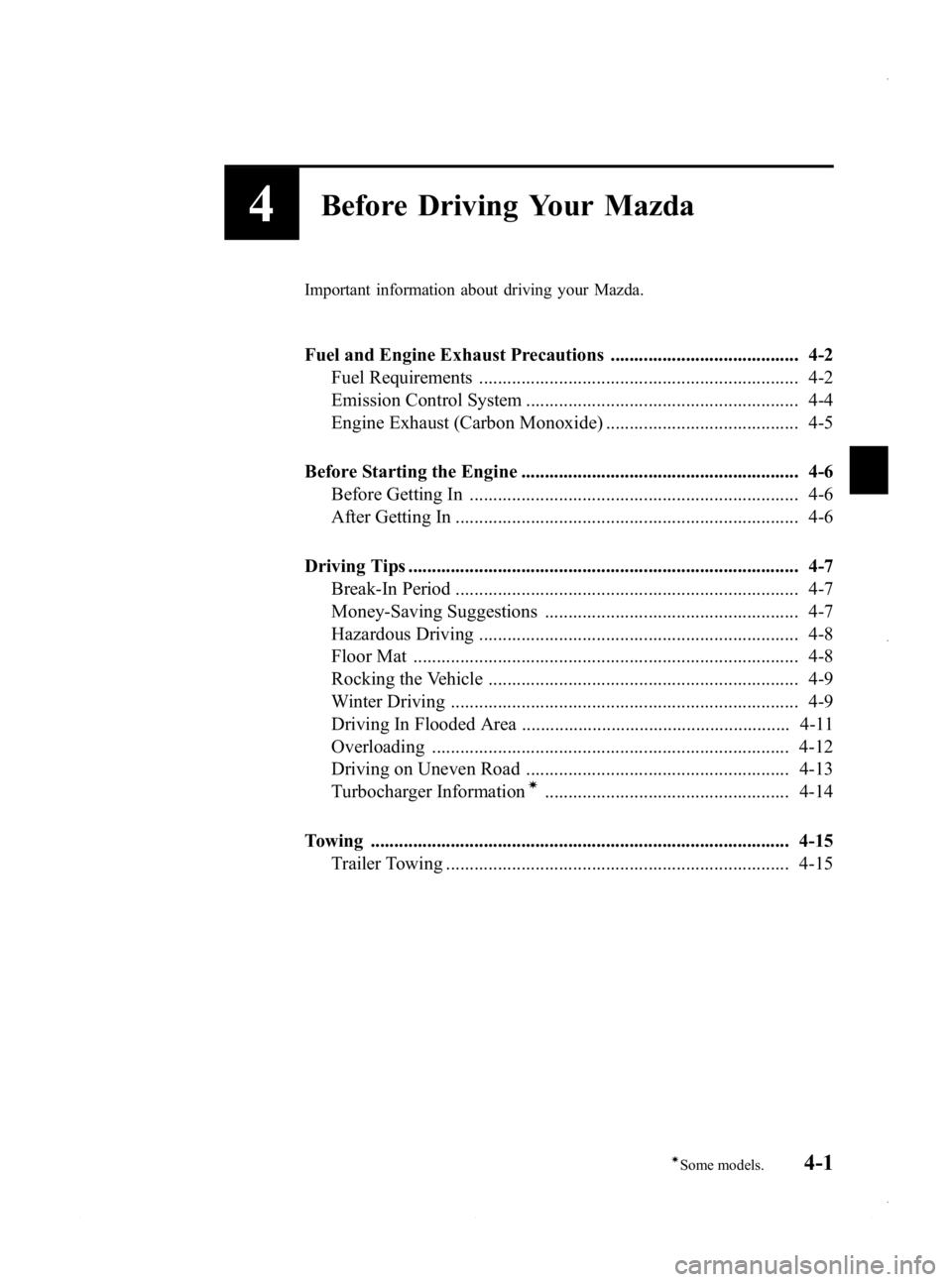

4Before Driving Your Mazda
Important information about driving your Mazda.
Fuel and Engine Exhaust Precautions ........................................ 4-2Fuel Requirements .................................................................... 4-2
Emission Control System .......................................................... 4-4
Engine Exhaust (Carbon Monoxide) ......................................... 4-5
Before Starting the Engine ........................................................... 4-6 Before Getting In ...................................................................... 4-6
After Getting In ......................................................................... 4-6
Driving Tips ................................................................................... 4-7 Break-In Period ......................................................................... 4-7
Money-Saving Suggestions ...................................................... 4-7
Hazardous Driving .................................................................... 4-8
Floor Mat .................................................................................. 4-8
Rocking the Vehicle .................................................................. 4-9
Winter Driving .......................................................................... 4-9
Driving In Flooded Area ......................................................... 4-11
Overloading ............................................................................ 4-12
Driving on Uneven Road ........................................................ 4-13
Turbocharger Information
í.................................................... 4-14
Towing ......................................................................................... 4-15 Trailer Towing ......................................................................... 4-15
4-1íSome models.
Mazda3_8CV6-EA-12H_Edition3 Page147
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (148,1)
Fuel Requirements
Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a minimum.
MZR 2.3 DISI Turbo
Your Mazda will perform best with fuel listed in the table.
FuelOctane Rating*(Anti-knock index)
Premium unleaded fuel 91 [ (R
M)/2 method] or above (96 RON or above)
* U.S. federal law requires that octane ratings be posted on gasoline station pumps.
This vehicle is designed for and requires use of premium unleaded fuel. If 91 octane fuel [
(R
M)/2 method] (96RON) is not available, gasoline as low as 87 octane [ (RM)/2
method] (91RON) can be used temporarily for emergency purposes. Use of gasoline lower
than 91 octane [ (R
M)/2 method] (96RON) can decrease performance during its use.
Refueling the vehicle with the correct octane fuel a couple of times will restore vehicle
performance.
SKYACTIV-G 2.0, MZR 2.0 and MZR 2.5
Your Mazda will perform best with fuel listed in the table.
Fuel Octane Rating*(Anti-knock index)
Regular unleaded fuel 87 [ (R
M)/2 method] or above (91 RON or above)
* U.S. federal law requires that octane ratings be posted on gasoline station pumps.
Fuel with a rating lower than 87 octane (91 RON) could cause the emission control system
to lose effectiveness. It could also cause engine knocking and serious engine damage.
CAUTION
Ø USE ONLY UNLEADED FUEL.
Leaded fuel is harmful to the catalytic converter and oxygen sensors and will lead
to deterioration of the emission control system and or failures.
Ø Your vehicle can only use oxygenated fuels containing no more than 10 % ethanol
by volume. Damage to your vehicle may occur when ethanol exceeds this
recommendation, or if the gasoline contains any methanol. Stop using gasohol of
any kind if your vehicle engine is performing poorly.
Ø Never add fuel system additives. Otherwise, the emission control system could be
damaged. Consult an Authorized Mazda Dealer for details.
Gasoline blended with oxygenates such as alcohol or ether compounds are generally
referred to as oxygenated fuels. The common gasoline blend that can be used with your
vehicle is ethanol blended at no more than 10 %. Gasoline containing alcohol, such as
ethanol or methanol, may be marketed under the name “Gasohol ”.
4-2
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Mazda3_8CV6-EA-12H_Edition3 Page148
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (149,1)

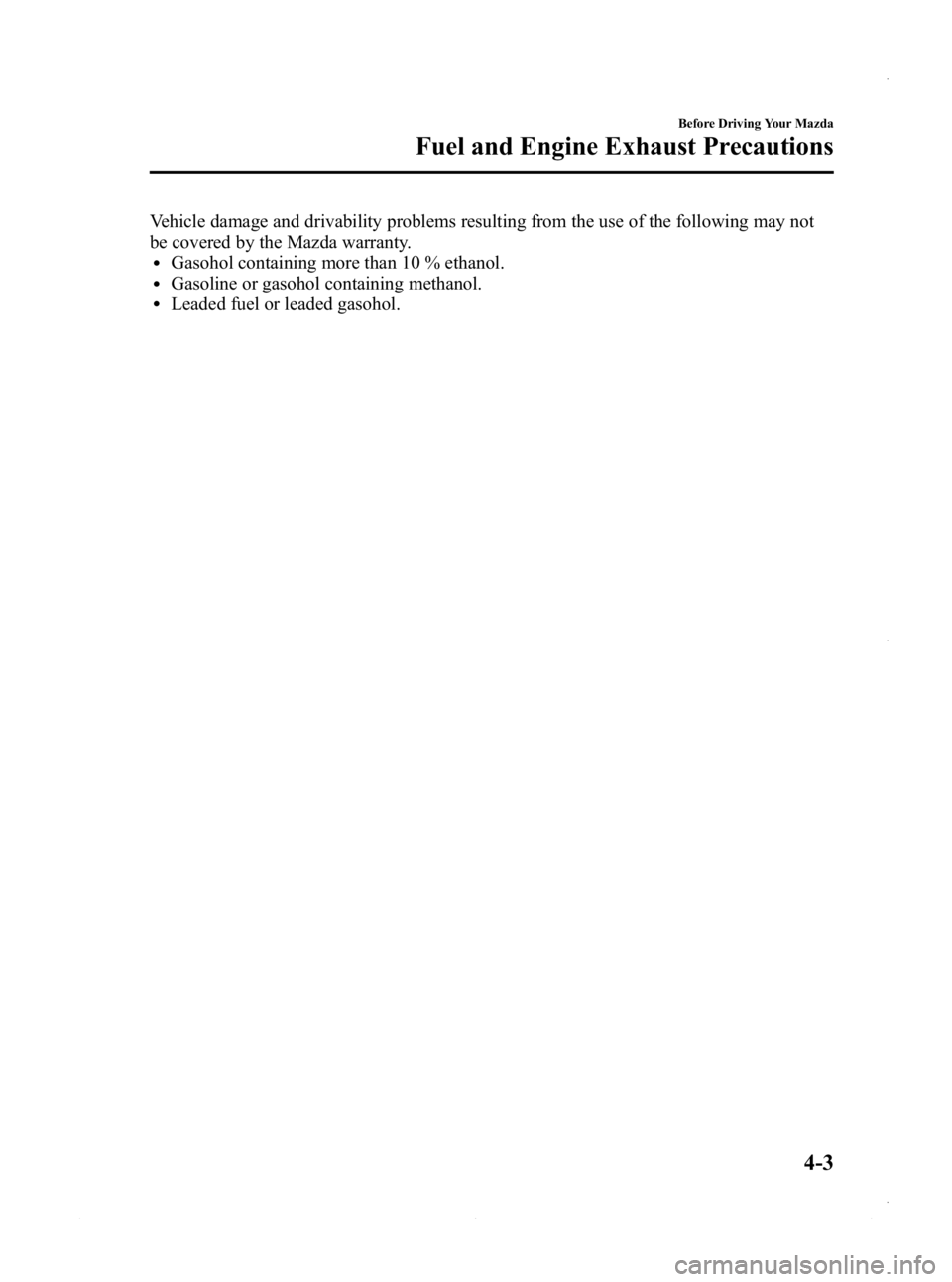

Vehicle damage and drivability problems resulting from the use of the following may not
be covered by the Mazda warranty.
lGasohol containing more than 10 % ethanol.lGasoline or gasohol containing methanol.lLeaded fuel or leaded gasohol.
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
4-3
Mazda3_8CV6-EA-12H_Edition3 Page149
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H

Black plate (150,1)
Emission Control System
Your vehicle is equipped with an emission control system (the catalytic converter is part of
this system) that enables your vehicle to comply with existing exhaust emissions
requirements.
WARNING
Never park over or near anything flammable:Parking over or near anything flammable, such as dry grass, is dangerous. Even with
the engine turned off, the exhaust system remains very hot after normal use and
could ignite anything flammable. A resulting fire could cause serious injury or death.
CAUTION
Ignoring the following precautions could cause lead to accumulate on the catalyst
inside the converter or cause the converter to get very hot. Either condition will
damage the converter and cause poor performance.
ØUSE ONLY UNLEADED FUEL.
Ø Do not drive your Mazda with any sign of engine malfunction.
Ø Do not coast with the ignition switched off.
Ø Do not descend steep grades in gear with the ignition switched off.
Ø Do not operate the engine at high idle for more than 2 minutes.
Ø Do not tamper with the emission control system. All inspections and adjustments
must be made by a qualified technician.
Ø Do not push-start or pull-start your vehicle.
NOTE
Under U.S. federal law, any modification to the original-equipment emission control system before
the first sale and registration of a vehicle is subject to penalties. In some states, such modification
made on a used vehicle is also subject to penalties.
NOTE
While the engine is off, the sound of a valve opening and closing can be heard at the rear of the right
side of the vehicle, however this does not indicate an abnormality. Your vehicle has a self-checking
device and it operates while the engine is off.
4-4
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Mazda3_8CV6-EA-12H_Edition3 Page150
Thursday, February 28 2013 11:27 AM
Form No.8CV6-EA-12H
