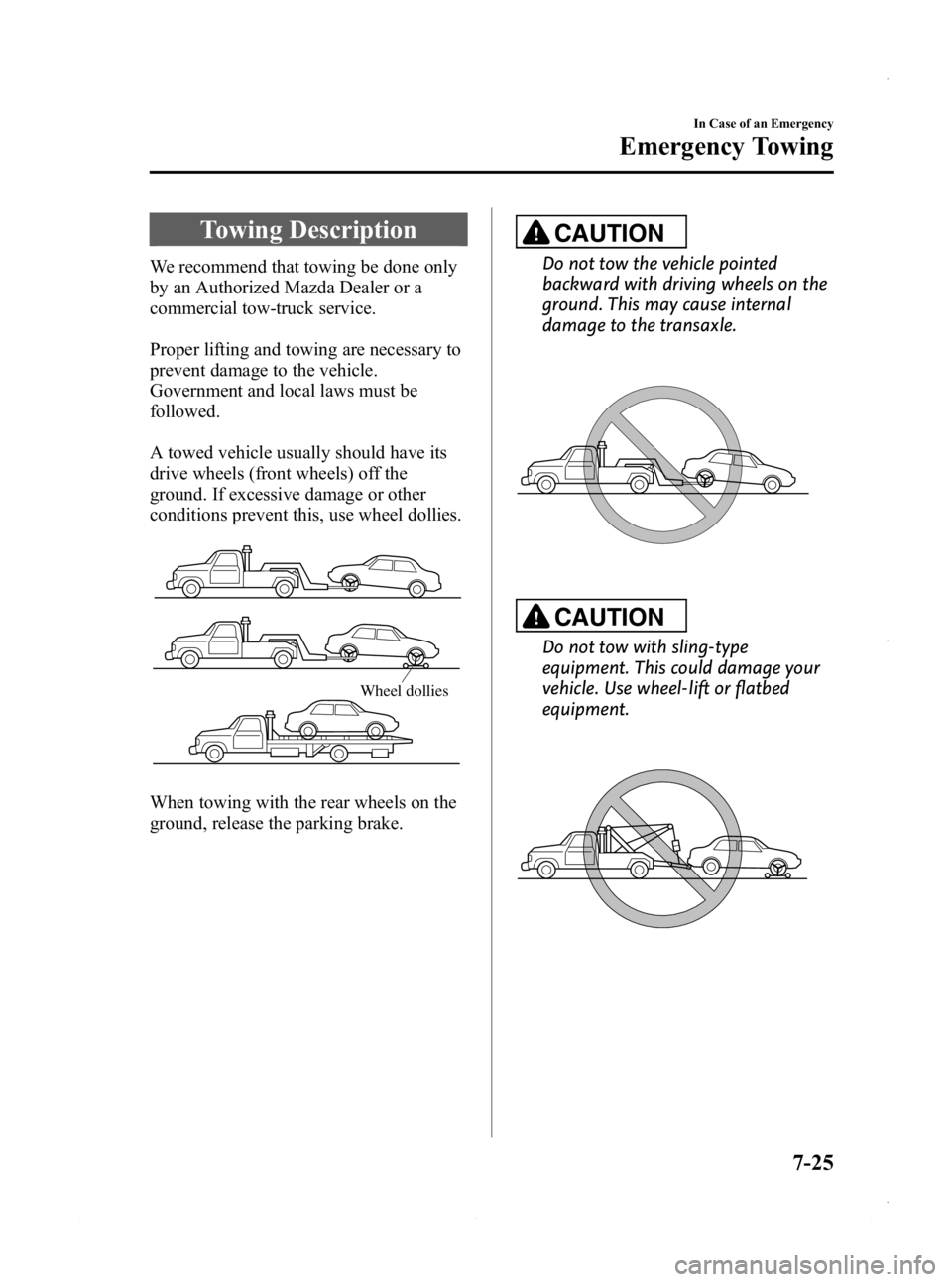

Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
drive wheels (front wheels) off the
ground. If excessive damage or other
conditions prevent this, use wheel dollies.
Wheel dollies
When towing with the rear wheels on the
ground, release the parking brake.
CAUTION
Do not tow the vehicle pointed
backward with driving wheels on the
ground. This may cause internal
damage to the transaxle.
CAUTION
Do not tow with sling-type
equipment. This could damage your
vehicle. Use wheel-lift or flatbed
equipment.
In Case of an Emergency
Emergency Towing
7-25
Mazda3_8CV6-EA-12H_Edition3 Page461
Thursday, February 28 2013 11:30 AM
Form No.8CV6-EA-12H

Black plate (462,1)

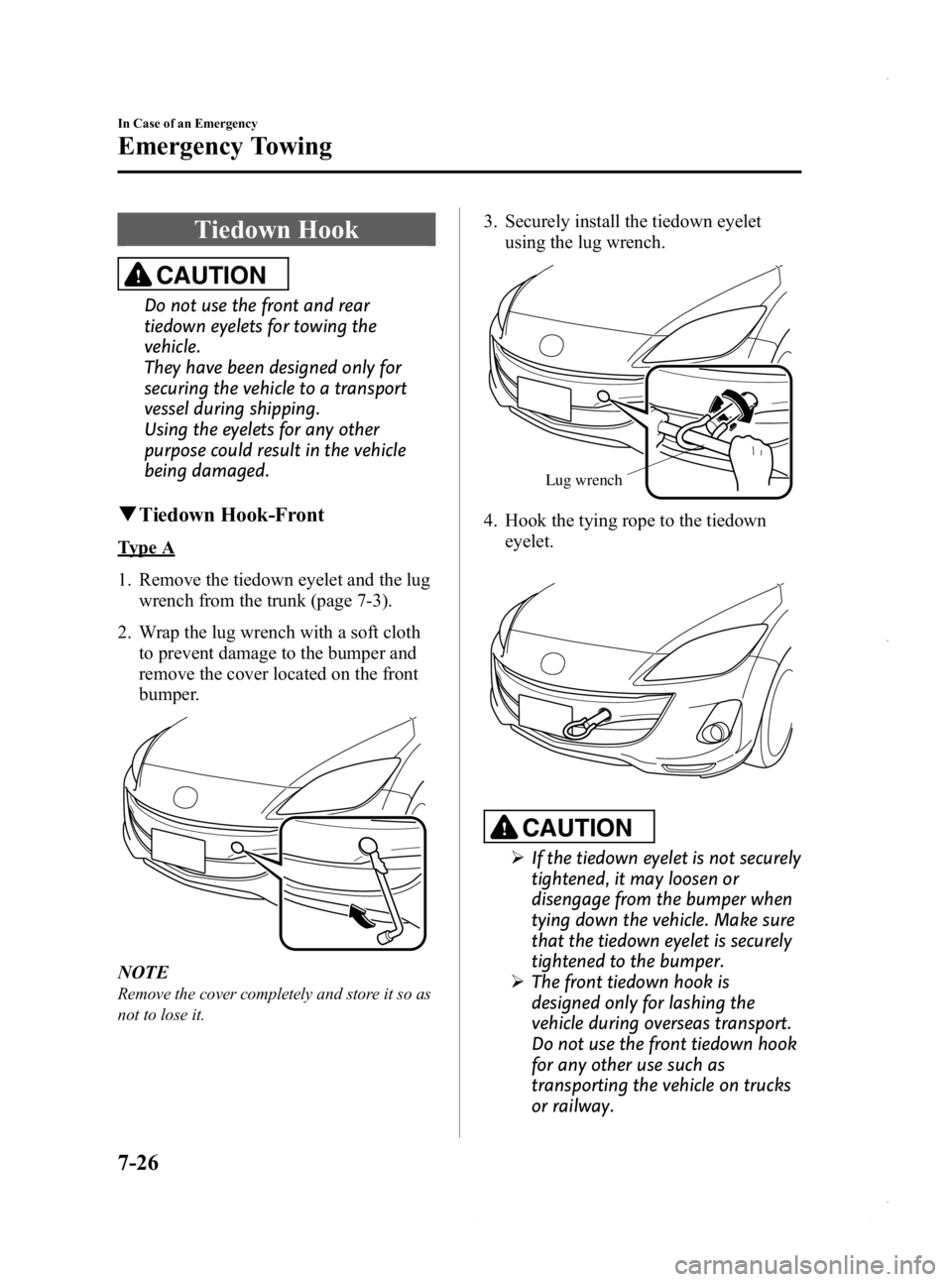

Tiedown Hook
CAUTION
Do not use the front and rear
tiedown eyelets for towing the
vehicle.
They have been designed only for
securing the vehicle to a transport
vessel during shipping.
Using the eyelets for any other
purpose could result in the vehicle
being damaged.
qTiedown Hook-Front
Type A
1. Remove the tiedown eyelet and the lug
wrench from the trunk (page 7-3).
2. Wrap the lug wrench with a soft cloth to prevent damage to the bumper and
remove the cover located on the front
bumper.
NOTE
Remove the cover completely and store it so as
not to lose it.
3. Securely install the tiedown eyeletusing the lug wrench.
Lug wrench
4. Hook the tying rope to the tiedown
eyelet.
CAUTION
ØIf the tiedown eyelet is not securely
tightened, it may loosen or
disengage from the bumper when
tying down the vehicle. Make sure
that the tiedown eyelet is securely
tightened to the bumper.
Ø The front tiedown hook is
designed only for lashing the
vehicle during overseas transport.
Do not use the front tiedown hook
for any other use such as
transporting the vehicle on trucks
or railway.
7-26
In Case of an Emergency
Emergency Towing
Mazda3_8CV6-EA-12H_Edition3 Page462
Thursday, February 28 2013 11:30 AM
Form No.8CV6-EA-12H

Black plate (463,1)

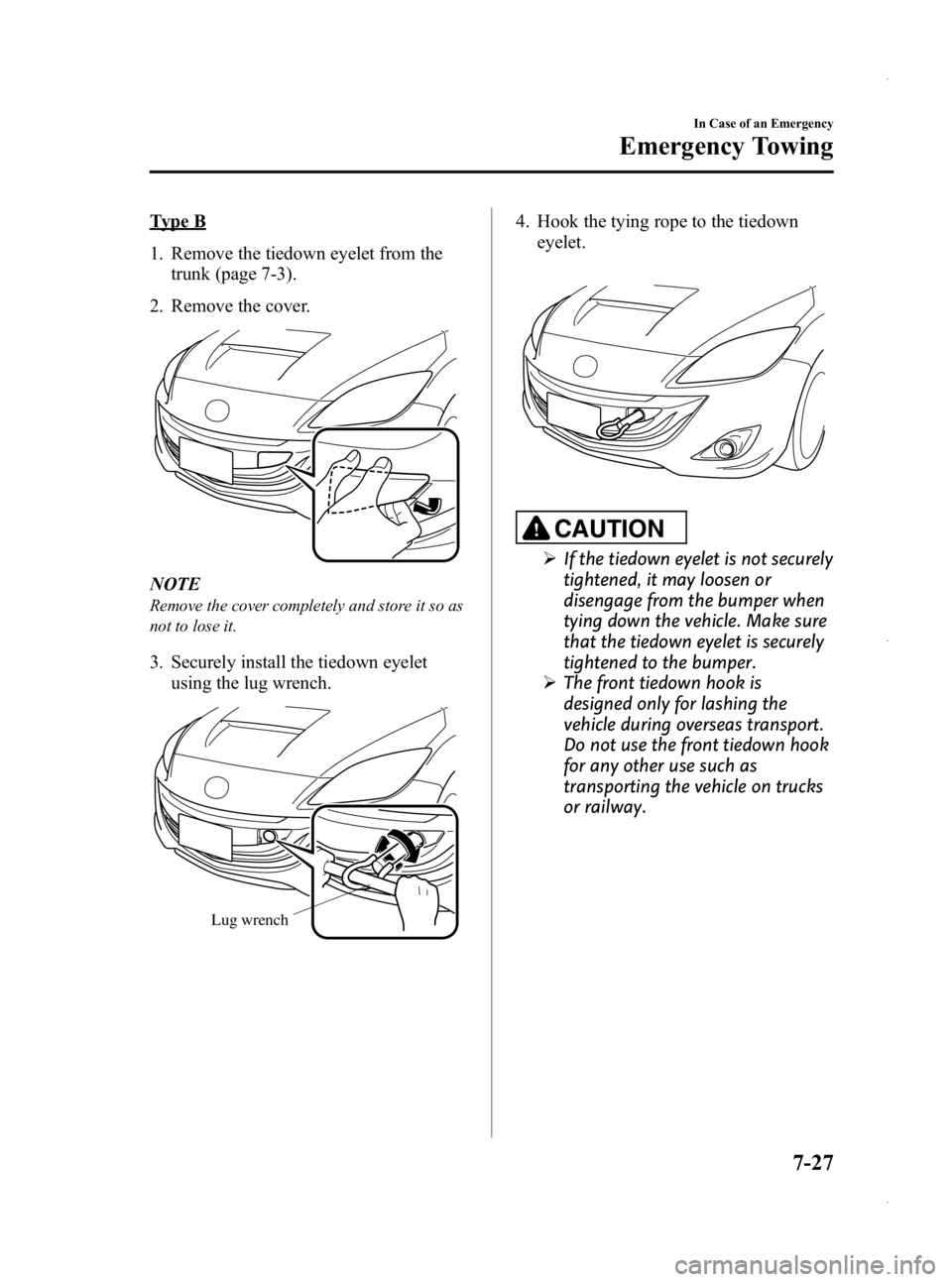

Type B
1. Remove the tiedown eyelet from thetrunk (page 7-3).
2. Remove the cover.
NOTE
Remove the cover completely and store it so as
not to lose it.
3. Securely install the tiedown eyelet using the lug wrench.
Lug wrench
4. Hook the tying rope to the tiedowneyelet.
CAUTION
ØIf the tiedown eyelet is not securely
tightened, it may loosen or
disengage from the bumper when
tying down the vehicle. Make sure
that the tiedown eyelet is securely
tightened to the bumper.
Ø The front tiedown hook is
designed only for lashing the
vehicle during overseas transport.
Do not use the front tiedown hook
for any other use such as
transporting the vehicle on trucks
or railway.
In Case of an Emergency
Emergency Towing
7-27
Mazda3_8CV6-EA-12H_Edition3 Page463
Thursday, February 28 2013 11:30 AM
Form No.8CV6-EA-12H

Black plate (464,1)

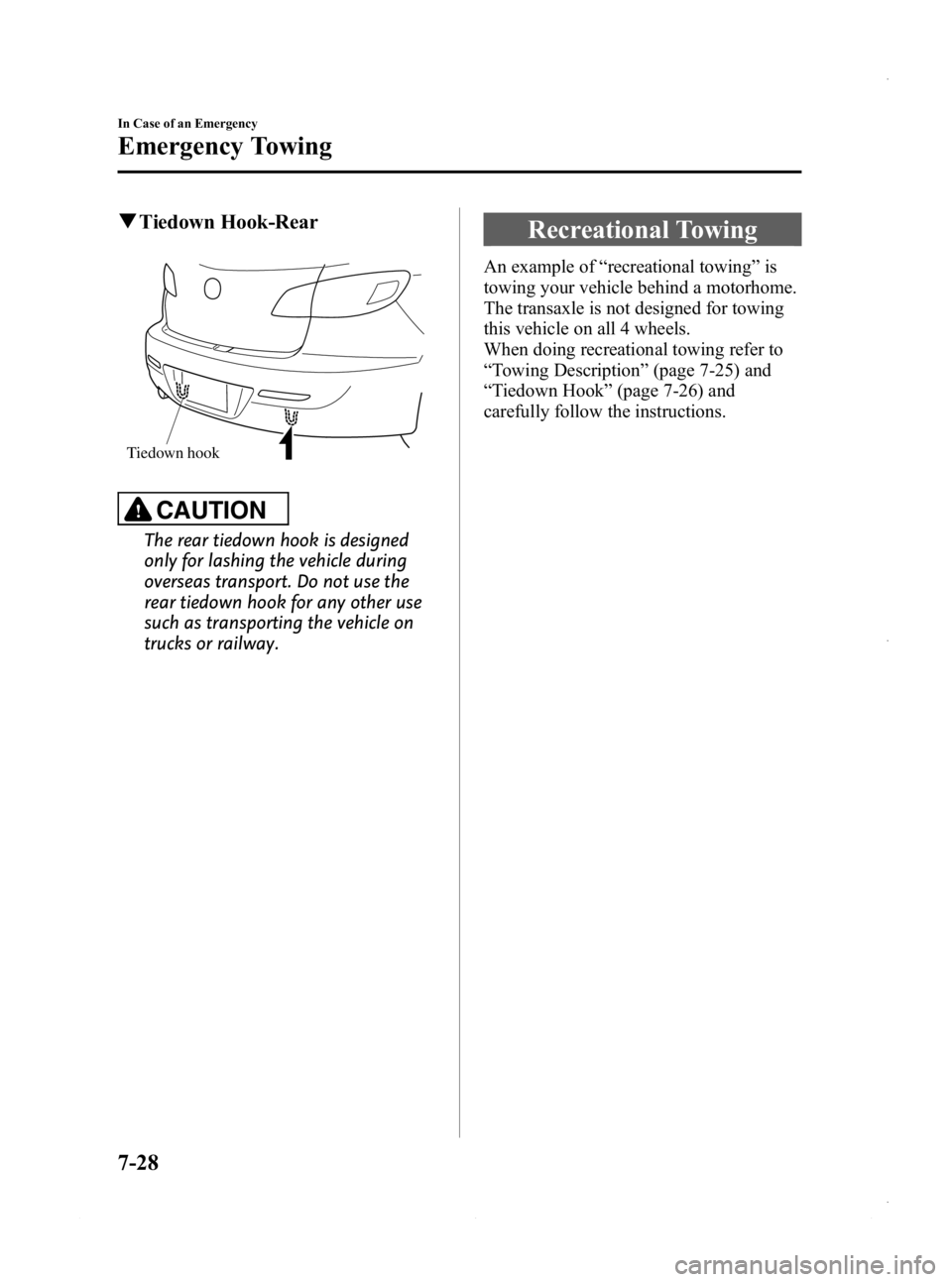

qTiedown Hook-Rear
Tiedown hook
CAUTION
The rear tiedown hook is designed
only for lashing the vehicle during
overseas transport. Do not use the
rear tiedown hook for any other use
such as transporting the vehicle on
trucks or railway.
Recreational Towing
An example of “recreational towing ”is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
“ Towing Description ”(page 7-25) and
“ Tiedown Hook ”(page 7-26) and
carefully follow the instructions.
7-28
In Case of an Emergency
Emergency Towing
Mazda3_8CV6-EA-12H_Edition3 Page464
Thursday, February 28 2013 11:30 AM
Form No.8CV6-EA-12H

Black plate (465,1)
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-4 Scheduled Maintenance (USA, Canada, and Puerto Rico) ....... 8-4
Scheduled Maintenance (Mexico) ............................................. 8-9
Owner Maintenance ................................................................... 8-16 Owner Maintenance Schedule ................................................ 8-16
Owner Maintenance Precautions ............................................. 8-17
Engine Compartment Overview .............................................. 8-19
Engine Oil ............................................................................... 8-21
Engine Coolant ....................................................................... 8-25
Brake/Clutch Fluid .................................................................. 8-27
Power Steering Fluid ............................................................... 8-27
Automatic Transaxle Fluid (ATF)
í........................................ 8-28
Washer Fluid ........................................................................... 8-29
Body Lubrication .................................................................... 8-30
Wiper Blades ........................................................................... 8-31
Battery ..................................................................................... 8-35
Tires ........................................................................................ 8-39
Light Bulbs ............................................................................. 8-46
Fuses ....................................................................................... 8-58
Appearance Care ........................................................................ 8-65 How to Minimize Environmental Paint Damage .................... 8-65
Exterior Care ........................................................................... 8-67
Interior Care ............................................................................ 8-71
8-1íSome models.
Mazda3_8CV6-EA-12H_Edition3 Page465
Thursday, February 28 2013 11:30 AM
Form No.8CV6-EA-12H

Black plate (466,1)
Introduction
Be extremely careful and prevent injury to yourself and others or damage to your vehicle
when using this manual for inspection and maintenance.
If you are unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.
Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult an Authorized Mazda Dealer.
To continue warranty eligibility and to protect your investment, it is your responsibility to
properly maintain your vehicle according to factory recommended schedules outlined in
this manual. As part of this you must keep your maintenance records, receipts, repair orders
and any other documents as evidence this maintenance was performed. You must present
these documents, should any warranty coverage disagreement occur. Failure to do so can
result in your warranty being voided either in whole or in part.
This evidence may consist of the following:
lThe Mazda Scheduled Maintenance Record, refer to the Warranty Booklet, must be
completely filled out showing mileage, repair order number, date for each service, and
signed by a qualified automotive service technician who service vehicles.
lOriginal copies of repair orders or other receipts that include the mileage and date the
vehicle was serviced. Each receipt should be signed by a qualified automotive service
technician.
lFor self maintenance, a statement that you completed the maintenance yourself,
displaying mileage and the date the work was performed. Also, receipts for the
replacement parts (fluid, filters, etc.) indicating the date and mileage must accompany
this statement.
NOTE
If you elect to perform maintenance yourself or have your vehicle serviced at a location other than an
Authorized Mazda Dealer, Mazda requires that all fluids, parts and materials must meet Mazda
standards for durability and performance as described in this manual.
Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.
8-2
Maintenance and Care
Introduction
Mazda3_8CV6-EA-12H_Edition3 Page466
Thursday, February 28 2013 11:30 AM
Form No.8CV6-EA-12H

Black plate (467,1)
Any auto repair shop using parts equivalent to your Mazda's original equipment may
perform maintenance.But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.
For vehicles equipped with the multi information display, selecting “Maintenance Monitor ”
enables the system to notify you of your vehicle's approaching inspection/servicing period
(page 6-183).
Maintenance and Care
Introduction
8-3
Mazda3_8CV6-EA-12H_Edition3 Page467
Thursday, February 28 2013 11:30 AM
Form No.8CV6-EA-12H

Black plate (468,1)

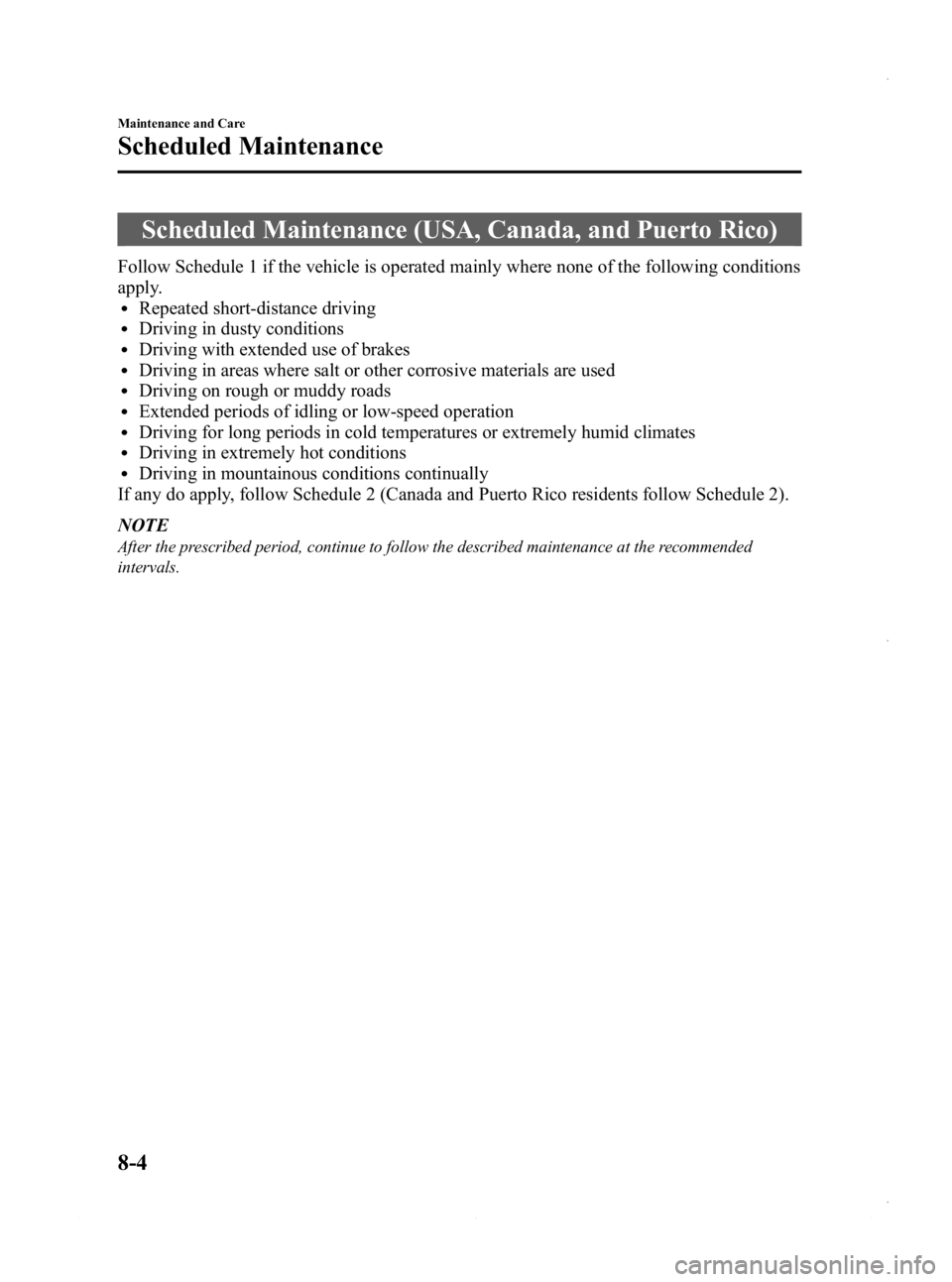

Scheduled Maintenance (USA, Canada, and Puerto Rico)
