MAZDA MODEL 3 4-DOOR 2013 Owners Manual

Black plate (581,1)

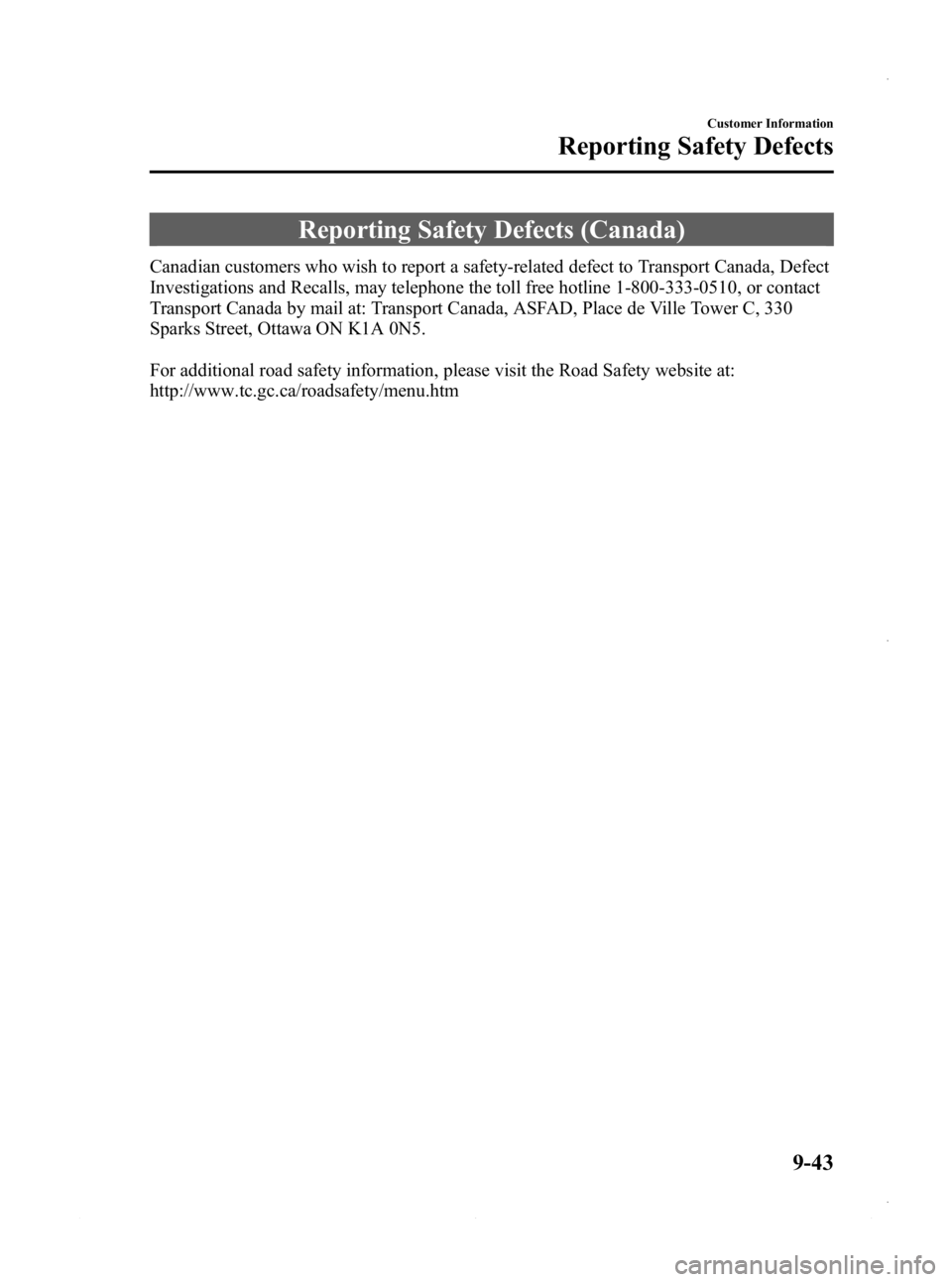

Reporting Safety Defects (Canada)
Canadian customers who wish to report a safety-related defect to Transport Canada, Defect
Investigations and Recalls, may telephone the toll free hotline 1-800-333-0510, or contact
Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville Tower C, 330
Sparks Street, Ottawa ON K1A 0N5.
For additional road safety information, please visit the Road Safety website at:
http://www.tc.gc.ca/roadsafety/menu.htm
Customer Information
Reporting Safety Defects
9-43
Mazda3_8CV6-EA-12H_Edition3 Page581
Thursday, February 28 2013 11:31 AM
Form No.8CV6-EA-12H

Black plate (582,1)
Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they do not have what you need in stock, they can order it for you.
PUBLICATION ORDER NUMBERPUBLICATION DESCRIPTION
9999-95-017B-13 2013 WORKSHOP MANUAL (English)
9999-MX-017B-13 2013 WORKSHOP MANUAL (Spanish)
9999-95-019G-13 2013 WIRING DIAGRAM (English)
9999-MX-019G-13 2013 WIRING DIAGRAM (Spanish)
9999-95-038C-13R 2013 OWNER'S MANUAL (English)
9999-EC-038C-13R 2013 OWNER'S MANUAL (English and French)
9999-PR-038C-13R 2013 OWNER'S MANUAL (Spanish)
9999-95-MODL-13 2013 SERVICE HIGHLIGHTS
9999-95-NAV1-13 2013 NAVIGATION SYSTEM OWNER'S MANUAL
(English)
9999-EC-NAV1-13 2013 NAVIGATION SYSTEM OWNER'S MANUAL
(English and French)
9999-PR-NAV1-13 2013 NAVIGATION SYSTEM OWNER'S MANUAL
(Spanish)
q
WORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train, body and
chassis.
qWIRING DIAGRAM:
Provides electrical schematics as well as component location for the entire electrical
system.
qOWNER'S MANUAL:
This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician's manual.
9-44
Customer Information
Service Publications
Mazda3_8CV6-EA-12H_Edition3 Page582
Thursday, February 28 2013 11:31 AM
Form No.8CV6-EA-12H

Black plate (583,1)
qSERVICE HIGHLIGHTS:
Provides description and operation of the many systems of your Mazda.
qNAVIGATION SYSTEM OWNER'S MANUAL:
This booklet contains information regarding the proper operation and use of the navigation
system. This is not a technician's manual.
Customer Information
Service Publications
9-45
Mazda3_8CV6-EA-12H_Edition3 Page583
Thursday, February 28 2013 11:31 AM
Form No.8CV6-EA-12H

Black plate (584,1)
9-46
Mazda3_8CV6-EA-12H_Edition3 Page584
Thursday, February 28 2013 11:31 AM
Form No.8CV6-EA-12H

Black plate (585,1)
10Specifications
Technical information about your Mazda.
Identification Numbers ............................................................... 10-2Vehicle Information Labels ..................................................... 10-2
Specifications ............................................................................... 10-4 Specifications .......................................................................... 10-4
Personalization Features .......................................................... 10-13 Personalization Features ........................................................ 10-13
10-1
Mazda3_8CV6-EA-12H_Edition3 Page585
Thursday, February 28 2013 11:31 AM
Form No.8CV6-EA-12H

Black plate (586,1)

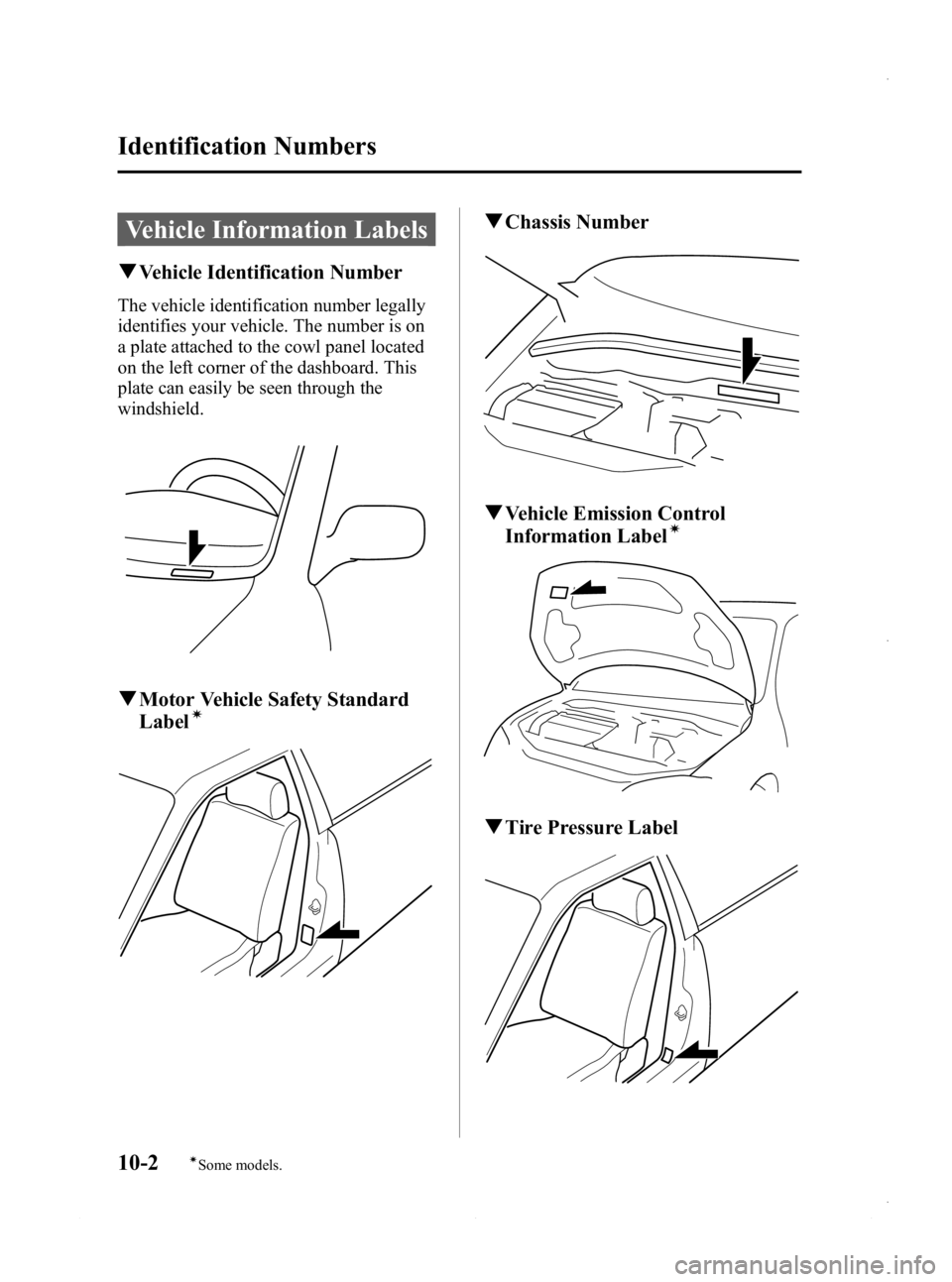

Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the dashboard. This
plate can easily be seen through the
windshield.
qMotor Vehicle Safety Standard
Labelí
qChassis Number
qVehicle Emission Control
Information Labelí
qTire Pressure Label
10-2íSome models.
Identification Numbers
Mazda3_8CV6-EA-12H_Edition3 Page586
Thursday, February 28 2013 11:31 AM
Form No.8CV6-EA-12H

Black plate (587,1)

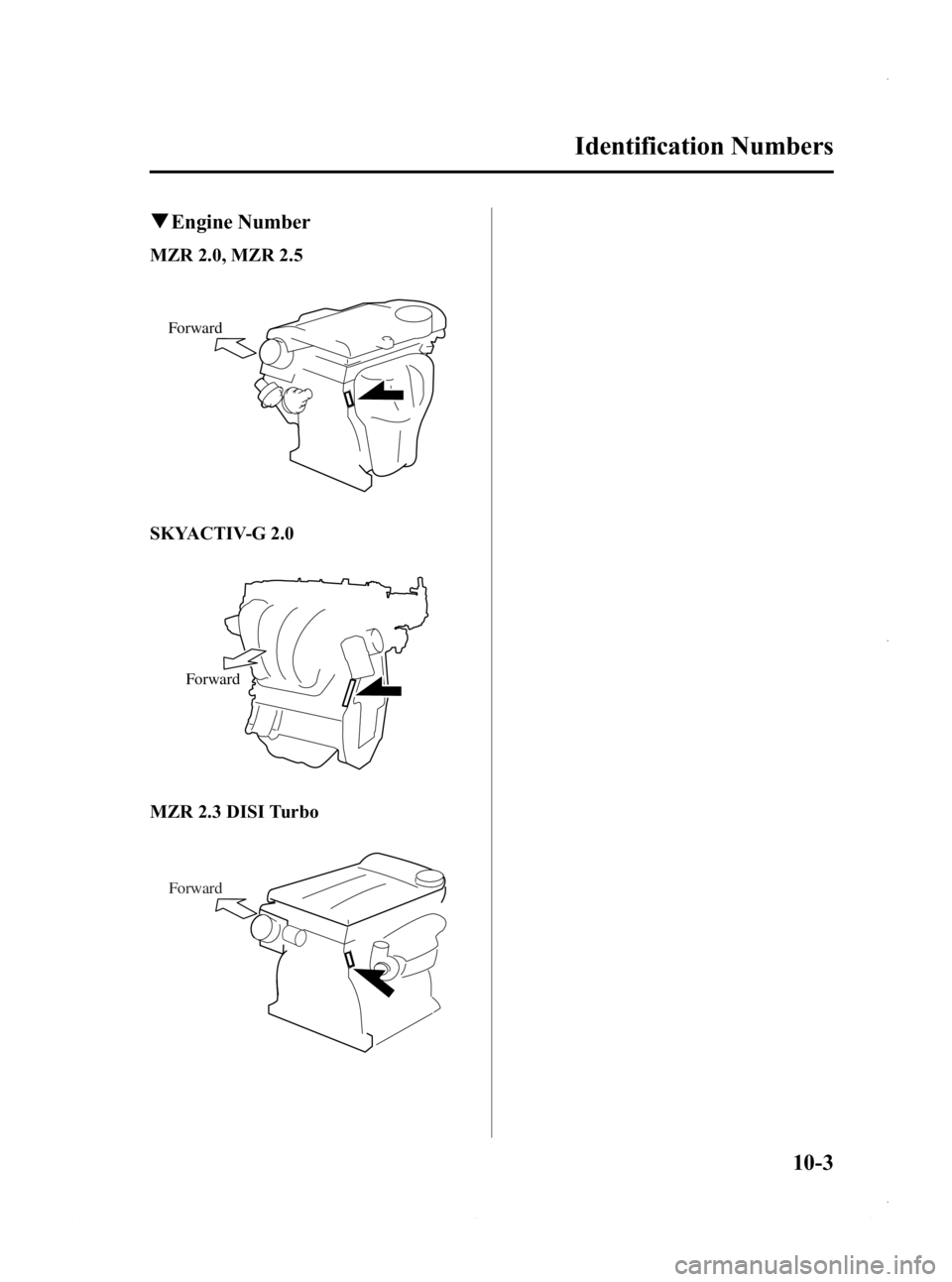

qEngine Number
MZR 2.0, MZR 2.5
Forward
SKYACTIV-G 2.0
Forward
MZR 2.3 DISI Turbo
Forward
Identification Numbers
10-3
Mazda3_8CV6-EA-12H_Edition3 Page587
Thursday, February 28 2013 11:31 AM
Form No.8CV6-EA-12H

Black plate (588,1)
Specifications
qEngine
Item Specification
MZR 2.0 SKYACTIV-G 2.0
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 87.5 × 83.1 mm (3.44 × 3.27 in) 83.5 × 91.2 mm (3.29 × 3.59 in)
Displacement 1,999 ml (1,999 cc, 122.0 cu in) 1,998 ml (1,998 cc, 121.9 cu in)
Compression ratio 10.0 12.0
Item Specification
MZR 2.3 DISI Turbo MZR 2.5
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 87.5 × 94.0 mm (3.44 × 3.70 in) 89.0 × 100 mm (3.50 × 3.94 in)
Displacement 2,261 ml (2,261 cc, 138.0 cu in) 2,488 ml (2,488 cc, 151.8 cu in)
Compression ratio 9.5 9.7
q Electrical System
Item Classification
MZR 2.0 SKYACTIV-G 2.0
Battery 12V-50Ah/20HR or 12V-65Ah/20HR 12V-60Ah/20HR or 12V-65Ah/20HR
Spark-plug number Mazda Genuine
spark plug LFJD-18-110 or
L3Y2-18-110 Mazda Genuine
spark plug
*1PE5R-18-110 or
PE5S-18-110
Item Classification
MZR 2.3 DISI Turbo MZR 2.5
Battery 12V-60Ah/20HR or 12V-65Ah/20HR 12V-50Ah/20HR, 12V-60Ah/20HR, or
12V-65Ah/20HR
Spark-plug number Mazda Genuine
spark plug L3BD-18-110 or
L3YD-18-110 Mazda Genuine
spark plug LFJD-18-110 or
L3Y2-18-110
*1 This spark plug provides the SKYACTIV-G engine with optimum performance. Contact an Authorized Mazda Dealer for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.
10-4
Specifications
Mazda3_8CV6-EA-12H_Edition3 Page588
Thursday, February 28 2013 11:31 AM
Form No.8CV6-EA-12H

Black plate (589,1)

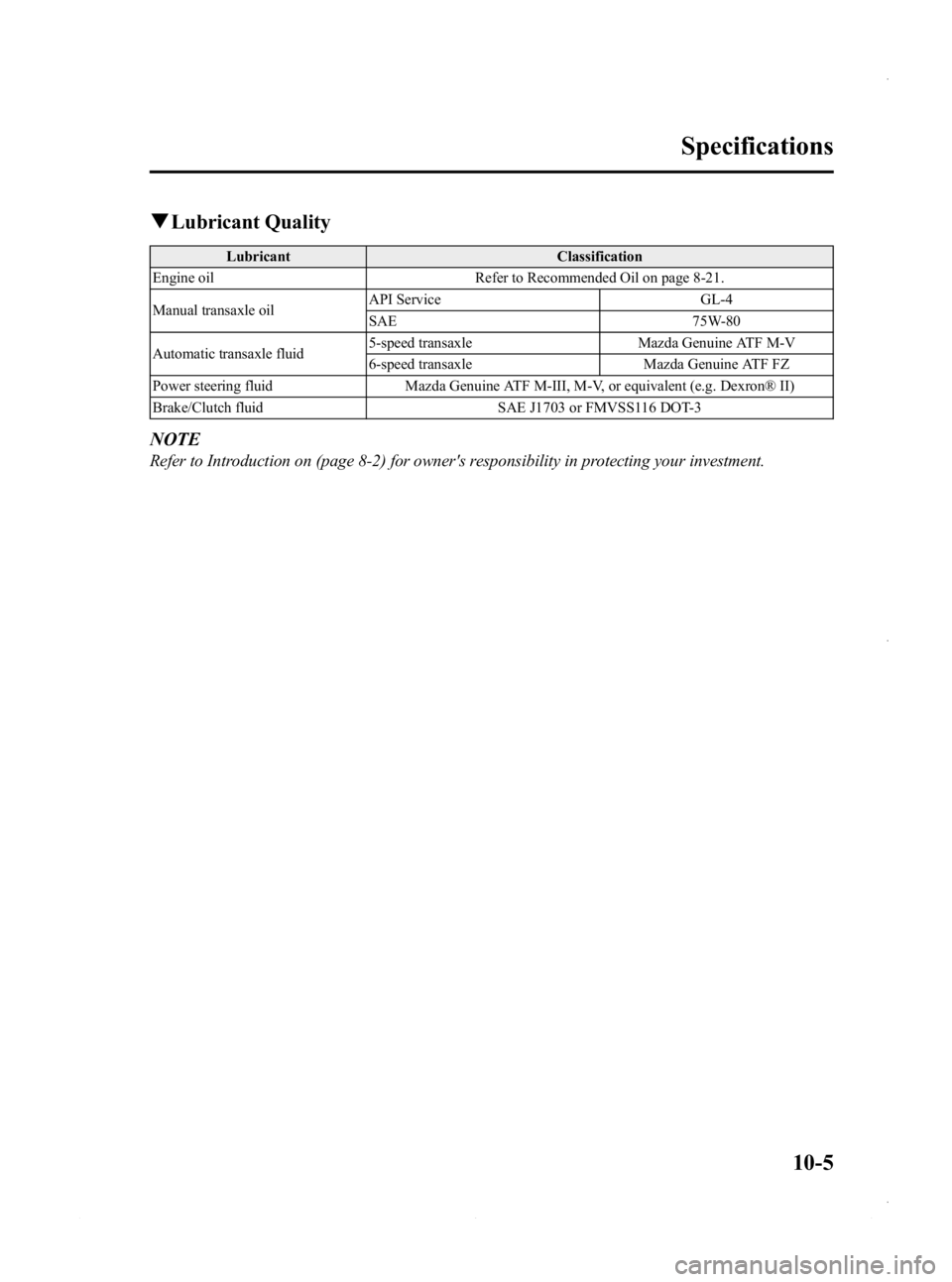

qLubricant Quality
Lubricant Classification
Engine oil Refer to Recommended Oil on page 8-21.
Manual transaxle oil API Service
GL-4
SAE 75W-80
Automatic transaxle fluid 5-speed transaxle
Mazda Genuine ATF M-V
6-speed transaxle Mazda Genuine ATF FZ
Power steering fluid Mazda Genuine ATF M-III, M-V, or equivalent (e.g. Dexron® II)
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
NOTE
Refer to Introduction on (page 8-2) for owner's responsibility in protecting your investment.
Specifications
10-5
Mazda3_8CV6-EA-12H_Edition3 Page589
Thursday, February 28 2013 11:31 AM
Form No.8CV6-EA-12H

Black plate (590,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil MZR 2.0
With oil filter
replacement
4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter
replacement 3.9 L (4.1 US qt, 3.4 Imp qt)
SKYACTIV-G 2.0
With oil filter
replacement4.2 L (4.4 US qt, 3.7 Imp qt)
Without oil filter
replacement 4.0 L (4.2 US qt, 3.5 Imp qt)
MZR 2.3 DISI Turbo
With oil filter
replacement
5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter
replacement 5.3 L (5.6 US qt, 4.7 Imp qt)
MZR 2.5 With oil filter
replacement
5.0 L (5.3 US qt, 4.4 Imp qt)
Without oil filter
replacement 4.6 L (4.9 US qt, 4.0 Imp qt)
Coolant
SKYACTIV-G 2.0Manual transaxle 7.4 L (7.8 US qt, 6.5 Imp qt)
Automatic transaxle 8.2 L (8.7 US qt, 7.2 Imp qt)
Except SKYACTIV-G 2.0 7.5 L (7.9 US qt, 6.6 Imp qt)
Manual
transaxle oil MZR 2.0
2.77 L (2.93 US qt, 2.44 Imp qt)
SKYACTIV-G 2.0 1.70 L (1.80 US qt, 1.50 Imp qt)
MZR 2.3 DISI Turbo 2.5 L (2.6 US qt, 2.2 Imp qt)
MZR 2.5 2.85 L (3.01 US qt, 2.51 Imp qt)
Automatic
transaxle fluid 5-speed transaxle
8.14 L (8.60 US qt, 7.16 Imp qt)
6-speed transaxle 7.8 L (8.2 US qt, 6.9 Imp qt)
Fuel tank MZR 2.0, SKYACTIV-G 2.0
55.0 L (14.5 US gal, 12.1 Imp gal)
MZR 2.3 DISI Turbo, MZR 2.5 60.0 L (15.9 US gal, 13.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
10-6
Specifications
Mazda3_8CV6-EA-12H_Edition3 Page590
Thursday, February 28 2013 11:31 AM
Form No.8CV6-EA-12H
