display MAZDA MODEL 3 4-DOOR 2014 Owner's Manual

4–65
When Driving
Radar Sensor
Radar Sensor
Your vehicle is equipped with a radar sensor.
The following systems also use the radar sensor.
 y Mazda Radar Cruise Control (MRCC) y Forward Obstruction Warning (FOW)
The radar sensor functions by detecting the radio waves refl ected off a vehicle ahead or an
obstruction sent from the radar sensor.
The radar sensor is mounted behind the front emblem.
Radar Sensor
If the Forward Obstruction Warning (FOW) indicator light (amber) is illuminated, the area
around the radar sensor may be dirty. Refer to “Warning Guidance” in the type B audio
display.
Refer to If a Warning Light Turns On or Flashes on page 7-24 .
/C\FCA&('#*A'FKVKQPKPFD/C\FCA&('#*A'FKVKQPKPFD

*Some models.4–75
When Driving
Brake
 y Under the following conditions, the Smart City Brake Support (SCBS) sy\
stem may not
operate normally.
 y Heavy luggage is loaded in the luggage compartment or on the rear seat. y When there is the possibility of partial contact with a vehicle or obstruction ah\
ead. y When driving on continuously curving roads, entering and exiting curves, and unstable
driving due to a vehicle accident or breakdown in a driving lane.
 y Elongated luggage or cargo is loaded onto installed roof rails and covers the laser
sensor.
 y Exhaust gas from the vehicle in front, sand, snow, and water vapor rising from
manholes and grating, and water splashed into the air.
 y When towing a malfunctioning vehicle.
 y In the following cases, the laser sensor may inadvertently determine tha\
t there is a
vehicle ahead and the Smart City Brake Support (SCBS) system may opera\
te.
 y Objects on the road at the entrance to a curve. y Vehicles passing in the opposite lane while making a curve. y Metal objects, bumps, or protruding objects on the road. y When passing through a toll gate. y When passing under a vinyl curtain or fl ag. y Plastic objects such as pylons. y Two-wheeled vehicles, pedestrians, animals or standing trees.
 y If the vehicle is driven with some of the tires having signifi cant wear, the system may not
operate correctly. If the tires are returned to a normal state and the Smart City Brake
Support (SCBS) indicator light still illuminates, have your vehicle in\
spected by an
Authorized Mazda Dealer.
 y When the system operates, the user is notifi ed by the fl ashing warning light and the active
driving display * . y The indicator light turns on when the system has a malfunction. Refer to Warning Lights on page 4-22 .
/C\FCA&('#*A'FKVKQPKPFD/C\FCA&('#*A'FKVKQPKPFD

4–85
When Driving
i-ELOOP
i-ELOOP Indicator Light/Control Status Display
The driver is notifi ed of the i-ELOOP
power generating status and the vehicle
conditions by the i-ELOOP indicator light
and the control status display.
i-ELOOP Indicator Light
Illuminated (vehicle without type B
audio)
The light turns on during power
generation.
Flashing
If the engine is started after the vehicle has
not been driven for a long period of time,
the i-ELOOP indicator light may fl ash.
Leave the engine idling and wait until the
indicator light turns off.
NOTE
 y  The beep will sound if the vehicle is
driven while the i-ELOOP indicator
light is fl ashing. In addition, if you
turn the steering wheel while the light
is fl ashing, it will feel heavier than
normal, but this does not indicate an
abnormality. Stop the vehicle in a safe
location with the engine running and do
not attempt to turn the steering wheel.
The steering operation will return to
normal after the i-ELOOP indicator
light stops fl ashing.
 y(Vehicles with type B Audio) A notifi cation is displayed in the audio
display and the i-ELOOP indicator
light fl ashes at the same time.
 Refer to Warning Message Indicated on Display on page 7-34 .
Control status display (vehicles with
type B audio)
The i-ELOOP power generating status is
displayed in the audio display.
Refer to Control Status Display on page
4-87 .
/C\FCA&('#*A'FKVKQPKPFD/C\FCA&('#*A'FKVKQPKPFD

*Some models.4–86
When Driving
Fuel Economy Monitor
Fuel Economy Monitor *
For vehicles with type B audio, the Control Status and Fuel Consumption \
are switched and
displayed by operating each icon in the display.
In addition, after completing a trip, the total energy effi ciency to date is displayed in the
ending display when the ending display is turned on.
1. Select the (
) icon on the home screen to display the Applications screen.
2. Select the Fuel Economy Monitor.
3. Operate the commander switch or touch the screen and display the menu.
NOTE
When the menu is displayed by touching the screen, the display is hidden automatically after
6 seconds.
4. Select the icon in the menu and perform the operation. Each icon operate\
s as follows:
Indication on display Control status
Hides the menu display.
Displays the Application screen.
Switches the Fuel Economy Monitor in the order of
Control Status and Effectiveness.
Resets the fuel economy data.
Displays the following SETTING screen.y Ending display on/off switching y On/off switching for function which synchronizes reset fuel economy data to trip meter (Trip A)
Fuel Consumption Display
Information regarding the fuel economy is displayed.
Indication on display Control status
Displays the fuel economy for the past 60 minutes.y Displays the fuel economy every minute for the past 1
to 10 minutes.
y Displays the fuel economy every 10 minutes for the past 10 to 60 minutes.
Displays the average fuel economy over the past 5 resets and after the current reset.
Calculates the average fuel economy every minute after vehicle travel begins, and displays it.
/C\FCA&('#*A'FKVKQPKPFD/C\FCA&('#*A'FKVKQPKPFD

4–87
When Driving
Fuel Economy Monitor
NOTE
 y The fuel economy data can be reset by doing the following operation:
 y Press the reset switch from the menu screen. y When the function which synchronizes the fuel economy monitor and the trip meter is
on, reset trip A of the trip meter.
 y Delete the average fuel economy information displayed in the trip comput\
er.
 y After resetting the fuel economy data, “-- -” is displayed while the aver\
age fuel economy
is calculated.
Control Status Display
The power generating status is displayed
Indication on display Control status
Displays the level of electricity generated by
regenerative braking.
Displays the amount of the electricity stored in the capacitor.
Displays the status of the electricity stored in the capacitor and being supplied to the electrical devices
(whole vehicle in display is illuminated simultaneously).
Displays the accumulated fuel economy.
Ending Screen Display
When the ignition is switched off from ON after completing a trip, the actual performance
for the total fuel economy effi ciency is displayed for 5 seconds.
/C\FCA&('#*A'FKVKQPKPFD/C\FCA&('#*A'FKVKQPKPFD

4–91
When Driving
Mazda Radar Cruise Control (MRCC)
Mazda Radar Cruise Control (MRCC)
The Mazda Radar Cruise Control (MRCC) system is designed to maintain headway control *1
according to the vehicle speed using a radar sensor to detect the distan\
ce to a vehicle ahead,
and by presetting the vehicle speed between 30 km/h (19 mph) and 145 k\
m/h (90 mph) the
driver is freed from having to constantly use the accelerator or brake p\
edals.
*1 Headway Control: Control of the distance between your vehicle and the ve\
hicle ahead detected by the Mazda Radar Cruise Control (MRCC) system.
Additionally, if your vehicle starts closing in on the vehicle ahead because, for ex\
ample, the
vehicle ahead brakes suddenly, a warning sound and a warning indication in the display are
activated simultaneously to alert you to maintain a suffi cient distance between the vehicles.
Use the Mazda Radar Cruise Control (MRCC) system on expressways and ot\
her highways
which do not require a lot of repeated acceleration and deceleration.
WARNING
Do not rely completely on the Mazda Radar Cruise Control (MRCC) system and always
drive carefully: The Mazda Radar Cruise Control (MRCC) system is designed to reduce load on the
driver, and although it maintains a constant vehicle speed, or specifi cally, it maintains
a constant distance between your vehicle and the detected vehicle ahead according to
the vehicle speed, the system has detection limitations depending on the type of vehicle
ahead and its conditions, the weather conditions, and the road conditions. Additionally,
the system may be unable to decelerate suffi ciently to avoid hitting the vehicle ahead
if the vehicle ahead applies the brakes suddenly or another vehicle cuts into the driving
lane, which could result in an accident. Always verify the safety of the surrounding area
and depress the brake pedal or accelerator pedal while keeping a safe distance from
vehicles ahead or on-coming vehicles.

/C\FCA&('#*A'FKVKQPKPFD/C\FCA&('#*A'FKVKQPKPFD

4–94
When Driving
Mazda Radar Cruise Control (MRCC)
Mazda Radar Cruise Control (MRCC) Display Indication
The setting status and operation conditions of the Mazda Radar Cruise Control (MRCC)
system are indicated in the active driving display.
Vehicle ahead display
MRCC Distance between vehicle display
MRCC Set vehicle
speed
Close Proximity Warning
If your vehicle rapidly closes in on
the vehicle ahead because the vehicle
applies the brakes suddenly while you are
traveling in headway control, the warning
sound activates and the brake warning is
indicated in the display. Always verify
the safety of the surrounding area and
depress the brake pedal while keeping
a safe distance from the vehicle ahead.
Additionally, always keep a safe distance
from the vehicles behind you.
NOTE
When the active driving display is closed,
only the warning sound activates to alert.
/C\FCA&('#*A'FKVKQPKPFD/C\FCA&('#*A'FKVKQPKPFD

4–95
When Driving
Mazda Radar Cruise Control (MRCC)
Setting the System
To Activate
To activate the system, press the ON switch.
CANCEL switch
switch switch RESUME switch
OFF switch
ON switch
Cruise control
SET+/SET- switch
When the system is activated, the vehicle speed and the distance between\
vehicles while in
headway control can be set. The Mazda Radar Cruise Control (MRCC) indication is shown
in the active driving display.
NOTE
When the ignition is switched to ACC or OFF while the Mazda Radar Cruise Control
(MRCC) is ON, the Mazda Radar Cruise Control (MRCC) remains ON automatically.
/C\FCA&('#*A'FKVKQPKPFD/C\FCA&('#*A'FKVKQPKPFD

4–96
When Driving
Mazda Radar Cruise Control (MRCC)
How to Set the Speed
1. Adjust the vehicle speed to the desired setting using the accelerator pedal.
2. Headway control begins when the SET
or SET switch is pressed. The
set speed and the inter-vehicle distance
display fi lled with white lines is
displayed. The Mazda Radar Cruise
Control (MRCC) indicator light (green)
is indicated simultaneously.
Travel status Display
During travel at constant
speed
During travel under
headway control
NOTE
 y  If a vehicle ahead is detected while
traveling at a constant speed, the
vehicle-ahead indication is displayed
and headway control is performed.
Additionally, when a vehicle ahead is
no longer detected, the vehicle-ahead
indication turns off and the system
switches back to travel at constant
speed.
 y If you are driving the vehicle at a speed
faster than the set speed, headway
control on the vehicle ahead is not
possible Adjust the system to the desired
vehicle speed using the accelerator
pedal.
/C\FCA&('#*A'FKVKQPKPFD/C\FCA&('#*A'FKVKQPKPFD

4–97
When Driving
Mazda Radar Cruise Control (MRCC)

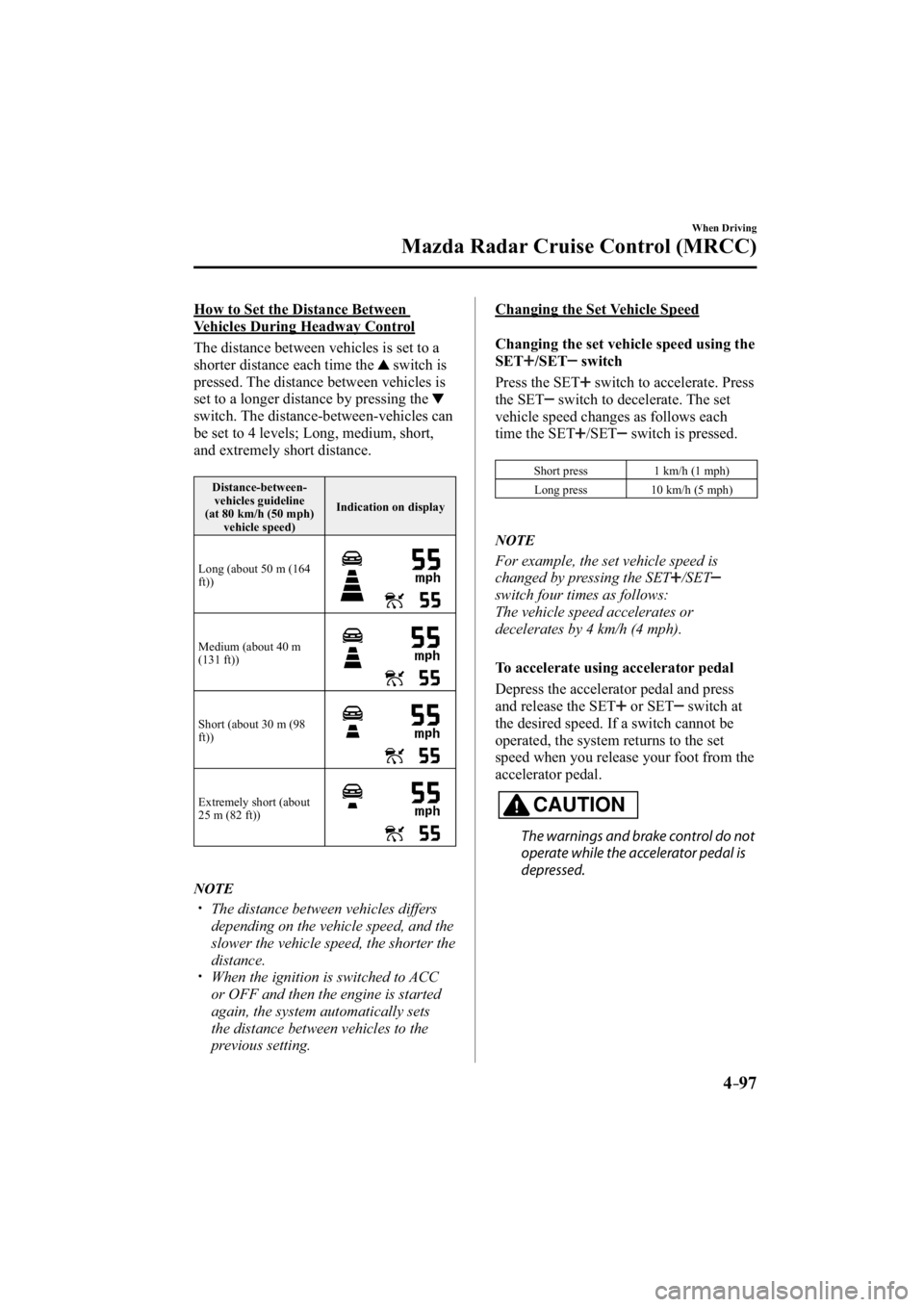

How to Set the Distance Between
Vehicles During Headway Control
The distance between vehicles is set to a
shorter distance each time the
switch is
pressed. The distance between vehicles is
set to a longer distance by pressing the
switch. The distance-between-vehicles can
be set to 4 levels; Long, medium, short,
and extremely short distance.
Distance-between- vehicles guideline
(at 80 km/h (50 mph) vehicle speed) Indication on display
Long (about 50 m (164
ft))
Medium (about 40 m
(131 ft))
Short (about 30 m (98
ft))
Extremely short (about
25 m (82 ft))
NOTE
 y  The distance between vehicles differs
depending on the vehicle speed, and the
slower the vehicle speed, the shorter the
distance.
 y When the ignition is switched to ACC
or OFF and then the engine is started
again, the system automatically sets
the distance between vehicles to the
previous setting.
Changing the Set Vehicle Speed
Changing the set vehicle speed using the
SET
/ SET switch
Press the SET
switch to accelerate. Press
the SET
switch to decelerate. The set
vehicle speed changes as follows each
time the SET
/ SET switch is pressed.
Short press 1 km/h (1 mph)
Long press 10 km/h (5 mph)
NOTE
For example, the set vehicle speed is
changed by pressing the SET
/ SET
switch four times as follows:
The vehicle speed accelerates or
decelerates by 4 km/h (4 mph).
To accelerate using accelerator pedal
Depress the accelerator pedal and press
and release the SET
or SET switch at
the desired speed. If a switch cannot be
operated, the system returns to the set
speed when you release your foot from the
accelerator pedal.
CAUTION
The warnings and brake control do not
operate while the accelerator pedal is
depressed.
/C\FCA&('#*A'FKVKQPKPFD/C\FCA&('#*A'FKVKQPKPFD
