Page 551 of 592
![MAZDA MODEL 3 4-DOOR 2015 Owners Manual 8–37
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Base Curb Weight is the weight of the vehicle including a full tank of fuel and all\
standard equipment. It does no](/img/28/40995/w960_40995-550.png "MAZDA MODEL 3 4-DOOR 2015 Owners Manual 8–37
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Base Curb Weight is the weight of the vehicle including a full tank of fuel and all\
standard equipment. It does no")
8–37
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Base Curb Weight is the weight of the vehicle including a full tank of fuel and all\
standard equipment. It does not include passengers, cargo, or optional equipment.
Vehicle Curb Weight is the weight of your new vehicle when you picked it up from your
dealer plus any aftermarket equipment.
PAYLOAD
Payload is the combination weight of cargo and passengers that the vehicle is designed
to carry. The maximum payload for your vehicle can be found on the Tire and Load
Information label on the driver's door frame or door pillar. Look for “THE COMBINATION
WEIGHT OF OCCUPANTS AND CARGO SHOULD NEVER EXCEED XXX kg or
XXX lbs” for your maximum payload. The payload listed on the tire label is the maximum
payload for the vehicle as built by the assembly plant. If any aftermark\
et or dealer installed
equipment has been installed on the vehicle, the weight of the equipment\
must be subtracted
from the payload listed on the tire label in order to be accurate.
. B [ E B @ % 9 & " ' @ & E J U J P O J O E C . B [ E B @ % 9 & " ' @ & E J U J P O J O E C
Page 552 of 592
8–38
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
SAMPLE
CARGO
Cargo Weight includes all weight added to the Base Curb Weight, including cargo and
optional equipment.
The cargo weight limit decreases depending on the number of vehicle occupants. \
The cargo
weight limit can be calculated by subtracting the total weight of the ve\
hicle occupants from
the “combination weight of occupants and cargo should never exceed” value on the tire
label.
. B [ E B @ % 9 & " ' @ & E J U J P O J O E C . B [ E B @ % 9 & " ' @ & E J U J P O J O E C
Page 553 of 592
![MAZDA MODEL 3 4-DOOR 2015 Owners Manual 8–39
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Examples: Based on a single occupant weight of 68 kg (150 lbs), and a \
value of 385 kg (849
lbs) for the “combi](/img/28/40995/w960_40995-552.png "MAZDA MODEL 3 4-DOOR 2015 Owners Manual 8–39
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Examples: Based on a single occupant weight of 68 kg (150 lbs), and a \
value of 385 kg (849
lbs) for the “combi")
8–39
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Examples: Based on a single occupant weight of 68 kg (150 lbs), and a \
value of 385 kg (849
lbs) for the “combination weight of occupants and cargo should never exceed”:
The cargo weight limit with one occupant is 385 kg (849 lbs) - 68 kg (150 lb\
s) = 317 kg
(699 lbs)
The cargo weight limit with two occupants is 385 kg (849 lbs) - (68 × 2)\
kg ( (150 × 2) lbs)
= 249 kg (549 lbs)
If the weight of the occupant increases, the cargo weight limit decreases by that much.
GAW (Gross Axle Weight) is the total weight placed on each axle (front and rear) -
including vehicle curb weight and all payload.
GAWR (Gross Axle Weight Rating) is the maximum allowable weight that can be carried
by a single axle (front or rear). These numbers are shown on the Safety Compliance
Certifi cation Label located on the driver's door frame or door pillar. The total load on
each axle must never exceed its GAWR.
GVW
GVW (Gross Vehicle Weight) is the Vehicle Curb Weight cargo passengers.
GVWR (Gross Vehicle Weight Rating) is the maximum allowable weight of the fully
loaded vehicle (including all options, equipment, passengers and cargo). The GVWR is
shown on the Safety Compliance Certifi cation Label located on the driver's door frame
or door pillar. The GVW must never exceed the GVWR.
. B [ E B @ % 9 & " ' @ & E J U J P O J O E C . B [ E B @ % 9 & " ' @ & E J U J P O J O E C
Page 554 of 592
8–40
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
SAMPLE
WARNING
Never Exceed Axle Weight Rating Limits: Exceeding the Safety Certifi cation Label axle weight rating limits is dangerous and could
result in death or serious injury as a result of substandard vehicle handling, performance,
engine, transmission and/or structural damage, serious damage to the vehicle, or loss of
control.
Always keep the vehicle within the axle weight rating limits.
GCW
. B [ E B @ % 9 & " ' @ & E J U J P O J O E C . B [ E B @ % 9 & " ' @ & E J U J P O J O E C
Page 555 of 592
8–41
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
GCW (Gross Combination Weight) is the weight of the loaded vehicle (GVW).
GCWR (Gross Combination Weight Rating) is the maximum allowable weight of the
vehicle - including all cargo and passengers - that the vehicle can handle without risking
damage.The GCW must never exceed the GCWR.
WARNING
Never Exceed GVWR or GAWR Specifi cations:
Exceeding the GVWR or the GAWR specifi ed on the certifi cation label is dangerous.
Exceeding any vehicle rating limitation could result in a serious accident, injury, or
damage to the vehicle.
Do not use replacement tires with lower load carrying capacities than the originals
because they may lower the vehicle's GVWR and GAWR limitations. Replacement tires
with a higher limit than the originals do not increase the GVWR and GAWR limitations.
Never exceed the GVWR or the GAWR specifi ed on the certifi cation label.
. B [ E B @ % 9 & " ' @ & E J U J P O J O E C . B [ E B @ % 9 & " ' @ & E J U J P O J O E C
Page 556 of 592
8–42
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Steps for Determining the Correct Load Limit
Steps for Determining Correct Load Limit-
(1) Locate the statement “The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs.” on your vehicle's placard.
(2) Determine the combined weight of the driver and passengers that will be \
riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers from XXX kg or\
XXX lbs.
(4) The resulting fi gure equals the available amount of cargo and luggage load capacity. For
example, if the “XXX” amount equals 1400 lbs. and there will be fi\
ve 150 lb passengers
in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs.
(1400 - 750 (5 × 150) = 650 lbs.)
(5) Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage load capacity calculated in
Step 4.
(6) If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle. Consult this manual to determine how this reduces the available\
cargo and
luggage load capacity of your vehicle.
. B [ E B @ % 9 & " ' @ & E J U J P O J O E C . B [ E B @ % 9 & " ' @ & E J U J P O J O E C
Page 557 of 592

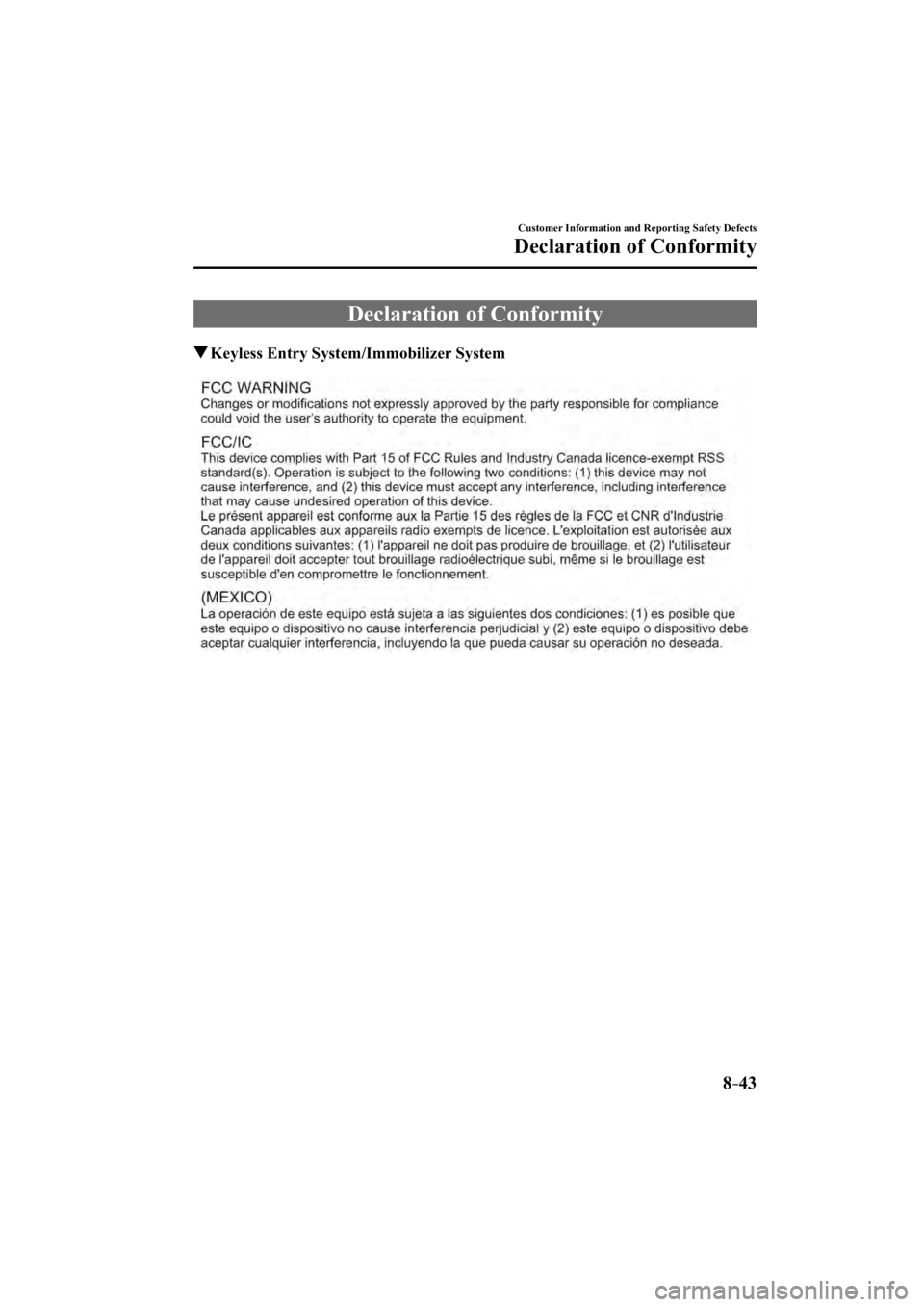

8–43
Customer Information and Reporting Safety Defects
Declaration of Conformity
Declaration of Conformity
Keyless Entry System/Immobilizer System
. B [ E B @ % 9 & " ' @ & E J U J P O J O E C . B [ E B @ % 9 & " ' @ & E J U J P O J O E C
Page 558 of 592

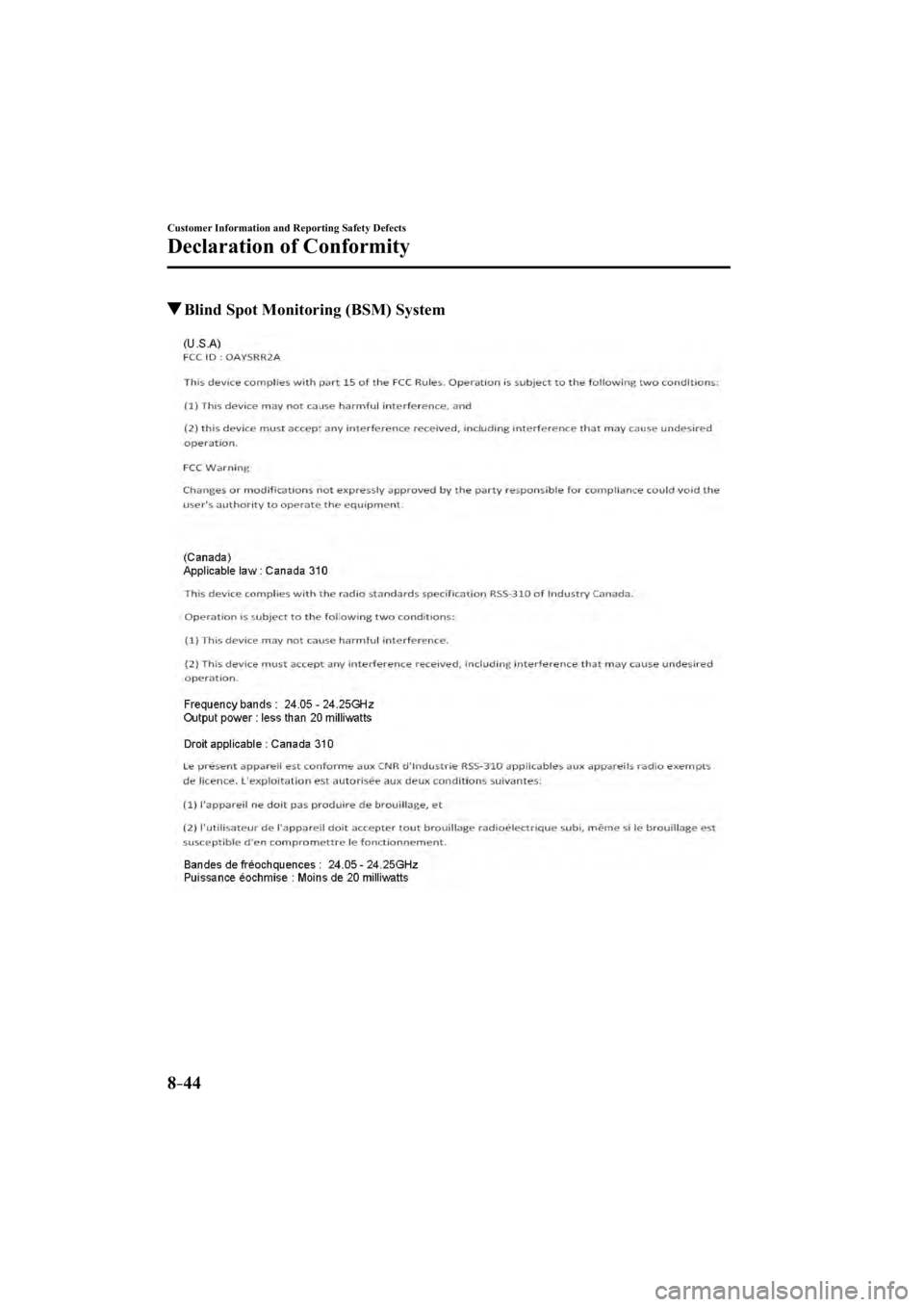

8–44
Customer Information and Reporting Safety Defects
Declaration of Conformity
Blind Spot Monitoring (BSM) System
. B [ E B @ % 9 & " ' @ & E J U J P O J O E C . B [ E B @ % 9 & " ' @ & E J U J P O J O E C
Page 559 of 592
8–45
Customer Information and Reporting Safety Defects
Declaration of Conformity
NOTE
During printing time of this user manual the approvals listed above are granted.
WARNING
Change or modifi cations not expressively approved by the party responsible for
compliance could void the use's authority to operate the equipment.
HomeLink Wireless Control System
CAUTION
HomeLink has been tested and complies with FCC and Industry Canada rules. Changes or
modifi cations not expressly approved by the party responsible for compliance could void
the user's authority to operate the device.
NOTE
FCC ID: NZLMOBHL4
CANADA:4112A-MOBHL4
This device complies with part 15 of the FCC Rules. Operation is subject\
to the following
two conditions:
1- This device may not cause harmful interference, and
2- This device must accept any interference received, including interference that may cause
undesired operation.
. B [ E B @ % 9 & " ' @ & E J U J P O J O E C . B [ E B @ % 9 & " ' @ & E J U J P O J O E C
Page 560 of 592
8–46
Customer Information and Reporting Safety Defects
Declaration of Conformity
Bluetooth® Hands-Free
Type A
U.S.A. and Canada
FCC ID: CB2MBLUEC09 IC:279B-MBLUEC09
This device complies with Part 15 of the FCC Rules and with RSS-210 of I\
ndustry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interferenc\
e that may cause undesired operation.
WARNING
Changes or modifi cations not expressively approved by the party responsible for
compliance could void the user's authority to operate the equipment.
The term “IC: ” before the radio certifi cation number only signifi es that Industry Canada
technical specifi cations were met.
The antenna used for this transmitter must not be co-located or operatin\
g in conjunction
with any other antenna or transmitter. End-users and installers must be provided with
installation instructions and transmitter operating conditions for satis\
fying RF exposure
compliance.
Bluetooth
® Hands-Free Customer Service
y U.S.A. Phone: 800-430-0153 (Toll-free) Web: www.MazdaUSA.com/bluetooth y Canada Phone: 800-430-0153 (Toll-free) Web: www.mazdahandsfree.ca
