MAZDA MODEL 3 4-DOOR 2016 Owners Manual

4–113
When Driving
i-ACTIVSENSE
Radar Sensor (Front)
Your vehicle is equipped with a radar sensor (front).
The following systems also use the radar sensor (front).
 Mazda Radar Cruise Control (MRCC) Forward Obstruction Warning (FOW)
The radar sensor (front) functions by detecting the radio waves reflected off a vehicle ahead
or an obstruction sent from the radar sensor (front).
The radar sensor (front) is mounted behind the front emblem.
Radar sensor (front)
If the Forward Obstruction Warning (FOW) warning light (amber) is illuminated, the area
around the radar sensor (front) may be dirty. Refer to “Warning Guidance” in the center
display (Type B audio).
Refer to If a Warning Light Turns On or Flashes on page 7-24.
Mazda3_8FA4-EA-15G_Edition1.indb 1132015/05/11 14:01:09

4–114
When Driving
i-ACTIVSENSE
CAUTION
Heed the following precautions to assure correct operation of each system.
 Do not adhere stickers (including transparent stickers) to the surface of the radiator
grille and front emblem in and around the radar sensor (front), and do not replace
the radiator grille and front emblem with any product that is not a genuine product
designed for use with the radar sensor (front).
 The radar sensor (fr ont) includes a function for detecting soiling of the radar
sensor's front surface and informing the driver, however, depending on the
conditions, it may require time to detect or it may not detect plastic shopping bags,
ice or snow. If this occurs, the system may not operate correctly, therefore always
keep the radar sensor (front) clean.
 Do not install a grille guar d. If the front part of the vehicle has been damaged in a vehicle accident, the posi\
tion
of the radar sensor (front) may have moved. Stop the system immediately and
always have the vehicle inspected at an Authorized Mazda Dealer.
 Do not use the front bumper to push other vehicles or obstructions such as when
pulling out of a parking space. Otherwise, the radar sensor (front) could be hit and
its position deviated.
 Do not remove, disassemble, or modify the radar sensor (front). For repairs, replacement or paint work around the radar sensor (front), consult an
Authorized Mazda Dealer. Do not modify the suspension. If the suspension ar e modified, the vehicle's posture
could change and the radar sensor (front) may not be able to correctly detect a
vehicle ahead or an obstruction.
Mazda3_8FA4-EA-15G_Edition1.indb 1142015/05/11 14:01:09

4–115
When Driving
i-ACTIVSENSE
NOTE
 In the following cases, the radar sensor (front) may not be able to detect vehicles ahead
or obstructions.
 The rear surface of a vehicle ahead does not reflect radio waves effectively, such as
an unloaded trailer or an automobile with a loading platform covered by a soft top,
vehicles with a hard plastic tailgate, and round-shaped vehicles.
 Vehicles ahead with low vehicle height and thus less area for reflecting radio waves. Visibility is reduced due to a vehicle ahead casting off water, snow, or sand from its
tires and onto your windshield. The trunk/luggage compartment is loaded with heavy objects or the r ear passenger
seats are occupied. Ice, snow, or soiling is on the front surface of the front emblem. During inclement weather such as rain, snow, or sand storms. When driving near facilities or objects emitting str ong radio waves.
 In the following cases, the radar sensor (front) may detect vehicles in the opposite lane or
surrounding obstructions, or it may not be able to detect vehicles ahead or \
obstructions.
 The beginning and end of a curve. Roads with continuous curves. Narrow lane roads due to road construction or lane closures. The vehicle ahead enters the radar sensor's blind spot. The vehicle ahead is running abnormally due to accident or vehicle damag\
e.  Roads with repeated up and down slopes Driving on poor r oads or unpaved roads. The distance between your vehicle and the vehicle ahead is extr emely short. A vehicle suddenly comes close such as by cutting into the lane.
 To prevent incorrect operation of the system, use tires of the same specified size,
manufacturer, brand, and tread pattern on all four wheels. In addition, do not use tires
with significantly different wear patterns or tire pressures on the same vehicle. (Including
the temporary spare tire)
 If the battery power is weak, the system may not operate correctly. When driving on roads with little traffic and few vehicles ahead or obstructions for the
radar sensor (front) to detect, Forward Obstruction Warning/Smart City Brake Support
(FOW/SCBS) warning light (amber) temporarily illuminates, however, this does not
indicate a problem.
Mazda3_8FA4-EA-15G_Edition1.indb 1152015/05/11 14:01:09

4–116
When Driving
i-ACTIVSENSE
Laser Sensor (Front)
The Smart City Brake Support (SCBS) laser sensor is installed at the top of the windshield
near the rearview mirror.
Laser sensor (front)
Always keep the surface of the windshield around the laser sensor clean \
to assure proper
operation of the Smart City Brake Support (SCBS) system.
WARNING
As there is the possibility of eye damage occurring from the laser, always heed the
following precautions:
 Never remove the sensor. A removed sensor will not meet the conditions for a class 1M laser under the IEC
60825-1 specification and therefore eye safety cannot be assured. Do not peer into the sensor using optical instruments with a magnification function
such as magnifying glasses, and microscopic and objective lenses within a distance of
100 mm (3.94 in) from the sensor.
Mazda3_8FA4-EA-15G_Edition1.indb 1162015/05/11 14:01:09

4–117
When Driving
i-ACTIVSENSE
Laser sensor radiation data
Maximum average power: 45 mW
Pulse duration: 33 ns
Wavelength: 905 nm
Divergence angle (horizontal×vertical): 28 degrees×12 degrees
Mazda3_8FA4-EA-15G_Edition1.indb 1172015/05/11 14:01:09

4–118
When Driving
i-ACTIVSENSE
Radar Sensors (Rear)
The radar sensors (rear) for the rear vehicle monitoring system are equipped inside the rear
bumper, one each on the left and right sides.
Sedan
Radar sensors
Hatchback
Radar sensors
The surface area of the rear bumper near the radar sensors (rear) shou\
ld always be clean so
that the rear vehicle monitoring system operates correctly. Do not apply stickers or similar
objects to the rear bumper.
Refer to Exterior Care on page 6-68.
NOTE
Consult an Authorized Mazda Dealer for radar sensors (rear) repairs and replacement, or
repair, replacement or painting of the rear bumper near a radar sensors (rear).
Mazda3_8FA4-EA-15G_Edition1.indb 1182015/05/11 14:01:10

4–119
When Driving
Cruise Control
*Some models.
Cruise Control*
With cruise control, you can set and automatically maintain any speed of \
more than about
25 km/h (16 mph).
WARNING
Do not use the cruise control under the following conditions:
Using the cruise control under the following conditions is dangerous and could result in
loss of vehicle control.
 Hilly terrain Steep inclines Heavy or unsteady traffic Slippery or winding roads Similar restrictions that require inconsistent speed
Cruise Control Switch
CANCEL switch
OFF switch ON switch RESUME switch
Cruise control
SET+/SET- switch
Mazda3_8FA4-EA-15G_Edition1.indb 1192015/05/11 14:01:10

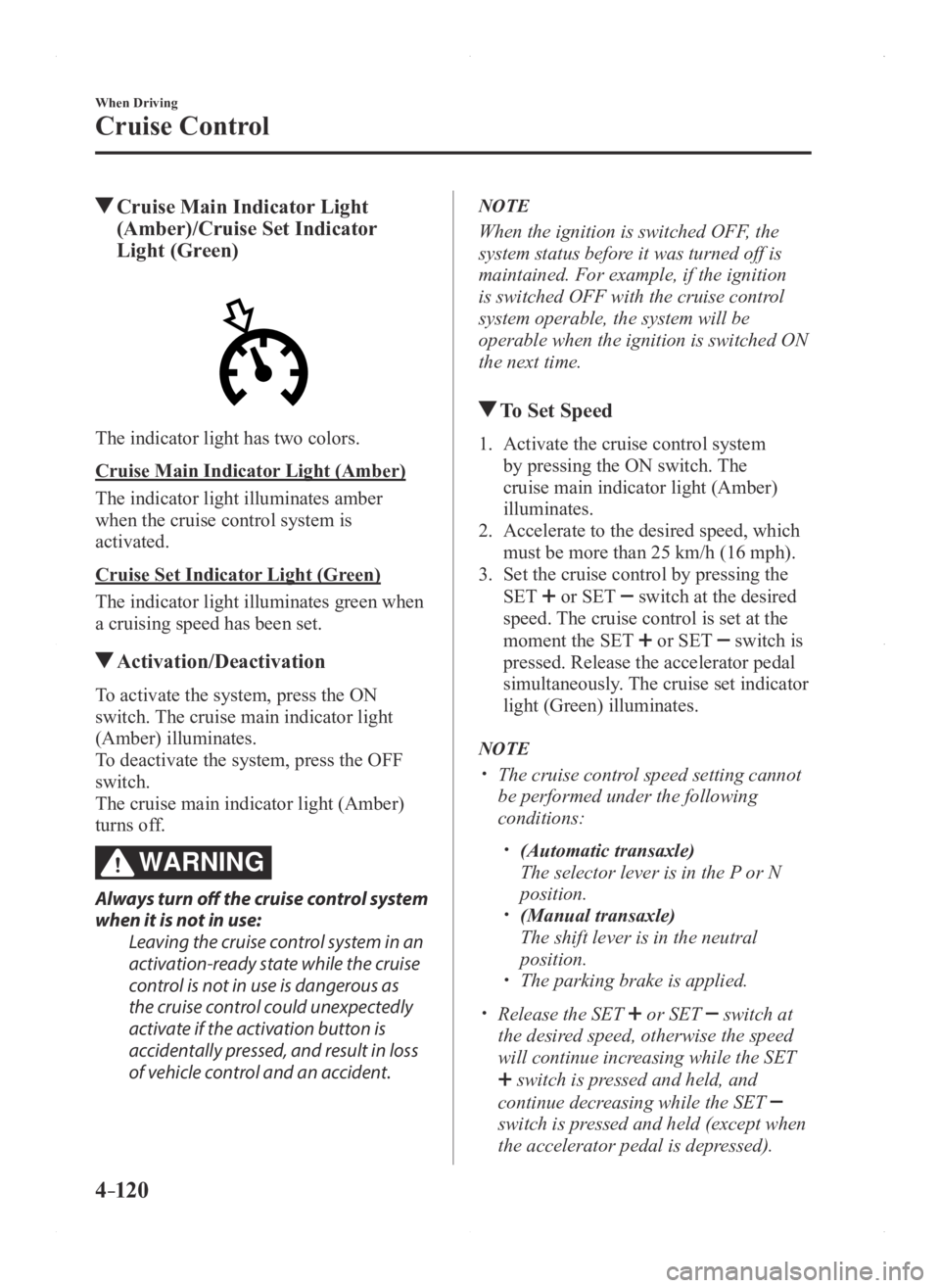

4–120
When Driving
Cruise Control
Cruise Main Indicator Light
(Amber)/Cruise Set Indicator
Light (Green)
The indicator light has two colors.
Cruise Main Indicator Light (Amber)
The indicator light illuminates amber
when the cruise control system is
activated.
Cruise Set Indicator Light (Green)
The indicator light illuminates green when
a cruising speed has been set.
Activation/Deactivation
To activate the system, press the ON
switch. The cruise main indicator light
(Amber) illuminates.
To deactivate the system, press the OFF
switch.
The cruise main indicator light (Amber)
turns off.
WARNING
Always turn off the cruise control system
when it is not in use:
Leaving the cruise control system in an
activation-ready state while the cruise
control is not in use is dangerous as
the cruise control could unexpectedly
activate if the activation button is
accidentally pressed, and result in loss
of vehicle control and an accident.
NOTE
When the ignition is switched OFF, the
system status before it was turned off is
maintained. For example, if the ignition
is switched OFF with the cruise control
system operable, the system will be
operable when the ignition is switched ON
the next time.
To Set Speed
1. Activate the cruise control system
by pressing the ON switch. The
cruise main indicator light (Amber)
illuminates.
2. Accelerate to the desired speed, which
must be more than 25 km/h (16 mph).
3. Set the cruise control by pressing the
SET or SET switch at the desired
speed. The cruise control is set at the
moment the SET
or SET switch is
pressed. Release the accelerator pedal
simultaneously. The cruise set indicator
light (Green) illuminates.
NOTE
 The cruise contr ol speed setting cannot
be performed under the following
conditions:
 (Automatic transaxle)
The selector lever is in the P or N
position. (Manual transaxle)
The shift lever is in the neutral
position. The parking brake is applied.
 Release the SET or SET switch at
the desired speed, otherwise the speed
will continue increasing while the SET
switch is pressed and held, and
continue decreasing while the SET
switch is pressed and held (except when
the accelerator pedal is depressed).
Mazda3_8FA4-EA-15G_Edition1.indb 1202015/05/11 14:01:10

4–121
When Driving
Cruise Control
 On a steep grade, the vehicle may
momentarily slow down while
ascending, or speed up while
descending.
 Cruise control will cancel if the vehicle
speed decreases below 21 km/h (13
mph) when cruise is activated, such as
when climbing a steep grade.
 Cruise control may cancel at about 15
km/h (9 mph) below the preset speed,
such as when climbing a long, steep
grade.
To Increase Cruising Speed
Follow either of these procedures.
To increase speed using cruise control
switch
Press the SET
switch and hold it. Your
vehicle will accelerate. Release the switch
at the speed you want.
Press the SET
switch and release it
immediately to adjust the preset speed.
Multiple operations will increase the
preset speed according to the number of
times it is operated.
Increasing speed with a single SET

switch operation
Meter display for vehicle speed indicated
in km/h: 1 km/h (0.6 mph)
Meter display for vehicle speed indicated
in mph: 1 mph (1.6 km/h)
To increase speed using accelerator
pedal
Depress the accelerator pedal to accelerate
to the desired speed. Press the SET
or
SET
switch and release it immediately.
NOTE
Accelerate if you want to speed up
temporarily when the cruise control is on.
Greater speed will not interfere with or
change the set speed. Take your foot off the
accelerator to return to the set speed.
To Decrease Cruising Speed
Press the SET switch and hold it. The
vehicle will gradually slow.
Release the switch at the speed you want.
Press the SET
switch and release it
immediately to adjust the preset speed.
Multiple operations will decrease the
preset speed according to the number of
times it is operated.
Decreasing speed with a single SET

switch operation
Meter display for vehicle speed indicated
in km/h: 1 km/h (0.6 mph)
Meter display for vehicle speed indicated
in mph: 1 mph (1.6 km/h)
To Resume Cruising Speed at
More Than 25 km/h (16 mph)
If some other method besides the OFF
switch was used to cancel cruising speed
(such as applying the brake pedal) and the
system is still activated, the most recent
set speed will automatically resume when
the RESUME switch is pressed.
If vehicle speed is below 25 km/h (16
mph), increase the vehicle speed up to
25 km/h (16 mph) or more and press the
RESUME switch.
Mazda3_8FA4-EA-15G_Edition1.indb 1212015/05/11 14:01:11

4–122
When Driving
Cruise Control
To Temporarily Cancel
To temporarily cancel the system, use one
of these methods:
 Slightly depress the brake pedal. (Manual transaxle)
Depress the clutch pedal. Press the CANCEL switch.
If the RESUME switch is pressed when
the vehicle speed is 25 km/h (16 mph) or
higher, the system reverts to the previously
set speed.
NOTE
 If any of the following conditions occur ,
the cruise control system is temporarily
canceled.
 The parking brake is applied. (Automatic transaxle)
The selector lever is in the P or N
position. (Manual transaxle)
The shift lever is in the neutral
position.
 When the cruise control system is
temporarily canceled by even one of the
applicable cancel conditions, the speed
cannot be re-set.
 (Automatic transaxle)
The cruise control cannot be cancelled
while driving in manual mode (selector
lever shifted from D to M position).
Therefore, engine braking will not be
applied even if the transaxle is shifted
down to a lower gear. If deceleration is
required, lower the set speed or depress
the brake pedal.
To Deactivate
To deactivate the system, press the OFF
switch.
Mazda3_8FA4-EA-15G_Edition1.indb 1222015/05/11 14:01:11
