6–2
Maintenance and Care
Essential Information
Introduction
Be careful not to hurt yourself when inspecting your vehicle, replacing a tire, or doing some
kind of maintenance such as car washing.
In particular, wear thick work gloves such as cotton gloves when touching areas that \
are difficult to see while inspecting or working on your vehicle. Doing inspections or
procedures with your bare hands could cause injury.
If you are unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.
Factory-trained Mazda technicians and genuine Mazda parts are best for y\
our vehicle.
Without this expertise and the parts that have been designed and made esp\
ecially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult an Authorized Mazda Dealer.
To continue warranty eligibility and to protect your investment, it is yo\
ur responsibility to
properly maintain your vehicle according to factory recommended schedule\
s outlined in this
manual. As part of this you must keep your maintenance records, receipts, repair\
orders and
any other documents as evidence this maintenance was performed. You must present these
documents, should any warranty coverage disagreement occur. Failure to do so can result in
your warranty being voided either in whole or in part.
This evidence may consist of the following:
 The Mazda Scheduled Maintenance Record, refer to the Warranty Booklet, must be
completely filled out showing mileage, repair order number, date for each service, and
signed by a qualified automotive service technician who service vehicles.
 Original copies of repair orders or other receipts that include the mile\
age and date the
vehicle was serviced. Each receipt should be signed by a qualified automotive service
technician.
 For self maintenance, a statement that you completed the maintenance you\
rself,
displaying mileage and the date the work was performed. Also, receipts for the
replacement parts (fluid, filters, etc.) indicating the date and mileage must accompany this
statement.
NOTE
If you elect to perform maintenance yourself or have your vehicle servic\
ed at a location
other than an Authorized Mazda Dealer, Mazda requires that all fluids, parts and materials
must meet Mazda standards for durability and performance as described in this manual.
Mazda3_8FL6-EA-16F_Edition2.indb 22016/08/10 17:38:29

6–6
Maintenance and Care
Scheduled Maintenance
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first.
Months 1224364860728496
×1000 km 1224364860728496
×1000 miles 7.51522.5 3037.5 4552.5 60
AIR CONDITIONER SYSTEM
Cabin air filter Replace when any equivalent timing of replacing engine oil.
(Max interval: 24 months or 48,000 km (30,000 miles))
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
T: Tighten
Remarks:
*1 The engine oil and filter must be changed at least once a year o r within 12,000 km (7,500 miles) since last engine oil and filter change. The system must be reset whenever replacing the engine oil regardless of the
message/wrench indicator light display.
*2 Use of FL-22 is recommended when replacing engine coolant. Using engine \
coolant other than FL-22 may cause serious damage to the engine and cooling system.*3 According to state/provincial and federal regulations, failure to perfor\
m maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or mileage/kilometer period to ensure long-term reliabi\
lity.
*4 The Tire Pressure Monitoring System (TPMS) initialization must be performed\
so that the system operates normally (if equipped).*5 Check the tire repair fluid expiration date every year when perf orming the periodic maintenance. Replace the tire repair fluid bottle with new one before the expiration date.
Mazda3_8FL6-EA-16F_Edition2.indb 62016/08/10 17:38:30

6–8
Maintenance and Care
Scheduled Maintenance
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first.
Months 612 18243036424854606672
×1000 km 816 24324048566472808896
×1000 miles 510 15202530354045505560
AIR CONDITIONER SYSTEM
Cabin air filter Replace every 40,000 km (25,000 miles) or 2 years.
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R: Replace
L: Lubricate
T: Tighten
Remarks:
*1 Engine oil flexible maintenance is available for U.S.A. and Puer to Rico residents whose vehicle is operated mainly where none of the following conditions apply.
 Extended periods of idling or low-speed operation such as police car, taxi or driving school car Driving in dusty conditions
If any do apply, follow fixed maintenance. The engine oil and filter must be changed at least once a year o r within 12,000 km (7,500 miles) since last engine oil and filter change. Reset the engine oil data whenever replacing the engine oil regardless of the
message/wrench indicator light display.
*2 Use of FL-22 is recommended when replacing engine coolant. Using engine \
coolant other than FL-22 may cause serious damage to the engine and cooling system.*3 If the vehicle is operated in very dusty or sandy areas, clean and if necessary, replace the air filter more often than the recommended intervals.*4 According to state/provincial and federal regulations, failure to perfor\
m maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or mileage/kilometer period to ensure long-term reliabi\
lity.
*5 The Tire Pressure Monitoring System (TPMS) initialization must be performed\
so that the system operates normally (if equipped).*6 Check the tire repair fluid expiration date every year when perf orming the periodic maintenance. Replace the tire repair fluid bottle with new one before the expiration date.
Mazda3_8FL6-EA-16F_Edition2.indb 82016/08/10 17:38:30

6–10
Maintenance and Care
Scheduled Maintenance
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first.
Months 612 18243036424854606672
×1000 km 816 24324048566472808896
×1000 miles 510 15202530354045505560
AIR CONDITIONER SYSTEM
Cabin air filter Replace every 40,000 km (25,000 miles) or 2 years.
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R: Replace
L: Lubricate
T: Tighten
Remarks:
*1 Reset the engine oil data whenever replacing the engine oil reg ardless of the message/wrench indicator light display.*2 Use of FL-22 is recommended when replacing engine coolant. Using engine \
coolant other than FL-22 may cause serious damage to the engine and cooling system.*3 According to state/provincial and federal regulations, failure to perfor\
m maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or mileage/kilometer period to ensure long-term reliabi\
lity.
*4 The Tire Pressure Monitoring System (TPMS) initialization must be performed\
so that the system operates normally (if equipped).*5 Check the tire repair fluid expiration date every year when perf orming the periodic maintenance. Replace the tire repair fluid bottle with new one before the expiration date.
Mazda3_8FL6-EA-16F_Edition2.indb 102016/08/10 17:38:31

6–18
Maintenance and Care
Scheduled Maintenance
Maintenance Monitor
Maintenance Monitor (Type A audio)
Based on the engine operating conditions, the onboard computer in your vehicle calculates
the remaining oil life in the United States and Puerto Rico. The wrench indicator light in the
instrument cluster will be illuminated when remaining oil life becomes l\
ess than 1,000 km
(600 mile), or remaining days are less than 15 (whichever comes first).
The system must be reset whenever replacing the engine oil.
Reset method
Press and hold the dashboard illumination knob with the ignition switche\
d off, then switch
it on. Keep pressing the dashboard illumination knob for more than 5 sec\
onds. The master
warning light will flash for a few seconds when the reset is completed.
Dashboard illumination knob
Maintenance Monitor (Type B audio)
1. Select the icon on the home screen to display the “Applications” screen.
2. Select “Vehicle Status Monitor” to display the current warnings.
3. Select “Maintenance” to display the maintenance list screen.
4. Switch the tab and select the setting item you want to change.
Mazda3_8FL6-EA-16F_Edition2.indb 182016/08/10 17:38:34

6–19
Maintenance and Care
Scheduled Maintenance
You can customize settings in the setup display as follows:
Ta bItem Explanation
Scheduled Setting
Notification can be switched on/off.
Time (months) Displays the time or distance until maintenance is due.
Select this item to set the maintenance period.
The wrench indication/indicator light in the instrument cluster
will be illuminated when the remaining distance is less than 1,000
km or 600 mile, or the remaining number of days is less than 15
(whichever comes first).
Distance (mile or km)
Reset Resets the time and distance to the initial values.
Once the system turns on, it needs to be reset whenever carrying
out maintenance.
Tire Rotation Setting
Notification can be switched on/off.
Distance (mile or km) Displays the distance until tire rotation is due.
Select this item to set the tire rotation distance.
The wrench indication/indicator light in the instrument cluster will
be illuminated when the remaining distance is less than 1,000 km
or 600 mile.
Reset Resets the remaining distance to the initial value.
Once the system turns on, it needs to be reset whenever rotating
the tires.
Oil Change Setting Interval
Oil replacement period can be selected from the flexible setting or
fixed setting, or it can be set to non-display.
The flexible setting is available only in the United States and
Puerto Rico. Once engine oil flexible maintenance is selected,
the vehicle calculates the remaining oil life based on the engine
operating conditions. The vehicle lets you know when an oil
change is due by illuminating the wrench indicator light in the
instrument cluster.
Distance (mile or km)
(Displays only in fixed
setting) Displays the distance until the oil replacement is due.
Select this item to set the oil replacement distance.
The wrench indication/indicator light in the instrument cluster will
be illuminated when the remaining distance is less than 1,000 km
or 600 mile.
Oil life (%)
(Displays only in flexible
setting) Displays the engine oil life until the oil replacement is due.
The wrench indication/indicator light in the instrument cluster
will be illuminated when the remaining oil life distance is less
than 1,000 km (600 mile), or remaining days are less than 15
(whichever comes first).
Reset
In flexible setting
Resets the remaining distance until oil replacement is due to the
initial value.
In fixed setting
Resets the remaining distance until oil replacement is due to the
initial value.
Mazda3_8FL6-EA-16F_Edition2.indb 192016/08/10 17:38:34

6–74
Maintenance and Care
Appearance Care
*Some models.
NOTE
 Because genuine leather is a natural
material, its surface is not uniform and
it may have natural scars, scratches,
and wrinkles.
 To maintain the quality for as long as
possible, periodical maintenance, about
twice a year, is recommended.
 If the leather upholstery comes into
contact with any of the following, clean
it immediately.
Leaving it uncleaned could cause
premature wear, mold, or stains.
 Sand or dirt Grease or oil, such as hand cream Alcohol, such as in cosmetic or hair
dressing items
 If the leather upholstery gets wet,
promptly remove moisture with a dry
cloth. Remaining moisture on the
surface may cause deterioration such as
hardening and shrinkage.
 Exposure to direct sunlight for long
periods may cause deterioration and
shrinkage. When parking the car under
direct sunlight for long periods, shade
the interior using sunshades.
 Do not leave vinyl products on the
leather upholstery for long periods.
They may affect the leather quality
and coloring. If the cabin temperature
becomes hot, the vinyl may deteriorate
and adhere to the genuine leather.
Plastic Part Maintenance
CAUTION
Do not use polishing agents.
Depending on the product ingredients,
they could cause discoloration, stains,
cracks or peeling of the coating.
Instrument Panel Top (Soft pad)
Maintenance
Extremely soft material is used for the
soft pad surface. If the soft pad surface is
rubbed harshly with a dry cloth, it could
result in the surface being damaged and
leaving white scratch marks.
1. Wipe the soiled area with a soft cloth
soaked in a mild detergent (approx.
5%) diluted with water.
2. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
Active Driving Display
Maintenance*
The combiner and mirror surface have
a special coating. When cleaning it, do
not use a hard cloth, a cloth with a rough
surface, or cleaning detergent. Use a fine-
textured, soft cloth.
If a chemical solvent gets on the combiner
or mirror surface, wipe it off immediately.
Otherwise, they could be damaged and the
surface coating could be scratched.
Mazda3_8FL6-EA-16F_Edition2.indb 742016/08/10 17:39:06

7–1

*Some models.
7If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.
Parking in an Emergency
..................................................................7-2
Parking in an Emergency ..............................................................7-2
Flat Tire........................................................................\
.......................7-3
Spare Tire and Tool Storage ..........................................................7-3
Changing a Flat Tire ......................................................................7-6
Battery Runs Out ........................................................................\
.....7-16
Jump-Starting ........................................................................\
......7-16
Emergency Starting ........................................................................\
.7-19
Starting a Flooded Engine ...........................................................7-19
Push-Starting ........................................................................\
.......7-19
Overheating ........................................................................\
..............7-20
Overheating ........................................................................\
.........7-20
Emergency Towing ........................................................................\
...7-22
Towing Description .....................................................................7-22
Tiedown Hooks* ........................................................................\
..7-23
Warning/Indicator Lights and Warning Sounds ...........................7-25
If a Warning Light Turns On or Flashes ......................................7-25
Message Indicated on Display* ...................................................7-37
Warning Sound is Activated ........................................................7-39
When Liftgate/Trunk Lid Cannot be Opened ...............................7-44
When Liftgate/Trunk Lid Cannot be Opened .............................7-44
Active Driving Display Does Not Operate* ....................................7-46
If the Active Driving Display Does Not Operate ........................7-46
Mazda3_8FL6-EA-16F_Edition2.indb 12016/08/10 17:39:07

7–25
If Trouble Arises

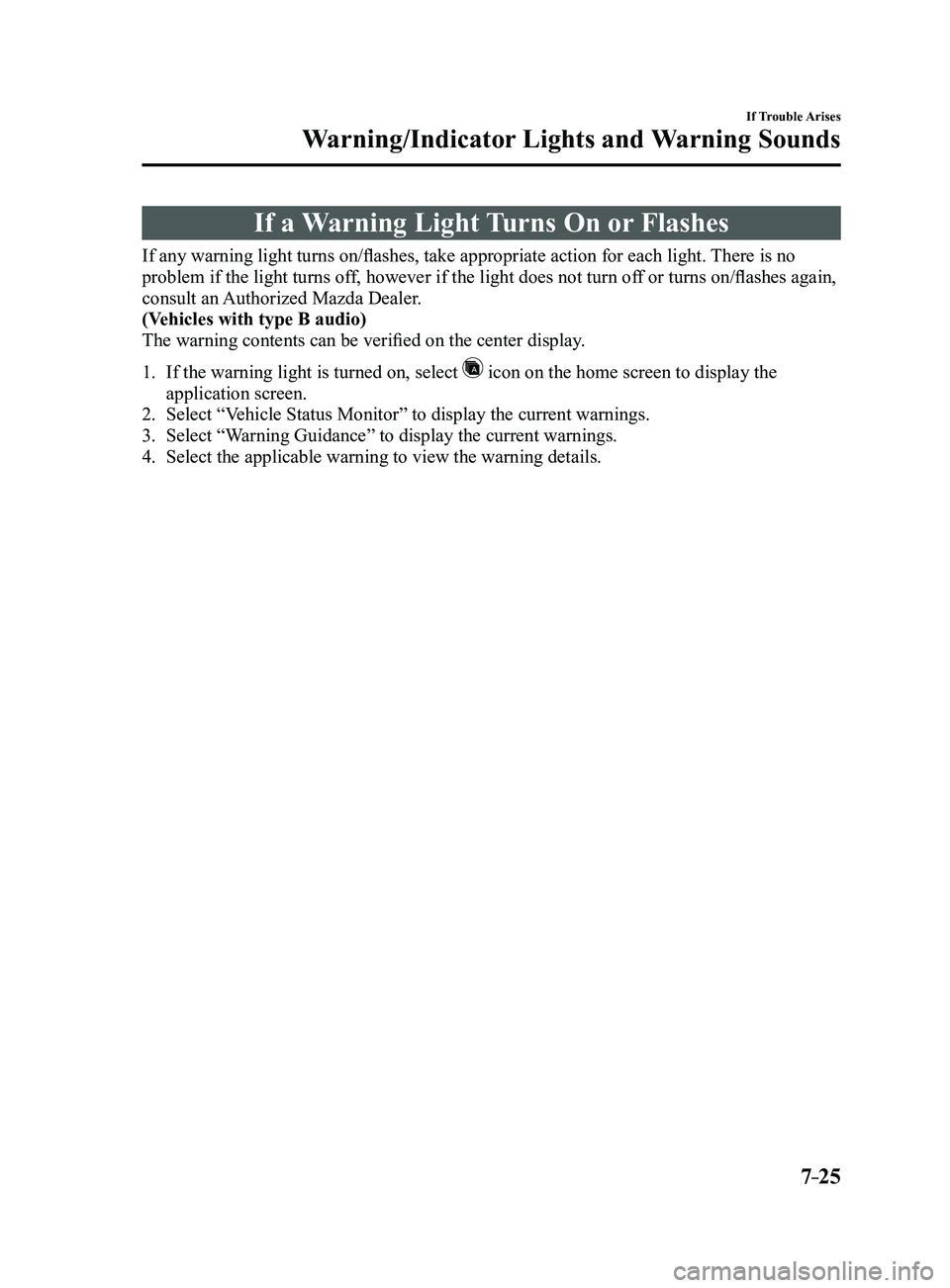

Warning/Indicator Lights and Warning Sounds
If a Warning Light Turns On or Flashes
If any warning light turns on/flashes, take appropriate action for each light. There is no
problem if the light turns off, however if the light does not turn off or turns on/flashes again,
consult an Authorized Mazda Dealer.
(Vehicles with type B audio)
The warning contents can be verified on the center display.
1. If the warning light is turned on, select icon on the home screen to display the
application screen.
2. Select “Vehicle Status Monitor” to display the current warnings.
3. Select “W arning Guidance” to display the current warnings.
4. Select the applicable warning to view the warning details.
Mazda3_8FL6-EA-16F_Edition2.indb 252016/08/10 17:39:21

7–27
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
SignalWarning
Electronic Brake Force Distribution System
Warning If the electronic brake force distribution control unit determines that \
some components
are operating incorrectly, the control unit may illuminate the brake system warning
light and the ABS warning light simultaneously. The problem is likely to be the
electronic brake force distribution system.
WARNING
Do not drive with both the ABS warning light and brake warning light illuminated. Have the vehicle towed to an Authorized Mazda Dealer to have the brakes
inspected as soon as possible:
Driving when the brake system warning light and ABS warning light are
illuminated simultaneously is dangerous.
When both lights are illuminated, the rear wheels could lock more quickly in an
emergency stop than under normal circumstances.
Charging System Warning Light If the warning light illuminates while driving, it indicates a malfuncti\
on of the
alternator or of the charging system.
Drive to the side of the road and park off the right-of-way. Consult an Authorized
Mazda Dealer.CAUTION
Do not continue driving when the charging system warning light is illuminated because the engine could stop unexpectedly.
Engine Oil Warning LightThis warning light indicates low engine oil pressure.
CAUTION
Do not run the engine if the oil pressure is low. Otherwise, it could result in extensive engine damage.
If the light illuminates or the warning indication is displayed while dr\
iving:
1.Drive to the side of the road and park off the right-of-way on level ground.
2.Turn off the engine and wait 5 minutes for the oil to drain back into the oil p\
an.
3. Inspect the engine oil level 6-28. If it's low, add the appropriate amount of engine
oil while being careful not to overfill.
CAUTION
Do not run the engine if the oil level is low. Otherwise, it could result in extensive engine damage.
4.Start the engine and check the warning light.
If the light remains illuminated even though the oil level is normal or \
after adding oil,
stop the engine immediately and have your vehicle towed to an Authorized Mazda
Dealer.
Mazda3_8FL6-EA-16F_Edition2.indb 272016/08/10 17:39:23
