headlights MAZDA MODEL 3 4-DOOR 2017 Owner's Manual

6–48
Maintenance and Care
Owner Maintenance
High-beam bulbs/Daytime running
lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Lift the hood.
3. Disconnect the connector from the unit
by pressing the tab on the connector
with your finger and pulling the
connector downward.

4. Turn the socket and bulb assembly
to remove it. Carefully remove the
bulb from its socket in the reflector by
gently pulling it straight backward out
of the socket.

5. Install the new bulb in the reverse order
of the removal procedure.
Front turn signal lights, Parking lights/
Front side-marker lights (With halogen
headlights), Front side-marker lights
(With LED headlights)
1. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the left, and turn off engine.
If you are changing the left bulb, turn
the steering wheel to the right, and turn
off engine.
2. Make sure the headlight switch is off.
3. Pull the center of each plastic retainer
and remove the retainers.

Removal
Installation
Mazda3_8FL6-EA-16F_Edition2.indb 482016/08/10 17:38:51

6–49
Maintenance and Care
Owner Maintenance
4. Turn the screw counterclockwise and
remove it, and then partially peel back
the mudguard.

5. (Front turn signal lights)
Disconnect the connector from the unit
by pressing the tab on the connector
with your finger and pulling the
connector.

6. Turn the socket and bulb assembly
counterclockwise and remove it.
7. Disconnect the bulb from the socket.
Front turn signal lights

Parking lights/Front side-marker
lights (With halogen headlights),
Front side-marker lights (With LED
headlights)

8. Install the new bulb in the reverse order
of the removal procedure.
Mazda3_8FL6-EA-16F_Edition2.indb 492016/08/10 17:38:52

6–61
Maintenance and Care
Owner Maintenance
3. Pull the fuse straight out with the
fuse puller provided on the fuse block
located in the engine compartment.
4. Inspect the fuse and replace it if it is
blown.
NormalBlown
5. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If
it does not fit tightly, have an expert
install it. We recommend an Authorized
Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or OUTLET circuit.
CAUTION
Always replace a fuse with a genuine
Mazda fuse or equivalent of the same
rating. Otherwise you may damage
the electric system.
6. Reinstall the cover and make sure that
it is securely installed.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses
in the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Make sure the ignition is switched of f,
and other switches are off.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is
blown, replace it with a new one of the
same amperage rating.
Normal Blown
Mazda3_8FL6-EA-16F_Edition2.indb 612016/08/10 17:39:01

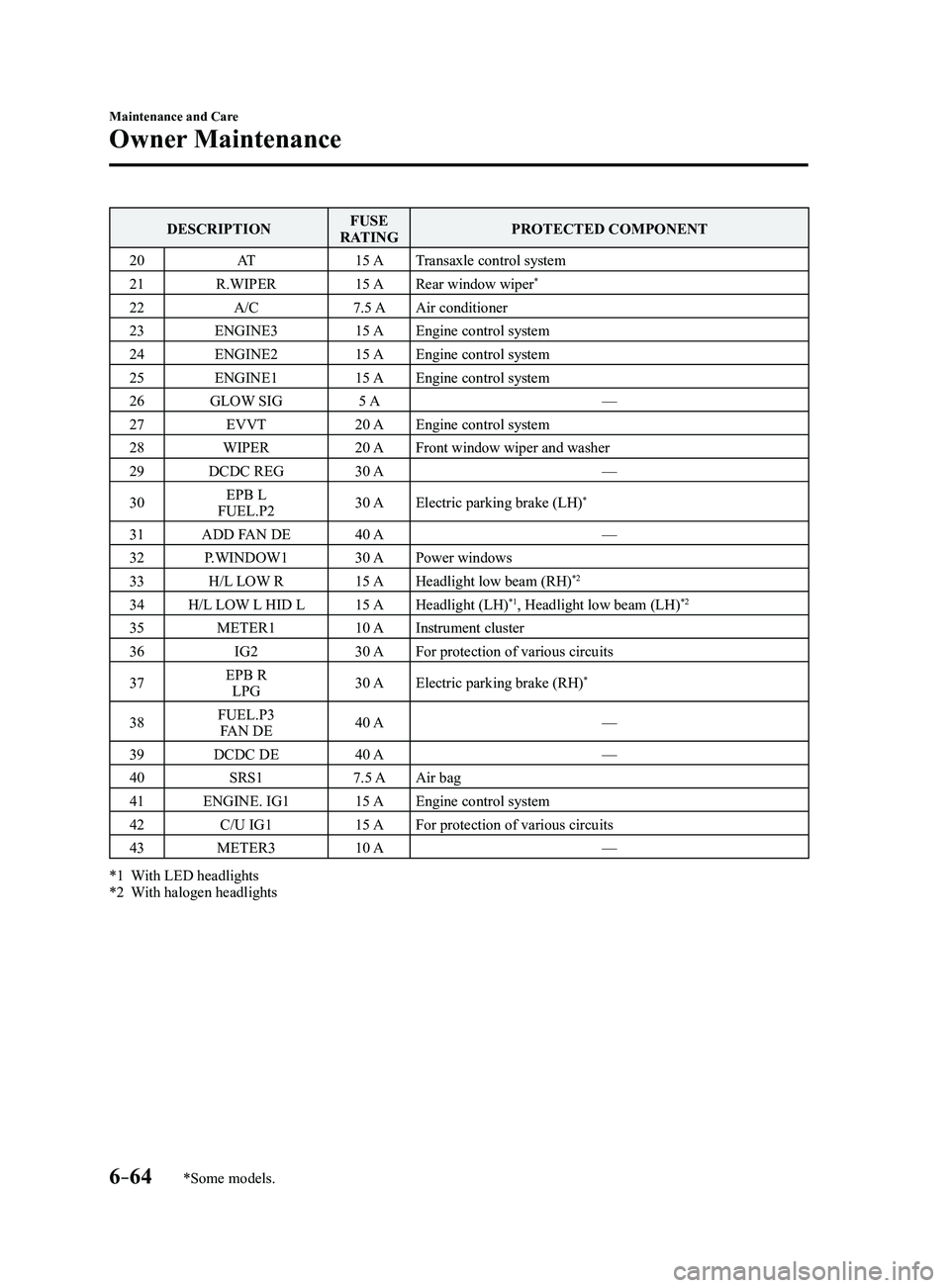

6–64
Maintenance and Care
Owner Maintenance
*Some models.
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
20 AT 15 ATransaxle control system
21 R.WIPER 15 ARear window wiper
*
22 A/C 7.5 AAir conditioner
23 ENGINE3 15 AEngine control system
24 ENGINE2 15 AEngine control system
25 ENGINE1 15 AEngine control system
26 GLOW SIG 5 A —
27 EVVT 20 AEngine control system
28 WIPER 20 AFront window wiper and washer
29 DCDC REG 30 A —
30 EPB L
FUEL.P2 30 A
Electric parking brake (LH)
*
31 ADD FAN DE 40 A —
32 P.WINDOW1 30 APower windows
33 H/L LOW R 15 AHeadlight low beam (RH)
*2
34H/L LOW L HID L 15 AHeadlight (LH)*1, Headlight low beam (LH)*2
35 METER1 10 AInstrument cluster
36 IG2 30 AFor protection of various circuits
37 EPB R
LPG 30 A
Electric parking brake (RH)
*
38 FUEL.P3
FAN DE 40 A
—
39 DCDC DE 40 A —
40 SRS1 7.5 AAir bag
41 ENGINE. IG1 15 AEngine control system
42 C/U IG1 15 AFor protection of various circuits
43 METER3 10 A —
*1 With LED headlights*2 With halogen headlights
Mazda3_8FL6-EA-16F_Edition2.indb 642016/08/10 17:39:03

9–9
Specifications
Specifications
*Some models.
Light Bulbs
Exterior light
Light bulbCategory
Wattage UNECE*1 (SAE)
Headlights Halogen High beam
65HB3 (9005)
Low beam 55H11 (H11)
LED High/Low beam LED
*2— (—)
Daytime
running lights With halogen bulb headlights
65HB3 (9005)
With LED headlights LED
*2— (—)
Parking lights
(Front side-
marker lights) With halogen bulb headlights
5WY5W (—)
Front side-
marker lights With LED headlights
LED
*2— (—)
Parking lights With LED headlights LED
*2— (—)
Front turn signal lights 21WY21W
(7443NA)
Fog lights
*LED*2— (—)
Side turn signal lights*LED*2— (—)
High-mount brake light LED*2— (—)
Rear turn signal lights 21WY21W
(7443NA)
Brake lights/
Taillights/Rear
side-marker
lights LED type
LED
*2— (—)
Bulb type 21/5W21/5W (7443)
Taillights (Liftgate side/Trunk lid side)
*LED*2— (—)
Reverse lights 4–Door
18W16W (921)
5–Door 21W21W (7440)
License plate lights 5W5W (—)
*1 UNECE stands for United Nations Economic Commission for Europe.*2 LED is the abbreviation for Light Emitting Diode.
Mazda3_8FL6-EA-16F_Edition2.indb 92016/08/10 17:39:54

9–16
Specifications
Personalization Features
ItemFeatureFactory
Setting Available
Settings Settings
Change
Method
Auto-wiper control (page 4-50) Operational/non-operational
OnOn/Off
*4A—
Daytime running lights
(page 4-48) Operational/non-operational
OnOn/Off ——
Auto headlight off*5 (page 4-43) Time until headlights turn off
30 seconds120 seconds/
90 seconds/
60 seconds/
30 seconds/ Off*6
A —
Auto-light control (page 4-43) Timing by which lights turn on
MediumHigh/
Med. High/ Medium/
Med. Low/ Low A
—
High Beam Control System
(HBC) (page
4-85) Operational/non-operational
*1On
On/Off A—
Adaptive Front Lighting System
(AFS) (page
4-84) Operational/non-operational
*1On
On/Off A—
Lights-on reminder*7 (page 7-39) Warning beep volume
OffHigh/Low/Off A—
Coming home light (page 4-47) Time until headlights turn off
30 seconds120 seconds/
90 seconds/
60 seconds/
30 seconds/ Off A
—
Leaving home light (page 4-47) Operational/non-operational
OnOn/Off A—
Turn signal indicator (page 4-49) Beep volume
HighHigh/Low A—
Three-flash turn signal (page 4-49) Operational/non-operational
OnOn/Off A—
Rear window defogger (page 4-54) The operation time for the rear window
defogger can be changed.
15 minutes15 minutes/
Continuous*8— —
Mazda3_8FL6-EA-16F_Edition2.indb 162016/08/10 17:39:56

9–18
Specifications
Personalization Features
ItemFeatureFactory
Setting Available
Settings Settings
Change
Method
Active Driving Display (page 4-21)
Display Setting can be changed so that the Active
Driving Display is not displayed.
On
On/Off C—
The display height (up/down position) can be changed. 013 steps up/
down from
initial setting
(total: 27 steps) C
—
The method for adjusting the display brightness (automatically/manually) can be
changed. AUTO
AUTO/MAN. C—
The standard brightness while automatic adjustment is selected can be changed using
the brightness adjustment. 02 steps up/
down from
initial setting
(total: 5 steps) C
—
The standard brightness while manual adjustment is selected can be changed using
the brightness adjustment. 020 steps up/
down from
initial setting
(total: 41 steps) C
—
Navigation guidance The display information can be changed. Lane
Guidance
& Turn by Turn At Maneuver/
Lane Guidance & Turn by Turn/
Street Name & Turn by Turn/ OFF C
—
*1 Though these systems can be turned Of f, doing so will defeat the purpose of the system and Mazda recommends that these systems remain On.*2 Only the volume of the warning beep during Blind Spot Monitorin g (BSM) operation can be changed. The volume of the warning beep during Rear Cross Traffic Alert (RCTA) operation cannot be changed.*3 This system functions only when the navigation system is functioning.
*4 If the auto-wiper control is set to Off, the wiper lever position is set to intermittent operation.*5 If the setting is changed to Off, the following operation is performed according to the headlight switc\
h position:
 At position: Headlights turn off immediately after the ignition is switched off. At any position other than : Headlights on/off conditions vary according to the headlight switch
position. Refer to Headlights on page 4-43.
*6 When set to Of f, the lights-on reminder is operable.*7 The lights-on reminder settings can be changed at anytime, however , the lights-on reminder only operates when the auto headlight function is set to Off. Refer to Lights-On Reminder on page 7-39.*8 The operation may stop in 15 minutes due to the effect of the outside temperature even if the operation time of the rear window defogger has been changed to Continuous.*9 Available only in display from the center display.
Mazda3_8FL6-EA-16F_Edition2.indb 182016/08/10 17:39:57

10–4
F
FlasherHazard warning
.............................4-56
Headlights
.....................................4-43
Flat Tire
.................................................7-3
Mounting the Spare Tire ................7-11
Removing a Flat Tire
.......................7-7
Floor Mat
............................................3-47
Fluid Brake/Clutch
.................................6-30
Washer
...........................................6-30
Fluids Classification
...................................9-5
Fog Lights
...........................................4-48
Foot Brake
...........................................4-61
Forward Sensing Camera (FSC)
.......4-136
Front Seat
..............................................2-5
Fuel Filler lid and cap ............................ 3-31
Gauge
............................................4-17
Requirements ................................. 3-28
Tank capacity
..................................9-5
Fuel Consumption Display
.................4-76
Fuel Economy Monitor
.......................4-75
Control status display
....................4-77
Ending screen display
...................4-77
Fuel consumption display
.............4-76
Fuses
...................................................6-60
Panel description
...........................6-63
Replacement
..................................6-60
G
Gauges .................................................4-12
Glove Compartment
..........................5-117
H
Hazard Warning Flasher ......................4-56
Hazardous Driving
..............................3-47
Head Restraint
.....................................2-12
Headlights Coming home light
........................4-47
Control ........................................... 4-43
Flashing
.........................................4-46
High-low beam
..............................4-46
Leaving home light
.......................4-47
Leveling ......................................... 4-48
High Beam Control System (HBC)
....4-85
High Beam Control System (HBC)
indicator light (green)
....................4-87
Hill Launch Assist (HLA)
...................4-67
HomeLink Wireless Control System ...4-57
Hood Release
......................................6-22
Horn
....................................................4-56
Index
Mazda3_8FL6-EA-16F_Edition2.indb 42016/08/10 17:39:58
