key MAZDA MODEL 3 4-DOOR 2017 Owner's Manual

3–16
Before Driving
Doors and Locks
 All doors and the liftgate/trunk lid
cannot be locked when any door or the
liftgate is open.
 It may require a few seconds for the
doors to unlock after the request switch
is pressed.
 A beep sound is heard for confirmation
when the doors and the liftgate/trunk lid
are locked/unlocked using the request
switch. If you prefer, the beep sound can
be turned off.
The volume of the beep sound can also
be changed. Refer to Personalization
Features on page
9-12.
Use the following procedure to change
the setting.
1. Switch the ignition off and close all
of the doors and the liftgate/trunk lid.
2. Open the driver's door .
3. Within 30 seconds of opening the
driver's door, press and hold the
LOCK button on the key for 5
seconds or longer.
All of the doors and the liftgate/
trunk lid lock and the beep sound
activates at the currently set volume.
The setting changes each time the
LOCK button on the key is pressed
and the beep sound activates at the
set volume. (If the beep sound has
been set to not activate, it will not
activate.)
4. The setting change is completed by
doing any one of the following:
 Switching the ignition to ACC or
ON. Closing the driver's door. Opening the liftgate/trunk lid. Not operating the key for 10
seconds. Pressing any button except the
LOCK button on the key. Pressing a request switch.
 (With theft-deterrent system)
The hazard warning lights flash when
the theft-deterrent system is armed or
turned off.
Refer to Theft-Deterrent System on page
3-44. The setting can be changed so that
the doors and the liftgate/trunk lid are
locked automatically without pressing
the request switch.
Refer to Personalization Featur es on
page 9-12.
(Auto-lock function)
A beep sound is heard when all doors
and the liftgate are closed while the
advanced key is being carried. All
doors and the liftgate/trunk lid are
locked automatically after about three
seconds when the advanced key is
out of the operational range. Also,
the hazard warning lights flash once.
(Even if the driver is in the operational
range, all doors and the liftgate/trunk
lid are locked automatically after
about 30 seconds.) If you are out of
the operational range before the doors
and the liftgate/trunk lid are completely
closed or another key is left in the
vehicle, the auto-lock function will not
work. Always make sure that all doors
and the liftgate/trunk lid are closed and
locked before leaving the vehicle. The
auto-lock function does not close the
power windows.
Mazda3_8FL6-EA-16F_Edition2.indb 162016/08/10 17:35:21

3–17
Before Driving
Doors and Locks
 Auto re-lock function
After unlocking with the request switch,
all doors and the liftgate/trunk lid
will automatically lock if any of the
following operations are not performed
within about 60 seconds. If your
vehicle has a theft-deterrent system,
the hazard warning lights will flash for
confirmation.
The time required for the doors to lock
automatically can be changed.
Refer to Personalization Featur es on
page 9-12.
 Opening a door or the liftgate/trunk
lid. Switching the ignition to any position
other than off.
Locking, Unlocking with
Transmitter
All doors and the liftgate/trunk lid can be
locked/unlocked by operating the keyless
entry system transmitter, refer to Keyless
Entry System (page
3-3).
Locking, Unlocking with Door-
Lock Switch
All doors and the liftgate/trunk lid lock
automatically when the lock side is
pressed. They unlock when the unlock side
is pressed.
Driver's door
Unlock
Lock
Front passenger's door
UnlockLock
To lock all the doors and the liftgate/trunk
lid from an open front door, press the lock
side of the door lock switch and then close
the door.
NOTE
When locking the doors this way, be
careful not to leave the key inside the
vehicle.
Mazda3_8FL6-EA-16F_Edition2.indb 172016/08/10 17:35:21

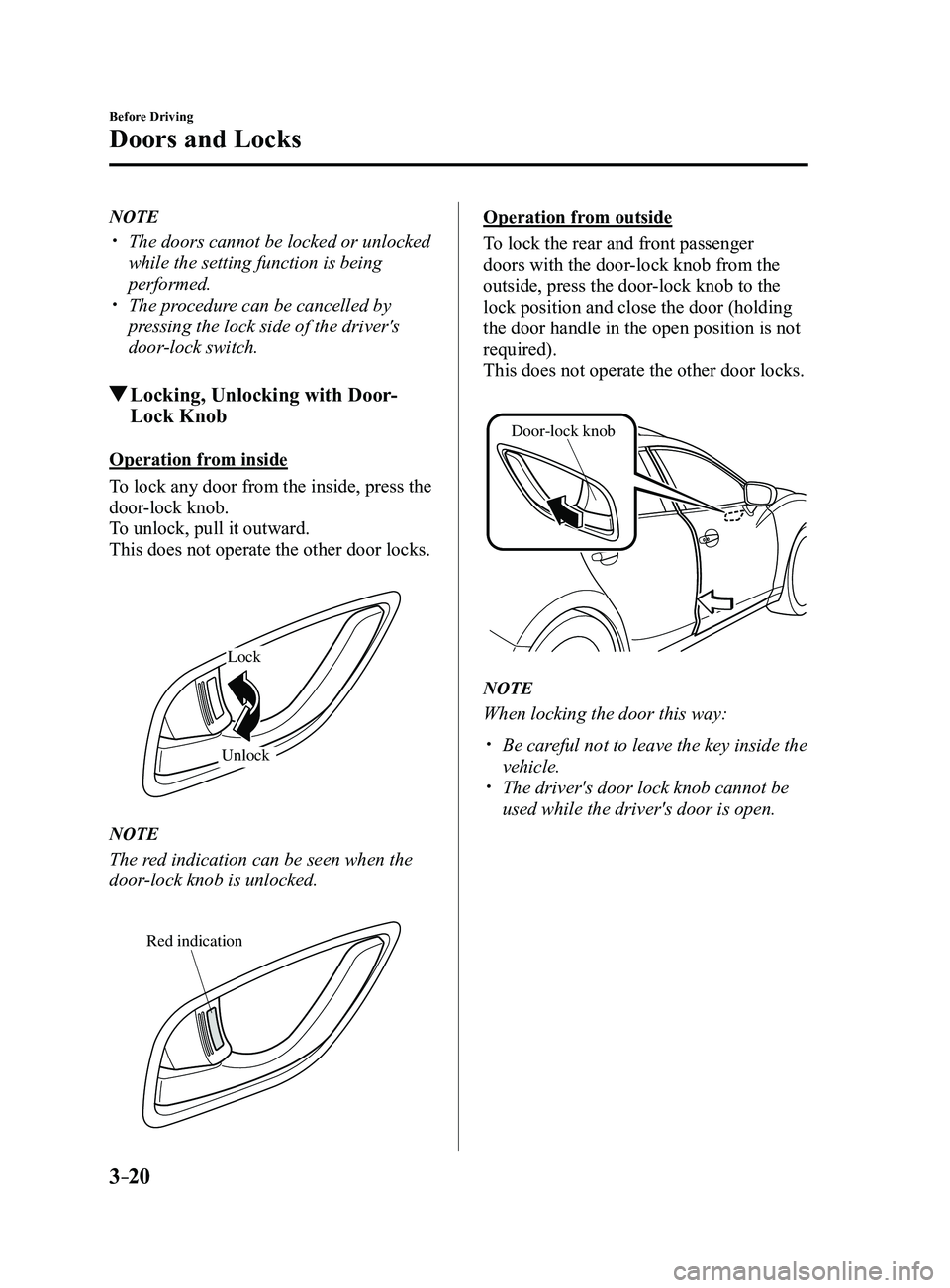

3–20
Before Driving
Doors and Locks
NOTE
 The doors cannot be locked or unlocked
while the setting function is being
performed.
 The procedure can be cancelled by
pressing the lock side of the driver's
door-lock switch.
Locking, Unlocking with Door-
Lock Knob
Operation from inside
To lock any door from the inside, press the
door-lock knob.
To unlock, pull it outward.
This does not operate the other door locks.
Lock
Unlock
NOTE
The red indication can be seen when the
door-lock knob is unlocked.
Red indication
Operation from outside
To lock the rear and front passenger
doors with the door-lock knob from the
outside, press the door-lock knob to the
lock position and close the door (holding
the door handle in the open position is not
required).
This does not operate the other door locks.
Door-lock knob
NOTE
When locking the door this way:
 Be careful not to leave the key inside the
vehicle. The driver's door lock knob cannot be
used while the driver's door is open.
Mazda3_8FL6-EA-16F_Edition2.indb 202016/08/10 17:35:23

3–23
Before Driving
Doors and Locks
NOTE
(With the advanced keyless function)
 A locked liftgate can also be opened
while the key is being carried. When opening the liftgate with the
doors and the liftgate locked, it may
require a few seconds for the liftgate
latch to release after the electric liftgate
opener is pressed.
 The liftgate can be closed when the
doors are locked with the key left in the
vehicle. However, to prevent locking the
key in the vehicle, the liftgate can be
opened by pressing the electric liftgate
opener. If the liftgate cannot be opened
despite doing this procedure, first push
the liftgate/trunk lid completely closed,
then press the electric liftgate opener to
fully open the liftgate.
 When the liftgate latch is released by
pressing the electric liftgate opener,
the liftgate raises slightly. If the liftgate
is not operated for a certain period of
time, the liftgate cannot be raised.
To open
Press the electric liftgate/trunk lid
opener again.
To close
To close the liftgate/trunk lid from its
slightly raised position, open it first by
pressing the electric liftgate/trunk lid
opener, then close it after waiting at
least 1 second.
 If the liftgate is not fully closed, the
driver is notified by a warning indicated
in the instrument cluster.
 If the vehicle battery is dead or ther e is
a malfunction in the electrical system
and the liftgate cannot be unlocked, the
liftgate can be opened by performing
the emergency procedure.
Refer to When Liftgate/Trunk Lid
Cannot be Opened on page 7-44.
Opening the trunk lid (4–door)
Using the remote release button
Push the release button.
Using the electric trunk lid opener
(With the advanced keyless function)
A trunk lid can also be opened while the
key is being carried.
Press the electric trunk lid opener on the
trunk lid, then raise the trunk lid when the
latch releases.
Electric trunk lid
opener
Mazda3_8FL6-EA-16F_Edition2.indb 232016/08/10 17:35:25

3–24
Before Driving
Doors and Locks
NOTE
 When opening the trunk lid with the
doors locked, it may require a few
seconds for the trunk lid latch to release
after the electric trunk lid opener is
pressed.
 The trunk lid can be closed when the
doors are locked with the key left in the
vehicle. However, to prevent locking the
key in the vehicle, the trunk lid can be
opened by pressing the electric trunk lid
opener. If the trunk lid cannot be opened
despite doing this procedure, press the
electric trunk lid opener to fully open
the trunk lid after pushing the trunk lid
completely closed.
 If the vehicle battery is dead or there
is a malfunction in the electrical
system and the trunk lid cannot be
unlocked, the trunk lid can be opened by
performing the emergency procedure.
Refer to When Liftgate/Trunk Lid
Cannot be Opened on page 7-44.
Closing the liftgate/trunk lid
Lower the liftgate/trunk lid slowly using
the liftgate/trunk lid grip recess, then push
the liftgate/trunk lid closed using both
hands.
Do not slam it. Pull up on the liftgate/trunk
lid to make sure it is secure.
(5–door)
Liftgate grip
recess
(4–door)
Trunk lid grip recess
Mazda3_8FL6-EA-16F_Edition2.indb 242016/08/10 17:35:25

3–26
Before Driving
Doors and Locks
*Some models.
Loading golf bags (only 4-door vehicle)
Up to two golf bags can be carried in the
trunk.
1. Place the bottom of the first golf bag in
the trunk with its bottom pointed to the
left and fit it into the front of the trunk.

2. Place the second golf bag in the trunk
with its bottom pointed to the left and
fit it into the back of the trunk.

NOTE
Some golf bags cannot fit depending on
their size.
Inside Trunk Release
Lever (4-Door)
*
Your vehicle is equipped with an inside
trunk release lever that provides a means
of escape for children and adults in the
event they become locked inside the trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and location
of the inside trunk release lever so that
all children can be told about it in an
appropriate way, keeping in mind that
most vehicles do not have such levers.
Mazda3_8FL6-EA-16F_Edition2.indb 262016/08/10 17:35:26

3–27
Before Driving
Doors and Locks
WARNING
Close the trunk lid, be sure the seat
backs are latched and do not allow
children to play inside the vehicle:Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting
in possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by latching the
rear seats, doors and the trunk, and
keeping the keys where children can not
play with them: Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars or
trunks can die very quickly from heat
prostration. Do not leave your children
or pets alone in a car at any time. Do
not leave the car, the rear folding seats
or the trunk unlocked.
Opening the Trunk Lid from the
Inside
Slide the inside trunk release lever in the
direction of the arrow. The lever is made
of material that will glow for hours in the
darkness of the trunk following a brief
exposure to ambient light.
The inside trunk release lever is located on
the inside of the trunk lid.
Mazda3_8FL6-EA-16F_Edition2.indb 272016/08/10 17:35:27

3–42
Before Driving
Security System
Modification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
and the theft-deterrent systems' operation
if the system has been modified or if any
add-on equipment has been installed.
CAUTION
To avoid damage to the vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
and the theft-deterrent systems or the
vehicle.
Immobilizer System
The immobilizer system allows the
engine to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine
will not start, thereby helping to prevent
vehicle theft.
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
CAUTION
 Radio equipment like this is governed by
laws in the United States.
Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
 To avoid damage to the key, do not:
 Drop the key. Get the key wet. Expose the key to any kind of
magnetic field. Expose the key to high temperatures
on places such as the dashboard or
hood, under direct sunlight.
 If the engine does not start with the
correct key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
Mazda3_8FL6-EA-16F_Edition2.indb 422016/08/10 17:35:36

3–43
Before Driving
Security System
NOTE
 The keys carry a unique electronic code.
For this reason, and to assure your
safety, obtaining a replacement key
requires some waiting time. They are
only available through an Authorized
Mazda Dealer.
 Always keep a spare key in case one
is lost. If a key is lost, consult an
Authorized Mazda Dealer as soon as
possible.
 If you lose a key, an Authorized Mazda
Dealer will reset the electronic codes of
your remaining keys and immobilizer
system. Bring all the remaining keys to
an Authorized Mazda Dealer to reset.
Starting the vehicle with a key that has
not been reset is not possible.
Operation
NOTE
 The engine may not start and security
indicator light may illuminate or flash
if the key is placed in an area where it
is difficult for the system to detect the
signal, such as on the dashboard or in
the glove compartment. Move the key
to a location within the signal range,
switch the ignition off, and then restart
the engine.
 Signals from a TV or radio station, or
from a transceiver or mobile telephone
could interfere with your immobilizer
system. If you are using the proper key
and the engine fails to start, check the
security indicator light.
Arming
The system is armed when the ignition is
switched from ON to off.
The security indicator light in the
instrument cluster flashes every 2 seconds
until the system is disarmed.
Disarming
The system is disarmed when the
ignition is switched ON with the correct
programmed key. The security indicator
light illuminates for about 3 seconds and
then turns off. If the engine does not start
with the correct key, and the security
indicator light remains illuminated or
flashing, try the following:
Make sure the key is within the
operational range for signal transmission.
Switch the ignition off, and then restart the
engine. If the engine does not start after
3 or more tries, contact an Authorized
Mazda Dealer.
NOTE
 If the security indicator light flashes
continuously while you are driving,
do not shut off the engine. Go to an
Authorized Mazda Dealer and have it
checked. If the engine is shut off while
the indicator light is flashing, you will
not be able to restart it.
 Because the electr onic codes are
reset when the immobilizer system
is repaired, the keys are needed.
Make sure to bring all the keys to an
Authorized Mazda Dealer so that they
can be programmed.
Mazda3_8FL6-EA-16F_Edition2.indb 432016/08/10 17:35:37

3–44
Before Driving
Security System
*Some models.
Theft-Deterrent System*
If the theft-deterrent system detects an
inappropriate entry into the vehicle,
which could result in the vehicle or its
contents being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and flashing the hazard
warning lights.
The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
Operation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 30
seconds when the system is triggered by
any one of the following:
 Unlocking a door with the key, door
lock switch, or an inside door-lock knob. Forcing open a door, the hood or the
liftgate/trunk lid. Opening the hood by operating the hood
release handle. Switching the ignition ON without using
the push button start.
If the system is triggered again, the lights
and horn will activate until the driver's
door is unlocked with the transmitter.
(With the advanced keyless function)
The lights and horn can also be
deactivated by pressing the request switch
on a door.
NOTE
If the battery goes dead while the theft-
deterrent system is armed, the horn will
activate and the hazard warning lights
will flash when the battery is charged or
replaced.
How to Arm the System
1. Close the windows and the moonroof *
securely.
2. Switch the ignition OFF .
3. Make sure the hood, the doors, and the
liftgate/trunk lid are closed.
4. Press the lock button on the transmitter
or lock the driver's door from the
outside with the auxiliary key.
The hazard warning lights will flash
once.
The following method will also arm the
theft-deterrent system:
Press the door-lock switch “” while
any door is open and then close all of
the doors.
(With the advanced keyless function)
Press a request switch.

The security indicator light in the
instrument cluster flashes twice per
second for 20 seconds.
5. After 20 seconds, the system is fully
armed.
Mazda3_8FL6-EA-16F_Edition2.indb 442016/08/10 17:35:37
