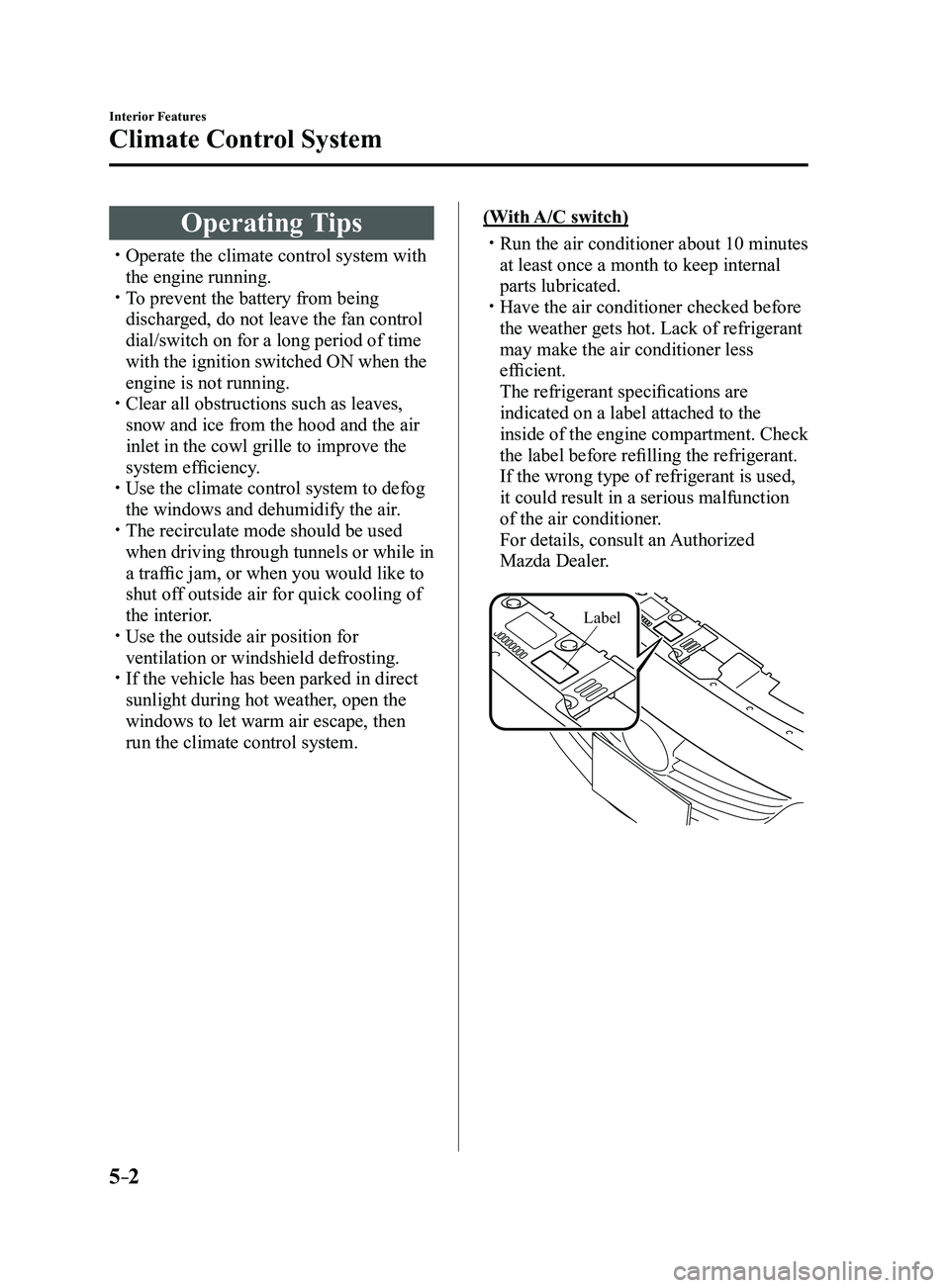

5–2
Interior Features
Climate Control System
Operating Tips
Operate the climate control system with
the engine running. To prevent the battery from being
discharged, do not leave the fan control
dial/switch on for a long period of time
with the ignition switched ON when the
engine is not running.
Clear all obstructions such as leaves,
snow and ice from the hood and the air
inlet in the cowl grille to improve the
system efficiency.
Use the climate control system to defog
the windows and dehumidify the air. The recirculate mode should be used
when driving through tunnels or while in
a traffic jam, or when you would like to
shut off outside air for quick cooling of
the interior.
Use the outside air position for
ventilation or windshield defrosting. If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then
run the climate control system.
(With A/C switch)
Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient.
The refrigerant specifications are
indicated on a label attached to the
inside of the engine compartment. Check
the label before refilling the refrigerant.
If the wrong type of refrigerant is used,
it could result in a serious malfunction
of the air conditioner.
For details, consult an Authorized
Mazda Dealer.
Label
Mazda3_8FL6-EA-16F_Edition2.indb 22016/08/10 17:37:10

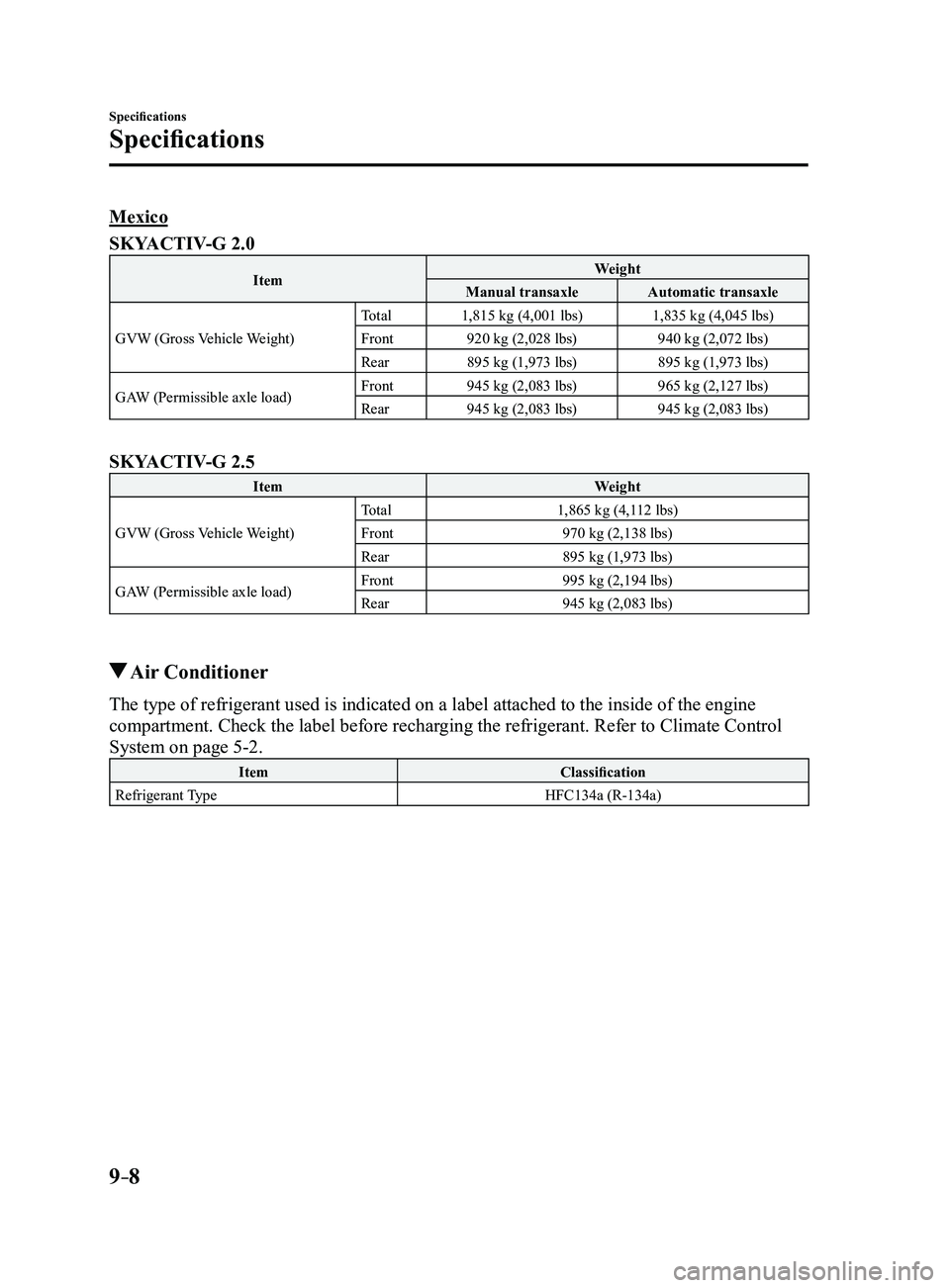

9–8
Specifications
Specifications
Mexico
SKYACTIV-G 2.0
ItemWeight
Manual transaxle Automatic transaxle
GVW (Gross Vehicle Weight) Total
1,815 kg (4,001 lbs) 1,835 kg (4,045 lbs)
Front 920 kg (2,028 lbs) 940 kg (2,072 lbs)
Rear 895 kg (1,973 lbs) 895 kg (1,973 lbs)
GAW (Permissible axle load) Front
945 kg (2,083 lbs) 965 kg (2,127 lbs)
Rear 945 kg (2,083 lbs) 945 kg (2,083 lbs)
SKYACTIV-G 2.5
Item Weight
GVW (Gross Vehicle Weight) Total
1,865 kg (4,112 lbs)
Front 970 kg (2,138 lbs)
Rear 895 kg (1,973 lbs)
GAW (Permissible axle load) Front
995 kg (2,194 lbs)
Rear 945 kg (2,083 lbs)
Air Conditioner
The type of refrigerant used is indicated on a label attached to the ins\
ide of the engine
compartment. Check the label before recharging the refrigerant. Refer to Climate Control
System on page
5-2.
Item Classification
Refrigerant Type HFC134a (R-134a)
