Black plate (236,1)
2. Mount the spare tire.
3. Install the lug nuts with the beveled
edge inward; tighten them by hand.
WARNING
Don't Apply Oil or Grease to Lug
Nuts, Bolts:
Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts could
loosen while driving and cause the tire
to come off, resulting in an accident.
In addition, lug nuts and bolts could
be damaged if tightened more than
necessary. Do not apply oil or grease
to lug nuts and bolts and do not
tighten the lug nuts beyond the
recommended tightening torque.4. Turn the jack handle counterclockwise
and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.
If you're unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque
N·m (kgf·m, ft·lbf) 88―117 (9―11, 65―93)
7-10
In Case of an Emergency
Flat Tire
Mazda3_8U55-EA-05G_Edition2 Page236
Thursday, June 23 2005 2:55 PM
Form No.8U55-EA-05G

Black plate (266,1)

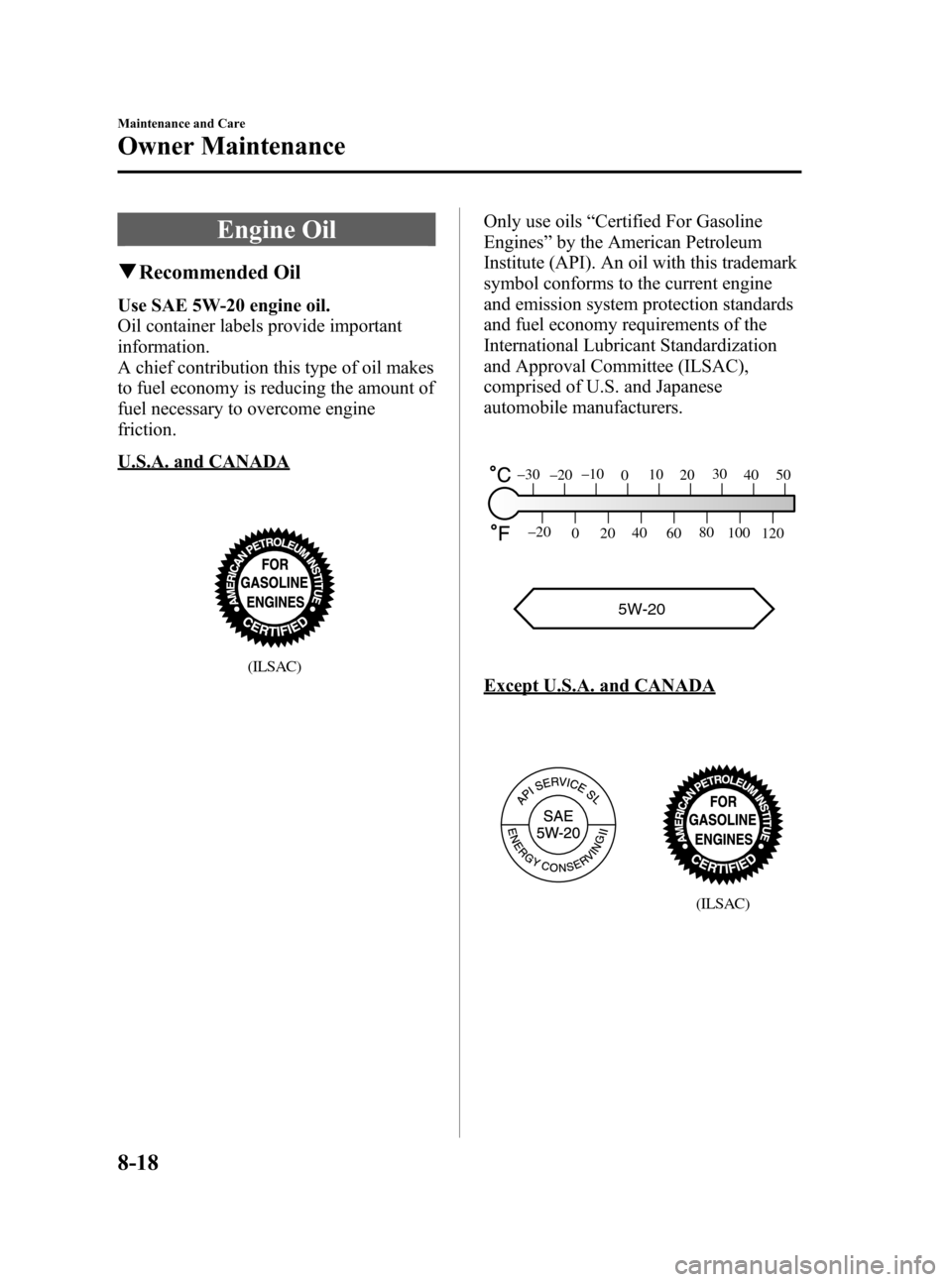

Engine Oil
qRecommended Oil
Use SAE 5W-20 engine oil.
Oil container labels provide important
information.
A chief contribution this type of oil makes
to fuel economy is reducing the amount of
fuel necessary to overcome engine
friction.
U.S.A. and CANADA
(ILSAC)
Only use oils“Certified For Gasoline
Engines”by the American Petroleum
Institute (API). An oil with this trademark
symbol conforms to the current engine
and emission system protection standards
and fuel economy requirements of the
International Lubricant Standardization
and Approval Committee (ILSAC),
comprised of U.S. and Japanese
automobile manufacturers.
5W-20
120 100 80
60 40
20
0 –20
50 40 30
20 10
0 –10
–20 –30
Except U.S.A. and CANADA
(ILSAC)
8-18
Maintenance and Care
Owner Maintenance
Mazda3_8U55-EA-05G_Edition2 Page266
Thursday, June 23 2005 2:56 PM
Form No.8U55-EA-05G

Black plate (313,1)
To keep the fabric looking clean and
fresh, take care of it. Otherwise its color
will be affected, it can be stained easily,
and its fire-resistance may be reduced.
CAUTION
Use only recommended cleaners and
procedures. Others may affect
appearance and fire-resistance.
Piano black panelí
The following parts are fitted with panels
that have been treated with a special
coating that resists scratching.
lInstrument panel side garnish
lSteering wheel (partial)
When the panel needs to be cleaned, use a
soft cloth to wipe off dirt from the surface.
NOTE
Scratches or nicks on the panels
resulting from the use of a hard brush or
cloth may not be repairable.
qCleaning the Lap/Shoulder Belt
Webbing
Clean the webbing with a mild soap
solution recommended for upholstery or
carpets. Follow instructions. Don't bleach
or dye the webbing; this may weaken it.
After cleaning the belts, thoroughly dry
the belt webbing and make sure there is
no remaining moisture before retracting
them.
WARNING
Damaged Seat Belt:
Using damaged seat belts is
dangerous. In a collision, damaged
belts cannot provide adequate
protection. Have an Authorized Mazda
Dealer replace damaged belts
immediately.
qCleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them
with glass cleaner. Follow the directions
on the container.
CAUTION
Don't scrape or scratch the inside of the
rear window. You may damage the rear
window defroster grid.
Maintenance and Care
Appearance Care
8-65íSome models. Mazda3_8U55-EA-05G_Edition2 Page313
Thursday, June 23 2005 2:56 PM
Form No.8U55-EA-05G

Black plate (362,1)
Specifications
qEngine
ItemModel
2.0-liter engine 2.3-liter engine
Type DOHC-16V in-line, 4-cylinder
Bore×Stroke 87.5 × 83.1 mm (3.44 × 3.27 in) 87.5 × 94.0 mm (3.44 × 3.70 in)
Displacement 1,999 ml (1,999 cc, 121.9 cu in) 2,261 ml (2,261 cc, 137.9 cu in)
Compression ratio 10.0 9.7
qElectrical System
Item Classification
Battery 12V-40AH/5HR, 12V-52AH/5HR, 12V-55AH/5HR
Alternator 12 V - 90 A
Starter2.0-liter engine 12 V - 1.0 kW
2.3-liter engine 12 V - 1.4 kW
Spark-plug number LFG1 18 110C
*
Spark-plug gap 1.25―1.35mm (0.050―0.053 in)
* ex factory
NOTE
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on
the iridium alloy and platinum tips could be damaged.
qLubricant Quality
Lubricant Classification
Engine oilRefer to the recommended SAE viscosity numbers on page
8-18.
Manual transaxle oilAny temperatureAPI Service GL-4 or GL-5
SAE 75W-90
Above 10°C (50°F)API Service GL-4 or GL-5
SAE 80W-90
Automatic transaxle fluid ATF M-V
Power steering fluid ATF M-III or equivalent (e.g. Dexron® III)
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
10-4
Specifications
Mazda3_8U55-EA-05G_Edition2 Page362
Thursday, June 23 2005 2:56 PM
Form No.8U55-EA-05G
