MAZDA MODEL 3 HATCHBACK 2007 (in English) User Guide

Black plate (11,1)
Trunk lid ............................................................................................................ page 3-15
Antenna ............................................................................................................. page 6-16
Rear window defroster ....................................................................................... page 5-60
Power window ................................................................................................... page 3-19
Tires ................................................................................................................... page 8-36
Fuel-filler lid ...................................................................................................... page 3-21
Light bulbs ......................................................................................................... page 8-41
Hood .................................................................................................................. page 3-22
Windshield wiper blades .................................................................................... page 8-29
Moonroof ........................................................................................................... page 3-24
Child safety lock ................................................................................................ page 3-11
Door lock ............................................................................................................. page 3-9
Outside mirror .................................................................................................... page 3-31
Your Vehicle at a Glance
Exterior Overview
1-5
Mazda3_8V66-EA-06F_Edition3 Page11
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F

Black plate (12,1)
The equipment and installation position varies by vehicle.
5 Door
1-6
Your Vehicle at a Glance
Exterior Overview
Mazda3_8V66-EA-06F_Edition3 Page12
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F

Black plate (13,1)
Liftgate .............................................................................................................. page 3-12
Rear window defroster ....................................................................................... page 5-60
Rear wiper blade ................................................................................................ page 8-31
Antenna ............................................................................................................. page 6-16
Fuel-filler lid ...................................................................................................... page 3-21
Power window ................................................................................................... page 3-19
Tires ................................................................................................................... page 8-36
Light bulbs ......................................................................................................... page 8-41
Hood .................................................................................................................. page 3-22
Windshield wiper blades .................................................................................... page 8-29
Moonroof ........................................................................................................... page 3-24
Child safety lock ................................................................................................ page 3-11
Door lock ............................................................................................................. page 3-9
Outside mirror .................................................................................................... page 3-31
Your Vehicle at a Glance
Exterior Overview
1-7
Mazda3_8V66-EA-06F_Edition3 Page13
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F

Black plate (14,1)
1-8
Mazda3_8V66-EA-06F_Edition3 Page14
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F

Black plate (15,1)
2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, child-restraint
systems and SRS air bags.
Seats ............................................................................................... 2-2
Front Seats ................................................................................ 2-2
Rear Seat ................................................................................... 2-5
Seat Belt Systems ........................................................................ 2-10
Seat Belt Precautions .............................................................. 2-10
Seat Belt (Except Center-Rear Position) ................................. 2-13
Front Seat Belt Pretensioner and Load Limiting Systems ....... 2-15
Center-Rear Position Seat Belt (3-Point Type) ....................... 2-18
Seat Belt Extender ................................................................... 2-21
Seat Belt Warning Light/Beep ................................................ 2-22
Child Restraint ............................................................................ 2-24
Child Restraint Precautions ..................................................... 2-24
Installing Child-Restraint Systems .......................................... 2-28
LATCH Child-Restraint Systems ............................................ 2-36
SRS Air Bags ............................................................................... 2-41
Supplemental Restraint Systems (SRS) Precautions ............... 2-41
Supplemental Restraint System Components ......................... 2-46
How the Air Bags Work .......................................................... 2-49
2-1
Mazda3_8V66-EA-06F_Edition3 Page15
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F

Black plate (16,1)

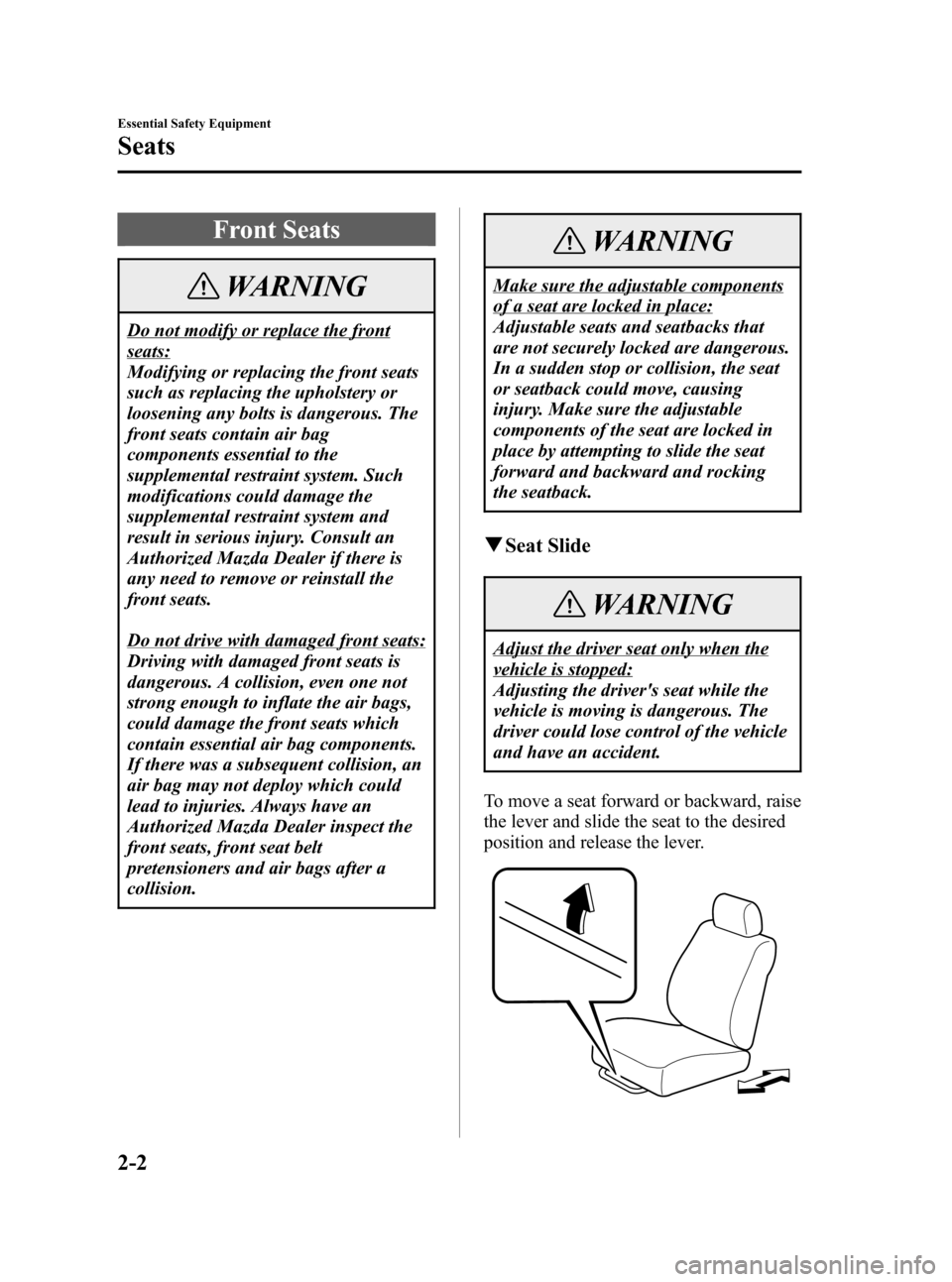

Front Seats
WARNING
Do not modify or replace the front
seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag components.
If there was a subsequent collision, an
air bag may not deploy which could
lead to injuries. Always have an
Authorized Mazda Dealer inspect the
front seats, front seat belt
pretensioners and air bags after a
collision.
WARNING
Make sure the adjustable components
of a seat are locked in place:
Adjustable seats and seatbacks that
are not securely locked are dangerous.
In a sudden stop or collision, the seat
or seatback could move, causing
injury. Make sure the adjustable
components of the seat are locked in
place by attempting to slide the seat
forward and backward and rocking
the seatback.
qSeat Slide
WARNING
Adjust the driver seat only when the
vehicle is stopped:
Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident.
To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.
2-2
Essential Safety Equipment
Seats
Mazda3_8V66-EA-06F_Edition3 Page16
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F

Black plate (17,1)
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
qSeat Recline
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you can
slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back and
upright.
Always sit in a passenger seat properly
with the seatback upright and feet on
the floor:
If your vehicle is equipped with front
passenger seat weight sensors, sitting
in the front passenger seat improperly
out of position or with the seatback
reclined too far while the vehicle is
moving is dangerous as it can take off
weight from the seat bottom and affect
the weight determination of the front
passenger sensing system. As a result
the front passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could cause result in serious injury.
Always sit upright against your
seatback, with your feet on the floor.
WARNING
Do not drive with the seatback
unlocked:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
Essential Safety Equipment
Seats
2-3
Mazda3_8V66-EA-06F_Edition3 Page17
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F

Black plate (18,1)
CAUTION
When returning a rear-reclined seatback
to its upright position, make sure you
hold onto the seatback with your other
hand while operating the lever. If the
seatback is not supported, it will flip
forward suddenly and could cause
injury.
qHeight Adjustment (Driver's Seat)í
By moving the seat lever up or down, the
seat bottom height can be adjusted.
DownUp
qLumbar Support Adjustment
(Driver's Seat)í
To adjust the lumbar support, pull the
lever forward.
qHead Restraint
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.
2-4
Essential Safety Equipment
íSome models.
Seats
Mazda3_8V66-EA-06F_Edition3 Page18
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F

Black plate (19,1)
qSeat Warmerí
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
NOTE
The seat temperature is regulated
automatically by a thermostat. Other
than turning it on or off, it cannot be
adjusted.
Rear Seat
WARNING
Do not stack cargo higher than the
seatbacks or place articles on the rear
package tray or on the luggage
compartment cover:
Stacking luggage or other cargo
higher than the seatbacks, and placing
articles on the rear package tray or on
the luggage compartment cover is
dangerous. During sudden braking or
a collision, objects can fly around and
become projectiles that may hit and
injure passengers.
Make sure luggage and cargo is
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Make sure the adjustable components
of a seat are locked in place:
Adjustable seats that are not securely
locked are dangerous. In a sudden
stop or collision, the seat or seatback
could move, causing injury.
Essential Safety Equipment
Seats
2-5íSome models. Mazda3_8V66-EA-06F_Edition3 Page19
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F

Black plate (20,1)
WARNING
Do not drive with the seatback
unlocked:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After returning the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.
Never allow a passenger to sit or stand
on the folded seatback while the
vehicle is moving:
Driving with a passenger on the folded
seatback is dangerous. Allowing a
child to sit up on the folded seatback
while the vehicle is moving is
particularly dangerous. In a sudden
stop or even a minor collision, a child
not in a proper seat or child-restraint
system and seat belt could be thrown
forward, back or even out of the
vehicle resulting in serious injuries or
death. The child in the baggage area
could be thrown into other occupants
and cause serious injury.
WARNING
Never give the car keys to children and
do not allow them to play in the
vehicle:
Playing with the folding rear seats is
dangerous. The folding rear seatbacks
cannot be folded down from inside the
trunk. Once the seatbacks are back up,
a child in the trunk would not be able
to get out the way they had entered. If
you have small children, keep the
seatbacks locked (sedan).
Always leave your car locked and keep
the car keys safely away from
children:
Leaving your car unlocked or the keys
in reach of children is dangerous.
Children who find their way into the
trunk through an unlocked rear
seatback or an open trunk can become
accidentally locked in the trunk. This
could result in death or brain damage
from heat prostration, particularly in
the summer. Always lock the doors
and the trunk, and as an added
measure, keep the rear seatbacks
locked, whether you have children in
your home or not.
NOTE
When returning a rear seat to its
original position, also replace the seat
belt to its normal position. Verify that
the seat belt pulls out and retracts.
2-6
Essential Safety Equipment
Seats
Mazda3_8V66-EA-06F_Edition3 Page20
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F
