Brake lights/Taillights (5 Door)
With LED bulb
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible.
The rear combination component must
be replaced.
With Non-LED bulb
1. Remove the cover.
Left side
Right side
2. Turn the socket and bulb assembly
counterclockwise and remove it.3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
Rear turn signal lights (4 Door)
1. Pull the center of each plastic retainer
and remove the retainers and the trunk
end trim.
Removal
Installation
Maintenance and Care
Owner Maintenance
8-47
Mazda3_8V66-EA-06F_Edition3 Page321
Wednesday, August 23 2006 11:21 AM
Form No.8V66-EA-06F

Black plate (322,1)
2. Pull the center of each plastic retainer
and remove the retainers and partially
open the trunk side trim.
Removal
Installation
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
Rear turn signal lights (5 Door)
1. Remove the cover.
Left side
Right side
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
8-48
Maintenance and Care
Owner Maintenance
Mazda3_8V66-EA-06F_Edition3 Page322
Wednesday, August 23 2006 11:21 AM
Form No.8V66-EA-06F

Black plate (323,1)
4. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.

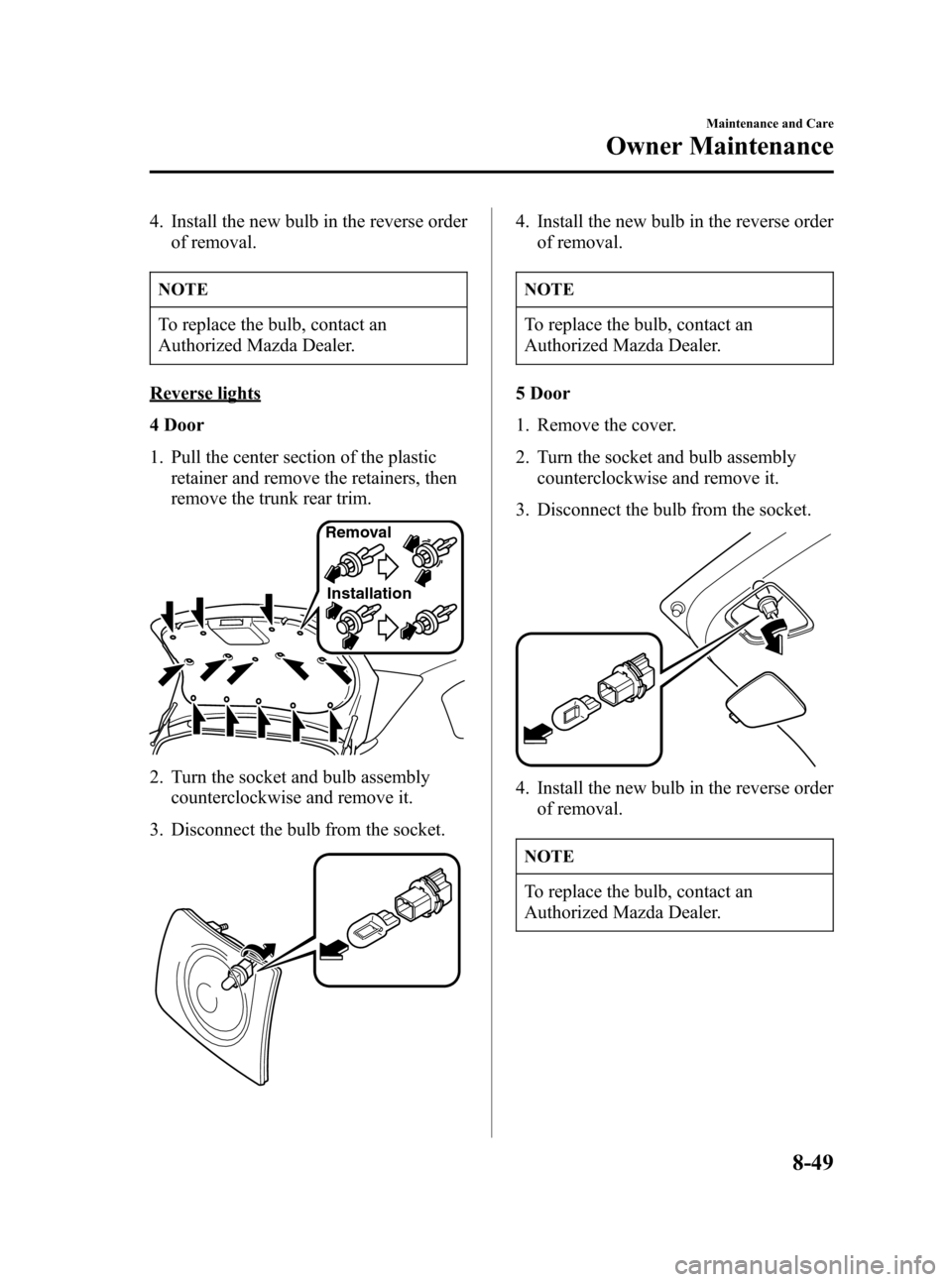

Reverse lights
4 Door
1. Pull the center section of the plastic
retainer and remove the retainers, then
remove the trunk rear trim.
Removal
Installation
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
5 Door
1. Remove the cover.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
Maintenance and Care
Owner Maintenance
8-49
Mazda3_8V66-EA-06F_Edition3 Page323
Wednesday, August 23 2006 11:21 AM
Form No.8V66-EA-06F

Black plate (324,1)
High-mount brake light
4 Door
1. Pull the center of each plastic retainer
and remove the retainers and the trunk
rear trim.
Removal
Installation
2. Disconnect the electrical connector
from the socket.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.5 Door
With LED bulb
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an Authorized Mazda Dealer.
With Non-LED bulb
1. Remove the liftgate upper trim.
2. Disconnect the electrical connector
from the socket.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order
of removal.
8-50
Maintenance and Care
Owner Maintenance
Mazda3_8V66-EA-06F_Edition3 Page324
Wednesday, August 23 2006 11:21 AM
Form No.8V66-EA-06F

Black plate (325,1)
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
License plate lights
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the lens and
remove the lens by carefully prying on
the edge of the lens with a flathead
screwdriver.
2. Disconnect the bulb by pulling it out.
Edge
3. Install the new bulb in the reverse order
of removal.
qReplacing Interior Light Bulbs
Overhead light/Map lights (Front)í
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
Overhead light (Rear)
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.2. Disconnect the bulb by pulling it out.
Edge
3. Install the new bulb in the reverse order
of removal.
Trunk light (4 Door)
1. Press both sides of the lens cap to
remove it.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
Maintenance and Care
Owner Maintenance
8-51íSome models. Mazda3_8V66-EA-06F_Edition3 Page325
Wednesday, August 23 2006 11:21 AM
Form No.8V66-EA-06F

Black plate (326,1)
Luggage compartment light (5 Door)
1. Insert your finger as shown in the
figure and remove the unit.
2. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.
3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverse order
of removal.
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the front
passenger's side below the glove box
If the electrical system doesn't work, first
inspect fuses on the front passenger's side
below the glove box.
1. Turn off the ignition switch and other
switches.
2. Remove the cover.
8-52
Maintenance and Care
Owner Maintenance
Mazda3_8V66-EA-06F_Edition3 Page326
Wednesday, August 23 2006 11:21 AM
Form No.8V66-EA-06F

Black plate (327,1)
3. Turn the knobs counterclockwise and
lower the fuse block.
4. Locate the position of the suspected
fuse by using the chart inside the fuse
block cover.
5. Pull the fuse straight out with the fuse
puller provided on the inside of the
engine compartment fuse block cover.
6. Inspect the fuse and replace it if it's
blown.
NormalBlown
7. Push in a new fuse of the same
amperage rating, and make sure it fits
tightly. If it doesn't, have an expert
repairer install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the MIRROR or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
Maintenance and Care
Owner Maintenance
8-53
Mazda3_8V66-EA-06F_Edition3 Page327
Wednesday, August 23 2006 11:21 AM
Form No.8V66-EA-06F

Black plate (328,1)
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is
blown, replace it with a new oneof the
same amperage rating.
Normal
Blown
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is a
high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
Main fuse
8-54
Maintenance and Care
Owner Maintenance
Mazda3_8V66-EA-06F_Edition3 Page328
Wednesday, August 23 2006 11:21 AM
Form No.8V66-EA-06F

Black plate (329,1)
qFuse Panel Description
Fuse block (Engine compartment)
12 3 45 6
789 10
11 12
13 14
15 16
17 18
1920 2122 23
24 25 26
27 2829
3031 3233 3435 36
Without turbocharger
DESCRIPTION FUSE RATING PROTECTED COMPONENT
1 FAN 40A Cooling fan
2 P/ST 80A Power steering
3 BTN 40A For protection of various circuits
4 HEAD 40A Headlights
5 PTC――
6 GLOW――
7 ABS 1 30A ABS
í, DSCí
8 ABS 2 20A ABSí, DSCí
9 ENGINE 30A For protection of various circuits
10―― ―
11 IG KEY 1 30A Ignition switch
12 STARTER 20A Starter clutch
13 IG KEY 2 30A Ignition switch
14 GLOW 1――
15 HEATER 40A Blower motor
16 GLOW 2――
17 DEFOG 40A Rear window defroster
Maintenance and Care
Owner Maintenance
8-55íSome models. Mazda3_8V66-EA-06F_Edition3 Page329
Wednesday, August 23 2006 11:21 AM
Form No.8V66-EA-06F

Black plate (330,1)
DESCRIPTION FUSE RATING PROTECTED COMPONENT
18 AUDIO 30AAudio system
(BOSE Sound System-equipped model)
19 ABS IG 10A ABS
í, DSCí
20 FOG 15A Front fog lightsí
21 HORN 15A Horn
22 DRL 10A DRLí
23 H/CLEAN――
24 F/PUMP 15A Fuel pump
25 P/ST IG 10A Power steering
26 A/C MAG 10A Air conditioner
í
27 ALT/TCM 10A/15A TCMí
28 GLOW SIG――
29 P.OUTLET―Power outlet
30 ENG +B 10A PCM
31 ROOM 15A Interior lights
32 ENG BAR 4 10A O
2sensorsí
33 ENG BAR 3 10A O2sensors
34 EGI INJ 10A Injector
35 ENG BAR 1 10A For protection of various circuits
36 ENG BAR 2 10A PCM, Fuel pump
