With turbocharger
DESCRIPTION FUSE RATING PROTECTED COMPONENT
1 FAN 70A Cooling fan
2―― ―
3 BTN 40A For protection of various circuits
4 HEAD 40A Headlights
5 F/PUMP 30A Fuel pump
6―― ―
7 ABS 1 30A ABS, DSC
8 ABS 2 20A ABS, DSC
9 ENGINE 30A For protection of various circuits
10 INJECTOR 30A Fuel injector
11 IG KEY1 30A Ignition switch
12 STATER 20A Starter clutch
13 IG KEY2 30A Ignition switch
14―― ―
15 HEATER 40A Blower motor
16―― ―
17 DEFOG 40A Rear window deforester
18 AUDIO 30AAudio system
(BOSE Sound System-equipped model)
19 ABS IG 10A ABS
20 FOG 15A Front fog lights
21 HORN 15A Horn
22 DRL 10A DRL
í
23 H/CLEAN――
24 ETC 10A Elec. throttle valve
25―― ―
26 A/C MAG 10A Air conditioner
27―― ―
28―― ―
29 P.OUTLET 15A Power outlet
30 ENG +B 10A PCM
31 ROOM 15A Interior lights
32―― ―
33 ENG BAR 3 10A O
2sensors
34―― ―
35 ENG BAR 1 15A For protection of various circuits
36 ENG BAR 2 10A PCM, Fuel pump
Maintenance and Care
Owner Maintenance
8-57íSome models. Mazda3_8V66-EA-06F_Edition3 Page331
Wednesday, August 23 2006 11:22 AM
Form No.8V66-EA-06F

Black plate (332,1)
Fuse block (Passenger's side)
37 38 39 4041 42
43 44 4546
47 48 49 5051
52 5354 55 56 5758
59 60 61 6263 64
65 66 67 68 6970
71 72 73 74 75 76 77 78 79 80 81 82 83 84 8586
DESCRIPTION FUSE RATING PROTECTED COMPONENT
37 D/LOCK 2 15A Double locking systemí
38 STOP LAMP/HORN 10A Stop Lamp, Horn
39 HEAD HIGH L 10A Headlight high beam (LH)
40 HEAD HIGH R 10A Headlight high beam (RH)
41―― ―
42―― ―
43 CIGAR 15A Lighter
44 RADIO 7.5A Audio system
45 MIRROR 10A Power control mirror
í
46 TAIL R 7.5ATaillight (RH), Parking light (RH), License
plate lights
47 OBD 10A For protection of various circuits
48―― ―
49 TR/LOCK――
50―― ―
51―― ―
52 SUN ROOF 20A Moonroof
í
53 WASHER 20A Windshield wiper and washer
54―― ―
55 P/WIND R――
8-58
Maintenance and Care
íSome models.
Owner Maintenance
Mazda3_8V66-EA-06F_Edition3 Page332
Wednesday, August 23 2006 11:22 AM
Form No.8V66-EA-06F

Black plate (333,1)
DESCRIPTION FUSE RATING PROTECTED COMPONENT
56 P/WIND L――
57 ALARM――
58 M/DEF 7.5A Mirror Defroster
í
59―― ―
60 HEAD LOW R 15A Headlight low beam (RH), Headlight leveling
61 HEAD LOW L 15A Headlight low beam (LH)
62―― ―
63―― ―
64―― ―
65 SAS 10A Supplemental restraint system
66 METER 10A Instrument cluster, Immobilizer system
67 IGNITION 20A ABS
í, DSCí, Power steering
68 WIPER 20A Windshield wiper and washer
69 ENGINE 20A For protection of various circuits
70 IG SIG 10A Auto wiper
í, Power window switchí
71 SAS 2 7.5A Seat weight sensor
72―― ―
73―― ―
74 SEAT WARM 20A Seat warmer
í
75 D/LOCK 1 25A Power door lockí
76 A/C 10A Air conditionerí, Heater control unit
77 P/WIND L 30A Power window (LH)í
78 P/WIND R 30A Power window (RH)í
79 BACK 10A Reverse lights
80 SUN ROOF 7.5A Moonroofí
81 TAIL L 7.5A Taillight (LH), Parking light (LH)
82 ILLUMI 7.5A Illumination
83―― ―
84―― ―
85―― ―
86―― ―
Maintenance and Care
Owner Maintenance
8-59íSome models. Mazda3_8V66-EA-06F_Edition3 Page333
Wednesday, August 23 2006 11:22 AM
Form No.8V66-EA-06F

Black plate (334,1)

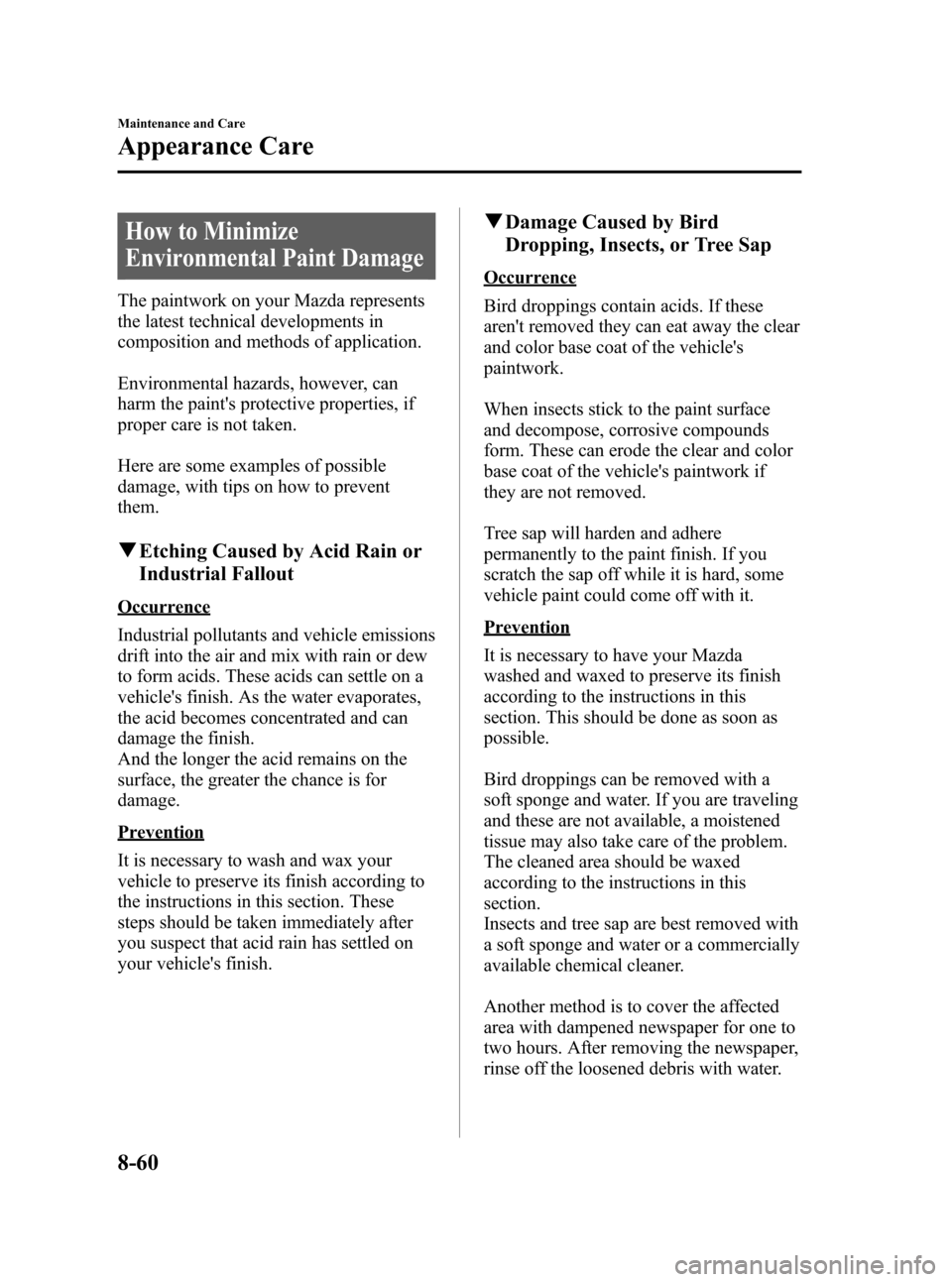

How to Minimize
Environmental Paint Damage
The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.
Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.
Here are some examples of possible
damage, with tips on how to prevent
them.
qEtching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
the acid becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you suspect that acid rain has settled on
your vehicle's finish.
qDamage Caused by Bird
Dropping, Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these
aren't removed they can eat away the clear
and color base coat of the vehicle's
paintwork.
When insects stick to the paint surface
and decompose, corrosive compounds
form. These can erode the clear and color
base coat of the vehicle's paintwork if
they are not removed.
Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.
Prevention
It is necessary to have your Mazda
washed and waxed to preserve its finish
according to the instructions in this
section. This should be done as soon as
possible.
Bird droppings can be removed with a
soft sponge and water. If you are traveling
and these are not available, a moistened
tissue may also take care of the problem.
The cleaned area should be waxed
according to the instructions in this
section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.
Another method is to cover the affected
area with dampened newspaper for one to
two hours. After removing the newspaper,
rinse off the loosened debris with water.
8-60
Maintenance and Care
Appearance Care
Mazda3_8V66-EA-06F_Edition3 Page334
Wednesday, August 23 2006 11:22 AM
Form No.8V66-EA-06F

Black plate (335,1)
qWater Marks
Occurrence
Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these
minerals settles on the vehicle and
evaporates, the minerals will concentrate
and harden to form white rings. The rings
can damage your vehicle's finish.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you find water marks on your vehicle's
finish.
qPaint Chipping
Occurrence
Paint chipping occurs when gravel thrown
in the air by another vehicle's tires hits
your vehicle.
How to avoid paint chipping
Keeping a safe distance between you and
the vehicle ahead reduces the chances of
having your paint chipped by flying
gravel.
NOTE
lThe paint chipping zone varies with
the speed of the vehicle. For
example, when traveling at 90 km/h
(56 mph), the paint chipping zone is
50 m (164 ft).
lIn low temperatures a vehicle's finish
hardens. This increases the chance of
paint chipping.
lChipped paint can lead to rust
forming on your Mazda. Before this
happens, repair the damage by using
Mazda touch-up paint according to
the instructions in this section.
Failure to repair the affected area
could lead to serious rusting and
expensive repairs.
Maintenance and Care
Appearance Care
8-61
Mazda3_8V66-EA-06F_Edition3 Page335
Wednesday, August 23 2006 11:22 AM
Form No.8V66-EA-06F

Black plate (336,1)
Exterior Care
Followalllabel and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
qMaintaining the Finish
Washing
CAUTION
When the wiper lever is in the AUTO
position and the ignition switch is in the
ON position, the wipers may move
automatically in the following cases:
lIf the windshield above the rain
sensor is touched.
lIf the windshield above the rain
sensor is wiped with a cloth.
lIf the windshield is struck with a
hand or other object.
lIf the rain sensor is struck with a
hand or other object from inside the
vehicle.
Be careful not to pinch hands or fingers
as it may cause injury, or damage the
wipers. When washing or servicing
your Mazda, make sure the wiper lever
is in the OFF position.
To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.Scratches occur on the paint surface
when:
lThe vehicle is washed without first
rinsing off dirt and other foreign
matter.
lThe vehicle is washed with a rough,
dry, or dirty cloth.
lThe vehicle is washed at a car wash
that uses brushes that are dirty or too
stiff.
lCleansers or wax containing abrasives
are used.
NOTE
lMazda is not responsible for
scratches caused by automatic car
washes or improper washing.
lScratches are more noticeable on
vehicles with darker paint finishes.
To minimize scratches on the vehicle's
paint finish:
lRinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.
lUse plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
lRub gently when washing or drying the
vehicle.
lTake your vehicle only to a car wash
that keeps its brushes well maintained.
lDon't use abrasive cleansers or wax
that contain abrasives.
8-62
Maintenance and Care
Appearance Care
Mazda3_8V66-EA-06F_Edition3 Page336
Wednesday, August 23 2006 11:22 AM
Form No.8V66-EA-06F

Black plate (337,1)
CAUTION
lDon't use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may damage
the protective coating; also, cleaners
and detergents may discolor or
deteriorate the paint.
lTo prevent damaging the antenna,
remove it before entering a car wash
facility or passing beneath a low
overhead clearance.
Pay special attention to removing salt,
dirt, mud, and other foreign material from
the underside of the fenders, and make
sure the drain holes in the lower edges of
the doors and rocker panels are clean.
Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if not removed
immediately. When prompt washing with
plain water is ineffective, use a mild soap
made for use on vehicles.
Thoroughly rinse off all soap with
lukewarm or cold water. Don't allow soap
to dry on the finish.
After washing the vehicle, dry it with a
clean chamois to prevent water spots from
forming.
WARNING
Driving with Wet Brakes:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been affected.
Dry the brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal.
Waxing
Your vehicle needs to be waxed when
water no longer beads on the finish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.
1. Use wax which contains no abrasives.
Waxes containing abrasive will remove
paint and could damage bright metal
parts.
2. Use a good grade of natural wax for
metallic, mica, and solid colors.
3. When waxing, coat evenly with the
sponge supplied or a soft cloth.
4. Wipe off the wax with a soft cloth.
NOTE
A spot remover to remove oil, tar, and
similar materials will usually also take
off the wax. Rewax these areas even if
the rest of the vehicle doesn't need it.
Maintenance and Care
Appearance Care
8-63
Mazda3_8V66-EA-06F_Edition3 Page337
Wednesday, August 23 2006 11:22 AM
Form No.8V66-EA-06F

Black plate (338,1)
qRepairing Damage to the Finish
Deep scratches or chips on the finish
should be repaired promptly. Exposed
metal quickly rusts and can lead to major
repairs.
CAUTION
If your Mazda is damaged and needs
metal parts repaired or replaced, make
sure the body shop applies anti-
corrosion materials to all parts, both
repaired and new. This will prevent
them from rusting.
qBright-Metal Maintenance
lUse tar remover to remove road tar and
insects. Never do this with a knife or
similar tool.
lTo prevent corrosion on bright-metal
surfaces, apply wax or chrome
preservative and rub it to a high luster.
lDuring cold weather or in coastal areas,
cover bright-metal parts with a coating
of wax or preservative heavier than
usual. It would also help to coat them
with noncorrosive petroleum jelly or
some other protective compound.
CAUTION
Don't use steel wool, abrasive cleaners,
or strong detergents containing highly
alkaline or caustic agents on chrome-
plated or anodized aluminum parts.
This may result in damage to the
protective coating and cause
discoloration or paint deterioration.
qUnderbody Maintenance
Road chemicals and salt used for ice and
snow removal and solvents used for dust
control may collect on the underbody. If
not removed, they will speed up rusting
and deterioration of such underbody parts
as fuel lines, frame, floor pan, and exhaust
system, even though these parts may be
coated with anti-corrosive material.
Thoroughly flush the underbody and
wheel housings with lukewarm or cold
water at the end of each winter. Try also
to do this every month.
Pay special attention to these areas
because they easily hide mud and dirt.It
will do more harm than good to wet
down the road grime without removing
it.
The lower edges of doors, rocker panels,
and frame members have drain holes that
should not be clogged. Water trapped
there will cause rusting.
WARNING
Driving with Wet Brakes:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been affected.
Dry the brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal.
8-64
Maintenance and Care
Appearance Care
Mazda3_8V66-EA-06F_Edition3 Page338
Wednesday, August 23 2006 11:22 AM
Form No.8V66-EA-06F

Black plate (339,1)
qAluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
NOTE
lDon't use a wire brush or any
abrasive cleaner, polishing
compound, or solvent on aluminum
wheels. They may damage the
coating.
lOnly use a mild soap or neutral
detergent and always use a sponge or
soft cloth to clean the wheels.
Rinse thoroughly with lukewarm or
cold water. Also, be sure to clean the
wheels after driving on dusty or
salted roads. This helps prevent
corrosion.
lAvoid washing your vehicle in an
automatic car wash that uses high-
speed or hard brushes.
lIf your aluminum wheels lose luster,
wax the wheels.
Interior Care
qDashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor it.
If these solutions get on the dashboard,
wipe them off immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
qCleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leatherí
Real leather isn't uniform and may have
scars, scratches, and wrinkles. Clean it
with a leather cleaner or mild soap.
Wipe it with adampsoft cloth; then dry
and buff it with adrysoft cloth.
Fabric
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.
Maintenance and Care
Appearance Care
8-65íSome models. Mazda3_8V66-EA-06F_Edition3 Page339
Wednesday, August 23 2006 11:22 AM
Form No.8V66-EA-06F

Black plate (340,1)
To keep the fabric looking clean and
fresh, take care of it. Otherwise its color
will be affected, it can be stained easily,
and its fire-resistance may be reduced.
CAUTION
Use only recommended cleaners and
procedures. Others may affect
appearance and fire-resistance.
Piano black panelí
The following parts are fitted with panels
that have been treated with a special
coating that resists scratching.
lInstrument panel side garnish
lSteering wheel (partial)
When the panel needs to be cleaned, use a
soft cloth to wipe off dirt from the surface.
NOTE
Scratches or nicks on the panels
resulting from the use of a hard brush or
cloth may not be repairable.
qCleaning the Lap/Shoulder Belt
Webbing
Clean the webbing with a mild soap
solution recommended for upholstery or
carpets. Follow instructions. Don't bleach
or dye the webbing; this may weaken it.
After cleaning the belts, thoroughly dry
the belt webbing and make sure there is
no remaining moisture before retracting
them.
WARNING
Damaged Seat Belt:
Using damaged seat belts is
dangerous. In a collision, damaged
belts cannot provide adequate
protection. Have an Authorized Mazda
Dealer replace damaged belts
immediately.
qCleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them
with glass cleaner. Follow the directions
on the container.
CAUTION
Don't scrape or scratch the inside of the
rear window. You may damage the rear
window defroster grid.
8-66
Maintenance and Care
íSome models.
Appearance Care
Mazda3_8V66-EA-06F_Edition3 Page340
Wednesday, August 23 2006 11:22 AM
Form No.8V66-EA-06F
