MAZDA MODEL 3 HATCHBACK 2011 Owners Manual (in English)

Black plate (480,1)
GCW
GCW (Gross Combination Weight)is the weight of the loaded vehicle (GVW).
GCWR (Gross Combination Weight Rating) is the maximum allowable weight of the
vehicle - including all cargo and passengers - that the vehicle can handle without risking
damage. The GCW must never exceed the GCWR.
WARNING
Exceeding GVWR or GAWR Specifications:
Exceeding the GVWR or the GAWR specified on the certification label is dangerous.
Exceeding any vehicle rating limitation could result in a serious accident, injury, or
damage to the vehicle.
Do not use replacement tires with lower load carrying capacities than the originals
because they may lower the vehicle's GVWR and GAWR limitations. Replacement
tires with a higher limit than the originals do not increase the GVWR and GAWR
limitations.
Never exceed the GVWR or the GAWR specified on the certification label.
9-40
Customer Information
Tire Information (U.S.A.)
Mazda3_8BM6-EC-10F_Edition1 Page480
Monday, June 7 2010 2:35 PM
Form No.8BM6-EC-10F

Black plate (481,1)
Steps for Determining the Correct Load Limit:
Steps for Determining Correct Load Limit:
(1) Locate the statement“The combined weight of occupants and cargo should
never exceed XXX kg or XXX lbs ”on your vehicle's placard.
(2) Determine the combined weight of the driver and passengers that will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and luggage load
capacity. For example, if the “XXX ”amount equals 1400 lbs. and there
will be five 150 lb passengers in your vehicle, the amount of available
cargo and luggage load capacity is 650 lbs. (1400 _
750 (5 × 150) = 650
lbs.)
(5) Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage
load capacity calculated in Step 4.
(6) If your vehicle will be towing a trailer, the load from your trailer will be transferred to your vehicle. Consult this manual to determine how this
reduces the available cargo and luggage load capacity of your vehicle.
Customer Information
Tire Information (U.S.A.)
9-41
Mazda3_8BM6-EC-10F_Edition1 Page481
Monday, June 7 2010 2:35 PM
Form No.8BM6-EC-10F

Black plate (482,1)
Reporting Safety Defects (U.S.A.)
If you believe that your vehicle has a defect which could cause a crash or could
cause injury or death, you should immediately inform the National Highway
Traffic Safety Administration (NHTSA) in addition to notifying Mazda Motor
Corporation (Your Mazda Importer/Distributor).
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or Mazda Motor Corporation (Your Mazda
Importer/Distributor).
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY:1-800-424-9153) ; go to http://www.safercar.gov; or write to:
Administrator, NHTSA, 1200 New Jersey Avenue, SE., Washington, DC,
20590. You can also obtain other information about motor vehicle safety from
http://www.safercar.gov.
NOTE
If you live in the U.S.A., all correspondence to Mazda Motor Corporation should be forwarded to:
Mazda North American Operations
7755 Irvine Center Drive
Irvine, California 92618-2922
or
P.O. Box 19734
Irvine, CA 92623-9734
Customer Assistance Center or toll free at 1 (800) 222-5500
If you live outside of the U.S.A., please contact the nearest Mazda Distributor shown (page 9-13) in
this booklet.
9-42
Customer Information
Reporting Safety Defects
Mazda3_8BM6-EC-10F_Edition1 Page482
Monday, June 7 2010 2:35 PM
Form No.8BM6-EC-10F

Black plate (483,1)
Reporting Safety Defects (Canada)
Canadian customers who wish to report a safety-related defect to Transport Canada, Defect
Investigations and Recalls, may telephone the toll free hotline 1-800-333-0510, or contact
Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville Tower C, 330
Sparks Street, Ottawa ON K1A 0N5.
For additional road safety information, please visit the Road Safety website at:
http://www.tc.gc.ca/roadsafety/menu.htm
Customer Information
Reporting Safety Defects
9-43
Mazda3_8BM6-EC-10F_Edition1 Page483
Monday, June 7 2010 2:35 PM
Form No.8BM6-EC-10F

Black plate (484,1)
Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they do not have what you need in stock, they can order it for you.
PUBLICATION ORDER NUMBERPUBLICATION DESCRIPTION
9999-95-017B-11 2011 WORKSHOP MANUAL (English)
9999-MX-017B-11 2011 WORKSHOP MANUAL (Spanish)
9999-95-019G-11 2011 WIRING DIAGRAM (English)
9999-MX-019G-11 2011 WIRING DIAGRAM (Spanish)
9999-95-038C-11 (U.S.A. only) 2011 OWNER'S MANUAL
9999-EC-038C-11 (Canada only) 2011 OWNER'S MANUAL
9999-PR-038C-11 (Puerto Rico, Mexico only) 2011 OWNER'S MANUAL
9999-95-MODL-11 2011 SERVICE HIGHLIGHTS
9999-95-038C-10NAV (U.S.A. only) 2011 NAVIGATION SYSTEM OWNER'S MANUAL
9999-EC-038C-10NAV (Canada only) 2011 NAVIGATION SYSTEM OWNER'S MANUAL
9999-PR-038C-10NAV (Puerto Rico, Mexico only) 2011 NAVIGATION SYSTEM OWNER'S MANUAL
q WORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train, body and
chassis.
qWIRING DIAGRAM:
Provides electrical schematics as well as component location for the entire electrical
system.
qOWNER'S MANUAL:
This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician's manual.
qSERVICE HIGHLIGHTS:
Provides description and operation of the many systems of your Mazda.
9-44
Customer Information
Service Publications
Mazda3_8BM6-EC-10F_Edition1 Page484
Monday, June 7 2010 2:35 PM
Form No.8BM6-EC-10F

Black plate (485,1)
qNAVIGATION SYSTEM OWNER'S MANUAL:
This booklet contains information regarding the proper operation and use of the navigation
system. This is not a technician's manual.
Customer Information
Service Publications
9-45
Mazda3_8BM6-EC-10F_Edition1 Page485
Monday, June 7 2010 2:35 PM
Form No.8BM6-EC-10F

Black plate (486,1)
9-46
Mazda3_8BM6-EC-10F_Edition1 Page486
Monday, June 7 2010 2:35 PM
Form No.8BM6-EC-10F

Black plate (487,1)
10Specifications
Technical information about your Mazda.
Identification Numbers ............................................................... 10-2Vehicle Information Labels ..................................................... 10-2
Specifications ............................................................................... 10-4 Specifications .......................................................................... 10-4
Personalization Features .......................................................... 10-12 Personalization Features ........................................................ 10-12
10-1
Mazda3_8BM6-EC-10F_Edition1 Page487
Monday, June 7 2010 2:35 PM
Form No.8BM6-EC-10F

Black plate (488,1)

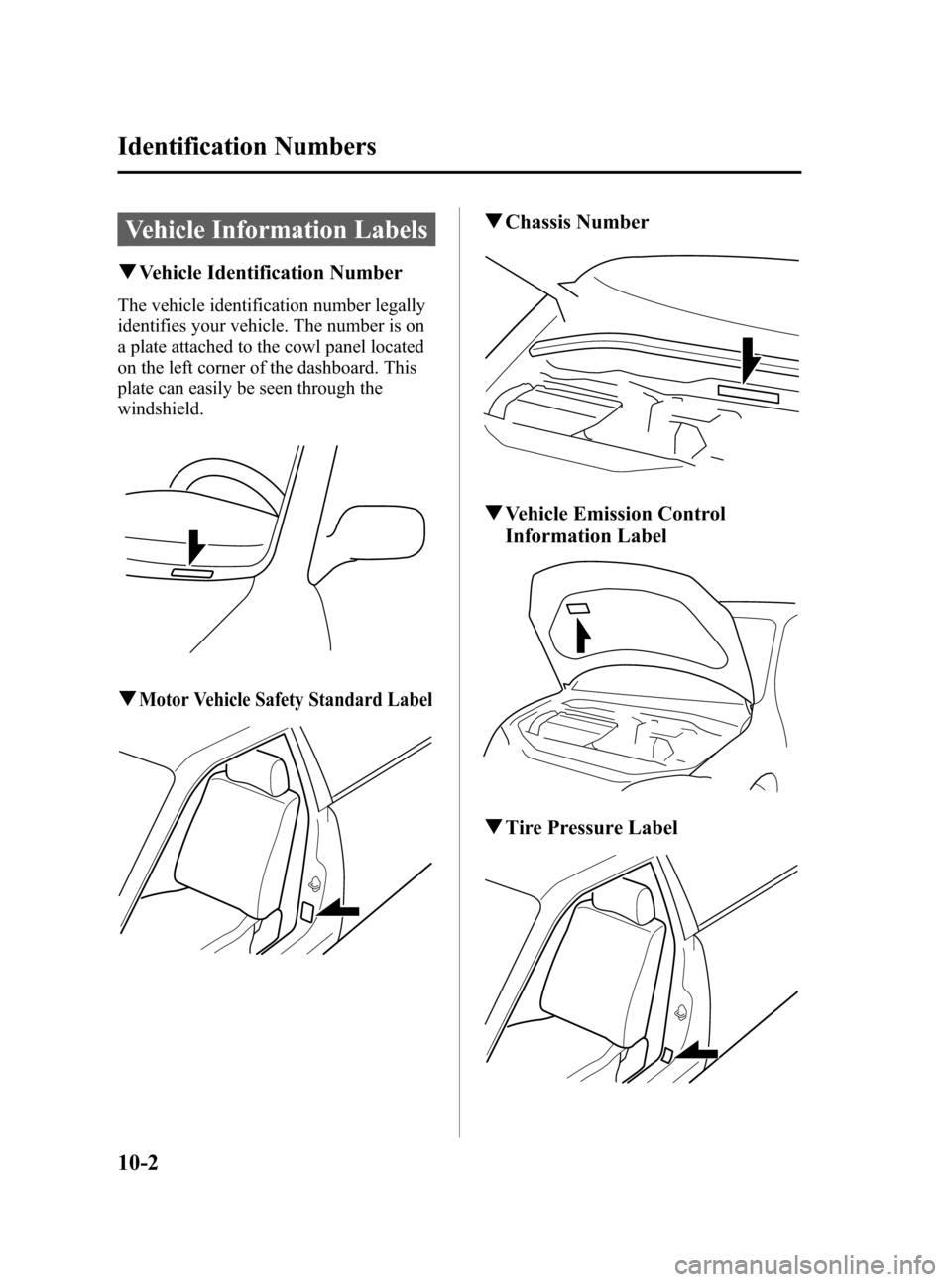

Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the dashboard. This
plate can easily be seen through the
windshield.
qMotor Vehicle Safety Standard Label
qChassis Number
qVehicle Emission Control
Information Label
qTire Pressure Label
10-2
Identification Numbers
Mazda3_8BM6-EC-10F_Edition1 Page488
Monday, June 7 2010 2:35 PM
Form No.8BM6-EC-10F

Black plate (489,1)
qEngine Number
2.0-liter and 2.5-liter engine
Forward
2.3-liter turbocharged engine
Forward
Identification Numbers
10-3
Mazda3_8BM6-EC-10F_Edition1 Page489
Monday, June 7 2010 2:35 PM
Form No.8BM6-EC-10F
