Specifications
qEngine
Item Specification
2.0-liter engine 2.3-liter turbocharged
engine 2.5-liter engine
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 87.5 × 83.1 mm
(3.44 × 3.27 in) 87.5 × 94.0 mm
(3.44 × 3.70 in) 89.0 × 100 mm
(3.50 × 3.94 in)
Displacement 1,999 ml
(1,999 cc, 122.0 cu in) 2,261 ml
(2,261 cc, 138.0 cu in) 2,488 ml
(2,488 cc, 151.8 cu in)
Compression ratio 10.09.59.7
qElectrical System
Item Classification
2.0-liter engine 2.3-liter turbocharged
engine 2.5-liter engine
Battery 12V-40AH/5HR,
12V-52AH/5HR 12V-48AH/5HR,
12V-52AH/5HR 12V-40AH/5HR,
12V-48AH/5HR,
12V-52AH/5HR
Spark-plug number LFG1 18 110
*1, L3Y2 18
110 L3BD 18 110*1, L3YD 18
110 LFG1 18 110*1, L3Y2 18
110
Spark-plug gap 1.25
―1.35 mm
(0.049 ―0.053 in) 0.60
―0.70 mm
(0.024 ―0.027 in) 1.25
―1.35 mm
(0.049 ―0.053 in)
*1 ex factory
NOTE
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the iridium
alloy and platinum tips could be damaged.
q Lubricant Quality
Lubricant Classification
Engine oil Refer to the recommended SAE viscosity numbers on page 8-18.
Manual transaxle oil API Service
GL-4
SAE 75W-80
Automatic transaxle fluid Mazda Genuine ATF M-V
Power steering fluid Mazda Genuine ATF M-III, M-V, or equivalent (e.g. Dexron® II)
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
10-4
Specifications
Mazda3_8BM6-EC-10F_Edition1 Page490
Monday, June 7 2010 2:35 PM
Form No.8BM6-EC-10F

Black plate (491,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil 2.0-liter engine
With oil filter
replacement
4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter
replacement 3.9 L (4.1 US qt, 3.4 Imp qt)
2.3-liter turbocharged
engine With oil filter
replacement
5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter
replacement 5.3 L (5.6 US qt, 4.7 Imp qt)
2.5-liter engine With oil filter
replacement
5.0 L (5.3 US qt, 4.4 Imp qt)
Without oil filter
replacement 4.6 L (4.9 US qt, 4.0 Imp qt)
Coolant 7.5 L (7.9 US qt, 6.6 Imp qt)
Manual transaxle oil 2.0-liter engine
2.77 L (2.93 US qt, 2.44 Imp qt)
2.3-liter turbocharged engine 2.5 L (2.6 US qt, 2.2 Imp qt)
2.5-liter engine 2.85 L (3.01 US qt, 2.51 Imp qt)
Automatic transaxle fluid 8.14 L (8.60 US qt, 7.16 Imp qt)
Fuel tank 2.0-liter engine
55.0 L (14.5 US gal, 12.1 Imp gal)
Except 2.0-liter engine 60.0 L (15.9 US gal, 13.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Except Mexico
4 Door
Item Vehicle specification
Overall length 4,595 mm (180.9 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread 16-inch
1,535 mm (60.4 in)
17-inch 1,530 mm (60.2 in)
Rear tread 16-inch
1,520 mm (59.8 in)
17-inch 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
Specifications
10-5
Mazda3_8BM6-EC-10F_Edition1 Page491
Monday, June 7 2010 2:35 PM
Form No.8BM6-EC-10F

Black plate (492,1)

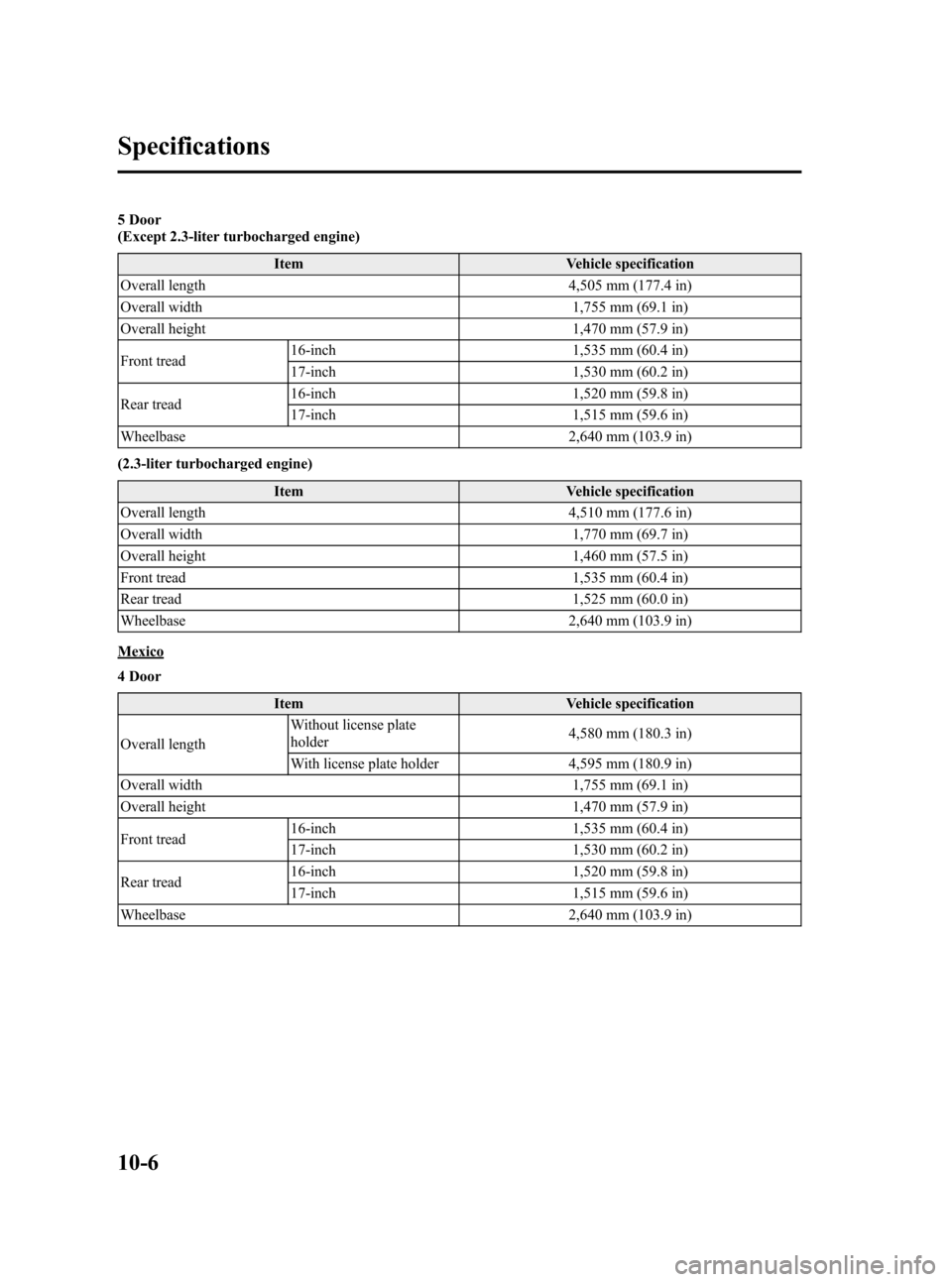

5 Door
(Except 2.3-liter turbocharged engine)Item Vehicle specification
Overall length 4,505 mm (177.4 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread 16-inch
1,535 mm (60.4 in)
17-inch 1,530 mm (60.2 in)
Rear tread 16-inch
1,520 mm (59.8 in)
17-inch 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
(2.3-liter turbocharged engine) Item Vehicle specification
Overall length 4,510 mm (177.6 in)
Overall width 1,770 mm (69.7 in)
Overall height 1,460 mm (57.5 in)
Front tread 1,535 mm (60.4 in)
Rear tread 1,525 mm (60.0 in)
Wheelbase 2,640 mm (103.9 in)
Mexico
4 Door
Item Vehicle specification
Overall length Without license plate
holder
4,580 mm (180.3 in)
With license plate holder 4,595 mm (180.9 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread 16-inch
1,535 mm (60.4 in)
17-inch 1,530 mm (60.2 in)
Rear tread 16-inch
1,520 mm (59.8 in)
17-inch 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
10-6
Specifications
Mazda3_8BM6-EC-10F_Edition1 Page492
Monday, June 7 2010 2:35 PM
Form No.8BM6-EC-10F

Black plate (493,1)
5 Door
(Except 2.3-liter turbocharged engine)Item Vehicle specification
Overall length Without license plate
holder
4,490 mm (176.8 in)
With license plate holder 4,505 mm (177.4 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread 1,530 mm (60.2 in)
Rear tread 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
(2.3-liter turbocharged engine) Item Vehicle specification
Overall length 4,510 mm (177.6 in)
Overall width 1,770 mm (69.7 in)
Overall height 1,460 mm (57.5 in)
Front tread 1,535 mm (60.4 in)
Rear tread 1,525 mm (60.0 in)
Wheelbase 2,640 mm (103.9 in)
qWeights
Except Mexico
4 Door
(2.0-liter engine)
Item Weight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,768 kg (3,898 lbs) 1,800 kg (3,968 lbs)
GAWR (Gross Axle Weight Rating) Front 933 kg (2,057 lbs) 967 kg (2,132 lbs)
Rear 835 kg (1,841 lbs) 833 kg (1,836 lbs)
(2.5-liter engine)
Item Weight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,816 kg (4,004 lbs) 1,851 kg (4,081 lbs)
GAWR (Gross Axle Weight Rating) Front 971 kg (2,141 lbs) 1,002 kg (2,209 lbs)
Rear 845 kg (1,863 lbs) 849 kg (1,872 lbs)
Specifications
10-7
Mazda3_8BM6-EC-10F_Edition1 Page493
Monday, June 7 2010 2:35 PM
Form No.8BM6-EC-10F

Black plate (494,1)
5 Door
(2.0-liter engine (Canada))Item Weight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,764 kg (3,889 lbs) 1,788 kg (3,942 lbs)
GAWR (Gross Axle Weight Rating) Front 931 kg (2,052 lbs) 964 kg (2,125 lbs)
Rear 833 kg (1,836 lbs) 824 kg (1,817 lbs)
(2.3-liter turbocharged engine) Item Weight
GVWR (Gross Vehicle Weight Rating) 1,922 kg (4,237 lbs)
GAWR (Gross Axle Weight Rating) Front 1,062 kg (2,341 lbs)
Rear 860 kg (1,896 lbs)
(2.5-liter engine)
Item Weight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,837 kg (4,050 lbs) 1,863 kg (4,107 lbs)
GAWR (Gross Axle Weight Rating) Front 977 kg (2,154 lbs) 1,006 kg (2,218 lbs)
Rear 860 kg (1,896 lbs) 857 kg (1,889 lbs)
Mexico
4 Door
(2.0-liter engine)
Item Weight
Manual transaxle Automatic transaxle
GVW (Gross Vehicle Weight) Total 1,765 kg (3,891 lbs) 1,795 kg (3,957 lbs)
Front 930 kg (2,050 lbs) 965 kg (2,127 lbs)
Rear 835 kg (1,841 lbs) 830 kg (1,830 lbs)
GAW (Permissible axle load) Front 930 kg (2,050 lbs) 965 kg (2,127 lbs)
Rear 840 kg (1,852 lbs) 835 kg (1,841 lbs)
(2.5-liter engine)
Item Weight
Manual transaxle Automatic transaxle
GVW (Gross Vehicle Weight) Total 1,815 kg (4,001 lbs) 1,845 kg (4,067 lbs)
Front 970 kg (2,138 lbs) 1,000 kg (2,205 lbs)
Rear 845 kg (1,863 lbs) 845 kg (1,863 lbs)
GAW (Permissible axle load) Front 970 kg (2,138 lbs) 1,000 kg (2,205 lbs)
Rear 850 kg (1,874 lbs) 850 kg (1,874 lbs)
10-8
Specifications
Mazda3_8BM6-EC-10F_Edition1 Page494
Monday, June 7 2010 2:35 PM
Form No.8BM6-EC-10F

Black plate (495,1)
5 Door
(2.3-liter turbocharged engine)Item Weight
GVWR (Gross Vehicle Weight Rating) 1,922 kg (4,237 lbs)
GAWR (Gross Axle Weight Rating) Front 1,062 kg (2,341 lbs)
Rear 860 kg (1,896 lbs)
(2.5-liter engine)
Item Weight
Manual transaxle Automatic transaxle
GVW (Gross Vehicle Weight) Total 1,835 kg (4,045 lbs) 1,860 kg (4,101 lbs)
Front 975 kg (2,149 lbs) 1,005 kg (2,216 lbs)
Rear 860 kg (1,896 lbs) 855 kg (1,885 lbs)
GAW (Permissible axle load) Front 975 kg (2,149 lbs) 1,005 kg (2,216 lbs)
Rear 865 kg (1,907 lbs) 860 kg (1,896 lbs)
q
Air Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
Specifications
10-9
Mazda3_8BM6-EC-10F_Edition1 Page495
Monday, June 7 2010 2:35 PM
Form No.8BM6-EC-10F

Black plate (496,1)
qLight Bulbs
Exterior light
Light bulb Category
Wattage ECE R (SAE)
Headlights Halogen High beam 60 HB3 (#9005)
Low beam 55 H11 (H11)
Xenon fusion bulb High/Low beam 35 D2S (D2S)
Daytime running lights (Canada)
í35 H8 (H8)
Front turn signal
lights/Front
side-marker
lights/Parking
lights Halogen/Xenon fusion bulb
(With daytime running lights)
27/8―(#7444NA)
Xenon fusion bulb
(Without daytime
running lights) Front turn signal
lights/Front side-marker
lights
Parking lights
5W5W (4CP)
Fog lights
íExcept 2.3-liter turbocharged engine 51HB4 (#9006)
2.3-liter turbocharged engine 55H11 (H11)
Side turn signal lights (Integrated with outside mirrors)
íLED*1― (― )
High-mount brake
light 4 Door
21W21W (1120)
5 Door Bulb type
18W16W (#921)
LED type LED
*1―(― )
Rear turn signal lights 21 WY21W (32CP)
Brake
lights/Taillights Bulb type 21/5 W21/5W (#7443)
LED type LED
*1―
(― )
Reverse lights 21 W21W (#7440)
License plate lights 5 W5W ( ―)
Rear side-marker lights
íLED*1― (― )
*1 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulb Category
Wattage ECE R
Trunk light (4 Door) 3 ―
Luggage compartment light (5 Door) 5 ―
Overhead light/Map lights (Front) 8 ―
Overhead light (Rear) 10 ―
Vanity mirror lights
í2 ―
10-10íSome models.
Specifications
Mazda3_8BM6-EC-10F_Edition1 Page496
Monday, June 7 2010 2:35 PM
Form No.8BM6-EC-10F

Black plate (497,1)
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-36.
Standard tire
(Except 2.3-liter turbocharged engine)
Tire size Inflation pressure
Front Rear
P205/55R16 89H 240 kPa (35 psi) 240 kPa (35 psi)
P205/50R17 88V 220 kPa (32 psi) 220 kPa (32 psi)
(2.3-liter turbocharged engine)
Tire size Inflation pressure
Front Rear
P225/40R18 88Y 240 kPa (35 psi) 230 kPa (34 psi)
Temporary spare tire
Tire size Inflation pressure
T115/70D15 90M 420 kPa (60 psi)
T125/70D16 96M 420 kPa (60 psi)
T125/70D17 98M 420 kPa (60 psi)
qFuses
Refer to the fuse rating on page 8-54.
Specifications
10-11
Mazda3_8BM6-EC-10F_Edition1 Page497
Monday, June 7 2010 2:35 PM
Form No.8BM6-EC-10F

Black plate (498,1)
Personalization Features
The following“Personalization Features ”are available. These settings can only be changed by an Authorized
Mazda Dealer.
Setting Available customization Initial Setting After Setting Change
Auto headlight on/off The headlight illumination on/off timing based
on the surrounding lightness/darkness can be
changed. 2000
―4000 lx 1000 ―2000 lx
Turn indicator The volume level of the turn indicator can be
changed. High Low/Deactivated
Key reminder
warning alarm The volume of the key reminder warning alarm
can be changed.
High
Low
Lights-on reminder
warning alarm
*1The volume of the lights-on reminder warning
alarm can be changed. High Low/Deactivated
Illumination entry The time required for the interior lamp to turn
off automatically after all the doors are closed
can be changed.
15 seconds 7.5/30/60 seconds
The function allowing the interior lamp to
illuminate automatically when the ignition is
switched off can be deactivated. Activated Deactivated
The function allowing the interior lamp to
illuminate automatically when the doors are
unlocked can be deactivated. Activated Deactivated
The time required for the interior lamp to turn
off automatically can be changed
(prevents battery depletion when a door is
open/ajar). 30 minutes 10/60 minutes
The time required for the interior lamp to
illuminate after unlocking any door can be
changed. 30 seconds 7.5/15/60 seconds
The function allowing the interior lamp to turn
off automatically when any door is opened
(or not securely closed) can be changed. Activated Deactivated
Smart turn The function allowing the turn signal lights to
flash three times with a momentary turn switch
operation (when changing lanes) can be
activated. Deactivated Activated
10-12
Personalization Features
Mazda3_8BM6-EC-10F_Edition1 Page498
Monday, June 7 2010 2:35 PM
Form No.8BM6-EC-10F

Black plate (499,1)
SettingAvailable customization Initial Setting After Setting Change
Power door locks The vehicle-speed-response auto lock function
can be deactivated.
Activated Deactivated
Locking/unlocking of the doors can be set in
conjunction with the selector lever position. Deactivated1. Not in Park (P)
position: Lock all
doors
Park (P) position:
Unlock all doors
2. Not in Park (P)
position: Lock all
doors
Park (P) position:
Unlock the driver's
door only
3. Not in Park (P)
position: Lock all
doors
Park (P) position:
Inoperable
The function for unlocking the doors
simultaneously when the ignition is switched
off can be changed. Unlock all doors
Unlock driver's
door/Inoperable
Keyless entry The method for unlocking doors using the
retractable key can be selected.
Press × 2 Press × 1
The time required for the doors to relock
automatically after unlocking with the
transmitter can be changed. 30 seconds 60/90 seconds
The function allowing the horn to sound
automatically when the doors are locked by
pressing the transmitter two times consecutively
can be deactivated. Activated Deactivated
The hazard warning lights can be deactivated so
that they do not flash when the doors are
locked/unlocked. Activated Deactivated
Personalization Features
10-13
Mazda3_8BM6-EC-10F_Edition1 Page499
Monday, June 7 2010 2:35 PM
Form No.8BM6-EC-10F
