4–74
When Driving
Brake
CAUTION



¾ When driving off -road in areas where there is grass or forage, it is recommended that the
Smart City Brake Support (SCBS) system be turned off .




¾ Always use tires for all wheels that are of the specifi ed size, and the same manufacturer,
brand, and tread pattern. In addition, do not use tires with signifi cantly diff erent wear
patterns on the same vehicle as the Smart City Brake Support (SCBS) system may not
operate normally.



¾ The laser sensor includes a function for detecting a soiled windshield and informing the
driver, however, depending on the conditions, it may not detect plastic shopping bags, ice
or snow on the windshield. In such cases, the system cannot accurately determine a vehicle
or obstruction ahead and may not be able to operate normally. Always drive carefully and
pay attention to the road ahead.
NOTE



y The Smart City Brake Support (SCBS) system will operate under the following
conditions.



y The engine is running.



y The Smart City Brake Support (SCBS) indicator light does not illuminate.



y The vehicle speed is between about 4 to 30 km/h (2 to 18 mph).



y The Smart City Brake Support (SCBS) system is not turned off.



y The DSC operation is not turned off using the DSC OFF switch.



y The DSC is not malfunctioning.



y The driver is not deliberately performing driving operations (accelerator pedal,
steering wheel, and braking operations).



y The Smart City Brake Support (SCBS) detects a vehicle ahead by emitting a near-infrared
laser beam and receiving the beam refl ected off the refl ector of the vehicle ahead, and
then using it for the measurement. Consequently, the Smart City Brake Support (SCBS)
may not operate under the following conditions:



y Refl ection of the laser is poor due to the shape of the vehicle ahead.



y The vehicle ahead is signifi cantly dirty.



y Under bad weather condition, such as rain, fog and snow.



y The window washer is being used or the windshield wipers are not used when it's
raining.



y The windshield is dirty.



y The steering wheel is turned completely left or right, or the vehicle is accelerated
rapidly and comes close to the vehicle ahead.



y Trucks with low loading platforms, vehicles traveling at extremely low speeds, and
vehicles with a high profi le.



y Vehicles with certain shapes such as a vehicle carrier.
/C\FCA&('#*A'FKVKQPKPFD

4–127
When Driving

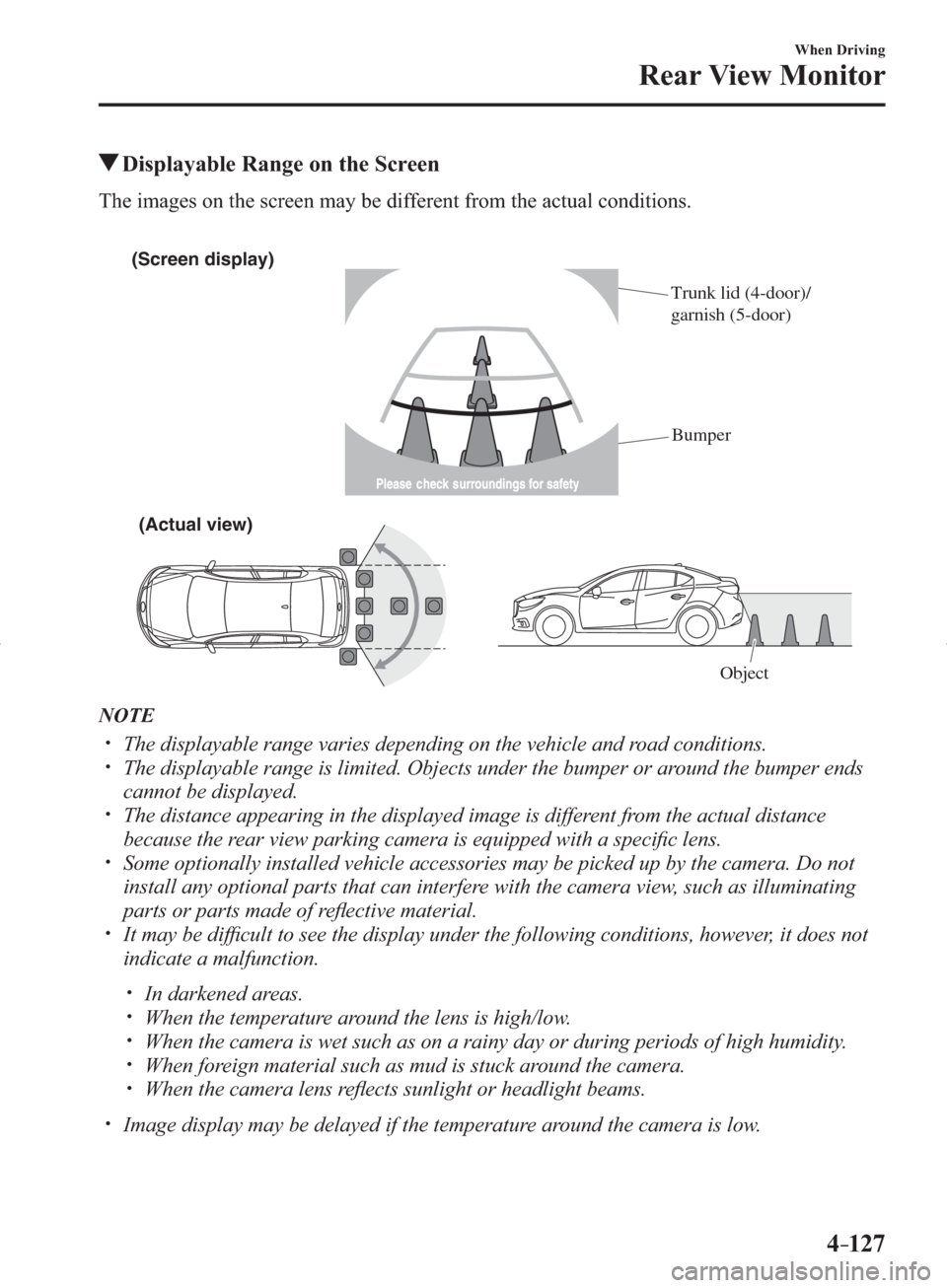

Rear View Monitor
Displayable Range on the Screen
The images on the screen may be different from the actual conditions.
(Screen display)
(Actual view)
Object Trunk lid (4-door)/
garnish (5-door)
Bumper
NOTE



y The displayable range varies depending on the vehicle and road conditions.



y The displayable range is limited. Objects under the bumper or around the bumper ends
cannot be displayed.



y The distance appearing in the displayed image is different from the actual distance
because the rear view parking camera is equipped with a specifi c lens.




y Some optionally installed vehicle accessories may be picked up by the camera. Do not
install any optional parts that can interfere with the camera view, such as illuminating
parts or parts made of refl ective material.



y It may be diffi cult to see the display under the following conditions, however, it does not
indicate a malfunction.



y In darkened areas.



y When the temperature around the lens is high/low.



y When the camera is wet such as on a rainy day or during periods of high humidity.



y When foreign material such as mud is stuck around the camera.



y When the camera lens refl ects sunlight or headlight beams.




y Image display may be delayed if the temperature around the camera is low.
/C\FCA&('#*A'FKVKQPKPFD

5–55
Interior Features
Audio System
Settings
Select the icon on the home screen and display the Settings screen.
Switch the tab and select the setting item you want to change.
You can customize settings in the setup display as follows:
Tab Item Function
AD-Disp Height
Brightness Control
Other Refer to Active Driving Display on page 4-19 .
Display Refer to Volume/Display/Sound Controls on page 5-42 .
Safety Smart City Brake Support
Blind Spot Monitoring Volume
Other Refer to Smart City Brake Support (SCBS) on
page 4-72 .
Refer to Blind Spot Monitoring (BSM) System
on page 4-108 .
Refer to Forward Obstruction Warning (FOW)
on page 4-116 .
Refer to Lane Departure Warning System
(LDWS) on page 4-119 .
Sound Refer to Volume/Display/Sound Controls on page 5-42 .
Vehicle Rain Sensing Wiper
Door Lock
Other Refer to Windshield Wipers on page 4-53 .
Refer to Auto Lock/Unlock Function on page
3-17 .
Refer to Transmitter on page 3-4 .
Refer to Locking, Unlocking with Request
Switch (With the advanced keyless function)
on page 3-13 .
Refer to Turn and Lane-Change Signals on
page 4-51 .
Refer to Illuminated Entry System on page
5-135 .
Refer to High Beam Control System (HBC) on
page 4-48 .
Refer to Lights-On Reminder on page 7-36 .
Refer to Headlights on page 4-41 .
Refer to Daytime Running Lights on page
4-47 .
Devices Bluetooth Refer to Bluetooth
® Preparation (Type B) on
page 5-92 .
Network Management Wi-Fi™ is used to obtain Navi POI/Real Time
Traffi c function (Such as gas prices, weather,
nearest restaurant)
/C\FCA&('#*A'FKVKQPKPFD

6–45
Maintenance and Care
Owner Maintenance
Light Bulbs
Overhead lights (Front)/
Map lights
Vanity mirror
lights
Headlights (Low/High beam)
Daytime running lights/
Parking lightsHeadlights (Low beam)
Headlights (High beam)/
Daytime running lights Fog lights
Fog lights Front side-marker lights
Front side-marker lights Side turn signal lights Side turn signal lightsOverhead lights (Front)/
Map lights
Vanity mirror
lights
Some models.
Front turn signal lights
Front turn signal lights
Brake lights (LED type)
Brake lights/Taillights/Rear
side-marker lights (Bulb type)
Taillights/Rear side-marker
lights (LED type)Taillights/Rear side-marker
lights (LED type)
Rear turn signal lights
Taillights (Trunk lid side)
Reverse lights
High-mount brake light
License plate lightsTrunk light
Overhead light (Rear)Overhead light (Rear)
Brake lights (LED type)Luggage
compartment light
Brake lights/Taillights/Rear
side-marker lights (Bulb type)
Rear turn signal lights
Taillights (Trunk lid side)
Reverse lights
High-mount brake light
License plate lights
4-Door 5-DoorWith Xenon Fusion Headlights
With Halogen Headlights
/C\FCA&('#*A'FKVKQPKPFD

6–46
Maintenance and Care
Owner Maintenance
WARNING
Do not replace the xenon fusion bulbs
yourself:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement is
necessary.

Never touch the glass portion of a
halogen bulb with your bare hands
and always wear eye protection when
handling or working around the bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it will
explode and serious injuries could be
caused by the fl ying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.

Always keep halogen bulbs out of the
reach of children:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
NOTE



y To replace the bulb, contact an
Authorized Mazda Dealer.



y If the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.



y Use the protective cover and carton for
the replacement bulb to dispose of the
old bulb promptly and out of the reach
of children.
Replacing Exterior Light Bulbs
Headlights (With xenon fusion
headlights)
Low/High beam bulbs
You cannot replace the low/high beam
bulbs by yourself. The bulbs must be
replaced at an Authorized Mazda Dealer.
Headlights (With halogen headlights)
Low-beam bulbs
1. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the left, and turn off engine.
If you are changing the left bulb, turn
the steering wheel to the right, and turn
off engine.
2. Make sure the headlight switch is off.
3. Pull the center of each plastic retainer
and remove the retainers.
Removal
Installation
/C\FCA&('#*A'FKVKQPKPFD

*Some models.6–60
Maintenance and Care
Owner Maintenance
Fuse Panel Description
Fuse block (Engine compartment)
Multiplex slow blow fuse
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 FOG 15 A Fog lights
*
2 H/L HI 20 A Headlight high beam *
3 H/CLEAN 20 A —
4 STOP 10 A Brake lights
5 ROOM 15 A Overhead light
6
7.5 A Engine control system
7 FUEL WARM — —
8 HAZARD 25 A Hazard warning fl ashers, Turn signal lights
9 ABS/DSCS 30 A ABS, Dynamic stability control system
10 METER2 — —
11 AUDIO2 7.5 A Audio system
12 BOSE 25 A Bose
® Sound System-equipped model *
13 AUDIO1 15 A Audio system
14 FUEL PUMP 15 A Fuel system
15 HID R
D R L 15 A Headlight (RH)
*1 , Daytime running lights *
16 AT PUMP — —
17 HORN 15 A Horn
18 TAIL 15 A Taillights, License plate lights, Parking lights, Front side-marker
lights
/C\FCA&('#*A'FKVKQPKPFD

*Some models.6–61
Maintenance and Care
Owner Maintenance
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
19 — — —
20 AT 15 A Transaxle control system
21 R.WIPER 15 A Rear window wiper
*
22 A/C 7.5 A Air conditioner
23 ENGINE3 15 A Engine control system
24 ENGINE2 15 A Engine control system
25 ENGINE1 15 A Engine control system
26 GLOW SIG — —
27 EVVT 20 A Engine control system
28 WIPER 20 A Front window wiper and washer
29 DCDC REG — —
30 — — —
31 ADD FAN DE — —
32 P.WINDOW1 30 A Power windows
33 H/L LOW R 15 A Headlight low beam (RH)
*2
34 H/L LOW L
HID L 15 A Headlight (LH) *1 , Headlight low beam (LH) *2
35 METER1 10 A Instrument cluster
36 IG2 30 A For protection of various circuits
37 — — —
38 FAN DE — —
39 DCDC DE — —
40 SRS1 7.5 A Air bag
41 ENGINE. IG1 15 A Engine control system
42 C/U IG1 15 A For protection of various circuits
43 — — —
*1 With xenon fusion headlights
*2 With halogen headlights
/C\FCA&('#*A'FKVKQPKPFD

*Some models.7–29
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Signal Warning
(Amber)
(Flashes)
Lane Departure
Warning System
(LDWS) Warning
Light
*
The warning light fl ashes when the system has a malfunction. Have your vehicle inspected
at an Authorized Mazda Dealer. The LDWS does not operate when the warning light fl ashes.
CAUTION
¾ If any of the following cases occurs, the system may have a malfunction. Have the
vehicle inspected at an Authorized Mazda Dealer.

¾ The light fl ashes while the vehicle is being driven.
¾ The light does not illuminate when the ignition is switched ON.
¾ Always use tires for all wheels that are of the specifi ed size, and the same manufacture,
brand, and tread pattern. In addition, do not use tires with signifi cantly diff erent
wear patterns on the same vehicle. If such improper tires are used, the LDWS may not
operate normally.
¾ When an emergency spare tire is used, the system may not operate normally.
(Amber)
High Beam Control
System (HBC)
Warning Light
*
When illuminated
The warning light illuminates if the area of the windshield in front of the forward sensing
camera (FSC) is fogged or obstructed.
When fl ashing
This light fl ashes if there is a malfunction in the high beam control system (HBC). Have
your vehicle inspected by an Authorized Mazda Dealer.
(Amber)
(Flashing)
Mazda Radar
Cruise Control
(MRCC) Warning
Light
*
The warning light fl ashes if there is a malfunction in the system while the Mazda Radar
Cruise Control (MRCC) system is on. Have your vehicle inspected at an Authorized Mazda
Dealer.
/C\FCA&('#*A'FKVKQPKPFD

*Some models.9–9
Specifi cations
Specifi cations
Light Bulbs
Exterior light
Light bulb Category
Wattage ECE R (SAE)
Headlights Halogen High beam 65 HB3 (9005)
Low beam 55 H11 (H11)
Xenon fusion High/Low beam 35 D4S (D4S)
Daytime running lights With halogen bulb headlights 65 HB3 (9005)
With xenon fusion bulb headlights LED
*1 — (—)
Parking lights (Front side-
marker lights) With halogen bulb headlights 5 WY5W (—)
Front side-marker lights With xenon fusion bulb headlights 5 W5W (—)
Parking lights With xenon fusion bulb headlights LED
*1 — (—)
Front turn signal lights 21 WY21W
(7443NA)
Fog lights
* 55 H11 (H11)
Side turn signal lights * LED *1 — (—)
High-mount brake light LED *1 — (—)
Rear turn signal lights 21 WY21W
(7443NA)
Brake lights/Taillights/Rear
side-marker lights LED type LED
*1 — (—)
Bulb type 21/5 W21/5W (7443)
Taillights (Liftgate side/Trunk lid side)
* LED *1 — (—)
Reverse lights 4–Door 18 W16W (921)
5–Door 21 W21W (7440)
License plate lights 5 W5W (—)
*1 LED is the abbreviation for Light Emitting Diode.
/C\FCA&('#*A'FKVKQPKPFD

9–13
Specifi cations
Personalization Features
Item Feature Factory Setting Available Settings
Advanced keyless
entry system The volume of the answer-back beep during
advanced keyless entry system operation can
be changed.
Refer to Locking, Unlocking with Request
Switch (With the advanced keyless function)
on page 3-13 .
Refer to Settings on page 5-55 . Medium High/
Medium/
Low/
Off
The function to automatically lock the doors
when leaving the vehicle while carrying the
key can be changed.
Refer to Settings on page 5-55 . Off On/Off
The method for unlocking the doors using the
request switch/transmitter can be changed.
Refer to Locking, Unlocking with Request
Switch, Door Handle (With the advanced
keyless function) on page 3-13
Refer to Transmitter on page 3-4 .
Refer to Settings on page 5-55 . Once: Driver's
Twice: All Doors Once: All Doors/
Once: Driver's Twice:
All Doors
The time required for the doors to relock
automatically after unlocking with the request
switch/transmitter can be changed.
Refer to Settings on page 5-55 . 60 seconds 90 seconds/
60 seconds/
30 seconds
Illumination entry The time required for the interior lamp to turn
off automatically can be changed (prevents
battery depletion when a door is open/ajar).
Refer to Settings on page 5-55 . 30 minutes 60 minutes/
30 minutes/
10 minutes
The time required for the interior lamp to turn
off automatically after all doors are closed can
be changed.
Refer to Settings on page 5-55 . 15 seconds 60 seconds/
30 seconds/
15 seconds/
7.5 seconds
Three-fl ash turn
signal The three-fl ash turn function can be changed.
Refer to Settings on page 5-55 . On On/Off
Auto-wiper control The auto-wiper control function can be
changed.
Refer to Settings on page 5-55 . On On/Off
Auto headlight off
*1 The time required for headlights to turn off
after ignition is switched off can be changed.
Refer to Settings on page 5-55 . 30 seconds 120 seconds/
90 seconds/
60 seconds/
30 seconds/
Off
*2
Auto-light control The headlight illumination on/off timing based
on surrounding lightness/darkness can be
changed.
Refer to Settings on page 5-55 . Medium Light/
Medium Light/
Medium/
Medium Dark/
Dark
High Beam Control
System (HBC) The High Beam Control System (HBC)
function can be changed.
*3
Refer to Settings on page 5-55 . On On/Off
Turn indicator The turn indicator beep volume level can be
changed.
Refer to Settings on page 5-55 . High High/Low
/C\FCA&('#*A'FKVKQPKPFD
