Page 116 of 585
*Some models.3–43
Before Driving
Security System
Theft-Deterrent System *
If the theft deterrent system detects an
inappropriate entry into the vehicle,
which could result in the vehicle or its
contents being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and fl ashing the hazard
warning lights.
The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
Operation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights fl ash for about 30
seconds when the system is triggered by
any one of the following:
y Unlocking a door with the key, door
lock switch, or an inside door-lock knob.
y Forcing open a door, the hood or the
liftgate/trunk lid.
y Opening the hood by operating the hood
release handle.
y Switching the ignition ON without using
the push button start.
If the system is triggered again, the lights
and horn will activate until the driver's
door or the liftgate/trunk lid is unlocked
with the transmitter.
(With advanced key)
The lights and horn can also be
deactivated by pressing the request switch
on a door.
NOTE
If the battery goes dead while the theft-
deterrent system is armed, the horn will
activate and the hazard warning lights
will fl ash when the battery is charged or
replaced.
How to Arm the System
1. Close the windows and the moonroof *
securely.
2. Press the push button start off.
3. Make sure the hood, the doors, and the
liftgate/trunk lid are closed.
4. Press the lock button on the transmitter
or lock the driver's door from the
outside with the auxiliary key.
The hazard warning lights will fl ash
once.
The following method will also arm the
theft-deterrent system:
Press the door-lock switch “
” while
any door is open and then close all of
the doors.
(With the advanced keyless function)
Press a request switch.
The security indicator light in the
instrument panel fl ashes twice per
second for 20 seconds.
5. After 20 seconds, the system is fully
armed.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 117 of 585
3–44
Before Driving
Security System
NOTE
y The theft deterrent system can also be
armed by activating the auto relock
function with all the doors, the liftgate/
trunk lid and the hood closed.
Refer to Transmitter on page 3-4 .
y The system will disarm if one of the
following operations takes place within
20 seconds after pressing the lock
button:
y Unlocking any door.
y Opening any door or the liftgate/
trunk lid.
y Opening the hood.
y Switching the ignition on.
y (With the advanced keyless
function)
Pressing the electric liftgate/trunk lid
opener while the key is being carried.
To rearm the system, do the arming
procedure again.
y When the doors are locked by pressing
the lock button on the transmitter
or using the auxiliary key while the
theft-deterrent system is armed, the
hazard warning lights will fl ash once to
indicate that the system is armed.
To Turn Off an Armed System
An armed system can be turned off using
any one of the following methods:
y Pressing the unlock button on the
transmitter.
y Switching the ignition ON.
y (With the advanced keyless function)
y
Pressing a request switch on the doors.
The hazard warning lights will fl ash twice.
NOTE
When the doors are unlocked by pressing
the unlock button on the transmitter while
the theft-deterrent system is turned off, the
hazard warning lights will fl ash twice to
indicate that the system is turned off.
To Stop the Alarm
A triggered alarm can be turned off using
any one of the following methods:
y Pressing the unlock button on the
transmitter.
y Starting the engine with the push button
start.
y (With the advanced keyless function)
y
Pressing a request switch on the doors.
y
Pressing the electric liftgate/trunk lid
opener while the key is being carried.
The hazard warning lights will fl ash twice.
Theft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the glove compartment.
Mazda recommends that you affi x it to the
lower rear corner of a front door window.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 119 of 585
3–46
Before Driving
Driving Tips
Hazardous Driving
WARNING
Be extremely careful if it is necessary to
downshift on slippery surfaces:
Downshifting into lower gear
while driving on slippery surfaces is
dangerous. The sudden change in tire
speed could cause the tires to skid. This
could lead to loss of vehicle control
and an accident.
When driving on ice or in water, snow,
mud, sand, or similar hazards:
y Be cautious and allow extra distance for
braking.
y Avoid sudden braking and sudden
maneuvering.
y Do not pump the brakes. Continue to
press down on the brake pedal.
Refer to Antilock Brake System (ABS)
on page 4-79 .
y If you get stuck, select a lower gear and
accelerate slowly. Do not spin the front
wheels.
y For more traction in starting on slippery
surfaces such as ice or packed snow,
use sand, rock salt, chains, carpeting, or
other nonslip material under the front
wheels.
NOTE
Use snow chains only on the front wheels.
Floor Mat
WARNING
Make sure the fl oor mats are hooked on
the retention pins to prevent them from
bunching up under the foot pedals:
Using a fl oor mat that is not secured is
dangerous as it will interfere with the
accelerator and brake pedal operation,
which could result in an accident.
Do not install two fl oor mats, one on top
of the other, on the driver's side:
Installing two fl oor mats, one on top
of the other, on the driver's side is
dangerous as the retention pins can
only keep one fl oor mat from sliding
forward.
In using a heavy duty fl oor mat for
winter use always remove the original
fl oor mat.
Loose fl oor mat(s) will interfere with
the foot pedal and could result in an
accident.
When setting a fl oor mat, position the fl oor
mat so that its grommets are inserted over
the pointed end of the retention posts.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 121 of 585
3–48
Before Driving
Driving Tips
NOTE
y Do not use the parking brake in
freezing weather as it may freeze.
Instead, shift to P with an automatic
transaxle and to 1 or R with a manual
transaxle. Block the rear wheels.
y Remove snow before driving. Snow left
on the windshield is dangerous as it
could obstruct vision.
y Do not apply excessive force to a
window scraper when removing ice or
frozen snow on the mirror glass and
windshield.
y Never use warm or hot water for
removing snow or ice from windows
and mirrors as it could result in the
glass cracking.
y Drive slowly. Braking performance
can be adversely affected if snow or
ice adheres to the brake components. If
this situation occurs, drive the vehicle
slowly, releasing the accelerator pedal
and lightly applying the brakes several
times until the brake performance
returns to normal.
Snow Tires
Use snow tires on all four wheels
Do not go faster than 120 km/h (75 mph)
while driving with snow tires. Infl ate snow
tires 30 kPa (0.3 kgf/cm
2 , 4.3 psi) more
than recommended on the tire pressure
label (driver's door frame), but never
more than the maximum cold-tire pressure
shown on the tires.
The vehicle is originally equipped with
all season radials designed to be used all
year around. In some extreme climates you
may fi nd it necessary to replace them with
snow tires during the winter months to
further improve traction on snow and ice
covered roads.
WARNING
Use only the same size and type tires
(snow, radial, or non-radial) on all four
wheels:
Using tires diff erent in size or type is
dangerous. Your vehicle's handling
could be greatly aff ected and result in
an accident.
CAUTION
Check local regulations before using
studded tires.
Tire Chains
Check local regulations before using tire
chains.
CAUTION
¾ Chains may aff ect handling.
¾ Do not go faster than 50 km/h (30
mph) or the chain manufacturer's
recommended limit, whichever is lower.
¾ Drive carefully and avoid bumps, holes,
and sharp turns.
¾ Avoid locked-wheel braking.
¾ Do not use chains on a temporary spare
tire; it may result in damage to the
vehicle and to the tire.
¾ Do not use chains on roads that are free
of snow or ice. The tires and chains could
be damaged.
¾ Chains may scratch or chip aluminum
wheels.
NOTE
The tire pressure monitoring system may
not function correctly when using tire
chains.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 126 of 585
*Some models.4–1
4When Driving
Information concerning safe driving and stopping.
Start/Stop Engine ................................ 4-4
Ignition Switch ............................... 4-4
Starting the Engine ......................... 4-5
Turning the Engine Off ................ 4-10
Instrument Cluster and Display ...... 4-12
Meters and Gauges ....................... 4-12
Active Driving Display
* ............... 4-19
Warning/Indicator Lights ............. 4-21
Transaxle ............................................ 4-27
Manual Transaxle Operation ........ 4-27

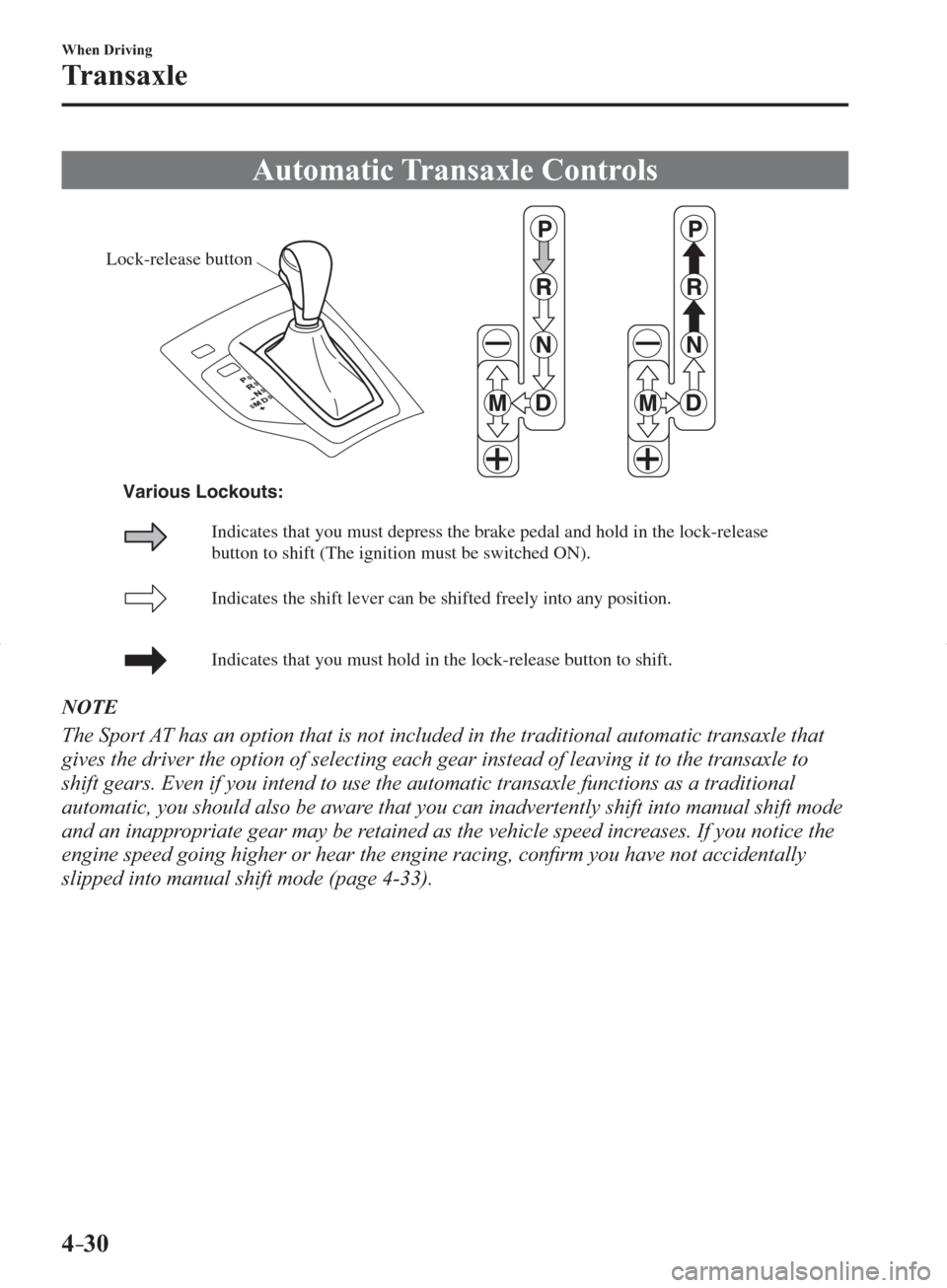

Automatic Transaxle Controls ...... 4-30
Switches and Controls ...................... 4-41
Lighting Control ........................... 4-41
High Beam Control System
(HBC)
* ......................................... 4-48
Fog Lights* ................................... 4-51
Turn and Lane-Change Signals ...... 4-51
Windshield Wipers and Washer ...... 4-52
Rear Window Wiper and
Washer
* ........................................ 4-56
Rear Window Defroster ............... 4-56
Horn ............................................. 4-58
Hazard Warning Flasher ............... 4-58
HomeLink Wireless Control
System
* ......................................... 4-59
Forward Sensing Camera ................. 4-63
Forward Sensing Camera
* ............ 4-63
Radar Sensor ..................................... 4-65
Radar Sensor ................................ 4-65 Brake .................................................. 4-68
Brake System ............................... 4-68
Hill Launch Assist (HLA) ............ 4-70
Smart City Brake Support
(SCBS)
* ........................................ 4-72
ABS/TCS/DSC ................................... 4-79
Antilock Brake System (ABS) ...... 4-79
Traction Control System (TCS) ...... 4-80
Dynamic Stability Control
(DSC) ........................................... 4-81
i-ELOOP ............................................ 4-83
i-ELOOP
* ..................................... 4-83
Fuel Economy Monitor ..................... 4-86
Fuel Economy Monitor
* ............... 4-86
Drive Selection ................................... 4-88
Drive Selection
* ........................... 4-88
Power Steering................................... 4-90
Power Steering ............................. 4-90
Mazda Radar Cruise Control
(MRCC) ............................................. 4-91
Mazda Radar Cruise Control
(MRCC) ....................................... 4-91
Cruise Control ................................. 4-100
Cruise Control
* ........................... 4-100
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 129 of 585
4–4
When Driving
Start/Stop Engine
Ignition Switch
Push Button Start Positions
The system operates only when the driver
is in the vehicle or within operational
range while the key is being carried.
Each time the push button start is pressed,
the ignition switches in the order of off,
ACC, and ON. Pressing the push button
start again from ON switches the ignition
off.
Indicator light
NOTE
y The engine starts by pressing the push
button start while depressing the clutch
pedal (manual transaxle) or the brake
pedal (automatic transaxle). To switch
the ignition position, press the push
button start without depressing the
pedal.
y Do not leave the ignition switched ON
while the engine is not running. Doing
so could result in the battery going
dead. If the ignition is left in ACC (For
automatic transaxle, the selector lever
is in the P position, and the ignition
is in ACC), the ignition switches off
automatically after about 25 minutes. off
The power supply to electrical devices
turns off and the push button start indicator
light (amber) also turns off.
This position is in which the steering
wheel is locked.
WARNING
Before leaving the driver's seat, always
switch the ignition off , set the parking
brake, and make sure the selector lever
is in P (automatic transaxle) or in 1st
gear or R (manual transaxle):
Leaving the driver's seat without
switching the ignition off , setting the
parking brake, and shifting the selector
lever to P (automatic transaxle) or
to 1st gear or R (manual transaxle)
is dangerous. Unexpected vehicle
movement could occur which could
result in an accident.
In addition, if your intention is to leave
the vehicle for even a short period, it
is important to switch the ignition off ,
as leaving it in another position will
disable some of the vehicle's security
systems and run the battery down.
ACC (Accessory)
Some electrical accessories will operate
and the indicator light (amber) illuminates.
NOTE
The keyless entry system does not function
while the push button start has been
pressed to ACC, and the doors will not
lock/unlock even if they have been locked
manually.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 134 of 585
4–9
When Driving
Start/Stop Engine
3. Verify that the push button start
indication light (green) fl ashes.
NOTE
The push button start indicator light
(green) will fl ash even if the push button
start is pressed before depressing the
brake pedal (automatic transaxle) or
the clutch pedal (manual transaxle). If
the clutch pedal is depressed (manual
transaxle) or the brake pedal is depressed
(automatic transaxle) under this condition,
the engine can be started by resuming the
procedure following this.
4. Touch the push button start using the
backside of the key (as shown) while
the push button start indicator light
(green) fl ashes.
Transmitter
NOTE
When touching the push button start using
the backside of the key as shown in the
illustration, touch the push button start
with the lock switch side of the key facing
up.
5. Verify that the push button start
indicator light (green) turns on.
6. Press the push button start to start the
engine.
NOTE
y The engine cannot be started unless the
clutch pedal is fully depressed (manual
transaxle) or the brake pedal is fully
depressed (automatic transaxle).
y If there is a malfunction with the push
button start function, the push button
start indicator light (amber) fl ashes.
In this case, the engine may start,
however, have the vehicle checked at an
Authorized Mazda Dealer as soon as
possible.
y If the push button start indicator light
(green) does not illuminate, perform the
operation from the beginning again. If
it does not illuminate, have the vehicle
checked at an Authorized Mazda
Dealer.
y To switch the ignition position without
starting the engine, perform the
following operations after the push
button start indicator light (green) turns
on.
1. Release the clutch pedal (manual
transaxle) or brake pedal (automatic
transaxle).
2. Press the push button start to switch
the ignition position. The ignition
switches in the order of ACC, ON,
and off each time the push button
start is pressed. To switch the
ignition position again, perform the
operation from the beginning.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 141 of 585
*Some models.4–16
When Driving
Instrument Cluster and Display
Dashboard Illumination
Rotate the knob to adjust the brightness
of the instrument cluster and other
illuminations in the dashboard.
NOTE
y The brightness of dashboard
illuminations can be adjusted when
the headlights and Parking lights are
turned on.
y When the dashboard illumination
brightness cannot be adjusted any
more, a beep sound will be heard.
Dim
Bright
Canceling the illumination dimmer
When the headlight switch is in the
or
position, the illumination of the
instrument cluster dims.
When driving on snowy or foggy roads,
or in other situations when the instrument
cluster's visibility is reduced due to glare
from surrounding brightness, cancel the
illumination dimmer and increase the
illumination intensity.
To cancel the illumination dimmer, rotate
the knob clockwise fully. You will hear a
beep sound and the illumination dimmer
will be canceled.
NOTE
y This symbol () indicates the knob to
adjust the brightness of the dashboard
illumination.
y If the dashboard illumination knob is
kept at the illumination dimmer cancel
position, the instrument cluster will not
dim when the headlight switch is turned
to the
or position again. Rotate
the dashboard illumination knob
counterclockwise to activate the
illumination dimmer.
Outside Temperature Display *
When the ignition is switched ON, the
outside temperature is displayed.
NOTE
y Under the following conditions, the
outside temperature display may differ
from the actual outside temperature
depending on the surroundings and
vehicle conditions:
y Signifi cantly cold or hot
temperatures.
y Sudden changes in outside
temperature.
y The vehicle is parked.
y The vehicle is driven at low speeds.
The outside temperature unit can be
switched between Celsius and Fahrenheit
using the following procedure.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 155 of 585
4–30
When Driving
Transaxle
Automatic Transaxle Controls
Lock-release button
Indicates the shift lever can be shifted freely into any position.
Indicates that you must hold in the lock-release button to shift.
Indicates that you must depress the brake pedal and hold in the lock-release
button to shift (The ignition must be switched ON).
Various Lockouts:
NOTE
The Sport AT has an option that is not included in the traditional automatic transaxle that
gives the driver the option of selecting each gear instead of leaving it to the transaxle to
shift gears. Even if you intend to use the automatic transaxle functions as a traditional
automatic, you should also be aware that you can inadvertently shift into manual shift mode
and an inappropriate gear may be retained as the vehicle speed increases. If you notice the
engine speed going higher or hear the engine racing, confi rm you have not accidentally
slipped into manual shift mode (page 4-33 ).
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
Page 156 of 585
4–31
When Driving
Transaxle
Shift Position Indication
This indicates the selected shift position.
Gear position indication
In manual shift mode, the “M” of the shift
position indication illuminates and the
numeral for the selected gear is displayed.
Warning Light
The warning light turns on when the
system has a malfunction.
Refer to Warning Lights on page 4-22 .
Transaxle Ranges
y The shift position indicator light in the
instrument cluster illuminates. Refer to
Warning/Indicator Lights on page 4-21 .
y The selector lever must be in P or N to
operate the starter.
P (Park)
P locks the transaxle and prevents the front
wheels from rotating.
WARNING
Always set the selector lever to P and set
the parking brake:
Only setting the selector lever to the
P position without using the parking
brake to hold the vehicle is dangerous.
If P fails to hold, the vehicle could move
and cause an accident.
CAUTION
¾ Shifting into P, N or R while the vehicle is
moving can damage your transaxle.
¾ Shifting into a driving gear or reverse
when the engine is running faster than
idle can damage the transaxle.
R (Reverse)
In position R, the vehicle moves only
backward. You must be at a complete
stop before shifting to or from R, except
under rare circumstances as explained in
Rocking the Vehicle (page 3-47 ).
N (Neutral)
In N, the wheels and transaxle are not
locked. The vehicle will roll freely even
on the slightest incline unless the parking
brake or brakes are on.
WARNING
If the engine is running faster than idle,
do not shift from N or P into a driving
gear:
It's dangerous to shift from N or P
into a driving gear when the engine
is running faster than idle. If this is
done, the vehicle could move suddenly,
causing an accident or serious injury.
Do not shift into N when driving the
vehicle:
Shifting into N while driving is
dangerous. Engine braking cannot
be applied when decelerating which
could lead to an accident or serious
injury.
/ C \ F C A & ( ' # * A ' F K V K Q P K P F D
